2.4Ghz Ergo Laser Mouse
v1
R3
RF-MSE14
User Guide
2.4Ghz Ergo Laser Mouse
Contents
Introduction ................................................................. 4
Features ......................................................................... 4
Package contents ................................................ 4
System requirements......................................... 4
Top............................................................................ 5
Bottom .................................................................... 7
Setting up the mouse ............................................... 8
Installing the battery.......................................... 8
Setting up the mouse ......................................11
Installing the mouse driver and software 12
Configuring the Mouse...................................18
Uninstalling the mouse driver and software25
Maintaining ................................................................26
Troubleshooting.......................................................27
2
Specifications ............................................................ 27
Legal notices.............................................................. 28
One-year limited warranty ................................... 31
Important safety instructions
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with a dry cloth.
7 Batteries should not be exposed to excessive heat such
as sunshine, fire, or the like.
8 Caution: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
RF-MSE14
3
Introduction
Congratulations on your purchase of the 2.4Ghz Ergo Laser
Mouse. This mouse represents the state of the art in wireless
mouse design and is designed for reliable and trouble-free
performance.
Features
•Nano dongle
• 2.4 GHz wireless connection
•Tilt/scroll wheel
• Six mouse buttons
• Excellent performance working range of more than 32.8
feet (10 meters) (with no interference)
• Four LED indicators
Package contents
•Mouse
•Nano dongle
• Installation CD (includes software and User Guide)
•AA battery
• Quick Setup Guide
System requirements
• USB port (USB 2.0 OR 1.1)
•CD drive
• Operating system: Windows® XP with Service Pack 3 or
higher, Windows Vista®, or Windows® 7
4
To p
123
567 8 9
# Item Description
C button Press to go to the previous page in a Web browser.
1
B button Press to activate dynamic search. You must install
2
A button Press to go to the next page in a Web browser.
3
Left button Press to perform standa rd left-mouse actions such
4
DPI button Press to select the screen resolutio n. You can
5
Battery LED Lights red when the battery is low.
6
the mouse driver to use this featu re.
as selecting items and opening programs.
select 800 dpi, 1200 dpi, or 1600 dpi.
4
RF-MSE14
5
# Item Description
DPI LED Indicates the current DPI
7
Scroll wheel Roll to move t he scre en imag e up or d own or t ilt to
8
Right button Press to perform standard right mouse actions
9
setting.
One LED lit— DPI is set to 800 .
Two LEDs lit— DPI is set to 1200.
Three LEDs lit— DPI is set to 1600.
move the screen left or right. If you press down on
the scroll wheel, a four- way icon app ears on the
screen. Move the mouse up, down, left, or right to
scroll.
such as open ing popup menus or vie wing help
information.
6
Bottom
123
# Item Description
Battery comparntment Provides storage for the battery and dongle.
1
Laser sensor Detects the mouse movements and sends signals
2
Power button Slide to turn the mouse on or off.
3
OFF
to the computer to move the mouse pointer on the
screen.
RF-MSE14
7
Setting up the mouse
Installing the battery
To install the battery:

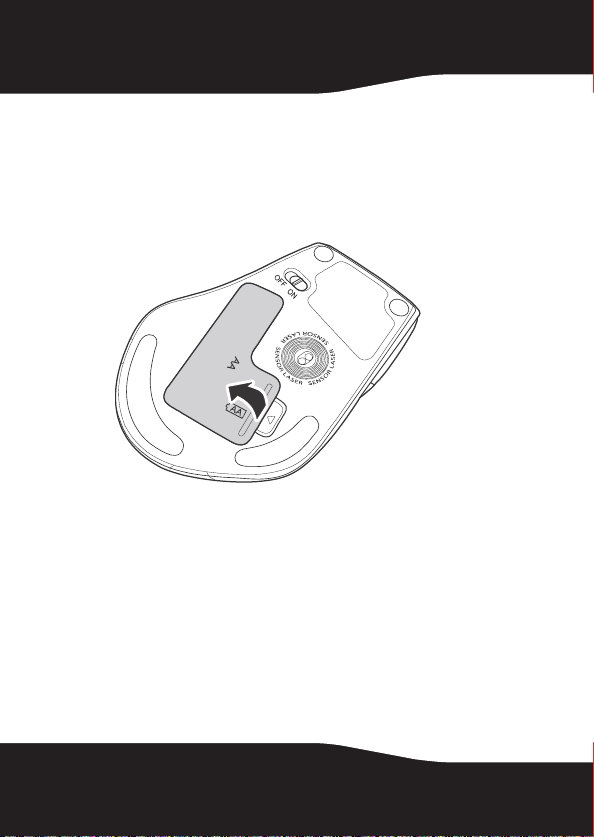

1 Press the tab on the battery compartment cover, then lift
the cover away from the mouse.
8

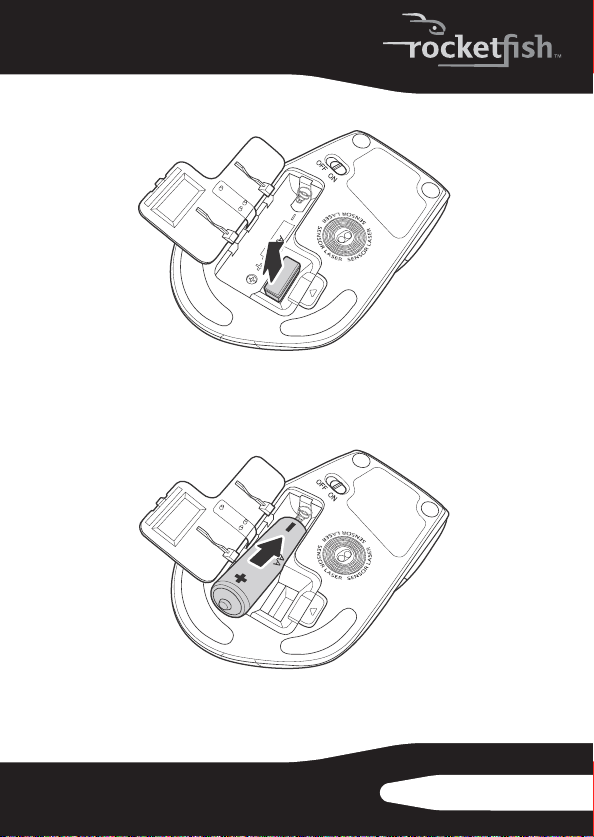

2 Pull the dongle out of the battery compartment.
3 Insert one AA battery into the battery compartment.
Make sure that the + and – symbols on the battery match
the + and – symbols in the battery compartment.
p
RF-MSE14
9
4 Replace the battery compartment cover.
p
10
