Nano Laptop Laser Mouse
R3
RF-NANMSE
User Guide
Rocketfish RF-NANMSE
Nano Laptop Laser Mouse
Contents
Introduction ...................................................................... 3
Features .............................................................................. 3
Using the mouse............................................................12
Maintaining .....................................................................20
Troubleshooting ............................................................20
Specifications.................................................................. 21
Legal notices ...................................................................22
One-year limited warranty.........................................23
Introduction
Congratulations on your purchase of the Rocketfish RF-NANMSE
nano laptop laser mouse. This mouse represents the state of the art in
wireless mouse design and is designed for reliable and trouble-free
performance.
Features
•Mini dongle
• 2.4 GHz wireless connection
• Tilt/scroll wheel
• Five mouse buttons
• Excellent performance working range of more than 32.8 feet (10 meters)
(with no interference)
• Dual-color status LED indicator
3RF-NANMSE
Package contents
•Mouse
• Receiver
• Installation CD (includes software and User Guide)
•User Guide
• AA battery
System requirements
• At least one USB port (USB 2.0 or 1.1)
•CD drive
• Operating system: Windows® 2000, Windows® XP with Service Pack 1 or
higher, or Windows Vista®
4
To p
1 2 3 4
5 6
# Component Description
1 LED indicator Indicates the current mouse state.
2 Button B Press to go to the next page in a Web browser.
3 Button A Press to go to the previous page in a Web browser.
4 Left button Press to perform standard left mouse actions such as se lecting items and
5 Scroll wheel Roll the scroll wheel to move the screen image up or down, and tilt the scroll
6 Right button Press to perform standard right mouse actions such as opening popup menus
• Off—The mouse is turned off.
• Green—The mouse is turned on and the battery has a charge.
• Flashing red—The battery charge is low and the battery needs to be
replaced.
opening programs.
wheel to move the screen image left or right.
If you press down on the scroll wheel, a four-way icon appears on the screen.
Then move the mouse up, down, left, or right to scroll.
or viewing help information.
Note: The A and B buttons are programmable. You need to install the mouse drive to
program the buttons and to use the full functionality of the mouse. For more
information, see “Installing the mouse driver and software” on page 10.
5RF-NANMSE
Bottom
7 8
# Component Description
7 Power button Turns the mouse on or off.
8 Battery compartment Provides storage for the dongle and battery.
9 Laser s ensor Detects m ouse movements and sen ds signals to the la ptop to move the mous e
pointer on the screen.
9
6
Setting up the mouse
Installing the battery
To install the battery:
1 Press the tab on the battery compartment cover, then lift the cover away
from the mouse.
2 Pull the dongle out of the battery compartment.
7RF-NANMSE
3 Insert one AA battery into the battery compartment. Make sure that the
+ and – symbols on the battery match the + and – symbols in the battery
compartment.
4 Replace the battery compartment cover.
2
1
8
Setting up the mouse
To set up the mouse:
1 Plug the USB dongle into a USB port on the laptop.
2 Slide the power button on the bottom of the mouse down to turn on the
mouse. The laptop detects the mouse.
1
2
9RF-NANMSE
Installing the mouse driver and software
To use advanced functions, such as dynamic search and magnifier,
you need to install the mouse driver and software.
Note: The following instructions are based on the Windows® XP operating system.
To install the mouse driver and software:
1 Make sure that you have connected the dongle, installed the battery,
and turned on the mouse.
2 Insert the provided installation CD in the CD drive on the laptop. The
installation program should start automatically. If it does not start
automatically, open Windows Explorer, browse the CD, then double-click
autorun.exe. The Rocketfish Nano Laptop Laser Mouse screen opens.

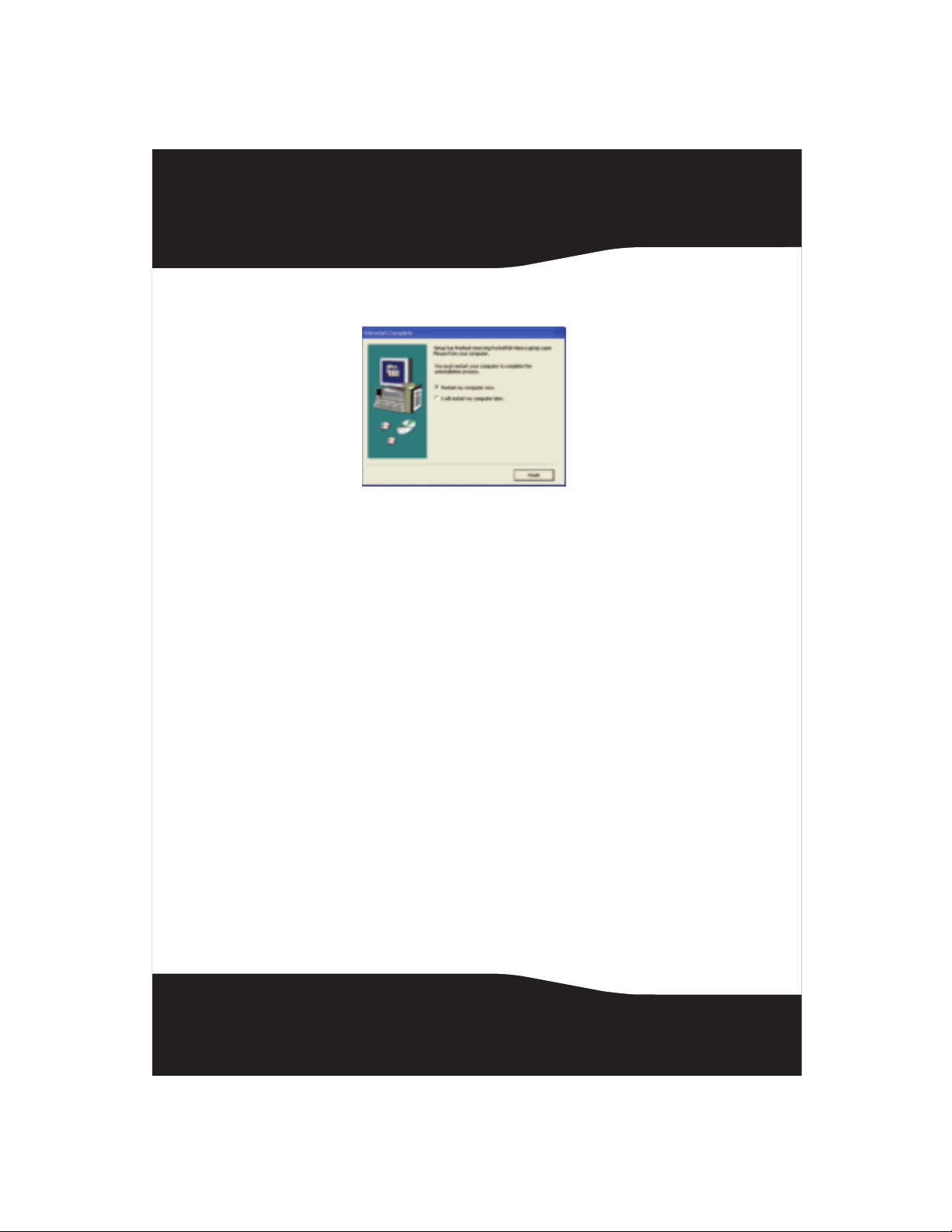

3 Click Install Mouse Driver. The Welcome screen opens.
10
4 Click Next. The Start Installation screen opens.
5 Click Next. A installation progress bar appears.
When the installation is complete, the Setup Complete screen opens.
6 Click Finish.
11RF-NANMSE
Using the mouse
To use the mouse:
1 Press the left or right mouse buttons to perform standard left and right
mouse clicks.

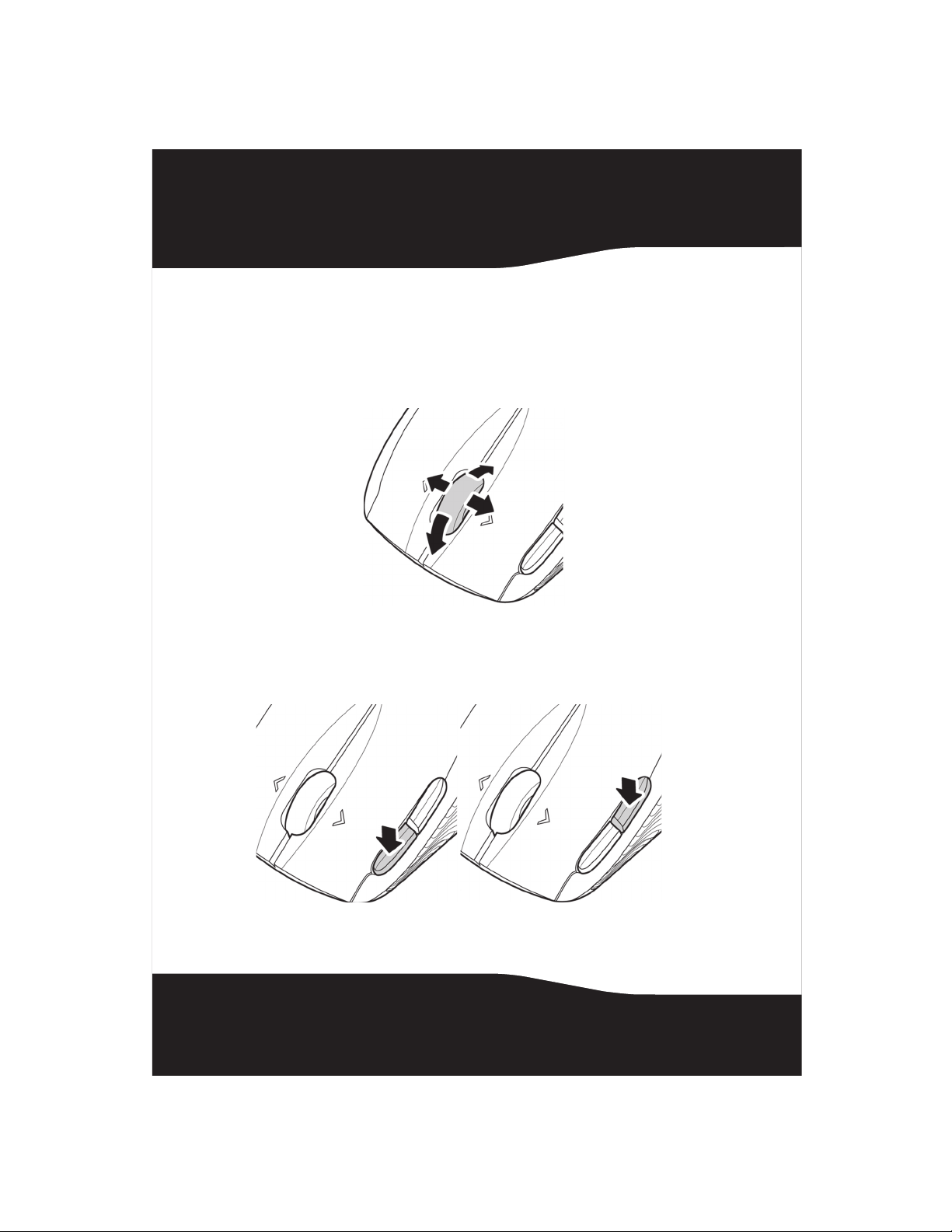

2 Move the scroll wheel to move the screen image up, down, left, or right.
Tip: You can also scroll the screen by sliding your mouse instead of using the scroll
wheel. To do this, press down on the scroll wheel. A four-way icon appears on the
screen. Move your mouse up, down, left, or right to scroll.
3 Press button A to go to the previous Web page in a Web browser or press
button B to go to the next page in a Web browser.
12
Button A Button B
Configuring the mouse
To configure the mouse:
• Double-click the mouse icon on the system tray to open the mouse
program, then click a tab to adjust a mouse function. You can select any
of the following tabs:
• Buttons—See “Configuring mouse buttons” on page 14.
• Double-Click—See ”Adjusting the double-click speed” on page 15.
• Orientation—See ”Adjusting the orientation” on page 16.
• Wheel—See ”Adjusting the wheel settings” on page 17.
• Pointer Utility—See “Adjusting pointer behavior” on page 18.
• Mouse Suite—See “Hiding the system tray’s mouse icon” on page 19.
13RF-NANMSE
Configuring mouse buttons
To configure the buttons:
1 Click the Button list arrow to open the list of buttons, then click the
button you want to configure.
2 Click the Func tion list arrow to open the list of functions, then click the
function you want to assign to the button.
3 To restore default button functions, click Use Default. The default settings
for the mouse buttons are:
Button Function
Left button Primary mouse button
Right button Context menu
Wheel button Quick/Auto scroll
Button A Back
Button B For ward
14
4 Click other tabs to make more adjustments, or click OK to save your
selections and close the program.
Adjusting the double-click speed
To adjust the double-click speed:
1 To adjust double-click speed, drag the slider.
2 To test the click speed, double-click the Test Area icon.
3 To restore to default settings, click Reset to Default Value.
4 Click other tabs to make more adjustments, or click OK to save your
selections and close the program.
15RF-NANMSE
Adjusting the orientation
Use this tab to adjust the angle at which you use the mouse.
To adjust the orientation:
1 Click Set Orientation to activate orientation setup, then use the on-screen
pointer to follow the dog as it moves around.
2 To restore the default orientation settings, click Reset Orientation.
3 Click other tabs to make more adjustments, or click OK to save your
selections and close the program.
16
Adjusting the wheel settings
To adjust the wheel settings:
1 To select the wheel scrolling method, click:
• Enable Universal Scrolling—Uses common scrolling functions.
• Use Microsoft Office 97 Scrolling Emulation Only—Uses Microsoft Office 97
scrolling emulation.
2 To specify scrolling exceptions, click Exceptions.
3 To adjust vertical scrolling speed, click:
• Scroll X line(s) per notch—Selects the number of lines to scroll when the
scroll wheel is moved one notch. Click the up or down arrow keys to
specify the number of lines.
• Scroll one screen per notch—Scrolls an entire screen when the scroll
wheel is moved one notch.
4 To adjust the horizontal scrolling speed, drag the slider.
5 To restore to default scrolling speed, click Use Default.
6 To reverse scrolling direction, click Reverse Scrolling Direction.
7 Click other tabs to make more adjustments, or click OK to save your
selections and close the program.
17RF-NANMSE
Adjusting pointer behavior
To ad jus t poi nte r beh avi or:
1 Click the pointer options. You can select:
• Pointer Wrap—The pointer goes to the opposite side of the screen
when it reaches the screen edge.
• X Focus—Activates a window when the pointer moves over the title
bar.
• Slow Motion—Slows down the pointer when the Shift key is pressed for
a more precise positioning.
2 Click other tabs to make more adjustments, or click OK to save your
selections and close the program.
18
Hiding the system tray’s mouse icon
To hide the system tray’s mouse icon:
•Uncheck Show mouse icon in systray, then click OK to save changes and
close application.
Uninstalling the mouse driver and software
To uninstall the mouse driver and software:
1 Unplug the dongle.
2 Click Start, All Programs, Rocketfish Nano Laptop Laser Mouse, then click Uninstall
Rocketfish Nano Laptop Laser Mouse Driver. A message asks if you are sure you
want to uninstall the driver.
3 Click Yes to continue. The Remove Programs From Your Computer screen
opens and displays the progress.
19RF-NANMSE
4 When the uninstallation is complete, click OK to continue. The Uninstall
Complete screen opens.
5 Click Finish. Your laptop restarts and the uninstallation is complete.
Maintaining
To clean the mouse:
• Wipe the surface and the optical sensor with a soft, lint-free cloth
slightly moistened with water.
Troubleshooting
If you experience any problems with the mouse, check the following:
• Make sure that your laptop meets the system requirements.
• Make sure that the battery in the laser mouse is installed correctly. Make
sure the polarity of the battery corresponds with the polarity symbols
inside the battery compartment.
• When the mouse LED lights red, the battery power is low. Replace the
battery with a new one.
• If the laser mouse fails to work, check the USB port to see if the dongle is
correctly connected.
• Only use the mouse on a clean, flat, non-slippery surface to ensure
smooth and accurate cursor action.
For further assistance, contact your dealer.
20
Specifications
Specifications subject to change without notice.
Dimensions
H × L × W
Resolution
Tracking speed
Weight
Buttons
Compatibility
Operating temperature
Storage temperature
Operating humidity
Storage humidity
Battery
Regulations and
certifications
Mouse: 1.49 × 3.78 × 2.37 inches (37.78 × 95.92 × 60.23 mm)
Dongle: 0.26 × 0.74 × 0.59 inches (6.60 × 18.80 × 15.00 mm)
1200 dpi
Maximum 30 inch/sec (76.2 cm/sec)
Mouse (without battery): 2.12 oz. (60 g)
Dongle: 0.11 oz. (3 g)
4 buttons with tilt scroll wheel
Windows 2000
Windows XP
Windows Vista 32-bit or 64-bit
32°F to 104°F (0°C to 40°C)
-40°F to 140°F (-40°C to 60°C)
90% RH or less
90% RH or less
AA (1)
EMI, ESD, RS, EFT, FCC, IC, IEC 60825-1
21RF-NANMSE
Legal notices
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF exposure
compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
Canada ICES-003 statement
This Class B digital apparatus complies with Canadian ICES-003.
Canada IC Statement
Operation is subject to the following two conditions: 1) this device may not cause interference
and 2) this device must accept any interference, including interference that may cause undesired
operation of the device.
FCC Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to pro-vide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
in-stalled and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1 This device may not cause harmful interference.
2 This device must accept any interference received, including
interference that may cause undesired operation.
Canada ICES-003 statement
This Class B digital apparatus complies with Canadian ICES-003.
22
One-year limited warranty
Rocketfish Products (“Rocketfish”) warrants to you, the original purchaser of this new
RF-NANMSE (“Product”), that the Product shall be free of defects in the original manufacture of
the material or workmanship for one (1) year from the purchase of the Product (“Warranty
Period”). This Product must be purchased from an authorized dealer of Rocketfish brand
products and packaged with this warranty statement. This warranty does not cover refurbished
Product. If you notify Rocketfish during the Warranty Period of a defect covered by this
warranty that requires service, terms of this warranty apply.
How long does the coverage last?
The Warranty Period lasts for one year (365 days), beginning on the date you purchased the
Product. The purchase date is printed on the receipt you received with the product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the
Product is determined to be defective by an authorized Rocketfish repair center or store
personnel, Rocketfish will (at its sole option): (1) repair the Product with new or rebuilt parts; or
(2) replace the Product at no charge with new or rebuilt comparable products or parts. Products
and parts replaced under this warranty become the property of Rocketfish and are not returned
to you. If service of Products and parts are required after the Warranty Period expires, you must
pay all labor and parts charges. This warranty lasts as long as you own your Rocketfish Product
during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the
Produc t.
How to obtain warranty service?
If you purchased the Product at a retail store location, take your original receipt and the Product
to the store you purchased it from. Make sure that you place the Product in its original
packaging or packaging that provides the same amount of protection as the original
packaging. If you purchased the Product from an online web site, mail your original receipt and
the Product to the address listed on the web site. Make sure that you put the Product in its
original packaging or packaging that provides the same amount of protection as the original
packaging.
Where is the warranty valid?
This warranty is valid only to the original purchaser of the Product in the United States, Canada,
and Mexico.
What does the warranty not cover?
23RF-NANMSE
This warranty does not cover:
• Customer instruction
•Installation
•Set up adjustments
•Cosmetic damage
• Damage due to acts of God, such as lightning strikes
•Accident
•Misuse
•Abuse
•Negligence
•Commercial use
• Modification of any part of the Product, including the antenna
This warranty also does not cover:
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility authorized by Rocketfish to service the
Produc t
• Products sold as is or with all faults
• Consumables, such as fuses or batteries
• Products where the factory applied serial number has been altered or removed
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY.
ROCKETFISH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT
NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST
PROFITS. ROCKETFISH PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO
THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT
NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD
SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER
THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Rocketfish:
For customer service please call 1-800-620-2790
www.rocketfishproducts.com
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645
© 2009 Best Buy Enterprise Services, Inc.
All rights res erved . ROCKETF ISH is a trademark of Best Buy Enter prise Serv ices, I nc. Re gistered i n
some countries. All other products and brand names are trademarks of their respective owners.
24
www.rocketfishproducts.com (800) 620-2790
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, MN 55423-3645 USA
© 2009 Best Buy Enterprise Services, Inc.
All rights reserved. ROCKETFISH is a trademark of Best Buy Enterprise Services, Inc.
All other products and brand names are trademarks of their respective owners.
08-1698
Loading...
