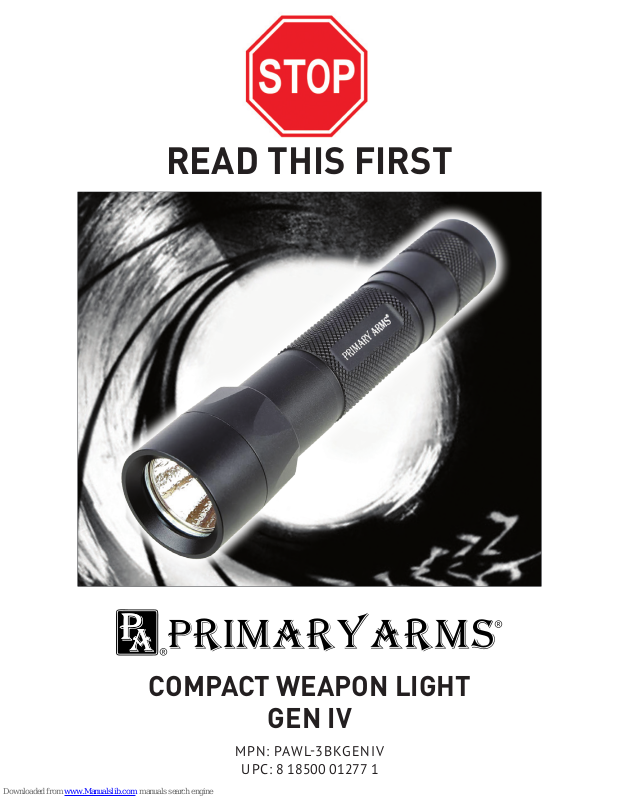

READ THIS FIRST

COMPACT WEAPON LIGHT

GEN IV

MPN: PAWL-3BKGENIV

UPC: 8 18500 01277 1

INTRODUCTION

The Primary Arms Compact Weapon Light, Gen

IV is bright, simple, and extremely tough. Gen IV

features 800 lumens of white light and a maximum

run time of approximately 2.5 hours. Shock proof

and water resistant, this tough light is ready to

serve on heavy recoiling rearms even in harsh

conditions. Fully captured batteries, high spring

force battery contacts, an industry leading LED

emitter, aerospace grade materials and premium

anodization make the Gen IV the perfect choice for

your rearm.

2 3

TAILCAP PUSH BUTTON

Press the soft rubber button mounted in the tailcap

gently to activate the light momentarily. Releasing

pressure on the button will immediately deactivate

the light. Pressing the button more rmly will

result in an audible and tactile “click”, activating

the constant-on mode. Once the button has clicked

you can remove your hand from the tailcap and

the light will stay on. Press rmly again to click the

light off.

OPTIONAL TAPE SWITCH

The push button tailcap can be replaced with our

matching SBTS tailcap incorporating a remote

tape switch and 8-inch cable. The at dark earth

anodized SFDTST tailcap will also t and function.

Press the tape switch to momentarily activate the

light, and release again to deactivate the light.

The tape switch tailcap is not included and can be

purchased separately.

4 5

• LED: Cree XP-L HD LED

• Lifespan: Approx. 50,000 hours

• Maximum light output:
Approx. 800 lumens

• Peak beam intensity:
Approx. 11,000 candela

• Batteries: Two 3V CR123A (included)

• Optional rechargeable: 3.7V batteries
(not included)

• Maximum run time: Approx. 2.5 hours

• Maximum beam distance:
Up to 230 yards

• Shock proof

• Waterproong: Meets IPX8 standard

SPECS AND FEATURES

WARRANTY

Your PAWL-3BKGENIV is covered by the Primary

Arms Lifetime Warranty. If a defect due to materials

or workmanship, or even normal wear and tear, has

caused your product to malfunction, Primary Arms

will either repair or replace your product. You can

nd more details at www.primaryarmsoptics.com.

6 7

Email: [e-mail]

Phone: [phone]

www.primaryarmsoptics.com
