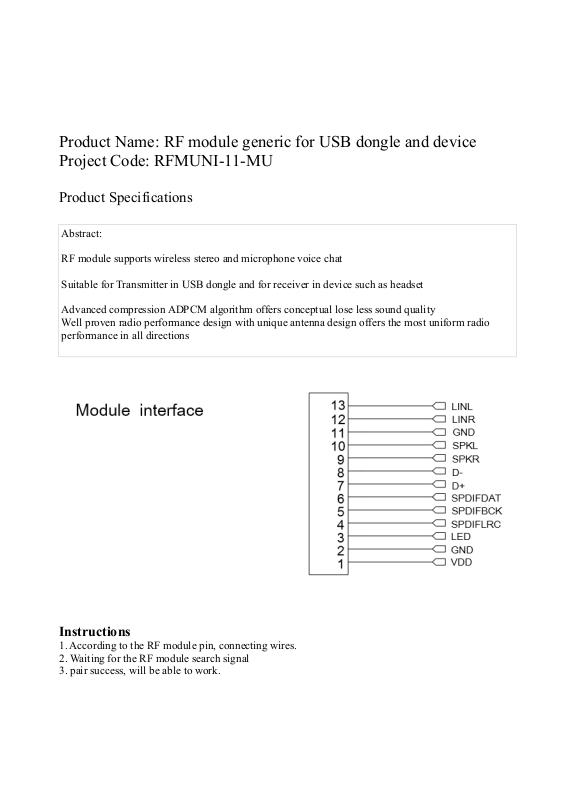

Product Name: RF module generic for USB dongle and device
Project Code: RFMUNI-11-MU
Product Specifications
Abstract:
RF module supports wireless stereo and microphone voice chat
Suitable for Transmitter in USB dongle and for receiver in device such as headset
Advanced compression ADPCM algorithm offers conceptual lose less sound quality
Well proven radio performance design with unique antenna design offers the most uniform radio
performance in all directions
Instructions
1. According to the RF module pin, connecting wires.
2. Waiting for the RF module search signal
3. pair success, will be able to work.
Page 2

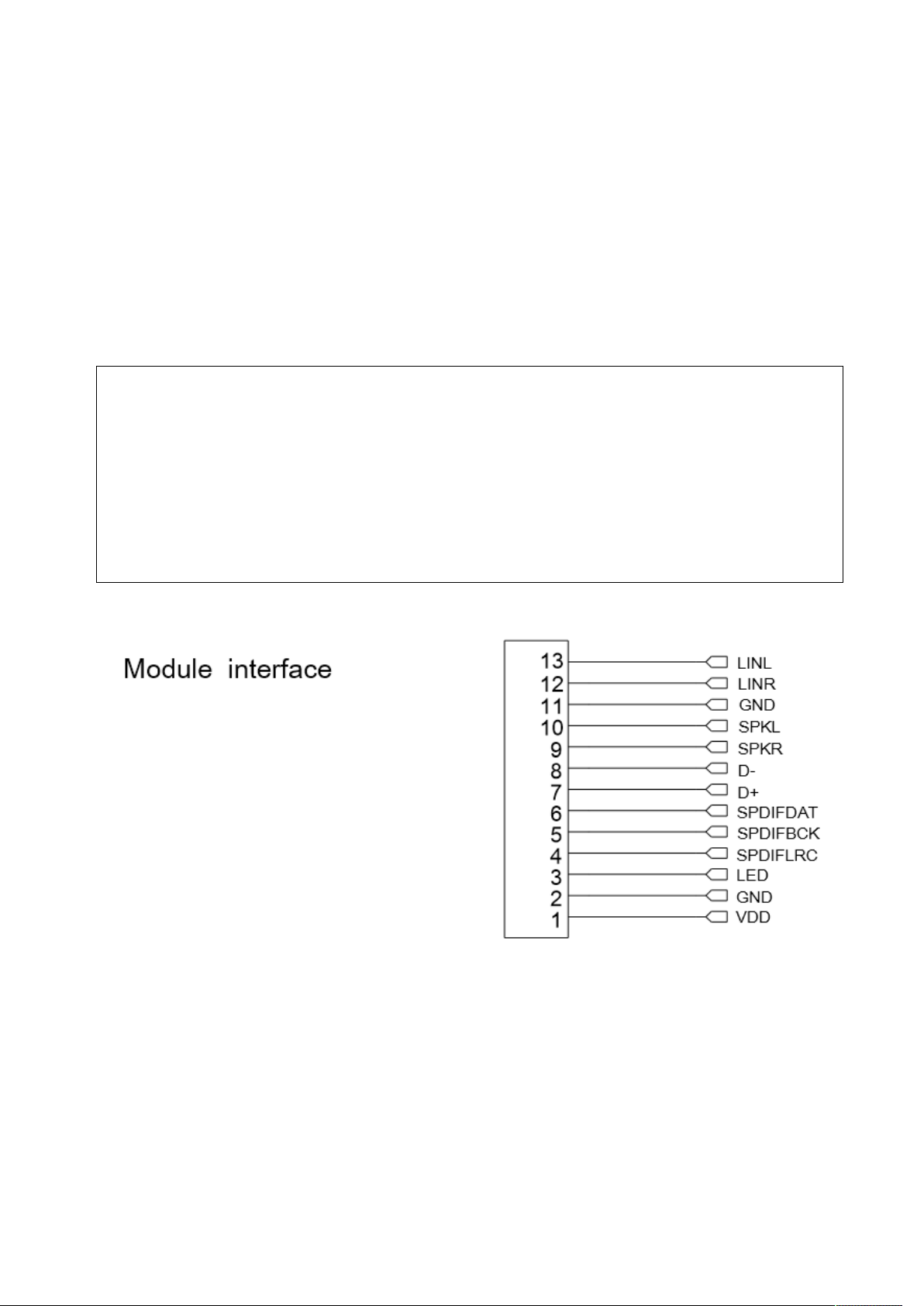

I. RF module feature:
The RF module is designed to suit for both USB dongle and receiver device. Below table shows the
summary of all connection pins.
Solder pad numbering Function I for input, O for Output, P for Power
Below are digital control
6 UART Tx or I2S data I/O
5 UART Rx or I2S clock I/O
4 PAIRING or I2S LRC I/O
11 Digital Ground P
Below are USB and analog control
7 D+ I/O
8 D- I/O
1 USB power P
2 Analog Ground P
12,13 Line-IN I
9,10 Stereo analog OUT O
3 LED O
1. PCB dimension expected is 30mm x 40mm with solder pad along 30mm side.
2. UART is required support all necessary input. For instance, special sound effect, voice
monitor or specific volume level can be input
3. I2S is to accept the optical output from console. This is selected only when USB D+/Dcommunication exists.
4. The I2S pins are shared with UART and PAIRING function pins. When for dongle, it is for
I2S. When for headset, it is for UART and PAIRING
5. Line-in supports input from 3.5mm jack
6. Stereo out supports 3.5mm jack output
7. Mic in supports input from 3.5mm jack. Built-in noise gate to reduce ambient noise.
8. USB D+/D- supports USB audio v1.0 or above
9. Optical IN is supported by another optical decoder outputs I2S to the module
10. When all optical and line-in are connected, all optical IN, line-in, USB audio be supported.
The output level will be adjusted automatically
11. LED indication status
-When not linked, flashes in 4Hz with 50% duty cycle
-When linked successfully, turned on
-When low battery or mic mute, flashes in 0.5Hz, 700ms ON, 1300ms OFF
-low battery happens on device side only
II. Electrical Specification:
USB power is 5V
Digital power is regulated 3.3V
Current consumption on 3.3V is below 40mA
Current consumption on 5V is below 30mA
Page 3
