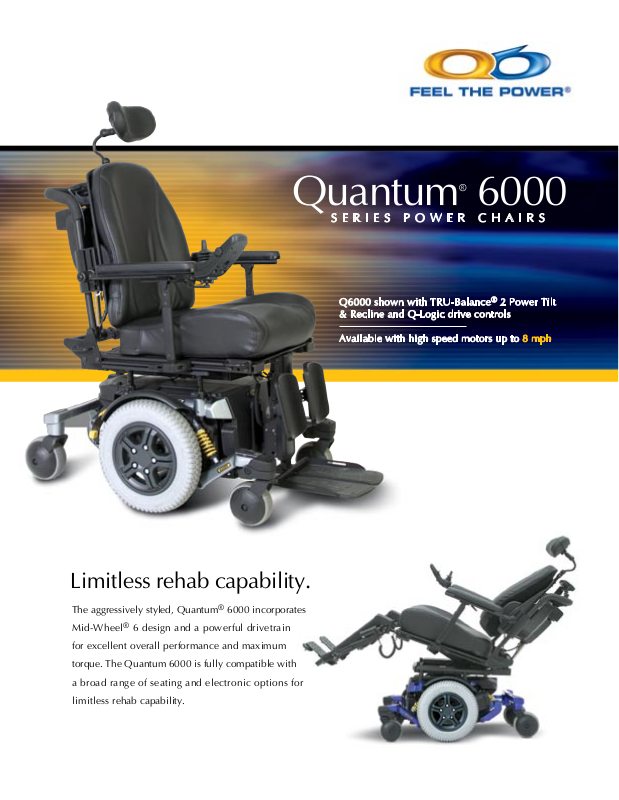

Quantum® 6000
S E R I E S P O W E R C H A I R S
Q6000 shown with TRU-Balance® 2 Power Tilt
& Recline and Q-Logic drive controls
Available with high speed motors up to 8 mph
Limitless rehab capability.
The aggressively styled, Quantum® 6000 incorporates
Mid-Wheel® 6 design and a powerful drivetrain
for excellent overall performance and maximum
torque. The Quantum 6000 is fully compatible with
a broad range of seating and electronic options for
limitless rehab capability.
Specifications Features
DRIVE WHEELS
OMNI-CASTERS
SUSPENSION
MAXIMUM SPEED
BRAKES
GROUND CLEARANCE
TURNING RADIUS
OVERALL SIZE
SEATING
DRIVE TRAIN
BATTERIES
RANGE PER CHARGE
BATTERY CHARGER
AVAILABLE
ELECTRONICS
WEIGHT CAPACITY
BASE WEIGHT
BATTERY WEIGHT
WARRANTY
4
4
1
Shroud Colors
14”
Front: 5” solid
Rear: 6” solid
Active-Trac® ATX Suspension with
integrated rear dual-strut suspension
and articulating caster beam
Up to 6.5 mph 1 / Up to 8 mph
Intelligent Braking
(electronic, regenerative disc brakes)
3.5”
22”
Length: 37” Width: 25.875”
Synergy® Seat
Adjustable Width: 10”-24”
Adjustable Depth: 10”-24”
TRU-Balance® 2 Power Positioning System
Adjustable Width: 14”-24”
Adjustable Depth: 14”-24”
High-back Seat (24” x 24”)
4-pole, Hammer Mid-Wheel 6
Two 12 volt, deep cycle Group 24
Up to 20 miles
8A, Lester off-board
70A and 100A, PG Remote Plus
70A and 100A, Q-Logic
300 lbs. maximum (user weight)
170 lbs.
53.5 lbs. (each)
Lifetime limited warranty on frame
2-year warranty on electronics
18-month warranty on drive motor
1,2
®
3
.
Mid-Wheel 6® allows six wheels on the ground
for maximum stability
.
Compatible with TRU-Balance® 2 Power Positioning
.
OMNI-Casters (nylon, spherical-shaped casters)
on front and rear prevent wheel hang-ups
.
Side-mounted, easily accessible freewheel levers
.
ATX Suspension (Active-Trac® with extra stability)
incorporates front OMNI-Casters for enhanced
performance over more varied terrain
.
4-pole Hammer motors
.
Accepts (2) Group 24 & (1) NF-22 when used
with a vent tray
Options
.
Solid tires
.
Swing-away joystick
.
Multi-axis joystick mount
.
Elevating leg rests
.
Oxygen tank holder
.
Neoprene leg rest sleeves
.
Gel adductor buttons
.
Vent tray
.
TRU-Balance® 2 power elevating seat
.
Angle-adjustable footplates
.
High-mount foot platform
.
70° drop-in footrests
.
TRU-ComfortTM seating system
.
Contoured seating with solid seat pan
.
Q-Logic Drive Control System
Q6000-7-19-07
Metallic
Red
Metallic
Blue
Metallic
Silver
Metallic
Black
(US) 866-800-2002
(Canada) 888-570-1113
www.quantumrehab.com
Sunburst
Orange
Code Coverage
Q6000 3SP - SS (Code: K0856)
Q6000 3MP - SS
Q6000 4S - SS
Q6000 4S - C
Q6000 4SP - SS
Q6000 4MP - SS
FOOTNOTES:
1) Range and speed vary with user weight, terrain type, battery
charge, battery condition and tire pressure.
2) 8 mph with high speed motor package; standard on Group 4
units; optional on Group 3 units
3) 100 amp controller required with high speed motors
4) Due to manufacturing tolerances and continual product
improvement, this specification can be subject to variance
of + or – 3 %.
(Code: K0861)
(Code: K0868)
(Code: K0869)
(Code: K0877)
(Code: K0884)
