Pride Mobility Mobility Power Chair User Manual
Synergy TRU-Balance
™
Power Recline
ACN# 088 609 661
ACN# 088 609 661
2 Basic Operation Instructions
INFORMATION LABELING
The symbols below are used throughout this owner's manual and on the power
chair to identify warnings and important information. It is very important for you to
read them and understand them completely .
WARNING! Failure to follow designated procedures can cause
either personal injury, component damage, or malfunction
(black symbol on yellow triangle with black border).
MANDATORY! These actions should be performed as
specified. Failure to perform mandatory actions can cause
injury to personnel and/or damage to equipment (white
symbol on blue dot with white border).
PROHIBITED! These actions are prohibited. These actions
should not be performed at any time or in any circumstances.
Performing a prohibited action can cause injury to personnel
and/or damage to equipment (black symbol with red circle
and red slash).
Read and follow the information in the owner’s manual.
Avoid e xposure to rain, snow, ice, salt, or standing water
whenever possible. Maintain and store in a clean and dry
condition.
Pinch/Crush points created during assembly.
EMI-RFI - Passed EMI-RFI 20 V/m
Copyright © 2006
Pride Mobility Products Corporation
INFMANU2396/Rev B/April 06
Synergy TRU-Balance Power Recline www.quantumrehab.com
Basic Operation Instructions 3
SAFETY ......................................................................................... 4
THE SYNERGY TRU-BALANCE POWER RECLINE ................... 6
PRECAUTIONARY GUIDELINES ................................................. 6
OPERATING THE SYNERGY TRU-BALANCE POWER
RECLINE ....................................................................................... 9
POWER SEAT ELEVATOR OPTION........................................... 16
HIGH-PIVOT POWER ELEVATING LEG RESTS OPTION ........ 17
POWER ARTICULATING LEG RESTS OPTION........................ 18
SWING-AWAY POWER ARTICULATING LEG RESTS OPTION 19
CONTROLLER POSITION ..........................................................20
TABLE OF CONTENTS
REMO VING THE ARMRESTS.....................................................21
CARE AND MAINTENANCE ...................................................... 21
WARRANTY ................................................................................22
www.quantumrehab.com Synergy TRU-Balance Power Recline
4 Basic Operation Instructions
INTRODUCTION
WELCOME to Quantum Rehab, a division of Pride Mobility Products Corporation
(Pride). The product you have purchased combines state-of-the-art components
with safety , comfort, and styling in mind. We are confident that the design features
will provide you with the conveniences you expect during your daily activities.
Understanding how to safely operate and care for this product should bring you
years of trouble free operations and service.
Read and follow all instructions, warnings, and notes in this manual and all other
accompanying literature before attempting to operate this product for the first
time. In addition, your safety depends upon you, as well as your provider , caretaker,
or healthcare professional in using good judgement.
This manual is to be used in addition to the power base owner’s manual that came with
your power chair . If there is any information in this manual which you do not understand,
or if you require additional assistance for setup or operation, please contact your
Quantum Rehab Specialist. Failure to follow the instructions, warnings, and
notes in this manual and those located on your Pride product can result in
personal injury and/or product damage and will void Pride’ s product warranty.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter ,
or modify this product or remove or render inoperable or unsafe any guards,
shields, or other safety features of this product; fail, refuse, or neglect to install any
retrofit kits from time to time provided by Pride to enhance or preserve the safe
use of this product.
INFORMA TION EXCHANGE
W e want to hear your questions, comments, and suggestions about this manual.
W e would also like to hear about the safety and reliability of your new Pride
product, and about the service you received from your Quantum Rehab Specialist.
Please notify us of any change of address, so we can keep you apprised of important
information about safety , new products, and new options that can increase your
ability to use and enjoy your Pride product. Please feel free to contact us at the
following address:
Synergy TRU-Balance Power Recline www.quantumrehab.com
Basic Operation Instructions 5
Pride Mobility Products Corporation
Attn: Customer Care Department
182 Susquehanna A venue
Exeter, P A 18643-2694
NOTE: If you ever lose or misplace your product registration card or your
copy of this manual, contact us and we will be glad to send you a new one
immediately.
PRIDE OWNERS CLUB
As an owner of a Pride product, you are encouraged to enroll in the Pride Owners
Club. Complete and return your enclosed product registration card or visit Pride's
web site at www .pridemobility.com.
From our home page, select “Owners Club” to enter a page dedicated to current
and potential Pride product owners. You will gain access to interviews, stories,
recreation ideas, daily living tips, product and funding information, and interactive
message boards. These message boards invite you to communicate with other
Pride customers as well as Pride representatives who are available to assist you
with any questions or concerns.
My Quantum Rehab Specialist Is:
Name: _____________________________________________________
Address:____________________________________________________
Phone Number: ______________________________________________
Purchase Date: _______________________________________________
www.quantumrehab.com Synergy TRU-Balance Power Recline
6 Basic Operation Instructions
THE TRU-BALANCE POWER RECLINE
The TRU-Balance Power Recline is a unique seating system designed specifically
for the Pride Power Chair . It is fully adjustable to meet the individual needs of the
user, and it is mounted to a Pride power base to provide maximum maneuverability .
Reusable hook and loop fasteners are included in your owner’s package for use in
attaching the seat cushion to the seat base. These fasteners are not intended for
use on cushions with anti-skid material, as they may damage the seat cushion.
Figure 1 provides information on the TRU-Balance Power Recline components.
Use this diagram to familiarize yourself with the function and location of each
component before using the TRU-Balance Power Recline.
PRECAUTIONAR Y GUIDELINES
Before operating the TRU-Balance Power Recline, please read the following.
These guidelines are provided for your benefit and will aid you in the safe operation
of the seating system.
! Turn off the power before you are seated in the seating system.
! Always have assistance when you are being seated in the seating system.
! Follow all of the procedures and heed the warnings as explained in your power
chair owner’s manual.
WARNING! Y our Quantum Rehab Specialist configured your
TRU-Balance Seating System to suit your specific
requirements. Do not change the original configuration
without first contacting your Quantum Rehab Specialist.
WARNING! Should the fittings on your TRU-Balance Seating
System become loose, report the problem immediately to
your Quantum Rehab Specialist.
WARNING! Your TR U-Balance Seating System is not approved
for use as a seat in any vehicle. Use the seats and occupant
restraints provided by the manufacturer of the vehicle.
WARNING! Do not exceed the weight capacity listed in your
power chair owner’s manual or 300 lbs. (136 kg), whichever
is less.
WARNING! Traveling to the full rec line position could create
a pinch point. Keep all body parts away from the lower back
cane brackets when reclining.
Failure to heed the above warnings can result in personal injury and/or
equipment damage.
Synergy TRU-Balance Power Recline www.quantumrehab.com
Basic Operation Instructions 7
Electromagnetic and Radio Frequency Interference (EMI/RFI)
WARNING! Laboratory tests have shown that electromagnetic
and radio frequency waves can have an adverse affect on
the performance of electrically-powered mobility vehicles.
Electromagnetic and Radio Frequency Interference can come from sources such as
cellular phones, mobile two-way radios (such as walkie-talkies), radio stations, TV
stations, amateur radio (HAM) transmitters, wireless computer links, microwave signals, paging transmitters, and medium-range mobile transceivers used by emergency
vehicles. In some cases, these waves can cause unintended movement or damage to
the control system. Every electrically-powered mobility vehicle has an immunity (or
resistance) to EMI. The higher the immunity level, the greater the protection against
EMI. This product has been tested and has passed at an immunity level of 20 V/m.
WARNING! Be aware that cell phones, two-way radios,
laptops, and other types of radio transmitters may cause
unintended movement of your electrically-powered mobility
vehicle due to EMI. Exercise caution when using any of these
items while operating your mobility vehicle and avoid coming
into close proximity of radio and TV stations.
WARNING! The addition of accessories or components to
the electrically-powered mobility vehicle can increase the
susceptibility of the vehicle to EMI. Do not modify your power
chair in any way not authorized by Pride.
WARNING! The electrically-powered mobility vehicle itself
can disturb the performance of other electrical devices
located nearby , such as alarm systems.
NOTE: For further information on EMI/RFI, go to the Resource Center on
www.pridemobility.com. If unintended motion or brake release occurs, turn
your power chair off as soon as it is safe to do so. Call Pride at 800-424-8205
to report the incident.
www.quantumrehab.com Synergy TRU-Balance Power Recline
8 Basic Operation Instructions

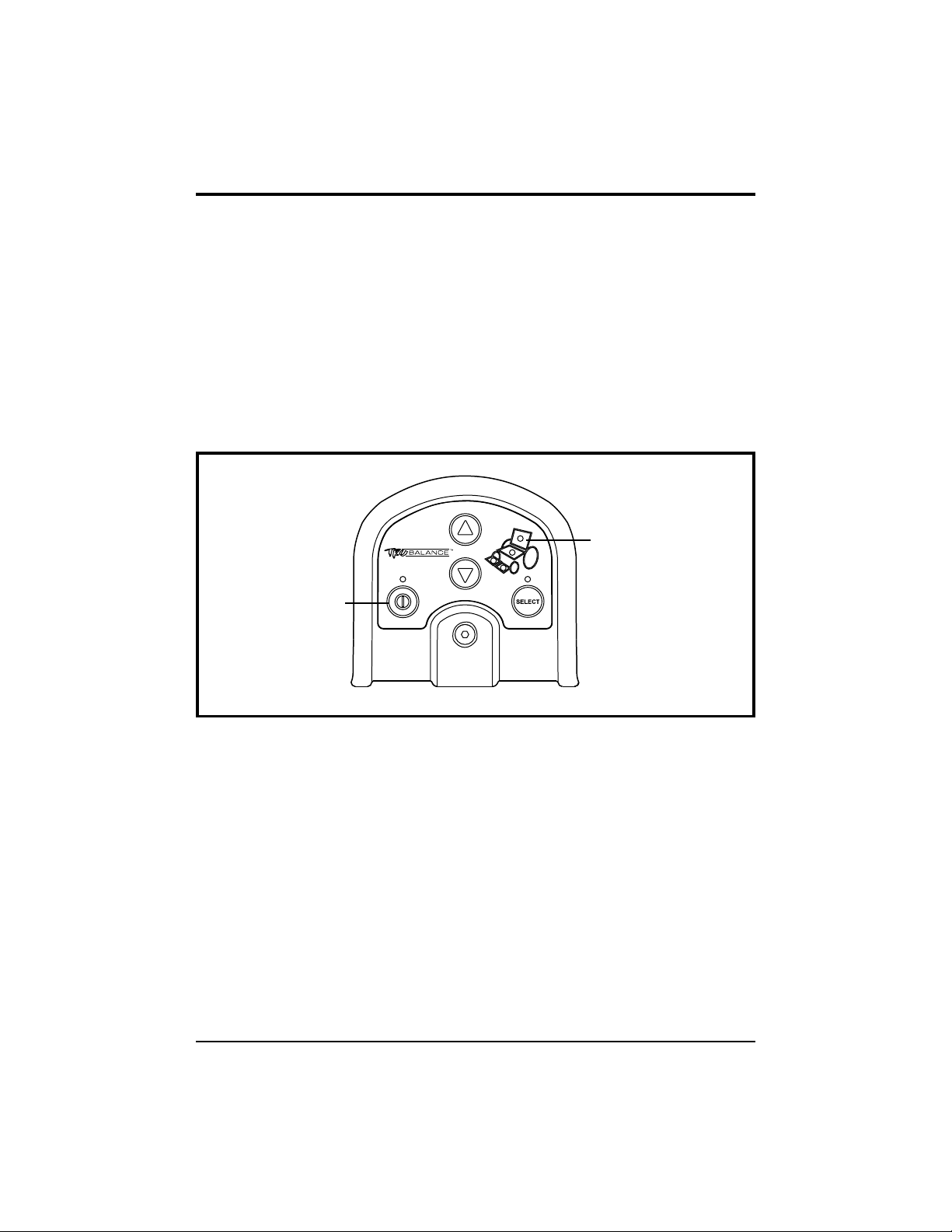

4-WAY TOGGLE CONTROLS (OPTIONAL)
Allows the user to control the recline, tilt, seat elevator, and articulating leg rest
actuators (if so equipped).
ATTENDANT CONTROL
MODULE
Allows an attendant to
control the actuators. Any
action made through the
Attendant Control Module
overrides the toggle actions
made by the user.
REMOVABLE ARMRESTS
Allows the armrests to be
flipped back or removed
whenever necessary.
4-way Button Toggle4-way Toggle Quad Push-Button Control
LEG RESTS (OPTIONAL)
HIGH PIVOT ELEVATING
LEG RESTS (ELR)
Mimics the motion of the
knee during leg elevation.
ARTICULATING LEG
RESTS (ALR)
Maintains correct
knee-to-heel measurements
when user's legs are raised
or lowered.
SWING-AWAY
ARTICULATING
LEG RESTS (ALR)
Maintains correct
knee-to-heel measurements
when user's legs are raised
or lowered
Figure 1. Components of the Synergy TRU-Balance Power Recline
Synergy TRU-Balance Power Recline www.quantumrehab.com
