Owner ’s Manual
ATTENTION:
Please read the content
of your owners manual
before operating your
power chair.
Exeter, PA
St. Catharines, ON 1-800-800-8586
www.pridemobility.com
SAFETY GUIDELINES
Please read and follow all instructions in this owners manual before attempting to operate your power chair for the
first time. If there is anything in this manual you do not understand, or if you require additional assistance for set-up,
contact your authorized Pride provider.
Using your Pride product safely depends upon your diligence in following the warnings, cautions, and instructions
in this owners manual. Using your Pride product safely also depends upon your own good judgement and/or
common sense, as well as that of your provider, caregiver, and/or healthcare professional. Pride is not responsible
for injuries and/or damage resulting from any persons failure to follow the warnings, cautions, and instructions in
this owners manual. Pride is not responsible for injuries and/or damage resulting from any persons failure to
exercise good judgement and/or common sense.
The symbols below are used throughout this owners manual to identify warnings and cautions. It is very important
for you to read and understand them completely.
WARNING! Failure to heed the warnings in this owners manual may result in personal injury.
CAUTION! Failure to heed the cautions in this owners manual may result in damage to your power
chair.
Copyright ©2003
Pride Mobility Products Corp.
INFMANU 1246
2 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
CONTENTS
I. INTRODUCTION......................................................................................................................... 4
II. SAFETY ......................................................................................................................................... 6
III. EMI/RFI ........................................................................................................................................ 14
IV. THE JAZZY 1113 ................................................................................................................... 16
V. DISASSEMBLY ......................................................................................................................... 21
VI. COMFORT ADJUSTMENTS................................................................................................ 24
VII. ASSEMBLY................................................................................................................................. 28
VIII. OPERATION ............................................................................................................................... 31
IX. BATTERIES AND CHARGING ............................................................................................ 43
X. CARE AND MAINTENANCE ................................................................................................ 47
XI. OPTIONAL ACCESSORIES ................................................................................................. 53
XII. WARRANTY ............................................................................................................................... 55
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 3
I. INTRODUCTION
INTRODUCTION
Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Pride
Power Chair. The Pride Power Chair design combines the most advanced state-of-the-art components with
modern, attractive styling. We are certain that the design features and trouble-free operation of your new power
chair will add convenience to your daily living.
At Pride, your safety is important to us. Please read and follow all of the instructions in this manual before you
attempt to operate your power chair for the first time. These instructions were produced for your benefit. Your
understanding of these instructions is essential for the safe operation of your new power chair.
Pride is not liable for damage to property or personal injury arising out of unsafe use of a power chair. Pride is also
not liable for any property damage or personal injury arising out of the failure of any person and/or user to following
the instructions and recommendations set forth in this manual or any other instructions or recommendations contained
in other power chair related literature issued by Pride or contained on the power chair itself.
This owners manual is compiled from the latest specifications and product information available at the time of
publication. We reserve the right to make changes as they become necessary. Any changes to our products may
cause slight variations between the illustrations and explanations in this manual and the product you have purchased.
If you experience any problems with your power chair that you are unable to solve, or if you do not feel capable of
safely following any of the instructions and/or recommendations as contained in this manual, please contact your
authorized Pride provider for assistance.
Once you understand how to operate and take care of your power chair, we are certain that it will give you years
of trouble-free service and enjoyment.
Information Exchange
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about
the safety and reliability of your new power chair, and about the service you received from your authorized Pride
provider.
Please notify us of any change of address, so we can keep you apprised of important information about safety, new
products, and new options that can increase your ability to use and enjoy your power chair. Please feel free to
contact us at the address below:
Pride Mobility Products Corporation
Attn: Customer Care Department
182 Susquehanna Avenue
Exeter, PA 18643-2694
customercare@pridemobility.com
800-424-8205
4 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
I. INTRODUCTION
Pride Owners Club
As an owner of a Pride product, you are invited to register your products warranty and enroll in the Pride Owners
Club. You may do so by filling out and returning your enclosed registration card or by visiting Prides web site at
www.pridemobility.com. As a registered member, each time you visit our site, you will have access to the most
interactive and honest educational venue available today for people with mobility needs, their families, and friends.
From our home page, select Owners Club to enter a page dedicated to current and potential Pride product
owners. You will gain access to interviews, stories, recreation ideas, daily living tips, product and funding information,
and interactive message boards. These message boards invited you to communicate with other Pride customers as
well as Pride representatives who are available to assist you with any questions or concerns you may have.
My Authorized Pride Provider Is:
Name:_______________________________________________________________________________
Address:_____________________________________________________________________________
Phone Number:________________________________________________________________________
Purchase Date:________________________________________________________________________
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact
us and we will be glad to send you a new one immediately.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 5
II. SAFETY
SAFETY
WARNING! Do not operate your new power chair for the first time without completely
reading and understanding this owners manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an
extensive variety of products to best fit the individual needs of the power chair user. Please be aware that the final
selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power
chair user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical doctor,
physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted the power
chair to the user and has assisted the prescribing healthcare professional and/or the authorized Pride provider in the
instruction process for the use of the product.
There are certain situations, including some medical conditions, where the power chair user will need to practice
operating the power chair in the presence of a trained attendant. A trained attendant can be defined as a family
member or care professional specially trained in assisting a power chair user in various daily living activities.
As you begin using your power chair during daily activities, you will probably encounter situations in which you will
need some practice. Simply take your time and you will soon be in full and confident control as you maneuver
through doorways, on and off of elevators, up and down ramps, and over moderate terrain.
Below are some precautions, tips, and other safety considerations that will help the user become accustomed to
operating the power chair safely.
Modifications
Pride has designed and engineered your power chair to provide maximum mobility and utility. A wide range of
accessories is available from your authorized Pride provider to further customize your power chair to better suit
your needs and/or preferences. However, under no circumstances should you modify, add, remove, or disable any
feature, part, or function of your power chair.
WARNING! Do not modify your power chair in any way not authorized by Pride. Unauthorized modifications may result in personal injury and/or damage to your power chair.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check
before each use to make sure your power chair operates smoothly and safely. See X. Care and Maintenance.
Perform the following inspections prior to using your power chair:
n Check for proper tire inflation. Maintain 30-35 psi in each tire (if equipped with pneumatic tires).
n Check all electrical connections. Make sure they are tight and not corroded.
n Check all controller connections to the electronics tray. Make sure they are secured properly.
6 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
II. SAFETY
n Check the brakes. See X. Care and Maintenance.
n Check battery charge. See IX. Batteries and Charging.
NOTE: If you discover a problem, contact your authorized Pride provider for assistance.
Weight Limitations
Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit.
WARNING! Exceeding the weight capacity voids your warranty and may result in personal
injury and/or damage to your power chair. Pride will not be held responsible for injuries
and/or property damage resulting from failure to obser ve weight limitations.
WARNING! Do not car ry passengers on your power chair. Carrying passengers on your
power chair may result in personal injury and/or property damage.
Tire Inflation
If your power chair is equipped with pneumatic tires, you should check or have the air pressure checked at least
once a week. Proper inflation pressures will prolong the life of your tires and help ensure the smooth operation of
your power chair.
WARNING! It is important that 30-35 psi tire pressure be maintained in pneumatic tires at
all times. Do not underinflate or overinflate your tires. Low pressure may result in loss of
control, and overinflated tires may burst. Failure to maintain 30-35 psi tire pressure in
pneumatic tires at all times may result in tire and/or wheel failure, causing serious personal injury and/or damage to your Jazzy.
WARNING! Inflate your power chair drive tires from a regulated air source with an available pressure gauge. Inflating your tires from an unregulated air source could overinflate
them, resulting in a burst tire and/or personal injury.
Incline Information
More and more buildings have ramps with specified degrees of inclination, designed for easy and safe access.
Some ramps may have turning switchbacks (180-degree turns) that require you to have good cornering skills on
your power chair.
n Proceed with extreme caution as you approach the downgrade of a ramp or other incline.
n Take wide swings with your power chairs front wheels around any tight corners. If you do that, the power
chairs rear wheels will follow a wide arc, not cut the corner short, and not bump into or get hung up on any
railing corners.
n When driving down a ramp, keep the power chairs speed adjustment set to the slowest speed setting to
ensure a safely controlled descent. See VIII. Operation.
n Avoid sudden stops and starts.
When climbing an incline, try to keep your power chair moving. If you must stop, start up again slowly and then
accelerate cautiously. When driving down an incline, set your power chair to the slowest setting and drive in the
forward direction only. If your power chair starts to move down the incline faster than you anticipated or desired,
allow it to come to a complete stop by releasing the joystick, then push the joystick forward slightly to ensure a
safely controlled descent.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 7
II. SAFETY
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the
incline. Drive your power chair straight up the incline. This greatly reduces the possibility
of a tip or a fall. Always exercise extreme caution when negotiating an incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas
covered with snow, ice, cut grass, or wet leaves).
WARNING! When on any sort of an incline or decline, never place the power chair in
freewheel mode while seated on it or standing next to it. Doing so may result in personal
injury and/or damage to your power chair.
WARNING! Never travel down an incline backwards. This may result in personal injury.
WARNING! Even though your power chair is capable of climbing slopes greater than those
illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or any other
specifications presented in this manual. Doing so could cause instability in your power chair,
resulting in personal injury and/or damage to your power chair.
In compliance with the Americans with Disabilities Act of 1990, all handicap public access ramps are required to
have a maximum slope of 5°. Therefore, Pride recommends that the maximum slope of an incline you attempt to
safely ascend or descend on your power chair does not exceed 5°. See figure 1.
WARNING! Any attempt to climb or descend a slope steeper than 5° may put your power
chair in an unstable position and cause it to tip, resulting in personal injury.
Figure 1. Maximum Safe Angle (Ascending and Descending)
Braking Information
Your power chair is equipped with two powerful brake systems:
1. Regenerative uses electricity to rapidly slow the vehicle when the joystick returns to the center/stop position.
2. Disc Park Brake activates mechanically after regenerative braking slows the vehicle to near stop, or when
power is removed from the system for any reason.
Cornering Information
While your power chair is equipped with rear caster wheels in back and anti-tip wheels in front, excessively high
cornering speeds can still create the possibility of tipping. Factors which affect the possibility of tipping include, but
are not limited to: cornering speed, steering angle (how sharply you are turning), uneven road surfaces, inclined
road surfaces, riding from an area of low traction to an area of high traction (such as passing from a grassy area to
a paved area especially at high speed while turning), and abrupt directional changes. High cornering speeds are
not recommended. If you feel that you may tip over in a corner, reduce your speed and steering angle (i.e., lessen
the sharpness of the turn) to prevent your power chair from tipping.
8 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
II. SAFETY
WARNING! When cornering sharply, reduce your speed. This greatly reduces the possibility of a tip or fall. To avoid personal injury and/or property damage, always exercise common sense when cornering.
Outdoor Driving Surfaces
Your power chair is designed to provide optimum stability under normal driving conditionsdry, level surfaces
composed of concrete, blacktop, or asphalt. However, Pride recognizes that there will be times when you will
encounter other surface types. For this reason, your power chair is designed to perform admirably on packed soil,
grass, and gravel. Feel free to use your power chair safely on lawns and in park areas.
n Reduce your power chairs speed when driving on uneven terrain and/or soft surfaces.
n Avoid tall grass that can entangle the running gear.
n Avoid loosely packed gravel and sand.
n If you feel unsure about a driving surface, avoid that surface.
Freewheel Mode
Your power chair is equipped with a manual freewheel lever to allow for manual maneuverability by a trained
attendant. For more information about how to place your power chair into and out of freewheel mode, see IV.
The Jazzy 1113.
WARNING! Do not use your power chair in freewheel mode without an attendant present.
Personal injury may result.
WARNING! Do not attempt to personally place your power chair in freewheel mode while
seated on it. Personal injury may result. Ask an attendant for assistance if necessary.
WARNING! Do not place your power chair in freewheel mode while on an incline. The
chair could roll uncontrollably on its own, causing personal injury.
Stationary Obstacles (Steps, Curbs, etc.)
Proceed with extreme caution when driving near raised surfaces, unprotected ledges and/or drop-offs (curbs,
porches, stairs, etc.). The correct method for approaching a curb is illustrated in figure 1a.
Figure 1a. Correct Curb Approach (Correct and Incorrect)
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 9
II. SAFETY
WARNING! Do not attempt to have your power chair climb or descend an obstacle that is
higher than one inch unless you have the assistance of an attendant.
WARNING! Do not attempt to have your power chair proceed backward down any step,
curb, or other obstacle. This may cause the power chair to tip and cause personal injur y.
Public Streets and Roadways
WARNING! You should not operate your power chair on public streets and roadways. Be
aware that it may be difficult for traffic to see you when you are seated on your power
chair. Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and
then proceed with extreme caution.
Stairs and Escalators
Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator.
WARNING! Never use your power chair to negotiate steps or escalators. You may cause
injury to yourself and to others and/or damage your power chair.
Doors
n Determine if the door opens toward or away from you.
n Drive your power chair gently and slowly forward to push the door open. Or drive your power chair gently
and slowly backward to pull the door open.
Elevators
Modern elevators have a door edge safety mechanism that, when pushed, reopens the elevator door(s).
n If you are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge or
allow the rubber door edge to contact the power chair and the door will reopen.
n Use care that pocketbooks, packages, or power chair accessories do not become caught in elevator doors.
EMI & RFI
Laboratory tests performed by the Food and Drug Administration (FDA) have shown that radio waves can cause
unintended motion of electric mobility vehicles. Radio waves are a form of electromagnetic energy (EM). When
EM adversely affects the operation of an electronic device, it is called Electromagnetic Interference (EMI) or
Radio Frequency Interference (RFI). For more information, see III. EMI/RFI.
Lift/Elevation Products
If you will be traveling with your power chair, you may find it necessary to use a lift/elevation product to aid in
transportation. Pride recommends that you closely review the instructions, specifications, and safety information
set forth by the manufacturer of the lift/elevation product before using that product.
10 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
II. SAFETY
Motor Vehicle Transport
Currently, there are no standards approved for tie-down systems in a moving vehicle of any type to transport a
person while seated in a power chair.
Transfers
Transferring onto and off of your power chair requires a good sense of balance. Always have an attendant or
healthcare professional present while learning to properly transfer yourself.
To eliminate the possibility of injury, Pride recommends that you or a trained attendant perform the following tasks
before attempting a transfer:
n Turn the power off. See VIII. Operation.
n Ensure your power chair is not in freewheel mode. See IV. The Jazzy 1113.
n Turn both caster wheels toward the transfer destination to improve power chair stability during transfer.
n Make sure both armrests are flipped up or removed from your power chair.
n Flip the footrest up, or move the leg rests aside; this will help to keep your feet from getting caught on the
footrest or the leg rests during the transfer.
n Reduce the distance between your power chair and the object you are transferring onto.
WARNING! Before transferring, position yourself as far back as possible in the power
chair seat to prevent the power chair from tipping forward during transfer and causing
injury.
WARNING! Avoid using your armrests for weight bearing purposes. Such use may cause
the power chair to tip and cause personal injury.
WARNING! Avoid putting all of your weight on the footrest. Such use may cause the power
chair to tip and cause personal injury.
Positioning Belts
Your authorized Pride provider, therapist(s), and other healthcare professionals are responsible for determining
your requirement for a positioning belt in order to operate your power chair safely.
WARNING! If you require a positioning belt to safely operate your power chair, make sure
it is fastened securely. Serious personal injury may result if you fall from the power chair.
WARNING! The positioning belt is not designed for use as a seat belt in a motor vehicle.
Nor is your Jazzy suitable for use as a seat in any vehicle. Anyone traveling in a vehicle
should be properly belted into seats approved by the vehicle manufacturer.
WARNING! Do not sit on your power chair while it is in a moving vehicle. Personal injury
and/or property damage may result.
WARNING! Always be sure your power chair and its batteries are properly secured when it
is being transpor ted. Failure to do so may result in personal injury and/or damage to your
power chair.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 11
II. SAFETY
Inclement Weather Precautions
WARNING! Pride recommends that you do not operate your power chair in icy or slippery
conditions or on salted surfaces (i.e., walks or roads). Such use may adversely affect the
performance and safety of your power chair, resulting in an accident and personal injury.
WARNING! Do not expose your power chair to any type of moisture at any time (rain, snow,
mist, or wash). Such exposure can damage your power chair. Never operate your power
chair if it has been exposed to moisture until it has dried thoroughly.
Reaching and Bending
Never reach, lean, or bend while driving your power chair. If it is absolutely necessary to reach, lean, or bend while
seated on your power chair, it is important to maintain a stable center of gravity and keep the power chair from
tipping. Pride recommends that the power chair user determine his/her personal limitations and practice bending
and reaching in the presence of a qualified healthcare professional.
WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the floor by
reaching down between your knees. Movements such as these may change your center of gravity
and the weight distribution of the power chair. This may cause your power chair to tip, possibly
resulting in personal injury. Keep your hands away from the tires when driving.
Batteries
In addition to following the warnings below, be sure to comply with all other battery handling information. For
more information about your power chairs batteries, see IX. Batteries and Charging.
WARNING! Power chair batteries are heavy. See specifications table. If you are unable to lift that
much weight, be sure to get help. Lifting beyond your capacity can result in personal injury.
WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.
Wash hands after handling.
WARNING! Always protect the batteries from freezing and never charge a frozen battery. Charging
a frozen battery may result in personal injury and/or damage to the battery.
Preventing Unintended movement
WARNING! If you anticipate being seated in a stationary position for an extended period of time,
turn off the power. This will prevent unexpected motion from inadvertent joystick contact. This will
also eliminate the possibility of unintended chair movement from electromagnetic (EM) sources.
Failure to do so may result in personal injury.
Prescription Drugs/Physical Limitations
Users must exercise care and common sense when operating a power chair. This includes awareness of safety
issues when taking prescribed or over-the-counter drugs or when the user has specific physical limitations.
12 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
II. SAFETY
WARNING! Consult your physician if you are taking prescribed or over-the-counter medication or if
you have certain physical limitations. Some medications and limitations may impair your ability to
operate your power chair in a safe manner.
Alcohol
The power chair user must exercise care and common sense when operating his/her power chair. This includes
awareness of safety issues while under the influence of alcohol.
WARNING! Do not operate your power chair while you are under the influence of alcohol, as this
may impair your ability to operate your power chair in a safe manner.
Removable Parts
WARNING! Do not attempt to lift or move a power chair by any of its removable parts. Personal
injury and/or damage to the power chair may result.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 13
III. EMI/RFI
EMI/RFIFREQUENTLY ASKED QUESTIONS (FAQS)
The following FAQs summarize what you should know about EMI/RFI. Use this information to minimize the risk
that EMI/RFI will affect your power chair.
WARNING! Radio waves may interfere with the control of power chairs.
Where do radio waves come from?
Radio waves are emitted from the antennas of cellular phones, mobile two-way radios (such as walkie-talkies),
radio stations, TV stations, amateur radio (HAM) transmitters, wireless computer links, microwave sources, and
paging transmitters. Radio waves are a form of electromagnetic energy. Because EM is more intense closer to the
transmitting antenna (source of emission), the EM fields from two-way radios are of special concern to power
chair users.
Are all power chairs susceptible to EMI?
Each make and model of chair differs in its ability to resist electromagnetic interference. That is, each has a
particular level of immunity to interference, measured in volts per meter (V/m). A higher immunity level offers
greater protection. In other words, a power chair with a high immunity level is less likely to be affected by a strong
radio source than one with a low immunity level.
What is the FDA doing about the problem?
The FDA has written to the power chair manufacturers and requested that they test their new products to be sure that
they provide a reasonable degree of immunity against EMI. The letter states that power chairs should have an immunity
of at least 20 V/m. This provides a reasonable degree of protection against the common sources of EMI/RFI.
The FDA has also requested that these manufacturers clearly label their products with the immunity level, or state
that the immunity level is not known. The labeling and informational material supplied with the power chair must
explain what the immunity level means, and the labeling or informational material must warn users about the possibility
of EMI/RFI and how to avoid it. In addition, the FDA has recommended that manufacturers establish an educational
program to inform power chair users and their caregivers about the problems associated with EMI/RFI, and the
actions they can take to minimize the risk.
If my power chair is affected by EMI/RFI, what kind of motion should I expect?
This is hard to predict. It depends on a number of factors:
n Strength of the radio waves
n Construction of the power chair
n Position of the power chair (whether it is on level ground or on an incline)
n Whether or not the power chair is in motion
An affected power chairs movement can be erratic. It may move by itself or come to a sudden stop. Furthermore,
it is possible for EMI/RFI to unexpectedly release the brakes on a power chair. Some intense sources of EMI/RFI
can even damage the control system of your Jazzy.
14 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
III. EMI/RFI
What can I do to reduce the risk that my power chair could be affected by EMI/RFI?
Here are some precautions you can take:
n Do not turn on or use hand-held personal communications devices such as citizens band (CB) radios and
cellular phones while the power chair is on.
n Be aware of nearby transmitters such as radio or TV stations and hand-held or mobile two-way radios, and try
not to come close to them.
n Be aware that adding accessories and/or components or modifying the power chair may make it more susceptible
to interference from radio wave sources.
n There is no easy way to evaluate their effect upon the overall immunity of the power chair.
What can I do to find out if my power chair is likely to be affected by EMI/RFI?
If youve had your power chair for a long time and havent experienced any unintended motion, it is not likely that
you will have problems in the future. But it is always possible that problems could arise if you are close to a source
of radio waves. Therefore, it is very important to be alert to this possibility. The Jazzy 1113 meets or exceeds an
immunity level of at least 20 V/m.
Is there any way to know for sure whether radio waves are responsible for the unintended motion
of my power chair?
Unfortunately, interference from radio wave sources may be difficult to recognize, since the signals from these
sources are invisible and may be intermittent. However, the FDA recommends that you report all incidents of
unintended motion or brake release to the power chair manufacturer and if possible, note whether there was a
radio wave source nearby at the time of the incident.
What should I do if my power chair moves unexpectedly?
If unintended motion or brake release occurs, turn the power chair off as soon as it is safe to do so.
Has anyone been hurt from erratic, unintended motion of power chairs?
The FDA has reports of injuries that resulted from the apparent uncontrolled motion of power chairs. However, it
is unclear how many of these incidents were actually caused by radio wave interference.
If my power chair moves unexpectedly, where should I report this?
Call Pride Mobility Products Corporation at (570) 655-5574 to report the incident.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 15
IV. THE JAZZY 1113
Your Jazzy has two main assemblies: the seat and the power base. See figure 1b. There are a variety of seating
options that are designed to accommodate most users. Typically, the seating system includes the armrests, the
seatback, the seat base, and the controller. Your Jazzy seat may also have some optional accessories attached to
it such as a basket, a cane/crutch holder, or a cup holder. See XI. Optional Accessories in this manual.
The power base is the heart of the Jazzy 1113. The power base assembly includes two drive wheels, two anti-tip
wheels, two caster wheels and harness connectors. See figures 1b, 2, and 3.
SEAT ASSEMBLY
SEAT
FRAME
POWER BASE ASSEMBLY
SEAT
ARMRESTS
JOYSTICK
CONTROLLER
SEAT RELEASE BUTTONS
FREEWHEEL LEVERS
BODY SHROUD
FOOTREST
CASTER WHEEL
ANTI-TIP WHEELS
DRIVE WHEEL
Figure 1b. The Jazzy 11 13
16 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
IV. THE JAZZY 1113
Specifications
Suspension: Limited suspension
Drive Wheels: 10 in., pneumatic (solid tires are optional)
Caster Wheels: 8 in., solid, rear articulating
Anti-Tip Wheels: 6 in., solid, front mounted
Maximum Speed: Up to 4 mph
Brakes: Intelligent Braking, electronic regenerative, disc park brake
Ground Clearance: 2 in.
Turning Radius: 16.5 in.
Overall Size: Length: 32 in.
Width: 23 in. (assembled)
Seating Options: Medium Back (standard)
High Back with headrest (standard)
Synergy Seat
Versa Tilt
Drivetrain: Two motor, mid-wheel
Batteries: Two 12-volt, U-1 batteries
Range: Up to 25 miles
Battery Charger: 3 amp, Onboard
3 amp, Off-board (optional)
Electronics: 50-amp P&G VSI Controller
70-amp Europa Remote Controller
70-amp P&G Remote Plus Controller
Weight Capacity: 300 lbs. (160 lbs. with Tilt)
Component Weights: Seat: 33 lbs.
Footrest: 8.5 lbs.
Front battery and case: 26 lbs. (U-1) (Battery 24.5 lbs.)
Rear battery and case: 26 lbs. (U-1) (Battery 24.5 lbs.)
Battery well frame: 13 lbs.
Front frame: 2.5 lbs.
Right frame assembly: 33 lbs.
Left frame assembly: 33 lbs.
Warranty: Lifetime limited warranty on frame
2-year limited electronics warranty
18 months on drive motors
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 17
IV. THE JAZZY 1113
CHARGER INHIBIT CONNECTOR
9-PIN CONTROLLER CONNECTOR
Figure 2. Power Base Back View
SEAT POSTS
AMMETER
MAIN CIRCUIT BREAKER
BATTERY CHARGER AC POWER CORD RECEPTACLE
REAR BATTERY BOX
BATTERY CONNECTORS
FRONT BATTERY BOX
MOTOR CONNECTORS
SEAT POSTS
Figure 3. Power Base T op View
18 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
IV. THE JAZZY 1113
The Power Base Assembly
The power base assembly consists of the right and left frame assemblies, the front and back battery boxes, and the
electronics tray. See figures 1b, 2, and 3.
Ammeter: The ammeter displays the chargers current output in amps. See IX. Batteries and Charging.
Onboard Charger AC Power Cord Receptacle: This is where the AC power cord plugs into the onboard
charger. The AC power cord plugs into a standard wall outlet.
Charger Fuse(s): The charger fuse protects the ammeter from overload during charging. The charger fuse is
located under the electronics tray. A spare fuse is included.
Main Circuit Breaker: The main circuit breaker is a safety feature built into your power chair. When the batteries
and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage
to the motors and the electronics. If the circuit breaker trips, allow your power chair to rest for approximately
one minute. Then push in the circuit breaker reset button, turn on the controller, and continue normal operation. If
the main circuit breaker trips repeatedly, contact your authorized Pride provider.
Controller Connector: This is where the controller connects to the battery, the motors, and the motor brakes.
The VSI controller connector is shown.
Charger Inhibit Connector (VSI only): The VSI controller is equipped with a charger inhibit. The charger
inhibit enables the onboard battery charger to disable the controller during charging. The charger inhibit connector
is coded with colored dots. The dots are positioned so that you can align the flat side of the male connector with the
flat side of the female connector before making the connection.
CAUTION! Failure to properly align the connectors can result in damage to the controller,
the onboard charger, and the connectors.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 19
IV. THE JAZZY 1113
Manual Freewheel Levers
For your convenience, your power chair is equipped with two manual freewheel levers - one for each motor/
brake assembly. See figures 3a and 3b. These levers allow you to disengage the drive motors and maneuver the
chair manually.
WARNING! Do not use your power chair while the drive motors are disengaged unless
you are in the presence of an attendant! Do not disengage the drive motors when your
power chair is on an incline. The chair could roll down on its own, causing injury!
To engage or disengage the drive motors:
1. Turn the freewheel levers outward to disengage the drive motors.
2. Turn the freewheel levers toward the front of the Jazzy to engage the drive motors.
CAUTION! It is important to remember that when your power chair is in freewheel mode,
the electronic braking system is disengaged.
If a lever is difficult to move in either direction, rock the Jazzy 1113 back and forth slightly. The lever should then
move to the desired position.
FREEWHEEL LEVERS
Figure 3b. Drive Motors Engaged.Figure 3a. Drive Motor Disengaged.
20 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
V. DISASSEMBLY
The Jazzy 1113 disassembles into eight easily transportable component assemblieswith no tools required. See
figure 4.
WARNING! Even though no tools are required to disassemble or assemble the Jazzy 1113, you
should take care not to place your hands or fingers on the areas of the component assemblies
where they may be pinched, as the assemblies snap together or snap apart.
WARNING! Some power chair components are heavy. You may need assistance to lift or carr y
them. Please refer to IV. The Jazzy 1113 for specific components weights.
SEAT
BATTERY WELL FRAME
BATTERY
BOXES
LEFT FRAME
RIGHT FRAME
ASSEMBLY
FOOTREST
Figure 4. The Jazzy 11 13 Component Assemblies
FRONT FRAME
ASSEMBLY
Note: During both the disassembly and the assembly of the Jazzy 1113, you may find it helpful to engage
the Jazzy drive motors so that it does not roll while you are disassembling or assembling it. See IV. The
Jazzy 1113.
To disassemble the Jazzy 1113:
Position the Jazzy in a location where there is ample working room on all four sides of the Jazzy. We recommend
three or more feet of clearance on all sides. There are eight component assemblies, some of which take up a great
deal of space when disassembled from the chair. Also, make certain that the Jazzy is turned off.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 21
V. DISASSEMBLY

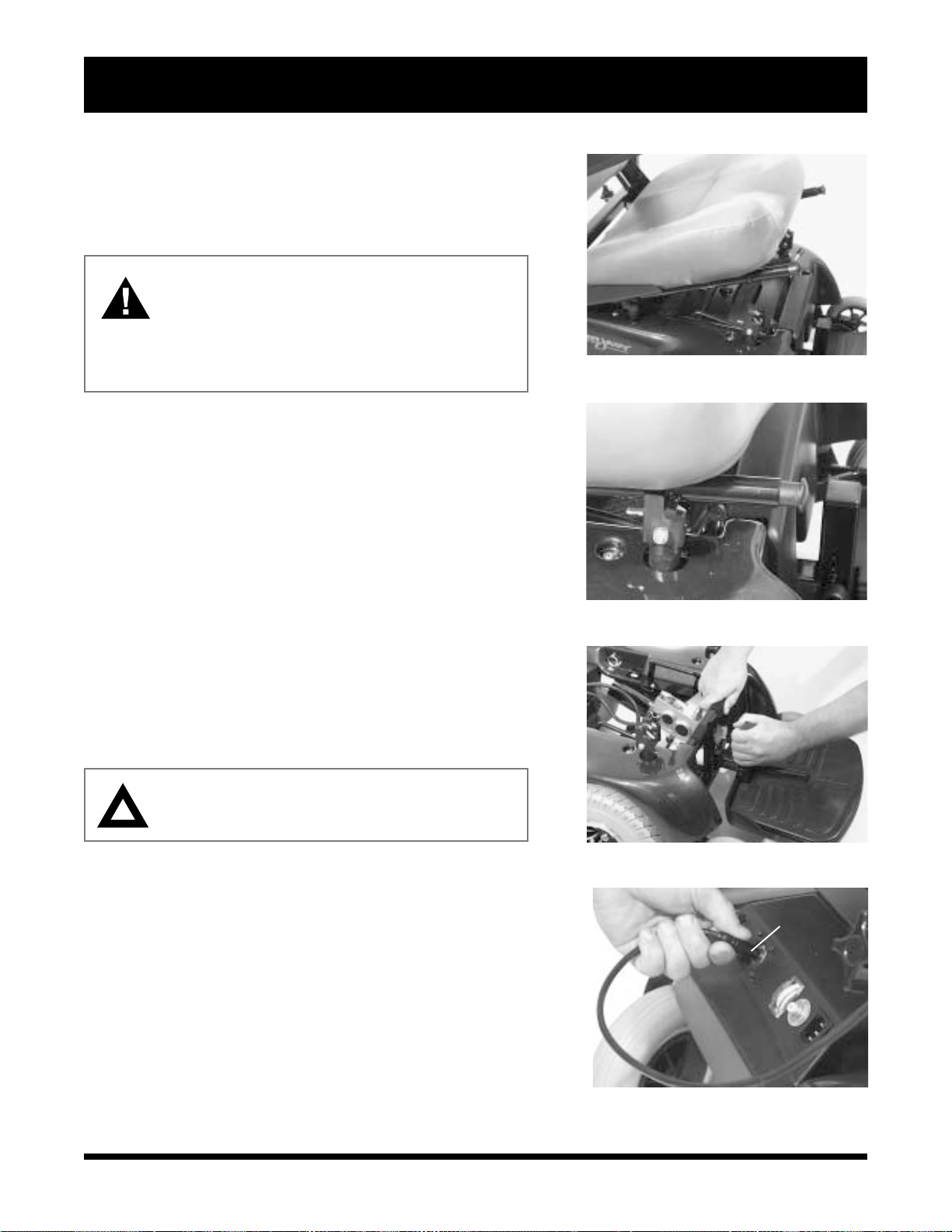

T o remove the footrest:
1. Remove the footrest by sliding the mounting bra cket up th e
vertical bar of the front frame until the tabs on the mounting
bracket can be pulled forward through the matching slots in the
front frame. See figure 5.
T o disconnect the controller:
1. At the rear of the Jazzy, disconnect the controller harness
connectors from the electronics tray located at the well frame.
You may need to pull firmly and gently wiggle the connector to
remove it from the socket. For the smaller connector, you must
squeeze the connector latch release levers to disconnect the
connector from the socket. See figure 6.
To remove the seat:
1. Disconnect the controller harness connectors as previously
described.
2. Push in the black spring-loaded seat frame latch release buttons
(one on the front of each seat frame side tube). See figure 7.
3. While you are pushing both buttons or levers simultaneously, lift
up on the front end of the seat frame.
4. Pull forward on the seat frame to release the locating pins from
their slots in the rear seat post tower mounts. You may find it
necessary to wiggle the frame gently from side to side to free the
locating pins from their slots.
SLIDE FOOTREST UP AND PULL FORWARD TO REMOVE
Figure 5. Remove the Footrest
DISCONNECT JOYSTICK CONTROLLER
WARNING! Do not pick up the seat frame by the
armrests. They are free to pivot, and you may lose
control of the seat if they do so, resulting in
personal injury or damage to the chair.
Figure 6. Joystick Controller Harness
SEAT FRAME LATCH RELEASE BUTTONS
T o remove the battery well frame:
1. Remove the seat as previously described.
2. Disconnect the battery case connectors (2) from the utility tray.
See figure 8.
3. Next, disconnect and remove the battery cases (with the batteries
in them) from the battery well frame.
4. Disconnect the left motor connector from its matching socket
located on the left frame assembly. Squeeze the connector latch
release levers to disconnect.
5. Disconnect the right motor connector from its matching socket
located on the right frame assembly. Squeeze the connector latch
release levers to disconnect.
22 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
Figure 7. Remove the Seat
V. DISASSEMBLY

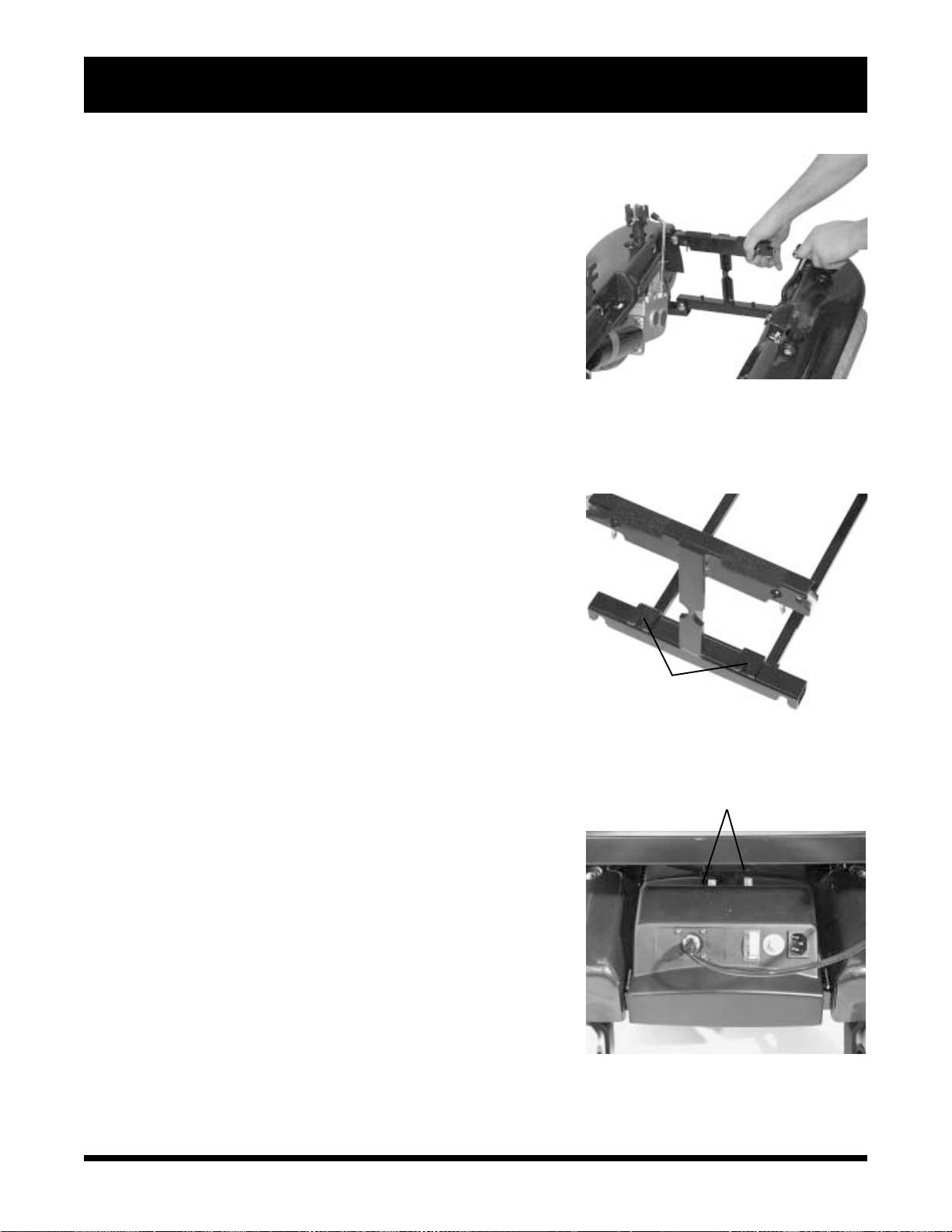

6. Squeeze together the latch release levers that hang vertically
down from the crossbar at the rear of the battery well frame.
See figure 9. Lift up the rear end of the battery well frame. Pull
it to the rear of the chair to release the front slots from the
locating pins on the bottom bar of the front frame.
To disassemble the right frame assembly from the
front frame:
1. Remove the battery well frame as previously described.
2. Stand behind the Jazzy and grasp the right frame assembly
handle (located next to the front seat post tower) with your
right hand.
3. Use your left hand and thumb to hold the front frame and press
and hold (toward the center of the front frame) the silver-colored
latch release lever. See figure 10.
4. Push the right frame assembly outward (toward the right) with
your right hand holding the right frame assembly handle.
5. Pull up with your left hand on the front frame until the latching
mechanism releases.
6. Keep pulling upward with your left hand until the locating pin
on the bottom of that side of the front frame releases from its
slot in the right frame assembly.
7. Carefully let the right frame assembly tilt to a resting position.
Figure 8. Disconnect Battery Cases
T o disassemble the left frame assembly from the front
frame:
1. Remove the battery well frame as previously described.
2. Stand behind the Jazzy and grasp the left frame assembly handle
(located next to the front seat post tower) with your left hand.
3. Use your right hand and thumb to hold the front frame and
press and hold (toward the center of the front frame) the silvercolored latch release lever. See figure 10.
4. Push the left frame assembly outward (toward the left) with
your left hand holding the left frame assembly handle.
5. Pull up with your right hand on the front frame until the latching
mechanism releases.
6. Keep pulling upward with your right hand until the locating pin
on the bottom of that side of the front frame releases from its
slot in the left frame assembly.
7. Carefully let the left frame assembly tilt to a resting position.
Figure 9. Front Frame
Figure 10. Front Frame
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 23
VI. COMFORT ADJUSTMENTS
After you have become familiar with your Jazzys operation, you may find the need to make adjustments to the
Jazzys seat. There are some adjustments you can make to increase your comfort such as seat height and angle,
armrest height and angle, the footrest height and angles, and the joystick position.
CAUTION! If your Jazzy 1113 was configured at your local Pride provider or service center, please
consult your health care professional before changing seat position or making any other
adjustment. Some of these adjustments may degrade your Jazzys performance and safety by
changing its center of gravity.
SEAT HEIGHT AND ANGLE
You can change the seat height by either raising or lowering the
four seat towers.
To change the seat height:
1. Remove the seat. See V. Disassembly.
2. Remove the ball detent pin from each seat tower. See figure 11.
BALL DETENT PIN
Note: Before you can remove the ball detent pin from each
front seat tower, you must first remove the front battery box.
See V. Disassembly.
3. Raise or lower each seat tower to the desired position.
4. Install the ball detent pin into each seat tower.
5. Reinstall the seat.
To change the seat height:
You can change the seat angle by either raising or lowering only
one set of seat towers (front or rear).
ARMREST WIDTH
T o change the armrest width:
1. Locate the two knobs on the armrest receiver bracket. See
figure 12.
2. Loosen the knobs and slide the armrests in or out to the
desired width.
3. Tighten the knobs.
Figure 11. Seat Height Adjustment
ADJUSTMENT KNOB
Figure 12. Armrest Width Adjustment
24 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
VI. COMFORT ADJUSTMENTS
ARMREST ANGLE
You can increase or decrease the armrest angle to fit your specific needs. See figure 13.
To change the armrest angle:
1. Lift the armrest straight up so that it is perpendicular to the floor.
2. Use a 7/16-in. wrench to loosen the jam nut. See figure 13.
3. Use a 5/32-in. hex key to loosen the adjustment screw.
4. Turn the screw clockwise to lower the front of the armrest and counterclockwise to raise the front of the
armrest.
5. Lock the adjustment screw into place by tightening the jam nut.
TURN THIS SCREW
TO CHANGE
ARMREST ANGLE
JAM NUT
LOCKS
ADJUSTMENT
SCREW
IN PLACE
Figure 13. Armrest Angle Adjustment
ARMREST HEIGHT (OPTIONAL)
Your Jazzy may be equipped with height-adjustable armrests.
T o change the armrest height:
1. Remove the ball detent pin from the armrest.
2. Move the armrest up or down to the desired height.
3. Align the holes and reinsert the ball detent pin.
LOOSEN
THIS
SETSCREW
TO ADJUST
JOYSTICK
Figure 14. Underside of Armrest
CONTROLLER EXTENSION
The controller can easily slide out away from the armrest, or in toward the armrest.
T o extend the controller:
1. Use a 3/16-in. hex wrench to loosen the setscrew. See figure 14.
2. Slide the controller mounting bracket into or out of the armrest to the desired position.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 25
VI. COMFORT ADJUSTMENTS
CONTROLLER POSITION
You can position the controller for either left-hand or right-hand use.
T o change the controller position:
1. Disconnect the controller harness from the rear battery box. See figure 6.
2. Cut the wire tie that attaches the controller cable to the armrest.
3. Use a 3/16-in. hex key to loosen the setscrew. See figure 14.
4. Slide the controller mounting out of the armrest and place it in the other armrest.
5. Tighten the setscrew.
6. Connect the controller cable to the armrest with a wire tie. See figure 15.
FOOTREST HEIGHT
The footrest height is easily adjusted to one of six different heights, in one-inch increments.
T o raise or lower the footrest:
1. Remove the socket cap screw, 5/16-in. nut, and washers from the footrest. See figure 16.
2. Raise or lower the footrest to the desired height.
3. Install the socket cap screw, nut, and two washers into the footrest and tighten.
FOOTREST ANGLE
You can adjust the angle of the footrest with a 3/16-in. hex key. See figure 16.
T o adjust the footrest angle:
1. Turn the setscrew clockwise to lower the front of the footrest.
2. Turn the setscrew counterclockwise to raise the front of the footrest.
3. Tighten the setscrew by turning it clockwise.
FOOTREST ANGLE
USE A WIRE TIE
TO SUPPORT THE
CONTROLLER
CABLE
ADJUSTMENT
(SCREW LOCATED
UNDERNEATH FOOTREST)
FOOTREST HEIGHT
ADJUSTMENT

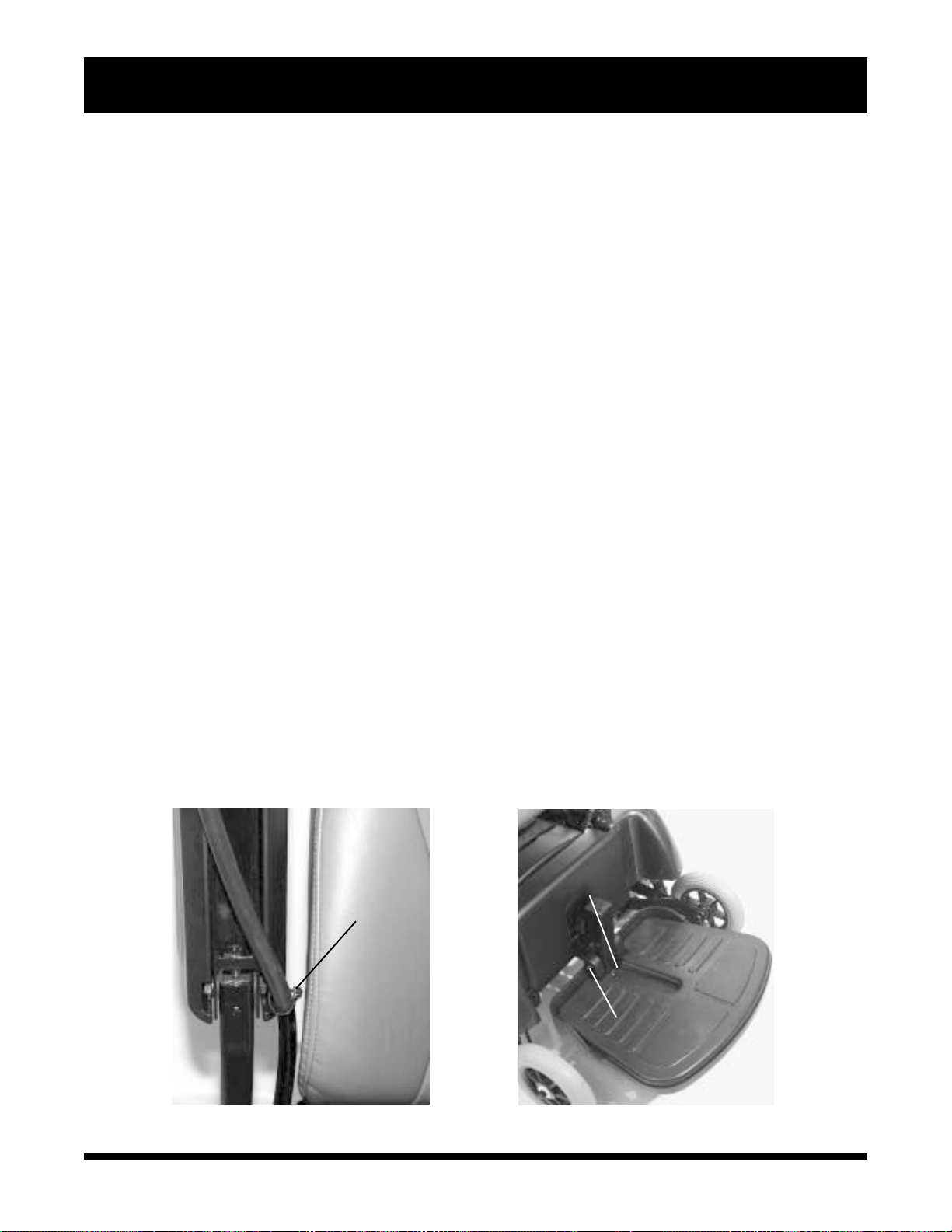

Figure 15. Wire Tie Location
26 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
Figure 16. Footrest Adjustment
VI. COMFORT ADJUSTMENTS
ANTI-TIP WHEELS
The anti-tip wheels are an integral part of your power chairs mid-wheel design because they provide you with
stability during deceleration. The anti-tip wheels are preset at the factory to a height of 3/4-in., which is measured
from the ground to the bottom of the wheel. This is the ideal setting for most power chair users. However, you may
encounter situations where you may need to adjust the anti-tip wheels. For instance, if you drive your power chair
on surfaces such as deep pile carpeting, you may notice that the anti-tip wheels have a tendency to drag on the
carpet. In this case, you may need to raise the anti-tip wheels. If you drive your power chair primarily on smooth
surfaces such as linoleum or tile, you may find that you tip forward more than is comfortable for you. (This may be
more apparent for lighter users.) In this case, you may need to lower the anti-tip wheels.
WARNING! Consult your authorized Pride provider before attempting to change the anti-tip wheel
height! Changing the anti-tip wheel height affects handling under deceleration!
WARNING! The higher you raise the anti-tip wheels, the more you increase your power chairs
tendency to tilt forward when coming to a stop. You can compensate for this by having your
authorized Pride provider make a small adjustment to the pre-programmed deceleration setting in
the controller or by moving the seat assembly further to the rear of your power chair.
Anti-Tip Wheel Adjustment
You will need a 1/2-in. wrench and socket and a Phillips head screwdriver.
T o adjust the anti-tip wheels:
1. Make sure that the manual freewheel levers are in the drive position.
2. Unplug the controller connectors from the electronics tray.
3. Remove the seat. See V. "Disassembly."
4. Unplug the left and right motor connectors.
5. Unplug and remove both battery boxes.
ANTI-TIP ADJUSTMENT NUT
6. Remove all four seat post ball detent pins (4) and remove the
seat posts.
7. Remove both left and right shrouds by loosening and removing
the four Phillips head screws. Two screws fasten each shroud
section to the frame. These screws are located on the top of
the shroud near the seat post holes.
8. Locate the anti-tip adjustment nut. See figure 17.
9. Use a 1/2-in. wrench to turn the adjustment nut. To lower the
anti-tip wheels and soften the suspension, turn the adjustment
nut counterclockwise. To raise the anti-tip wheels and stiffen
the suspension, turn the adjustment nut clockwise. Make the
same adjustment on both anti-tip wheels.
10. Reinstall the left and right shrouds.
11. Reinstall the four seat posts.
12. Reinstall both battery boxes.
13. Plug the left and right motor connectors back into their sockets.
14. Reinstall the seat.
15. Plug the controller connectors into the electronics tray.

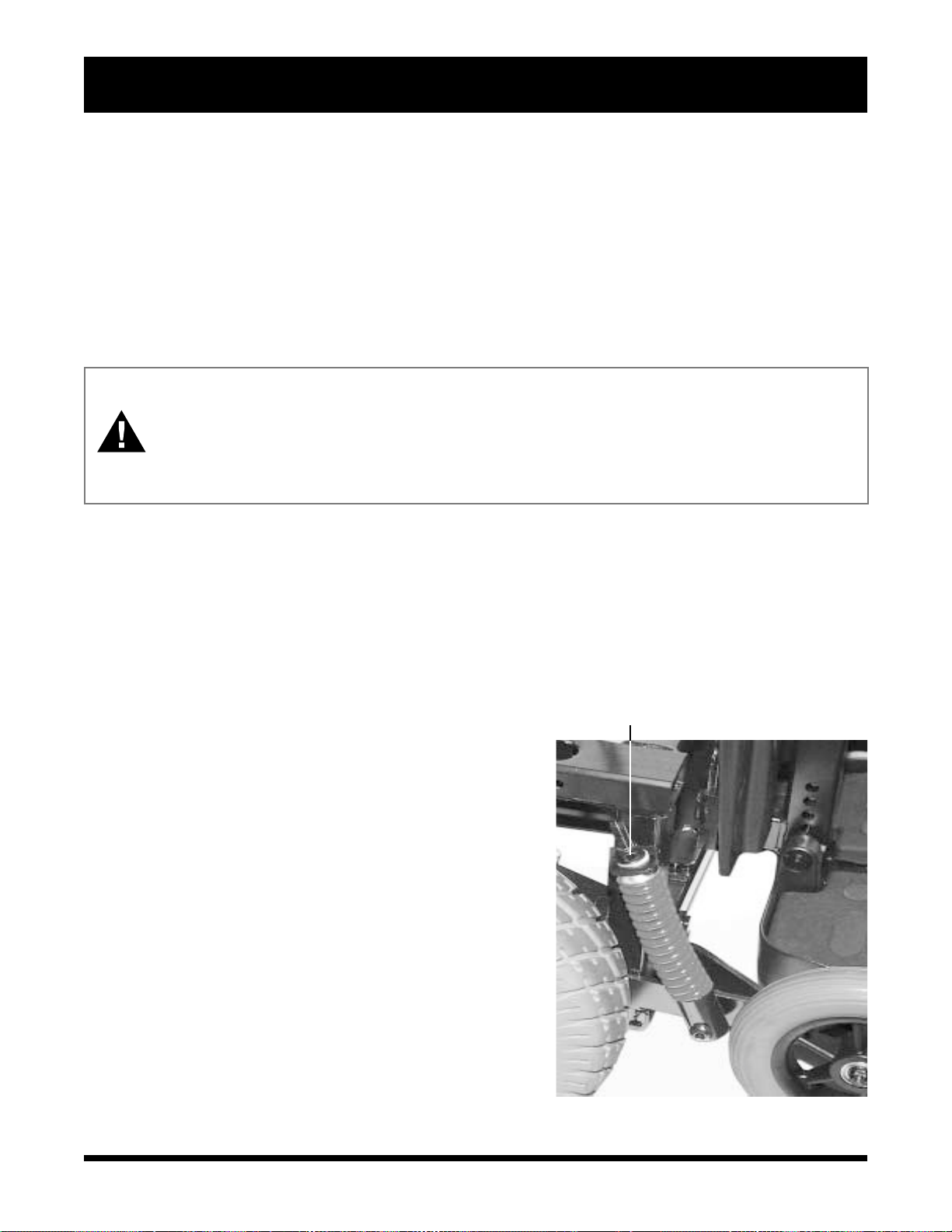

Figure 17. Anti-Tip Adjustment
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 27
VII. ASSEMBLY
1. Place the three frame assemblies next to each other as shown in figure 18.
2. Stand behind the assemblies, grasp the front frame with your left hand, and fit the notch on the
bottom bar of the front frame onto the locating pin on the lower section of the right frame
assembly. (The frame is shown in figure 19.)
3. Pivot the front frame top bar toward the right frame assembly and, while holding the latch release lever, push
the top bar of the front frame onto the locking mechanism until the two assemblies snap securely into place.
Release the latch release lever to hold the two assemblies together.
NOTE: The front frame should be positioned with the two semicircular notches in the vertical bar facing
forward.
4. Grasp the other frame assembly and lift the frame assembly into an upright position.
5. Tilt the front frame and the attached frame assembly (right side) so that the notch on the bottom bar of the front
frame fits onto the locating pin on the bottom section of the other frame assembly (left side). You will also have
to tilt the frame assembly (left side) slightly away from the front frame to make the parts fit together. See figure 20.
6. Pivot together the right frame assembly and the front frame, while holding the latch release lever, until the
locking mechanism on the top bar of the front frame snaps securely to the left frame assembly. Release the
latch release lever to hold the two assemblies together.
WARNING! Make certain that the front frame is snapped securely to both the right frame assembly
and to the left frame assembly.
Figure 18. Frame Assemblies
Figure 19. Front Frame Assembly
28 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
VII. ASSEMBLY
T o install the battery well frame:
1. Face the rear of the chair and hold the battery well frame so
that the belly of the well hangs downward.
2. Position the notches on the front of the battery well frame onto
the locating pins on the bottom bar of the front frame. See
figure 21.
3. Fit the notch on either side of the rear of the battery well frame
onto the locating pin on the right frame assembly and onto the
locating pin on the left frame assembly.
4. Make certain that the locking mechanisms snap securely into
place.
T o install the battery cases:
1. Place the front battery case (with the battery inside) into the
front end of the battery well frame.
Note: Make certain that the connectors are facing toward the
center.
Figure 20. Fitting the Frames
2. Place the rear battery case (with the battery inside) into the
back end of the battery well frame.
3. Make certain that none of the wiring harnesses or cables are
pinched between the battery or the motor controller box and
the frame.
4. Connect the 4-conductor power cable connectors from the
front and rear battery cases to the electronics tray. Push the
connector firmly and fully into the socket. See figure 22.
5. Reconnect the left and right motor connectors to their sockets
located on the left and right frame assemblies. Be certain to
match the left connector to the left motor and the right
connector to the right motor (the connectors are labeled left
and right).
T o install the seat:
1. Pick up the seat by the frame itself (not by the armrests) and
slide the locating pins near the back of the frame into the
matching slots on the left and rear seat post tower mounts.
2. Slide the pins to the back of the slots. It may be necessary to
wiggle the seat slightly from side to side to seat the pins firmly
at the back of the slots.
3. Push the front of the seat frame down until both the left and the
right frame sides lock into the front seat post tower mounts.
See figures 23 and 24.
LOCATING
PINS
Figure 21. The Locating Pins
CONNECTORS
Figure 22. Rear Electronics Tray
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 29
VII. ASSEMBLY
V ersa Seat or Versa Tilt Option
If your Jazzy is equipped with a Versa Seat or Versa Tilt, please refer
to the instruction manual supplied with the Versa Seat/Versa Tilt.
WARNING! The Versa Tilt Seating System used
on the Jazzy 1113 has an 18-inch maximum
seat pan width, an 18-inch maximum seat pan
depth, and a 160-pound weight capacity.
Exceeding the maximum width, depth, and
weight capacity voids your warranty and may
cause personal injury.
T o mount the footrest:
1. Match the two tabs at the back of the footrest mounting
bracket with the two semicircular notches in the vertical bar
of the front frame.
2. Push the tabs through the matching notches.
3. Slide the footrest down into place. See figure 25.
Figure 23. Seat Installation
T o connect the controller:
1. Attach controller to the seat arm. See VI. Comfort
Adjustments.
2. Plug the controller harness connector into the electronics tray
on the rear battery tray weldment as shown in figure 26.
3. Do not place the controller cable so that it can be pinched in
the seat frame or the chair frame.
CAUTION! Do not place the controller cable so
that it can be pinched in the seat frame or the
power base frame.
Figure 24. Locking the Seat Frame
Figure 25. Mounting the Footrest
CONTROLLER
HARNESS
CONNECTOR
Figure 26. Connecting the Controller
Harness
30 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
VIII. OPERATION
VSI CONTROLLER
The electronic controller is what you use to operate your power chair. It takes the battery voltage and sends it to
the appropriate system. The electronic controller enables you to move the power chair, as well as monitor battery
charge, electronic controller functions, and the condition of your electrical system. Also, it may be used to control
some optional systems such as power elevating seats and lights.
The VSI controller is an integral electronic controller. All of the electronics necessary to operate the power chair
are contained in one module. See figure 27.
The VSI consists of:
1. joystick
2. keypad (see figure 28)
3. off-board charger/
programming socket
4. actuator connector
(optional)
5. controller connector
6. 3-pin charger inhibit
connector
Typically, the VSI is mounted to one
of the armrests and is connected to
the motors, batteries, and the onboard
charger at the electronics tray.

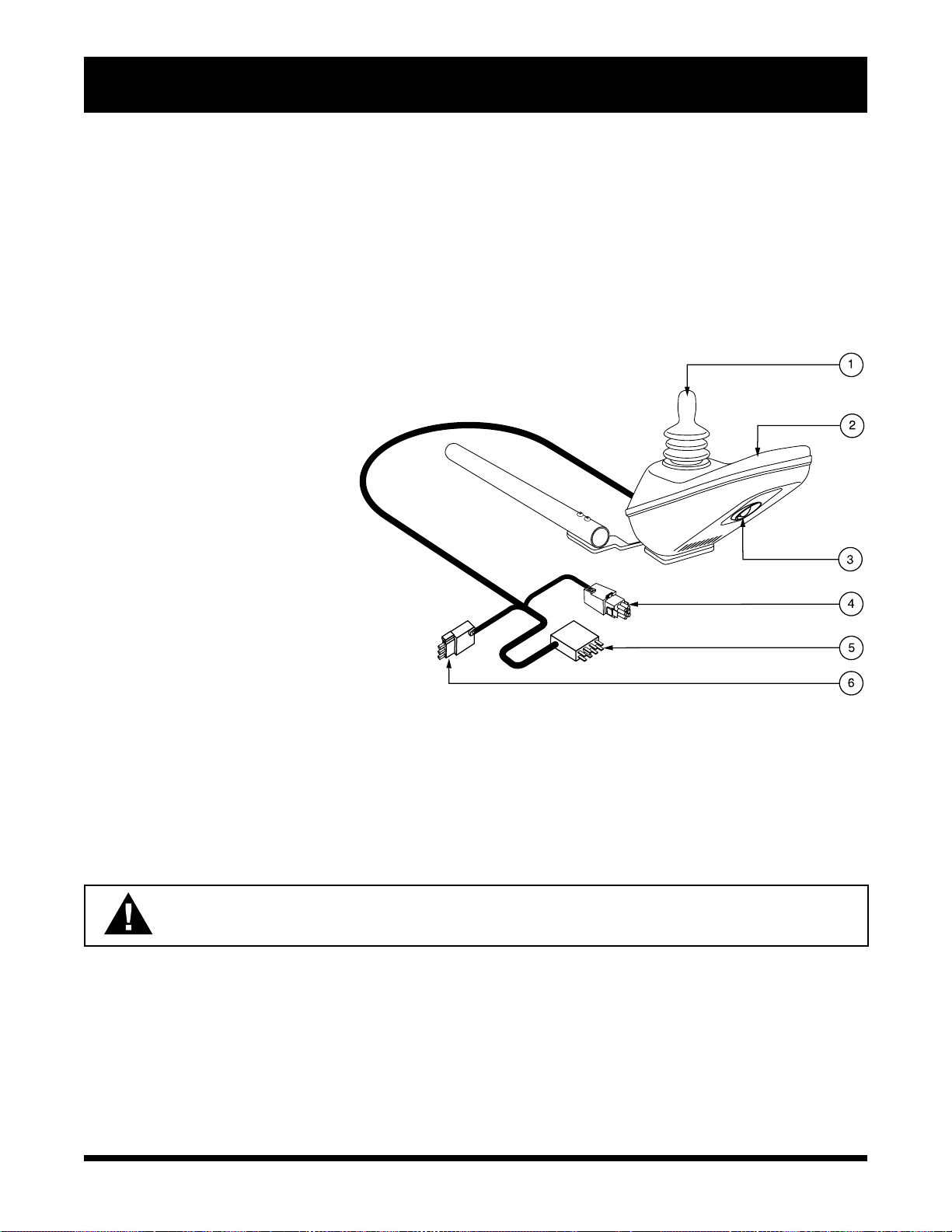

Figure 27. VSI Controller
Joystick
The joystick controls the direction and speed of your power chair. When you move the joystick from the neutral
(center) position, the electromagnetic brakes release and allow your power chair to move. The further you push the
joystick from its neutral position, the faster your power chair moves. When you release the joystick and allow it to
return to the neutral position, you engage the electromagnetic brakes. This causes your power chair to decelerate
and come to a complete stop.
WARNING! If your power chair begins to move in an unexpected manner, immediately
release the joystick. Unless the joystick is damaged, this action should stop your power
chair.
Keypad
The keypad is located in front of the joystick. It contains keys necessary to operate your Jazzy.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 31
VIII. OPERATION
On/Off Key
The on/off key turns the VSI on and off.
WARNING! Unless faced with an emergency
situation, do not use the on/off key to stop the
chair. This will cause the power chair to stop
abruptly.
WARNING! Always turn the power off when you
are stationary to prevent unexpected movement.
Battery Condition Meter
The battery condition meter is located in front of the joystick.
See figure 28. This is a 10-segment illuminated display that
indicates that the VSI is turned on and also gives the battery
status, the VSI status, and the electrical system status.
n Red, yellow, and green lights lit: Battery charged; VSI
andelectrical system OK.
n Red and yellow lights lit: Charge battery if possible;
VSI and electrical system OK.
n Red lights only lit or slow flash: Charge battery as soon
Figure 28. VSI Controller Keypad
as possible; VSI and electrical system OK.
n Rapid flash of lights: Indicates a fault in the VSI or the
electrical system. Refer to VSI Error Codes.
n Ripple up and down of lights: The joystick was not in the neutral position when the controller was
turned on. If you get ripple up and down of lights, turn off the controller, allow the joystick to return
to the neutral position, then turn on the controller.
NOTE: If you still get ripple up and down of lights, contact your authorized Pride provider.
NOTE: When the batteries approach a discharged state, the first red light will begin to slowly flash,
reminding you the batteries need to be charged immediately!
Speed/Profile Keys
There are two keys that control either the speed or the profile. See figure 28. This depends on how your VSI was
programmed. Press the speed/profile increase key to increase the speed or change the profile. Press the speed/
profile decrease key to decrease the speed or change the profile. The speed/profile setting is displayed on the
maximum speed/profile indicator. If your power chair was programmed with a drive profile, contact your authorized
Pride provider for more information.
32 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
VIII. OPERATION
NOTE: We recommend that the first few times you operate your power chair, you set the speed to the
slowest setting until you become familiar with your new power chair.
Actuator Key and Actuator Lights (for optional equipment)
Actuator keys and actuator lights are used for optional equipment such as power elevating seats or power elevating
leg rests. For specific operation of the actuator keys and actuator lights, contact your authorized Pride provider.
Horn Key
The horn key activates the horn.
Off-board Charger/Programming Socket
You may use an off-board charger to charge the power chair batteries through the 3-pin socket located on the front
of the VSI. See figure 27. If you use an off-board charger, the charger current should not exceed 12 amps. Contact
your authorized Pride provider for more information.
CAUTION! Only chargers with Neutrik NC3MX plugs should be connected to the off-board
charger/programming socket. See your authorized Pride provider for more information.
NOTE: The socket may also be used for reprogramming the VSI. Contact your authorized Pride provider
for more information.
Controller Connector
This connects the VSI to the power chairs batteries, motors, and motor brakes.
3-pin Charger Inhibit Connector
This connects the VSI to the onboard battery charger. This connection provides an inhibit that disables the VSI
when the battery charger is on. The charger inhibit connector is coded with colored dots. The dots are positioned
so that you align the flat side of the male connector with the flat side of the female connector before making the
connection.
CAUTION! Failure to properly align the connectors can result in damage to the VSI, the
charger, and the connectors.
Thermal Rollback
The VSI controller is equipped with a thermal rollback circuit. The circuit monitors the temperature of the controller,
which roughly translates to motor temperature. In the event that the VSI controller becomes excessively hot
(above 140° F), motor current (amperage) is reduced. For every degree above 140° F, the motor current limit is
reduced by .55 amps until the VSI controller reaches 158° F, at which time the current output is reduced to zero.
This reduces your power chairs power, which could also reduce your power chairs speed, and allows the
electrical components and motors to cool down. When the temperature returns to a safe level, your power chair
resumes its normal operation.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 33
VIII. OPERATION
Troubleshooting
The VSI controller is designed with the users safety as the prime consideration. It incorporates many sophisticated
self-test features which search for potential problems at a rate of 100 times per second. If the VSI detects a
problem either in its own circuits or in the power chairs electrical system, it may stop the power chair, depending
on the severity of the problem. The VSI is designed to maximize the users safety under all normal conditions. The
table below identifies the individual error codes. Error codes are displayed as a rapid flashing of the lights. If you
get one of these error codes, contact your authorized Pride provider.
VSI Error Codes
FLASHING
LIGHTS
1 The battery needs charging or there is a bad connection to the battery. Check the connections
to the battery. If the connections are good, try charging the battery.
2 The left motor has a bad connection. Check the left motor connection.
3 The left motor has a short circuit to a battery connection. Contact your authorized Pride provider.
4 The right motor has a bad connection. Check the right motor connection.
5 The right motor has a short circuit to a battery connection. Contact your authorized Pride
provider.
6 The power chair is being inhibited by the battery charger. Unplug the battery charger.
7 A joystick fault is indicated. Make sure that the joystick is in the neutral (center) position before
turning on the controller.
8 A controller system fault is indicated. Make sure that all connections are secure.
9 The parking brakes have a bad connection. Check the parking brake and motor connections.
Make sure the controller connections are secure.
10 An excessive voltage has been applied to the controller. This is usually caused by a poor
battery connection. Check the battery connections.
DIAGNOSIS AND SOLUTION
34 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
VIII. OPERATION
REMOTE PLUS CONTROLLER
The Remote Plus is a modular electronic control system. The electronics necessary to operate the power chair are
contained in several modules located on different parts of your power chair.
The Remote Plus system consists of the following components:
n master remote
n communications cable(s)
n power module
n motor wiring harnesses
n battery wiring harnesses
n actuator lighting module
(for optional equipment)
The master remote is located typically on the end
of an armrest. The other components are located
inside the power base.
1
2
Remote Plus Master Remote
The Remote Plus master remote consists of the
3
following (see figure 29):
1. joystick
2. keypad
4
3. controller communications cable
4. off-board charger/programming socket

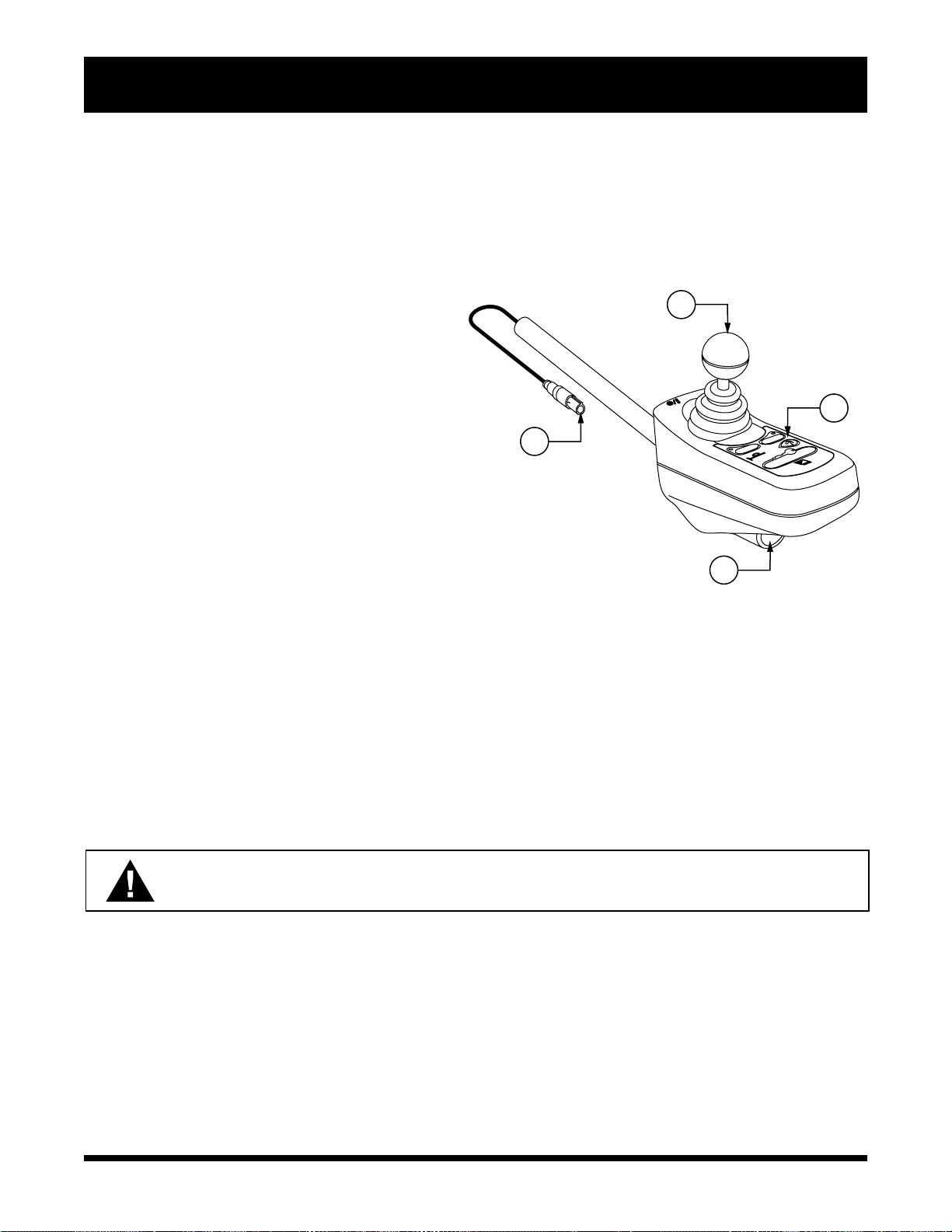

Figure 29. Remote Plus Master Remote
Joystick
The joystick controls the direction and speed of your power chair. When you move the joystick from the neutral
(center) position, the electromagnetic brakes release and allow your power chair to move. The further you push the
joystick from its neutral position, the faster your power chair moves. When you release the joystick and allow it to
return to the neutral position, you engage the electromagnetic brakes. This causes your power chair to decelerate
and come to a complete stop.
WARNING! If your power chair begins to move in an unexpected manner, immediately
release the joystick. Unless the joystick is damaged, this action should stop your power
chair.
Keypad
The keypad is located directly in front of the joystick. See figure 30. It contains keys that you will use to control
your power chair.
On/Off Key
The on/off keys toggles the system power on and off.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 35
VIII. OPERATION
WARNING! Unless faced with an emergency situation, do not use the on/off
key to stop the chair. This will cause
the power chair to stop abruptly.
WARNING! Always turn the power off
when you are stationary to prevent
unexpected movement.
Mode Key
Press the key to change speed setting or to activate
the power accessories. See Speed Settings or
Power Accessories.
Speed Setting Indicator
Indicates the selected speed setting.
Power Accessory Indicator
Indicates the selected power accessory. This is for
optional accessories only.
Horn Key
The horn key activates the horn.
Right/Left Turn Indicator Keys
The right/left Indictor keys toggle either the left or right
turn indicators. Press once to turn on and press again
to turn off. You can also turn off the selected indicator
Figure 30. Remote Plus Keypad
by pressing the opposite indicator key or the hazard key.
Light Key
The light key turns headlights/taillights on and off independent of other indicators.
Hazard Key
The hazard key toggles both indicators at the same time. You can only cancel this by pressing the hazard key again.
Battery Condition Meter
The battery condition meter is located in front of the joystick. This is a 10-segment illuminated display that indicates
that the Remote Plus is turned on and also gives the status of the battery, the controller, and the power chair
electrical system.
n Red, yellow, and green lights lit: Battery charged; controller and electrical system OK.
n Red and yellow lights lit: Charge battery if possible; controller and electrical system OK.
n Red lights only lit or slow flash: Charge battery as soon as possible; controller and electrical system OK.
n Rapid flash of lights: Indicates a fault in the controller or the electrical system.
n Ripple up and down of lights: The joystick was not in the center position when the controller was turned on.
If you get ripple up and down of lights, turn off the controller, allow the joystick to return to the center
position, then turn on the controller.
36 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
VIII. OPERATION
NOTE: If you still get ripple up and down of lights, contact your authorized Pride Provider.
NOTE: When the batteries approach a discharged state, the first red light will begin to slowly flash,
reminding you the batteries need to be charged immediately!
Speed Settings
The Remote Plus speed settings range from 1 to 5. Typically, the slowest speed setting is 1 and the fastest speed
setting is 5. The settings are indicated by the number of lights that are lit.
NOTE: The speed settings are preset at the factory. If your authorized Pride provider changes the order
of these settings, please make note of these changes. Contact your authorized Pride provider for more
information.
To select a speed setting:
1. Press the on/off key to power on the remote.
2. Press the mode key once.
3. To increase chair speed, push the joystick to the right. Each time you push the joystick, you will increase the
speed setting.
4. To decrease chair speed, push the joystick to the left. Each time you push the joystick, you decrease the speed
setting.
5. Once you select the desired speed setting, press the mode key once to keep the setting or push the joystick in
the forward or reverse direction. The chair will resume operation at the selected speed.
NOTE: We recommend that the first few times you operate your power chair, you have your speed on the
slowest setting until you become familiar with your new power chair.
Power Accessories
If your power chair is equipped with power accessories such as a power seat or power elevating leg rests, you can
operate them through the remote keypad. Contact your authorized Pride provider for information on how to
operate these accessories.
Off-board Charger Socket
You may use an off-board charger to charge the power chair batteries through the 3-pin socket located on the front
of the controller. See figure 29. The socket may also be used for reprogramming the controller by using a Penny &
Giles Programmer, should this be necessary. If you use an off-board charger, the charger current should not exceed
12 amps. Contact your authorized Pride provider for more information.
CAUTION! Only chargers with Neutrik NC3MX plugs should be connected to the off-board
charger/programming socket. See your authorized Pride provider for more information.
Controller Communications Cable
The controller communications cable provides the joystick module with a connection to the power module at the
back of the power base. See figure 29.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 37
VIII. OPERATION
Power Module
Typically, the power module is mounted to the power base. The power module provides a power interface for the
joystick module. It routes the battery power to the motors and other powered accessories such as lights and
power seats.
Actuator Lighting Module (Not Shown)
The actuator lighting module is also located on the power base. The actuator lighting module provides a control and
power interface between the power module, the lights, and/or the power seat actuator.
Sleep Mode
Your Remote Plus controller has a sleep mode feature. Sleep mode is a built-in circuit that automatically shuts off
the main power if the joystick is not moved in any direction for approximately five minutes. The battery condition
meter lights on the keypad indicate sleep mode by blinking once every five seconds. To restore power and continue,
push the on/off key twice.
Thermal Rollback
The Remote Plus is equipped with a thermal rollback circuit. This circuit monitors the temperature of the motors,
power module, and remote. In the event that any of them become excessively hot (above 122° F), motor voltage
is reduced. For every degree above 122° F, the voltage is reduced by 5 volts. This reduces your power chairs
speed and allows the electrical components to cool down. When the temperature returns to a safe level, your
power chair resumes its normal speed.
Trouble Codes
In addition to indicating the current state of battery charge, the battery condition meter can also indicate possible
problems with your power chair. The battery condition meter has ten lights. The lights provide information by the
number of lights that are flashing. If any of the meter lights are flashing rapidly, the controller may be indicating a
fault. For instance, if the first light is flashing rapidly, the battery voltage is nearly depleted. The following is a list of
the possible errors signified by the rapidly flashing meter. When you get a trouble code, contact your authorized
Pride provider.
FLASHING DIAGNOSIS SOLUTION
LIGHTS
10 High Battery Voltage Check batteries.
9 Solenoid Brake Fault Check motor/brake wiring.
8 Possible Controller Fault See authorized Pride provider.
7 Possible Joystick Fault See authorized Pride provider.
6 Inhibit Active Unplug charger. Check connections.
5 Right Motor Wiring Fault Check right motor wiring.
4 Right Motor Disconnected Check right motor wiring.
3 Left Motor Wiring Fault Check left motor wiring.
2 Left Motor Disconnected Check left motor wiring.
1 Low Battery Voltage Check batteries/battery wiring.
38 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
VIII. OPERATION
1/0
DX CONTROLLER
The Dynamic DX electronic control system is a modular system. The electronics necessary to operate the power chair are
contained in several modules located on different parts of your power chair.
The Dynamic DX system consists of the following components:
n master remote (Europa)
n communications cable(s)
n power module
n motor wiring harnesses
n battery wiring harnesses
n actuator lighting module (for optional systems)
1
2
The master remote is located typically on the end of an
armrest. The other components are located inside the
3
1/0
power base.
Europa Master Remote
The Europa master remote consists of the following
(see figure 31):
1. joystick
Figure 31. Europa Master Remote
4
2. keypad
3. controller communications connector
4. off-board charger/programming socket
Joystick
The joystick controls the direction and speed of the power chair. When you move the joystick from the neutral (center) position,
the electromagnetic brake will release and allow the power chair to move. The further you push the joystick from its neutral
position, the faster your power chair will move. When you release the joystick and allow it to return to the neutral position, you
engage the electromagnetic brake. This helps the power chair decelerate and come to a complete stop. You can also use the
joystick control power actuators.
WARNING! If your power chair begins to move in an unexpected manner, immediately release the
joystick. Unless the joystick is damaged, this action should stop your power chair.
Out Of Neutral At Power Up
Your power chair joystick is equipped with Out Of Neutral At Power Up (OONAPU). If you power up the system and the
joystick is not in the neutral position, the system status light flashes rapidly for either as long as the joystick is out of the neutral
position or five seconds. If this has happened and the all the segments on the battery condition meter are flashing, you may have
set a fault code. See Fault Codes.
Keypad
The keypad is located directly in front of the joystick. It contains keys that you will use to control your power chair.
See figure 32.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 39
VIII. OPERATION
On/Off Key
The on/off key toggles the system power on and off.
WARNING! Unless faced with an emergency
situation, do not use the on/off key to stop the
chair. This will cause the power chair to stop
abruptly.
WARNING! Always turn the power off when you
are stationary to prevent unexpected movement.
NOTE: If the joystick is not in the neutral (center) position
when you turn on the power, you may cause a fault in the
system. See Out Of Neutral At Power Up.
System Status Light
The system status light is normally on when the system is powered
up, and off when the system is powered down. It will also flash
trouble codes when the system detects a fault. See Trouble Codes.
Magnetic Locking Area
Your power chair is equipped with a feature that enables you to
lockout unauthorized users. For this function, you will need the
Figure 32. Europa Master Remote Keypad
magnetic key supplied with your power chair. If you lose this key,
contact your authorized Pride provider.
To enable the lockout system:
1. Hold the magnetic key on or near the key symbol. The system will beep and automatically turn off.
NOTE: None of the remote lights should be lit.
2. Press the on/off key to turn on the power chair. The key symbol will flash, but you will not be able to drive your power chair.
This means that it is still locked.
3. Hold the magnetic key on or near the key symbol again to unlock the system. When the key symbol stops flashing, you may
turn on the power chair.
NOTE: If you turn on the power chair while it is locked and dont unlock it after one minute, the power chair will
automatically turn off itself.
Battery Condition Meter
The battery condition meter consists of six lights arranged in an arc over the battery icon. From left to right, the first two are red,
the second two are orange and the last two are green. These lights give you an accurate indication of your usable battery
40 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
VIII. OPERATION
capacity. If the battery has at least 85% of its rated capacity, all of the lights will be on. As the battery voltage drops, the number
of lights reduces from right to left. When the battery capacity drops to 10% or below, all of the lights will flash once every
second.
Drive Program Select Key
The drive program select key enables you to select a drive program and an actuator mode. Your Dynamic DX controller was
preprogrammed at the factory for five drive programs 1(slowest) to 5(fastest). The drive mode is indicated by a number in
the center of the keypad.
NOTE: The drive mode settings are preset at the factory. If your authorized Pride provider changes these settings,
please make note of these changes.
To change the drive mode program:
1. Press the drive mode select key.
2. Move the joystick right to increase the drive mode program.
3. Move the joystick left to decrease the drive mode program.
4. Press the drive mode select key.
Drive Mode and Actuator Display (also Remote Status Display)
This is a seven-segment light that displays the drive program. It also displays a drive inhibit and actuator mode (if applicable),
when they occur.
Actuator Select Keys with Lights
If your power chair is equipped with power accessories such as a power seat or power elevating leg rests, you can
operate them through the remote keypad. Contact your authorized Pride provider for information on how to
operate these accessories.
Remote Status Light
This light will flash if there is an internal Dynamic DX Remote fault, or if an OONAPU fault has occurred. See Out Of Neutral
At Power Up.
Horn Key
The horn key activates the horn.
Battery Saver Feature
When the battery capacity drops to below 21V (typically two lights), the controller will reduce power chair performance to
conserve battery power.
Off-board Charger/Programming Socket
You may use an off-board charger to charge the power chair batteries through the 3-pin socket located on the front
of the Europa. See figure 32. If you use and off-board charger, the charger current should not exceed 8 amps.
Contact your authorized Pride provider for more information.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 41
VIII. OPERATION
NOTE: The socket may also be used for reprogramming the Europa. Contact your authorized Pride
provider for more information.
Sleep Mode (If Enabled)
The power chair controller features a sleep mode. Sleep mode is a built-in circuit that will automatically shut off the main power
if the joystick is not moved in any direction for a period of time. This time factor is programmed into the controller. To restore
power and continue, push and key on the keypad.
Fault Codes
The system status LED is displayed within the on/off key. This LED is lit if the system is turned on. It also flashes in groups called
flash codes, to indicate system faults. The table below identifies the individual fault codes. If your keypad displays one of these
codes, contact your authorized Pride provider.
FLASH CODE
SEQUENCE DIAGNOSIS SOLUTION
DX MODULE FAULT SEE YOUR AUTHORIZED PRIDE PROVIDER.
DX ACCESSORY FAULT SEE YOUR AUTHORIZED PRIDE PROVIDER.
LEFT MOTOR (OR CONNECTION) FAULT CHECK LEFT MOTOR WIRING.
RIGHT MOTOR (OR CONNECTION) FAULT CHECK RIGHT MOTOR WIRING.
LEFT PARK BRAKE FAULT CHECK MOTOR/BRAKE WIRING.
RIGHT PARK BRAKE FAULT CHECK MOTOR/BRAKE WIRING.
LOW BATTERY FAULT CHECK THAT THE BATTERY WIRING IS SECURE.
OVER VOLTAGE FAULT CHECK THAT THE BATTERY WIRING IS SECURE.
CANL FAULT SEE YOUR AUTHORIZED PRIDE PROVIDER.
CANA FAULT SEE YOUR AUTHORIZED PRIDE PROVIDER.
STALL TIMEOUT TURN UNIT ON, THEN OFF.
MODULE MISMATCH SEE YOUR AUTHORIZED PRIDE PROVIDER.
NOTE: You must turn the controller off and then on again to reset the controller, even if the source of the fault is
removed/corrected.
In the event of a fault, the system status LED displays diagnostic indications. Faults are encoded as follows: one (for a low
battery voltage fault) to twelve (module mismatch) and are displayed by the LED flashing the number of times prescribed by the
fault code. The flash sequence (one to twelve) is followed by a long off period (2 seconds). If more than one fault exists, then the
fault having the highest priority is indicated. The controller must be turned off and then on again even if the source of the fault is
removed. If you cannot resolve the problem, contact your authorized Pride provider.
42 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
IX. BATTERIES AND CHARGING
BATTERIES AND CHARGING
Your Jazzy 1113 uses two long-lasting, 12-volt batteries. These batteries are sealed, maintenance free, deep-cycle
batteries. Since they are sealed, there is no need to check the electrolyte (fluid) level. Deep-cycle batteries are
designed to handle a deep discharge. Though they are similar in appearance to automotive batteries, they are not
interchangeable. Automotive batteries are not designed to handle a long, deep discharge, and are also unsafe for
use in power chairs.
WARNING! Battery posts, terminals and related accessories contain lead and lead compounds.
Wash hands after handling.
CHARGING YOUR BATTERIES
The battery charger is one of the most important parts of your Jazzy 1113. The battery charger is designed to
optimize your Jazzy 1113s performance by charging the batteries safely, quickly, and easily. The charging system
consists of the charger, the charger fuse, and the ammeter. The onboard charger is located on the battery tray. The
charger fuse and the ammeter are located on the rear electronics tray. The ammeter indicates the rate of charge
necessary to fully recharge the batteries. It is also a good indication of whether or not the charger is working. The
ammeter and the charger are only functional when the charger power cord is plugged into a wall outlet.
WARNING! You must recharge your Jazzy 1113s batteries with the supplied onboard or off-board
charging system. Do not use an automotive-type battery charger.
WARNING! Never use an extension cord to plug in your battery charger. Plug the charger directly
into a properly wired standard wall outlet.
T o charge the batteries by using the onboard charger:
1. Position the rear of your Jazzy 1113 close to a standard wall outlet.
2. Be certain that the controller power is turned off and the freewheel levers are in the engagedposition. See IV.
The Jazzy 1113.
3. Extend the charger power cord and plug it into the wall outlet. The Jazzy 1113 incorporates an inhibit function
that disables the power chair when the charger is plugged into a wall outlet.
4. The ammeter indicates how much charge is needed to fully charge the batteries. Wait about a minute for the
charger to warm up. The ammeter may move up to as high as 5.5 amps, then gradually move back down to 0
amps as it charges.
5. We recommend you charge the batteries for 8 to 14 hours. As the batteries charge, the ammeter needle will
slowly drop to zero. When the batteries are fully charged, the needle will vibrate on or about the zero mark on
the meter scale.
6. When your Jazzy 1113s batteries are fully charged, unplug the power cord from the wall outlet, wind it up, and
store it in the seat pouch located on the back of the seat.
OFF-BOARD CHARGER
Your Jazzy may be equipped with an off-board, or external, charger. Typically, external chargers plug into the controller.
If your Jazzy is equipped with an external charger, refer to the instructions that come with the charger.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 43
IX. BATTERIES AND CHARGING
BATTERY BREAK-IN
T o break in your Jazzy’ s new batteries for maximum efficiency:
1. Fully recharge any new battery prior to initial use. This will bring the battery up to about 90% of its peak
performance level.
2. Run your Jazzy 1113 about the house and yard. Move slowly at first, and do not stray too far until you become
accustomed to the controls and break in the batteries.
3. Give the batteries another full charge of 8 to 14 hours and run the Jazzy 1113 again. The batteries should now
perform at over 90% of their potential.
4. After four or five charging cycles, the batteries will top off at 100% charge and last for an extended period.
BATTERIES AND CHARGINGFREQUENTLY ASKED QUESTIONS (FAQS)
How does the charger work?
The battery charger takes the standard wall outlet voltage of 120VAC (alternating current) and converts it to
28VDC (direct current). When the battery voltage is low, the charger works harder to charge the batteries. This is
why the charging ammeter initially reads 5.5 or more amps. As the battery voltage approaches a full charge, the
charger doesnt work as hard to complete the charging cycle. This explains why the amperage on the charging
ammeter drops as the batteries approach a full charge. When the batteries are fully charged, the amperage from the
charger is nearly zero. This is how the charger maintains a charge but does not overcharge the battery. Your Jazzy
1113s charger will not be able to charge your batteries after the batteries have been discharged to nearly zero
voltage. If this happens, call your local authorized provider for assistance.
Can I use a different battery charger?
You should use the charger supplied with the Jazzy 1113. It is the safest, most efficient tool to charge the batteries.
We do not recommend using other types of chargers (e.g., an automotive battery charger).
How often must I charge the batteries?
Many factors come into play when deciding how often to charge the batteries. You may use your Jazzy 1113 all day
on a daily basis, or you may not use it for weeks at a time.
n Daily Use
If you use your Jazzy 1113 on a daily basis, charge the batteries as soon as you are finished using it for the day.
Then, your Jazzy 1113 will be ready each morning to give you a full days service. We recommend that you
charge the batteries 8 to 14 hours after daily use. Do not charge the batteries for more than 24 hours.
n Infrequent Use
If you use your Jazzy 1113 infrequently (once a week or less), you should charge it at least once per week for
12 to 14 hours.
Remember: Keep the batteries fully charged and avoid deeply discharging the batteries. Do not charge the
batteries for more than 24 hours.
44 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
IX. BATTERIES AND CHARGING
How can I get maximum range or distance per charge?
Rarely do you have an ideal driving situation such as smooth, flat, hard terrain with no hills or curves. More often
you are presented with hills, sidewalk cracks, uneven and loosely packed surfaces, and curves. All of these factors
affect the distance or running time per battery charge. The following are a few suggestions for obtaining the maximum
range per charge:
n Always charge the batteries fully prior to your trip.
n Maintain 30-35 psi in pneumatic drive tires.
n Plan your trip in advance to avoid inclines if possible.
n Limit the baggage weight to essential items.
What type of battery should I use?
We recommend deep-cycle batteries that are sealed and maintenance free. Both AGM and Gel-Cell are deepcycle batteries and are similar in performance.
Use these specifications to reorder deep-cycle batteries.
Battery Specifications
Type: Deep-Cycle AGM or Gel- Cell
Size: U1
Voltage: 12 volts each
Amp Hours: 35 amp hours
WARNING! Corrosive chemicals contained in batteries. Use only AGM or Gel-Cell batteries
to reduce the risk of leakage or explosive conditions.
Why do my new batteries seem weak?
Deep-cycle batteries employ a different chemical technology than that used in car batteries, nickel-cadmium (nicads),
or in other common battery types. Deep-cycle batteries are specifically designed to provide power, drain down
their charge, and then accept a relatively quick recharge. Lead acid batteries should be charged as often as
possible. They do not have a memory like nickel-cadmium batteries.
We work closely with our battery manufacturer to provide a battery that best suits the Jazzy 1113s specific
demands. Fresh batteries arrive regularly and are promptly shipped with a full charge. During shipping, the batteries
encounter temperature extremes that may influence their initial performance. Heat robs the charge from the battery,
and cold slows the power available and extends the time needed to recharge the battery (just as with a car battery).
It might take a few days for the temperature of the battery to stabilize and adjust to its new ambient temperature.
More importantly, it takes a few charging cycles (a partial drain, then a full recharge) to establish the critical
chemical balance that is essential to the batterys peak performance and long life. It is well worth it for you to take
the time to break in the batteries properly.
Remember: The useful life of a battery is quite often a reflection of the care it receives.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 45
IX. BATTERIES AND CHARGING
How can I ensure maximum battery life?
A fully charged deep-cycle battery provides reliable performance and extended battery life. Keep your Jazzys
batteries fully charged whenever possible. Batteries that are regularly and deeply discharged, infrequently charged,
or stored without a full charge may be permanently damaged, causing unreliable Jazzy operation and limited battery
life.
How should I store my Jazzy 1113 and batteries?
If you do not use your Jazzy 1113 regularly, we recommend maintaining battery vitality by charging the batteries at
least once a week.
If you do not plan on using your Jazzy 1113 for an extended period, fully charge the batteries prior to storage.
Disconnect the battery harnesses and store the Jazzy in a warm, dry environment. Avoid temperature extremes
such as freezing conditions and excessively hot conditions, and never attempt to charge a frozen battery. A cold or
frozen battery should be warmed for several days prior to recharging.
Note: If you are storing a Jazzy 1113 for an extended period of time, you may wish to block the unit up off
the ground with several boards under the frame. This keeps the tires off the ground and prevents the
possibility of flat spots developing.
What about public transportation?
If you intend to use public transportation while using your Jazzy, you must contact in advance the transportation
provider to determine their specific requirements. See II. Safety for more details.
Sealed Lead Acid and Gel Cell batteries are designed for application in power chairs and in other mobility vehicles.
Generally, Sealed Lead Acid batteries are safe for all forms of transportation such as aircraft, buses, and trains.
We suggest that you contact your transportation provider to determine specific requirements of transportation and
packaging.
What about shipping?
If you wish to use a freight company to ship the Jazzy 1113 to your final destination, repack the Jazzy 1113 in the
original shipping container and ship its batteries in separate boxes.
46 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
X. CARE AND MAINTENANCE
ROUTINE MAINTENANCE
Your Jazzy is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. You
can perform some of these checks, but others require assistance from an authorized Pride provider. Preventive
maintenance is very important. If you follow the maintenance checks in this section as scheduled, you can help
ensure that your Jazzy gives you years of trouble-free operation. If you have any doubt as to your Jazzys care or
operation, contact your Pride provider.
CAUTION! Your Jazzy 1113, like most electrical equipment, is susceptible to damage from the
elements. Avoid damp areas of any kind. Direct exposure to water or dampness could cause the
power chair to malfunction electronically and mechanically. Water can cause electrical
components to corrode and the chairs frame to rust.
Should your Jazzy 1113 come in contact with water:
1. Dry your Jazzy 1113 as much as possible with a dry towel.
2. Allow your Jazzy 1113 to sit in a warm, dry place for 24 hours to allow unseen
water to evaporate.
3. Check the joystick operation and the brakes before using your Jazzy again.
4. If any inconsistencies are found, take your Jazzy 1113 to an authorized service center.
TEMPERATURE
Some of the parts of your Jazzy 1113 are susceptible to extreme changes in temperature. Always keep your Jazzy
1113 between the temperatures of 32° F and 122° F.
n In extremely cold temperatures, the batteries may freeze. The specific temperature at which they freeze
depends on a number of factors such as battery charge, usage, and composition of the batteries (e.g., Sealed
Lead Acid or Gel Cell).
n Temperatures above 122° F may cause the Jazzy 1113 to operate at a reduced speed. This is a safety feature
built into the controller that helps prevent damage to the motor and other electrical components. See VIII.
Operation in this manual.
GENERAL GUIDELINES
n Avoid knocking or bumping your controller, especially the joystick.
n Avoid prolonged exposure of your Jazzy to extreme conditions such as heat, cold, or moisture.
n Keep the controller clean.
n Check all connections on the electronics connector housing to ensure that they are all tight and secured properly.
Also, check the charger harness connector.
n When the battery indicator gauge is completely lit, the batteries are fully charged, and the controller and
electrical system are OK.
n If one red bar on the battery indicator gauge is blinking slowly, the batteries are low and need to be charged,
but the controller and electrical system are OK.
n If the battery indicator gauge is blinking rapidly, the controller has detected a fault in either its own circuits or
in the Jazzys circuits. See VIII. Operation in this manual.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 47
X. CARE AND MAINTENANCE
WARNING! Overinflating tires can cause them to explode and can result in personal injury.
WARNING! Do not use high pressure hose to inflate your tires.
n Use a rubber conditioner on the tire sidewalls to help preserve them. Check the tires for wear.
WARNING! Never use a rubber conditioner on the tread area of the tires; doing so may make the
tires slippery and cause your Jazzy to skid.
n The body shroud has been sprayed with a clear sealant coating. You can apply a light coat of car wax to help
it retain its high-gloss appearance.
n Check all electrical connections. Make sure they are tight and are not corroded. Batteries must sit flat within
the battery area, with the battery terminals facing inward toward each other. Refer to the frame decal for the
correct wiring layout.
n All wheel bearings are pre-lubricated and sealed. They require no subsequent lubrication.
DAILY CHECKS
n With the controller turned off, check the joystick. Make sure it is not bent or damaged and that it returns to
center when you release it. Check the rubber boot around the base of the joystick for damage. Visually inspect
the boot only. Do not handle or try to repair it. See your authorized service center if there is a problem.
n Visually inspect the controller harnesses. Make sure that they are not frayed, cut or have any wires exposed.
See your authorized Pride provider if there is a problem with any of these harnesses.
Weekly Checks
n Disconnect and inspect the controller from the electronics tray. Look for corrosion. Contact your authorized
Pride provider if necessary.
n Ensure that all parts of the controller system are securely fastened to your power chair. Do not overtighten any
screws.
n Check for proper tire inflation. There should be 30 35 psi in each tire. If a tire does not hold air, see an
authorized Pride provider for replacement of the tube.
n Calibrate the joystick if a noticeable difference in performance is detected or if the joystick does not operate
properly. To calibrate the joystick, power off the unit, place the joystick in the neutral position, and power the
unit back on. If a problem still exists with your joysticks performance, contact your authorized Pride provider.
n Check the brakes. This test should be carried out on a level surface with at least three feet of clearance around
your power chair.
To check the brakes:
1. Turn on the controller and turn down the speed level of your power chair.
2. After one second, check the battery condition meter. Make sure that it remains on.
3. Slowly push the joystick forward until you hear the electric brakes click. Immediately release the joystick. You
must be able to hear each electrical brake operating within a few seconds of joystick movement. Repeat this
test three times, pushing the joystick backwards, then left, and then right.
48 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
X. CARE AND MAINTENANCE
To calibrate the joystick (Remote Plus only):
1. Position the joystick in the full reverse position and hold it there. Turn on the controller.
2. The battery condition meter lights up from one light to ten lights, and then back to one light. It does this twice, then blinks
rapidly.
3. Turn off the controller.
4. Position the joystick in the full forward position and hold it there; then turn the controller on.
5. The battery condition meter lights up from one light to ten lights, and then back to one light. It does this twice, then blinks
once, and then it blinks continuously.
6. Turn off the controller. Now the joystick and controller are set up to function properly together.
MONTHLY CHECKS
n Check that the anti-tip wheels do not rub the ground when you are operating the Jazzy; adjust them as necessary.
See VI. Comfort Adjustments in this manual.
n Check for extreme wear on the anti-tip wheels. Replace them as necessary.
n Check for drive tire wear. See an authorized Pride Mobility Products Corporation provider for repair.
n Check the rear casters for wear. Replace as necessary.
n Check the rear forks for damage or fluttering which indicates that they may need to be adjusted or the bearings
may need to be replaced. See an authorized Pride Mobility Products Corporation provider for repair.
n Keep your Jazzy clean and free of foreign material such as hair, food, drink, etc.
YEARLY CHECKS
Take your Jazzy to an authorized Pride Mobility Products Corporation provider for yearly maintenance. This helps
to ensure that your Jazzy is functioning properly and helps prevent future complications.
Storage
Your power chair should be stored in a dry place, free from temperature extremes. When storing, disconnect the
batteries from the power chair. See IX. Batteries and Charging.
WARNING! If you fail to store the unit properly, the frame can rust and the electronics can
be damaged.
Cleaning Precautions
CAUTION! Never hose off your power chair or place it in direct contact with water. Your
power chair has a painted, ABS plastic body shroud that allows it to be easily wiped clean
with a damp cloth.
CAUTION! Never use any chemicals to clean a vinyl seat, as they may cause the seat to
become slippery or dry out and crack. Use soapy water and dry the seat thoroughly.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 49
X. CARE AND MAINTENANCE
Your power chair, like most electrical equipment, is susceptible to
damage from the elements. Avoid damp areas of any kind.
CAUTION! Direct exposure to water or dampness
could cause the power chair to malfunction electronically and mechanically. Water can cause
electrical components to corrode and the chairs
frame to rust.
TIRES AND TUBES
If your Jazzy 1113 is equipped with pneumatic tires, you should
check the air pressure at least once a week. This prolongs the life
of your tires and helps to ensure the perfect operation of your
chair. If you have a flat tire, replace the tube. Replacement tires and
tubes are readily available through the provider where you purchased
your Jazzy 1113.
WARNING! To avoid possible injury, be sure that
the controllers power is turned off and the power
chair is not in freewheel mode before performing
this procedure.
WARNING! Completely deflate the tire before attempting repair.
Follow these easy steps for a quick and safe tube or
tire replacement:
1. Completely deflate the tire (if pneumatic).
2. Remove the nut from wheel axle. See figure 33.
3. Pull the wheel off of the axle.
4. Separate the tire and tube from the rim.
5. Remove the old tube and/or tire and replace with new tube or tire.
6. Slide the wheel back onto the shaft and torque the nut to 16
ft.-lbs.
7. Inflate the tire to 30 - 35 psi (if pneumatic).
REMOVE THIS
NUT & WASHER TO REMOVE WHEEL
Figure 33. Drive Wheel
Figure 34. Disconnecting Battery Box
Connections
Figure 35. Battery Box Removal
50 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
X. CARE AND MAINTENANCE
BATTERY REPLACEMENT
WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds. Wear goggles and
gloves when handling batteries and wash hands after handling.
WARNING! Pride Power Chair batteries are heavy. See specifications table. If you are unable to lift that much weight,
be sure to get help. Lifting beyond your capacity can result
in personal injury.
Figure 36. Battery Wiring Diagram
T o replace the batteries:
1. Disconnect the controller cable and remove the seat. See V. Disassembly.
2. Disconnect the front battery box and rear battery box from the electronics tray. See figure 34.
3. Lift out each battery box, one at a time, and set them on a solid, flat surface. See figure 35.
4. Unfasten the battery box straps on bottom of box.
5. Lift up the top cover.
6. Remove the rubber covers off the terminals. Unscrew the terminal nuts and bolts and disconnect the battery
wires from the battery terminals.
7. Remove the battery from the bottom cover.
8. Place the new battery into the bottom cover.
9. Connect the red battery wire to the (+) positive terminal. Make sure you tighten the nuts and bolts so that the
connection is secure.
10. Connect the black battery wire to the (-) negative terminal. Make sure you tighten the nuts and bolts so that the
connection is secure. Place the rubber covers over the terminals.
WARNING! Make sure you tighten the fasteners so that the connections are secure.
NEW MOTOR BRUSHES
MOTOR
BRUSH
CAPS
Figure 37. Motor Brush Caps
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 51
WORN MOTOR BRUSH
Figure 38. Motor Brushes
X. CARE AND MAINTENANCE
11. Place the top cover back onto the bottom cover.
12. Fasten the straps and make sure the connection is secure. Place the battery box aside.
13. For the other battery, repeat steps 4 - 12.
14. Make sure that the battery terminals are opposite the battery charger.
WARNING! If you do not position the battery terminals on the opposite side of the charger, you run
the risk of shorting out the batteries and severely damaging your Jazzy!
15. Place the rear battery box back into the Jazzy battery well.
16. Place the front battery box back into the Jazzy battery well.
17. Connect the rear battery box connector and the front battery box connector to the electronics tray. See figure 36.
18. Install the seat.
19. Connect the controller cable.
MOTOR BRUSHES
The electric motors that power your Jazzy 1113 use carbon brushes. These brushes may become susceptible to
wear over a long period of time. The motor brushes are the two contacts located inside the motor assembly that
supply power to the motor. They are designed to provide several thousand hours of operation.
CAUTION! If the brushes become dirty with carbon deposits or wear out, a motor will run poorly or
not at all. If inspection determines excessive wear on the brushes, they must be replaced or motor
damage will result. Failure to maintain the brushes could void the Jazzy 1113s warranty.
T o inspect or replace the motor brushes:
1. Remove the seat and body shroud. See V. Disassembly in this manual.
2. Unscrew the motor brush caps. See figure 37.
3. Remove the brushes.
4. Inspect for wear. See figure 38.
5. Replace the brushes, if necessary. Contact your local Pride provider for replacement brushes.
CORRECTIVE MAINTENANCE
If the battery indicator gauge does not light up when you turn on the power:
n Check the harness connections. Make sure they are tight.
n Check the circuit breaker. Reset it if necessary.
n Check the battery connections.
If the above conditions prove normal, you can load test the batteries with a battery load tester. These testers are
available at automotive parts stores. Disconnect both batteries before load testing, and follow the directions that
came with the load tester. If either one of the batteries fails the load test, replace both of them. If your Jazzy 1113
still does not power up, contact your local Pride provider.
52 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
XI. OPTIONAL ACCESSORIES
WHEN TO SEE YOUR PRIDE PROVIDER FOR SERVICE
The following symptoms could indicate a serious problem with your Jazzy 1113. If necessary, contact an authorized
Pride provider. When calling, have the model number, serial number, nature of the problem, and the trouble code
if available.
n Motor noise
n Frayed harnesses
n Cracked or broken connectors
n Uneven wear on any of the tires
n Jerky motion
n Pulling to one side
n Bent or broken wheel assemblies
n Does not power up
n Powers up, but does not move
The following accessories are available from your local Pride provider.
POSITIONING BELT
The positioning belt is designed to support the operators torso so that he or she does not slide down or forward
in the seat. The positioning belt is not designed for use as a restraining device. Make sure the belt is secure but does
not cause discomfort.
WARNING! The positioning belt is not designed for use as a seat belt in a motor vehicle.
Nor is your Jazzy suitable for use as a seat in any vehicle. Anyone traveling in a vehicle
should be properly belted into seats approved by the vehicle manufacturer.
OXYGEN TANK HOLDER
The removable oxygen tank holder is mounted to the back of the seat by means of the accessory bracket.
WALKER HOLDER
The removable walker holder is mounted to the back of the seat by means of the accessory bracket. It can hold a
standard size walker.
CANE AND CRUTCH HOLDER
The removable cane and crutch holder is mounted to the back of the seat by means of the accessory bracket.
REAR BASKET
The rear basket is mounted to the accessory bracket. It has a handle that you can use when you remove the basket
from the Jazzy 1113.
CUP HOLDER
The cup holder is mounted to the armrest.
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 53
XI. OPTIONAL ACCESSORIES
SWING-AWAY JOYSTICK BRACKET
This option enables you to move the controller from the front of the armrest to the side of the armrest without
disconnecting it.
ELEVATING LEG RESTS
Elevating Leg Rests (ELRs) allow you to raise each leg manually to aid in circulation. The ELRs are lengthadjustable to accommodate different size legs.
SWING-AWAY FOOT RESTS
Swing-away Foot Rests provide the Jazzy 1113 with the ability to swing each foot rest to the side for an easier
transfer.
SPECIALTY SEATING SYSTEMS
Your Jazzy 1113 may be equipped with specialty seating or the Versa Seat. Please refer to the instructions that
come with the seat.
54 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
XII. WARRANTY
LIFETIME LIMITED WARRANTY
For the lifetime of your Jazzy 1113 from date of purchase, Pride will repair or replace at our option to the original
purchaser free of charge, any of the following parts found upon examination by an authorized representative of
Pride to be defective in material and/or workmanship:
n Structural frame components
TWO-YEAR WARRANTY
For two (2) years from the date of purchase, Pride will repair or replace at our option to the original purchaser free
of charge, any of the following parts found upon examination by an authorized representative of Pride to be
defective in material and/or workmanship:
n Electronics
EIGHTEEN-MONTH WARRANTY
For eighteen (18) months from the date of purchase, Pride will repair or replace at our option to the original
purchaser free of charge, any of the following parts found upon examination by an authorized representative of
Pride to be defective in material and/or workmanship:
n Motor/gearbox assembly
WARRANTY EXCEPTIONS
n Motor: If damage occurs to the commutator of a motor as a result of not replacing the motor brushes after
heavy wear to the brushes. Motor brushes are wear items and are not warranted.
n Brake: One year warranty for the electrical function of the brake. Brake pads are a wear item and are not
warranted.
SIX-MONTH LIMITED WARRANTY
For six (6) months from date of purchase, Pride will repair or replace at our option to the original purchaser free of
charge, any of the following parts found upon examination by an authorized representative of Pride to be defective
in material and/or workmanship:
n Plastic components, except body
n Rubber components (except tires and tubes)
n Bearings and bushings
n Casters and anti-tip wheels
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 55
XII. WARRANTY
Battery warranty is covered by the battery manufacturer. Battery warranty is not covered by Pride.
Warranty service can be performed by an authorized provider or by Pride. Do not return faulty parts to Pride
without prior consent. All transportation costs and shipping damage incurred while submitting parts for repair or
replacement are the responsibility of the original purchaser.
WARRANTY EXCLUSIONS
n ABS plastic body shrouds and footrest covers are wear items and are not warranted
n Batteries (battery manufacturer provides a six-month limited warranty)
n Tires and tubes
n Upholstery and seating
n Repairs and/or modifications made to any part without specific prior written consent from Pride
n Circumstances beyond the control of Pride
n Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized
by Pride
Damage caused by:
n Battery fluid spillage or leakage
n Abuse, misuse, accident, or negligence
n Improper operation, maintenance, or storage
n Commercial use or use other than normal
There is no other express warranty.
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1)
year from the date of purchase and to the extent permitted by law. Any and all implied warranties are excluded.
This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded.
Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of
limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific rights, and you may also have other rights which vary from state to state.
Please fill out and return the warranty card to Pride. This assists Pride in providing the best possible Technical and
Customer Service.
56 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
NOTES
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 57
NOTES
58 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
US Jazzy 1113/Rev I/Feb03 www .pridemobility.com 59
#1
In Quality
Control
Quality Control-Model 1113
Thank you for making the Pride Jazzy your choice in power chairs.
We have thoroughly inspected your Jazzy. The following checkmarks indicate that it has been
test driven and inspected.
Controller
Model #__________
Joystick Serial #
Serial #__________
Controller Serial #
Inclusion of all Parts
Performance
Pride keeps a more detailed report on file at the factory.
Date Inspected
Fit and Finish
Inspector
Loading...
