Pride Mobility Jazzy 1104 User Manual
Owner ’s Manual
ATTENTION:
Please read the content
of your owners manual
before operating your
power chair.
Exeter, PA
St. Catharines, ON 1-800-800-8586
www.pridemobility.com
SAFETY GUIDELINES
Please read and follow all instructions in this owners manual before attempting to operate your power
chair for the first time. If there is anything in this manual you do not understand, or if you require additional
assistance for set-up, contact your authorized Pride provider.
Using your Pride product safely depends upon your diligence in following the warnings, cautions, and
instructions in this owners manual. Using your Pride product safely also depends upon your own good
judgement and/or common sense, as well as that of your provider, caregiver, and/or healthcare professional.
Pride is not responsible for injuries and/or damage resulting from any persons failure to follow the warnings,
cautions, and instructions in this owners manual. Pride is not responsible for injuries and/or damage resulting
from any persons failure to exercise good judgement and/or common sense.
The symbols below are used throughout this owners manual to identify warnings and cautions. It is very
important for you to read and understand them completely.
WARNING! Failure to heed the warnings in this owners manual may result in personal injury.
CAUTION! Failure to heed the cautions in this owners manual may result in damage to your power
chair.
Copyright © 2003
Pride Mobility Products Corp.
INFMANU1133
2 www.pridemobility.com Jazzy 1 104 Rev F/Feb03
CONTENTS
I. INTRODUCTION ........................................................................................................................ 4
II. SAFETY ......................................................................................................................................... 6
III. EMI/RFI ........................................................................................................................................ 14
IV. THE JAZZY 1104 .................................................................................................................... 16
V. ASSEMBLY ................................................................................................................................. 21
VI. COMFORT ADJUSTMENTS................................................................................................ 23
VII. DISASSEMBLY ......................................................................................................................... 27
VIII.OPERATION ............................................................................................................................... 28
IX. BATTERIES AND CHARGING ........................................................................................... 31
X. CARE AND MAINTENANCE ............................................................................................... 36
XI. OPTIONAL ACCESSORIES................................................................................................. 41
XII. WARRANTY ............................................................................................................................... 42
Jazzy 1 104 Rev F/Feb03 www.pridemobility.com 3
I. INTRODUCTION
INTRODUCTION
Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new
Pride Power Chair. The Pride Power Chair design combines the most advanced state-of-the-art components
with modern, attractive styling. We are certain that the design features and trouble-free operation of your
new power chair will add convenience to your daily living.
At Pride, your safety is important to us. Please read and follow all of the instructions in this manual before
you attempt to operate your power chair for the first time. These instructions were produced for your
benefit. Your understanding of these instructions is essential for the safe operation of your new power chair.
Pride is not liable for damage to property or personal injury arising out of unsafe use of a power chair. Pride
is also not liable for any property damage or personal injury arising out of the failure of any person and/or
user to following the instructions and recommendations set forth in this manual or any other instructions or
recommendations contained in other power chair related literature issued by Pride or contained on the
power chair itself.
This owners manual is compiled from the latest specifications and product information available at the
time of publication. We reserve the right to make changes as they become necessary. Any changes to our
products may cause slight variations between the illustrations and explanations in this manual and the
product you have purchased.
If you experience any problems with your power chair that you are unable to solve, or if you do not feel
capable of safely following any of the instructions and/or recommendations as contained in this manual,
please contact your authorized Pride provider for assistance.
Once you understand how to operate and take care of your power chair, we are certain that it will give you
years of trouble-free service and enjoyment.
Information Exchange
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear
about the safety and reliability of your new power chair, and about the service you received from your
authorized Pride provider.
Please notify us of any change of address, so we can keep you apprised of important information about
safety, new products, and new options that can increase your ability to use and enjoy your power chair.
Please feel free to contact us at the address below:
Pride Mobility Products Corporation
Attn: Customer Care Department
182 Susquehanna Avenue
Exeter, PA 18643-2694
customercare@pridemobility.com
800-424-8205
4 www.pridemobility.com Jazzy 1 104 Rev F/Feb03
I. INTRODUCTION
Pride Owners Club
As an owner of a Pride product, you are invited to register your products warranty and enroll in the Pride
Owners Club. You may do so by filling out and returning your enclosed registration card or by visiting
Prides web site at www.pridemobility.com. As a registered member, each time you visit our site, you will
have access to the most interactive and honest educational venue available today for people with mobility
needs, their families, and friends.
From our home page, select Owners Club to enter a page dedicated to current and potential Pride product
owners. You will gain access to interviews, stories, recreation ideas, daily living tips, product and funding
information, and interactive message boards. These message boards invited you to communicate with other
Pride customers as well as Pride representatives who are available to assist you with any questions or
concerns you may have.
My Authorized Pride Provider Is:
Name:_______________________________________________________________________________
Address:_____________________________________________________________________________
Phone Number:________________________________________________________________________
Purchase Date:________________________________________________________________________
NOTE:If you ever lose or misplace your product registration card or your copy of this manual, contact
us and we will be glad to send you a new one immediately.
Jazzy 1 104 Rev F/Feb03 www.pridemobility.com 5
II. SAFETY
SAFETY
WARNING! Do not operate your new power chair for the first time without completely
reading and understanding this owners manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides
an extensive variety of products to best fit the individual needs of the power chair user. Please be aware
that the final selection and purchasing decision regarding the type of power chair to be used is the
responsibility of the power chair user, who is capable of making such a decision, and his/her healthcare
professional (i.e., medical doctor, physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted
the power chair to the user and has assisted the prescribing healthcare professional and/or the authorized
Pride provider in the instruction process for the use of the product.
There are certain situations, including some medical conditions, where the power chair user will need to
practice operating the power chair in the presence of a trained attendant. A trained attendant can be
defined as a family member or care professional specially trained in assisting a power chair user in various
daily living activities.
As you begin using your power chair during daily activities, you will probably encounter situations in
which you will need some practice. Simply take your time and you will soon be in full and confident
control as you maneuver through doorways, on and off of elevators, up and down ramps, and over moderate
terrain.
Below are some precautions, tips, and other safety considerations that will help the user become accustomed
to operating the power chair safely.
Modifications
Pride has designed and engineered your power chair to provide maximum mobility and utility. A wide
range of accessories is available from your authorized Pride provider to further customize your power
chair to better suit your needs and/or preferences. However, under no circumstances should you modify,
add, remove, or disable any feature, part, or function of your power chair.
WARNING! Do not modify your power chair in any way not authorized by Pride. Unauthorized modifications may result in personal injury and/or damage to your power chair.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety
check before each use to make sure your power chair operates smoothly and safely. See X. Care and
Maintenance.
6 www.pridemobility.com Jazzy 1 104 Rev F/Feb03
II. SAFETY
Perform the following inspections prior to using your power chair:
n Check for proper tire inflation. Maintain 30-35 psi in each tire (if equipped with pneumatic tires).
n Check all electrical connections. Make sure they are tight and not corroded.
n Check all controller connections to the electronics tray. Make sure they are secured properly.
n Check the brakes. See X. Care and Maintenance.
n Check battery charge. See IX. Batteries and Charging.
NOTE: If you discover a problem, contact your authorized Pride provider for assistance.
Weight Limitations
Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this
limit.
WARNING! Exceeding the weight capacity voids your warranty and may result in personal
injury and/or damage to your power chair. Pride will not be held responsible for injuries
and/or property damage resulting from failure to observe weight limitations.
WARNING! Do not carry passengers on your power chair. Carrying passengers on your
power chair may result in personal injury and/or property damage.
Tire Inflation
If your power chair is equipped with pneumatic tires, you should check or have the air pressure checked at
least once a week. Proper inflation pressures will prolong the life of your tires and help ensure the smooth
operation of your power chair.
WARNING! It is important that 30-35 psi tire pressure be maintained in pneumatic tires at
all times. Do not underinflate or overinflate your tires. Low pressure may result in loss of
control, and overinflated tires may burst. Failure to maintain 30-35 psi tire pressure in
pneumatic tires at all times may result in tire and/or wheel failure, causing serious personal injury and/or damage to your Jazzy.
WARNING! Inflate your power chair drive tires from a regulated air source with an available pressure gauge. Inflating your tires from an unregulated air source could overinflate
them, resulting in a burst tire and/or personal injury.
Incline Information
More and more buildings have ramps with specified degrees of inclination, designed for easy and safe
access. Some ramps may have turning switchbacks (180-degree turns) that require you to have good cornering
skills on your power chair.
n Proceed with extreme caution as you approach the downgrade of a ramp or other incline.
n Take wide swings with your power chairs front wheels around any tight corners. If you do that, the
power chairs rear wheels will follow a wide arc, not cut the corner short, and not bump into or get hung
up on any railing corners.
n When driving down a ramp, keep the power chairs speed adjustment set to the slowest speed setting to
ensure a safely controlled descent. See VIII. Operation.
n Avoid sudden stops and starts.
Jazzy 1 104 Rev F/Feb03 www.pridemobility.com 7
II. SAFETY
When climbing an incline, try to keep your power chair moving. If you must stop, start up again slowly and
then accelerate cautiously. When driving down an incline, set your power chair to the slowest setting and
drive in the forward direction only. If your power chair starts to move down the incline faster than you
anticipated or desired, allow it to come to a complete stop by releasing the joystick, then push the joystick
forward slightly to ensure a safely controlled descent.
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the
incline. Drive your power chair straight up the incline. This greatly reduces the possibility of a tip or a fall. Always exercise extreme caution when negotiating an incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas
covered with snow, ice, cut grass, or wet leaves).
WARNING! When on any sort of an incline or decline, never place the power chair in freewheel mode while seated on it or standing next to it. Doing so may result in personal
injury and/or damage to your power chair.
WARNING! Never travel down an incline backwards. This may result in personal injury.
WARNING! Even though your power chair is capable of climbing slopes greater than those
illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or any other
specifications presented in this manual. Doing so could cause instability in your power chair,
resulting in personal injury and/or damage to your power chair.
In compliance with the Americans with Disabilities Act of 1990, all handicap public access ramps are
required to have a maximum slope of 5°. Therefore, Pride recommends that the maximum slope of an
incline you attempt to safely ascend or descend on your power chair does not exceed 5°. See figure 1a.
WARNING! Any attempt to climb or descend a slope steeper than 5° may put your power
chair in an unstable position and cause it to tip, resulting in personal injury.
Figure 1. Maximum Safe Angle (Ascending and Descending)
Braking Information
Your power chair is equipped with two powerful brake systems:
1. Regenerative uses electricity to rapidly slow the vehicle when the joystick returns to the center/stop
position.
2. Disc Park Brake activates mechanically after regenerative braking slows the vehicle to near stop, or
when power is removed from the system for any reason.
8 www.pridemobility.com Jazzy 1 104 Rev F/Feb03
II. SAFETY
Cornering Information
While your power chair is equipped with rear caster wheels in back and anti-tip wheels in front, excessively
high cornering speeds can still create the possibility of tipping. Factors which affect the possibility of
tipping include, but are not limited to: cornering speed, steering angle (how sharply you are turning), uneven
road surfaces, inclined road surfaces, riding from an area of low traction to an area of high traction (such as
passing from a grassy area to a paved area especially at high speed while turning), and abrupt directional
changes. High cornering speeds are not recommended. If you feel that you may tip over in a corner, reduce
your speed and steering angle (i.e., lessen the sharpness of the turn) to prevent your power chair from
tipping.
WARNING! When cornering sharply, reduce your speed. This greatly reduces the possibility of a tip or fall. To avoid personal injury and/or property damage, always exercise common sense when cornering.
Outdoor Driving Surfaces
Your power chair is designed to provide optimum stability under normal driving conditionsdry, level
surfaces composed of concrete, blacktop, or asphalt. However, Pride recognizes that there will be times
when you will encounter other surface types. For this reason, your power chair is designed to perform
admirably on packed soil, grass, and gravel. Feel free to use your power chair safely on lawns and in park
areas.
n Reduce your power chairs speed when driving on uneven terrain and/or soft surfaces.
n Avoid tall grass that can entangle the running gear.
n Avoid loosely packed gravel and sand.
n If you feel unsure about a driving surface, avoid that surface.
Freewheel Mode
Your power chair is equipped with a manual freewheel lever to allow for manual maneuverability by a
trained attendant. For more information about how to place your power chair into and out of freewheel
mode, see IV. The Jazzy 1104.
WARNING! Do not use your power chair in freewheel mode without an attendant present.
Personal injury may result.
WARNING! Do not attempt to personally place your power chair in freewheel mode while
seated on it. Personal injury may result. Ask an attendant for assistance if necessary.
WARNING! Do not place your power chair in freewheel mode while on an incline. The
chair could roll uncontrollably on its own, causing personal injury.
Stationary Obstacles (Steps, Curbs, etc.)
Proceed with extreme caution when driving near raised surfaces, unprotected ledges and/or drop-offs (curbs,
porches, stairs, etc.). The correct method for approaching a curb is illustrated in figure 1b.
Jazzy 1 104 Rev F/Feb03 www.pridemobility.com 9
II. SAFETY
Figure 1a. Correct and Incorrect Curb Approach
WARNING! Do not attempt to have your power chair climb or descend an obstacle that is
higher than two inches unless you have the assistance of an attendant.
WARNING! Do not attempt to have your power chair proceed backward down any step,
curb, or other obstacle. This may cause the power chair to tip and cause personal injury.
Public Streets and Roadways
WARNING! You should not operate your power chair on public streets and roadways. Be
aware that it may be difficult for traffic to see you when you are seated on your power
chair. Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and
then proceed with extreme caution.
Stairs and Escalators
Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator.
WARNING! Never use your power chair to negotiate steps or escalators. You may cause
injury to yourself and to others and/or damage your power chair.
Doors
n Determine if the door opens toward or away from you.
n Drive your power chair gently and slowly forward to push the door open. Or drive your power chair
gently and slowly backward to pull the door open.
10 www.pridemobility.com Jazzy 1 104 Rev F/Feb03
II. SAFETY
Elevators
Modern elevators have a door edge safety mechanism that, when pushed, reopens the elevator door(s).
n If you are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge
or allow the rubber door edge to contact the power chair and the door will reopen.
n Use care that pocketbooks, packages, or power chair accessories do not become caught in elevator
doors.
EMI & RFI
Laboratory tests performed by the Food and Drug Administration (FDA) have shown that radio waves can
cause unintended motion of electric mobility vehicles. Radio waves are a form of electromagnetic energy
(EM). When EM adversely affects the operation of an electronic device, it is called Electromagnetic
Interference (EMI) or Radio Frequency Interference (RFI). For more information, see III. EMI/RFI.
Lift/Elevation Products
If you will be traveling with your power chair, you may find it necessary to use a lift/elevation product to
aid in transportation. Pride recommends that you closely review the instructions, specifications, and safety
information set forth by the manufacturer of the lift/elevation product before using that product.
Motor Vehicle Transport
Currently, there are no standards approved for tie-down systems in a moving vehicle of any type to transport
a person while seated in a power chair.
Transfers
Transferring onto and off of your power chair requires a good sense of balance. Always have an attendant
or healthcare professional present while learning to properly transfer yourself.
To eliminate the possibility of injury, Pride recommends that you or a trained attendant perform the following
tasks before attempting a transfer:
n Turn the power off. See VIII. Operation.
n Ensure your power chair is not in freewheel mode. See IV. The Jazzy 1104.
n Turn both caster wheels toward the transfer destination to improve power chair stability during transfer.
n Make sure both armrests are flipped up or removed from your power chair.
n Flip the footrest up, or move the leg rests aside; this will help to keep your feet from getting caught on
the footrest or the leg rests during the transfer.
n Reduce the distance between your power chair and the object you are transferring onto.
WARNING! Before transferring, position yourself as far back as possible in the power chair seat to
prevent the power chair from tipping forward during transfer and causing injury.
WARNING! Avoid using your armrests for weight bearing purposes. Such use may cause
the power chair to tip and cause personal injury.
WARNING! Avoid putting all of your weight on the footrest. Such use may cause the power
chair to tip and cause personal injury.
Jazzy 1 104 Rev F/Feb03 www.pridemobility.com 11
II. SAFETY

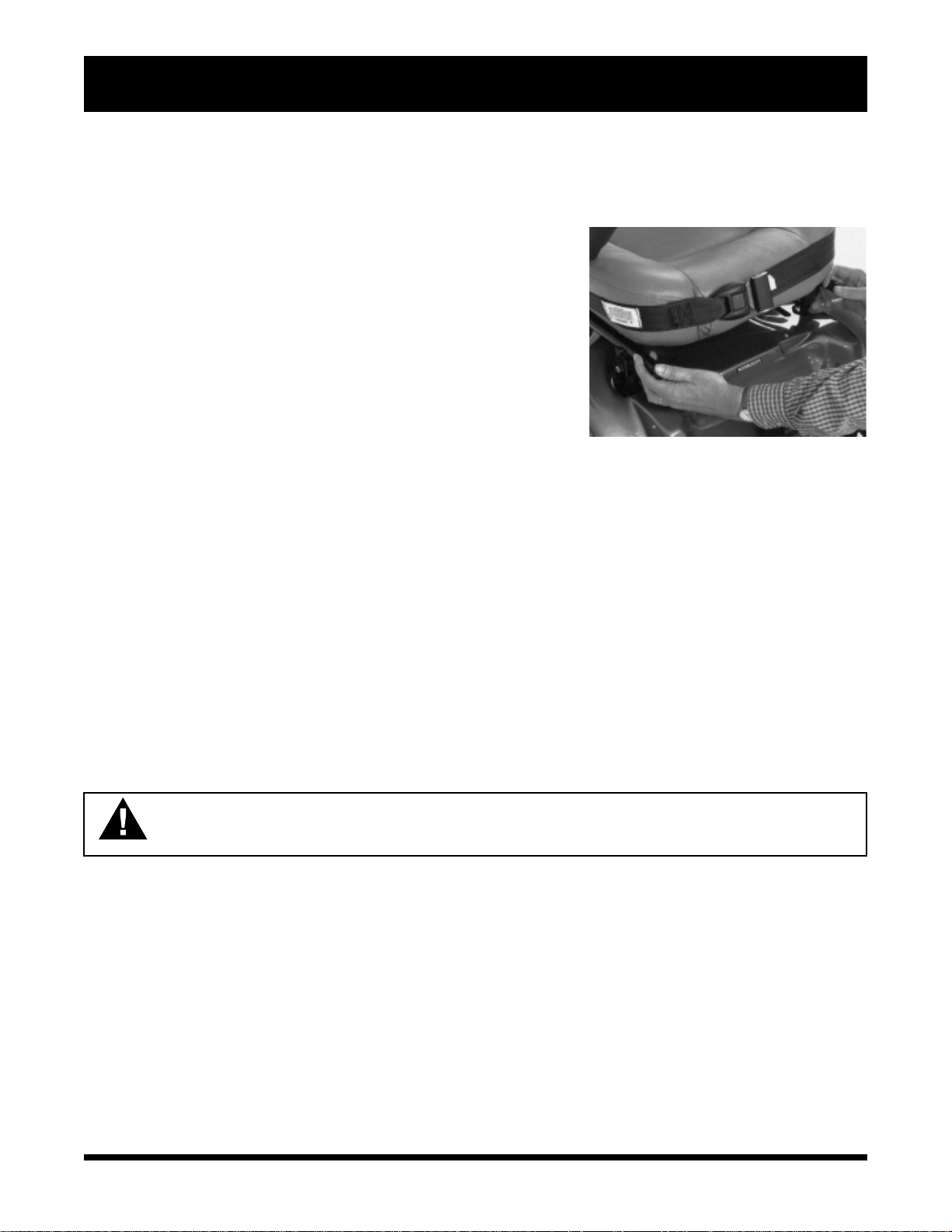

Positioning Belts
Your authorized Pride provider, therapist(s), and other healthcare professionals are responsible for determining
your requirement for a positioning belt in order to operate your power chair safely.
WARNING! If you require a positioning belt to safely operate your power chair, make sure
it is fastened securely. Serious personal injury may result if you fall from the power chair.
WARNING! The positioning belt is not designed for use as a seat belt in a motor vehicle.
Nor is your Jazzy suitable for use as a seat in any vehicle. Anyone traveling in a vehicle
should be properly belted into seats approved by the vehicle manufacturer.
WARNING! Do not sit on your power chair while it is in a moving vehicle. Personal injury
and/or property damage may result.
WARNING! Always be sure your power chair and its batteries are properly secured when
it is being transpor ted. Failure to do so may result in personal injury and/or damage to
your power chair.
Inclement Weather Precautions
WARNING! Pride recommends that you do not operate your power chair in icy or slippery
conditions or on salted surfaces (i.e., walks or roads). Such use may adversely affect the
performance and safety of your power chair, resulting in an accident and personal injury.
WARNING! Do not expose your power chair to any type of moisture at any time (rain, snow,
mist, or wash). Such exposure can damage your power chair. Never operate your power
chair if it has been exposed to moisture until it has dried thoroughly.
Reaching and Bending
Never reach, lean, or bend while driving your power chair. If it is absolutely necessary to reach, lean, or
bend while seated on your power chair, it is important to maintain a stable center of gravity and keep the
power chair from tipping. Pride recommends that the power chair user determine his/her personal limitations
and practice bending and reaching in the presence of a qualified healthcare professional.
WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the floor by
reaching down between your knees. Movements such as these may change your center of gravity
and the weight distribution of the power chair. This may cause your power chair to tip, possibly
resulting in personal injury. Keep your hands away from the tires when driving.
Batteries
In addition to following the warnings below, be sure to comply with all other battery handling information.
For more information about your power chairs batteries, see IX. Batteries and Charging.
12 www.pridemobility.com Jazzy 1 104 Rev F/Feb03
II. SAFETY
WARNING! Power chair batteries are heavy. See specifications table. If you are unable to lift that
much weight, be sure to get help. Lifting beyond your capacity can result in personal injury.
WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.
Wash hands after handling.
WARNING! Always protect the batteries from freezing and never charge a frozen battery. Charging
a frozen battery may result in personal injury and/or damage to the battery.
Preventing Unintended movement
WARNING! If you anticipate being seated in a stationary position for an extended period of time,
turn off the power. This will prevent unexpected motion from inadvertent joystick contact. This
will also eliminate the possibility of unintended chair movement from electromagnetic (EM)
sources. Failure to do so may result in personal injury.
Prescription Drugs/Physical Limitations
Users must exercise care and common sense when operating a power chair. This includes awareness of
safety issues when taking prescribed or over-the-counter drugs or when the user has specific physical
limitations.
WARNING! Consult your physician if you are taking prescribed or over-the-counter medication or if
you have certain physical limitations. Some medications and limitations may impair your ability to
operate your power chair in a safe manner.
Alcohol
The power chair user must exercise care and common sense when operating his/her power chair. This
includes awareness of safety issues while under the influence of alcohol.
WARNING! Do not operate your power chair while you are under the influence of alcohol, as this
may impair your ability to operate your power chair in a safe manner.
Removable Parts
WARNING! Do not attempt to lift or move a power chair by any of its removable parts. Personal
injury and/or damage to the power chair may result.
Jazzy 1 104 Rev F/Feb03 www.pridemobility.com 13
Loading...
