Pride Mobility HD, Jazzy Elite User Manual
Jazzy Elite
Series
Including Models: Jazzy Elite HD and Jazzy Elite 14
SAFETY GUIDELINES
WARNING! An authorized Pride Provider or a qualified technician must perform the initial setup
of this power chair and must perform all of the procedures in this manual.
The symbols below are used throughout this owner’s manual and on the power chair to identify warnings and
important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated
procedures can cause either personal injury, component damage, or malfunction. On the
product, this icon is represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform mandatory
actions can cause personal injury and/or equipment damage. On the product, this icon is
represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any time
or in any circumstances. Performing a prohibited action can cause personal injury and/or
equipment damage. On the product, this icon is represented as a black symbol with a red circle
and red slash.
INTENDED USE
The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated
position that have the capability of operating a powered wheelchair.
Quick Reference Information
Authorized Pride Provider:
Address:
Phone Number:
Purchase Date:
NOTE: This owner’s manual is compiled from the latest specifications and product information available at
the time of publication. We reserve the right to make changes as they become necessary. Any changes to our
products may cause slight variations between the illustrations and explanations in this manual and the product
you have purchased. The latest/current version of this manual is available on our website.
Copyright © 2012
Pride Mobility Products Corp.
INFMANU4371/Rev B/October 2012
CONTENTS
I. INTRODUCTION ...............................................................................................................................4
II. SAFETY ................................................................................................................................................. 6
III. YOUR POWER CHAIR .................................................................................................................... 8
IV. ASSEMBLY ........................................................................................................................................ 12
V. COMFORT ADJUSTMENTS ....................................................................................................... 13
VI. BATTERIES AND CHARGING .................................................................................................. 19
VII. CARE AND MAINTENANCE ...................................................................................................... 23
LANGUAGE USAGE
This owner’s manual is intended for distribution in all English-speaking countries where Pride Power Chairs are
sold. We have chosen to compose this manual using language and spelling common to the USA. Since we recognize that not all English-speaking countries use the same words or spellings, please refer to the following chart for
some common word variations that may be encountered throughout this manual.
USA Variation USA Variation USA Variation
asphalt tarmac backward(s) rearward(s) center centre
color colour cord lead curb kerb
elevator lift meter metre provider dealer; agent
sidewalk pavement tire tyre trunk boot
turn signal turn indicator yard grounds wrench spanner
caster castor pocketbook handbag
Figure 1. Word Variations
counterclockwise
anticlockwise
Jazzy Elite Series www.pridemobility.com 3
I. INTRODUCTION
SAFETY
WELCOME to Pride Mobility Products (Pride). The power chair you have purchased combines state-of-the-art
components with safety, comfort, and styling in mind. We are confident that these design features will provide
you with the conveniences you expect during your daily activities. Once you understand how to safely operate
and care for your power chair, it should give you years of trouble-free operation and service.
Read and follow all instructions, warnings, and notes in this manual before attempting to operate your power chair
for the first time. You must also read all instructions, warnings, and notes contained in any supplemental instructional booklets for the controller, front riggings, and/or seating system that accompanied your power chair before
initial operation. Your safety depends upon you, as well as your provider, caretaker, or healthcare professional,
in using good judgement.
If there is any information in this manual which you do not understand, or if you require additional assistance for
setup or operation, please contact your authorized Pride Provider. Failure to follow the instructions in this
manual and those located on your power chair can lead to personal injury and/or damage to the power
chair, and may void the warranty.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product or
remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail, refuse, or
neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the safe use of this
product.
SHIPPING AND DELIVERY
Before using your power chair, make sure your delivery is complete as some components may be individually
packaged. If you do not receive a complete delivery, please contact your authorized Pride Provider immediately.
Where damage has occurred during transport, either to the packaging or content, please contact the delivery company responsible.
4 www.pridemobility.com Jazzy Elite Series
I. INTRODUCTION
INFORMATION EXCHANGE
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about
the safety and reliability of your new power chair, and about the service you received from your authorized Pride
Provider.
Please notify us of any change of address, so we can keep you apprised of important information about safety,
new products, and new options that can increase your ability to use and enjoy your power chair. Please feel free
to contact us at the address below:
USA: Canada:
Pride Mobility Products Corporation Pride Mobility Products Company
Attn.: Customer Care Department 380 Vansickle Road
182 Susquehanna Avenue St. Catharines, Ontario L2R 6P7
Exeter, PA 18643-2694 1-888-570-1113
info@pridemobility.com
1-800-424-8205
United Kingdom: Australia:
Pride Mobility Products Ltd. Pride Mobility Products Australia Pty. Ltd.
32 Wedgwood Road 20-24 Apollo Drive
Bicester, Oxfordshire OX26 4UL Hallam, Victoria 3803
UK Australia
NOTE: If you ever lose or misplace your copy of this manual, contact us and we will be glad to send you a new
one immediately.
Jazzy Elite Series www.pridemobility.com 5
II. SAFETY
PRODUCT SAFETY SYMBOLS
The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions.
It is very important for you to read and understand them completely.
Read and follow the information in the owner’s manual.
Locked and in drive mode.
Place unit on level ground and stand to one side when changing from drive mode to
freewheel mode or freewheel mode to drive mode.
Unlocked and in freewheel mode.
Manufactured in
Class II Equipment.
Power chair not rated for occupied transit.
Power chair information label
6 www.pridemobility.com Jazzy Elite Series
II. SAFETY
GENERAL GUIDELINES
MANDATORY! Do not operate your new power chair for the first time without completely reading
and understanding this owner’s manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an
extensive variety of products to best fit the individual needs of the power chair user. Please be aware that the final
selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power
chair user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical doctor,
physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted the
power chair to the user and has assisted the prescribing healthcare professional and/or the authorized Pride Provider in the instruction process for the use of the product.
There are certain situations, including some medical conditions, where the power chair user will need to practice
operating the power chair in the presence of a trained attendant. A trained attendant can be defined as a family
member or care professional specially trained in assisting a power chair user in various daily living activities.
As you begin using your power chair during daily activities, you will probably encounter situations in which you
will need some practice. Simply take your time and you will soon be in full and confident control as you maneuver
through doorways, on and off of elevators, up and down ramps, and over moderate terrain.
Below are some precautions, tips, and other safety considerations that will help you become accustomed to operating your power chair safely.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check
before each use to make sure your power chair operates smoothly and safely.
Perform the following inspections prior to using your power chair:
Check for proper tire inflation. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated on each
tire if equipped with pneumatic tires.
Check all electrical connections. Make sure they are tight and not corroded.
Check all controller connections to the power base. Make sure they are secured properly.
Check the brakes. See VII. “Care and Maintenance.”
Check battery charge. See VI. “Batteries and Charging.”
Ensure the manual freewheel levers are in drive mode before sitting on the power chair.
NOTE: If you discover a problem, contact your authorized Pride Provider for assistance.
Jazzy Elite Series www.pridemobility.com 7
III. YOUR POWER CHAIR
THE JAZZY ELITE SERIES POWER CHAIR

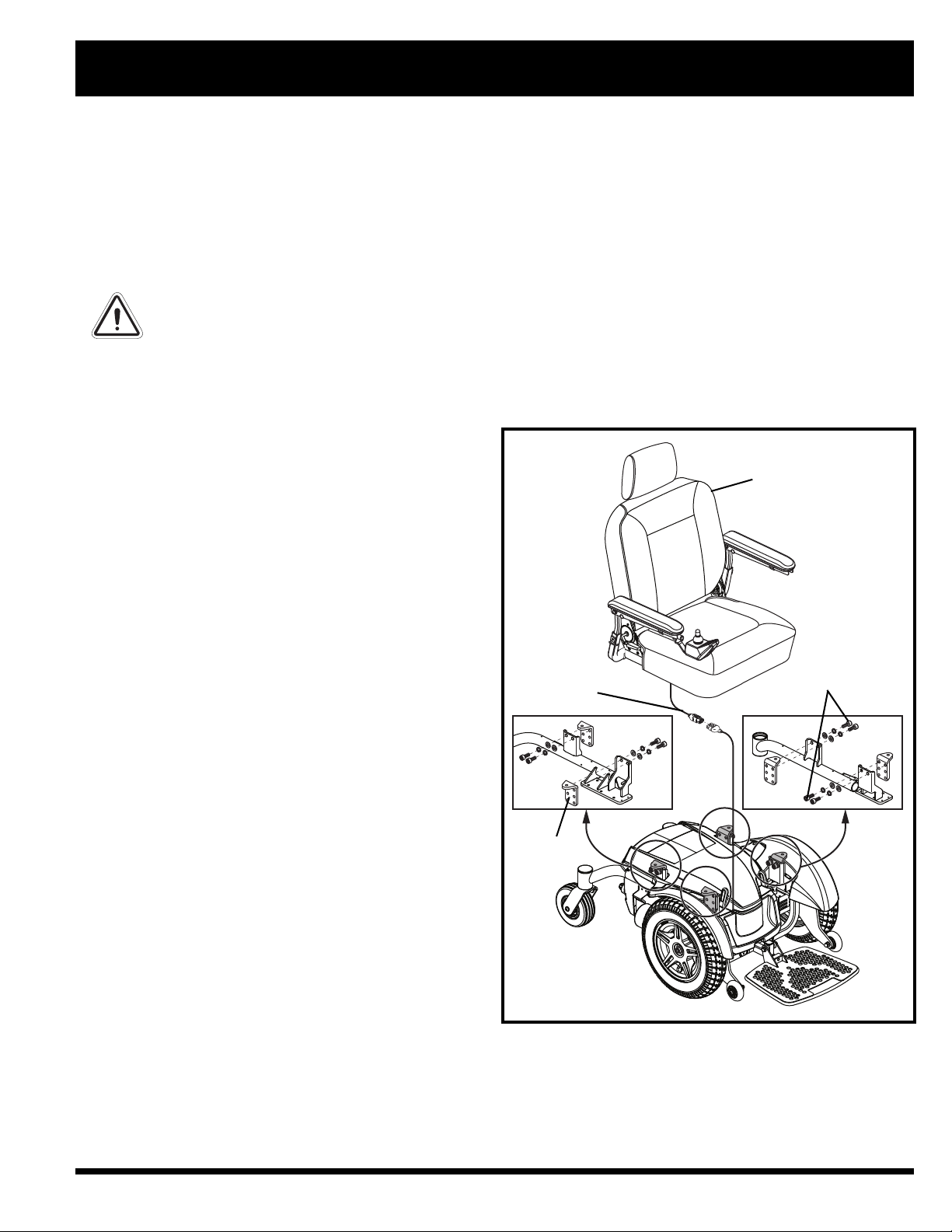

The Jazzy Elite Series Power Chair has two main assemblies: the seat assembly and the power base assembly. See

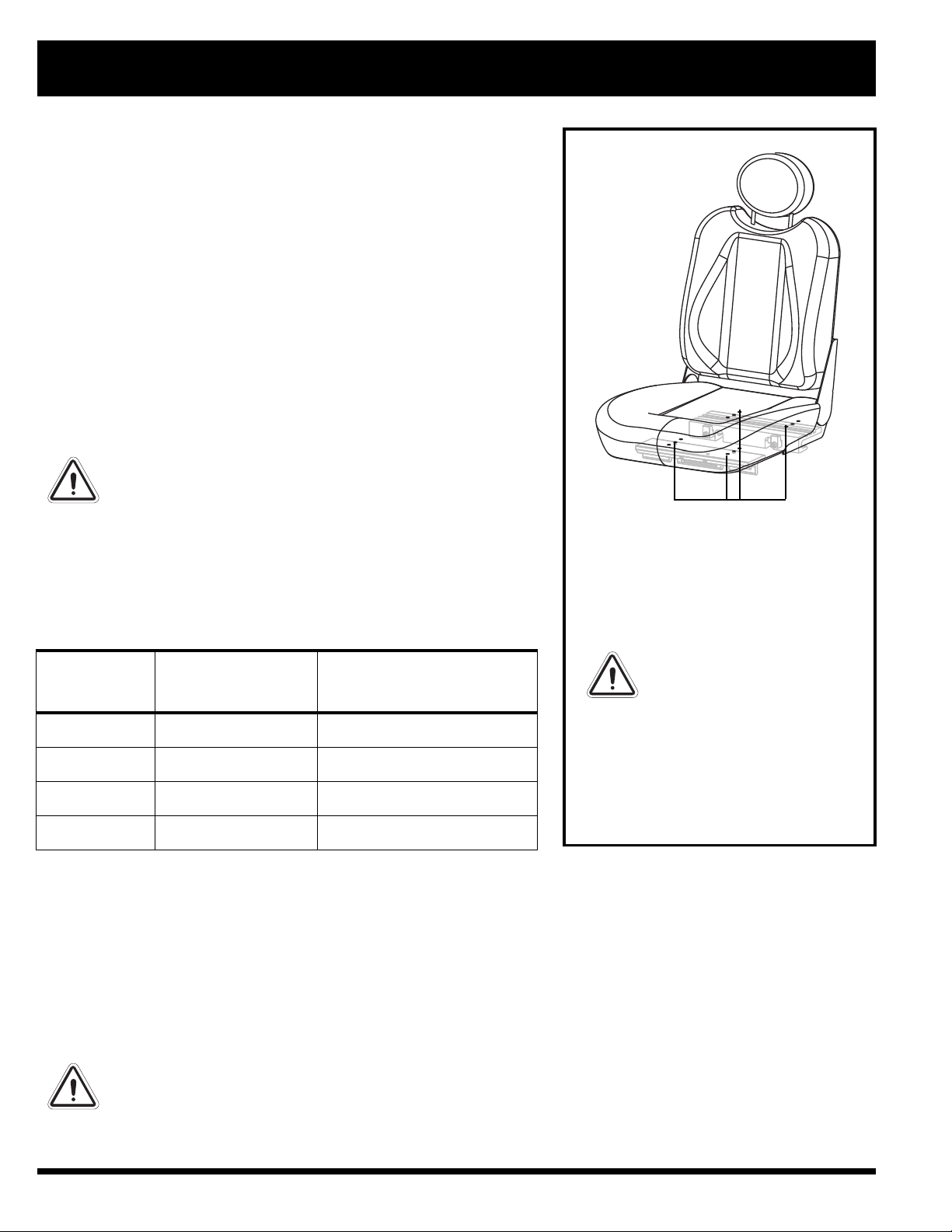

figure 1. Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly
includes two motor/brake assemblies, two drive wheels, two rear caster wheels, two front anti-tip wheels, two
batteries, and wiring harnesses.
SEATBACK
ARMRESTS
SEAT
ASSEMBLY
POWER BASE
ASSEMBLY
CASTER WHEEL
DRIVE WHEEL
SEAT BASE
CONTROLLER
MAIN SHROUD
FRONT RIGGING
(FOOT PLATFORM SHOWN)
ANTI-TIP WHEELS
Figure 1. The Jazzy Elite Series Power Chair
8 www.pridemobility.com Jazzy Elite Series
REAR COVER
III. YOUR POWER CHAIR
TRAPEZE BARS
CONTROLLER HARNESS
MAIN SHROUD
MAIN CIRCUIT BREAKER
LOCATION (CIRCUIT
BREAKER SHOWN IN
FIGURE 3)
Figure 2. The Jazzy Elite Series Power Base
MANUAL
FREEWHEEL
LEVERS
FRONT COVER
Jazzy Elite Series www.pridemobility.com 9
III. YOUR POWER CHAIR
Electrical Components
The electrical components are located either on or inside the power base. The main circuit breaker is located on
the right side of the power base. The power module is located under the front cover. See figure 3.
Main Circuit Breaker: The main circuit breaker is a safety feature built into your power chair. When the batteries
and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage
to the motors and the electronics. If the circuit trips, allow your power chair to “rest” for approximately one
minute. Next, push in the circuit breaker button, turn on the controller, and continue normal operation. If the main
circuit breaker continues to trip repeatedly, contact your authorized Pride Provider. See figure 3.
Power Module: Provides connection between the controller and the motors and batteries.
POWER MODULE
MOTOR CONNECTORS
BATTERY CONNECTORS
MAIN CIRCUIT BREAKER
CONTROLLER HARNESS
BATTERY CONNECTORS
Figure 3. Jazzy Elite Series Electrical Components
10 www.pridemobility.com Jazzy Elite Series
