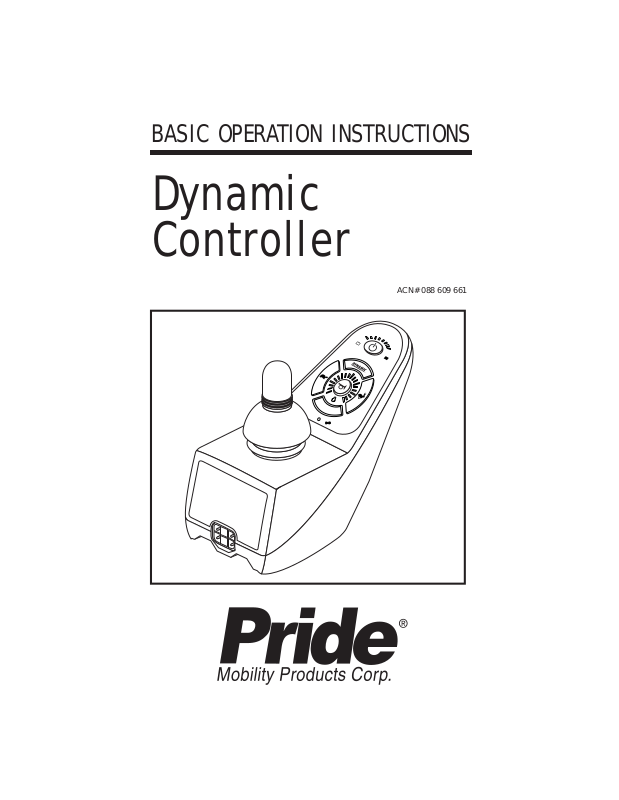

BASIC OPERATION INSTRUCTIONS
Po
Dynamic Controller
ACN# 088 609 661
ACN# 088 609 661
2 Basic Operation Instructions
SAFETY GUIDELINES
WARNING! An authorized Pride Provider or a qualified technician must perform the initial setup of this product and must perform all of the instructions in this manual.
The symbols below are used throughout this owner's manual and on the controller to identify warnings and important information. It is very important for you to read them and understand them completely .
WARNING! Indicates a potentially hazardous condition/ situation. Failure to follow designated procedures can cause either personal injury , component damage, or malfunction. On the product, this icon is represented as a black symbol on a yellow triangle with a black border .
MANDATORY! These actions should be performed as specified. Failure to perform mandatory actions can cause personal injur y and/or equipment dama ge. On the pr oduct, this icon is represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any time or in any circumstances. Performing a prohibited action can cause personal injur y and/or equipment damage. On the product, this icon is represented as a black symbol with a red circle and a red slash.
NOTE: These instructions are compiled from the latest specifications and product information available at the time of publication. We re­serve the right to make changes as they become necessary. Any changes to our products may cause slight variations between the illustrations and explanations in this manual and the product you have purchased. The latest/current version of this manual is available on our website.
088 609 661
Copyright © 2008 Pride Mobility Products Corporation INFMANU3676/Rev B/May 2008
Basic Operation Instructions 3
LABEL INFORMA TION .................................................................... 4
INTRODUCTION................................................................................. 5
DYNAMIC CONTROLLER ............................................................... 7
PRECAUTIONAR Y GUIDELINES................................................. 7
OPERA TING THE DYNAMIC CONTROLLER ........................11
CONTROLLER CONNECTOR...................................................... 16
OFF-BOARD CHARGER/PR OGRAMMING SOCKET ............. 16
LOCK MODE....................................................................................... 16
ACTUA T OR ADJUSTMENT ......................................................... 17
SLEEP MODE (IF ENABLED) ..................................................... 18
TABLE OF CONTENTS
OUT OF NEUTRAL A T POWER UP (OONAPU)................... 18
ERROR CODES ................................................................................. 18
CARE AND MAINTENANCE ........................................................ 19
WARRANTY ........................................................................................ 19
www.pridemobility.com Dynamic Controller
4 Basic Operation Instructions
LABEL INFORMATION
PRODUCT SAFETY SYMBOLS
The symbols below are used on the controller to identify warnings, mandatory actions, and prohibited actions. It is very important for you to read and under­stand them completely .
Read and follow the information in the owner’s manual.
Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain and store in a clean and dry condition.
EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m.
Disposal and recycling - Contact your authorized Pride Provider for information on proper disposal and recycling of your Pride product and its packaging.
Basic Operation Instructions 5
INTRODUCTION
WELCOME to Pride Mobility Products Corporation (Pride). The product you have purchased combines state-of-the-art components with safety, comfort, and styling in mind. W e are confident that the design features will provide you with the conveniences you expect during your daily activities. Understanding how to safely operate and care for this product should bring you years of trouble free operations and service.
Read and follow all instructions, warnings, and notes in this manual before at­tempting to operate your product for the first time. You must also read all instruc­tions, warnings, and notes contained in any supplemental instructional booklets for the controller, front riggings, and/or seating system that accompanied your power chair before initial operation. Your safety depends upon you, as well as your provider, caretaker , or healthcare professional in using good judgement.
This manual is to be used in addition to the power base owner’s manual that came with your power chair. If there is any information in this manual which you do not understand, or if you require additional assistance for setup or operation, please contact your authorized Pride Provider . Failure to follow the instructions, warnings, and notes
in this manual and those located on your Pride product can result in personal injury and/or product damage and will void Pride’ s product warranty.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product or remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail, refuse, or neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the safe use of this product.
INFORMA TION EXCHANGE
W e want to hear your questions, comments, and suggestions about this manual. W e would also like to hear about the safety and reliability of your new Pride product, and about the service you received from your authorized Pride Provider. Please notify us of any change of address, so we can keep you apprised of important information about safety , new products, and new options that can increase your ability to use and enjoy your Pride product.
www.pridemobility.com Dynamic Controller
6 Basic Operation Instructions
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us and we will be glad to send you a new one immediately.
My authorized Pride Provider Is:
Name: _____________________________________________________
Address:____________________________________________________
Phone Number: ______________________________________________
Purchase Date: _______________________________________________
Basic Operation Instructions 7
DYNAMIC CONTROLLER
The Dynamic controller is a modular electronic controller system that allows you to operate your power chair . It is designed to allow the user to have complete control over chair movement and speed.
The controller is available in both 50-amp and 60-amp configurations, and has been pre-programmed to meet a typical user’s needs. The program is set using either a personal computer with software provided by the controller manufacturer or with a hand-held programmer, also provided by the controller manufacturer .
WARNING! The controller program can affect speed, acceleration, deceleration, dynamic stability, and braking. If it is programmed incorrectly or outside of the safe limits as determined by your healthcare professional, it can create a dangerous situation. Only the power chair manufacturer, an authorized representative of the manufacturer, or a trained service technician should program the controller.
PRECAUTIONAR Y GUIDELINES
Before operating the Dynamic controller, please read the following. These guidelines are provided for your benefit and will aid you in the safe operation of the controller system. ! Turn off the power to the controller when transferring to or from your power
chair .
! Follow all of the procedures and heed the warnings as explained in your power
chair owner’s manual.
www.pridemobility.com Dynamic Controller
8 Basic Operation Instructions
Electromagnetic and Radio Frequency Interference (EMI/RFI)
WARNING! Laboratory tests have shown that electromagnetic and radio frequency waves can have an adverse affect on the performance of electrically-powered mobility vehicles.
Electromagnetic and Radio Frequency Interference can come from sources such as cellular phones, mobile two-way radios (such as walkie-talkies), radio stations, TV stations, amateur radio (HAM) transmitters, wireless computer links, microwave sig­nals, paging transmitters, and medium-range mobile transceivers used by emergency vehicles. In some cases, these waves can cause unintended movement or damage to the control system. Every electrically-powered mobility vehicle has an immunity (or resistance) to EMI. The higher the immunity level, the greater the protection against EMI. This product has been tested and has passed at an immunity level of 20 V/m.
WARNING! Be aware that cell phones, two-way radios, laptops, and other types of radio transmitters may cause unintended movement of your electrically-powered mobility vehicle due to EMI. Exercise caution when using any of these items while operating your mobility vehicle and avoid coming into close proximity of radio and TV stations.
WARNING! The addition of accessories or components to the electrically-powered mobility vehicle can increase the susceptibility of the vehicle to EMI. Do not modify your power chair in any way not authorized by Pride.
WARNING! The electrically-powered mobility vehicle itself can disturb the performance of other electrical devices located nearby , such as alarm systems.
NOTE: For further information on EMI/RFI, go to the Resource Center on www.pridemobility.com. If unintended motion or brake release occurs, turn your controller off as soon as it is safe to do so. Contact Pride or your autho­rized Pride Provider to report the incident.
Basic Operation Instructions 9
Dynamic Controller Features
Figure 1 provides information on the Dynamic controller components and connections. Use this diagram to familiarize yourself with the function and location of each component before using the Dynamic controller.
The following functions are available with the Dynamic controller:
!
Joystick Control The joystick is used to control the direction and speed of the power chair .
! Speed Adjustment
The user can increase or decrease the maximum speed of the power chair .
! Actuator Adjustment
The user can control positioning of power seat actuators with the Dynamic controller .
! Sleep Mode
This feature is designed to preserve battery charge and can be disabled through programming.
! Out of Neutral at Power Up (OONAPU)
A safety feature designed to prevent the power chair from overheating and causing damage to the motors or controller.
www.pridemobility.com Dynamic Controller
10 Basic Operation Instructions
On/Off Key
Press to power on or off the power chair and controller.
Battery Condition Meter
Indicates the approximate amount of battery life using color-coded LEDs.
Speed Decrease Key
Used to decrease the speed setting.
Speed Setting Indicator
Series of five colored LEDs which display the speed setting.
Joystick
A multi-functional tool used to control speed and direction.
Service Indicator
Displays error codes.
Speed Increase Key
Used to increase the speed setting.
Horn Key
Activates a warning horn.
Attendant Control Indicator
Indicates when the optional Attendant Control Unit is activated.
Figure 1. Dynamic Controller Components and Connections
Off-board Charger/ Programming Socket
Connects to battery charger plug or programmer.
Basic Operation Instructions 11
OPERA TING THE DYNAMIC CONTROLLER
The Dynamic controller is used to operate your power chair and all of its components.
The Dynamic controller consists of (see figure 2):
1. joystick
2. keypad
3. off-board charger/programming socket
4. controller connector
5. power module
2
1
3
4
5
Figure 2. Dynamic Controller
Joystick Control
The joystick controls the direction and speed of your power chair . When you move the joystick from the neutral (center) position, the electromagnetic brakes release and allow your power chair to move. The farther you push the joystick from its neutral position, the faster your power chair moves. When you release the joystick and allow it to return to the neutral position, you engage the electromagnetic brakes. This causes your power chair to decelerate and come to a complete stop.
www.pridemobility.com Dynamic Controller
12 Basic Operation Instructions
Figure 3. Dynamic Controller 4-key Keypad
Figure 4. Dynamic Controller 7-key Keypad
Basic Operation Instructions 13
Figure 5. Dynamic Controller 8-key Keypad
Figure 6. Dynamic Controller 9-key Keypad
www.pridemobility.com Dynamic Controller
14 Basic Operation Instructions
Keypad
The keypad is located directly in front of the joystick. It contains keys that you will use to control your power chair . See figure 2.
On/Off Key
The on/off key turns the system on and off.
WARNING! Unless faced with an emergency situation, do not use the on/off key to stop the chair. This will cause the power chair to stop abruptly.
WARNING! Always turn the power off when you are stationary to prevent unexpected movement.
NOTE: If the joystick is not in the neutral (center) position when you turn on the power, you may cause a fault in the system. See “Out Of Neutral At Power Up (OONAPU).”
Horn Key
The horn key activates a warning horn.
Battery Condition Meter
The battery condition meter consists of eight lights arranged in an arc over the on/ off key . As the battery voltage drops, the number of lights reduces from right to left. When the battery capacity drops to 10% or below , the left red LED will flash. ! Left Red LED Flashing: The battery charge is low; charge the batteries as
soon as possible.
! Right-to-Left Ripple of LEDs: The controller is in lock mode; unlock the
controller .
! Left-to-Right Ripple of LEDs Alternating with Steady Display: The
controller is in programming, inhibit, or charging mode. When the joystick is moved, the speed gauge will also flash.
Basic Operation Instructions 15
Speed Keys
There are two keys that control the speed. Press the speed increase key to in­crease the speed. Press the speed decrease key to decrease the speed. The speed setting is displayed on the speed setting indicator. If your power chair was pro­grammed with a drive profile, contact your authorized Pride Provider for more information.
NOTE: We recommend that the first few times you operate your power chair, you set the speed to the slowest setting until you become familiar with your new power chair.
Speed Setting Indicator
The speed setting indicator indicates the current speed of your power chair . The speed setting indicator consists of 16 lights arranged clockwise around the horn key . As the speed of the power chair increases, the number of lights increases. There are five larger LEDs which represent 0%, 20%, 40%, 60%, 80%, and 100% of the power chair’s maximum speed. Press the speed decrease key or speed increase key once to adjust the speed in the five larger increments. Press and hold the the speed decrease key or speed increase key to adjust the speed in individual increments.
NOTE: When the bottom, left-most green LED is flashing, it indicates that the controller is in speed limit mode.
Service Indicator
The service indicator displays Dynamic controller error codes. Refer to “Error Codes.”
Attendant Control Indicator (For Optional Equipment)
The attendant control indicator is on when the optional Attendant Control Unit is activated.
Actuator Select Key with Lights (For Optional Equipment)
If your power chair is equipped with power accessories such as a power seat or power elevating leg rests, you can operate them through the keypad. Refer to “Actuator Adjustment.”
www.pridemobility.com Dynamic Controller
16 Basic Operation Instructions
Right/Left Turn Indicator Keys (For Optional Equipment)
The right/left turn indicator keys toggle either the left or right turn indicators. Press once to turn on and press again to turn off. Y ou can also turn off the selected turn indicator by pressing the opposite indicator key or the hazard key .
Light Key (For Optional Equipment)
The light key turns the headlights/taillights on and off independent of other indicators.
Hazard Key (For Optional Equipment)
The hazard key activates both turn indicators at the same time. You can only cancel this by pressing the hazard key again.
CONTROLLER CONNECTO R
This connects the Dynamic controller to the power module located on the power base.
OFF-BOARD CHARGER/PR OGRAMMING SOCKET
Y ou may use an off-board charger to char ge the power chair batteries through the 3-pin socket located on the front of the Dynamic controller. If you use an of f­board charger, the char ger current should not exceed 8 amps. Contact your au­thorized Pride Provider for more information.
WARNING! Only chargers with Neutrik NC3MX plugs should be connected to the off-board charger/programming socket. See your authorized Pride Provider f or more information.
NOTE: The socket may also be used for reprogramming the Dynamic con­troller. Contact your authorized Pride Provider for more information.
LOCK MODE
The Dynamic controller is equipped with a feature that enables you to “lockout” unauthorized users.
T o lock the Dynamic controller:
1. While the power is on, press and hold the on/off key for 4 seconds. The display will turn off immediately . After 4 seconds, all LEDs will flash briefly and the horn will sound a short beep.
2. The Dynamic controller is now locked.
Basic Operation Instructions 17
T o unlock the Dynamic controller:
1. While the Dynamic controller is locked, press the on/off key to turn on the
controller. All LEDs will flash briefly . The LEDs will then slowly ripple from right to left.
2. Press the horn key twice before the LED ripple has completed, approximately 10 seconds. The controller is now unlocked.
NOTE: If you do not press the horn key twice before the countdown is complete, the system will beep and the Dynamic controller will turn itself off. The unlock sequence must be completed successfully before the Dy­namic controller will operate again.
ACTU AT OR ADJUSTMENT
The Dynamic controller can control two actuators using the mode key and the joystick. The active actuator is indicated by an illuminated actuator LED. See figure 4, 5, or 6.
T o select and adjust an actuator:
1. Press the on/off key to power on the controller.
2. Press the actuator select key once to select Actuator Adjustment Mode. Actuator 1 will be active as noted by the amber “1” indicator.
3. Push the joystick to the right or press the actuator select key again to cycle through the available actuators. The actuator indicators will display which actuator is activated. See figure 7.
4. When the desired actuator is selected, give a forward command to the joystick to raise the actuator or give a reverse command to the joystick to lower the actuator .
5. Press the actuator select key again to return to the Drive Mode.
Figure 7. Actuator Indicators (None, Actuator 1, and Actuator 2 Shown)
www.pridemobility.com Dynamic Controller
18 Basic Operation Instructions
SLEEP MODE (IF ENABLED)
The power chair controller features a sleep mode. Sleep mode is a built-in circuit that will automatically shut off the main power if the joystick is not moved in any direction for a period of time. This time factor is programmed into the controller . T o restore power and continue, push any key on the keypad.
OUT OF NEUTRAL AT POWER UP (OONAPU)
Your power chair joystick is equipped with Out Of Neutral At Power Up (OONAPU). If you power up the system and the joystick is not in the neutral position, all of the lights in the speed setting indicator will flash rapidly for as long as the joystick is out of the neutral position. Allow the joystick to return to the neutral position and the fault will clear.
ERROR CODES
The service indicator will flash error codes when the Dynamic controller detects an abnormal condition in the electrical system. The service indicator will flash a num­ber of times quickly , then pause, then flash again. The service indicator will con­tinue to flash the error codes until the problem is fixed. The following table identi­fies the individual error codes. If any of these error codes persist or if you experi­ence any other problem with your power chair, contact your authorized Pride Provider.
NOTE: When the service indicator flashes an error, the battery condition meter LEDs will also flash an inhibit. See “Battery Condition Meter.”
Basic Operation Instructions 19
Error Code Probable Cause Possible Solution
1 Possible stall timeout or user error Release the joystick. 2 Battery Fault Check the batteries and cables. Try
3 Left Motor Fault Check the left motor, connections,
4 Right Motor Fault Check the right motor, connections,
5 Left Park Brake Fault Check the left park brake, connections,
6 Right Park Brake Fault Check the right park brake, connections,
7 Dynamic Controller Module Check the communications connections
Fault and wiring.
8 Dynamic Controller Power Check the communications connections
Module Fault and wiring.
9 Dynamic Controller Check the communications connections
Communications Fault and wiring. 10 Unknown Fault Contact your authorized Pride Provider. 11 Incompatible Controller Fault Contact your authorized Pride Provider.
to charge the batteries. The batteries may need to be replaced.
and cabling.
and cabling.
and cabling.
and cabling.
CARE AND MAINTENANCE
Refer to your power chair owner’s manual for proper cleaning and disposal instructions.
W ARRANTY
For two (2) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of char ge, the controller or any of its components found upon examination by an authorized representative of Pride to be defective in material and/or workmanship.
www.pridemobility.com Dynamic Controller
Pride Mobility Products Corporation
182 Susquehanna Avenue Exeter, PA 18643-2694 USA
Pride Mobility Products Company
380 Vansickle Road Unit 350 St. Catharines, Ontario L2R 6P7 Canada
Pride Mobility Products Ltd.
32 Wedgwood Road Bicester, Oxon OX26 4UL UK
Pride Mobility Products Australia Pty. Ltd.
21 Healey Road Dandenong, 3175 Victoria, Australia
Pride Mobility Products Italia S.r.l.
Via del Progresso - ang. Via del Lavoro Loc. Prato della Corte 00065-Fiano Romano (RM)
Pride Mobility Products Europe B.V.
Castricummer Werf 26 1901 RW Castricum The Netherlands
www.pridemobility .com www .prideservice.com www.quantumrehab.com
*INFMANU3676*
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
