Owner’s Manual
Including Models: Jazzy Select, Jazzy Select 6, and Jazzy Select 6 with Power Seat
Page 2
SAFETY GUIDELINES
WARNING! An authorized Pride Provider or a qualied technician must perform the initial setup
of this power chair and must perform all of the procedures in this manual.
The symbols below are used throughout this owner’s manual and on the power chair to identify warnings and
important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated
procedures can cause either personal injury, component damage, or malfunction. On the
product, this icon is represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specied. Failure to perform mandatory
actions can cause personal injury and/or equipment damage. On the product, this icon is
represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any
time or in any circumstances. Performing a prohibited action can cause personal injury and/or
equipment damage. On the product, this icon is represented as a black symbol with a red circle
and red slash.
The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated
position that have the capacity of operating a powered wheelchair.
CAUTION! Federal law restricts this device to sale by or on the order of a physician or other
certied personnel licensed by the law of the State (US only) or region in which this personnel
practices to use or order the use of the device.
Authorized Pride Provider:
Address:
Telephone:
Purchase Date:
NOTE: This owner’s manual is compiled from the latest specications and product information available at
the time of publication. We reserve the right to make changes as they become necessary. Any changes to our
products may cause slight variations between the illustrations and explanations in this manual and the product
you have purchased. The latest/current version of this manual is available on our website.
NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements.
NOTE: This product meets IPX4 classication (IEC 60529).
NOTE: This product and its components are not made with natural rubber latex. Consult with the manufacturer
regarding any after-market accessories.
Copyright © 2018
INFMANU3351/Rev I/October 2018
Page 3
CONTENTS
I. INTRODUCTION .................................................................................................................................4
II. SAFETY ...................................................................................................................................................5
III. YOUR POWER CHAIR ......................................................................................................................7
IV. ASSEMBLY ...........................................................................................................................................14
V. COMFORT ADJUSTMENTS ........................................................................................................17
VI. BATTERIES AND CHARGING ....................................................................................................25
VII. CARE AND MAINTENANCE ........................................................................................................30
LANGUAGE USAGE
This owner’s manual is intended for distribution in all English-speaking countries where our Power Chairs are
sold. We have chosen to compose this manual using language and spellings common to the USA. Since we
recognize that not all English-speaking countries use the same words or spellings, please refer to the following
chart for some common word variations that may be encountered throughout this manual.
USA Variation USA Variation USA Variation
asphalt tarmac backward(s) rearward(s) center centre
color colour cord lead curb kerb
elevator lift meter metre provider dealer; agent
sidewalk pavement tire tyre trunk boot
turn signal turn indicator yard grounds wrench spanner
caster castor pocketbook handbag counterclockwise anticlockwise
authorized authorised path footpath path bridleway
labor labour
Jazzy Select Series www.pridemobility.com 3
Page 4
I. INTRODUCTION
SAFETY
WELCOME to Pride Mobility Products (Pride). The power chair you have purchased combines state-of-the-art
components with safety, comfort, and styling in mind. We are condent that these design features will provide
you with the conveniences you expect during your daily activities. Once you understand how to safely operate
and care for your power chair, it should give you years of trouble-free operation and service.
Read and follow all instructions, warnings, and notes in this manual before attempting to operate your power
chair for the rst time. You must also read all instructions, warnings, and notes contained in any supplemental
instructional booklets for the controller, front riggings, and/or seating system that accompanied your power
chair before initial operation. Your safety depends upon you, as well as your provider, caretaker, or healthcare
professional in using good judgement.
If there is any information in this manual which you do not understand, or if you require additional assistance
for setup or operation, please contact your authorized Pride Provider. Failure to follow the instructions in this
manual and those located on your power chair can lead to personal injury and/or damage to the power
chair, and may void the warranty.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product or remove
or render inoperable or unsafe any guards, shields, or other safety features of this product; fail, refuse, or neglect to
install any retrot kits from time to time provided by Pride to enhance or preserve the safe use of this product.
SHIPPING AND DELIVERY
Before using your power chair, make sure your delivery is complete as some components may be individually packaged.
If you do not receive a complete delivery, please contact your authorized Pride Provider immediately. Where damage
has occurred during transport, either to the packaging or content, please contact the delivery company responsible.
NOTE: If you ever lose or misplace your copy of this manual, contact us and we will be glad to send you a new
one immediately.
4 www.pridemobility.com Jazzy Select Series
Page 5
II. SAFETY
PRODUCT SAFETY SYMBOLS
The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions.
It is very important for you to read and understand them completely.
NOTE: There are more warnings identied and explained in the Consumer Safety Guide that is included with
your power chair. Please become familiar with all the warnings and safety information found in the Consumer
Safety Guide and refer to this resource often.
Read and follow the information in the owner’s manual.
Locked and in drive mode
Place unit on level ground and stand to one side when changing from drive mode to
freewheel mode or freewheel mode to drive mode.
Unlocked and in freewheel mode
Indicates UNOCCUPIED power chair securement points.
Class II Equipment
Manufactured in
Power Chair information label
Jazzy Select Series www.pridemobility.com 5
Page 6
II. SAFETY
GENERAL GUIDELINES
MANDATORY! Do not operate your new power chair for the rst time without completely reading
and understanding this owner’s manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an
extensive variety of products to best t the individual needs of the power chair user. Please be aware that the nal
selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power
chair user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical doctor,
physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly tted the power
chair to the user and has assisted the prescribing healthcare professional and/or the authorized Pride Provider in
the instruction process for the use of the product.
There are certain situations, including some medical conditions, where the power chair user will need to practice
operating the power chair in the presence of a trained attendant. A trained attendant can be dened as a family
member or care professional specially trained in assisting a power chair user in various daily living activities.
As you begin using your power chair during daily activities, you will probably encounter situations in which you
will need some practice. Simply take your time and you will soon be in full and condent control as you maneuver
through doorways, on and o of elevators, up and down ramps, and over moderate terrain.
Below are some precautions, tips, and other safety considerations that will help you become accustomed to
operating your power chair safely.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check
before each use to make sure your power chair operates smoothly and safely.
Perform the following inspections prior to using your power chair:
Check for proper tire ination. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated on
each tire if equipped with pneumatic tires.
Check all electrical connections. Make sure they are tight and not corroded.
Check all controller connections to the power base. Make sure they are secured properly.
Check the brakes. See VII. “Care and Maintenance.”
Check battery charge. See VI. “Batteries and Charging.”
Ensure the manual freewheel levers are in drive mode before sitting on the power chair.
NOTE: If you discover a problem, contact your authorized Pride Provider for assistance.
6 www.pridemobility.com Jazzy Select Series
Page 7
III. YOUR POWER CHAIR
THE JAZZY SELECT® SERIES POWER CHAIR
The Jazzy Select® Series Power Chair has two main assemblies: the seat assembly (A) and the power base
assembly (B). See gure 1. Typically, the seat assembly includes the armrests, seatback, and seat base. The power
base assembly includes two motor/brake assemblies, two drive wheels, two batteries, and wiring harnesses. The
Select power base is equipped with two rear caster wheels and two front anti-tip wheels, while the Select 6 and
Select 6 with Power Seat is also equipped with four caster wheels. See gures 1, 2, and 3.
Identification Key
1. Seatback
2. Armrest
3. Seat Base
4. Controller
5. Top Shroud
6. Main Circuit Breaker
7. Front Caster Wheels
8. Front Riggings (Foot Platform Shown)
9. Drive Wheel
10. Seat Release Lever
11. Rear Caster Wheels
1
A
2
3
4
5
6
B
11
10
7
9
8
Figure 1. The Jazzy Select Series Power Chair (Jazzy Select 6 Shown)
Jazzy Select Series www.pridemobility.com 7
Page 8
III. YOUR POWER CHAIR
Identification Key
1. Rear Shroud
2. Seat Post
3. Front Cover
4. Main Circuit Breaker
5. Front Anti-Tip Wheels
6. Controller Connector
7. Rear Caster Wheels
1
7
6
2
3
4
5
Figure 2. The Jazzy Select Power Base
8 www.pridemobility.com Jazzy Select Series
Page 9
III. YOUR POWER CHAIR
Identification Key
1. Rear Shroud
2. Seat Post
3. Front Cover
4. Main Circuit Breaker
5. Front Anti-Tip Wheels
6. Controller Connector
7. Rear Caster Wheels
1
7
6
2
3
4
5
Figure 3. The Jazzy Select 6 Power Base
Jazzy Select Series www.pridemobility.com 9
Page 10
III. YOUR POWER CHAIR
Identification Key
1. Rear Shroud
2. Power Seat Actuator
3. Front Cover
4. Main Circuit Breaker
1
5. Front Caster Wheels
6. Controller Connector
7. Rear Caster Wheels
2
3
7
Figure 4. The Jazzy Select 6 with Power Seat Power Base
6
4
5
10 www.pridemobility.com Jazzy Select Series
Page 11
III. YOUR POWER CHAIR
Electrical Components
The electrical components are located either on or inside the power base. The main circuit breaker is located on
the front of the power base. The power module is located under the front cover. See gures 5 and 6.
Main Circuit Breaker: The main circuit breaker is a safety feature built into your power chair. When the batteries
and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage
to the motors and the electronics. If the circuit trips, allow your power chair to “rest” for approximately one
minute. Next, push in the circuit breaker button, turn on the controller, and continue normal operation. If the main
circuit breaker continues to trip repeatedly, contact your authorized Pride Provider.
Power Module: Provides connection between the joystick module and the motors, batteries, and o-board charger.
Identification Key
1. Battery Connectors
2. Controller Power Module
3. Controller Connector
4. Motor Connectors
5. Main Circuit Breaker
3
2
1
4
5
Figure 5. Jazzy Select Series Electrical Components (Jazzy Select 6 Shown)
Jazzy Select Series www.pridemobility.com 11
Page 12
III. YOUR POWER CHAIR
Identification Key
1. Battery Connectors
2. Controller Power Module
3. Controller Connector
1
4. Motor Connectors
5. Main Circuit Breaker
3
2
4
Figure 6. Jazzy Select 6 with Power Seat Electrical Components
5
12 www.pridemobility.com Jazzy Select Series
Page 13
III. YOUR POWER CHAIR
Manual Freewheel Levers
Your power chair has a manual freewheel lever on each motor. Manual freewheel levers enable you to disengage
the drive motors from the gearboxes and maneuver the chair manually.
WARNING! Do not use the power chair while the drive motors are disengaged! Do not
disengage the drive motors when the power chair is on an incline or decline, as the
unit could roll on its own. Only engage the freewheel mode when on a level surface.
WARNING! It is important to remember that when your power chair is in freewheel
mode, the braking system is disengaged.

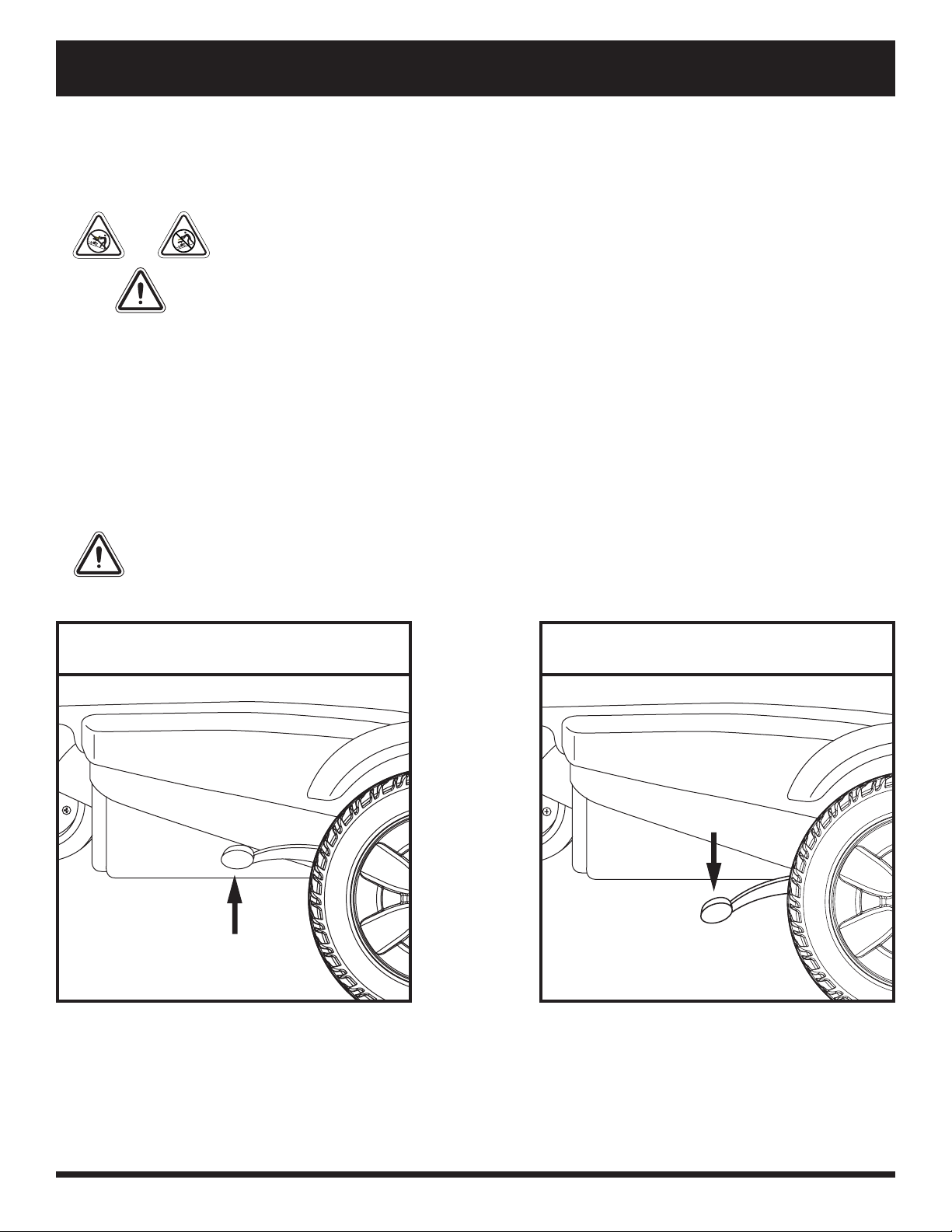

To engage or disengage the drive motors:
1. Locate the lever on each side of the power base.
2. Pull both levers upward to engage the drive motors (drive mode). See gure 7.
3. Push both levers downward to disengage the drive motors (freewheel mode). See gure 8.
If a lever is dicult to move in either direction, slightly rock the power chair back and forth. The lever should
then move to the desired position.
WARNING! Avoid applying excessive force to the manual freewheel levers.
WARNING! Do not use your foot to operate the manual freewheel levers. Do not stand on the
manual freewheel levers. Applying excessive force to the manual freewheel levers may result in
damage to the freewheel levers, motors, and brakes.
WARNING! Do not use the freewheel lever handles as tie-down points to secure this product.
Identification Key
1. Freewheel Lever
FREEWHEEL LEVER
Identification Key
1. Freewheel Lever
FREEWHEEL LEVER
Figure 7. Drive Mode (Drive Engaged) Figure 8. Freewheel Mode (Drive Disengaged)
Jazzy Select Series www.pridemobility.com 13
Page 14
IV. ASSEMBLY
4
2
3
1
INITIAL ASSEMBLY
Your power chair may require some assembly either before initial use or after transportation.
NOTE: Any nylon insert lock nut removed during the disassembly or adjustment of the power chair must be
replaced with a new nylon insert lock nut. Nylon insert lock nuts should not be reused as it may cause damage
to the nylon insert, resulting in a less secure t. Replacement nylon insert lock nuts are available at local
hardware stores or through your authorized Pride Provider.
Seat Installation (Select and Select 6 only)
It may be necessary to install the seat either prior
to initial operation or after transporting your power
chair.
WARNING! Do not pick up the seat
frame by the armrests. They are free
to pivot, and you may lose control of
the seat if they do so.
To install the seat:
1. Slide the seat down onto the power base. See
gure 9.
2. Install the controller into one of the armrests.
Tighten the setscrew with the supplied hex key.
3. Lift the armrest straight up, then route the
controller harness and secure with wire ties as
shown in gure 9.
NOTE: It is important that the armrest be lifted
straight up prior to securing the controller harness
with wire ties.

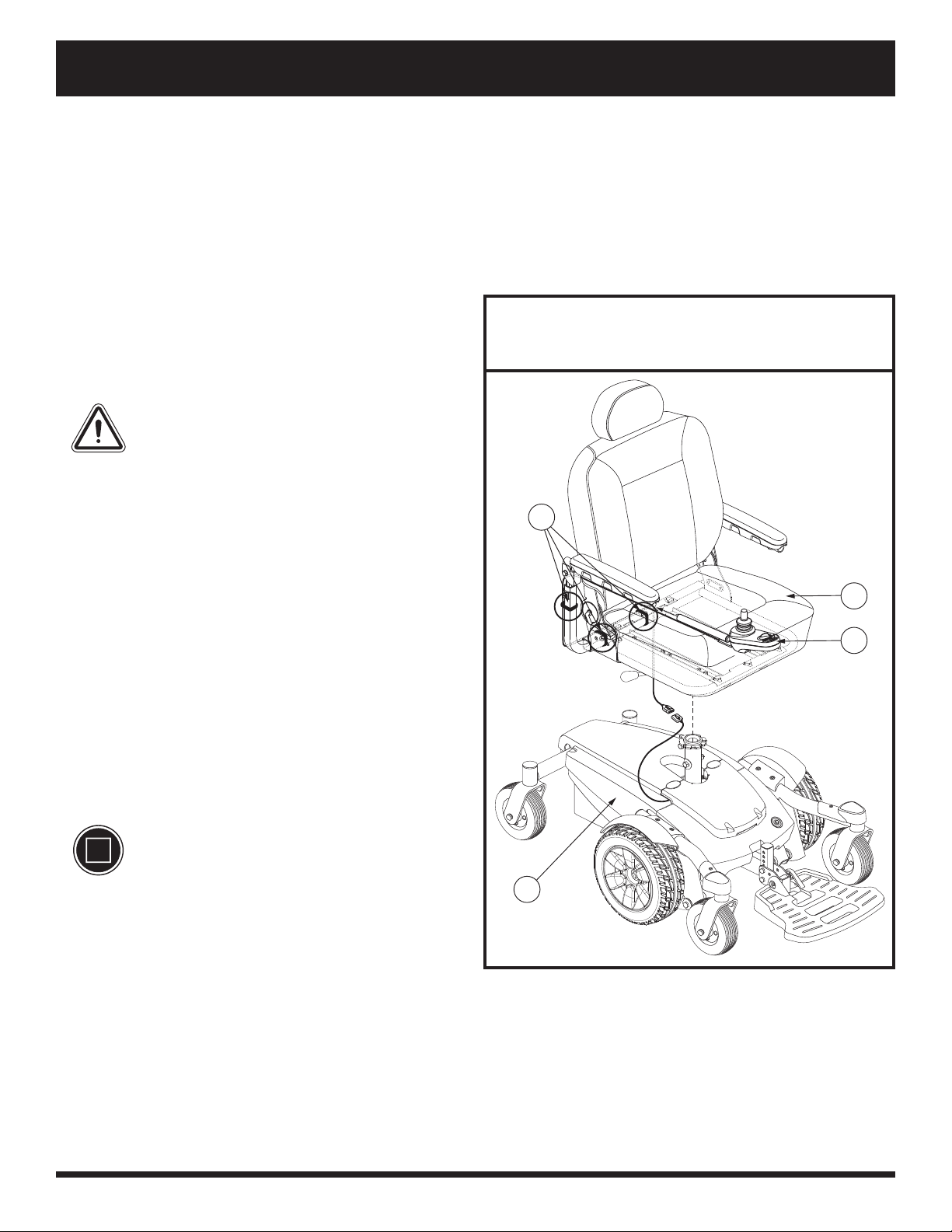

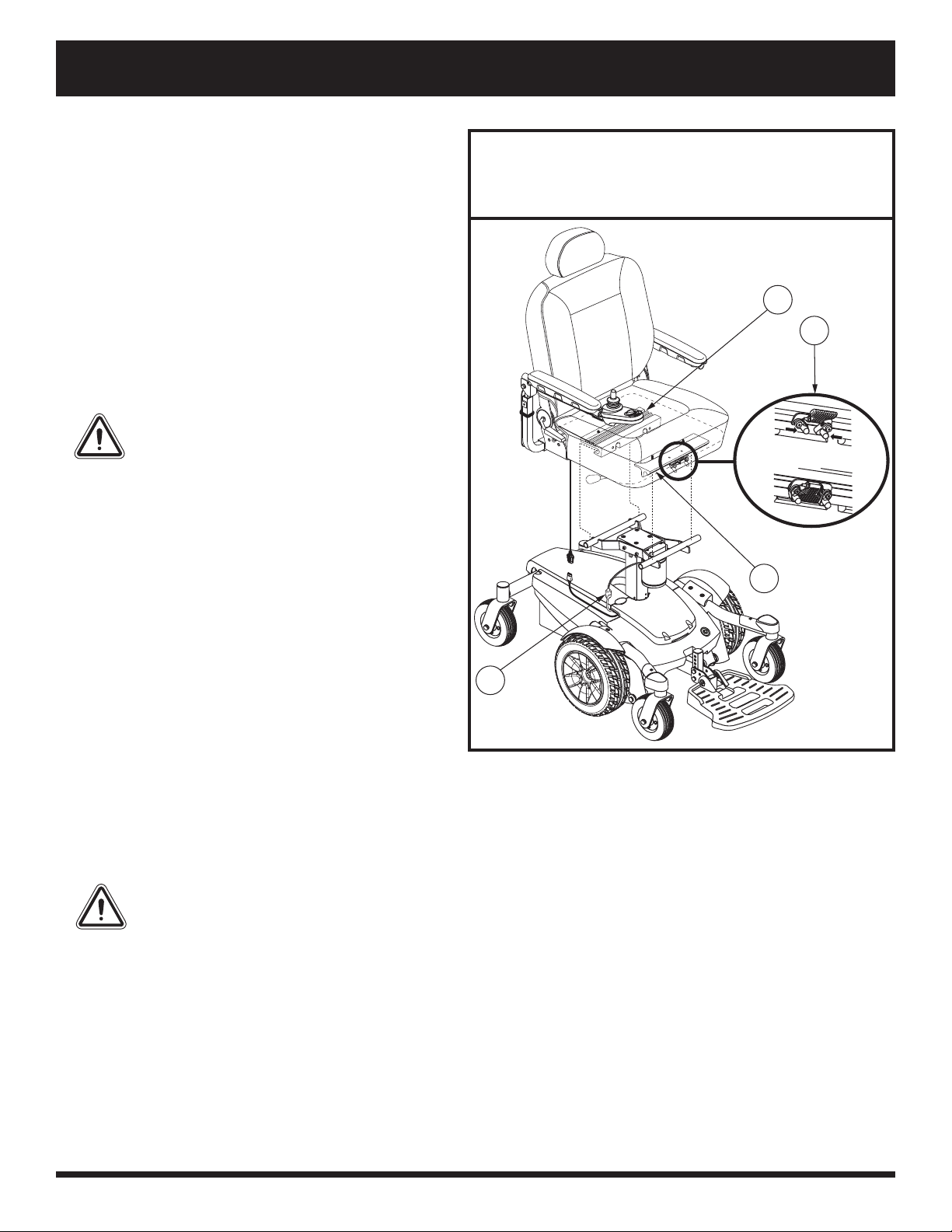

Identification Key
1. Wire Ties
2. Seat
3. Controller
4. Power Base
MANDATORY! Prevent controller
harness damage! Avoid routing the
controller harness on the outside of
the armrest pad. Route the harness
under the armrest or toward the inside
of the armrest pad. Use correct tiedown points for the controller harness
to prevent the harness from getting
caught in the drive tires, pinched in
the seat frame, or damaged when
passing through doorways.
4. Plug the controller harness into the connector on
the power base. See gure 2, 3 or 4.
14 www.pridemobility.com Jazzy Select Series
Figure 9. Seat and Controller Assembly
Page 15
IV. ASSEMBLY
Seat Installation (Select 6 with Power Seat
only)
It may be necessary to install the seat either prior
to initial operation or after transporting your power
chair. Most seats are attached to the power base with
the Universal Mounting System (UMS). The UMS
consists of universal parts that may be attached to
any medium-back or high-back seat, regardless of
seat width or seat depth. The two main components
are aluminum extrusions mounted to the seat base.
These extrusions attach to a pair of trapeze bars that
are mounted to the power base. See gure 10.
WARNING! Do not pick up the seat
frame by the armrests. They are free
to pivot, and you may lose control of
the seat if they do.
To install the power seat:
1. Tilt the seat back and slide the rear extrusion onto
the power base.
2. Lower the front extrusion onto the power base
until the seat latches into place.
3. Flip down the seat latch safety. See gure 11.
4. Connect the power seat connector to the power
base. See gure 10.
5. Lift the armrest straight up, then route the
controller harness and secure with wire ties as
shown in gure 12.
Identification Key
1. Rear Extrusion
2. Seat Latch Safety
4
3. Front Extrusion
4. Power Seat Connector
1
2
3
NOTE: It is important that the armrest be lifted
straight up prior to securing the controller harness
Figure 10. Universal Mounting System on Select 6 with
Power Seat
with wire ties.
MANDATORY! Prevent controller
harness damage! Avoid routing the
controller harness on the outside of
the armrest pad. Route the harness
under the armrest or toward the inside
of the armrest pad. Use correct tiedown points for the controller harness
to prevent the harness from getting
caught in the drive tires, pinched in
the seat frame, or damaged when
passing through doorways.
6. Plug the controller harness into the connector on
the power base. See gure 4.
NOTE: Refer to V. “Comfort Adjustments” for
more information on controller installation and
adjustment.
Jazzy Select Series www.pridemobility.com 15
Page 16
DISENGAGED
IV. ASSEMBLY
Identification Key
1. Wire Ties
2. Seatback Release Lever
1
Figure 11. Seat Latch Safety
ENGAGED
2
Figure 12. Jazzy Select 6 with Power Seat Controller
Routing
16 www.pridemobility.com Jazzy Select Series
Page 17
V. COMFORT ADJUSTMENTS
COMFORT ADJUSTMENTS
After becoming familiar with your power chair’s operation, you may nd the need to make some adjustments to
increase your comfort, such as seat height, armrest angle, foot platform height and angle, and controller position.
Refer to the following information before making comfort adjustments.
NOTE: If your power chair is equipped with an optional seating system, please refer to the information provided
in separate manuals.
WARNING! The center of gravity of your power chair was factory set to a position that meets
the needs of the demographic majority of users. Your authorized Pride Provider has evaluated
your power chair and made any necessary adjustments to suit your specic requirements. Do
not change your seating conguration without rst contacting Pride Mobility Products or your
authorized Pride Provider.
WARNING! Some power chair components are heavy. You may need assistance to lift or carry
them. Please refer to the specications table for specic component weights before you
disassemble the power chair.
WARNING! Remove the occupant from the power chair before making any adjustments.
Seat Height Adjustment (Select and Select
6 only)
You can change the seat height to one of three
positions in 1-in. (2.5-cm) increments.
To change the seat height:
1. Turn o the power to the controller.
2. Ensure the power chair is in drive mode. See
gure 7.
3. Disconnect the controller connector from the
power base. See gure 13.
4. Disengage the seat release lever. See gure 13.
5. While holding the lever, swivel the seat left or
right and then pull it up and o of the power
base.
6. Loosen the hardware at the rear of the seat post.
See gure 13.
7. Remove the seat height adjustment bolt, washers,
and nut from the seat post. See gure 13.
8. Raise or lower the seat post to the desired
position.
9. Reinstall the seat height adjustment hardware to
the seat post.
10. Tighten the hardware at the rear of the seat post.
11. Reinstall the seat.
12. Reconnect the controller to the power base.

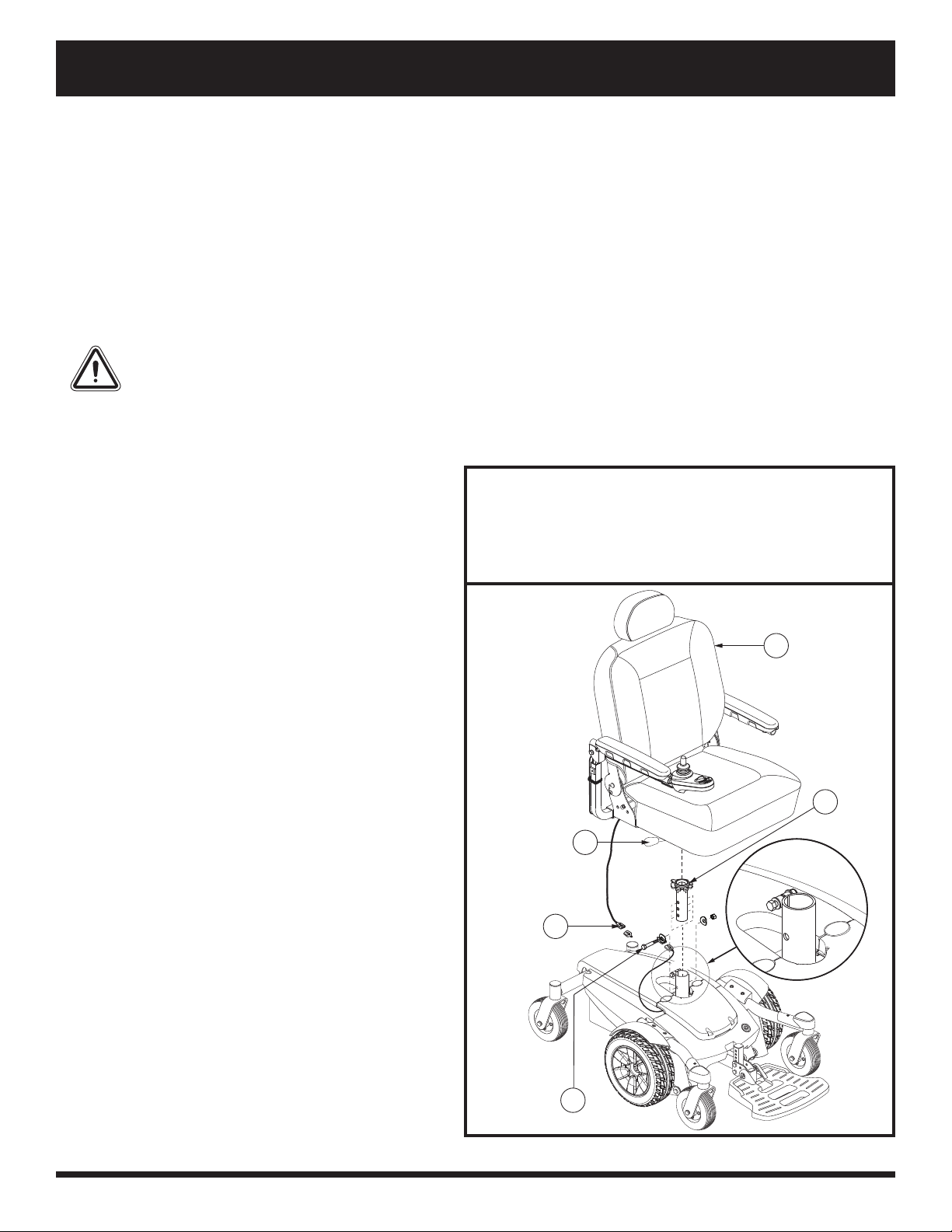

1. Seat
2. Seat Post
3. Seat Height
Adjustment Bolt
5
4
Identification Key
4. Controller Connector
5. Seat Release Lever
1
2
NOTE: To rotate the seat, use the seat release lever
located under the seat.
3
Figure 13. Seat Height Adjustment
Jazzy Select Series www.pridemobility.com 17
Page 18
V. COMFORT ADJUSTMENTS
Seat Height Adjustment (Select 6 with Power Seat Only)
Your power chair is equipped with a power elevating seat. You can change the seat height through the controller.
To change the seat height:
1. Push the on/o key to power on the chair and the controller. See gure 14.
2. Push the desired actuator key to select actuator mode. See gure 14.
3. Push the joystick forward to raise the seat to the desired position.
4. Pull the joystick backward to lower the seat to the desired position.
5. Push the on/o key to return to drive mode. See gure 14.
WARNING! Do not allow the motor to run more than a few seconds after the mechanism reaches
the top or bottom limit.
NOTE: For more information on operating the power elevating seat, contact your authorized Pride Provider.
WARNING! The power elevating seat option is intended for use on a level surface only. Never
raise the seat from its lowest position on an inclined surface. Failure to heed this warning can
result in the power chair tipping over.
WARNING! Never raise the seat from its lowest position when operating your power chair on
bumpy or uneven surfaces. Failure to heed this warning can result in the power chair tipping
over.
WARNING! Never raise the power elevating seat while your power chair is in the freewheel
mode.
WARNING! Always fasten the positioning belt when operating the power elevating seat.
WARNING! Pinch Point Hazard! Keep area around actuator clear when lowering power seat.
NOTE: The power elevating seat option is equipped with a system that reduces the speed of the power chair by
two-thirds when the seat is elevated more than approximately 0.75 in. (19 mm). Always check to be sure this
system is operating properly before using your power chair.

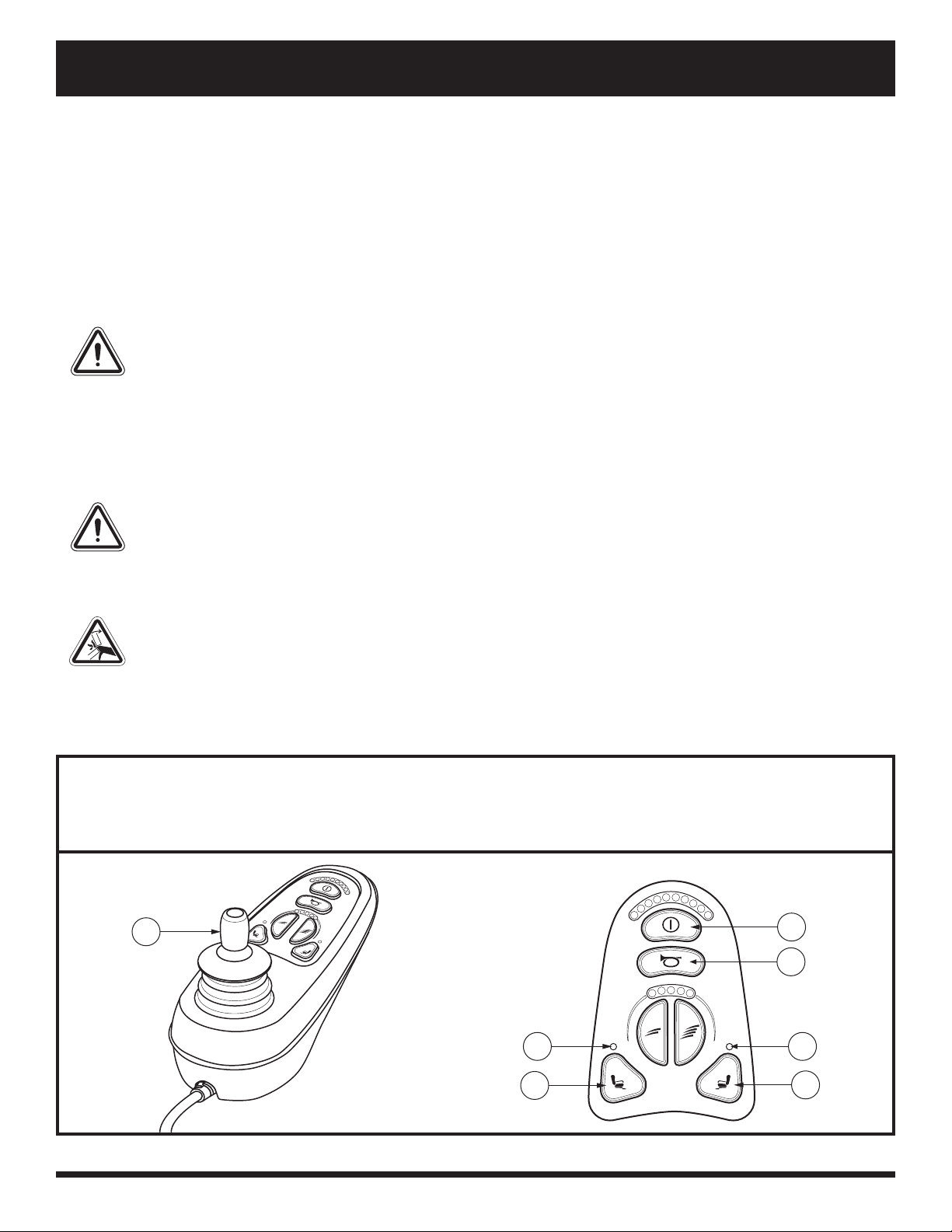

Identification Key
1. Joystick
2. On/O Key
4. Actuator Light
5. Actuator Key
3. Horn Key
1
2
3
4
5
Figure 14. VR2 6-key Controller and Keypad
4
5
18 www.pridemobility.com Jazzy Select Series
Page 19
V. COMFORT ADJUSTMENTS
NOTE: The most common conguration of the
seat adjustment hardware is shown in gure 15.
Your product may be equipped with a dierent
conguration. All congurations operate in a
similar manner.
Manual Recline Seatback Adjustment
If your power chair is equipped with a manual recline
seatback, you can adjust the seatback angle with the
seatback release lever. The lever is located on the
right side of the seat base. See gure 12.
To adjust the recline angle:
1. Pull up on the seatback release lever.
2. Lean forward or backward to the desired position.
3. Release the lever.
Seatback Angle Adjustment
If your power chair is equipped with a limited-recline
seatback, you can adjust it to four (4) dierent angles:
90°, 102°, 105°, or 107°.

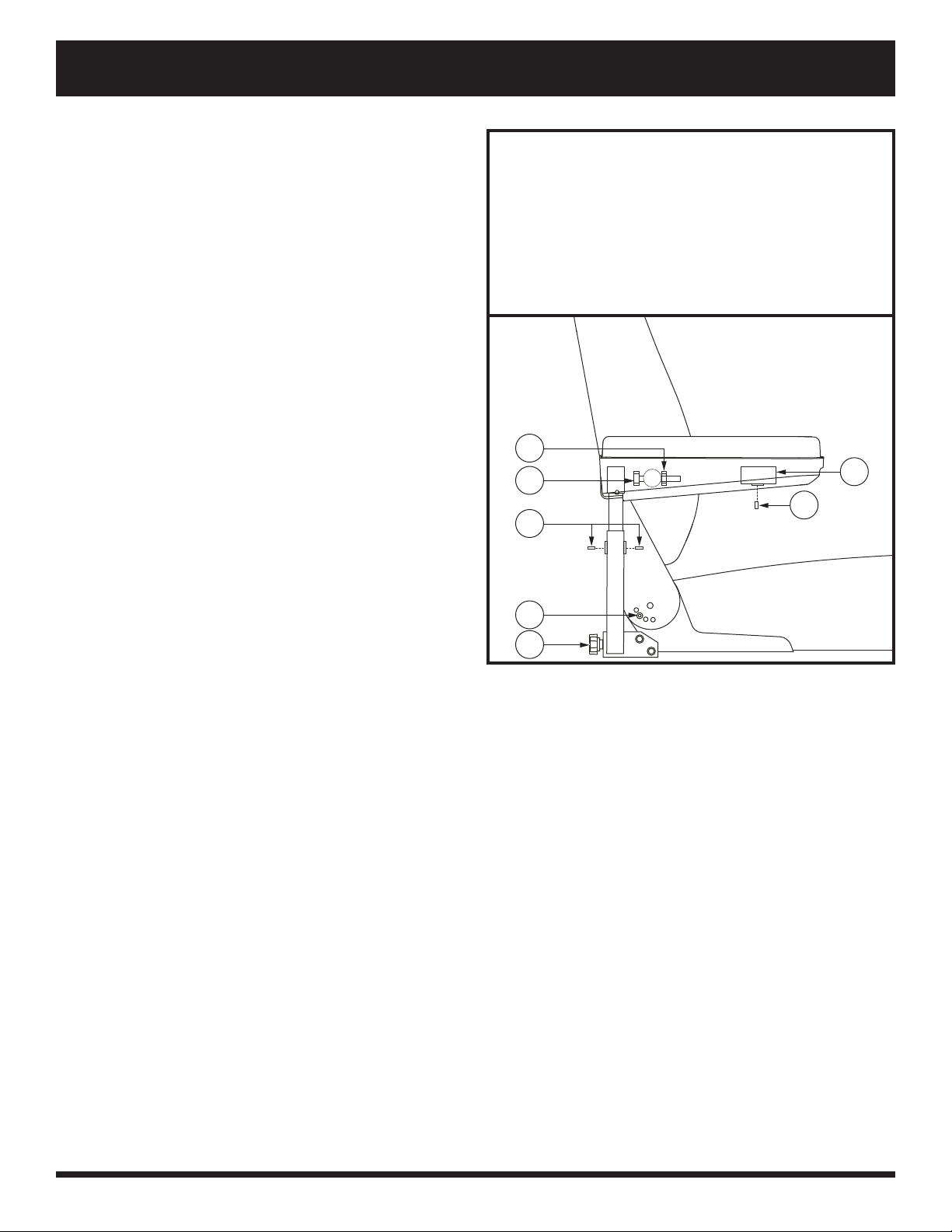

Identification Key
1. Jam Nut
2. Armrest Angle Adjusting Screw
3. Armrest Height Adjusting Setscrews
4. Seat Back Angle Adjusting Screw
5. Armrest Knob
6. Setscrew
7. Controller Bracket Receiver
1
2
3
7
6
To adjust the seatback angle:
1. Remove the adjusting screws from each seat
4
5
hinge. See gure 15.
2. Set the seatback at the desired angle.
Figure 15. Armrest and Seatback Adjustments
3. Reinstall the adjusting screws to each seat hinge
and tighten.
Armrest Width Adjustment
You can change each armrest’s width independently of the other.
NOTE: Changing the armrest width may increase the overall width of your power chair.
To change the armrest width:
1. Locate the adjustment hardware on each side of the armrest receiver bracket. See gure 15.
2. Loosen the adjustment hardware.
3. Slide the armrests in or out to the desired width.
4. Tighten the adjustment hardware.
Armrest Angle Adjustment
To change the armrest angle:
1. Lift the armrest straight up so that it is perpendicular to the oor.
2. Loosen the jam nut. See gure 15.
3. Turn the adjusting screw to raise or lower the front of the armrest.
4. Tighten the jam nut to lock the adjusting screw into place.
Jazzy Select Series www.pridemobility.com 19
Page 20
V. COMFORT ADJUSTMENTS
Armrest Height Adjustment
To change the armrest height:
1. Loosen the setscrews on the armrest. See gure 15.
2. Raise or lower the armrest to the desired height.
3. Tighten the setscrews to secure the armrest.
Controller Position
You can move the controller in toward or out away from the armrest, or change the position of the controller for
either left-hand or right-hand use.
WARNING! Do not place the controller harness so that it can be pinched in the seat frame or the
power base frame.
To extend the controller:
1. Flip up the armrest so it is perpendicular to the oor.
2. Loosen the setscrew on the controller bracket. See gure 15.
3. Slide the controller into or out of the armrest to the desired position.
4. Tighten the setscrew to secure the controller.
To change the controller position:
1. Turn o the power to the controller.
2. Unplug the controller harness from the power base.
3. Cut the wire tie(s) that secure the controller harness to the armrest and seat.
4. Flip up the armrests.
5. Loosen the setscrew on the underside of each armrest. See gure 15.
6. Slide the controller out of the armrest.
7. Place the controller into the other armrest.
8. Tighten the setscrew to secure the controller.
9. Route the controller harness along the seat frame and secure with wire ties. See gure 9 or 12.
10. Plug the controller into the power base. See gure 2, 3 or 4.
20 www.pridemobility.com Jazzy Select Series
Page 21
V. COMFORT ADJUSTMENTS
Foot Platform Height Adjustment
The foot platform height is easily adjusted to dierent
heights in 0.5-in. (1.27-cm) increments.
To raise or lower the foot platform:
1. Remove the hardware from the foot platform
bracket. See gure 16 or 17.
2. Raise or lower the foot platform to the desired
height.
3. Reinstall the hardware into the foot platform
bracket and tighten.
Foot Platform Depth Adjustment
To adjust the foot platform depth:
1. Remove the hardware from the foot platform
bracket. See gure 16 or 17.
2. Move the foot platform in or out to the desired
depth.
3. Reinstall the hardware into the foot platform
bracket and tighten.
Identification Key
1. Foot Platform Bracket
2. Hardware
3. Adjustment Screw
1
2
Foot Platform Angle Adjustment
You can adjust the angle of the foot platform. See
gure 16 or 17.
To adjust the foot platform angle:
1. Flip up the foot platform and locate the adjustment
screw.
2. Turn the adjustment screw to raise or lower the
front of the foot platform.
3

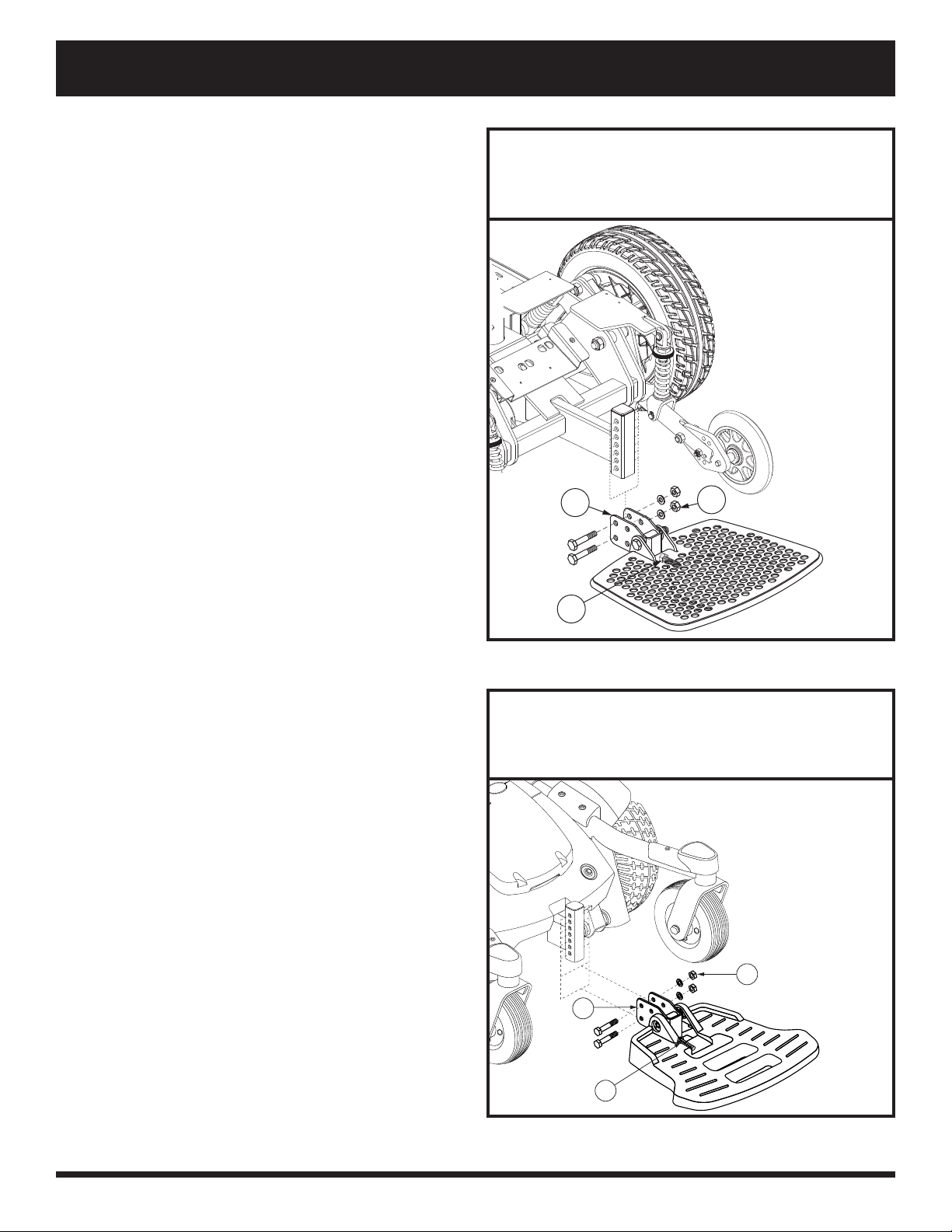

Figure 16. Select Foot Platform Adjustment
Identification Key
1. Foot Platform Bracket
2. Hardware
3. Adjustment Screw
2
1
3
Figure 17. Select 6 and Select 6 with Power Seat Foot
Platform Adjustment
Jazzy Select Series www.pridemobility.com 21
Page 22
V. COMFORT ADJUSTMENTS
Swing-away Footrests
Swing-away Footrests (SFRs) enable you to rotate the
footrests to the side before you transfer onto or o of
your power chair. See gure 18.
To rotate the SFRs:
1. Push in the release lever.
2. Rotate the SFRs.
To adjust the SFR length:
1. Remove the adjustment screws from the footrest
extension.
2. Slide the footrest up or down to the desired length.
3. Reinstall the two adjustment screws.
Elevating Leg Rests
Elevating Leg Rests (ELRs) oer an innite range of
adjustment for the leg angle and a footrest adjustment
range of 12-19 in. (30.48-48.26 cm). See gure 19.
To rotate the ELRs:
1. Push in release lever A.
2. Rotate the ELRs.
Identification Key
1. SFR Release Lever
2. Adjustment Screws
3. Footrest Extension
3
Figure 18. Swing-Away Footrests
Identification Key
1. Release Lever A
2. Release Lever B
3. Adjustment Screws
4. Leg Rest Extension
1
2
To adjust the ELR angle:
1. Push down release lever B.
2. Move the leg rest to the desired angle.
To adjust the ELR length:
1. Remove the two adjustment screws from the side
of each leg rest extension.
2. Slide the leg rest up or down to the desired length.
3. Reinstall the two adjustment screws.
1
2
4
3
Figure 19. Elevating Leg Rests
22 www.pridemobility.com Jazzy Select Series
Page 23
V. COMFORT ADJUSTMENTS
Positioning Belt
Your power chair may be equipped with a positioning
belt that can be adjusted for operator comfort. See
gure 21. The positioning belt is designed to support
the operator so that he/she does not slide down
or forward in the seat. The positioning belt is not
designed for use as a restraining device.
WARNING! The positioning belt is
not designed for use as a seat belt
in a motor vehicle. Nor is your power
chair suitable for use as a seat in
any vehicle. Anyone traveling in a
vehicle should be properly belted
into seats approved by the vehicle
manufacturer.
WARNING! The positioning belt should
be secured at all times. Never allow
the positioning belt to hang or drag on
the oor as it may become entangled.

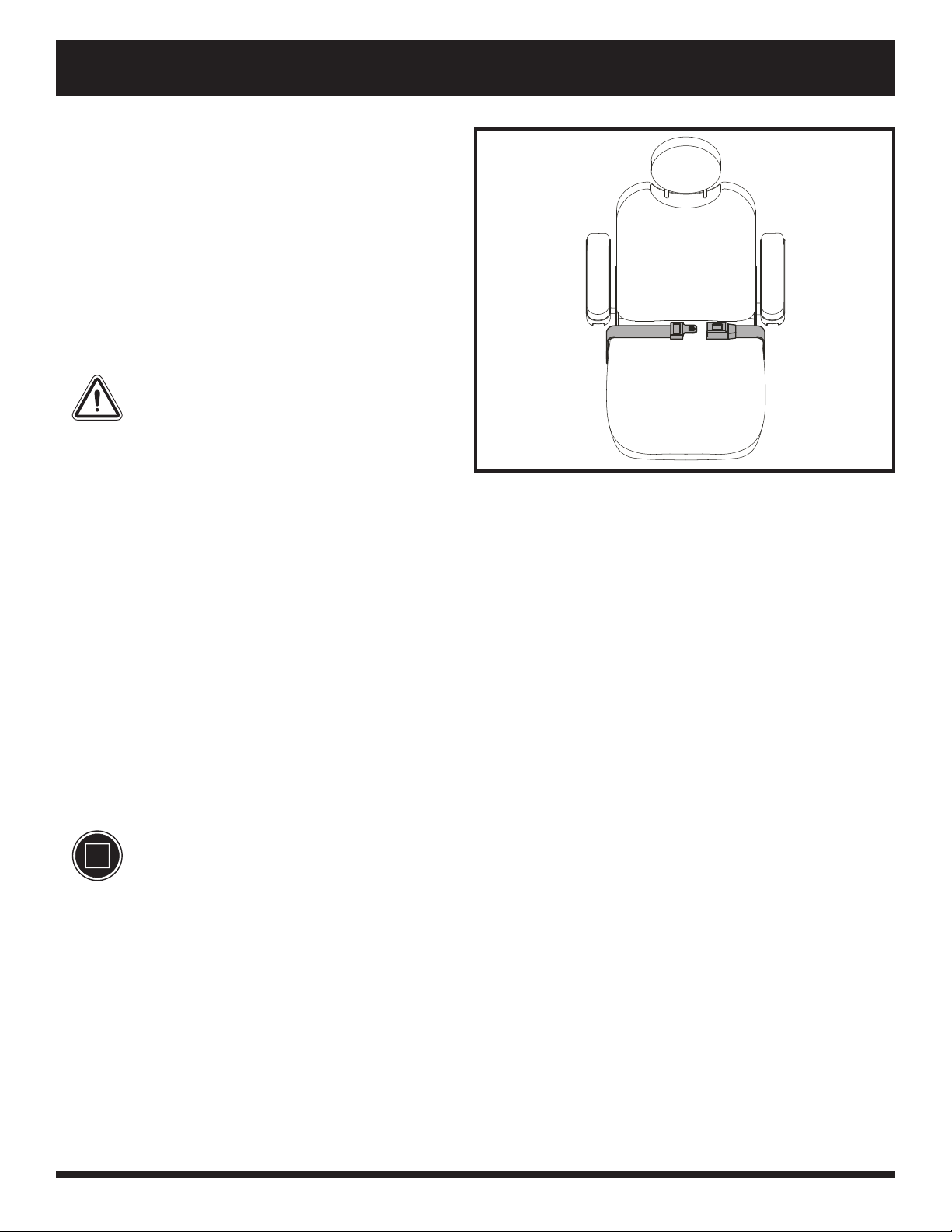

Figure 21. Positioning Belt Adjustment
To install the positioning belt:
1. Remove the rearmost screw that holds the seat hinge to the seat base on both the left and right seat hinges.
2. Insert the screw through the supplied washer, through the positioning belt, and into the seat base for each side
of the power chair seat.
3. Tighten both screws.
To adjust the positioning belt for operator comfort:
1. Once seated, insert the metal tab on one side of the belt into the plastic housing on the opposite side until you
hear a click. See gure 21.
2. Pull the excess strap attached to the metal tab until it is secure, but not so tight as to cause discomfort.
To release the positioning belt:
1. Press the push button mechanism on the plastic housing.
MANDATORY! Make sure the positioning belt is properly secured to the power chair and is
adjusted for operator comfort before each use.
MANDATORY! Inspect the positioning belt for loose parts or damage, including tears, worn spots,
bent hardware, damaged latch mechanisms, dirt or debris, before each use of the power chair.
If you discover a problem, contact your authorized Pride Provider for maintenance and repair.
Jazzy Select Series www.pridemobility.com 23
Page 24
VI. BATTERIES AND CHARGING
BATTERIES AND CHARGING
Your power chair uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance
free. Since they are sealed, there is no need to check the electrolyte (uid) level. Deep-cycle batteries are designed
to handle a longer and deeper discharge. Though they are similar in appearance to automotive batteries, they are
not interchangeable. Automotive batteries are not designed to handle a long, deep discharge, and also are unsafe
for use in power chairs.
MANDATORY! Battery posts, terminals, and related accessories contain lead and
lead compounds. Wear goggles and gloves when handling batteries and wash hands
after handling.
PROHIBITED! Always use two batteries of the exact same type, chemistry, and
amp-hour (Ah) capacity. Refer to the specications table in this manual and in the
manual supplied with the battery charger for recommended type and capacities.
WARNING! Contact your authorized Pride Provider if you have any questions
regarding the batteries in your power chair.
Charging the Batteries
The battery charger is essential in providing long life for your power chair batteries. It is designed to optimize
your power chair’s performance by charging the batteries safely, quickly, and easily. The battery charger is only
functional when the charger power cord is plugged into an electrical outlet.
PROHIBITED! Removal of grounding prong can create electrical hazard. If
necessary, properly install an approved 3-pronged adapter to an electrical outlet
having 2-pronged plug access.
PROHIBITED! Never use an extension cord to plug in your battery charger. Plug the
charger directly into a properly wired standard electrical outlet.
PROHIBITED! Do not allow unsupervised children to play near the power chair while
the batteries are charging. Pride recommends that you do not charge the batteries
while the power chair is occupied.
MANDATORY! Read the battery charging instructions in this manual and in the
manual supplied with the battery charger before charging the batteries.
WARNING! Explosive gases may be generated while charging the batteries. Keep
the power chair and battery charger away from sources of ignition such as ames
or sparks and provide adequate ventilation when charging the batteries.
WARNING! You must recharge your power chair’s batteries with the supplied offboard battery charger. Do not use an automotive-type battery charger.
WARNING! Inspect the battery charger, wiring, and connectors for damage before
each use. Contact your authorized Pride Provider if damage is found.
WARNING! Do not attempt to open the battery charger case. If the battery charger
does not appear to be working correctly, contact your authorized Pride Provider.
WARNING! Be aware that the battery charger case may become hot during charging.
Avoid skin contact and do not place on surfaces that may be affected by heat.
WARNING! If the battery charger is equipped with cooling slots, then do not attempt
to insert objects through these slots.
WARNING! If your battery charger has not been tested and approved for outdoor
use, then do not expose it to adverse or extreme weather conditions. If the battery
charger is exposed to adverse or extreme weather conditions, then it must be
allowed to adjust to the difference in environmental conditions before use indoors.
Refer to the manual supplied with the battery charger for more information.
24 www.pridemobility.com Jazzy Select Series
Page 25
VI. BATTERIES AND CHARGING
XLR

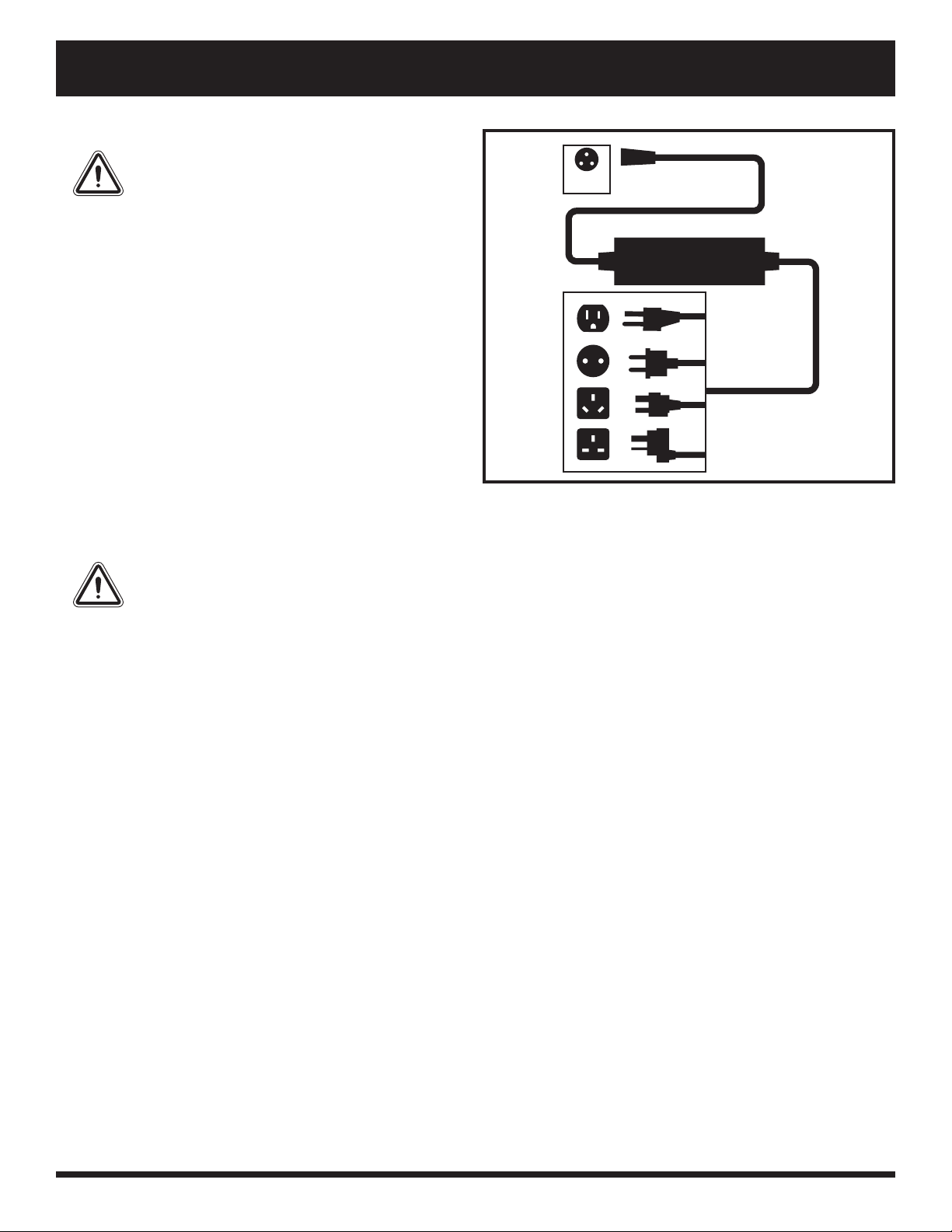

WARNING! Do not use a converter
with your battery charger. Plug the
charger directly into a properly rated
electrical outlet. Failure to follow
these instructions may result in
damage to the charger or converter.
To charge the batteries using the o-board charger:
1. Position the front of your power chair next to a
standard electrical outlet.
2. Be certain the controller power is turned o and
the freewheel levers are in the engaged position.
See III. “Your Power Chair.”
3. Plug the o-board charger into the o-board
charger/programming socket on the controller.
See gure 22.
4. Plug the o-board charger into the electrical
outlet.
WARNING! The LED lights on the
charger indicate different charger
conditions at various times: charger
power on, charging in progress, and
charging complete. If the LED does
not indicate that charging is complete
within 24 hours, unplug the charger
and contact your authorized Pride
Provider. Refer to the manual supplied
with the charger for a complete
explanation of these indicators.
5. When the batteries are fully charged, unplug the
o-board charger from the electrical outlet and
then from the controller.
Battery Break-in
To break in new batteries for maximum eciency:
1. Fully recharge any new battery prior to its initial
use. This brings the battery up to about 90% of its
peak performance level.
2. Operate your power chair throughout the house
and yard. Move slowly at rst, and do not travel
too far until you become accustomed to the
controls and break in the batteries.
3. Give the batteries another full charge of at least 8
to 14 hours and operate your power chair again.
The batteries will now perform at over 90% of
their potential.
4. After four or ve charging cycles, the batteries will
top o at 100% charge and last for an extended
period.
Figure 22. Battery Charging
Jazzy Select Series www.pridemobility.com 25
Page 26
VI. BATTERIES AND CHARGING
Frequently Asked Questions (FAQs)
How does the charger work?
The battery charger takes the standard electrical outlet voltage (alternating current) and converts it to 24V DC
(direct current). The power chair batteries use direct current to run your power chair. When the battery voltage
is low, the charger works harder to charge the battery. As the battery voltage approaches full charge, the charger
doesn’t work as hard to complete the charging cycle. When the battery is fully charged, the amperage from the
charger is nearly at zero. This is how the charger maintains a charge but does not overcharge the battery.
Can I use a dierent battery charger?
You should use the charger supplied with the power chair. It is the safest, most ecient tool to charge the batteries.
We do not recommend using other types of chargers (e.g., an automotive battery charger).
NOTE: Your power chair’s charger will not operate after the batteries have been discharged below 18 volts. If
this happens, call your authorized Pride Provider for assistance.
How often must I charge the batteries?
Many factors come into play when deciding how often to charge the batteries. You may use your power chair all
day on a daily basis or you may not use it for weeks at a time.
Daily Use
If you use your power chair on a daily basis, charge the batteries as soon as you are nished using your power
chair. Your power chair will be ready each morning to give you a full day’s service. It is recommended that
you charge the batteries 8 to 14 hours after daily use. Pride recommends that you charge the batteries for an
additional 4 hours after the battery charger indicates that charging is complete.
Infrequent Use
If you use your power chair infrequently (once a week or less), you should charge the batteries at least once
per week for at least 24 hours.
NOTE: Your power chair may be equipped with a battery charge reminder feature. If your power chair is
driven for 8 hours or more, powered o and not charged, then the charge reminder feature becomes activated
when the power chair is powered back on.The charge reminder is displayed when the power chair is powered
o again. The left red LED on the battery condition meter will ash 4 times in 0.5-second intervals. This will
happen every time the power chair is powered o until the charge reminder is reset by charging the batteries. In
order to reset the charge reminder feature once it has been activated, it is important to note that the controller
must be powered on prior to attaching the charger to the charger port and must remain on throughout one full
charging cycle.
NOTE: Keep your batteries fully charged and avoid deeply discharging your batteries. Refer to the manual
supplied with the battery charger for charging instructions. Pride recommends charging your batteries for at
least 48 continuous hours once per month to improve battery performance and battery life.
26 www.pridemobility.com Jazzy Select Series
Page 27
VI. BATTERIES AND CHARGING
How can I get maximum range or distance per charge?
Rarely do you have an ideal driving situation such as smooth, at, hard terrain with no wind, hills, or curves. More
often you are presented with hills, sidewalk cracks, uneven and loosely packed surfaces, curves, and wind. All of
these factors will aect the distance or running time per battery charge. Below are a few suggestions for obtaining
the maximum range per charge:
Always charge the batteries fully prior to your trip.
Plan your trip in advance to avoid inclines if possible.
Limit baggage weight to essential items.
Try to maintain an even speed and avoid stop-and-go driving.
We recommend charging your batteries for at least 48 continuous hours once per month to improve battery
performance and battery life.
What type of batteries should I use?
We recommend deep-cycle batteries that are sealed and maintenance free. Both AGM and Gel-Cell are deep-cycle
batteries that are similar in performance.
WARNING! Corrosive chemicals contained in batteries. Use only AGM or Gel-Cell
batteries to reduce the risk of leakage or explosive conditions.
Why do my new batteries seem weak?
Deep-cycle batteries employ a much dierent chemical technology than that used in car batteries, nickel-cadmium
(nicads), or in other common battery types. Deep-cycle batteries are specically designed to provide power, drain
down their charge, and then accept a relatively quick recharge. AGM and Gel-Cell batteries should be charged as
often as possible. They do not have a “memory” like nickel-cadmium batteries.
We work closely with our battery manufacturer to provide a battery that best suits your power chair’s specic demands.
Fresh batteries arrive regularly at Pride and are promptly shipped with a full charge. During shipping, the batteries
encounter temperature extremes that may inuence initial performance. Heat robs the charge from the battery, and
cold slows the power available and extends the time needed to recharge the battery (just as with a car battery).
It might take a few days for the temperature of the battery to stabilize and adjust to its new ambient temperature.
More importantly, it will take a few “charging cycles” (a partial drain — then a full recharge) to establish the
critical chemical balance that is essential to the battery’s peak performance and long life. It will be well worth it
to take the time to break in your battery properly.
How can I ensure maximum battery life?
A fully charged deep-cycle battery will provide reliable performance and extended battery life. Keep your power
chair’s batteries fully charged whenever possible. Batteries that are regularly and deeply discharged, infrequently
charged, or stored without a full charge may be permanently damaged, causing unreliable power chair operation
and limited battery life.
NOTE: The useful life of a battery is quite often a reection of the care it receives.
Jazzy Select Series www.pridemobility.com 27
Page 28
VI. BATTERIES AND CHARGING
How should I store my power chair and its batteries?
If you do not use your power chair regularly, we recommend maintaining battery vitality by charging the batteries
at least once per week.
If you do not plan on using your power chair for an extended period, fully charge the batteries prior to storage.
Disconnect the battery harnesses and store the power chair in a warm, dry environment. Avoid temperature
extremes, such as freezing and excessively hot conditions, and never attempt to charge a frozen battery. A cold or
frozen battery should be warmed for several days prior to recharging.
What about public transportation?
AGM and Gel-Cell batteries are designed for application in power chairs and other mobility vehicles. These
batteries are Federal Aviation Administration (FAA) approved, allowing safe transportation on aircraft, buses, and
trains, as there is no danger of spillage or leakage. We suggest you contact the carrier’s ticket counter in advance
to determine that carrier’s specic requirements.
What about shipping?
If you wish to use a freight company to ship your power chair to your nal destination, repack your power chair
in the original shipping container, if possible, and ship the batteries in separate boxes.
28 www.pridemobility.com Jazzy Select Series
Page 29
VII. CARE AND MAINTENANCE
CARE AND MAINTENANCE
Your Jazzy is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. You
can perform some of these checks, but others require assistance from your authorized Pride Provider. Preventive
maintenance is very important. If you follow the maintenance checks in this section as scheduled, you can help
ensure that your power chair gives you years of trouble-free operation. If you have any doubt as to your power
chair’s care or operation, contact your authorized Pride Provider.
WARNING! Do not service the power chair when the seat is occupied.
Your power chair, like most electrical equipment, is susceptible to damage from the elements. Avoid damp areas
of any kind.
WARNING! Direct or prolonged exposure to water or dampness could cause the power
chair to malfunction electronically and mechanically. Water can cause electrical
components to corrode and the chair’s frame to rust. Power chairs should be examined
periodically for signs of corrosion caused by water exposure, bodily uids exposure,
or incontinence. Damaged components should be replaced or treated immediately.
Should your power chair come in contact with water:
1. Dry your power chair as thoroughly as possible with a towel.
2. Allow your power chair to sit in a warm, dry place for 12 hours to allow unseen water to evaporate.
3. Check the joystick operation and the brakes before using your power chair again.
4. If any inconsistencies are found, take your power chair to your authorized Pride Provider. Power chairs that
are frequently exposed to sources of water, such as incontinence, should be inspected often for corrosion and
electronic components may need to be replaced frequently.
Temperature
Some of the parts of your power chair are susceptible to extreme changes in temperature. Always keep your
power chair between the temperatures of -13°F (-25°C) and 122°F (50°C).
In extremely cold temperatures the batteries may freeze. The specic temperature at which they freeze depends
on a number of factors, such as battery charge, usage, and composition of the batteries (e.g., AGM or Gel-Cell).
General Guidelines
Avoid knocking or bumping the controller, especially the joystick.
Avoid prolonged exposure of your power chair to extreme conditions, such as heat, cold, or moisture.
Keep the controller clean.
Check all connectors to ensure that they are all tight and secured properly.
Make sure pneumatic tires are inated to the psi/bar/kPa air pressure rating indicated on the tire.
WARNING! Make sure your tires are inated to the psi/bar/kPa air pressure rating indicated
on the tire for pneumatic tires. Do not underinate or overinate your tires. Low pressure may
result in loss of control, and overinated tires may burst. Overinating tires can cause them to
explode.
WARNING! Do not use a high pressure hose to inate your tires.
Use a rubber conditioner on the tire sidewalls to help preserve them.
WARNING! Never use a rubber conditioner on the tread area of the tires; doing so may make the
tires slippery and cause your power chair to skid.
Jazzy Select Series www.pridemobility.com 29
Page 30
VII. CARE AND MAINTENANCE
All wheel bearings are prelubricated and sealed. They require no subsequent lubrication.
If your power chair has a body shroud with a glossy nish, the body shroud has been sprayed with a clear
sealant coating. You can apply a light coat of car wax to help it retain its high-gloss appearance. If your power
chair has a body shroud with a matte nish, use ONLY products developed for matte-nish paint. Do not use
wax, detail spray, ArmorAll®, or any product made for glossy paint.
WARNING! Carefully choose the correct product to protect the nish of your power chair’s
shroud(s). ONLY products developed for matte-nish paint should be used on shrouds with a matte
nish. Failure to follow this warning may result in damage to the shroud’s matte paint nish.
Check all electrical connections. Make sure they are tight and are not corroded. Batteries must sit at within
the battery well frame with the battery terminals facing inward toward each other. Refer to the battery wiring
label for the correct wiring layout.
WARNING! Even though the power chair has passed the necessary testing
requirements for ingress of liquids, you should keep electrical connections away
from sources of dampness, including direct exposure to water or bodily uids and
incontinence. Check electrical components frequently for signs of corrosion and
replace as necessary.
Daily Checks
With the controller turned o, check the joystick. Make sure it is not bent or damaged and that it returns to the
neutral position when you release it. Check the rubber boot around the base of the joystick for damage. Visually
inspect the boot. Do not handle or try to repair it. See your authorized Pride Provider if there is a problem.
Visually inspect the controller harness. Make sure that it is not frayed, cut, or has any wires exposed. See your
authorized Pride Provider if there is a problem.
Check for at spots on solid tires. Flat spots could adversely aect stability.
Inspect the seating system, armrests, and front riggings for loose hardware, stress points, or damage. See your
authorized Pride Provider if there is a problem.
Weekly Checks
Disconnect and inspect the controller harness and the charger harness from the power base. Look for corrosion.
Contact your authorized Pride Provider if necessary.
Ensure that all parts of the controller system are securely fastened to your power chair. Do not overtighten
any screws.
Check for proper tire ination. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated on
each tire for pneumatic tires. If a tire does not hold air, see an authorized Pride Provider for replacement of
the tube.
Check the brakes. This test should be carried out on a level surface with at least 3 feet (1 meter) of clearance
around your power chair.
To check the brakes:
1. Turn on the controller and turn down the speed level of your power chair.
2. After one second, check the battery condition meter. Make sure that it remains on.
3. Slowly push the joystick forward until you hear the electric brakes click. Immediately release the joystick.
You must be able to hear each electrical brake operating within a few seconds of joystick movement. Repeat
this test three times, pushing the joystick backward, then left, and then right.
30 www.pridemobility.com Jazzy Select Series
Page 31
VII. CARE AND MAINTENANCE
Monthly Checks
Check for extreme wear on the anti-tip wheels. Replace them as necessary.
Check for drive tire wear. See your authorized Pride Provider for repair.
Check the caster wheels for wear. Replace them as necessary.
Check the caster forks for damage or uttering which indicates that they may need to be adjusted or have the
bearings replaced. See your authorized Pride Provider for repair.
Check the entire power chair for loose hardware and changes in the function or performance of the power
chair. See your authorized Pride Provider for service or repair.
Keep your power chair clean and free of foreign material, such as mud, dirt, hair, food, drink, etc.
Yearly Checks
Take your power chair to your authorized Pride Provider for yearly maintenance, especially if you use your power chair
on a daily basis. This helps ensure that your power chair is functioning properly and helps prevent future complications.
Storage
Your power chair should be stored in a dry place, free from temperature extremes. When storing, disconnect the
batteries from the power chair. See VI. “Batteries and Charging.”
WARNING! If you fail to store the unit properly, the frame can rust and the electronics can be damaged.
Batteries that are regularly and deeply discharged, infrequently charged, stored in extreme temperatures, or stored
without a full charge may be permanently damaged, causing unreliable performance and limited service life. It is
recommended that you charge the batteries periodically throughout periods of prolonged storage to ensure proper
performance.
You may wish to place several boards under the frame of your power chair to raise it o of the ground during
periods of prolonged storage. This takes the weight o the tires and reduces the possibility of at spots developing
on the areas of the tires contacting the ground.
Disposal of Your Power Chair
Your power chair must be disposed of according to applicable local and national statutory regulations. Contact
your local waste disposal agency or authorized Pride Provider for information on proper disposal of power
chair packaging, metal frame components, plastic components, electronics, batteries, neoprene, silicone, and
polyurethane materials.
Cleaning and Disinfection
Use a damp cloth and mild, non-abrasive cleanser to clean the plastic and metal parts of your power chair.
Avoid using products that may scratch the surface of your power chair.
If necessary, clean your product with an approved disinfectant. Make sure the disinfectant is safe for use on
your product before application.
WARNING! Follow all safety instructions for the proper use of the disinfectant and/or cleaning
agent before applying it to your product. Failure to comply may result in skin irritation or
premature deterioration of upholster y and/or power chair nishes.
WARNING! Never hose off your power chair or place it in direct contact with water. Your power chair
has a painted, ABS plastic body shroud that allows it to be easily wiped clean with a damp cloth.
WARNING! Never use any chemicals to clean a vinyl seat, as they may cause the seat to become
slippery or dry out and crack. Use soapy water and dry the seat thoroughly.
Jazzy Select Series www.pridemobility.com 31
Page 32
VII. CARE AND MAINTENANCE
Wheel Replacement
If you have pneumatic tires and you have a at tire, replace the tube. If your chair is equipped with a solid tire
insert, then you must replace the whole wheel assembly. Replacement tires, tubes, and wheel assemblies are
readily available through your authorized Pride Provider.
WARNING! The wheels on your power chair should only be serviced or replaced by an authorized
Pride Provider or a qualied technician.
WARNING! Be sure that the power to the controller is turned off and the power chair is not in
freewheel mode before performing this procedure.
WARNING! When changing a tire, remove only the center lug nut and washer, then remove the
wheel. If any further disassembly is required, deate the tire completely or it may explode.
Follow these easy steps for a quick and safe repair
for both pneumatic and solid tires:
1. Turn o the power to the controller.
2. Make sure that the power chair is in drive mode.
See gure 7.
3. Raise and support the power base so that the
wheel is at least 1 in. (2.5 cm) o of the ground.
4. If you are changing a pneumatic tire, completely
deate it before removing the wheel.
5. Remove the hub cap, if equipped.
6. Remove the drive wheel nut and washer from the
axle. See gure 23.
7. Remove the drive wheel from the axle. Make sure
that you keep the key.
8. Remove the acorn nuts that fasten the two rim
halves together.
9. Remove the old tube from the pneumatic tire and
replace it with a new tube or replace the entire
assembly if it is a solid tire.
10. Reassemble the two rim halves.
11. Slide the wheel back onto the axle. Make sure that
the key is in the axle slot.
Identification Key
1. Motor
2. Key
3. Axle
4. Drive Wheel
5. Drive Wheel Nut
6. Drive Wheel Washer
1
3

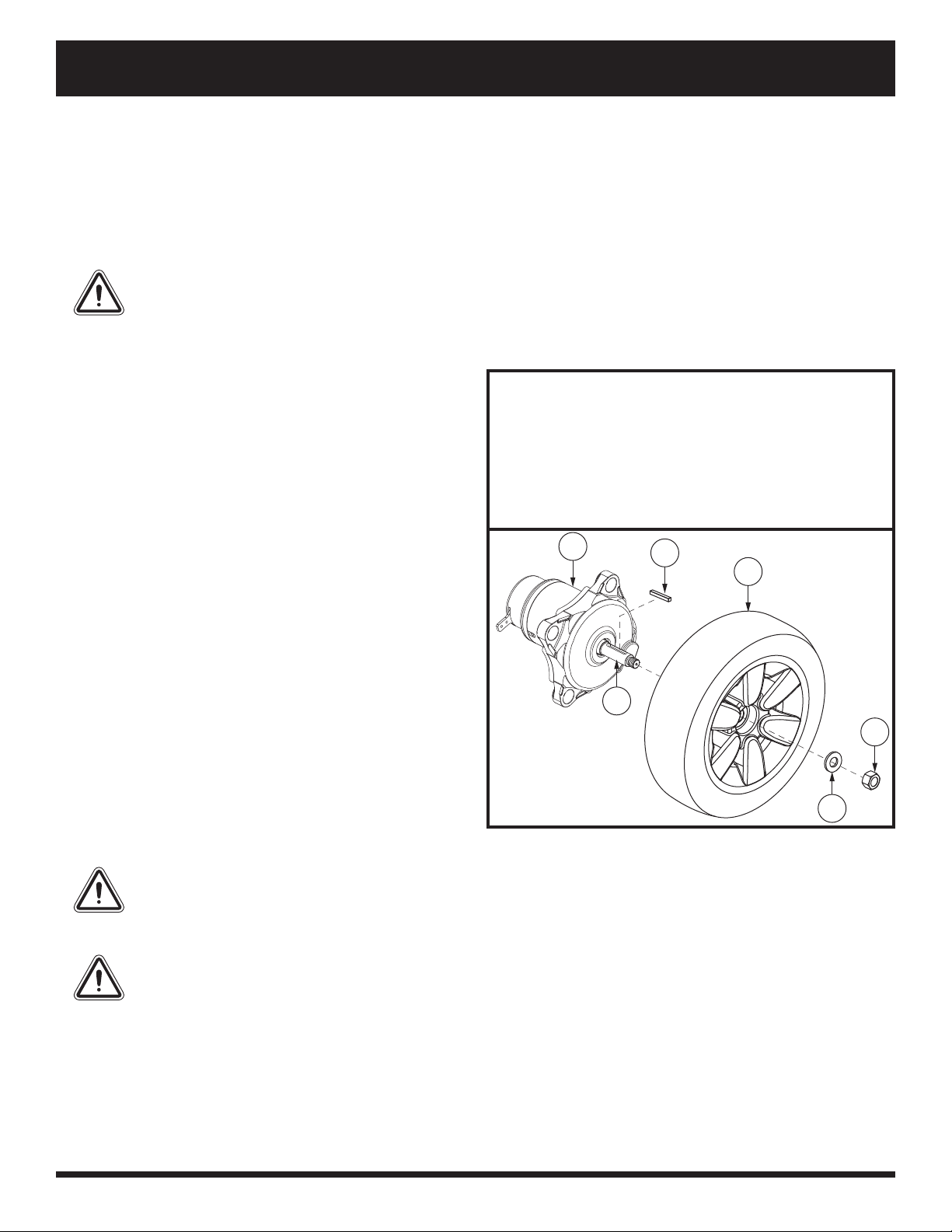

Figure 23. Drive Wheel Removal
2
4
5
6
WARNING! Ensure that the axle key is properly installed into the axle slot when mounting the
wheel. If not installed securely, the braking and drive systems are disengaged which may cause
personal injury or product damage.
12. Reinstall the drive wheel nut and washer onto the axle and tighten. See gure 23.
WARNING! Make sure both the nut and washer are reinstalled and tightened properly.
13. Reinstall the hub cap, if equipped.
14. Inate the pneumatic tire to the psi/bar/kPa air pressure rating indicated on each tire.
15. Remove the power chair from the base support.
32 www.pridemobility.com Jazzy Select Series
Page 33
VII. CARE AND MAINTENANCE
Battery Replacement
A battery wiring diagram is printed on a decal located on the power base. See VI. “Batteries and Charging” for
correct battery specications.
MANDATORY! Battery posts, terminals, and related accessories contain lead and
lead compounds. Wear goggles and gloves when handling batteries and wash hands
after handling.
WARNING! The batteries in your power chair should only be serviced or replaced by
an authorized Pride Provider or a qualied technician.
WARNING! Do not replace batteries when seat is occupied.
WARNING! Power chair batteries are heavy. See specications table. If you are
unable to lift that much weight, be sure to get help. Use proper lifting techniques
and avoid lifting beyond your capacity.
WARNING! Do not mix old and new batteries. Always replace both batteries at the
same time.
PROHIBITED! Keep tools and other metal objects away from the battery terminals.
Contact with tools can cause electrical shock.
You may need the following to replace your batteries:
metric/standard socket set and ratchet
adjustable wrench
To replace the batteries:
1. Turn o power to the controller.
2. Make sure that the power chair is in drive mode. See gure 7.
3. Remove the rear shroud. See gure 24.
4. Loosen the yellow thumbscrews and remove the side cover.
5. Disconnect the rear battery harness from the power base. See gure 24.
6. Slide the rear battery out of the power base.
7. Slide the front battery rearward.
8. Disconnect the front battery harness from the power base. See gure 24.
9. Slide the front battery out of the power base.
10. Remove the battery harnesses from the old batteries and install them onto the new batteries. Make sure that
the hardware is facing the correct direction. See gure 24.
WARNING! Make sure you tighten the fasteners so that the connections are secure.
11. Place the front battery into the power base. Make sure that the terminals are facing the front of the power base.
See gure 24.
12. Connect the front battery harness to the power base.
13. Slide the front battery forward.
14. Place the rear battery onto the power base. Make sure that the terminals are facing the front of the power base.
See gure 24.
15. Connect the rear battery harness to the power base.
16. Reinstall the side cover.
17. Reinstall the rear shroud.
NOTE: When installing the rear shroud, make sure that the controller and power seat harnesses are routed
through the notch in the right side of the front cover.
18. Charge the batteries. See VI. “Batteries and Charging.”
Jazzy Select Series www.pridemobility.com 33
Page 34
VII. CARE AND MAINTENANCE
Identification Key
1. Rear Shroud
2. Top Shroud
3. Front Battery
4. Side Cover
5. Rear Battery
6. Yellow Thumbscrews
CORRECT
CONNECTION
BATTERY SET CONFIGURATION:
+ = POSITIVE (RED) TERMINAL POST
- = NEGATIVE (BLACK) TERMINAL POST
CONNECT RED WIRE TO RED POSITIVE (+) TERMINAL POST.
CONNECT BLACK WIRE TO BLACK NEGATIVE (-) TERMINAL POST.
1
6
5
INCORRECT
CONNECTION
2
4
3

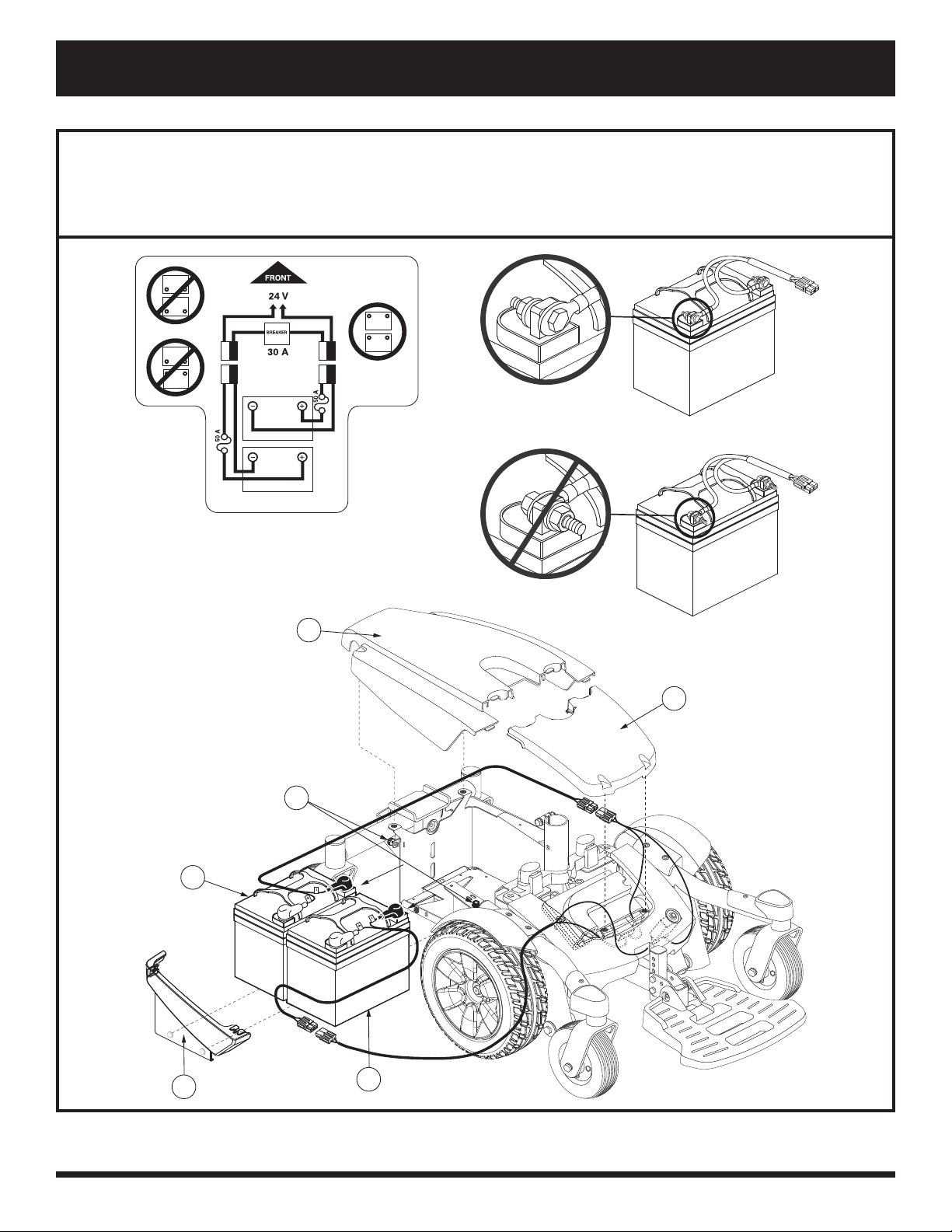

Figure 24. Battery Installation (Seat Removed for Clarity—Select 6 Shown)
34 www.pridemobility.com Jazzy Select Series
Page 35
VII. CARE AND MAINTENANCE
When to See Your Authorized Pride Provider for Service
The following symptoms could indicate a serious problem with your power chair. If necessary, contact your
authorized Pride Provider. When calling, have the model number, serial number, nature of the problem, and the
error code if available.
Motor noise
Frayed harnesses
Cracked or broken connectors
Uneven wear on any of the tires
Jerky motion
Pulling to one side
Bent or broken wheel assemblies
Does not power up
Powers up, but does not move
Loose seat or seating components
Corrective Maintenance
If the battery condition meter does not light up when you turn on the power:
Check the harness connections. Make sure they are tight.
Check the circuit breaker. Reset it if necessary.
Check the battery connections.
If the above conditions prove normal, you can load test the batteries with a battery load tester. These testers are
available at automotive parts stores. Disconnect both batteries before load testing and follow the directions that
come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair
still does not power up, contact your authorized Pride Provider.
Jazzy Select Series www.pridemobility.com 35
Page 36
NOTES
36 www.pridemobility.com Jazzy Select Series
Page 37
NOTES
Jazzy Select Series www.pridemobility.com 37
Page 38
NOTES
38 www.pridemobility.com Jazzy Select Series
Page 39
Page 40
USA
182 Susquehanna Avenue
Exeter, PA 18643-2694
Canada
5096 South Service Road
Beamsville, Ontario L0R 1B3
Australia
20-24 Apollo Drive
Hallam, Victoria 3803
www.pridemobility.com.au
B.V.
(Authorised EU Representative)
De Zwaan 3
1601 MS Enkhuizen
The Netherlands
www.pride-mobility.nl
Italy
Via del Progresso-ang. Via del Lavoro
Loc. Prato della Corte
00065 Fiano Romano (RM)
www.pride-italia.it
New Zealand
38 Lansford Crescent
Avondale
Auckland, New Zealand 1007
www.pridemobility.co.nz
UK
32 Wedgwood Road
Bicester, Oxfordshire OX26 4UL
www.pride-mobility.co.uk
France
26 rue Monseigneur Ancel
69 800 Saint-Priest
www.pridemobility.fr
Spain
Calle Velazquez 80 6D
28001 Madrid
www.pridemobility.com
Product Serial #
UDI Label (if applicable)
Loading...
