Pride Jazzy 614, Jazzy 614 HD, Jazzy 614 2S-SS, Jazzy 614 2S-C, Jazzy 614HD 2HD-SS Specifications
...Page 1

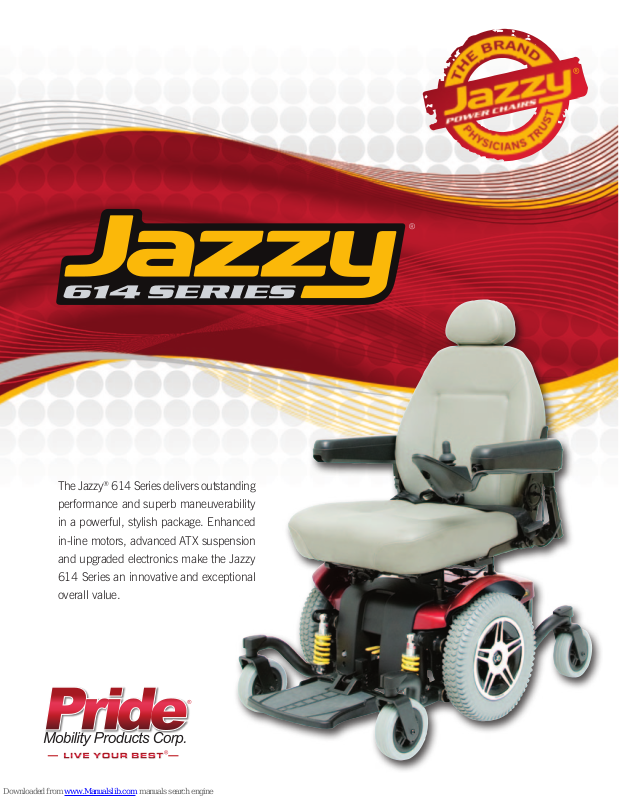

The Jazzy® 614 Series delivers outstanding
performance and superb maneuverability
in a powerful, stylish package. Enhanced
in-line motors, advanced ATX suspension
and upgraded electronics make the Jazzy
614 Series an innovative and exceptional
overall value.
Page 2
SPECIFICATIONS
MODELS
Weight capacity
Maximum speed
Ground clearance
Turning radius
Overall length
Overall width
Drive wheels
Front casters
Rear casters
Suspension
Drivetrain
Braking system
Standard electronics
Specialty controls
Battery charger
Per-charge range
Battery requirements
Battery size
Battery weight
Base weight
Standard seat weight
300 lbs. (614 HD: 450 lbs.)
Up to 4.25 mph
2.25”
20”
35.5” without front riggings
25.125”
14”
6” solid
6” solid
Active-Trac® ATX Suspension
Two-motor, in-line, Mid-Wheel 6
®
Intelligent braking
(electronic, regenerative disc brakes)
50 amp, controller
N/A
Off-board, 5 amp (standard)
Up to 16 miles (614 HD: up to 11 miles)
(2) 12 volt, deep cycle
NF-22
38 lbs. each
121.5 lbs.
37 lbs. (medium-back)
42.5 lbs. (high-back on 614HD)
Jazzy 614 2S-SS
Jazzy 614 2S-C
Jazzy 614HD 2HD-SS
Jazzy 614HD 2HD-C
(Code: K0822)
(Code: K0823)
(Code: K0824)
(Code: K0825)
FEATURES
§ New dual enhanced in-line motors for greater
efficiency, torque, range and performance
§ 450 lbs. weight capacity with HD model
§ 6” casters on front & rear for maximum stability
§ Active-Trac® ATX Suspension for enhanced
performance over more varied terrain
§ Easy rear access to batteries
§ Seating up to 24” W x 24” D with HD model
§ Toolless shroud removal
§ Easy serviceability
§ Depth-adjustable foot platform
OPTIONS
§ Solid seat pan
§ Cup holder
§ Swing-away joystick
§ Swing-away footrests
§ Oxygen tank holder
§ Cane/crutch holder
§ Walker holder
§ Synergy® Seat
§ Elevating leg rests
RECOMMENDED LIFTS
TM
Max. seat dimensions
Warranty
22” x 22” (614 HD: 24” x 24”)
5-year limited warranty on frame;
13-month limited warranty on electronics;
13-month limited warranty on drive motors
The information contained herein is correct at the time of publication; we reserve the
right to alter specifications without prior notice. Speed and range vary with user weight,
terrain type, battery charge, battery condition and tire pressure. Due to manufacturing
tolerances and continual product improvement, length, width, turning radius and
ground clearance can be subject to variance of + or – 3 %. Special order seats or
non- standard dimensions will not be fold-flat and depth-adjustable.
JZ614- 5-3-11
(US) 800-800-8586
§ Backpacker® AVP
§ Backpacker® MV
§ Backpacker® Plus
§ Outlander
§ Silver Boom 300
COLOR CHOICES
Jazzy Red
.
(Canada) 888-570-1113
Jazzy Blue
.
www.pridemobility.com
