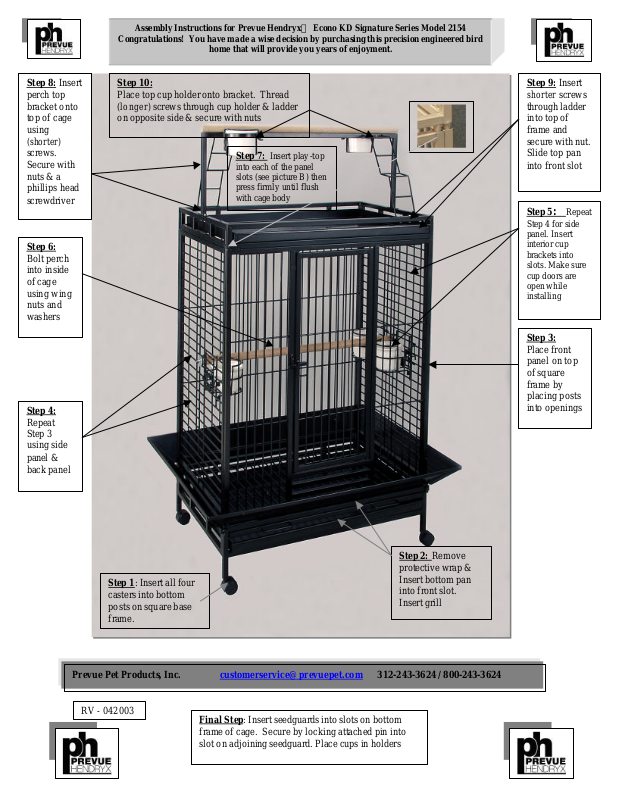

Assembly Instructions for Prevue Hendryx
Econo KD Signature Series Model 2154
Congratulations! You have made a wise decision by purchasing this precision engineered bird
home that will provide you years of enjoyment.
into openings
:
Repeat
brackets into
washers
secure with nut.
RV - 042003
Insert
Step 8:
perch top
bracket onto
top of cage
using
(shorter)
screws.
Secure with
nuts & a
phillips head
screwdriver
Step 6:
Bolt perch
into inside
of cage
using wing
nuts and
Step 4:
Repeat
Step 3
using side
panel &
back panel
Step 10:
Place top cup holder onto bracket. Thread
(longer) screws through cup holder & ladder
on opposite side & secure with nuts
Step 7: Insert play-top
into each of the panel
slots (see picture B) then
press firmly until flush
with cage body
Step 9: Insert
shorter screws
through ladder
into top of
frame and
Slide top pan
into front slot
Step 5
Step 4 for side
panel. Insert
interior cup
slots. Make sure
cup doors are
open while
installing
Step 3:
Place front
panel on top
of square
frame by
placing posts
Step 1: Insert all four
casters into bottom
posts on square base
frame.
Prevue Pet Products, Inc. [email protected] 312-243-3624 / 800-243-3624
Final Step : Insert seedguards into slots on bottom
frame of cage. Secure by locking attached pin into
slot on adjoini ng seedguard. Place cups in holders
Step 2: Remove
protective wrap &
Insert bottom pan
into front slot.
Insert grill
