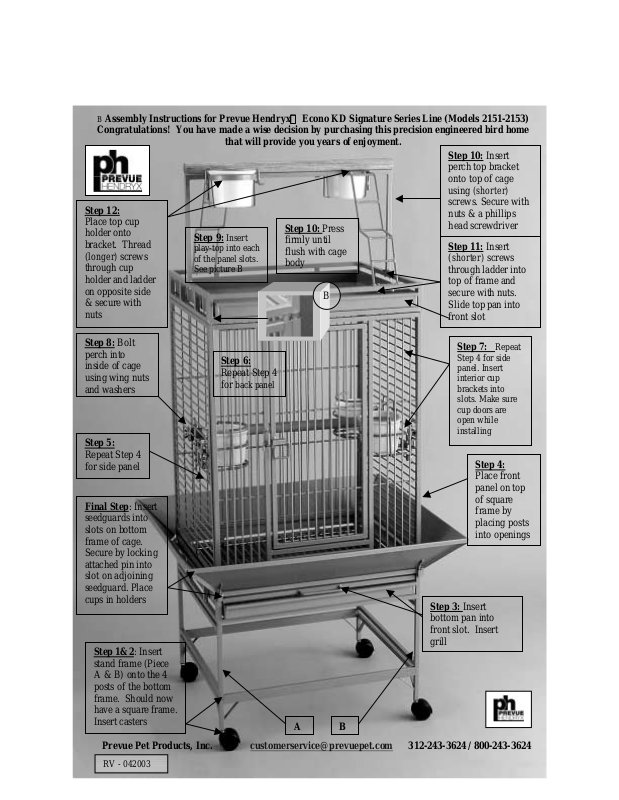

B Assembly Instructions for Prevue Hendryx
Econo KD Signature Series Line (Models 2151-2153)
Congratulations! Y ou have made a wise decision by purchasing this preci sion engi nee re d bir d home
that will provide you years of enjoyment.
Step 10: Insert
perch top bracket
onto top of cage
using (shorter)
screws. Secure with
Step 12:
Place top cup
holder onto
bracket. Thread
(longer) screws
through cup
holder and ladder
on opposite side
& secure wi th
nuts
Step 8: Bolt
perch into
inside of cage
using wing nuts
and washers
tep 9: Insert
play-top into each
of th e panel s lots.
See picture B
Step 6:
Repeat Step 4
back panel
for
tep 10: Press
firmly until
flush with cage
ody
B
nuts & a phi llips
head screwdriver
Step 11: Insert
(shorter) screws
through ladder into
top of fr ame and
sec ure with nuts.
Slide top pan into
front sl ot
Step 7: Repeat
Step 4 for side
panel. Insert
interior cup
brackets into
slots. Make sure
cup doors ar e
open while
installing
Step 5:
Repeat Step 4
for side panel
Step 4:
Place front
panel on top
Final Step: Insert
seedguards into
slots on bottom
frame of cage.
of square
frame by
placing posts
into openings
Secure b y lo ck ing
attached pin into
slot on ad j oining
seedguard. Place
cups in holders
tep 3: Insert
ottom pan into
front sl ot. In s ert
grill
Step 1&2: Insert
stan d frame (Pi ece
A & B) ont o the 4
posts of the bottom
frame. Should now
have a square frame.
Insert casters
Prevue Pet Products, I nc. [email protected]
RV - 042003
312
43-3624 / 800-243-3624
