Operator Display Description
There are two “specialty” displays specifically designed for use with the Xtreme PreView® sensor system. A Front/Rear display (XPV4103) and a Left/Right display (XPV4104), and an OC (Open Cab) variant.
Front/Rear - XPV4103 / XPV4103 OC
The Front/Rear operator display provides the vehicle operator with a visual indication of a detected object for a multiple sensor system. The Front/Rear display provides LEDs to indicate detection at the front or rear of the vehicle (shown below). A Status LED provides a visual indication of system health – green indicates powered and operating, while red indicates a malfunction.
The front/rear display unit also contains a buzzer which provides an audible alert that will increase in rate as an object becomes closer, providing the operator with another cue that an object is being detected. The Volume Control/Acknowledge Switch allows the vehicle operator to adjust the buzzer volume.*

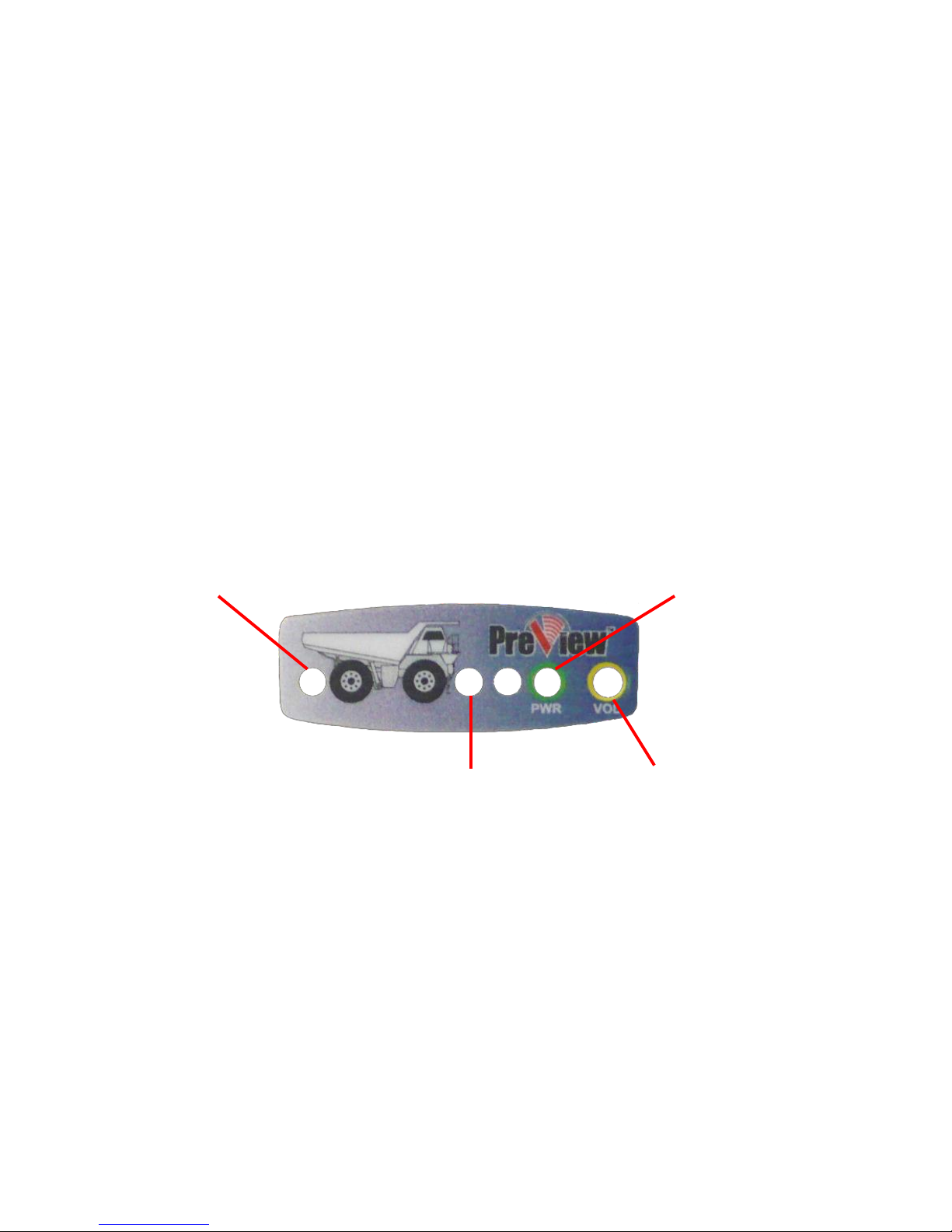

Rear Indication
Front indication
Status LED
Volume Control/
Ack switch
*XPV4103 OC does not include the Volume Control / Acknowledge Switch.
Tel: +386 3 4900 800
http://radar-electronics.com
3700047B
Copyright 2016
Page 2
Left/Right - XPV4104
The Left/Right operator display provides the vehicle operator with both visual and audible indications of a detected object for a multiple sensor system. The Left/Right display provides a single LED to indicate detection for both directions.
Like the Standard ranging display, the left/right display also contains a buzzer to provide an audible alert that will increase in rate as an object becomes closer, providing the operator with another cue that an object is being detected. This display also includes the Status LED and the volume/acknowledge switch.
Left Indication
Status LED
Volume Control/
Ack Switch
Right Indication
Display Mounting Instructions
The display unit should be mounted where the vehicle operator can easily view it while backing. The PreView® display unit comes equipped with a mounting bracket and hardware. If desired, the display unit can be mounted to the display bracket with the supplied hardware. This bracket can then be mounted in the vehicle cab as desired.
The PreView® system is a blind spot collision warning system designed to supplement other safety practices and/or devices. The machine operator
is always the first line of defense when safely operating a vehicle.
Tel: +386 3 4900 800
http://radar-electronics.com
3700047B
Copyright 2016
Page 3
Operator Display Error Indications
Front/Rear and Left/Right Displays
Due to the limited number of LED’s available, either the front or rear LED will flash to indicate a problem has occurred with a front or rear sensor, respectively. For Left/Right displays, either the left or right LED will flash to indicate a problem has occurred with a left or right sensor, respectively.
The error code is indicated by the number of quick LED flashes followed by a short off time. See Table 1 below for detailed information:
Flashing Sequence
Reason
1 on, 1 off
Built in Self Test Error – Contact Factory
2 on, 1 off
Built in Self Test Error – Contact Factory
3 on, 1 off
No communication with sensor(s)
4 on, 1 off
Missing sensor (multiple sensors only)
Table 1. F/R and L/R Display Error Codes
Tel: +386 3 4900 800
http://radar-electronics.com
3700047B
Copyright 2016
Page 4
Troubleshooting
Display Status LED is not illuminated.
 Verify that DC power (9-33V) is applied to the sensor.  Verify that the cable(s) between the sensor and display are
connected.
Display Status LED is RED.
 Determine error code from Table 1.  Check connection between display and sensor(s).
 Use the PVST4000 Service Tool to further diagnose system
Detection LED(s) are always illuminated when sensor is mounted.
 Verify the sensor is pointing outward from the vehicle in an open
area with no obstructions. This may require removing the mounting screws and lifting the sensor out away from the vehicle. If the detection LED(s) are not active when moved away from the vehicle, but are active when mounted, then the sensors mounting position will have to be moved.
For questions, call +1.844.787.2327 toll free in the USA. Call +1.208.323.1000 or send a fax request to +1.208.323.1034 for outside the USA, or submit an online request at www.preco.com/contact-us/
A safety specialist will respond within 24 hours.
Tel: +386 3 4900 800
http://radar-electronics.com
3700047B
Copyright 2016
Page 5
Specifications
DISPLAY SPECIFICATIONS Model:
XPV4103, XPV4103 OC, and XPV4104
Housing Material: Polycarbonate/ABS alloy
Dimensions:
1.00”H x 2.25"W x 2.00"D (2.5cm x 5.7cm x 5.1cm)
Weight:
0.25 lb. (0.11 kg)
Mounting:
User dependent
ELECTRICAL SPECIFICATIONS Power supplied by sensor
OPERATING CHARACTERISTICS
Warning Ranges: 1 zone
COMMUNICATION
Physical Layer: CAN 2.0B, 250 KB/s Protocol Layer: SAE J1939 Extended
Data Update Rate: 70 ms
MATING END VIEW
PRODUCT MANUFACTURED IN THE USA
8 7 1

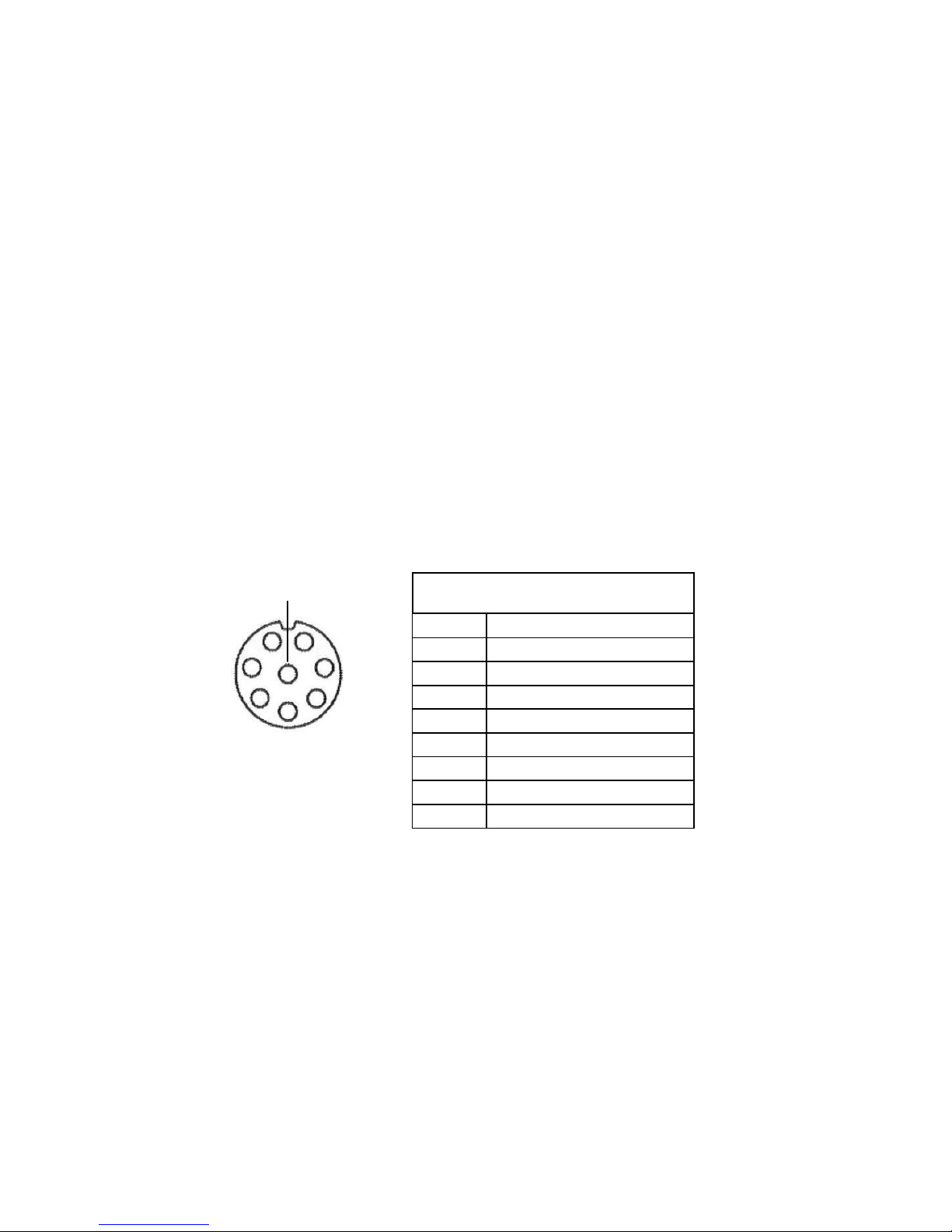

CONNECTOR PIN OUT
PIN
SIGNAL NAME
1
CAN HIGH
2
CAN LOW
3
-
4 - 5
POWER
6
GROUND
7
-
8
-
Tel: +386 3 4900 800
http://radar-electronics.com
3700047B
Copyright 2016
Page 6
Warranty Information
MANUFACTURER STANDARD LIMITED WARRANTY AND LIMITATION OF LIABILITY
Manufacturer warrants that on the Date of Purchase this Product will conform to Manufacturer's published specifications for the product, which are available from Manufacturer on request, and Manufacturer warrants that the product is free from defects in materials and workmanship.
This Limited Warranty extends for sixty (60) months from the date of shipment. Manufacturer
will, at its option, repair or replace any product found by Manufacturer to be defective and subject to this Limited Warranty.
This Limited Warranty does not apply to parts or products that are misused; abused; modified; damaged by accident, fire or other hazard; improperly installed or operated; or not maintained in accordance with the maintenance procedures set forth in Manufacturer's Installation and Operating Instructions.
To obtain warranty service, you must ship the product(s) to the specified Manufacturer location within thirty (30) days from expiration of the warranty period. To obtain warranty service you must call PRECO Electronics
®
Customer Service at +1.866.977.7236 or +1.208.323.1000, or fax your request to +1.208.323.1034. Customer Service will issue warranty authorization and further instructions. You must prepay shipping charges and use the original shipping container or equivalent.
EXCLUSION OF OTHER WARRANTIES: MANUFACTURER MAKES NO OTHER WARRANTIES, EXPRESSED, IMPLIED OR STATUTORY. THE IMPLIED WARRANTIES FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXCLUDED AND SHALL NOT APPLY TO THE PRODUCT. BUYER'S SOLE AND EXCLUSIVE REMEDY IN CONTRACT, TORT OR UNDER ANY OTHER THEORY AGAINST MANUFACTURER RESPECTING THE PRODUCT AND ITS USE SHALL BE THE REPLACEMENT OR REPAIR OF THE PRODUCT AS DESCRIBED ABOVE. LIMITATION OF LIABILITY: IN THE EVENT OF LIABILITY FOR DAMAGES ARISING OUT OF THIS LIMITED WARRANTY OR ANY OTHER CLAIM RELATED TO MANUFACTURER'S PRODUCTS, MANUFACTURER'S LIABILITY FOR DAMAGES SHALL BE LIMITED TO THE AMOUNT PAID FOR THE PRODUCT AT THE TIME OF ORIGINAL PURCHASE. IN NO EVENT SHALL MANUFACTURER BE LIABLE FOR LOST PROFITS, THE COST OF SUBSTITUTE EQUIPMENT OR LABOR, PROPERTY DAMAGE, OR OTHER SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES BASED UPON ANY CLAIM FOR BREACH OF CONTRACT, NEGLIGENCE OR OTHER CLAIM, EVEN IF MANUFACTURER OR A MANUFACTURER'S REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Manufacturer shall have no further obligation or liability with respect to the product or its sale, operation and use, and Manufacturer neither assumes nor authorizes the assumption of any other obligation or liability in connection with such product.
This Limited Warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
Any oral statements or representations about the product which may have been made by salesmen or Manufacturer representatives do not constitute warranties. This Limited Warranty may not be amended, modified or enlarged, except by a written agreement signed by an authorized official of Manufacturer which expressly refers to this Limited Warranty.
