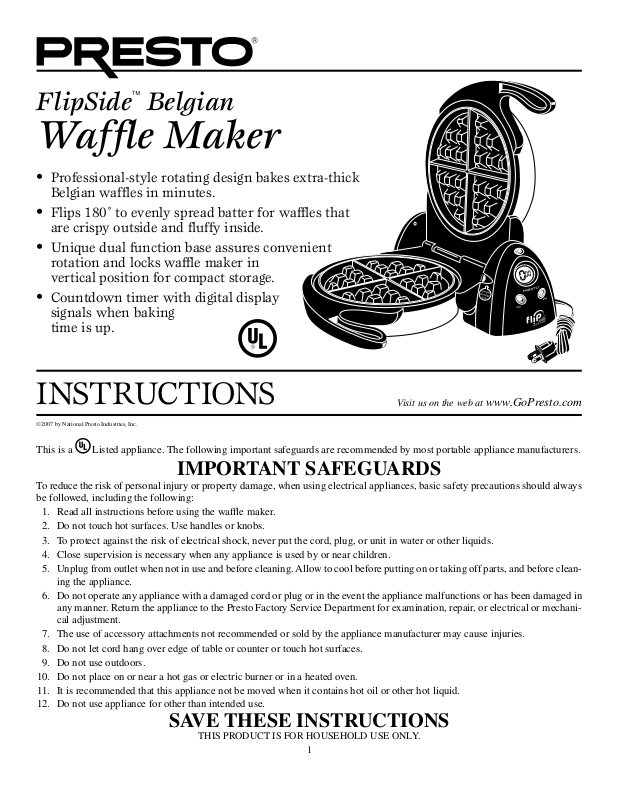

Presto Belgian FlipSide User Manual
FlipSide Belgian
Waffle Maker
•
Professional-style rotating design bakes extra-thick
Belgian waffles in minutes.
•
Flips 180˚ to evenly spread batter for waffles that
are crispy outside and fluffy inside.
•
Unique dual function base assures convenient
rotation and locks waffle maker in
vertical position for compact storage.
•
Countdown timer with digital display
signals when baking
time is up.
INSTRUCTIONS
2007 by National Presto Industries, Inc.
This is a Listed appliance. The following important safeguards are recommended by most portable appliance manufacturers.
Visit us on the web at www.GoPresto.com
IMPORTANT SAFEGUARDS
To reduce the risk of personal injury or property damage, when using electrical appliances, basic safety precautions should always
be followed, including the following:
1. Read all instructions before using the waffle maker.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against the risk of electrical shock, never put the cord, plug, or unit in water or other liquids.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in
any manner. Return the appliance to the Presto Factory Service Department for examination, repair, or electrical or mechanical adjustment.
7. The use of accessory attachments not recommended or sold by the appliance manufacturer may cause injuries.
8. Do not let cord hang over edge of table or counter or touch hot surfaces.
9. Do not use outdoors.
10. Do not place on or near a hot gas or electric burner or in a heated oven.
11. It is recommended that this appliance not be moved when it contains hot oil or other hot liquid.
12. Do not use appliance for other than intended use.
SAVE THESE INSTRUCTIONS
THIS PRODUCT IS FOR HOUSEHOLD USE ONLY.
1
AAA
AAA Battery
Important Cord Information
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to
fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact
a qualified electrician. Do not attempt to modify the plug in any way.
A short power supply cord (or cord set) is provided to reduce the risk resulting from becoming entangled in or tripping over a
longer cord. Extension cords may be used if care is properly exercised in their use.
If an extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating
of the appliance. The extension cord should be arranged so that it will not drape over the countertop or tabletop where it can be
pulled on by children or tripped over.
Getting Acquainted
Before using for the first time, become
familiar with the waffle maker features
(Fig. A). Wipe the waffle grids with a
damp cloth before initial use.
Install Timer Battery
Before Using
The timer on your waffle maker operates
with one AAA battery which is included
with the product. It can be found in the
foam filler. Take the battery out of the
filler and remove the protective sleeve that
is on the battery. Then install the battery in
the waffle maker before the first use.
To install the battery: Remove the battery compartment cover which is located
on the bottom of the unit below the waffle
maker timer display. Push the tab inward
and lift the cover off (Fig. A1). Insert the AAA battery into the compartment matching the + and – symbols with the corresponding
symbols on the housing (Fig. A2). Replace the cover over the battery and press it towards the bottom of the unit to lock it in place.
To make sure you have installed the battery correctly, check the timer display to see that 0
Battery
compartment
cover
Fig. A2
Fig. A1
Tab
Waffle grids
Red locking lever
Battery compartment
00
Fig. A
Hinged base
Signal light
Timer display
Seconds
button
Minutes
button
is displayed.
How To Use
1. Place the unit on the countertop so the timer display is facing towards you and the cover is closed
(Fig. B). Plug the cord into an outlet and preheat the waffle maker in the closed position. The
signal light will glow (Fig. A). When the unit has reached the correct temperature, the light will
go out indicating the unit is ready for use. Preheat time is short – approximately 3 to 5 minutes.
During cooking, the light will go on and off indicating temperature is being maintained.
Note: When using the waffle maker for the first time, a slight odor or smoking may occur as
manufacturing residue burns off. This is normal during initial use.
2. While unit is preheating, prepare waffle batter.
3. Before the first use after the unit has preheated, use a brush or paper towel and apply a light coating
of cooking oil to the grids. The oil seasons the grids and thereafter you typically will not need to apply oil every time, unless you are making a dessert waffle. If you find it difficult to remove a waffle,
be sure to apply a light coating of cooking oil during your next use.
4. Pour approximately ¾ to 1 cup waffle batter into the center of the bottom waffle grid (Fig. C). The
amount of waffle batter needed may vary with the recipe or brand of batter mix used. If using the
recipes in this booklet (pages 6 and 7), refer to them for the recommended amount of batter.
5. Set the timer by pressing the minutes and seconds buttons (Fig. A) to the desired time. See the recipes
on pages 6 and 7 for recommended cooking times. Most waffle recipes will take about 4 minutes.
Note: The timer has a delay start; it will automatically begin counting down approximately 5 seconds after it is set.
To reset the timer, simply hold the minutes or seconds button for a couple of seconds and the timer will reset to zero.
2
Fig. B
Fig. C
