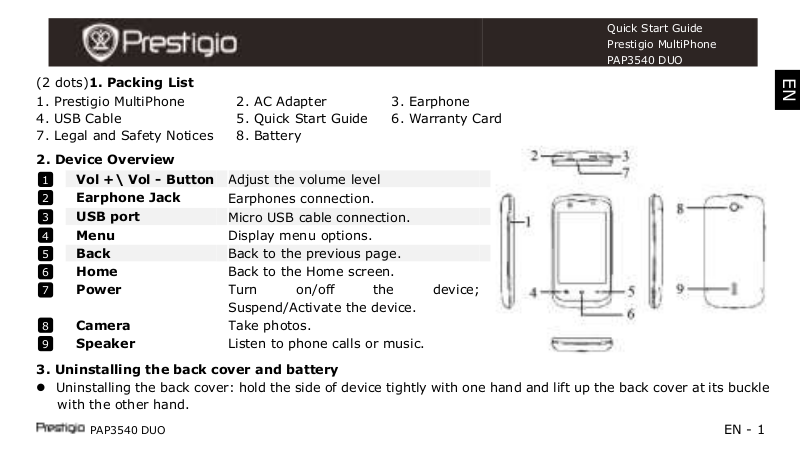

Page 1
Quick Start Guide
Prestigio MultiPhone
PAP3540 DUO
EN
(2 dots)1. Packing List
1. Prestigio MultiPhone
2. AC Adapter
3. Earphone
4. USB Cable
5. Quick Start Guide
6. Warranty Card
7. Legal and Safety Notices
8. Battery
Vol +\ Vol - Button
Adjust the volume level
Earphone Jack
Earphones connection.
USB port
Micro USB cable connection.
Menu
Display menu options.
Back
Back to the previous page.
Home
Back to the Home screen.
Power
Turn on/off the device;
Suspend/Activate the device.
Camera
Take photos.
Speaker
Listen to phone calls or music.
9
8
7 6 5 4 3 2 1
2. Device Overview
3. Uninstalling the back cover and battery
Uninstalling the back cover: hold the side of device tightly with one hand and lift up the back cover at its buckle
with the other hand.
PAP3540 DUO EN - 1
Page 2
Quick Start Guide
Prestigio MultiPhone
PAP3540 DUO
EN
Insert SIM
Insert SD Card
Taking out the battery: hold the side of device tightly with one hand and pull up the battery handle with the other
hand.
4. Installing the SIM cards and Micro SD card
a. Insert SIM cards
The slot on the below is card 2 slot for GSM card, the upper is card 1 slot for 3G WCDMA card (compatible with
2G card).
Please make sure the gold contact area on the SIM is facing downwards.
EN - 2 PAP3540 DUO
Page 3
Quick Start Guide
Prestigio MultiPhone
PAP3540 DUO
EN
b. Insert Micro SD card
Technical Specifications
To insert a Micro SD card, place the card connector towards the front side of the device and the printing side of
the card towards the rear side of the device.
To remove the micro SD card, pull the card out of the slot.
5. Charging
Insert one end of USB cable into the USB port on the
device and plug the power adapter to the electrical socket.
Normally it takes approximately 3.5 hours to fully charge
the device. Operating the device while charging with the
AC adapter may extend the charging time.
Notice: If you don’t use your phone for a long time, it will gradually discharge. Please charge it first before your
next use or charge the phone every 3 months even you don’t use it.
6. Power on/Sleep Mode/Power off
Press and hold the Power Button for a few seconds. It will automatically enter the Home screen after start-up
screen.
Press the Power Button once to enter sleep mode and press it again to awake the device.
Press and hold the Power Button, and then tap on Power off/Airplane mode to power off the device or to
enter sleep mode.
PAP3540 DUO EN - 3
Page 4
Quick Start Guide
Prestigio MultiPhone
PAP3540 DUO
EN
Processor
High Performance ARM Cortex A9 at 1 GHz
Memory
512MB RAM + 4GB eMMC, Micro SD slot supports up to 32GB
OS
Android 4.1 (Jelly Bean)
Display
3.5“ HVGA, Capacitive multi-touch (2 dots)
Resolution
320*480 pixels
Band
WCDMA + GSM (UMTS:900/2100MHz; GSM:850/900/1800/1900MHz)
Interfaces
Communications
Battery
USB 2.0, Micro SD (micro SDHC compatible)
WiFi (802.11 b/g/n), 3G
2000 mAh Li-ion battery
Dimensions
About 118×62×13mm (L x W x H)
Weight
79g(without battery)
Disclaimer
As the Prestigio products are constantly updated and improved, your device’s software and hardware may havea
slightly different appearance or modified functionality than presented in this Quick Start Guide.
Prestigio hereby states that this Smartphone complies to basic requirements and another relevant
regulations given by the EU directive1999/5/ES. Full version of the declaration of conformity is
available on http://www.prestigio.com/compliance.
EN - 4 PAP3540 DUO
