Prestigio P400MW, P460MW User Manual

Prestigio P400MW / P460MW

Colour Television

Owner’s Manual

ENG

Please read this manual carefully before operating your set. Retain it for future reference.

See the label attached on the back cover and quote this information to your dealer when you require service.

1PRESTIGIO P400MW / P460MW

Contents

Installation ........................................................ 3

Remote control handset ..................................... 4

ENG

Controls ................................................................ 4

Battery installation ................................................ 5

Controls of Front panel ....................................... 6

Connections of Back panel ................................. 7

Connection to External equipment ...................... 8

1 Connect to Aerial socket ..................................... 8

2 Watching VCR .................................................... 8

3 Watching Cable TV ............................................. 9

4 Watching external AV source ............................. 9

5 Watching DVD ................................................. 10

6 Connecting HDMI (DTV) ................................... 10

7 Connecting PC (DTV) ........................................ 11

8 Connecting Digital Audio ................................. 11

Basic operation ................................................ 12

1 On and Off ....................................................... 12

2 Programme selection ....................................... 12

3 Volume adjustment .......................................... 12

4 On screen language selection ........................... 12

On screen menus ............................................. 13

Menu selection ................................................... 13

Setting up TV stations ...................................... 14

Auto programme tuning .................................... 14

Manual programme tuning ................................. 15

Programme edit .................................................. 17

Calling the programme table ............................... 18

Sound adjustment ........................................... 22

SSM (Sound Status Memory) ............................... 2 2

Balance ............................................................... 23

AVL (Auto Volume Leveler) .................................. 23

SRS ..................................................................... 24

TV Speaker .......................................................... 24

Stereo/Dual/NICAM reception .............................. 25

Time Menu ...................................................... 26

Clock ................................................................... 26

On/Off Time ......................................................... 26

Auto sleep ........................................................... 27

Sleep timer ..........................................................2 7

Setup Menu ..................................................... 28

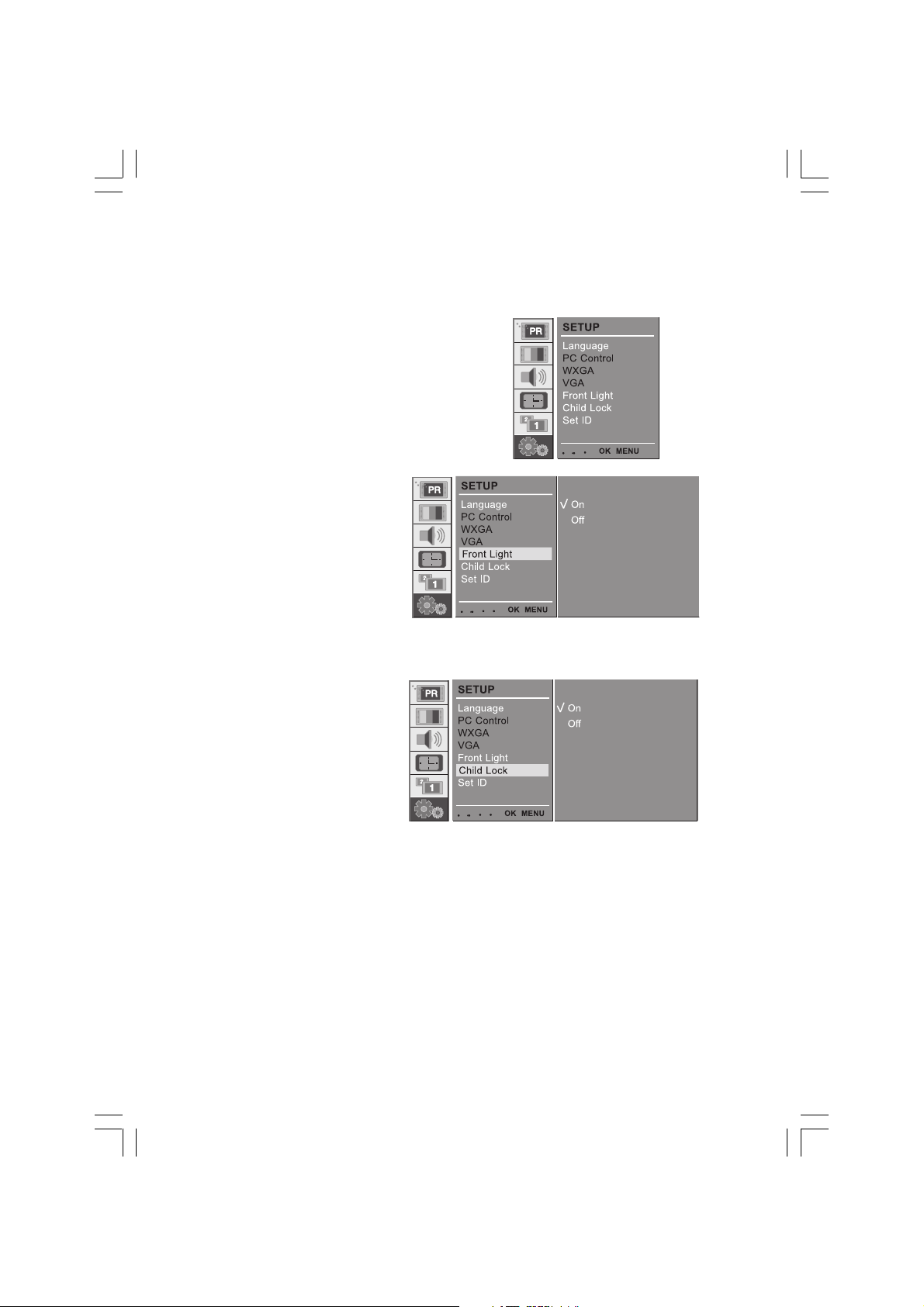

Front Light ......................................................... 28

Child Lock ........................................................... 28

Connection of PC .............................................. 29

PC Setup ............................................................. 29

WXGA (or VGA (Only RGB mode)) ........................ 29

PIP (Picture-in-Picture) Feature ......................... 30

Watching PIP ......................................................30

PIP Audio Output ................................................30

Moving the PIP ................................................... 30

Swapping the PIP ............................................... 31

Selecting a Input Signal Source for the PIP ......... 32

Programme selection for sub picture .................. 3 2

Programme scan .................................................3 2

Teletext (option) .............................................. 33

External Control Device Setup ........................... 35

Picture adjustment ........................................... 19

CSM (Colour Status Memory) ............................... 19

PSM (Picture Status Memory) .............................. 2 0

Manual Picture Control ....................................... 2 0

Picture format .................................................... 21

2 PRESTIGIO P400MW / P460MW

Displayable Monitor ......................................... 43

Specification ....................................................... 43

Troubleshooting .............................................. 44

Check list .............................................................4 4

Installation

Power

This set operates on an AC mains supply, the voltage is as indicated on the label on the back cover. Never apply DC power
to the set. In the event of thunderstorms or power-cuts, please pull out the aerial and mains plugs.

Warning

To prevent fire or shock hazard, do not expose the set to rain or moisture. Do not rub or strike the Active Matrix LCD with
anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently.

Service

Never remove the back cover of the set as this can expose you to very high voltage and other hazards. If the set does not
operate properly, unplug it and call your dealer.

Aerial

Connect the aerial cable to the socket marked +75 .on the back cover. For the best reception an outdoor aerial should be
used.

Location

Position your set so that no bright light or sunlight falls directly onto the screen. Care should be taken not to expose the
set to any unnecessary vibration, moisture, dust or heat. Also ensure that the set is placed in a posi-tion to allow a free flow
of air. Do not cover the ventilation openings on the back cover.

Cleaning

Unplug the set before cleaning the face of the LCD Screen. Dust the set by wiping the screen and the cabinet with a soft,
clean cloth. If the screen requires additional cleaning, use a clean, damp cloth. Do not use liquid cleaners or aerosol cleaners.

ENG

To preserve the Environment,
do not rubbish.

3PRESTIGIO P400MW / P460MW

Remote control handset

Controls

Before you use the remote control handset, please install the batteries.

ENG

-All the functions can be controlled with the remote control handset.

-Some functions can also be adjusted with the buttons on the front panel of the set.

switches the set On from standby or

POWER

Off to standby.

NUMBER BUTTONS

PSM (Picture Status Memory)

recalls your preferred picture setting.

LIST

displays the programme table.

MENU

selects a menu.

Q.VIEW

returns to the previously viewed

programme.

TELETEXT BUTTONS (option)

These buttons are used for teletext.

For further details, see the ‘Teletext’

section.

PIP

Switches the sub picture On or Off.

A.SWAP

PIP mode - main and sub picture

audio select.

PIP PR +/-

Selects a program for the sub

picture.

SWAP

Alternates between main and sub

picture.

PIP INPUT

Selects the input mode for the sub

picture.

PIP POSITION

relocates the sub picture in

clockwise direction.

STILL

freezes motion of the sub picture.

SCAN

switches on the programme scan

mode through 4/16 sub pictures.

MUTE
switches the sound On or Off.

SSM (Sound Status Memory)
recalls your preferred sound
setting.
ARC
select your desired picture format.
I/II
selects the language during dual
languagebroadcast.selects the
sound output.
INPUT
Select TV, AV1, AV2, AV3, AV4, S­VIDEO,COMPONENT1, COMPONENT2,
PC-RGB,HDMI1, HDMI2 mode.
switches the set on from standby.

EXIT
exits from each mode.

SLEEP
sets the sleep timer.

/\ / \/ (Programme Up/Down)
selects a programme or a menu
item. switches the set on from
standby.
< / > (Volume Up/Down)
adjusts the volume. adjusts menu
settings.
OK
accepts your selection or displays
the current mode.

- COLOURED BUTTONS
These buttons are used for teletext
(only TELETEXT models) or
programme edit.

4 PRESTIGIO P400MW / P460MW

Battery installation

-Your remote control handset is powered by two AAA type batteries.

1 To insert batteries, turn the remote control handset over and remove the battery cover.
2 Put the two batteries into the compartment observing battery polarity.
3 Replace the cover.

To avoid damage from possible bat-tery leakage, remove the batteries if you do not plan to use
the remote con-trol handset for an extended period time. Do not use batteries of differing age or
type. Always discard of batter-ies safely.

ENG

5PRESTIGIO P400MW / P460MW

Controls of Front panel

-Shown is a simplified representation of the set.

-Here shown may be somewhat different from your set.

-This manual explains the features available on the P400MW / P460MW series.

ENG

1. MAIN POWER

switches the set On or Off.

2. /\ / \/ (Programme Up/Down)

selects a programme or a menu item.
switches the set On from standby.

3. < / > (Volume Down/Up)

adjusts the volume.
adjusts menu settings.

4. MENU

selects a menu.

6 PRESTIGIO P400MW / P460MW

5. INPUT SELECT

selects TV, AV1, AV2, AV3, AV4, S-VIDEO, COMPONENT1, COM­PONENT2, PC-RGB, HDMI1, HDMI2 mode.

6. POWER

switches the set On from standby or On to standby.

7. POWER/STANDBY INDICATOR

illuminates red in standby mode.
illuminates green when the set is switched On.

8. REMOTE CONTROL SENSOR

9. Front Light LED

Connections of Back panel

AUDIO

R L

Y P

b

P

r

R

L

R

L

A

V4

AUDIO INPUT

COMPONENT2 INPUT

HDMI1 INPUT

HDMI2 INPUT

AUDIO INPUT

RGB INPUT

(CONTROL/SERVICE)

RS-232C INPUT

R

AUDIO INPUT

AUDIO

1

1. HDMI1INPUT / HDMI2 INPUT / AUDIO INPUT
/ RGB INPUT SOCKETS

Connect the set output socket of the PERSONAL COMPUTER
to this socket.

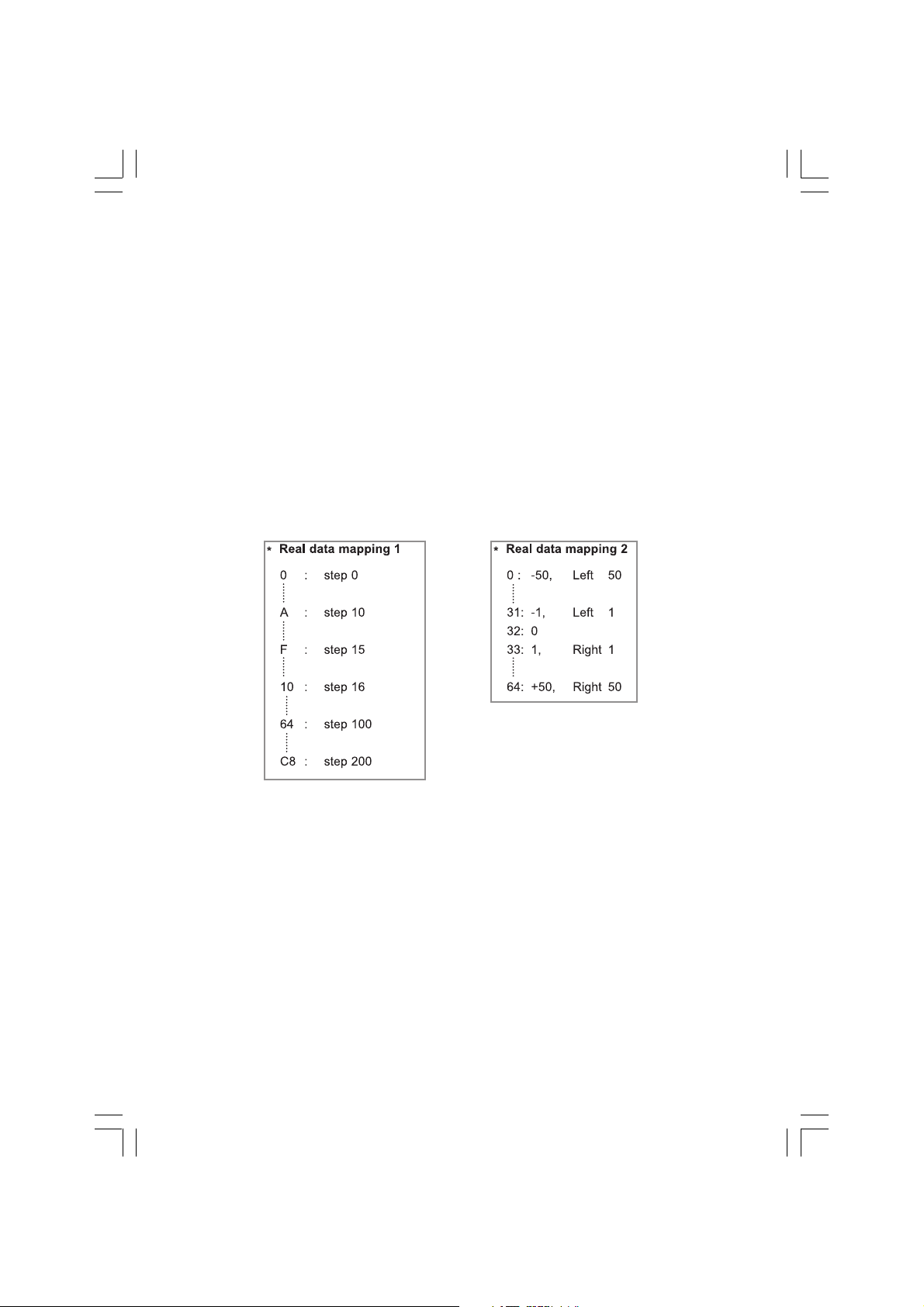

2. RS-232C INPUT(CONTROL/SERVICE) PORT

Connect to the RS-232C port on a PC.

3. AUDIO INPUT / COMPONENT1 INPUT (480i /
480p / 720p / 1080i / 1080p) SOCKETS

S-VIDEO

VIDEO

L

V4

AUDIO

R

Y Pb Pr

COMPONENT2 INPUT

L

R

AUDIO INPUT

Y

b

r

(480i/480p/720p/1080i/1080p)
COMPONENT1 INPUT

3

ANT. IN

42

AV2 AV3

AV1

5

6. Digital Audio (OPTICAL)

Connect digital audio from various types of equipment.

Note : In standby mode, these ports
will not work.

7. POWER CORD SOCKET

This set operates on an AC power. The voltage is indicated
on the Specifications page. Never attempt to operate the
set on DC power.

8

9

OPTICAL

6 7

ENG

AC INPUT

4. AERIAL SOCKET

5. EURO SCART SOCKET

connect the euro scart socket of the VCR to these sockets.

8. AUDIO / VIDEO INPUT (AV4, S-VIDEO)

Connect video out from an S-VIDEO VCR to the SVIDEO in­put.
Connect the audio/video out sockets of the VCR to AV sock­ets of the set.

9. AUDIO INPUT / COMPONENT2 INPUT (480i /
480p / 720p / 1080i / 1080p) SOCKETS

7PRESTIGIO P400MW / P460MW

Connection to External equipment

-You can connect additional equipment, such as VCRs, camcorders etc. to your set. However please check with your
manufacturers instruction books for specific information. Make sure all connections are made with both your set and
additional appliance unplugged from the mains to avoid damaging your equipment. Here shown may be somewhat

ENG

different from your set.

1 Connect to Aerial socket

Connect the RF out socket of the VCR to the aerial socket on the
back of the set.
Connect the aerial cable to the RF aerial in socket of the VCR.
Store the VCR channel on a desired programme number using the
‘Manual programme tuning’ section.
Select the programme number where the VCR channel is stored.
Press the PLAY button on the VCR.

2 Watching VCR

- If you connect an S-VIDEO VCR to the S-VIDEO input, the
picture quality is improved; compared to connecting a regular
VCR to the Video input.

- To avoid picture noise (interference), leave an adequate
distance between the VCR and set.
Use the INPUT SELECT button on the remote control to select
AV1, AV2, AV3, AV4 or S-VIDEO.
(If connected to S-VIDEO, select the S-VIDEO external input
source.)
Insert a video tape into the VCR and press the PLAY button
on the VCR. (See VCR owner’s manual)

8 PRESTIGIO P400MW / P460MW

3 Watching Cable TV

- After subscribing for a local cable TV station
and installing a converter you can watch cable
TV.

- For further information of cable TV, contact
the local cable TV station.

In using connection 1

Select programme number in programme
switch of cable box.
Match the set programme with selected
programme of cable box.
Select your desired programme with the remote control for cable box.

In using connection 2

Use the INPUT SELECT button on the remote control and select AV1, AV2, AV3, AV4 or S-VIDEO.
Tune to cable service provided channels using the cable box.

4 Watching external AV source

When connecting the set to an external
source, match the colours of AUDIO/VIDEO
input jacks on the set with the output jacks
on the audio/video equipment: Video = yel­low, Audio (Left) = white, Audio (Right) =
red.
Use the INPUT SELECT button on the remote
control to select AV1, AV2, AV3, AV4 or S­VIDEO.
Operate the corresponding external equip­ment. See external equipment operating
guide.

ENG

9PRESTIGIO P400MW / P460MW

5 Watching DVD

How to connect

Connect DVD video inputs to Y, PB, PR of

ENG

COMPONENT (DVD INPUT) and audio inputs
to Audio sockets of AUDIO INPUT.

How to use

Turn on the DVD player, and insert a DVD.

Use INPUT SELECT button on the remote con­trol to select COMPONENT1, COMPONENT2.
Refer to the DVD play-er’s manual for operat­ing instructions.

• COMPONENT Input ports

You can get better picture quality if you con­nect DVD player with COMPONENT input ports as below.

6 Connecting HDMI (DTV)

Connect the signal cable from the monitor
output socket of the PERSONAL COMPUTER
to the HDMI INPUT socket of the set.
Connect the audio cable from the PC to
the AUDIO INPUT sockets of the set.
Press the INPUT SELECT button to select
HDMI1, HDMI2.
Switch on the HDMI, and the HDMI screen
appears on the set.
HDMI-DTV input signal : 480p-60Hz,
576p-50Hz, 720p-50Hz, 720p-60Hz,
1080i-50Hz, 1080i-60Hz, 1080p-50Hz,
1080p-60Hz.
HDMI Interface with HDCP Copy Protection enables alldigital rendering of video without the losses.
This TV SET can receive the High-Definition Multimedia Interface(HDMI) or Input of Digital Visual Interface(DVI).

10 PRESTIGIO P400MW / P460MW

7 Connecting PC (DTV)

Connect the signal cable from the monitor
output socket of the PERSONAL COMPUTER
to the RGB INPUT sock-et of the set.
Connect the audio cable from the PC to the
AUDIO INPUT sockets of the set.
Press the INPUT SELECT button to select PC­RGB.
Switch on the PC, and the PC screen ap­pears on the set.
The set can be operated as the PC monitor.
RGB-DTV input signal : 480p-60Hz, 576p­50Hz, 720p-50Hz, 720p-60Hz, 1080i-50Hz, 1080i-60Hz, 1080p-50Hz, 1080p-60Hz.

8 Connecting Digital Audio

-Send the set’s audio to external audio equipment
(stereo system) via the Digital Audio Output (Opti­cal)
Caution : Do not look into the optical output port.
Looking at the laser beam may damage your vision.

How to connect

Connect one end of an optical cable to the TV Digi­tal Audio (Optical) Output port.
Connect the other end of the optical cable to the
digital audio (optical) input on the audio equip­ment.

ENG

Note : Digital Audio Output works, when it’s inputted HDMI signal to the set.

11PRESTIGIO P400MW / P460MW

Basic operation

1 On and Off

Press the main power button to switch the set on.
If the set is in standby mode, press the POWER, /\ / \/ buttons on the remote control handset to switch it on fully.

ENG

Press the POWER button on the remote control handset.
The set reverts to standby mode.
Press the main power button again to switch the set off.

2 Programme selection

You can select a programme number with the /\ / \/ or NUMBER buttons.

3 Volume adjustment

Press the < / > button to adjust the volume.
If you want to switch the sound off, press the MUTE button. You can cancel it by pressing the MUTE, < / >, SSM or I/II button.

4 On screen language selection

Press the MENU button and then use /\ / \/ button to select the SETUP menu.
Press the > button and then use /\ / \/ button to select Language.
Press the > button and then use /\ / \/ button to select your desired language. All the on screen displays will appear in the
selected language.
Repeatedly press the MENU button to return to normal TV viewing.

12 PRESTIGIO P400MW / P460MW

On screen menus

Menu selection

-The dialogue between you and your set takes place on screen with an operator menu. The buttons required for the
operating steps are also displayed.

1

Press the MENU button and then use /\ / \/ button to dis­play each menu.

2

Press the > button and then use /\ / \/ button to select a
menu item.

3

Press the > button to display the sub menu or the pull­down menu.

4

Change the setting of an item in the sub or pull-down
menu with < / > or /\ / \/.
You can move to the higher level menu with < button and
to move to the lower level menu press the > button.

ENG

13PRESTIGIO P400MW / P460MW

Setting up TV stations

Auto programme tuning

-Up to 100 TV stations can be stored by programme numbers (0 to 99). Once you have preset the stations, you will be able

ENG

to use the /\ / \/ or NUMBER buttons to scan the stations you programmed. Stations can be tuned using automatic or
manual modes.

-All stations that can be received are stored by this method. It is recommended that you use auto programme during
installation of this set.

1

Press the MENU button and then use /\ / \/ button to select
the STATION menu.

2

Press the > button and then use /\ / \/ button
to select Auto.
Press the > button to display the Auto menu.
Press the > button. Select a TV system with the
< / > button on the System pull-down menu;

L : SECAM L/L’ (France)
BG : PAL B/G, SECAM B/G (Europe/
East Europe)
I : PAL I (U.K./Ireland)
DK : PAL D/K, SECAM D/K (East Europe)

Press the /\ / \/ button to select Storage From.
Select the beginning programme number with the < / > button on the Storage From pull-down menu.

3

Press the /\ / \/ button to select Search.
Press the > button to begin auto program­ming. All receivable stations are stored. The sta­tion name is stored for stations which broad­cast VPS (Video Programme Service), PDC
(Programme Delivery Control) or TELE-TEXT
data. If no station name can be assigned to a
station, the channel number is assigned and
stored as C (V/UHF 01-69) or S (Cable 01-47),
followed by a number.

14 PRESTIGIO P400MW / P460MW
