Quick Start Guide
Prestigio MultiPhone
PAP4300
EN

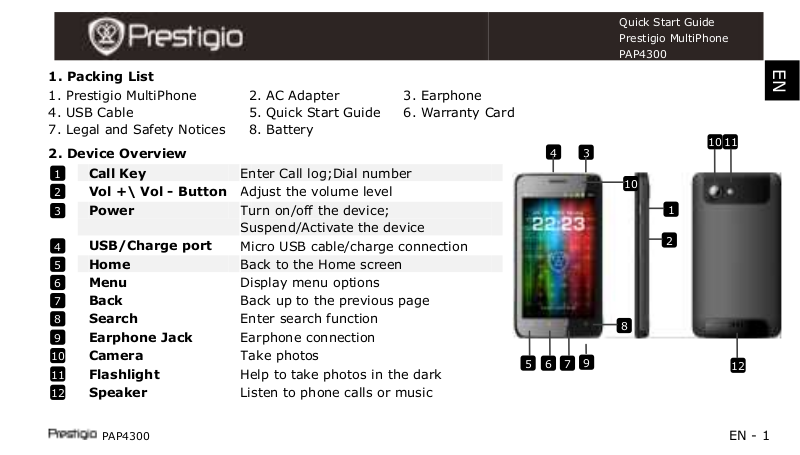

1. Packing List
1. Prestigio MultiPhone
2. AC Adapter
3. Earphone
4. USB Cable
5. Quick Start Guide
6. Warranty Card
7. Legal and Safety Notices
8. Battery
Call Key
Enter Call log;Dial number
Vol +\ Vol - Button
Adjust the volume level
Power
Turn on/off the device;
Suspend/Activate the device
USB/Charge port
Micro USB cable/charge connection
Home
Back to the Home screen
Menu
Display menu options
Back
Back up to the previous page
Search
Enter search function
Earphone Jack
Earphone connection
Camera
Take photos
Flashlight
Help to take photos in the dark
Speaker
Listen to phone calls or music
12
11
10
9
8 7 6 5 4 3 2 1 2 3 4
1
8
9 5 6 7 12
10
11
10
2. Device Overview
PAP4300 EN - 1
Quick Start Guide
Prestigio MultiPhone
PAP4300
EN
3. Uninstalling the back cover and battery
Card 2
Uninstalling the back cover: hold the side of device tightly with one hand and lift up the back cover at its buckle
with the other hand.
Taking out the battery: hold the side of device tightly with one hand and pull up the battery handle with the
other hand.
Notice: Your device must be powered off before exchanging or uninstalling the battery.
4. Installing the SIM cards and Micro SD card
a. Insert SIM cards
EN-2 PAP4300
Quick Start Guide
Prestigio MultiPhone
PAP4300
EN
The 2 card slots are both compatible with 2G GSM and 3G WCDMA card, but 2 cards must be different
mode if you use 2 cards in your phone.
Open the SIM card covers according to the picture one.
Insert SIM card according to the picture two. Make sure the gold contact area on the card is facing downwards.
Close and lock the SIM card cover.
b. Insert Micro SD card
Open the Micro SD card cover according to the picture one.
Then, insert Micro SD card according to the picture two.
Finally, close and lock the Micro SD card cover.
5. Charging
Insert one end of USB cable into the USB port on the
device and plug the power adapter to the electrical socket.
Normally it takes approximately 3~4 hours to fully charge
the device. Operating the device while charging with the
AC adapter may extend the time of full charging.
Notice: If you don’t use your phone for a long time, it will gradually discharge. Please charge it first before
your next use or charge the phone every 3 months even you don’t use it.
6. Power on/Sleep Mode/Power off
Press and hold the Power Button for a few seconds. It will automatically enter the Home screen after start-up
screen.
PAP4300 EN - 3
Quick Start Guide
Prestigio MultiPhone
PAP4300
EN
Press the Power Button once to enter sleep mode and press it again to awake the device.
Technical Specifications
Processor
MT6575 @ 1 GHz
Memory
256MB RAM + 512MB ROM, Micro SD slot supports up to 32GB
OS
Android 4.0.3 (Gingerbread)
Display
4.3-inch IPS LCD, Capacitive multi-touch(5 Dots)
Resolution
480x800 pixels
Net Mode
WCDMA + GSM (UMTS:2100MHz; GSM:900/1800MHz)
Interfaces
Communications
Battery
USB 2.0, Micro SD (SDHC/SDXC compatible)
WiFi (802.11b/g/n), 3G
1500mAH Lithium-ion Polymer battery
Dimensions
127*68*11mm (H * W * D)
Weight
125g
Disclaimer
Press and hold the Power Button, and then tap on Power off to power off the device.
As the Prestigio products are constantly updated and improved, your device’s software and hardware may have a
slightly different appearance or modified functionality than presented in this Quick Start Guide.
EN-4 PAP4300
Quick Start Guide
Prestigio MultiPhone
PAP4300
EN
Prestigio hereby states that this Smartphone complies to basic requirements and another relevant
regulations given by the EU directive1999/5/ES. Full version of the declaration of conformity is
available on http://www.prestigio.com/compliance.
