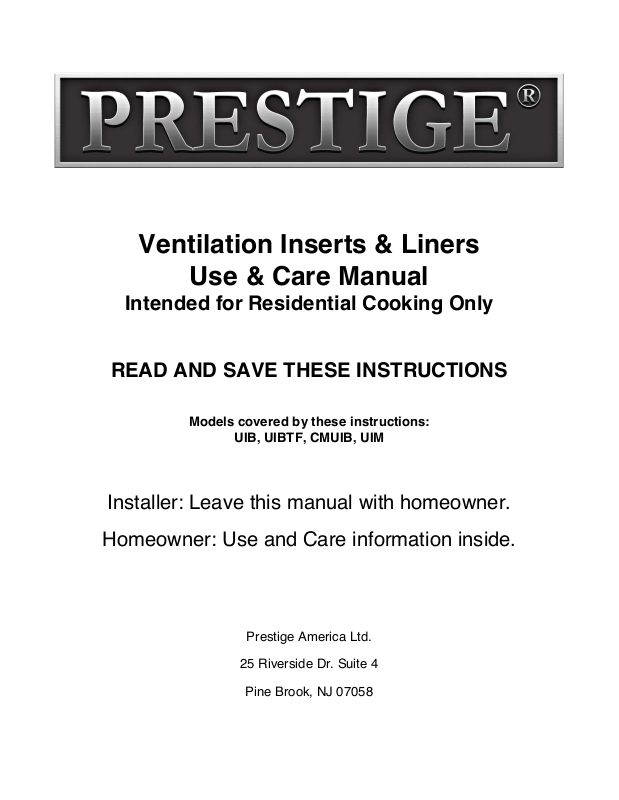

Prestige UIB20600 Installation

! !

Ventilation Inserts & Liners

Use & Care Manual

Intended for Residential Cooking Only

READ AND SAVE THESE INSTRUCTIONS

Models covered by these instructions:

UIB, UIBTF, CMUIB, UIM

Installer: Leave this manual with homeowner.

Homeowner: Use and Care information inside.

Prestige America Ltd.

25 Riverside Dr. Suite 4

Pine Brook, NJ 07058

-Table of Contents -

Important Safety Instructions.........................................................................1-2

Handling Precautions.........................................................................................2

Important Ventilation Information Before You Begin......................................2

Accessories Sold Separately.............................................................................3

Cleaning and Maintenance.................................................................................3

Packing List for your Inserts

a) UIB Inserts with Blowers...........................................................................3-4

b) UIB Liners without Blowers..........................................................................4

c) UIM Inserts..................................................................................................5

d) UIBTF & CMUIB Inserts without Blowers....................................................5

Rear ducting Instructions.................................................................................10

Instructions for connection of Wall Switch Kit (UIBWSK) ............................10

Installation Guide for your Insert................................................................11-12

Hood Operating Instructions............................................................................13

Warranty Information.........................................................................................14

Prestige Products Division

Signature Marketing Group Ltd.

25 Riverside Drive Suite 4

Pine Brook, NJ 07058

800-358-8886

-Important Safety Instructions-

PRESTIGE® INSERTS ARE FOR RESIDENTIAL USE ONLY!

CAUTION: FOR GENERAL VENTILATION USE ONLY. DO NOT USE TO

EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS OR VAPORS.

1. Use this unit only in the manner intended by the manufacturer. (If you have

questions, contact Prestige® at 800-358-8886.)

2. Before servicing or cleaning this unit, switch power off at service panel and lock the panel to prevent power from being switched on by accident. When the service panel cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

WARNING: TO REDUCE THE RISK OF RANGE TOP GREASE FIRE, PLEASE

OBSERVE THE FOLLOWING:

1. Never leave surface units unattended at high settings. Boil-overs can cause smoking and may ignite. Heat oils slowly on low heat.

2. Always turn ventilation system ON five minutes prior to cooking to begin airflow.

3. Clean ventilation filters frequently. DO NOT ALLOW GREASE TO

ACCUMULATE ON FAN OR FILTER.

4. Use proper pan size. Always use cookware appropriate for the size of the burner or element.

-Important Safety Instructions-

WARNING - IN THE EVENT OF RANGE TOP GREASE FIRE, OBSERVE THE

FOLLOWING:

1. Smother the flames with a close fitting lid, cooking sheet or other metal tray, and then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE

DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN.

3. MAKE SURE YOUR VENTILATION SYSTEM IS COMPLETELY TURNED

OFF. DO NOT TURN HOOD ON TO TRY AND EVACUATE SMOKE.

4. DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion may result.

5. Use an extinguisher only if:

a) You know you have a class ABC extinguisher and you already know

how to operate it. b) The fire is small and contained in the area where it started. c) The fire department is being called. d) You can fight the fire with your back to an exit.

- Handling Precautions -

• Remove all rings, watches, belt buckles, jewelry and any clothing with metal buttons or snaps to prevent damage to the Insert.

• DO NOT REMOVE INSERT FROM ITS ORIGINAL CARTON UNTIL YOU ARE READY TO INSTALL IT.

• When you are ready to begin the installation process, remove the insert from its carton and place it on a clean soft blanket.

• Inspect the insert carefully for any damage or imperfections before you begin to install the insert. If any damage or imperfections exist, re-carton the insert and call your dealer IMMEDIATELY, do not install a damaged hood.

• It is highly recommended that rubber gloves be used to prevent scratches on the insert and to provide you with a firm grip.

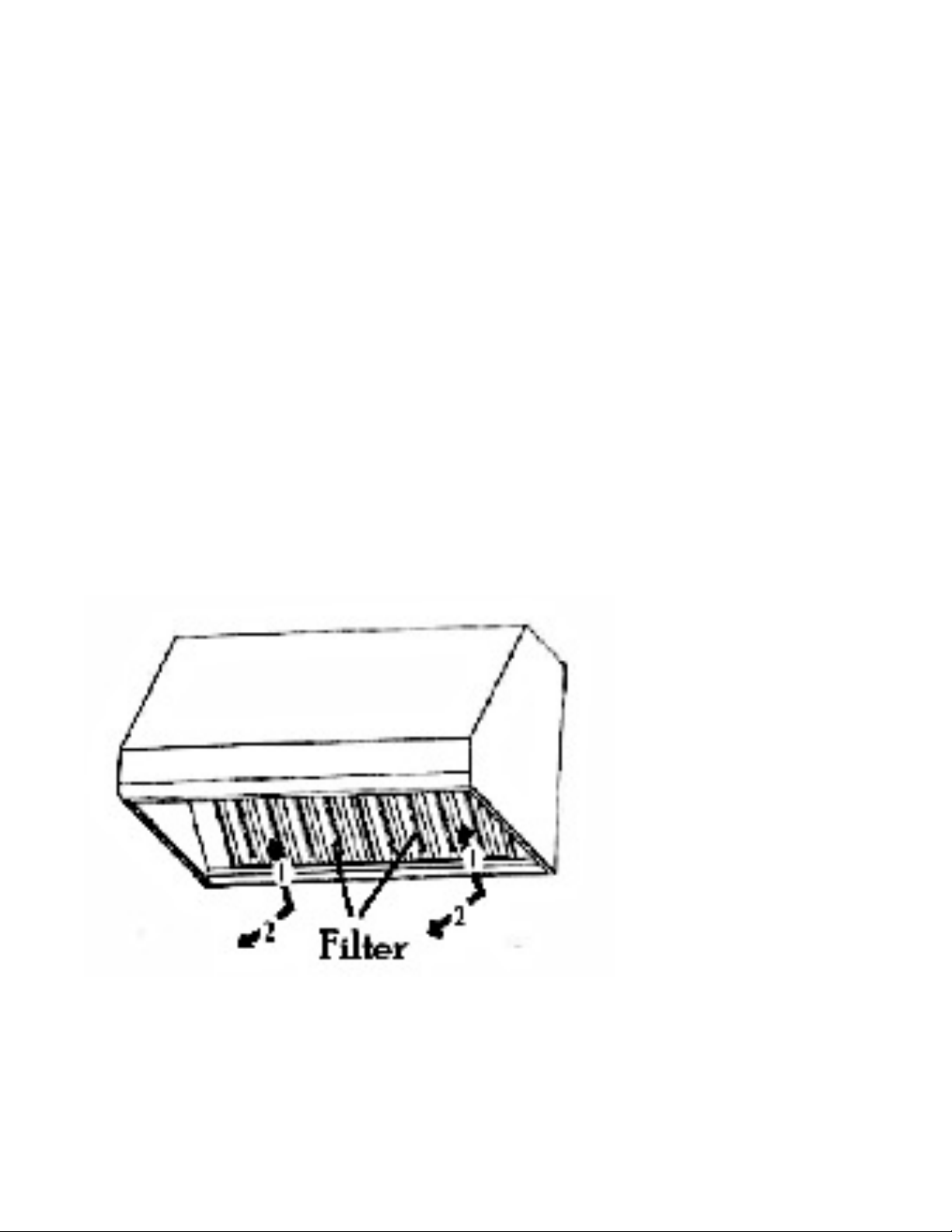

• When removing the insert from the carton locate the filters. The filters are not

pre-installed in the insert. The filters are in a box marked filters, inside the insert carton.

• Internal blower inserts can be ducted to the top or the rear. Check product guide for additional transitions, wall caps and roof caps.

• Duct size for units ending in 600 is 6" round and an optional transition model TRC8/6 should be used to increase the duct size to 8" round for optimal performance.

• Units with model numbers ending in 1200 require the use of transition model TR6x15/10 (NOT INCLUDED AND SOLD SEPERATELY).

• All Prestige® ventilation inserts have a variable speed blower switch as well as a light dimmer switch.

• Inserts can be set up for ductless applications. See product guide for optional

ductless conversion kits.
