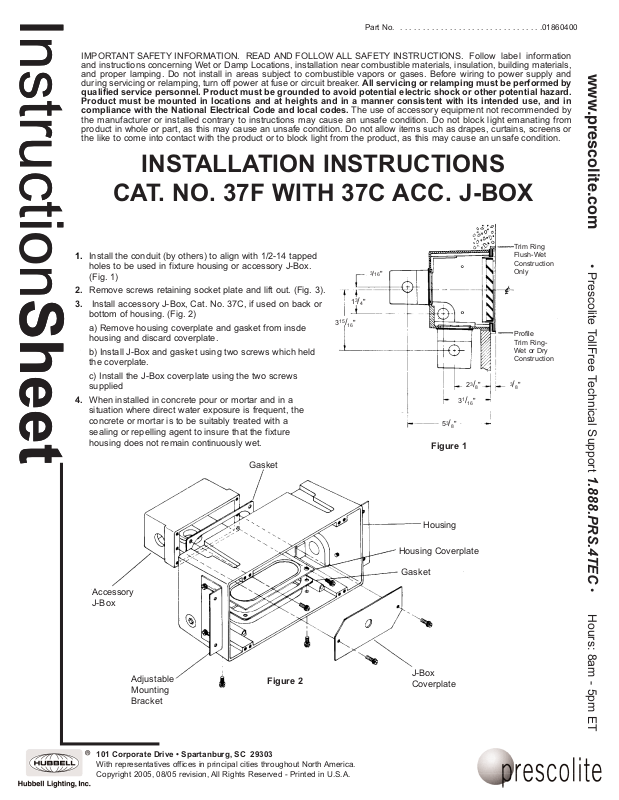

InstructionSheet

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials, and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during servicing or relamping, turn off power at fuse or circuit breaker.

qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard. Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by

the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

INSTALLATION INSTRUCTIONS

CAT. NO. 37F WITH 37C ACC. J-BOX

1. Install the conduit (by others) to align with 1/2-14 tapped

holes to be used in fixture housing or accessory J-Box. (Fig. 1)

2. Remove screws retaining socket plate and lift out. (Fig. 3).

3. Install accessory J-Box, Cat. No. 37C, if used on back or

bottom of housing. (Fig. 2) a) Remove housing coverplate and gasket from insde

housing and discard coverplate. b) Install J-Box and gasket using two screws which held

the coverplate. c) Install the J-Box coverplate using the two screws

supplied

4. When installed in concrete pour or mortar and in a situation where direct water exposure is frequent, the concrete or mortar is to be suitably treated with a sealing or repelling agent to insure that the fixture housing does not remain continuously wet.

Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .01860400

All servicing or relamping must be performed by

/16"

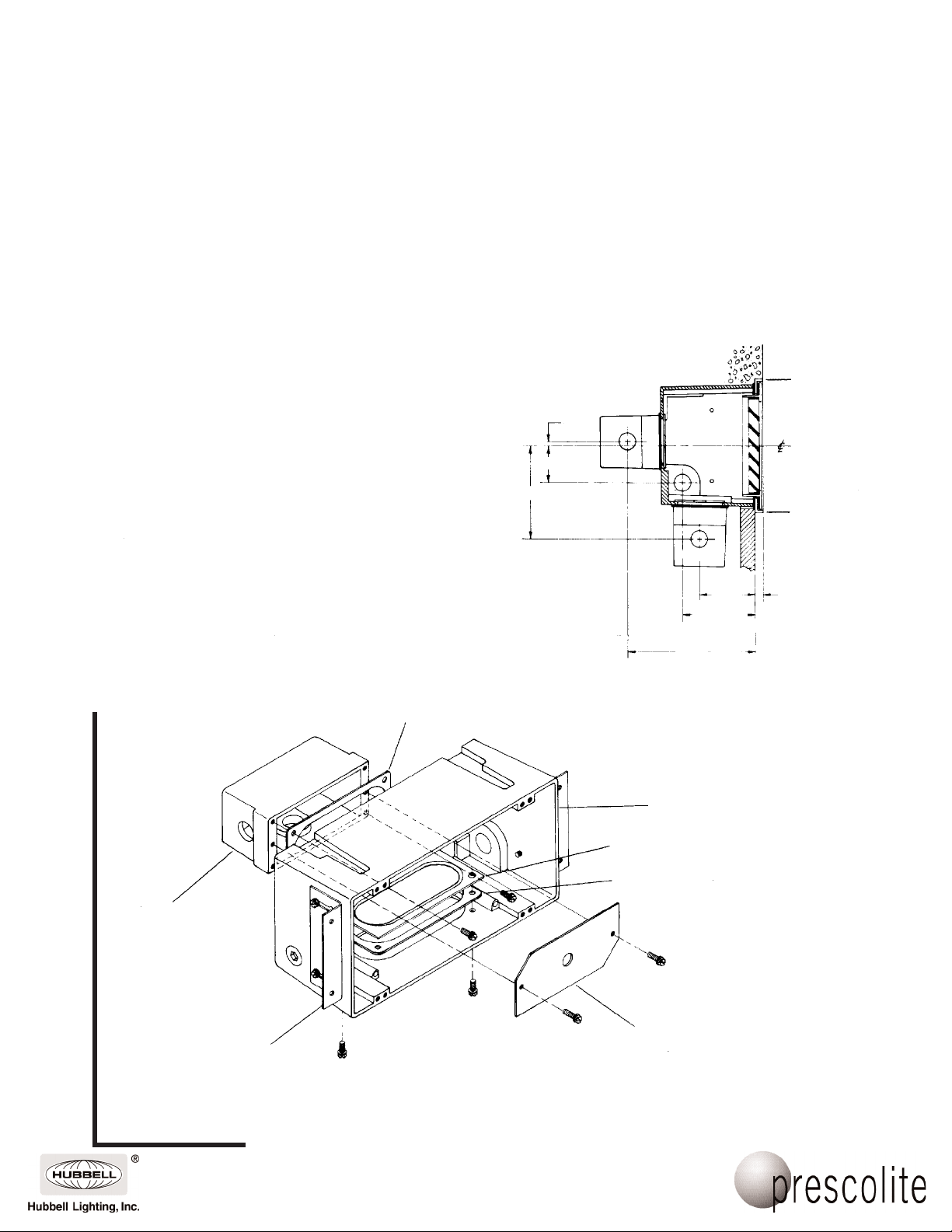

Figure 1

rim Ring

T Flush-Wet Construction Only

Profile Trim RingWet or Dry Construction

www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET

Gasket

Accessory J-Box

Adjustable Mounting Bracket

101 Corporate Drive • Spartanburg, SC 29303

fices in principal cities throughout North

Figure 2

America.

Housing

Housing Coverplate

Gasket

J-Box Coverplate

Page 2

InstructionSheet

Housing

Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .01860400

www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET

Trim Ring

Flathead Screws

Socket Plate

Gasket

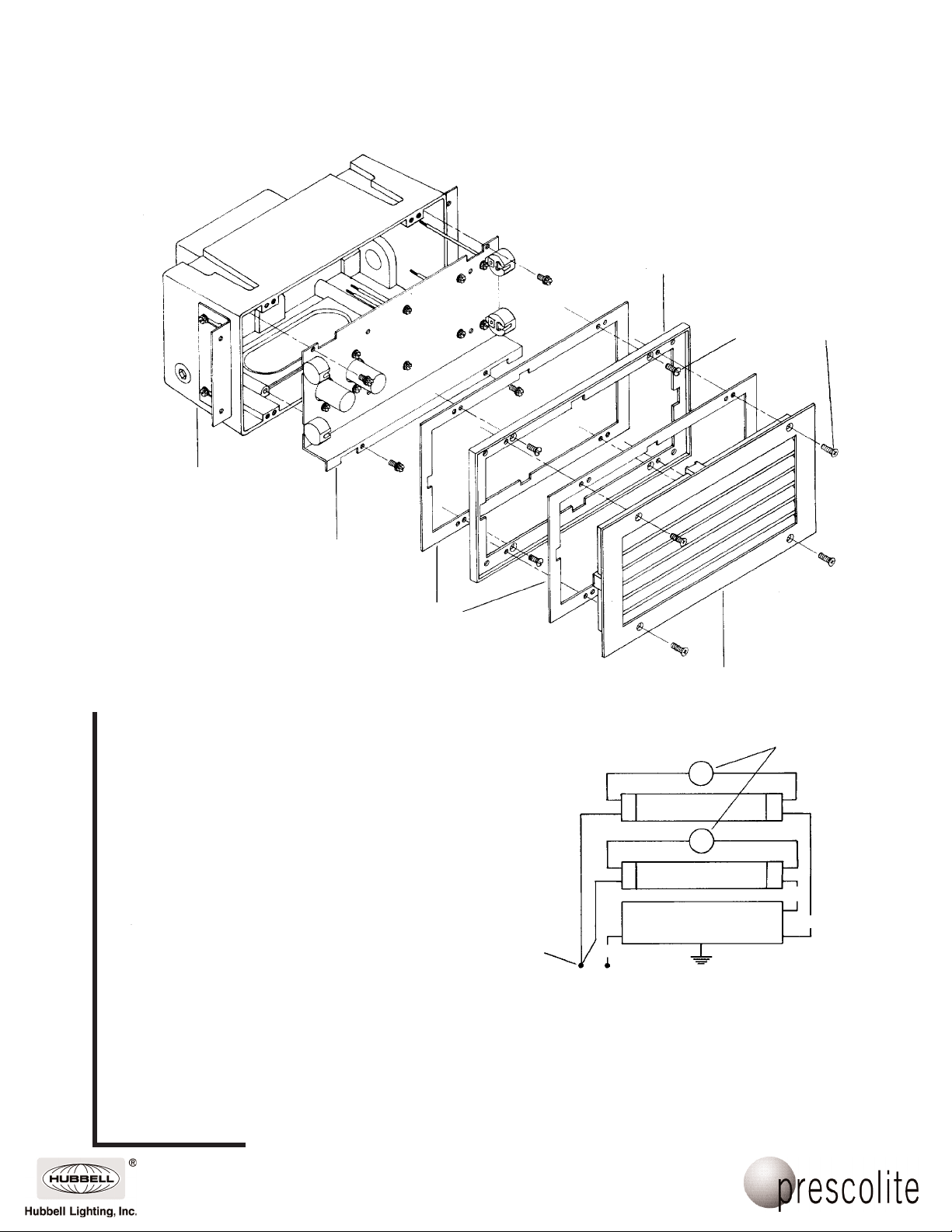

Figure 3

5. Nail adjustable mounting brackets to forms for poured concrete or

frame-in-housing as required. Secure conduit to housing. IMPORTANT: When installed in brick or brick veneered walls, the

recessed portion of the housing must be coated with asphaltum or similar protective material. Some types of bricks retain moisture and other substances that can damage the housing. Do not clean brick wall with acids while fixture is in place.

6. Make electrical connections. Connect ground wires to green ground leads. Connect white (common) to white leads. Connect power supply (line) to black leads. (see wiring diagram).

ARNING: DO NOT pinch wires. Consult a Qualified Electrician

W for all other options that require other wiring configurations.

Replace socket plate and secure with screws. (Fig. 3)

7. Install trim ring and gasket using 4 flathead screws supplied. (Fig. 3)

9. Install lamps.

10. Install gasket and faceplate assembly with the 4 flathead screws supplied. (Fig. 3)

ire Nut

W (By Others)

BLK

COM

SUPPLY

Faceplate Assembly

STARTERS

LAMP

BALLAST

LINE

Wiring Diagram
