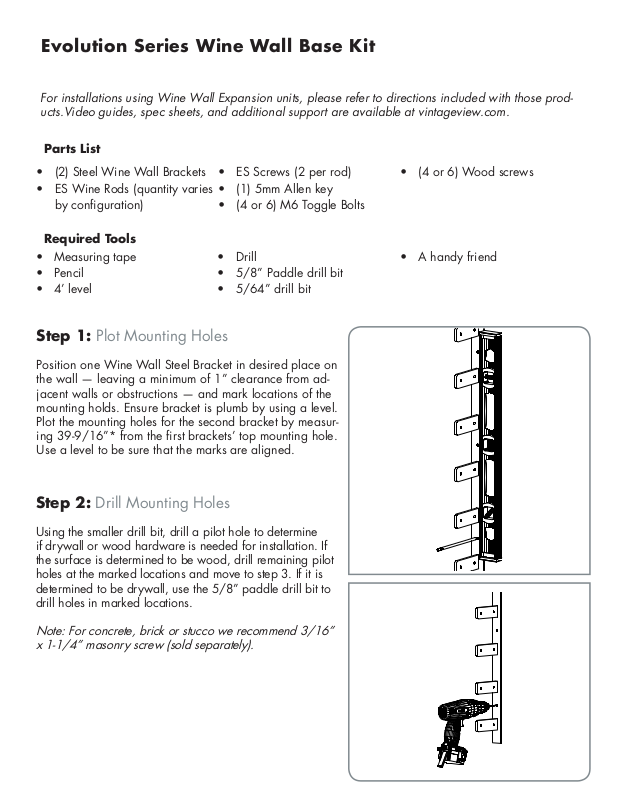

Evolution Series Wine Wall Base Kit
For installations using Wine Wall Expansion units, please refer to directions included with those products.Video guides, spec sheets, and additional support are available at vintageview.com.
Parts List
• (2) Steel Wine Wall Brackets
• ES Wine Rods (quantity varies
by configuration)
Required Tools
• Measuring tape
• Pencil
• 4’ level
• ES Screws (2 per rod)
• (1) 5mm Allen key
• (4 or 6) M6 Toggle Bolts
• Drill
• 5/8” Paddle drill bit
• 5/64” drill bit

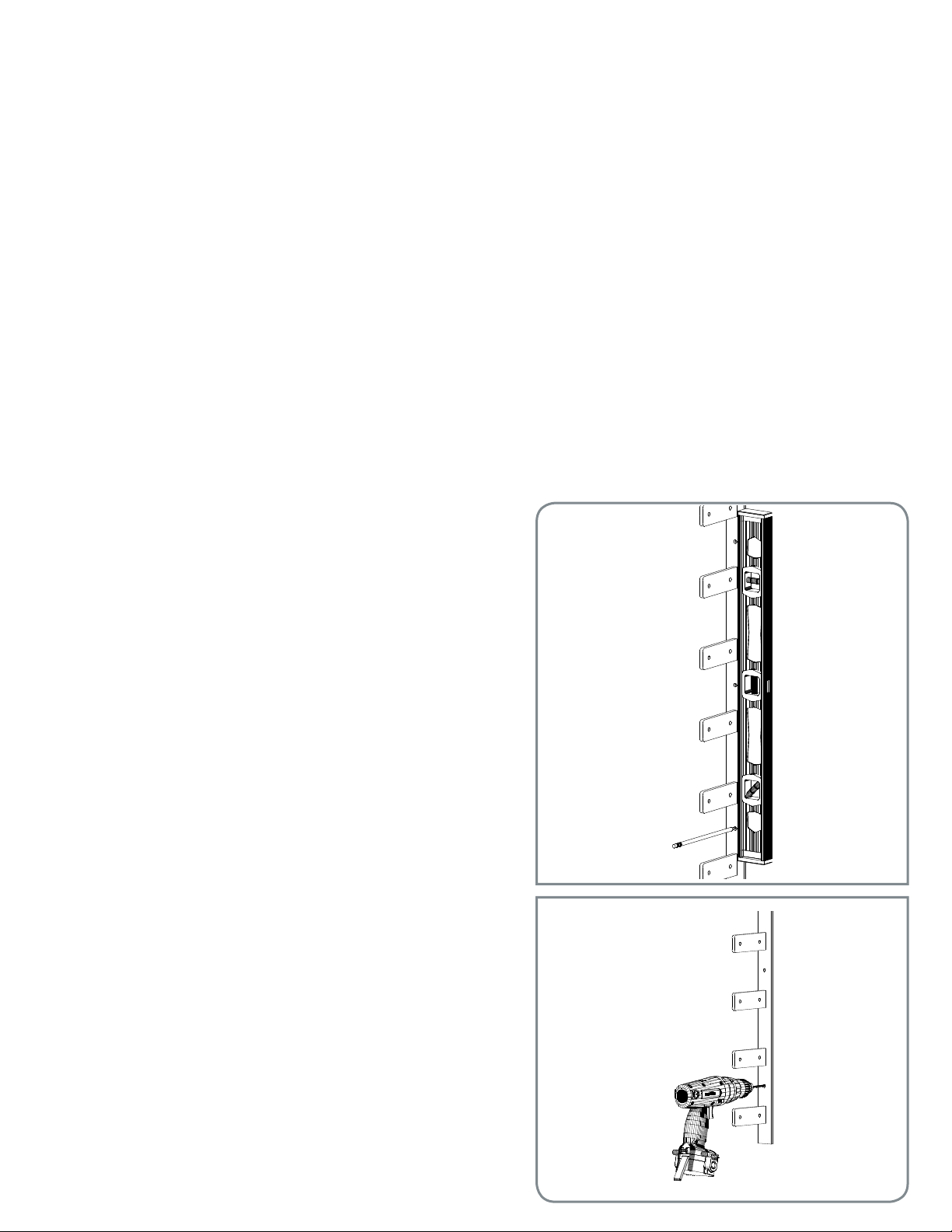

Step 1: Plot Mounting Holes
Position one Wine Wall Steel Bracket in desired place on
the wall — leaving a minimum of 1” clearance from adjacent walls or obstructions — and mark locations of the
mounting holds. Ensure bracket is plumb by using a level.
Plot the mounting holes for the second bracket by measuring 39-9/16”* from the first brackets’ top mounting hole.
Use a level to be sure that the marks are aligned.
• (4 or 6) Wood screws
• A handy friend
Step 2: Drill Mounting Holes
Using the smaller drill bit, drill a pilot hole to determine
if drywall or wood hardware is needed for installation. If
the surface is determined to be wood, drill remaining pilot
holes at the marked locations and move to step 3. If it is
determined to be drywall, use the 5/8” paddle drill bit to
drill holes in marked locations.
Note: For concrete, brick or stucco we recommend 3/16”
x 1-1/4” masonry screw (sold separately).
