5-Drawer Chest
Assembly Instructions
For the following collections:
Sonoma, Monterey, Montego,
Broadway, Chelsea, Winslow
DATE STAMP
CALL US FIRST
1-877-PREPAC1
1-877-773-7221
Mon - Fri 7am - 4pm PST
10am - 7pm EST
• For help with assembly
• If you have received a damaged or defective part or
are missing hardware.
We will process replacement parts
less. Parts are shipped via
UPS Ground or mail.
in 2 business days or
Model # DC-3345
This product is shipped in
2 cartons
1 of 2
+
Make sure you have both cartons.
Sometimes cartons shipped on the
same day get separated and are
delivered on different days.
2 of 2
Before you call please:
1) Record the following information from the shipping
label on the outside of the box. You will need it for
warranty purposes:
• Ship To Name
• Sales Order Number
2) Note the
3) Review the contents of your shipment to determine
what you are missing. This unit is shipped in 2
cartons. Make sure you have received both.
Online Option:
Fill out the Parts Order Form on our website.
Go to www.prepacmfg.com and choose
Parts Order from the Support menu
product model number.
Required Tools
Screwdrivers
Hammer
Phillips Head
Flat Head
Depending on collection, the
style of your product may vary
from this picture.
Optional Tools
Using a power screwdriver
will speed up assembly.
Caution
Do not over tighten any screw.
The last few turns of each screw
should be done very slowly or by hand.
Prepac Manufacturing Ltd.
6705 Dennett Place
Delta, BC V4G 1N4
LB-0594-R
2007-02-16

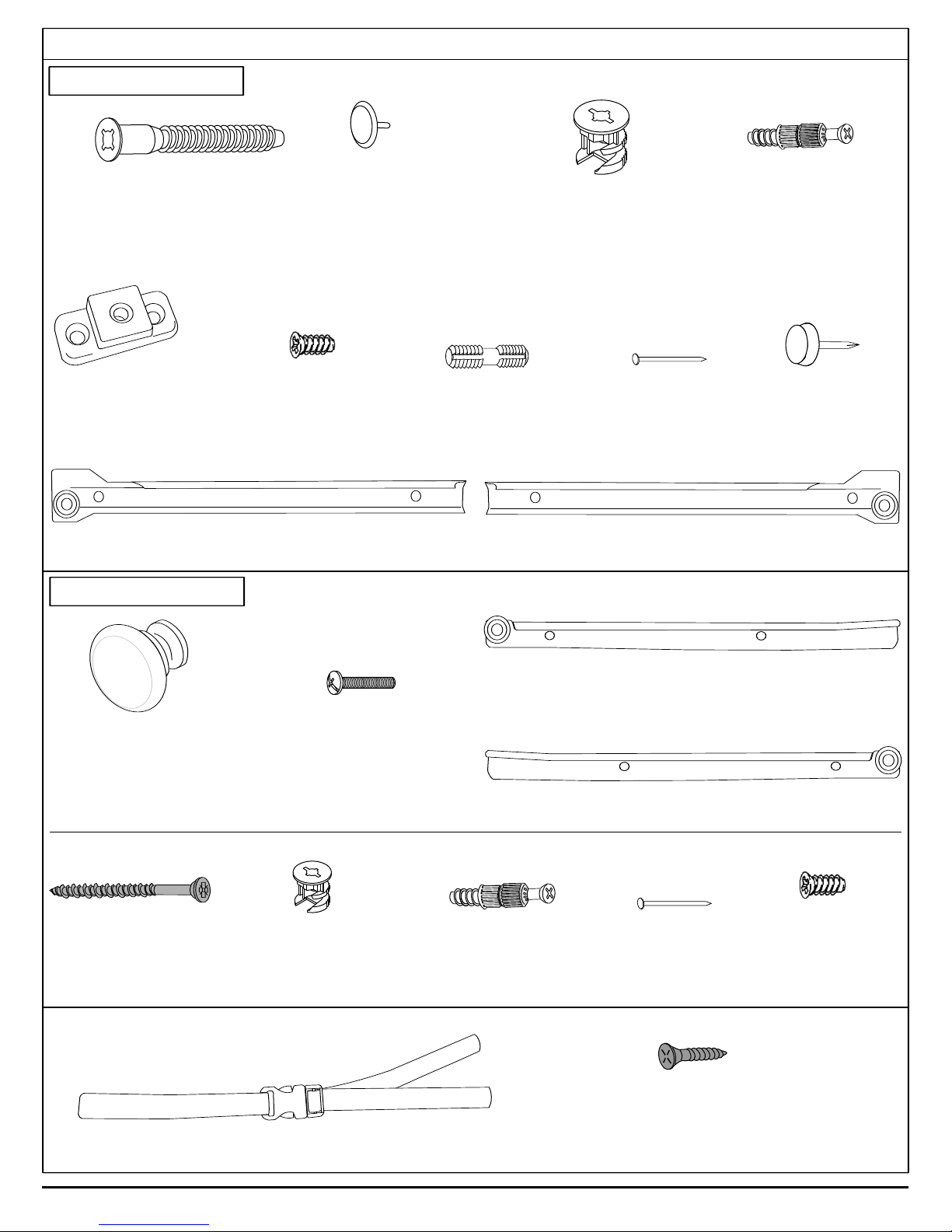

Hardware Identification
Cabinet Hardware
2" Confirmat Screws
(12)
RM-0001
T Spacer
(20)
RM-0628
LEFT Cabinet Slide (5)
Drawer Hardware
Screw Cover Caps
RM-0226 black
RM-0523 maple
RM-0008 white
RM-0620 cherry
Drawer Slide Screw
(60)
RM-0074
(12)
Plastic Dowels
(11)
RM-0072
15mm Zinc Cam
(4)
RM-0103
¾” Nail
(30)*
RM-0022
*More than required
RIGHT Cabinet Slide (5)
Green Twister Dowel
(4)
RM-0501
Levelling Feet
(4)
RM-0139
Knob
(10)
RM-0464 maple / black
RM-0625 white / cherry
4 per drawer
#8 - 1½” Hi Lo Screws
(20)
RM-0504
#8 7/8” Machine Screw
(10)
RM-0465
12mm Zinc Cam
(20)
RM-0502
Safety Strap Hardware Package
Safety Strap (1)
Green Twister Dowel
(20)
RM-0501
1 LEFT Drawer Slide per Drawer (Total = 5)
1 RIGHT Drawer Slide per Drawer (Total = 5)
¾” Nail
(20)
RM-0022
3/4” screw (1)
Drawer Slide Screw
(20)
RM-0074
Page 2 of 16

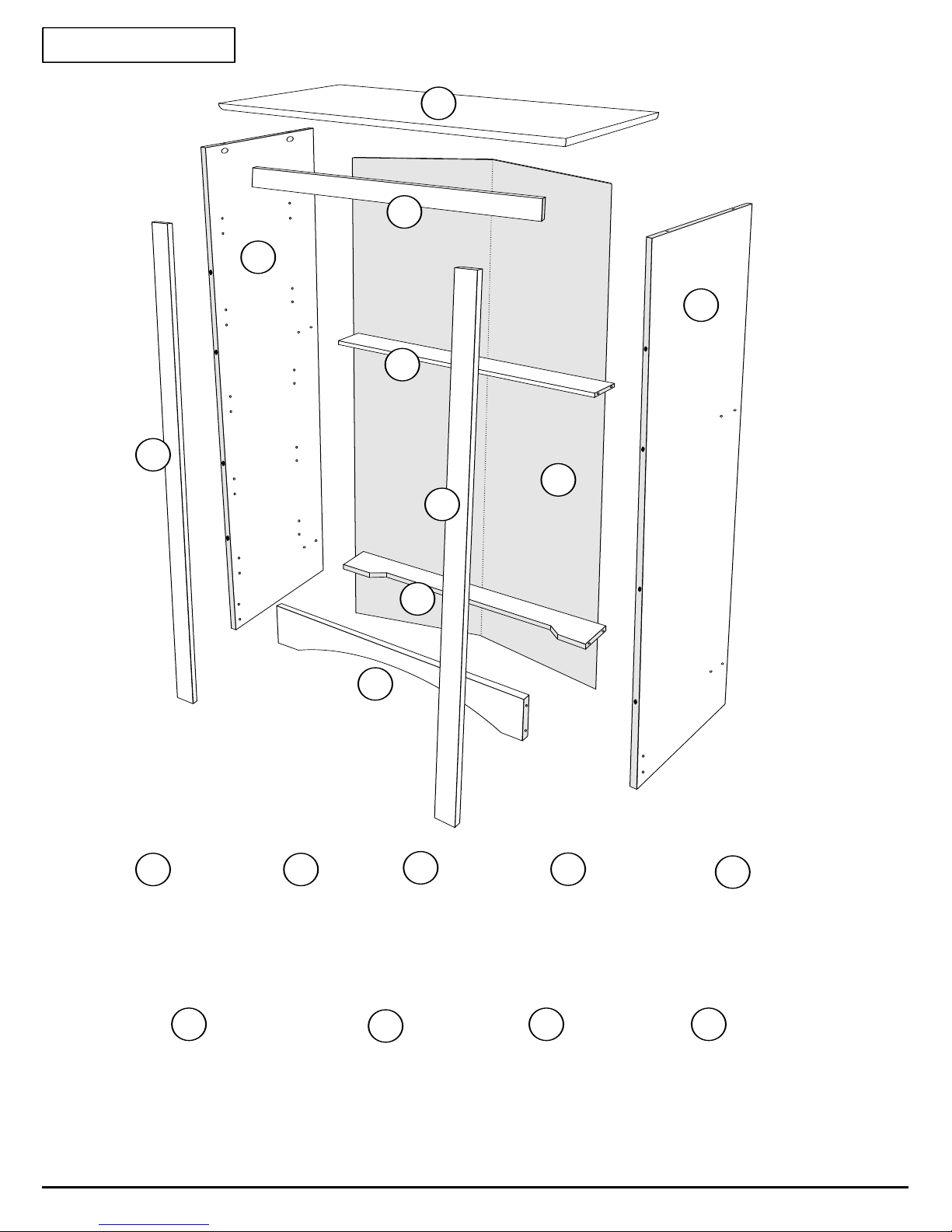

Cabinet Parts
C8
C1
C7
C2
C3
C4
C9
C8
C1
Profiled Top (1)
TP-0472 maple
TP-0412 black
TP-0402 white
TP-0492 cherry
C6
C2
Left Side (1)
SL-0472 maple
SL-0412 black
SL-0402 white
SL-0492 cherry
C5
C6
C3
Right Side (1)
SR-0472 maple
SR-0412 black
SR-0402 white
SR-0492 cherry
C7
C4
Plain Stabilizer (1)
ST-4712 maple
ST-4112 black
ST-4012 white
ST-4912 cherry
C8
C5
Decorative Stabilizer A (1)
KR-0472 maple
KR-0412 black
KR-0402 white
KR-0492 cherry
C9
Decorative Stabilizer B (1)
ST- 4711
ST-4111 black
ST-4011 white
ST-4911 cherry
maple
1¾” Top Molding (1)
TR-4712 maple
TR-4112 black
TR-4012 white
TR-4912 cherry
1¾” Side Molding (2)
TR-0474 maple
TR-0414 black
TR-0404 white
TR-0494 cherry
Foldable
Backer (1)
BB-0106
Page 3 of 16

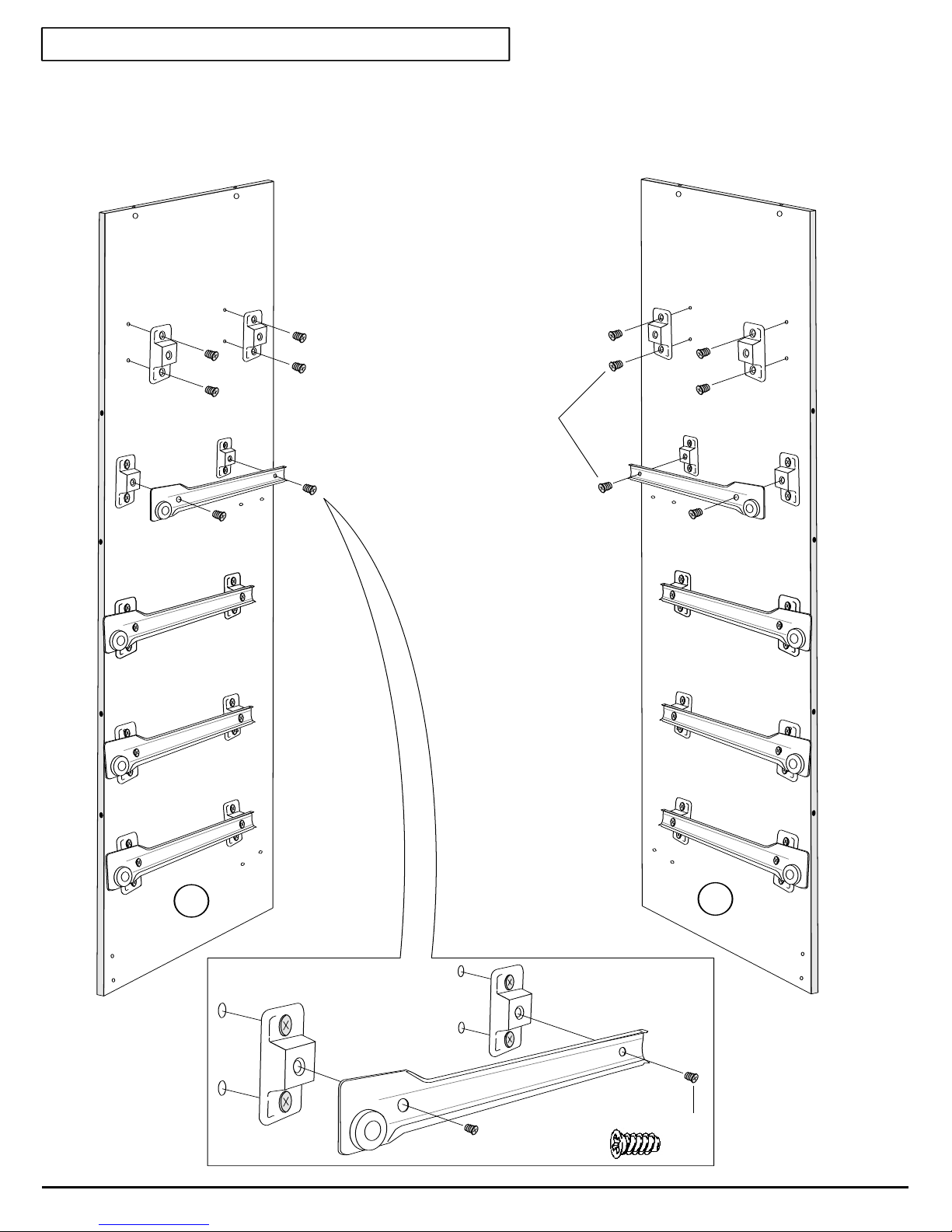

STEP 1
Estimated Time: 15 - 25 minutes
1a
1b
Front
Attach T-spacers to left and right cabinet sides using drawer slide screws
Then, attach metal cabinet slides to T-spacers using drawer slide screws
Top
1a
Drawer
Slide
Screw
1b
Left
Cabinet
C2
T-spacer & Slide Detail
Side
Right
Cabinet
Side
Drawer Slide Screw
C3
Page 4 of 16

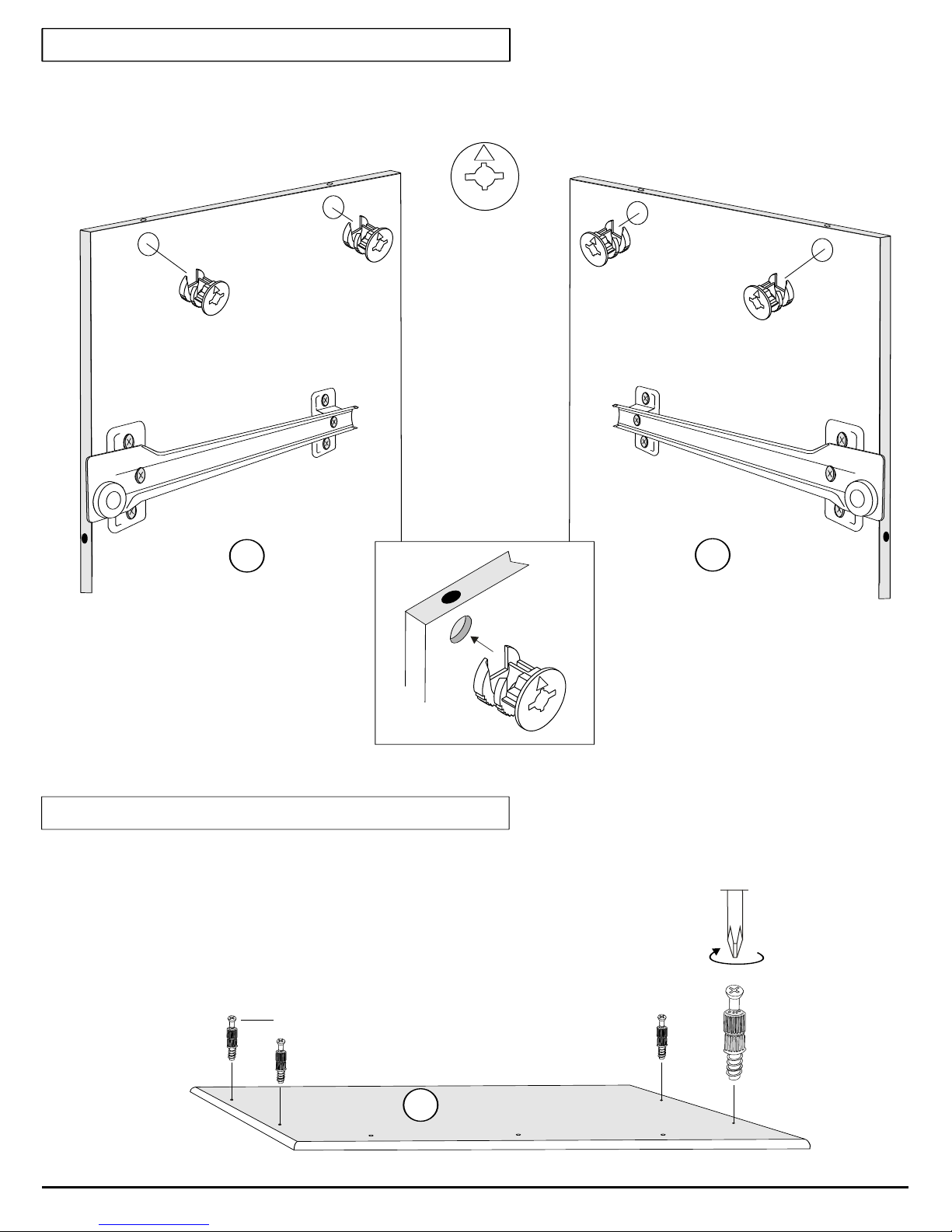

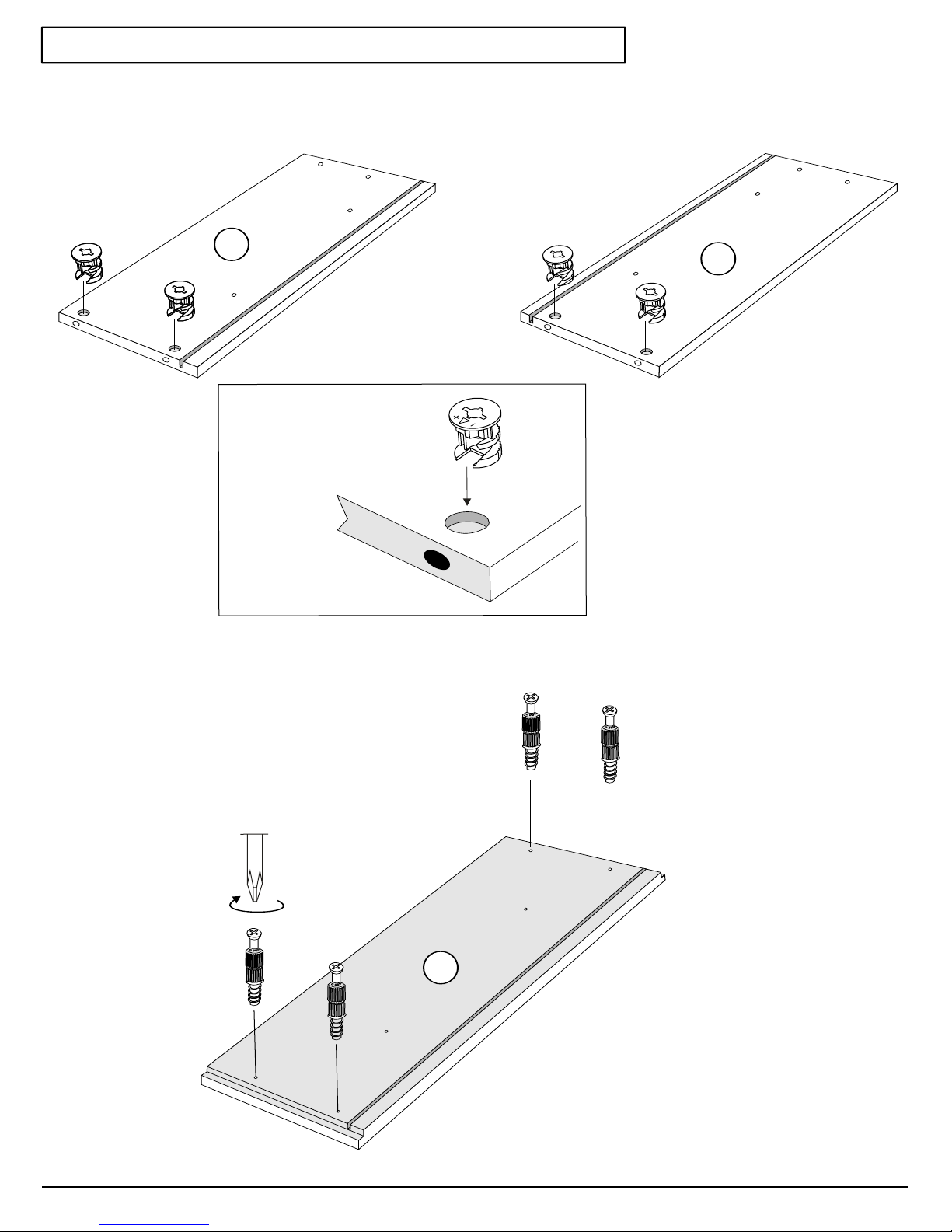

STEP 2
Estimated Time: 1 minute
Insert cams into holes on the top of each side.
Make sure arrow
on cam faces top
STEP 3
C2
Estimated Time: 2 minutes
Screw green twister dowels into the underside of the top
C3
Green Twister Dowel
C1
Top
Page 5 of 16

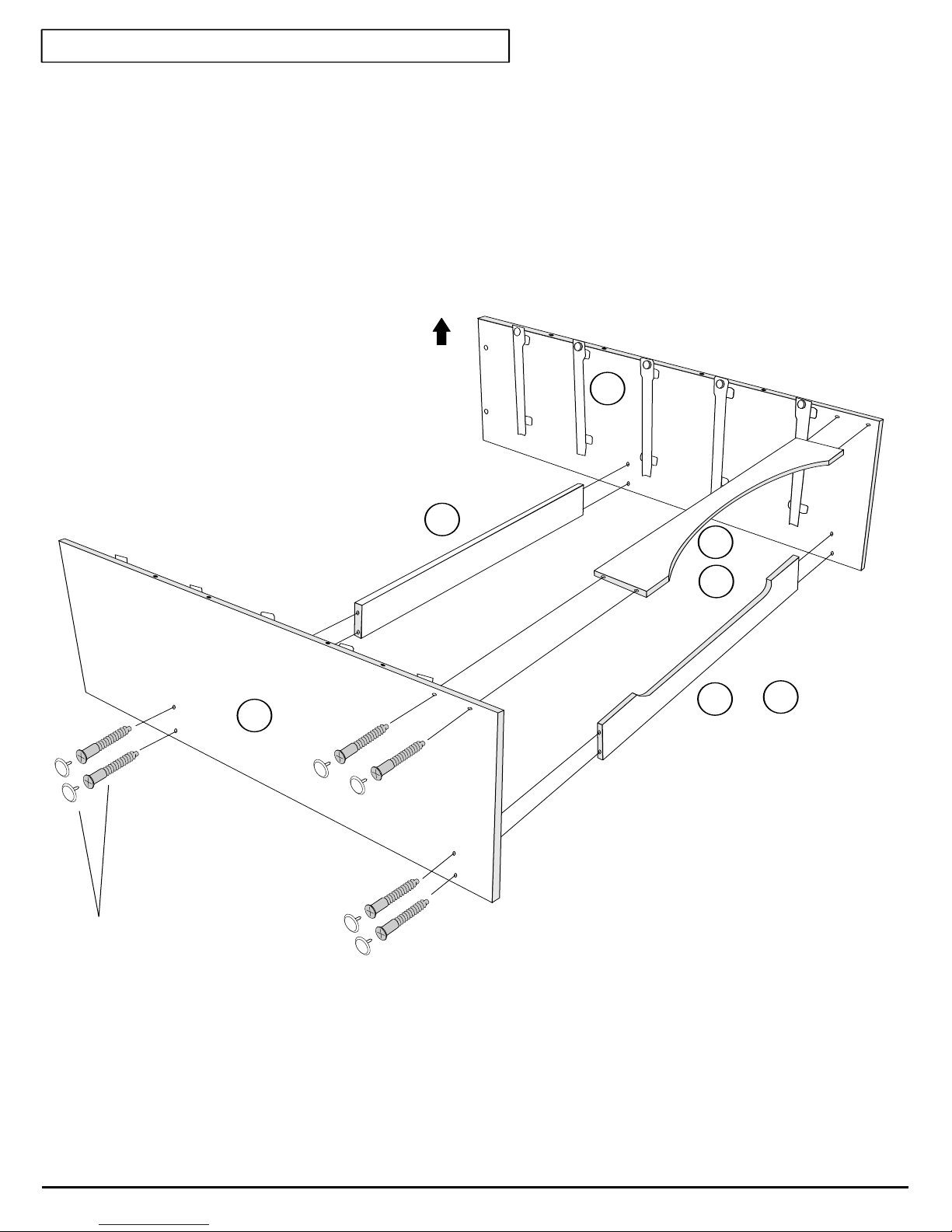

STEP 4
Estimated Time: 10 minutes
Attach all 3 stabilizers to left and right sides using Confirmat screws.
Insert screw cover caps to finish.
Decorative stabilizers C5 & C6 are interchangeable. Please choose the style that you
prefer and attach it to the front.
FRONT
C3
Confirmat Screws &
Screw Cover Caps
C2
C4
Left Side
or
C5
C6
C5
or
Right Side
C6
Page 6 of 16

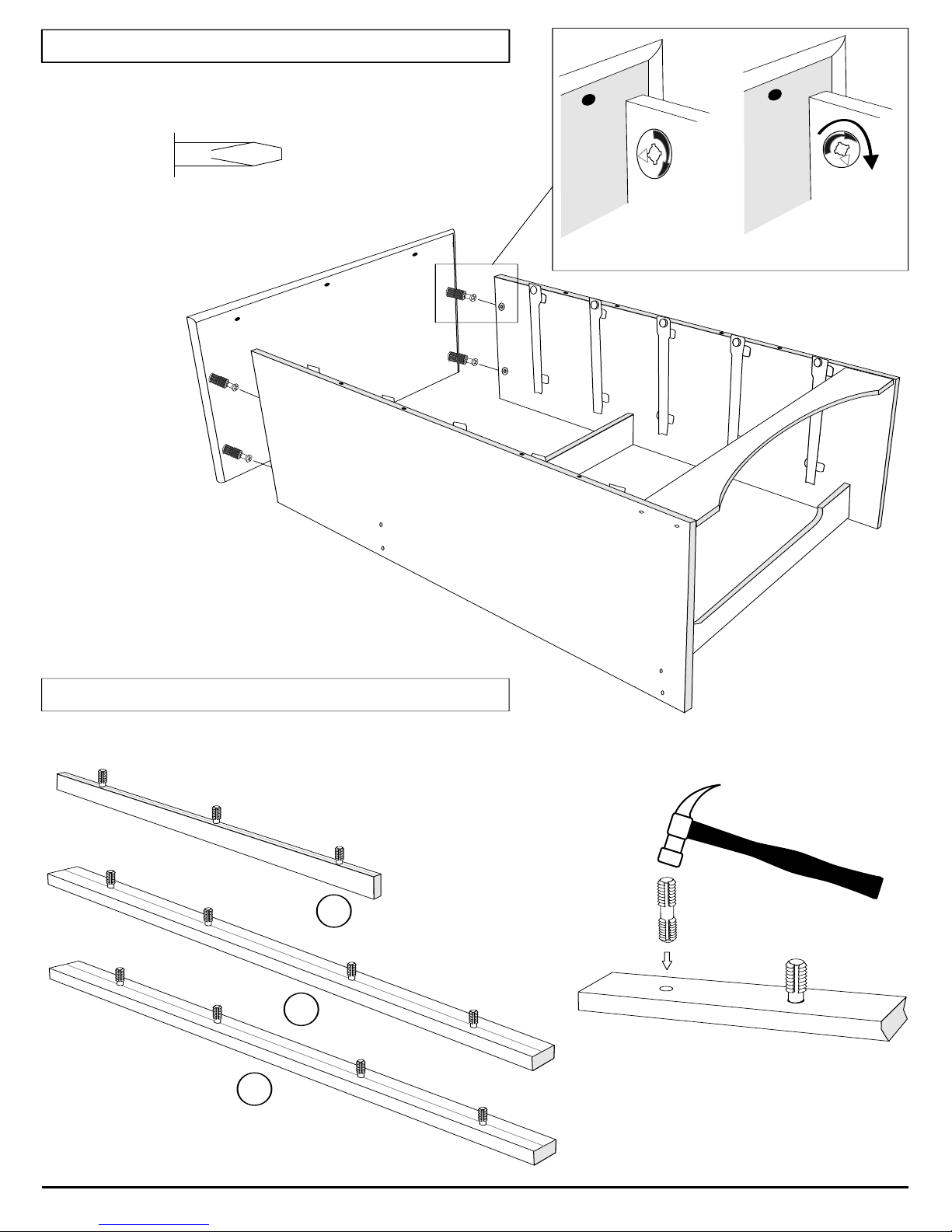

STEP 5
Estimated Time: 2 minutes
Attach top to sides and lock cams using
a flat head screwdriver
Unlocked
Locked
Turn 210°
STEP 6
Estimated Time: 3 minutes
Hammer plastic dowels halfway into side and top moldings
C7
C8
C8
Page 7 of 16
STEP 7
Estimated Time: 3 minutes
Attach top & side moldings.
Using your hands, apply even pressure to moldings and press firmly
Do not use a
hammer
It may damage
the molding
Page 8 of 16
STEP 8
Estimated Time: 4 minutes
Carefully turn chest over and attach backer and levelling feet
NOTE:
Do not stand
unit up without
Nail backer as indicated. You may
have more nails than are necessary
the backer
fastened
Space evenly
from edge
Position nails in the center of
the board
C
C
Hammer levelling
feet at the front and
back of each side
Page 9 of 16

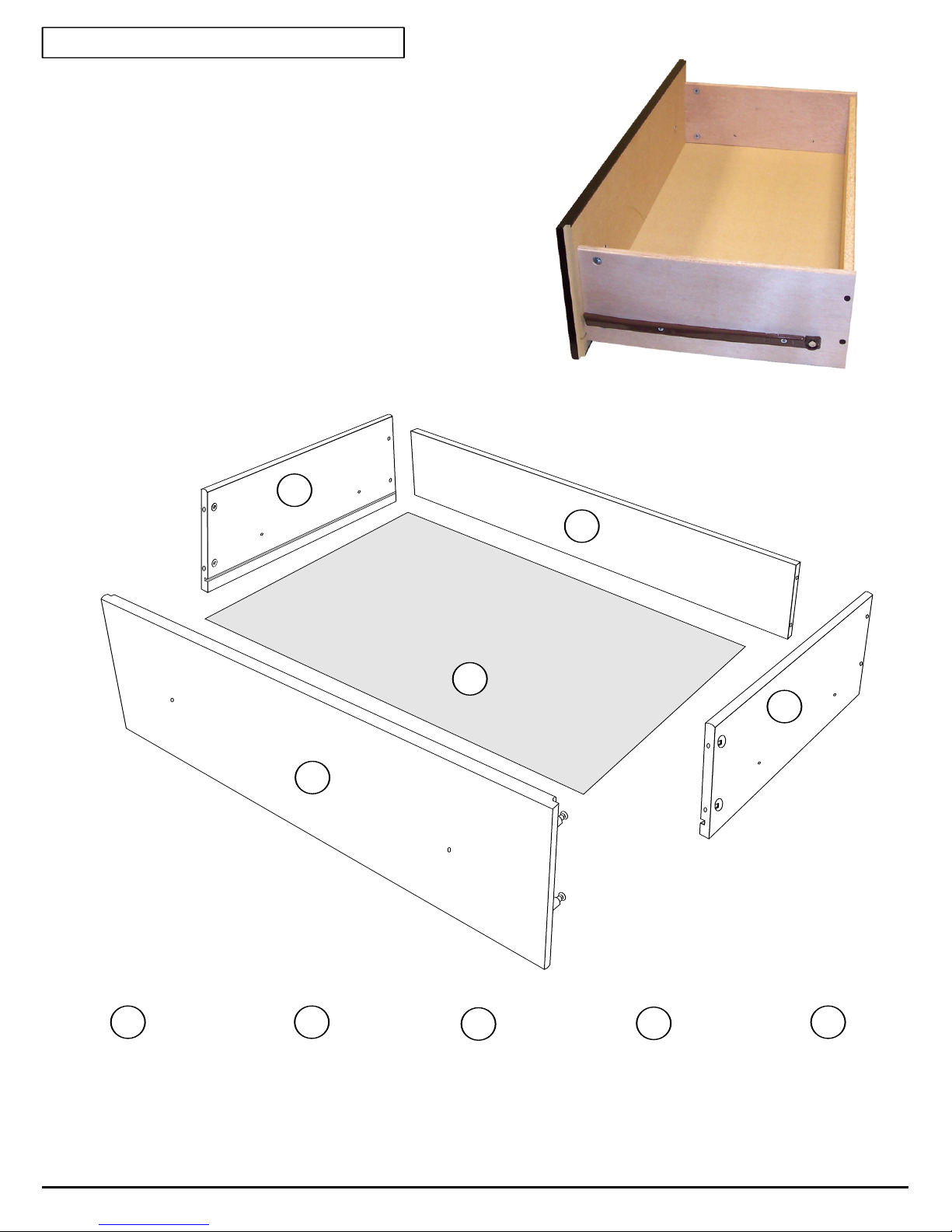

Drawer Parts Identification
D2
D1
D4
D5
D3
D1
Drawer Front (5)
DF-0476 maple
DF-0416 black
DF-0406 white
DF-0496 cherry
Left Drawer Side (5)
D2
DS-0412-L
Plywood
D3
Right Drawer Side (5)
DS-0412-R
Plywood
D4
Drawer Back (5)
DK-0415
unfinished
D5
Drawer Bottom (5)
DB-0415
unfinished
Page 10 of 16
abin
STEP 9
e
t t Id
Pa
r s
Estimated Time: 5 minutes PER DRAWER
ent
if ca
i
t
ioC
n
9a
Left Drawer Side
Insert cams into drawer sides
D2
D3
Right Drawer Side
Make sure arrow
faces toward hole for
twister dowel
9b
Screw green twister dowels into drawer fronts
D1
Page 11 of 16
9c
bin
et a
P r s
Attach drawer sides to drawer back with 1½” Hi Lo screws
t Ide
nti
f aCa
ic
tion
1½” Hi Lo Screws
9d
Attach drawer front and tighten cams
using a flat head screwdriver
Left Drawer Side
Unlocked
Locked
Turn 210°
Unlocked
Right Drawer Side
Locked
Turn 210°
Page 12 of 16
9e
Turn drawer upside down and slide drawer bottom into grooves
9f
Secure the drawer bottom to the drawer back with nails
Use 4 nails
per drawer
C
Page 13 of 16
9g
Attach drawer slides to left and right drawer sides using drawer slide screws
Right Drawer Side
Drawer
Slide
Screws
Left Drawer Side
9h
Attach knobs with machine screws
Machine Screw
Page 14 of 16

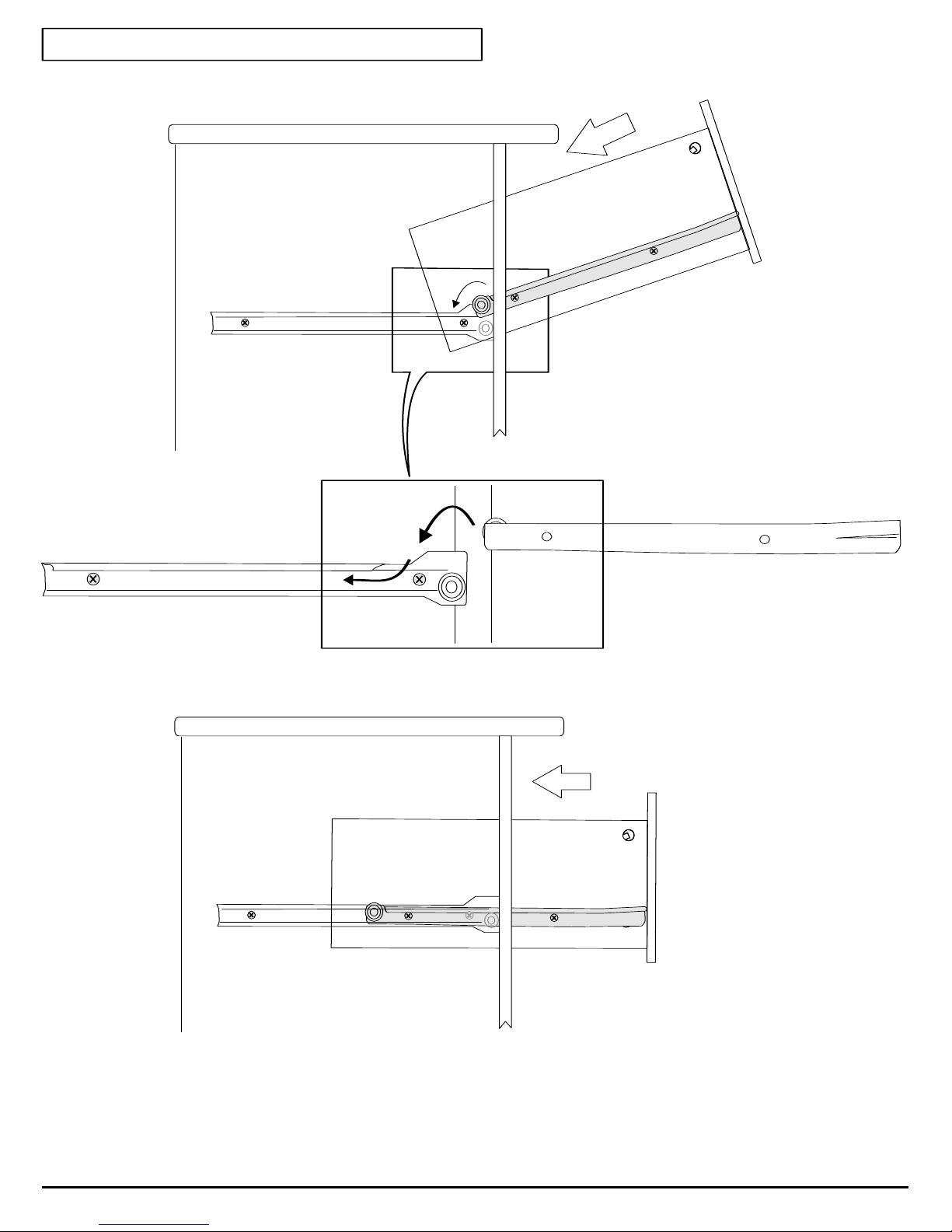

STEP 10
A.
Estimated Time: 2 minutes
Insert drawers
B.
DrawerCabinet
Note: When drawers are installed correctly, you will not be able to
remove them without first lifting up the drawer front.
Page 15 of 16

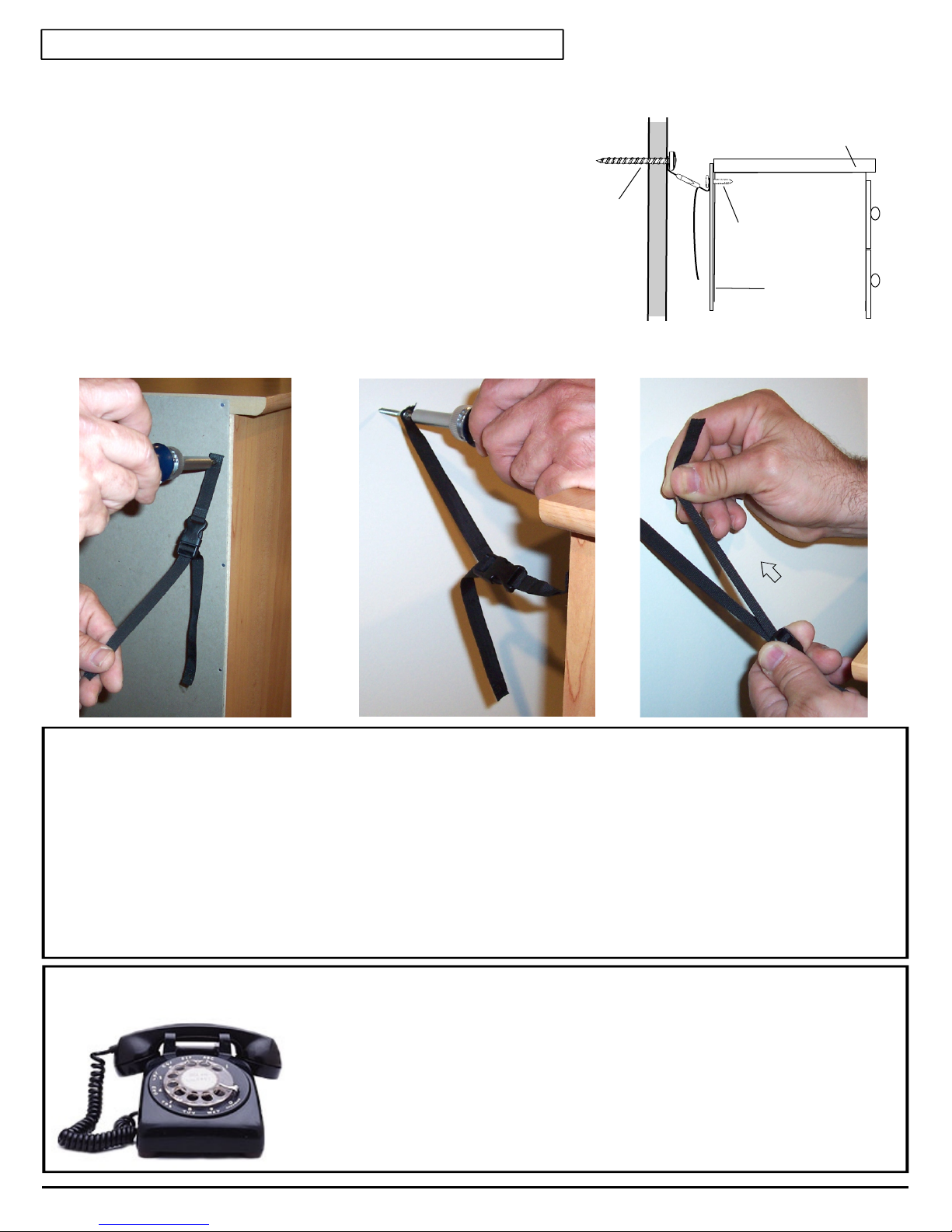

STEP 11
Attaching and Using the Safety Strap
We strongly recommend using a safety strap on all
furniture, especially if small children have access
Secure product to wall using the Safety Strap
and a screw suitable for your wall (Not
supplied)*
We recommend you screw into a stud. If you
cannot locate a stud use a wall anchor
appropriate for your type of wall.
Wall
Top
Use screw suitable for
your wall (not supplied)*
¾” screw provided
Backer
Attach one end of safety strap
to one of the sides
Attach the other end to the wall
Wall
Pull remaining strap to tighten
Tighten
Serrez
Tighten
Furniture Care Q&A
Q. How do I clean your products?
A. We recommend that you simply wipe your products with a clean, damp cloth and then dry immediately with
another clean cloth to maximize the life span and look of your unit
Q. Can I paint or varnish your products?
A. Our products are made from durable composite woods with a laminate finish and therefore should not be
painted or varnished.
Q. Are they waterproof?
A. NO. If liquid is spilled and quickly wiped up, no damage will be done to your product. However, continuous
exposure to liquids or high humidity may cause damage to the board.
Give Us Your Feedback
CALL US
1-877-PREPAC1 (1-877-773-7221)
Mon - Fri 7am - 4pm PST
10am - 7pm EST
Email Us: assembly@prepacmfg.com
Thanks!
Page 16 of 16
