Prentice 2570, 2670 Tier 3 OPERATOR’S MANUAL

Download

Page 1

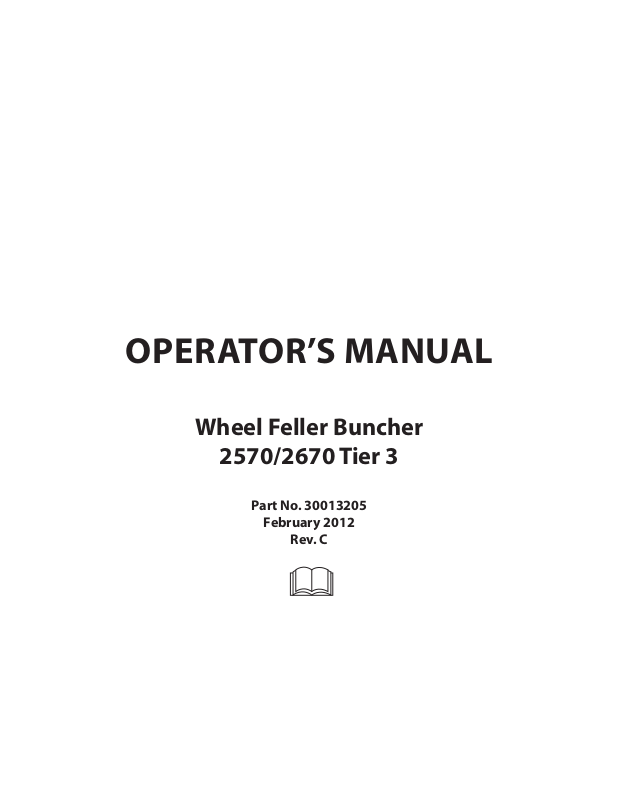

OPERATOR’S MANUAL

Wheel Feller Buncher

2570/2670 Tier 3

Part No. 30013205

February 2012

Rev. C

Page 2

Page 3

to the operator

2570/2670 T3 0109

Page 4

To the Operator

2570/2670 T3

0109

Page 5

to the operator

TO THE OPERATOR

INTRODUCTION

DO NOT USE THIS MACHINE UNLESS YOU HAVE READ AND UNDERSTAND THIS MANUAL, AND HAVE THE NECESSARY TRAINING AND AUTHORIZATION TO OPERATE AND MAINTAIN YOUR MACHINE PROPERLY.

REMEMBER THAT YOU ARE THE KEY TO SAFETY. GOOD SAFETY PRACTICES PROTECT YOU AND THE PEOPLE AROUND YOU. MAKE THIS MANUAL A WORKING PART OF YOUR SAFETY PROGRAM.

2670 Tractor

To safely operate this machine, follow the instructions in this operator’s manual. Directions in this manual are referenced from the operator’s seat facing forward (see diagram below).

FORWARD

LEFT RIGHT

BACK

You can help improve this manual. If you nd any mistakes, or if you know of a way to improve procedures, please let us know. Mail your suggestions or comments to the attention of Technical Publications, Caterpillar Forest Products, Inc., 3249 South County Road 45, PO Box 568, Owatonna, MN 55060-0568.

This operator’s manual includes information available and current at the time of approval for printing. Caterpillar Forest Products, Inc., reserves the right to improve its product without giving prior notice or incurring obligation.

2570/2670 T3 0109

iii

Page 6

To the Operator

CAUTION

NOTICE

DANGER

WARNING

SAFETY SYMBOLS

SAFETY ALERT SYMBOL

The Safety Alert Symbol means

ATTENTION!

BE ALERT! YOUR SAFETY IS INVOLVED!

This safety symbol is used to convey important safety messages. To avoid personal injury and/or property

g.033.02

Understand signal words: DANGER, WARNING, and

CAUTION are used with the SAFETY ALERT SYMBOL.

damage, when you see this symbol, follow the corresponding safety message.

DANGER IDENTIFIES A HAZARD OR UNSAFE PRACTICE THAT WILL RESULT IN SEVERE PERSON AL INJURY OR DEATH.

WARNING identies a hazard or unsafe practice that could result in severe personal injury or death.

CAUTION identies a hazard or unsafe practice that could result in personal injury or property damage.

NOTICE identies important installation, operation, or maintenance information.

2570/2670 T3

0109

Page 7

to the operator

CONTENTS

PRODUCT PROTECTION PLAN .............................................i

Tractor ................................................................................i

Attachment .........................................................................ii

00  TO THE OPERATOR ..........................................................iii

Safety Symbols .................................................................iv

01  GENERAL SAFETY ........................................................1-1

Safety Alert Symbol .....................................................1-1

Operator Preparation ..................................................1-1

Attachment Danger Area ...........................................1-1

Battery Safety .................................................................1-2

Cooling Fan .....................................................................1-2

Discharge Accumulator ..............................................1-3

Drive w/Care ...................................................................1-3

Electric Lines ...................................................................1-4

Electric Storm .................................................................1-4

Fire Prevention/First Aid .............................................1-5

Fluids Under Pressure..................................................1-5

Hand Holds & Steps .....................................................1-6

Hand Signals ...................................................................1-6

Hoses & Fittings .............................................................1-7

Lift Arm Safety ...............................................................1-8

No Riders on Machine .................................................1-8

Operator Safety .............................................................1-9

Practice Safe Maintenance ........................................1-9

Pressure Settings .......................................................1-10

Protective Clothing ...................................................1-10

Protective devices/Equipment ............................. 1-10

Radiator Cap ................................................................1-11

Refueling ....................................................................... 1-11

ROPS/FOPS/OPS Cab Structure ............................ 1-11

Seat Belt ........................................................................1-12

Servicing Control Valves .......................................... 1-12

Servicing Machine w/Engine Running .............. 1-12

Slope Operation .........................................................1-13

Starter Circuitry ..........................................................1-13

Tire Safety ..................................................................... 1-14

Unauthorized Welding ............................................. 1-14

Use Articulation (Frame) Lock ............................... 1-15

02  SAFETY DECALS ...........................................................2-1

Tractor Exterior ..............................................................2-1

Tractor Interior ...............................................................2-2

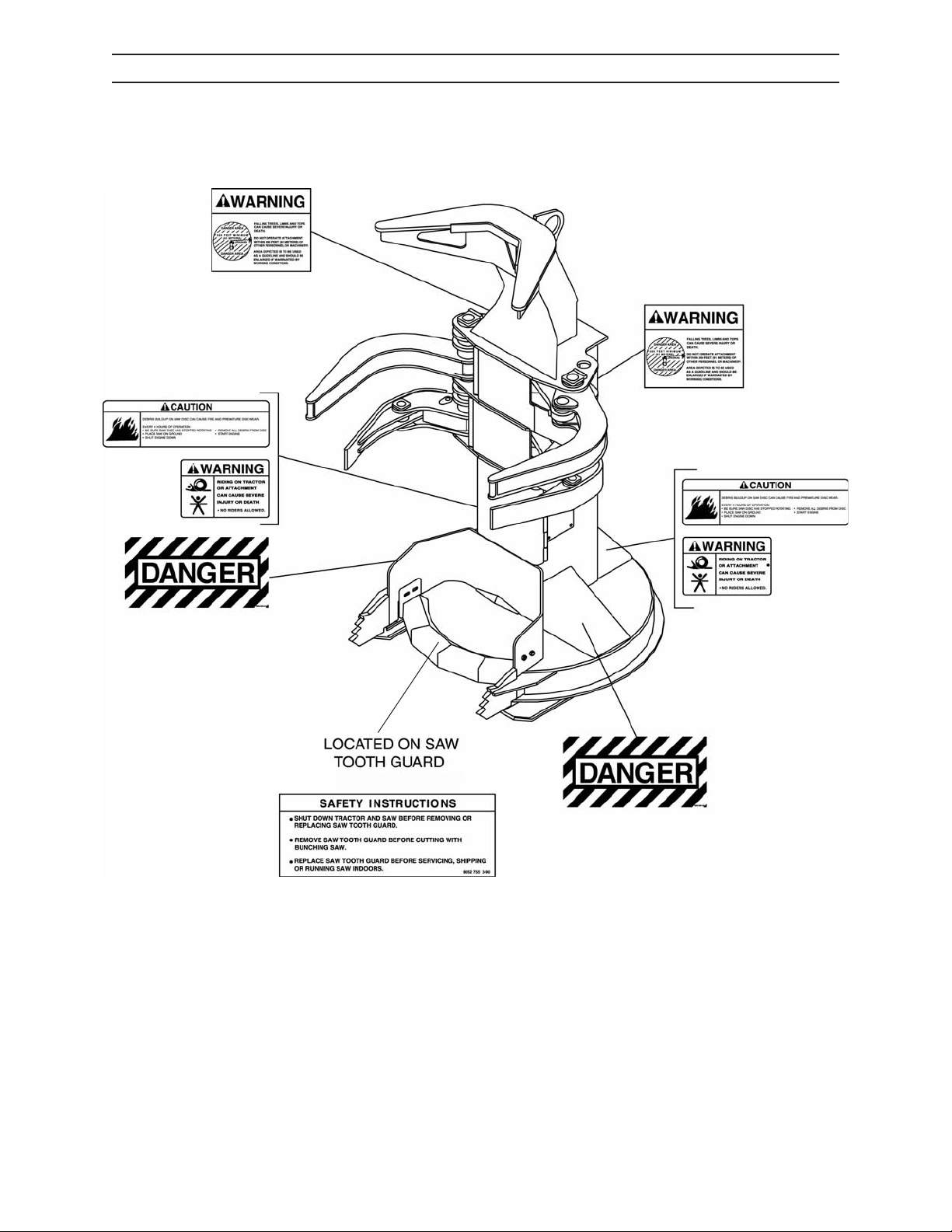

SS56 Bunching Saw......................................................2-3

SH56 Bunching Saw .....................................................2-4

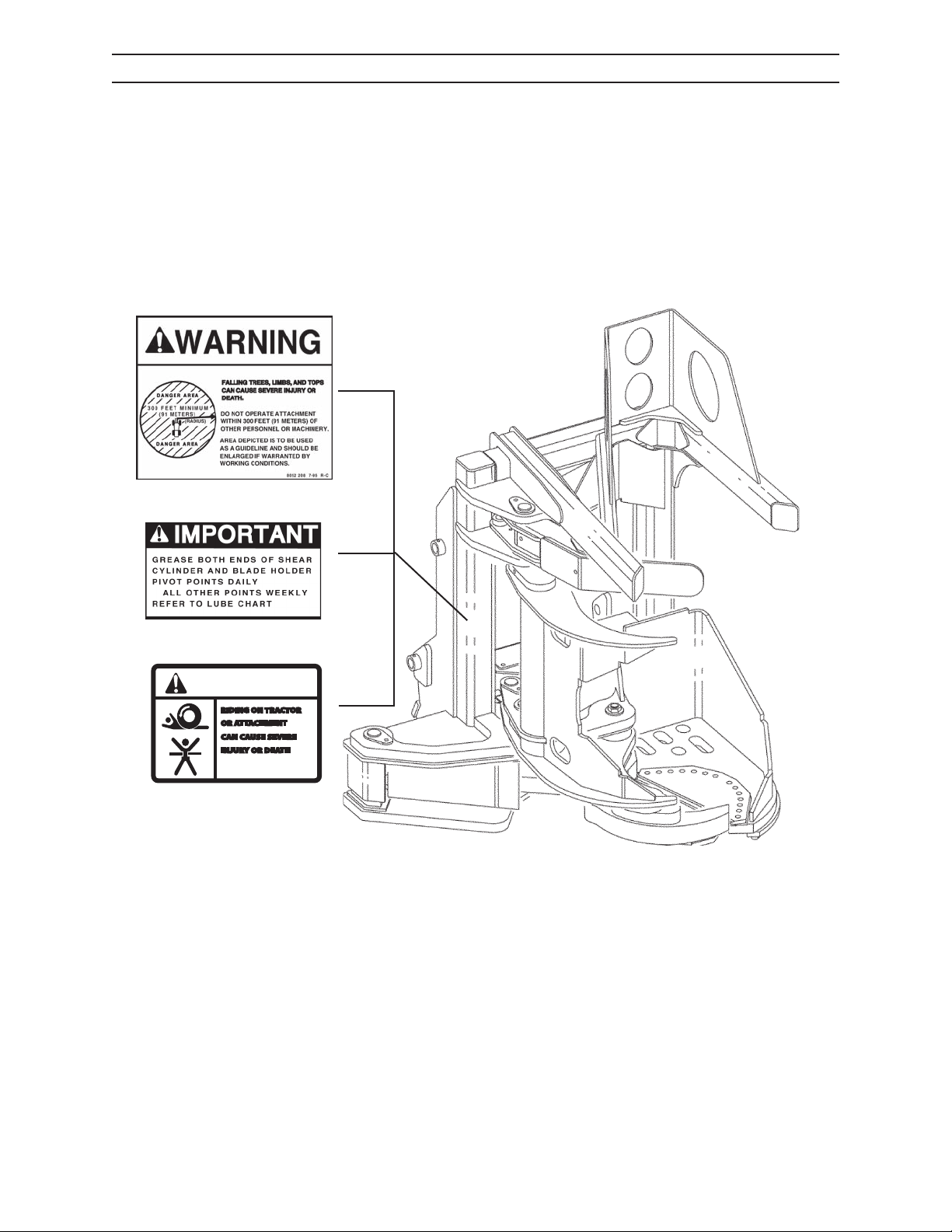

RH54 Shear ......................................................................2-5

SC56 Bunching Saw .....................................................2-6

SH50 Saw .........................................................................2-7

03  COMPONENT TERMINOLOGY .................................3-1

Tractor ...........................................................................3-1

2570/2670 T3 0109

SS56 Bunching Saw......................................................3-2

03  COMPONENT TERMINOLOGY CONT.

SH56 Bunching Saw .....................................................3-3

RH54 Shear ......................................................................3-4

SC56 Bunching Saw .....................................................3-5

SH50 Saw .........................................................................3-6

04  CONTROLS AND INSTRUMENTS ............................4-1

Operator’s Station (Steering Wheel) ......................4-1

Operator’s Station (Joystick Wheel) .......................4-2

Instrument Panel ..........................................................4-3

Right Console .................................................................4-4

Joystick Control RH ......................................................4-5

Bunching Arm Switch .................................................4-6

Joystick Control LH (optional) ..................................4-7

Propel Pedals ..................................................................4-8

Saw/Shear Gathering Arm Pedals ...........................4-8

Brake Pedals ................................................................. 4-10

Throttle ........................................................................ 4-11

Transmission Shift Control ..................................... 4-12

Steering Column ........................................................ 4-13

Seat Belt ........................................................................4-13

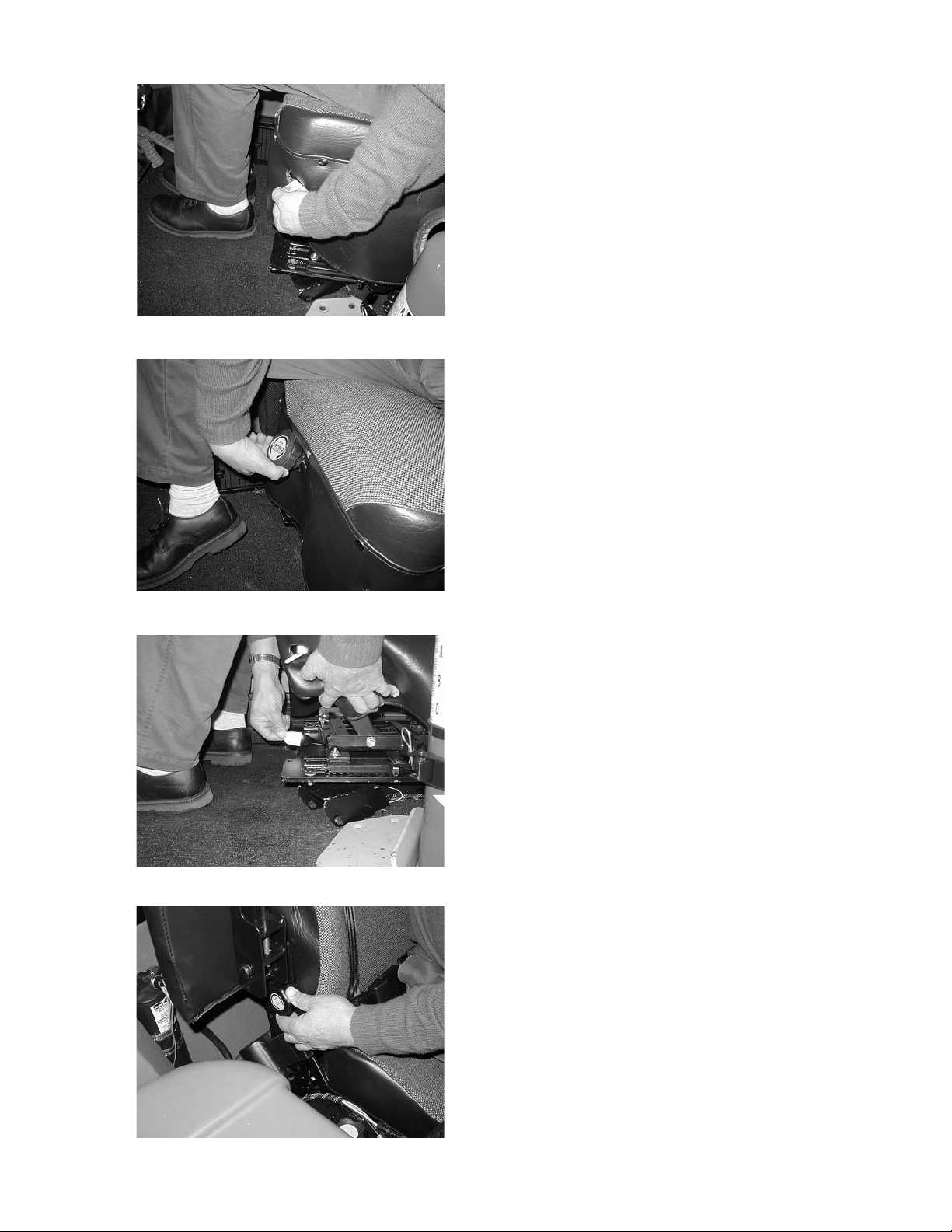

Operator’s Seat ........................................................... 4-14

Axle Dierential Lock ............................................... 4-16

Air Filter Warning Indicator .................................... 4-17

Main Hydraulic Filter Warning Indicator ............ 4-17

Saw Hydraulic Filter Warning Indicator .............4-18

Charge Hydraulic Filter Warning Indicator ....... 4-18

Low Fuel Warning Indicator ................................... 4-18

Fuel Tank Sight Gauges............................................4-19

Engine Oil Pressure Gauge ..................................... 4-19

Water Temperature Gauge ..................................... 4-20

Low Hydraulic Oil Warning Indicator .................. 4-20

Engine Maintenance Warning Indicator ............ 4-20

Wait to Start Warning Indicator ............................ 4-21

Engine Warning Indicator .......................................4-21

Engine Stop Warning Indicator ............................. 4-22

Saw Tachometer ......................................................... 4-22

Hydraulic Oil Reservoir Sight Gauges ................. 4-23

Hydraulic Oil Temperature Gauge .......................4-23

MDDM .................................................................4-24–29

Sidecut Switch ............................................................ 4-30

Engine Start-Attachment On/O Switch .......... 4-31

Ignition Switch ............................................................ 4-31

Hourmeter .................................................................... 4-32

Horn Switch .................................................................4-32

Override Switch .......................................................... 4-32

Lights ........................................................................ 4-33

Air Conditioning/Heater Controls ........................4-34

Cab Heater Temperature Control ......................... 4-35

Auto-shift Switch ....................................................... 4-36

Page 8

contents

To the Operator

Power Outlets ..............................................................4-36

04  CONTROLS AND INSTRUMENTS CONT.

Circuit Breakers ........................................................... 4-37

Master Battery Disconnect Switch ...................... 4-38

Sliding Window .......................................................... 4-38

Emergency Window Exit .........................................4-38

Shut-o Manifold Valve ........................................... 4-39

Articulation Lock ........................................................ 4-40

Cab Tilt Control ........................................................... 4-41

Hydraulic Diagnostic Center .................................. 4-41

05  PRESTART INSPECTION ............................................5-1

Pre-start Checks: On the Ground ............................5-1

Pre-start Checks: In the Cab ......................................5-2

Fire Prevention ...............................................................5-3

06  OPERATION.....................................................................6-1

General Guidelines .......................................................6-1

Operator Preparation ..................................................6-1

Getting on Machine .....................................................6-2

Handholds & Steps .......................................................6-2

Seat Belt ...........................................................................6-2

Starting the Engine .................................................6-3–4

Cold Weather Starting .................................................6-5

Jump-starting Battery .................................................6-6

Warm-up Period ............................................................6-7

Slope Operation ............................................................6-8

Operating the Hydrostatic Transmission .............6-9

Prepare for Operation .................................................6-9

Driving the Tractor .................................................... 6-10

Stopping the Tractor ................................................. 6-11

Service Stopping ........................................................ 6-11

Stopping the Engine/Parking Machine ............. 6-12

Getting O Machine ................................................. 6-13

Operating the SS56 & SH56 Saws

(Single Cut) .......................................................... 6-14

Saw Operation Danger Area ......................... 6-14

Dangerous Operation Practices ................... 6-15

Operation in Rocky Terrain ............................ 6-15

Bunching Saw Start Up ................................... 6-16

Bunching Saw Operation ............................... 6-16

Single Tree Felling ............................................. 6-17

Safety Instructions ............................................6-18

Releasing Trees................................................... 6-19

Felling & Bunching ...........................................6-20

Operating the SH56 Saw

(Double Cut)........................................................ 6-21

Saw Operation Danger Area ......................... 6-22

Dangerous Operation Practices ................... 6-23

Operation in Rocky Terrain ............................ 6-23

Bunching Saw Start Up ................................... 6-24

2570/2670 T3

Bunching Saw Operation ............................... 6-24

06  OPERATION CONT.

Operating the SS56 Bunching Saw

(Double Cut)........................................................ 6-27

Saw Operation Danger Area ......................... 6-27

Dangerous Operation Practices ................... 6-28

Operation in Rocky Terrain ............................ 6-28

Bunching Saw Start Up ................................... 6-29

Bunching Saw Operation ............................... 6-30

Operating the RH54 Shear...................................... 6-32

Shear Operation Danger Area ......................6-32

Safety Instructions ............................................6-32

Shear Operation ................................................6-33

Releasing Trees................................................... 6-35

Felling & Bunching ...........................................6-36

Operating the SC56 Bunching Saw

(Single Cut) .......................................................... 6-38

Saw Operation Danger Area ......................... 6-38

Dangerous Operation Practices ................... 6-39

Operation in Rocky Terrain ............................ 6-39

Bunching Saw Start Up ................................... 6-40

Bunching Saw Operation ............................... 6-40

Single Tree Felling ............................................. 6-41

Safety Instructions ............................................6-42

Releasing Trees................................................... 6-43

Operating the SC56 Bunching Saw

(Double Cut)........................................................ 6-46

Saw Operation Danger Area ......................... 6-46

Dangerous Operation Practices ................... 6-47

Operation in Rocky Terrain ............................ 6-47

Bunching Saw Start Up ................................... 6-48

Bunching Saw Operation ............................... 6-48

Tilting the Cab............................................................. 6-52

Lowering the Cab .................................................. 6-53

Using the Pressurized Water System...................6-55

Using the Override Switch...................................... 6-55

BREAKIN PERIOD .................................................................7-1

Tractor ...........................................................................7-1

Attachment Break-in ...................................................7-2

TRANSPORTING ....................................................................8-1

Loading Instructions ....................................................8-1

FUELS AND LUBRICANTS ...................................................9-1

Fuel 9-1

Engine Oil (Cummins) .................................................9-2

Hydraulic Oil ...................................................................9-3

Transfer Case Lubrication Fluid................................9-3

Axle Fluids .......................................................................9-4

Grease ...........................................................................9-4

Cab Hand Pump Fluid .................................................9-5

Brake Fluid .......................................................................9-5

0109

Page 9

to the operator

Storing Lubricants ........................................................9-6

MAINTENANCE SAFETY .................................................. 10-1

Before Maintenance.................................................. 10-1

Practice Safe Maintenance .....................................10-1

Accumulator ................................................................ 10-2

Hydraulic Safety .........................................................10-2

Lift Arm Safety ............................................................10-3

Protective Clothing ...................................................10-3

Servicing Control Valves, Cylinders,

Pumps & Motors ................................................10-3

Unauthorized Welding ............................................. 10-3

During Maintenance ................................................ 10-4

Battery Safety ..............................................................10-4

Cooling Fan .................................................................. 10-4

Diesel Exhaust ............................................................. 10-5

Fuels & Lubes ...............................................................10-5

Fluids Under Pressure...............................................10-5

Pinch Points ................................................................. 10-5

Servicing Tractor w/Engine Running .................. 10-6

Checking Hydraulic Pressure ................................. 10-6

Tire Safety ..................................................................... 10-6

Use Articulation (Frame Lock) ............................... 10-7

Installing Articulation Lock ....................................10-7

Removing Articulation Lock ..................................10-7

Using Saw Tooth Guard ........................................... 10-8

After Maintenance .................................................... 10-9

Disposing of Waste .................................................... 10-9

Storing Flammable Fluids ....................................... 10-9

SCHEDULED/PERIODIC MAINTENANCE SERVICES 11-1

Lubrication and Maintenance Intervals ............. 11-1

Lubrication Notice ..................................................... 11-1

Position Machine for Maintenance ..................... 11-1

As Required .................................................................. 11-2

Check Electrical System .................................. 11-9

Check/Replace Polycarbonate Front ..................

Window & Skylight .................................11-12

Clean Windshield & Windows .....................11-12

Clean & Replace Cab Filters .........................11-13

Clean Fuel Tank Strainer ...............................11-14

Check Oil Hoses & Fittings ...........................11-14

Bleed Brakes ......................................................11-15

Accumulator .....................................................11-16

Clean A/C Condenser ....................................11-17

Drain & Replace Hydraulic Oil .....................11-17

Daily or Every 10 Hours............................................ 11-3

Daily Visual Inspection ..................................11-18

Check Parking Brake ......................................11-18

Air Cleaner Maintenance ..............................11-19

Check Engine Crank Case Oil ......................11-22

Check Radiator Coolant Level.....................11-23

SCHEDULED/PERIODIC MAINTENANCE SERVICES CONT.

Lube Steering Cylinder Base Ends ............11-24

Lube Rear Axle Front Trunnion ...................11-24

Lube Rear Axle Rear Trunnion ....................11-24

Lube Center Pin Bushings ............................11-24

Lube Lift Cylinder Clevis Pins ......................11-25

Lube Lift Arm Upper Bushings ...................11-26

Lube Lift Arm Lower Bushings ...................11-26

Lube Tilt Cylinder Base Ends .......................11-26

Lube Tilt Cylinder Road Ends ......................11-26

Lube Tilt Cylinder Rod Pins ..........................11-27

Lube Tilt Link Bushings .................................11-27

Lube Notice .......................................................11-27

Clean Belly Pans, Engine Compartment & .......

Side Screens .............................................11-27

Drain Fuel Water Separator ..........................11-29

Inspect Belts ......................................................11-30

Inspect Cooling Fan .......................................11-30

Check Fire Extinguisher Charge .................11-30

Inspect Pressurized Water System ............11-30

Inspect Seat Belt ..............................................11-32

Weekly or Every 50 Hours .......................................11-5

Perform Weekly Inspection .........................11-33

Lube U-Joint, Front Drive Shaft ..................11-34

Lube Pillow Block ............................................11-34

Lube Slip Joint, Front Drive Shaft ..............11-34

Lube U-Joint, Middle Drive Shaft...............11-34

Lube Slip Joint, Middle Drive Shaft ...........11-35

Lube U-Joint, Middle Drive Shaft...............11-35

Lube U-Joint, Rear Drive Shaft ....................11-35

Lube Slip Joint, Rear Drive Shaft ................11-35

Lube U-Joint, Rear Drive Shaft ....................11-36

Lube Steering Shaft Bearing .......................11-36

Check Hydraulic Fluid Level ........................11-36

Tighten Axle Mounting Hardware ............11-38

Tighten Wheel Lug Bolts...............................11-38

Lube Axle Bearings .........................................11-38

Clean Radiator, Oil Cooler & CAC ...............11-39

Check Interlock System .................................11-39

Check Tire Pressure .........................................11-41

Monthly or Every 250 Hours .................................. 11-6

Drain & Replace Engine Oil & Filter ..........11-42

Replace Hydrostatic Pressure Filter ..........11-43

Check Pump Drive Fluid Level ....................11-44

Check 2-Speed Trans Fluid Level ...............11-44

Check Dierential Fluid Level .....................11-45

Battery Service .................................................11-45

2570/2670 T3 0109

vii

Page 10

To the Operator

Check Service Brake Fluid Level .................11-48

Inspect Air Intake & Exhaust System ........11-48

SCHEDULED/PERIODIC MAINTENANCE SERVICES CONT.

Inspect & Lube Seat ........................................11-49

Check & Adjust Tension of A/C .............................

Compressor Belt .....................................11-49

Check & Torque Trunnion Mounting

Bolts.............................................................11-50

Every 500 Hours ......................................................... 11-7

Replace Hydraulic Return Line Filter ........11-51

Check Radiator & Add Conditioner ..........11-52

Replace Fuel Lift Pump Pre-Filter ..............11-53

Replace Primary Fuel Filter ..........................11-53

Bleed the Fuel System ...................................11-54

Replace Pilot Pressure Filter ........................11-55

Replace Coolant Filter ...................................11-56

Replace Inline Load Sense Filter ................11-57

Every 1000 Hours .......................................................11-8

Tighten Motor Mounts ..................................11-58

Tighten Transmission Mounts ....................11-58

Lube Cab Door Hinges ..................................11-58

Drain & Fill Transmission ...............................11-59

Drain & Fill Pump Drive .................................11-60

Change Hydraulic Reservoir Fluid .............11-61

Drain & Fill Dierential ..................................11-62

Flush & Fill Cooling System ..........................11-63

Replace Hydraulic Tank Breather ...............11-64

Seat Maintenance ...........................................11-64

Inspect Drive Belt & Tension ........................11-64

PERIODIC MAINTENANCE ATTACHMENTS .............. 12-1

SS56 Bunching Saw Chart ...................................... 12-1

Every 4 Hours .......................................................... 12-3

Inspect Saw Teeth .................................................12-3

Lube Bunching Arm Pin ...................................... 12-4

Lube Bunching Arm Bushing ............................ 12-4

Lube Bunching Arm Cylinder Road End ........ 12-4

Lube Bunching Arm Cylinder Base End ......... 12-4

Lube Gathering Arm Upper Bunching ........... 12-5

Lube Gathering Arm Cylinder Road End ....... 12-5

Lube Gathering Arm Cylinder Base End ........ 12-5

Lube Gathering Arm Lower Bunching ........... 12-5

Lube Swing Up Guard .......................................... 12-5

Lube Swing Up Cylinder Base End .................. 12-6

Lube Swing Up Cylinder Rod End ....................12-6

Every 50 Hours........................................................ 12-7

Check Saw Tooth Cap Screw Torque ............... 12-7

Every 100 Hours ..................................................... 12-7

Check Saw Disc to Saw Shaft Cap

Screw Torque..............................................12-7

Every 250 Hours ..................................................... 12-8

2570/2670 T3

Check Saw Skid Plate Cap

Screw Torque..............................................12-8

PERIODIC MAINTENANCE ATTACHMENTS CONT.)

Check Saw Motor Housing to

Saw Base Cap Screw Torque .................12-8

Check Saw Motor to Saw Motor

Housing Cap Screw Torque ...................12-8

Check Gathering Arm Upper Retaining

Cap Screw Torque .....................................12-9

Check Saw Disc End Play ....................................12-9

Every 500 Hours ...................................................12-10

Replace Saw Motor Filters ................................12-10

As Required ..........................................................12-11

Replace Saw Teeth ..............................................12-11

Adjust Tachometer Sensor ...............................12-12

Saw Tooth Rotation/Replacement

Guidelines .................................................12-13

SH56 Bunching Saw Chart ....................................12-14

Every 4 Hours .........................................................12-16

Inspect Saw Teeth ...............................................12-16

Saw Shaft Bearings .............................................12-16

Lube Bunching Arm Pin ....................................12-17

Lube Bunching Arm Bushing ..........................12-17

Lube Bunching Arm Cylinder Rod End ........12-17

Lube Bunching Arm Cylinder Base End .......12-17

Lube Gathering Arm Upper Bunching .........12-18

Lube Gathering Arm Cyl Rod End ..................12-18

Lube Gathering Arm Cyl Base End ................12-18

Lube Gathering Arm Lower Bunching .........12-18

Every 50 Hours......................................................12-19

Check Saw Tooth Cap Screw Torque .............12-19

Every 100 Hours ...................................................12-19

Check Saw Disc to Saw Shaft Cap

Screw Torque............................................12-19

Every 250 Hours ...................................................12-20

Check Saw Skid Plate Cap

Screw Torque............................................12-20

Check Saw Motor Housing to

Saw Base Cap Screw Torque ...............12-20

Check Saw Motor to Saw Motor

Housing Cap Screw Torque .................12-20

Check Saw Disc End Play ..................................12-21

Every 500 Hours ...................................................12-22

Replace Saw Motor Filters ................................12-22

As Required ..........................................................12-23

Replace Saw Teeth ..............................................12-23

Adjust Tachometer Sensor ...............................12-24

Saw Tooth Rotation/Replacement

Guidelines .................................................12-25

RH54 Shear Chart .....................................................12-26

viii

0109

Page 11

to the operator

Daily or Every 10 Hours .....................................12-27

Lube Shear Cylinder Base End ........................12-27

Check Torque on Bearing Carrier

Cap Screws ................................................12-44

PERIODIC MAINTENANCE ATTACHMENTS CONT.

Lube Shear Cylinder Rod End..........................12-27

Lube Blade Holder Bushings ...........................12-27

Lube Bunching Arm Pivot Pin .........................12-28

Lube Bunching Arm Paddle Pin .....................12-28

Lube Bunching Arm Cylinder Rod End ........12-28

Lube Bunching Arm Cylinder Base End .......12-28

Lube Gathering Arm Cyl Base End ................12-29

Lube Gathering Arm Cyl Rod End ..................12-29

Lube Gathering Arm Bunching ......................12-29

Every 50 Hours......................................................12-30

Check Shear Blade Gap .....................................12-30

Check Shear Blade Cap Screw Torque ..........12-31

Check Shear Blade Sharpness .........................12-31

SC56 Bunching Saw Chart ...................................12-32

Every 4 Hours ........................................................12-35

Inspect Saw Teeth ...............................................12-35

Saw Shaft Bearings .............................................12-35

Daily or Every 10 Hours .....................................12-36

Lube Bunching Arm Equalizer Bar .................12-36

Lube Bunching Arm Pin ....................................12-36

Lube Bunching Arm Bushing ..........................12-36

Lube Bunching Arm Cylinder Rod End ........12-36

Lube Bunching Arm Cylinder Base End .......12-37

Lube Gathering Arm Upper Bunching .........12-37

Lube Gathering Arm Cyl Rod End ..................12-37

Lube Gathering Arm Cyl Base End ................12-37

Lube Gathering Arm Lower Bunching .........12-38

Lube Bunching Arm Equalizer Bar .................12-38

Check Tooth Sharpness .....................................12-38

Check Arm Cylinder Base Bolts .......................12-39

Check Grapple & Accumulator Arm

Main Pins Tightness ...............................12-39

Check Motor Cover Retaining Cap

Screw Torque............................................12-39

Every 50 Hours......................................................12-40

Check Saw Tooth Cap Screw Torque .............12-40

Check tooth Holder Retaining

Cap Screw Torque ...................................12-41

Every 100 Hours ...................................................12-41

Check Saw Disc to Saw Shaft Cap

Screw Torque............................................12-41

Every 250 Hours ...................................................12-42

Check Saw Disc End Play ..................................12-42

Every 500 Hours ...................................................12-43

Check Torque on Saw Disc

Components ............................................12-43

Grease Saw Motor/Shaft ...................................12-43

Every 2000 Hours .................................................12-44

PERIODIC MAINTENANCE ATTACHMENTS CONT.

Check Torque on Saw Motor

Cap Screws ................................................12-44

Check Torque on Saw Motor Port

Adapter Cap Screws ..............................12-45

Saw Motor Cover Cap Screws .........................12-45

Tree Support Plate Cap Screws .......................12-45

As Required ..........................................................12-46

Replace Saw Teeth ..............................................12-46

Saw Tooth Rotation/Replacement

Guidelines .................................................12-48

STORAGE ...............................................................................13-1

Preparing Tractor for Storage ................................ 13-1

Taking Machine out of Storage ............................. 13-2

TROUBLESHOOTING ........................................................ 14-1

Tractor ........................................................................ 14-1

Engine ........................................................... 14-1–9

Hydrostatic Transmission..................................14-10

Hydraulic System .................................................14-11

Electrical System ..................................................14-11

Saws ......................................................................14-12

Shear ......................................................................14-14

Seat ......................................................................14-14

Contamination of Hydraulic Comp. ..................14-15

SPECIFICATIONS ................................................................. 15-1

Tractor ........................................................................ 15-1

Basic Dimensions of Tractor ................................... 15-2

SS56 Bunching Saw................................................... 15-3

SH56 Bunching Saw .................................................. 15-4

RH54 Shear ................................................................... 15-5

SC56 Bunching Saw .................................................. 15-7

Hydraulic Connection Torque Specications

SAE 37° Flare Connection ................................... 15-7

O-Ring Face Seal Connection ............................ 15-8

Torque Chart for Fasteners ..................................... 15-9

Cylinder Torque Specications ...........................15-10

SERIAL NUMBERS .............................................................. 16-1

2570/2670 T3 0109

Page 12

To the Operator

NOTES

2570/2670 T3

0109

Page 13

GENERAL SAFETY

WARNING

GENERAL SAFETY

Do not operate machine without reading and understanding this operator’s manual.

SAFETY ALERT SYMBOL

Read all safety messages.

To avoid personal injury and/or property damage, follow safety messages.

G.033.02

OPERATOR PREPARATION

G.100.05

Operator must be fully trained, qualied, and authorized to operate this machine. Before operating this machine, operator must know the location and purpose of

• controls

• indicator lights

• instruments

• safety and instruction decals, see Safety De-

cals section in this manual

ATTACHMENT DANGER AREA

Flying debris, falling trees, limbs, and tops can cause severe personal injury or death. Do not operate attachment within three hundred (300) feet (91 meters) of personnel or machinery.

2570/2670 0109

G.011.02

1-1

Page 14

GENERAL SAFETY

WARNING

BATTERY SAFETY

sive gases.

G.019.02

eration. Always connect positive (+) to positive (+) and negative (-) to negative (-). For further instructions, see Jump Starting Battery in Operation section. If battery acid contacts eyes, ush them with water for 15 minutes and seek immediate medical attention.

Battery acid is poisonous and can cause severe burns. If acid is taken internally, call a physician immediately. If acid contacts skin or clothing, ush with water immediately. Keep batteries away from children.

Batteries produce explo-

G.013.02

Battery posts, terminals, and related accessories contain lead and lead components, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

Never charge a battery or jump start engine if battery is frozen. Warm battery to 60°F (16°C) or it may explode. Be sure vent caps are tight. When jump starting from another machine, be sure machines do not touch. This machine has a 12-volt starting system. Use equal voltage for jump starting.

COOLING FAN

Rotating fan can cause severe personal injury or death. Cooling fan can start at any time, even with the motor o. Keep away from cooling fan at all times.

2570/2670 0109

1-2

Page 15

GENERAL SAFETY

WARNING

DISCHARGE ACCUMULATOR

pressure can penetrate skin and cause severe personal injury or death. Charged accumulator can cause unexpected movement of functions with engine o.

DO NOT disconnect hoses or ttings, or attempt to service the hydraulic accumulator or pilot circuit without rst discharging the accumulator.

If ANY uid is injected into the skin, seek medical attention immediately. A serious

G.002.02

infection or reaction can result without proper medical treatment.

Fluids escaping under

DRIVE WITH CARE

Driving machine carelessly or too fast for conditions can result in severe personal injury or death.

ALWAYS wear seat belt, snugly fastened.

DO NOT operate with tires sideways to a slope.

DO NOT speed over rough ground.

DO NOT swiftly turn machine.

Loss of traction can cause operator to lose control of tractor resulting in severe personal injury or death.

ALWAYS wear seat belt, snugly fastened.

2570/2670 0109

1-3

Page 16

GENERAL SAFETY

DANGER

WARNING

ELECTRIC LINES

DEATH WILL RESULT FROM CONTACT WITH ELEC TRIC LINES.

Never move any part of machine or load closer than 10 feet plus twice the line insulator length to electric lines. A line insulator is what connects an electric line to an electric pole.

For example, if a line insulator is 6 inches long, operator must stay at least 10 feet plus 2x the line insulator length (2x6 =12 inches or 1 foot from electric line, which means you must stay at least 11 feet from the electric line).

G.003.02

If machine touches an electric line, stay inside the cab. Carefully move machine or load away from electric line, without pulling the line down.

DO NOT let anyone else touch machine while it is touching an electric line. If it is not possible to move the machine away from the electric line without pulling line down, have someone contact the utility company to disconnect power from line. If this is not possible, or if machine begins to burn, jump away from machine to the ground with both feet together, in one smooth jump. Do not run or walk away from machine. Jump with feet together “bunny hop” away from machine. DO NOT touch machine and ground at the same time or else electricity in the line will go through your body. Get away from machine after jumping.

SERIOUS INJURY OR

Notify the utility company immediately. DO NOT let anyone near machine while it is touching an electric line.

ELECTRICAL STORM

Electrical storms (lightning) can cause severe personal injury or death.

When lightning is striking in the vicinity of the machine, the operator should NEVER attempt the following procedures:

Mount the machine

Dismount the machine

If you are in the operator’s station during an electrical storm, stay in the operator’s station. If you are on the ground during an electrical storm, stay away from the vicinity of the machine.

2570/2670 0109

1-4

Page 17

GENERAL SAFETY

WARNING

CAUTION

FIRE PREVENTION/FIRST AID

injury and/or machine damage.

Keep machine clean. Forest debris, rags, and trash will cause res. Remove all debris, rags, and trash from machine, especially around engine and hydraulic components.

Repair all hydraulic and fuel leaks immediately. Do not operate machine with hydraulic or fuel leaks.

Fire prevention beats re ghting. Remove debris from

G.004.05

all compartments after every eight (8) hours of operation, or more often, if warranted by working conditions.

Never use fuel for cleaning purposes.

Do not expose machine to ames, burning brush or other re hazards.

At the end of each shift ALWAYS stay with the machine for at least 30 minutes after shutting down the engine to ensure there is no forest debris/trash re start up. Keep a re extinguisher ready during this 30 minute cool down.

Fires can cause personal

G.005.02

G.002.02

Install a rst-aid kit in the cab.

Properly maintain rst-aid kit and fully charged re extinguisher. Follow instructions provided with them.

FLUIDS UNDER PRESSURE

Fluids escaping under pressure can penetrate skin and cause severe personal injury or death.

Wear eye and personal protection equipment (PPE)!

Always use a board or cardboard when checking oil hoses, lines, and ttings periodically for leaks, cracks or defects. Be sure all clamps are in their proper position and torqued as required and specied. Be sure hoses are not twisted or touching parts.

DO NOT use hands to search for leaks. Escaping uids can penetrate skin and enter the bloodstream. Before disconnecting lines, relieve all pressure.

2570/2670 0109

DO NOT apply pressure to a damaged line, hose, or tting.

If ANY uid is injected into the skin, seek medical attention immediately. A serious infection or reaction can result without proper medical treatment.

1-5

Page 18

GENERAL SAFETY

WARNING

HAND HOLD AND STEPS

severe personal injury or death.

Use provided hand holds and steps while maintaining at least 3 points of support (1 foot and 2 hands or 2 feet and 1 hand) when getting on and o machine. Face machine when getting on and o of it.

Never use controls as hand holds. Never use steering wheel as a hand hold. Moving the steering wheel from its center position will COMPLETELY turn machine right or left.

Slips and falls can cause

G.006.02

DO NOT mount machine if hand rails or steps are broken or missing. Get them repaired rst.

DO NOT jump on or o machine unless it has touched a live electrical wire and it must be exited.

Ensure rm foot position when getting on and o machine. Be careful of slippery conditions on platform, steps, and hand holds when getting on and o machine.

Remove oil, grease, mud, ice, etc. before mounting or dismounting machine.

To prevent slips and falls, replace skid-resistant material if it is damaged or missing.

HAND SIGNALS

Accidents can cause severe personal injury or death.

Know and use the hand signals required for particular jobs.

2570/2670 0109

Know who has the responsibility for signaling.

G.168.05

1-6

Page 19

GENERAL SAFETY

WARNING

HOSES AND FITTINGS

types of hoses and ttings can blow apart and cause severe personal injury or death.

DO NOT interchange brands or types of hoses and ttings.

DO NOT install a tting from one manufacturer on a hose from a dierent manufacturer.

DO NOT install crimp ttings on hoses meant for reusable ttings.

Wear eye and personal protection equipment (PPE)!

Mismatched brands or

G.007.02

2570/2670 0109

1-7

Page 20

WARNING

DANGER

AREA

GENERAL SAFETY

LIFT ARM SAFETY

Falling lift arm or attachment can cause severe personal injury or death.

DO NOT enter danger area under or around lift arm when either of the following conditions apply:

• attachment is o the ground

• engine is running

G.008.02

G.009.02

NO RIDERS ON MACHINE

Machine riders can fall from machine or be injured by movement of machinery, causing severe personal injury or death.

Do not allow riders on any machine that is operating or moving.

2570/2670 0109

1-8

Page 21

GENERAL SAFETY

WARNING

OPERATOR SAFETY

and/or other material can cause severe personal injury or death.

When operating machine:

G.010.02

Polycarbonate windows MUST be replaced if damaged. For details, refer to Scheduled/Periodic Maintenance Service section.

Flying debris, tree limbs,

1. Keep cab door closed.

2. Polycarbonate window material and/or cab guarding MUST be in place.

3. All cab openings (front, side, and rear) MUST be covered with polycarbonate window material (no glass) and/or protective screen.

4. Window guarding MUST be locked in place.

104.05

PRACTICE SAFE MAINTENANCE

Read service and maintenance manuals and understand service procedures before performing service/ maintenance.

Understand service procedures before performing maintenance. When performing maintenance, keep area around machine clean and dry.

DO NOT service machine while it is moving. Keep away from power-driven parts. Lower attachment to the ground. Disengage power. Shut engine down. Move controls in all directions to relieve hydraulic pressure. Remove key from ignition. Allow machine to cool down.

Support all raised equipment.

Keep all machine parts in good condition, and be sure parts are properly installed. Repair damage immediately. Repair all hydraulic and fuel leaks immediately. Replace worn or broken parts. Remove any buildup of grease, oil, or debris.

Disconnect battery ground cable (-) before repairing the electrical system.

2570/2670 0109

1-9

Page 22

GENERAL SAFETY

WARNING

PRESSURE SETTINGS

sure can cause component or structural failure, which may result in severe personal injury or death.

DO NOT exceed factory-adjusted pressure settings.

G.012.02

PROTECTIVE CLOTHING

Excessive hydraulic pres-

G.051.02

Wear OSHA or local governing body approved protective clothing when working on or near this machine, such as

• ear protection • hard hat

• gloves • orange vest

• goggles • steel-toed shoes

Wear snug, protective clothing that is belted where required.

Remove jewelry before working on or near this machine.

PROTECTIVE DEVICES/EQUIPMENT

Misuse, interference and ignorance of protective equipment or devices can cause severe personal injury or death.

2570/2670 0109

Alarms, re prevention equipment, ROPS/FOPS/OPS, and other safety equipment is installed on machine for your protection.

Never ignore, disconnect, disable or modify protection equipment in any manner.

1-10

Page 23

GENERAL SAFETY

WARNING

CAUTION

RADIATOR CAP

can cause scalding burns.

Allow system to cool. Wear gloves. Remove cap slowly.

G.014.02

REFUELING

Pressurized cooling system

G.015.02

Fires and explosions can cause severe personal injury or death.

Handle fuel with care. It is highly ammable.

DO NOT refuel machine while smoking or when near open ame or sparks.

Always stop engine before refueling. Fill fuel tank outdoors. Prevent res by keeping machine clean of trash, grease, and debris. Always clean up spilled fuel.

ROPS/FOPS/OPS CAB STRUCTURE

Altering ROPS/FOPS/OPS structure can cause severe personal injury or death.

2570/2670 0109

If ROPS/FOPS/OPS structure is damaged (bent or cracked), it should be inspected by your Caterpillardealer or by a factory representative. Replace ROPS/ FOPS/OPS structure if it fails inspection. Do not alter ROPS/FOPS/OPS structure.

G.016.02

1-11

Page 24

GENERAL SAFETY

WARNING

SEAT BELT

can cause severe personal injury or death.

To reduce risk of personal injury resulting from a roll over or sudden stop, always wear a seat belt fastened snugly when operating machine.

This machine can change directions rapidly. It can start and stop quickly. See Operation section, in this manual for instructions on properly using your seat belt.

G.017.02

SERVICING CONTROL VALVES

A roll over or sudden stop

Increasing relief valve settings could cause machine or component failure resulting in severe personal injury or death. Do not switch lines from one valve to another.

Special tools and training are required to service control valves, cylinders, pumps and motors. If these parts need service, see an authorized dealer.

SERVICING MACHINE WITH ENGINE RUNNING

Servicing machine with engine running can cause severe injury or death. Shut down engine and relieve hydraulic pressures before servicing unless procedure requires engine running. When maintenance procedure requires engine running, ONLY qualied service technicians should service machine.

2570/2670 0109

1-12

Page 25

GENERAL SAFETY

WARNING

DANGER

SLOPE OPERATION

can cause machine to tip over resulting in severe personal injury or death.

ALWAYS wear seat belt snugly fastened.

DO NOT operate with tires sideways to a slope.

On all slopes, only operate with machine pointed up or down the slope.

slope can cause operator to lose control of tractor and roll over, resulting in severe personal injury or death.

Operation across a slope

Loss of traction on a steep

10 feet

G.018.02

3 feet

G.050.02

ALWAYS wear seat belt, snugly fastened.

DO NOT operate machine on slopes exceeding thirty (30) percent (16.7° angle from horizon). A thirty percent slope can be visualized by a three (3) foot rise in a ten (10) foot distance.

STARTER CIRCUITRY

MACHINE WILL START IN

GEAR IF START CIRCUITRY IS BYPASSED.

2570/2670 0109

Do not attempt to start machine engine by shorting starter circuit across starter terminals. Doing so may cause unintended machine movement which could result in severe personal injury or death and serious machine and/or property damage.

G.0SS.05

1-13

Page 26

GENERAL SAFETY

WARNING

NOTICE

WARNING

TIRE SAFETY

severe personal injury or death. DO NOT attempt to mount a tire without the proper equipment and experience to do the job.

Have tires mounted by an authorized dealer or by a qualied repair service.

Maintain proper tire pressure. DO NOT inate tires above recommended pressure.

A tire explosion can cause

G.020.02

UNAUTHORIZED WELDING

Unauthorized welding can cause structural failure and/or severe personal injury or death.

DO NOT weld on any structural member. Any unauthorized welding or repair will void the Warranty.

Once authorized, turn battery disconnect switch OFF and place welding ground (stinger) as close to the weld site as possible. Do not allow weld current to pass through bearings, bushings or pivot points.

Welding can cause damage to the electrical system.

2570/2670 0109

1-14

Page 27

GENERAL SAFETY

WARNING

USE ARTICULATION FRAME LOCK

with a person in center hinge crush point area, severe personal injury or death could occur.

Moving steering wheel could COMPLETELY turn machine right or left.

Do not use steering wheel as a handhold when mounting or dismounting machine.

NEVER stand in this area with engine running.

Install articulation lock BEFORE performing service or

101.05

maintenance.

If steering is activated

G.021.02

2570/2670 0109

1-15

Page 28

GENERAL SAFETY

NOTES

2570/2670 0109

1-16

Page 29

SAFETY DECALS

NOTICE

IMPROPERLY SECURED CAB LATCH PINS CAN CAUSE SEVERE INJURY OR DEATH.

WHEN CAB IS COMPLETELY LOWERED INTO BRACKETS, BOTH RETAINING LOCK PIN PLATES AND ALL FOUR CAB LATCH PIN CAP SCREWS (GRADE 8) WITH LOCKWASHERS MUST BE SECURELY TIGHTENED TO ENSURE PROPER LOCKING AND ROLLOVER PROTECTION (ROPS).

WARNING

10059878 11-*00

CAUTION

PRESSURIZED COOLING SYSTEM. CAN CAUSE SCALDING BURNS.

ALLOW SYSTEM TO COOL. REMOVE CAP SLOWLY WITH GLOVES ON.

10008922

CAUTION

THE BUILD UP OF DEBRIS INCREASES THE RISK OF FIRE. REMOVE DEBRIS FROM ALL COMPARTMENTS AFTER EACH 8 HOURS OF OPERATION OR MORE OFTEN IF WARRANTED BY WORKING CONDITIONS.

IN CASE OF FIRE STOP VEHICLE LOWER ATTACHMENT STOP ENGINE APPLY PARKING BRAKE EXTINGUISH FIRE

10052746 9-96

CAUTION

PRESSURIZED WATER SYSTEM

10059929 11-00

1. PRESSURIZE WATER SYSTEM WITH COMPRESSED AIR TO A MAXIMUM PRESSURE OF 65 PSI

2. RELEASE PRESSURE BEFORE REMOVING TANK FILL PLUG

3. RELEASE PRESSURE BY LIFTING STEM ON RELIEF VALVE ON TANK FILL PLUG

4. RECHARGE WATER SYSTEM IMMEDIATELY AFTER USE

5. TO PREVENT FREEZING, ADD A NON-TOXIC RECREATIONAL VEHICLE PLUMBING ANTI-FREEZE

6. PERFORM ALL REQUIRED MAINTENANCE ON WATER SYSTEM AS SPECIFIED IN THE SERVICE MANUAL

WARNING

FLUID ESCAPING UNDER PRESSURE

CAN PENETRATE SKIN AND CAUSE

SEVERE PERSONAL INJURY.

DO NOT DISCONNECT HOSES OR FITTINGS, OR ATTEMPT SERVICING THE HYDRAULIC ACCUMULATOR OR PILOT CIRCUIT WITHOUT FIRST DISCHARGING THE ACCUMULATOR.

10055037REV A11-97

WARNING

RIDIN G ON TR ACTOR

OR ATTACH MENT

CAN CAUSE S EVERE

INJUR Y OR D EATH

¥ NO RIDER S ALLOW ED.

10051508 1-96

IF STEERING IS ACTIVATED WITH PERSON IN CENTER HINGE "CRUSH POINT" AREA, SEVERE INJURY OR DEATH COULD OCCUR.

TRACTOR IS EQUIPPED WITH "QUICK STEER" SYSTEM AND MOVING THE STEERING WHEEL COULD COMPLETELY TURN THE TRACTOR RIGHT OR LEFT.

DO NOT USE STEERING WHEEL OR JOYSTICK AS A HAND HOLD WHEN MOUNTING OR DISMOUNTING TRACTOR.

INSTALL THE ARTICULATION LOCK BEFORE PERFORMING SERVICE OR MAINTENANCE.

NEVER STAND IN THIS AREA WITH ENGINE RUNNING.

WARNIN G

10051314 11-00

SAFETY DECALS

The following safety decals are located in positions on the machine as continual reminders of HAZARDS. Serious injury or property damage can occur if safety instructions are not followed.

Keep all safety decals clean and readable. Use a soft cloth, water, and soap to clean decals if they are too dirty to read. DO NOT clean safety decals with solvent. Solvent can damage them.

Replace safety decals immediately if they are damaged, missing, or hard to read. Contact your authorized dealer for replacement safety decals. Your authorized dealer will provide free replacement safety decals if you provide a valid serial number for your machine.

If you replace a part that has safety decal, apply a new safety decal to the replacement part. Before putting a new decal on the machine or part, be sure the surface where decal will be mounted is clean and dry.

2 REQUIRED

STAY BACK 300 FEET

4 REQUIRED

D.003.02

2 REQUIRED

D.009.02

2 REQUIRED

D.008.02

LH SIDE ONLY

D.004.02

2 REQUIRED

D.173.03

2 REQUIRED

D.005.02

D.007.02

2 REQUIRED

2570/2670 T3 0109

2-1

D.006.02

Page 30

SAFETY DECALS

DEBRIS COMING THROUGH CAB OPENINGS CAN CAUSE SEVERE INJURY OR DEATH

FLYING DEBRIS, FALLING TREES, LIMBS, AND TOPS CAN CAUSE SEVERE INJURY OR DEATH.

CONTACTING ELECTRIC LINES WITH LIFT ARM, ATTACHMENT, OR LOAD CAN CAUSE SEVERE INJURY OR DEATH.

UNLAWFUL TO OPERATE THIS MACHINE, LIFT ARM, ATTACHMENT, OR LOAD WITHIN 10 FEET, PLUS 2 TIMES LINE INSULATOR LENGTH, OF ANY ELECTRIC LINE.

DO NOT OPERATE ATTACHMENT WITHIN 300 FEET (91 METERS) OF PERSONNEL OR MACHINERY.

WHILE OPERATING MACHINE:

KEEP CAB DOOR CLOSED.

ALL CAB OPENINGS (FRONT, SIDE AND REAR) MUST BE COVERED WITH LEXAN@ WINDOW MATERIAL (NO GLASS) AND/OR PROTECTIVE SCREEN.

DAN G ER AR EA

30 0 FE ET M IN IM UM

(91 METERS)

FAILURE TO WEAR SEAT BELT CAN CAUSE SEVERE PERSONAL INJURY OR DEATH.

FAILURE TO PROPERLY CENTER THE SEAT BELT MAY RESULT IN FAILURE OF THE SEAT BELT TO LOCK, ALLOWING THE OPERATOR TO FALL FORWARD CAUSING SERIOUS INJURY OR DEATH.

ALWAYS WEAR SEAT BELT (ADJUSTED UNTIL SNUG) WHILE OPERATING THIS MACHINE.

WARNING WARNING

WARNING

10051398 Rev A 1-97

WARNING

UNSAFE OPERATION OR MAINTENANCE CAN CAUSE SEVERE INJURY OR DEATH.

DO NOT OPERATE OR WORK ON THIS MACHINE WITHOUT READING & UNDERSTANDING THE OPERATOR'S MANUAL.

FALLING ATTACHMENT OR UNINTENDED TRACTOR MOVEMENT CAN CAUSE SEVERE INJURY OR DEATH.

ALTERING ROPS/FOPS/OPS STRUCTURE CAN CAUSE SEVERE PERSONAL INJURY OR DEATH.

DEBRIS COMING THROUGH CAB OPENINGS CAN CAUSE SEVERE INJURY OR DEATH

WHILE OPERATING MACHINE:

KEEP CAB DOOR CLOSED.

ALL CAB OPENINGS (FRONT, SIDE AND REAR) MUST BE COVERED WITH LEXAN@ WINDOW MATERIAL (NO GLASS) AND/OR PROTECTIVE SCREEN.

IF ROPS/FOPS/OPS STRUCTURE IS DAMAGED (BENT OR CRACKED), IT SHOULD BE INSPECTED BY YOUR DEALER OR BY A FACTORY REPRESENTATIVE. REPLACE ROPS/FOPS/OPS STRUCTURE IF IT FAILS INSPECTION. DO NOT ALTER ROPS/FOPS/OPS STRUCTURE.

BEFORE DISMOUNTING FROM MACHINE:

MOVE THE MACHINE TO LEVEL GROUND.

LOWER ATTACHMENT TO THE GROUND.

SET PARKING BRAKE.

SHUT OFF MACHINE.

RELIEVE HYDRAULIC PRESSURE.

REMOVE KEY FROM STARTER SWITCH.

DAN G ER AR EA

30 0 FE ET M IN IM UM

(91 METERS)

FAILURE TO WEAR SEAT BELT CAN CAUSE SEVERE PERSONAL INJURY OR DEATH.

FAILURE TO PROPERLY CENTER THE SEAT BELT MAY RESULT IN FAILURE OF THE SEAT BELT TO LOCK, ALLOWING THE OPERATOR TO FALL FORWARD CAUSING SERIOUS INJURY OR DEATH.

ALWAYS WEAR SEAT BELT (ADJUSTED UNTIL SNUG) WHILE OPERATING THIS MACHINE.

WARNING WARNING WARNING

WARNING WARNING

DO NOT USE ETHER

ENGINE EQUIPPED WITH ELECTRIC HEATER STARTING AID. USE OF ETHER MAY CAUSE EXPLOSION AND SEVERE INJURY.

WARN I NG

10062491 02/02

EMERGENCY WINDOW EXIT

SAFETY INSTRUCTIONS

1. Loosen knobs until window guard releases.

2. Push against window until window falls out.

10062968 8/02

D.014.02

2570/2670 T3

ON DASH

D.017.02

INSIDE

LH & RH CAB DOOR

2 REQUIRED

2-2

D.016.02

0109

Page 31

D.011.02

WARNING

RIDIN G ON TR ACTOR

OR ATTACH MENT

CAN CAUSE S EVERE

INJUR Y OR D EATH

¥ NO RIDER S ALLOW ED.

10051508 1-96

SAFETY DECALS

SS56 SAW

2 REQUIRED

D.006.02

2 REQUIRED

(1 decal on guard)

DANGER

D.013.02

2 REQUIRED

G.022.02

D.012.02

2 REQUIRED

2570/2670 T3 0109

2-3

Page 32

SAFETY DECALS

WARNING

RIDIN G ON TR ACTOR

OR ATTACH MENT

CAN CAUSE S EVERE

INJUR Y OR D EATH

¥ NO RIDER S ALLOW ED.

10051508 1-96

SH56 SAW

2 REQUIRED

D.012.02

DANGER

D.006.02

2 REQUIRED

g.024.02

2570/2670 T3

2 REQUIRED

2-4

D.013.02

2 REQUIRED (1 located on guard)

0109

Page 33

D.012.02

WARNING

RIDIN G ON TR ACTOR

OR ATTACH MENT

CAN CAUSE S EVERE

INJUR Y OR D EATH

¥ NO RIDER S ALLOW ED.

10051508 1-96

SAFETY DECALS

RH54 SHEAR

D.015.02

D.006.02

G.026.02

2570/2670 T3 0109

2-5

Page 34

SAFETY DECALS

SC56 SAW

2570/2670 T3

2-6

g.102.02

0109

Page 35

SH50

2 REQUIRED

WARNING

RIDIN G ON TR ACTOR

OR ATTACH MENT

CAN CAUSE S EVERE

INJUR Y OR D EATH

¥ NO RIDER S ALLOW ED.

10051508 1-96

10062719 5/02

CAUTION

DEBRIS BUILDUP ON SAW DISC CAN CAUSE FIRE AND PREMATURE DISC WEAR.

EVERY 4 HOURS OF OPERATION

•

BE SURE DISC HAS STOPPED ROTATING

• PLACE SAW ON GROUND

• SHUT OFF ENGINE

• REMOVE ALL DEBRIS FROM DISC

• START UP ENGINE

DANGER

10069300 Rev 1 03 07

SPRING UNDER STRONG COMPRESSION FORCES. UNAUTHORIZED MAINTENANCE WILL CAUSE SEVERE PERSONAL INJURY OR DEATH.

READ MANUAL FOR PROPER PROCEDURE. DO NOT ATTEMPT MAINTENANCE WITHOUT USING THE COMPRESSION RELEASE TOOL.

NEVER OPERATE SAW WITHOUT CLEAN OUT GUARD PROPERLY PLACED AND SECURED.

OPERATING SAW WITHOUT CLEAN OUT GUARD SECURED IN PLACE CAN CAUSE SEVERE PERSONAL INJURY OR DEATH.

10500863 Rev. 1 0307

WARNING

DANGER

10502218 Rev 1 507

SPRING UNDER STRONG COMPRESSION FORCES. UNAUTHORIZED MAINTENANCE WILL CAUSE SEVERE PERSONAL INJURY OR DEATH.

READ MANUAL FOR PROPER PROCEDURE. DO NOT ATTEMPT MAINTENANCE WITHOUT USING THE COMPRESSION RELEASE TOOL.

SAFETY DECALS

SH50 SAW

DANGER

D.006.02

2 REQUIRED

DANGER

2 REQUIRED

LOCATED ON SPRING TUBE

2570/2670 T3 0109

2-7

D.013.02

Page 36

SAFETY DECALS

2570/2670 T3

2-8

0109

Page 37

COMPONENT TERMINOLOGY

MACHINE

1. Link Arm

2. Tilt Link

3. Tilt Cylinder

4. Front Frame Towers

5. Cab

6. Battery Compartment

7. Side Panels

8. Muer

2570/2670 T3 0109

9. Fuel Tank (RH)

10. Radiator/Oil Cooler/Charged Air Cooler

11. Lift Arm

12. Lift Cylinder

13. Center Joint

14. Rear Axle Trunnions

15. Hydraulic Oil Reservoir (LH)

31

Page 38

COMPONENT TERMINOLOGY

SS56 SAW

G.028.02

1. Main Frame

6. Saw Disc

2570/2670 T3

2. Bunching Arm Cylinder

3. Gathering Arm Cylinder

4. Gathering Arm

5. Saw Tooth

7. Swing-Up Guard

8. Swing-Up Guard Cylinder

9. Saw Motor

10. Bunching Arm

32

0109

Page 39

COMPONENT TERMINOLOGY

SH56 SAW

G.029.02

1. Main Frame

2. Gathering Arm Cylinder

3. Saw Tooth

4. Saw Disc

2570/2670 T3 0109

33

5. Saw Motor

6. Gathering Arm

7. Bunching Arm

8. Bunching Arm Cylinder

Page 40

COMPONENT TERMINOLOGY

RH54 SHEAR

1. Main Frame

5. Gathering Arm

G.034.02

2570/2670 T3

2. Bunching Arm

3. Shear Blade

4. Shear Blade Holder

34

6. Shear Cylinder

7. Gathering Arm Cylinder

8. Bunching Arm Cylinder

0109

Page 41

COMPONENT TERMINOLOGY

SC56 SAW

3 4

g.101.02

1. Top Limiter (optional)

2. Main Frame

3. Gathering Arm Cylinder

4. Bunching Arm Cylinder

5. Gathering Arm

2570/2670 T3 0109

6. Saw Motor

7. Carrying Plate

8. Disc

9. Bunching Arm

35

Page 42

COMPONENT TERMINOLOGY

SH50 BUNCHING SAW

4, 5

1. Main Frame

2. Outer Bunching Arm

6. Saw Motor

7. Bunching Link Arm Assembly

2570/2670 T3

3. Gathering Arm

4. Saw Disc

5. Saw Tooth

8. Cam

9. Tree Limiter Wrapper Plate

36

0109

Page 43

CONTROLS AND INSTRUMENTS

OPERATOR’S STATION STEERING WHEEL

g.030.02

A. Parking Brake B. Left Dash Panel C. Service Brake Pedal D. Master Cylinder E. Right Dash Panel F. Hourmeter G. Gathering Arm Control - Open H. Gathering Arm Control - Close I. Reverse Propel Pedal J. Forward Propel Pedal K. Auxiliary Power Outlet L. Right Console

2570/2670 T3 0109

M. Steering Wheel N. Seat O. Joystick Control P. Dierential Lock - Front Axle Q. Bunching Arm Control Switch R. Transmission Shift Lever S. Throttle T. Circuit Breakers U. Battery Disconnect Switch V. Pressurized Water System W. Fire Extinguisher

4-1

Page 44

CONTROLS AND INSTRUMENTS

OPERATOR’S STATION JOYSTICK STEERING

C D

2570/2670 T3

A. Parking Brake B. Left Dash Panel C. Service Brake Pedal D. Master Cylinder E. Right Dash Panel F. Hourmeter G. Gathering Arm Control - Open H. Gathering Arm Control - Closed I. Reverse Propel Pedal J. Forward Propel Pedal K. Auxiliary Power Outlet L. Transmission Shift Lever M. Right Console

G.169.02

N. Joystick Control - LH O. Simultaneous Gathering and Bunching Arm

Open Switch P. Gathering Arm Control Switch Q. Seat R. Joystick Control S. Dierential Lock - Front Axle T. Bunching Arm Control Switch U. Throttle V. Circuit Breakers W. Battery Disconnect Switch X. Pressurized Water System Y. Fire Extinguisher

42

0109

Page 45

CONTROLS AND INSTRUMENTS

INSTRUMENT PANEL

LEFT DASH PANEL A. Low Hydraulic Oil Warning Indicator B. Water Temperature Gauge C. Dierential Lock Warning Indicator D. Parking Brake Warning Indicator E. Engine Maintenance Indicator F. MDDM G. Ether Start Switch H. Wait to Start Indicator I. Engine Warning Indicator J. Engine Stop Indicator

RIGHT DASH PANEL K. Low Fuel Indicator Light L. Saw Hydraulic Filter Warning Indicator M. Engine Oil Pressure Gauge N. Air Filter Warning Indicator O. Main Hydraulic Filter Warning Indicator P. Charge Hydraulic Filter Warning Indicator Q. Engine Start/Attachment Run Switch R. Ignition Switch S. Hydraulic Oil Temperature Gauge T. Saw Tachometer (optional) U. Auxiliary Power Outlet

G.171.02

2570/2670 T3 0109

4-3

Page 46

CONTROLS AND INSTRUMENTS

RIGHT CONSOLE

A. Hourmeter B. Not Used C. Not Used D. Heat/AC Temperature Control Knob E. Heat/AC Selection Switch F. Rear Axle Dierential Lock G. Not Used H. Fan Speed I. Hydrostatic Transmission Hi/Lo

2570/2670 T3

G.170.02

J. Light Switch K. Throttle L. Not Used M. Not Used N. Horn Switch O. Sidecut Saw Switch (option) P. Override Switch Q. Circuit Breaker Panel R. Auxiliary Power Outlet

44

0109

Page 47

CONTROLS AND INSTRUMENTS

JOYSTICK CONTROL  RIGHT HAND RH

Use the joystick control lever to regulate the lift arm and attachment as follows:

A. Lift arm down

B. Lift arm up

C. Tilt attachment forward

D. Tilt attachment back

E. Lift arm down - attachment tilt forward

F. Lift arm up - attachment tilt back

G.045.02

G. Lift arm up - attachment tilt forward

H. Lift arm down - attachment tilt back

The control lever is self-centering and will return to neutral when handle is released.

G.036.02

G.044.02

G.036.02

G.044.02

2570/2670 T3 0109

4-5

G.046.02

Page 48

CONTROLS AND INSTRUMENTS

BUNCHING ARM SWITCH

The rocker switch (A) located on top of the right hand (RH) joystick controls the opening and closing of the

bunching arms.

056.02

057.02

001.02

SAW

Depressing switch to the left closes the bunching arm (A).

Depressing switch to the right opens the bunching arm (B).

SHEAR

2570/2670 T3

058.02

059.02

Depressing switch to the left closes the bunching arm (A).

Depressing switch to the right opens the bunching arm (B).

46

0109

Page 49

CONTROLS AND INSTRUMENTS

JOYSTICK CONTROL  LEFTHAND LH OPTIONAL

5/670.002.02

Left Hand Joystick - Quick Dump Button

G.040.02

G.037.02

LEVER

Use the left hand joystick control lever to operate the tractor steering and gathering arm (optional) as follows:

A. Steer right

B. Steer left

TOGGLE SWITCH

Use the toggle switch to operate the attachment gathering arm as follows:

C. Gathering arm - close

D. Gathering arm - open

G.041.02

BUTTON

Depress the quick dump button (E) at the same time to open both the gathering arm and bunching arm.

E. Quick dump button

G.038.02

2570/2670 T3 0109

4-7

Page 50

CONTROLS AND INSTRUMENTS

PROPEL PEDALS

Depress pedal (A) for forward travel.

Depress pedal (B) for reverse travel.

Forward and reverse speeds are innitely variable from: Low range 0 to 5 mph (0 to 8 kph) High range 0 to 14 mph (0 to 22 kph)

5/670.003.02

SAW/SHEAR GATHERING ARM PEDALS

The gathering arm pedals open and close the gathering arm.

2570/2670 T3

5/670.003.02

48

0109

Page 51

060.02

CONTROLS AND INSTRUMENTS

SAW

Depressing pedal (C) opens the gathering arm.

Depressing pedal (D) closes the gathering arm.

061.02

063.02

SHEAR

Depressing pedal (D) closes the gathering arm. Continuing to hold pedal (D) down will cause shear blades to close. As pressure increases to shear the tree, pressure also increases on gathering arm to hold the tree.

Depressing pedal (C) opens the gathering arm. Continuing to hold pedal (C) down opens the right shear blade rst, then the left.

.062.02

2570/2670 T3 0109

4-9

Page 52

CAUTION

NOTICE

CONTROLS AND INSTRUMENTS

BRAKE PEDALS

travel in one direction by depressing the pedal for the opposite direction may cause machine to come to a stop and to move abruptly in the opposite direction. Dynamic braking is best controlled by simply removing your foot from propel pedals.

dynamic braking

Remove foot from propel pedals (A). This results in

5/670.003.02

dynamic braking.

EMERGENCY OR SERVICE BRAKE

Depress pedal (B) for emergency or service braking.

Trying to stop machine

PARKING BRAKE

DO NOT operate machine with parking brake set. Doing so will damage parking brake and may cause a re.

To set parking brake, pull lever (C) up to the vertical, locked position.

To release parking brake, push lever down completely.

The parking brake indicator (D) will light when parking brake handle is in the vertical and locked position.

5/670.004.02

Parking brake must be set to start engine, and must be completely released to propel machine. If parking brake does not function in this manner, immediately contact yan authorized dealer for system repair.

2570/2670 T3

410

0109

Page 53

NOTICE

CONTROLS AND INSTRUMENTS

THROTTLE

Operate engine at FULL throttle.

Engine must run at FULL throttle for the following reasons:

1. Doing so ensures proper cooling of engine and

hydraulic system.

2. Doing so ensures proper volume and pressure of

oil to hydrostatic components.

3. Doing so ensures full oil ow to hydraulic circuits.

The throttle (A) controls governed engine speed from low idle to full governed speed as follows:

Full Load Low Idle rpm Governed rpm

2570 Cummins 950 2400

2670 Cummins 1000 2200

INCREASING ENGINE SPEED

Push the toggle switch forward and hold to increase engine speed. The engine speed with ramp up while the toggle switch is depressed forward.

DECREASING ENGINE SPEED

Push toggle switch back and hold to decrease engine speed. The engine speed will ramp down while the toggle switch is depressed to the rear.

Throttle can be ne-tuned by momentarily depressing the throttle toggle switch in the corresponding direction.

2570/2670 T3 0109

4-11

Page 54

NOTICE

CAUTION

NOTICE

CONTROLS AND INSTRUMENTS

TRANSMISSION SHIFT CONTROL

Shifting while tractor is moving will cause transmission damage and VOID your warranty. When shifting transmission,

• completely stop tractor,

• make sure propel pedals are in neutral position,

• depress throttle switch to LOW IDLE position, and;

• move transmission shift lever to desired position.

The 2-speed transmission is a non-sychronous gear type. Transmission must ONLY be shifted with machine at a complete stop, propel pedals in NEUTRAL, and engine at LOW IDLE.

1. Completely stop machine.

2. Make sure propel pedals are in NEUTRAL position.

3. Depress throttle switch (A) to LOW IDLE position.

92603.05

5/670.054.02

4. Once tractor is completely stopped, move shift

lever into HIGH (B) or LOW (C)

5. Tractor may need to be articulated to complete

the shift. Do not use propel pedals to align gears. Doing so will cause transmission damage.

If you are using joystick steering, to complete the shift, you may have to articulate (steer) and slowly depress and release shift control button to desired gear position multiple times while steering.

When parking tractor, always lower attachment to the ground and set parking brake. DO NOT rely on the transmission to hold machine while parked.

2570/2670 T3

5/670.055.02

412

0109

Page 55

CONTROLS AND INSTRUMENTS

WARNING

STEERING COLUMN

ADJUSTING TELESCOPING STEERING COLUMN

5/670.008.02

SEAT BELT

1. Push lever (A) to unlock column.

2. Position steering wheel to desired height.

3. Release lever.

Make sure steering column is locked before operating.

ADJUSTING STEERING COLUMN TILT

1. Pull lever (A) UP to unlock steering column.

2. Move steering wheel to desired position.

3. Release lever.

Failure to wear seat belt

can cause severe personal injury or death. Failure to properly center seat belt may result in failure of the seat belt to lock, allowing operator to fall forward, causing serious injury or death.

Always wear seat belt, adjusted snugly, while operating this machine.

BEFORE OPERATING THIS MACHINE

1. Use the seat adjustments for proper operating control and comfort.

2. Test seat belt for holding and release action.

3. Fasten seat belt and adjust until snug.

2570/2670 T3 0109

4-13

Page 56

CONTROLS AND INSTRUMENTS

OPERATOR SEAT

Adjust your operator’s seat using the following guidelines.

g.141.02

ADJUSTING ARMREST

5/670.237.02

Rotate control knob to select desired armrest angle.

Pivot armrest up and parallel with backrest when not in use.

ADJUSTING BACKREST

Rotate control knob to select desired backrest position.

2570/2670 T3

5/670.238.02

414

0109

Page 57

CONTROLS AND INSTRUMENTS

ADJUSTING SEAT HEIGHT

Firmly lift up and hold adjustment lever until lever releases.

While holding lever in the UP position, adjust seat to desired height by adding or removing your body weight to the front or rear of seat cushion.

Firmly push DOWN on lever until seat locks (a click will be heard).

5/670.239.02

ADJUSTING SEAT SUSPENSION

Rotate handwheel until seat cushion is level.

5/670.240.02

5/670.241.02

ADJUSTING SEAT FRONT AND REAR POSITION

Lift lever UP and hold.

Slide seat to desired position.

Release lever.

ADJUSTING LUMBAR SUPPORT

Rotate handwheel to desired position.

5/670.242.02

2570/2670 T3 0109

4-15

Page 58

NOTICE

CONTROLS AND INSTRUMENTS

AXLE DIFFERENTIAL LOCK

The dierential lock directs power equally to both wheels on the axle by locking out the dierential. This prevents the usual loss of traction when one wheel is slipping.

Lock the front and rear axles ONLY in low traction conditions. Axle damage can result if dierential is locked at all times.

Dierential can be locked or unlocked “on the y.”

LOCKING FRONT AXLE

Front Axle Dierential Lock

Rear Axle Dierential Lock

5/670.001.02

92603.05

Depress button (A) on right hand joystick control. Differential lock indicator (C) will light when front axle is locked.

UNLOCKING FRONT AXLE

Release button (A) on right hand joystick control.

LOCKING REAR AXLE

Depress bottom portion of dierential switch (B). Differential lock warning indicator (C) will light when rear axle is locked.

UNLOCKING REAR AXLE

Depress top portion of dierential switch (B).

PROPER OPERATION OF DIFFERENTIAL LOCKS

1. For best maneuverability and the least strain on

power train, run with both axles unlocked whenever possible.

2. Engage front axle dierential only as needed.

3. In severe terrain, lock rear dierential.

2570/2670 T3

5/670.016.02

Dierential Lock Warning Indicator

416

0109

Page 59

CONTROLS AND INSTRUMENTS

AIR FILTER WARNING INDICATOR

The air lter warning indicator (A) will light when engine air lter is plugged and requires cleaning or replacement. Once air lter is serviced, indicator light will go o.

In high humidity conditions, indicator may register a false reading.

See Scheduled/Periodic Maintenance Services section, for proper air lter maintenance.

MAIN HYDRAULIC FILTER WARNING INDICATOR

The main hydraulic lter warning indicator (B) lights when the hydraulic return line lter is restricted and requires replacement. Once lter is serviced, indicator light will go o.

The indicator will light at initial start up until hydraulic oil reaches normal operating temperature.

If indicator continues to light, oil is bypassing the return line lter and going directly into the tank without being ltered through the return line lter.

Return line lter should be changed immediately to prevent damage to hydraulic components. See Scheduled/Periodic Maintenance Services section for proper lter replacement.

2570/2670 T3 0109

4-17

Page 60

CONTROLS AND INSTRUMENTS

NOTICE

SAW HYDRAULIC FILTER WARNING INDICATOR

When hydraulic lter warning indicator (A) lights, the saw hydraulic lter is plugged and needs to be replaced. Refer to Periodic Maintenance - Attachments

section for proper servicing of lter. Once lter is serviced, indicator light will go o.

In cold temperatures, indicator may register a false reading.

Applicable to tractors equipped with SS56, SH56, SH50 or SC56 saws only.

CHARGE HYDRAULIC FILTER WARNING INDICATOR

When lter warning indicator (A) lights, the charge

hydraulic lter is plugged and needs to be replaced. For proper lter replacement, refer to Scheduled/Periodic Maintenance Services section. Once the lter is serviced, indicator light will go o.

In cold temperatures, indicator may register a false reading.

Applicable to tractors

equipped with SH48, SH56, SS56 or SC56 saws only.

LOW FUEL WARNING INDICATOR

The low fuel warning indicator (B) will light when there is approximately ten (10) gallons (37.8 L) of fuel left in the tank. Fill tank immediately.

DO NOT allow a diesel

engine to run out of fuel. Doing so will cause engine damage.

2570/2670 T3

418

0109

Page 61

CONTROLS AND INSTRUMENTS

NOTICE

FUEL TANK SIGHT GAUGES

The fuel tank has two sight gauges. If fuel is visible in the top gauge (A) you have a full tank; if fuel is not visible in the bottom gauge (B) fuel should be added. It takes approximately 29 gallons (110L) of diesel fuel to raise fuel level from the bottom to the top gauge.

ENGINE OIL PRESSURE GAUGE

in ten (10) to fteen (15) seconds at start up, stop engine and check the lubricating oil system.

At normal operating temperature, needle will point to the green zone (A).

If the needle moves to the red zone (B), or if the low pressure indicator (C) lights, shut engine down immediately and contact an authorized dealer for diagnosis

5/670.027.02

and repair.

For more information, refer to your engine operator’s manual.

guarantee a sucient amount of oil in the engine oil pan. Check engine oil level by observing level on the engine oil dipstick.

If NO oil pressure is indicated

Oil pressure DOES NOT

2570/2670 T3 0109

4-19

Page 62

NOTICE

CONTROLS AND INSTRUMENTS

WATER TEMPERATURE GAUGE

Failure to reduce load with the needle in the red zone or with the high temperature

5/670.028.02

warning indicator lit could cause premature engine failure or damage.

At normal operating temperature, the needle will point in the green zone (A).

If the needle moves to the red zone (B), or of the high temperature indicator (C) lights, reduce load immediately and adjust throttle to low idle. Shut down engine and check for coolant leakage and/or plugged radiator.

LOW HYDRAULIC OIL WARNING INDICATOR

The low hydraulic oil warning indicator light (A) will light when there is approximately 31 gallons (117 L) of hydraulic oil left in the reservoir.

Fill reservoir immediately to prevent damage to the hydrostatic/hydraulic components.

5/670.276.02

To ll hydraulic reservoir, refer to Scheduled/Periodic Maintenance Services section.

ENGINE MAINTENANCE WARNING INDICATOR

The maintenance warning indicator (B) will light up when an error has been sensed by the engine electronic control module.

When the indicator lights, refer to Troubleshooting section for a complete list of error codes and causes.

2570/2670 T3

5/670.276.02

420

0109

Page 63

CONTROLS AND INSTRUMENTS

WAIT TO START WARNING INDICATOR

The wait to start warning indicator (A) will light up when the intake manifold air temperature is too low for start up.

When the indicator lights, leave key in the ignition position until indicator light goes out. Then turn the key to start until engine starts.

5/670.276.02

ENGINE WARNING INDICATOR

The engine warning indicator (B) will light up when an error has been sensed by the engine electronic control module.

When the indicator lights, refer to Troubleshooting section for a complete list of error codes and causes.

5/670.276.02

2570/2670 T3 0109

4-21

Page 64

NOTICE

CONTROLS AND INSTRUMENTS

ENGINE STOP WARNING INDICATOR

The engine stop warning indicator (A) will light up when an error has been sensed by the engine electronic control module.

When the indicator lights, refer to Troubleshooting section for a complete list of error codes and causes.

5/670.276.02

SAW TACHOMETER

The saw tachometer registers the attachment motor speed in hundreds of revolutions per minute (rpm). The saw shaft speed is 1300 rpm.

saw disc speed zones

0 - 700 rpm – saw stall zone

700 - 100 rpm – saw caution zone 1000 - 1300 rpm – saw operating zone

rpm. Operating saw above 1300 rpm will shorten hydraulic component life.

Always rotate saw disc between 1000-1300 rpm at start of cut. This will ensure that saw disc will not stall

5/670.024.02

during cut.

Operating saw in the stall zone can cause saw damage. See Operation section for more details.

a Quadco® saw disc, refer to Quadco’s Safety and Operating Guide for proper saw disc speeds and maintenance.

DO NOT run saw above 1300

If your saw is equipped with

2570/2670 T3

422

0109

Page 65

CONTROLS AND INSTRUMENTS

NOTICE

HYDRAULIC OIL RESERVOIR SIGHT GAUGES

The hydraulic oil reservoir has two sight gauges.

Top gauge (A)–full

5/670.025.02

Bottom gauge (B)–add

Approximately eleven (11) gallons (41.6 L) of hydraulic oil is required to raise oil level from bottom to top gauge.

HYDRAULIC OIL TEMPERATURE GAUGE

5/670.026.02

system damage can occur if operating for an extended period of time in the yellow zone.

At normal operating temperature, the needle will point to the green zone (C).

If the needle moves to the red zone (D), shut engine down immediately and check for plugged oil cooler.

Possible pump or hydraulic

2570/2670 T3 0109

4-23

Page 66

NOTICE

CONTROLS AND INSTRUMENTS

MDDM

DO NOT operate engine if error code has been displayed. Operating with error can cause system damage.

If error code is displayed on MDDM (A) stop engine and refer to instructions on following pages.

5/670.276.02

2570/2670 T3

424

0109

Page 67

Operating Instructions

The MDDM is simple to use and allows quick and easy navigation through the menu structure to nd the information needed. The MDDM Main Menu Tree (below) rst displays engine data parameters, followed by the sub-menu entry points.

NOTE:

When rst powered up some unused parameters may be displayed by the MDDM. These parameters will be automatically removed from the display after the initialization cycle is complete.

The following two rules are used for accessing the various items on the main menus:

To scroll through the parameter list, press either the UP or Down push buttons.

To select or exit a sub-menu SIMULTANEOUSLY

press

the UP and DOWN push buttons.

MDDM Operating Instructions

Both

Down

Stor

Codes

Units

E-Cong

From Srvc

Codes

Srvc

Codes

From Units

From

E-Cong

Main Menu Tree

Parameters

Sub-Menus

Keys

LCD Display

Parameters Continued

From

Stor

Codes

NOTE: The parameters displayed on the MDDM will vary depending on the engine make and model

ManifTmp

Throttle

........%

FuelEcon

........GHP

OilPress

........PSI

CoolTmp

........ F

CoolTmp

........ F

ServcCode Press

StorCode Press

Units Press

E-Cong Press

Voltage

........ V

Eng Hrs

........ Hrs

Load@RPM

........ %

CONTROLS AND INSTRUMENTS

2570/2670 T3 0109

4-25

Page 68

MDDM Operating Instructions continued

Enter Units

Current Units Screen, displays the current units designation.

Exit

Units

Exit

Units

Line 1 shows the

current units

designation M=Metric,

E=English

Line 2 shows the

current units

designation, full text

Line 1 shows the

current units

designation M=Metric,

E=English

Line 2 shows the

alternate units

selection

Line 1 shows the

current units

designation M=Metric,

E=English

Line 2 shows the

alternate units

selection

Press BOTH keys to select current units and exit sub menu.

Units Sub Menu

Exit

Units

Selecting Engine Data Parameters

To read any of the engine parameters press either the UP or DOWN button until the top line of the display shows the desired information.

Selecting Sub-Menus

Press either the UP or DOWN button until the top line of the display shows the label of the desired Sub-Menu. Then press BOTH the UP and DOWN buttons SIMULTANEOUSLY . This action will select the SubMenu and the next screen on the display will list the Sub-Menu items.

Changing Units of Measure

The MDDM can display engine data in either English or Metric units.

To select English or Metric, the Units Sub-Menu must be selected. To select the Units Sub-Menu, press the UP or DOWN button until the display shows the following label:

Press BOTH

the UP and DOWN buttons SIMULTANEOUSLY

to select the Units Sub-Menu. The Units Sub-Menu Figure (below) shows the steps for selecting the desired units of measure. Two options are available:

1. Press BOTH buttons to retain the current units designation.

2. Press either UP or DOWN button to toggle the units selection, then press BOTH buttons to select the desired unit of measure.

Units Press

Units: E

-English

New Units

-English

New Units

-English

New Units

-Metric

Units: E New: Met

Units: E New: Eng

CONTROLS AND INSTRUMENTS

2570/2670 T3

426

0109

Page 69

CONTROLS AND INSTRUMENTS

Viewing Engine Conguration Data

The MDDM can display the engine conguration data stored in the engine ECM. To select the Engine Conguration Sub-Menu (shown below), press the UP or DOWN button until the display shows the following label.

Press BOTH the UP and DOWN buttons SIMULTANEOUSLY to select the Engine Conguration Sub-Menu. The MDDM will display the engine conguration data as shown in Engine Conguration Sub-Menu. If the Engine Conguration is not available, the display will show:

Enter

E-Cong

To exit the E-Cong Display sub menu:

NOTE: The parameters displayed on the MDDM will vary depending on the engine make and model

Press BOTH keys at ANY time.

Engine Conguration

Sub-Menu

Conguration

Data Continued

MDDM Operating Instructions continued

E-Cong Press

E-Cong N/A

Speed 1

.........RPM

Speed 6

.........RPM

Speed 7

.........RPM

Speed 2

.........RPM

Speed 3

.........RPM

Speed 4

.........RPM

Speed 5

.........RPM

Torque 1

.........%

Torque 2

.........%

Torque 3

.........%

Torque 4

.........%

Torque 5

.........%

Gov Gain

.........%

Ref Torq

.........f/#

Time Limt

.........sec

Lo Limit

.........RPM

Lo Limit

.........%

Hi Limit

.........RPM

Hi Limit

.........%

2570/2670 T3 0109

4-27

Page 70

CONTROLS AND INSTRUMENTS

V iewing Active Engine Service Codes

The MDDM continuously monitors all messages broadcast over the SAE J1939 Control Area Network (CAN) and displays all Active Service Codes at the time the message is broadcast. When a fault occurs the display will show the message "SrvcCode" every ve seconds interrupting the currently displayed parameter. In addition, the amber LED will be illuminated during Active Service Code warning faults, and the red LED will be illuminated during shutdown faults. These warnings will continue until the fault clears.

To view the Active Service Codes select the Service Code SubMenu by pressing the UP or DOWN button until the display shows the following label:

Press both the UP and DOWN buttons SIMULTANEOUSLY to select the Service Code Sub-Menu. The MDDM will display all Active Service Codes as shown in the Service Codes Menu schematic (below). If Service Codes are not available, the display will show the following:

Enter

SrvcCodes

First SPN, FMI combination

Last SPN, FMI combination (n)

Exit

SrvcCodes

User may exit the Service Code Display routine by pressing BOTH keys Simultaneously at any time.

Service Codes Sub-Menu

Data A vailable

MDDM Operating Instructions continued

Explanation of SPN & FMI Diagnostic Codes

SPN refers to Suspect Parameter Number and FMI refers to Failure Mode Identier. Both the SPN and FMI are used in the J1939 standard for identication of faults and conditions.

SrvcCode Press

SPN...........

FMI............

SPN...........

FMI............

SPN...........n

FMI............n

SrvcCode No Codes

2570/2670 T3

428

0109

Page 71

Viewing Service Codes in The Engine Control Module (ECM)

The MDDM can request Stored Service Codes (DM2) from the engine. The Stored Service Codes may be used for diagnostic and service needs. To view the Stored Service Codes it is necessary to select the StorCode Sub-Menu by pressing the UP or DOWN button until the display shows the following label.

Press both the UP and DOWN buttons SIMULTANEOUSLY to select the StorCodes Sub-Menu. The MDDM will display the Stored Service Codes according to the menus shown in the schematic below. If Stored Service Codes are not available, the display will show:

Enter

StorCode

First SPN, FMI

combination

Last SPN, FMI combination (n)

Indication of NO DM2 Data.

User may exit the Service Code Display routine by pressing BOTH keys Simultaneously at any time.

Lamp Status

DM2 data is

available

Yes

Stored Codes

(Previously Active Codes)

Sub-Menu

MDDM Operating Instructions continued

StorCode Press

LampStat 0x..

SPN.........i

FMI..........i

SPN.........n

FMI..........n

StorCode No Data

CONTROLS AND INSTRUMENTS

2570/2670 T3 0109

4-29

Page 72

CONTROLS AND INSTRUMENTS

NOTICE

SIDECUT SWITCH SS56 SAW ONLY

To raise guard for directional felling or side cutting:

1. Close bunching arm.

2. Hold sidecut switch (D) in the depressed position while closing gather arm with control pedal (F). Guard will raise as gathering arm starts to fully close.

Be sure to raise guard completely. If guard is not completely raised, damage will occur to guard and guard hydraulics while performing directional felling.

5/670.005.02

Swing-up guard will automatically lower when gathering arm is opened with control pedal (E) and when sidecut switch is not depressed.

5/670.003.02

2570/2670 T3

5/670.015.02

430

0109

0203

Page 73

NOTICE

CONTROLS AND INSTRUMENTS

ENGINE START  ATTACHMENT ON/OFF SWITCH

Cab door must be closed,

Parking brake must be disengaged, and attachment on/o switch must be in ENGINE START position before engine will start.

The engine start - attachment on/o switch (A) must be in ENGINE START position (depress top of switch) before starting machine. Machine will not start if on/o switch is in the ATTACHMENT RUN position.

Saw

To rotate saw disc, depress switch down to ATTACHMENT RUN position while engine is at half to full throttle.

shear

To activate, depress switch down to ATTACHMENT RUN position.

slowly, check to be sure attachment on/o switch is in ATTACHMENT RUN position.

IGNITION SWITCH

and attachment on/o switch must be in ATTACHMENT RUN position before engine will start.

Turn key in ignition switch (B) clockwise (CW) to start machine. Release key when engine starts.

Turn key OFF to shut engine down.

When key is in ACC position, electrical components have power.

If shear appears to operate

Parking brake must be set

2570/2670 T3 0109

5/670.005.02

When leaving machine, be sure ignition switch is in OFF position, and remove key. Doing so will prevent drain on battery.

4-31

Page 74

NOTICE

CONTROLS AND INSTRUMENTS

HOURMETER

The hourmeter (A) registers in full hours and tenths of hours.

5/670.007.02

HORN SWITCH

Press horn switch (B) to sound horn.

92603.05

OVERRIDE SWITCH

If the parking brake switch interlock and/or door switch interlock fail, hold the override switch (A) to steer machine (joystick steering models only), propel machine, and to operate bunching and gathering arms.

When holding down override switch, attachment pump will be disabled resulting in no saw disc rotation or shear function.

2570/2670 T3

92603.05

432

0109

Page 75

CONTROLS AND INSTRUMENTS

LIGHTS

OPERATING LIGHTS

Depress switch (A) to turn operating lights to desired setting:

Top position — lights o

Middle position — two front lights on

Bottom position — two front lights, two side

lights, and two rear lights on.

5/670.007.02

Front and side ood lights.

Rear ood lights.

Dome light

Depress switch (B) to turn dome light on or o.

5/670.031.02

2570/2670 T3 0109

4-33

Page 76

CONTROLS AND INSTRUMENTS

CAUTION

NOTICE

AIR CONDITIONING / HEATER CONTROLS

Your air conditioner con-

tains R-134A refrigerant. Avoid breathing refrigerant and lubricant vapor or mist. Exposure may irritate eyes, nose, and throat.

92603.05

Start and run engine for two (2) minutes before starting air conditioner.

Depress the A/C-heater switch (A) to desired setting:

Top position — heater

Middle position — o

Bottom position — air conditioner

Turn the fan switch (B) to desired fan setting:

Top position — low speed

Middle position — medium speed

Bottom position — high speed

Use temperature control (C) on unit in cab to regulate temperature of the air conditioner. Temperature control must be ON before compressor will engage. Turn control clockwise (CW) for warmer air, and counterclockwise (CCW) for cooler air.

Move louvers to adjust direction of air ow.

2570/2670 T3

434

0109

Page 77

CONTROLS AND INSTRUMENTS

NOTICE

CAB HEATER TEMPERATURE CONTROL

1. With engine OFF and parking brake set, turn heater coolant valve (A) clockwise (CW) to close valve.

2. Open heater valve one-quarter (1/4) turn counter clockwise (CCW).

5/670.032.02

Heater coolant valve may require periodic adjustment depending on ambient (outdoor air) temperature.

3. Start engine. Depress heater switch (B) and fan

switch (C) to test heat adjustment.

4. To make further adjustments to cab temperature,

turn engine OFF, set parking brake, and turn heater coolant valve clockwise (CW) for cooler cab temperature, or counterclockwise (CCW) to stop convection heating inside cab.

In warm weather, it may be necessary to close both heater coolant valves (if equipped

- the other heater valve is located on right side of engine) to stop convection heating inside cab.

92603.05

2570/2670 T3 0109

4-35

Page 78

CONTROLS AND INSTRUMENTS

AUTOSHIFT SWITCH

The auto-shift range selection allows transmission to shift between high and low gear under dierent power situations.

Depress the bottom of switch (A) to select auto-shift range.

Low range maintains hydrostatic transmission in low range.

Depress top of switch (A) to select low range.

5/670.007.02

POWER OUTLETS

5/670.033.02

Shifting between auto shift and low range can be done “on the y.”

Two 12-volt power outlets are provided for electrically powered accessories. To protect battery against accidental discharge, outlets provide power only when key switch is in ON or ACC position.

2570/2670 T3

5/670.034.02

436

0109

Page 79

CONTROLS AND INSTRUMENTS

CIRCUIT BREAKERS

Circuit breakers protect electrical circuits from current overload.

If an overload should occur, circuit breaker will trip, breaking the ow of current, and preventing damage to the circuit.

To reset circuit breaker, depress tripped circuit .

Circuit Breakers

Electrical System Circuit Breakers

5/670.034.02

The main electrical system circuit breaker (A) (150 amp) is located inside the right front side screen, on the battery box. The starter solenoid relay (B) (20 amp) is also located here.

5/670.272.02

There are two breakers located in line of the engine electrical harness.

5/670.272.02

Electrical System Circuit Breakers

2570/2670 T3 0109

4-37

Page 80

WARNING

CONTROLS AND INSTRUMENTS

BATTERY DISCONNECT MASTER SWITCH

When activated, the battery disconnect master switch (D), located behind the operator’s seat

• prevents accidental engine start up when servic-

ing machine,

• prevents accidental battery drain; and,

• helps serve as a vandal deterrent.

Turn switch OFF to shut o or disconnect electrical system.

Turn switch ON to connect electrical system.

5/670.036.02

All systems will shut down when battery disconnect master switch is turned OFF.

SLIDING WINDOW

sliding windows without guarding in place can cause severe injury or death. Never operate machine without window guarding locked in place.

Depress window latches to move window to desired opening.

5/670.037.02

EMERGENCY WINDOW EXIT RH & LH

sliding windows without guarding in place can cause severe injury or death. Never operate machine without window guarding locked in place.

Debris coming through

2570/2670 T3

5/670.038.02

using window exit

1. Loosen window knobs until guard falls out.

2. Push on window until window falls out.

438

0109

Page 81

CONTROLS AND INSTRUMENTS

NOTICE

WARNING

REPLACING EMERGENCY EXIT WINDOW

1. With window guarding removed, place sliding

window frame into door frame.

door frame, use ONLY plastic break-away clips. Using anything other than plastic clips (available from your authorized dealer) will prevent a quick emergency exit.

2. Align holes on door and window frames.

3. Secure window and door frames together by plac-

5/670.042.02

5/670.038.02

ing a clip into aligned frame holes. Lightly tape clip with a hammer until head of clip is against window frame.

4. Repeat Step 3 for remaining three (3) holes to

properly secure sliding window frame to door frame.

5. Replace window guarding by tightening window

knobs until frame is rmly in place.

sliding windows without guarding in place can cause severe injury or death. Never operate machine without window guarding locked in place.

When securing window to

Debris coming through

SHUTOFF MANIFOLD VALVE

Shut-o Manifold Valve Open

9305.06

DO NOT turn shut-o manifold valve to the CLOSED position while engine is running. Serious damage to the hydraulic system will result if oil ow is stopped.

The shut-o manifold valve has two functions:

1. When valve is in the CLOSED position, engine can-

not be started.

2. Valve is used to shut o oil ow from hydraulic res-

ervoir. This allows operator or mechanic to change a hose or make hydraulic repairs without draining the hydraulic reservoir.

Shut-o manifold valve must be fully turned to either OPEN or CLOSED position for proper operation.

2570/2670 T3 0109

4-39

Page 82

CONTROLS AND INSTRUMENTS

NOTICE

ARTICULATION LOCK

before performing service or maintenance around the center hinge area or on the front frame and attachment.

INSTALLING LOCK

1. Remove articulation pin from storage location.

Install articulation pin

2. Place pin through hole in rear frame.

3. Mount cab and start engine.

4. SLOWLY steer machine until pin slides completely

down into front frame hole and bottom rear frame hole.

5. Secure articulation pin with locking pin.

REMOVING LOCK

Be sure to place articulation pin in storage location before propelling machine.

Step 1

Step 2

9237.06

5/670.046.02

2570/2670 T3

Step 1

Step 2

5/670.047.02

1. Remove locking pin from articulation pin.

2. Remove articulation pin from frame and place

in storage location in front of the operator seat. Secure with locking pin.

440

0109

Page 83

WARNING

CONTROLS AND INSTRUMENTS

CAB TILT CONTROL

NEVER get under a tilted cab unless cab is completely tilted in its over-center position. If a hydraulic hose or component failure occurs, cab could accidentally lower unexpectedly and cause serious personal injury.

Move hydraulic pump control lever (A) to raise or lower cab.

For proper cab tilt procedures, see Operation section.

9270.06

HYDRAULIC DIAGNOSTIC CENTER PRESSURE TEST PORTS

The hydraulic diagnostic center (pressure test ports) provides easy access to hydraulic system pressure test ports. It is located inside the left front side screen.

A. B Port Propel Pump B. A Port Propel Pump C. B Port Propel Motor D. A Port Propel Motor E. Charge Pressure

F. Pilot Pressure (DIF Manifold) G. Not Applicable H. Lift/Tilt Pressure I. Not Applicable J. Saw Pump Pressure

2570/2670 T3 0109

4-41

Page 84

CONTROLS AND INSTRUMENTS

2570/2670 T3

442

0109

Page 85

PRESTART INSPECTION

WARNING

NOTICE

PRESTART INSPECTION

Do not use this machine until you read, study, and understand this manual, and learn how to properly operate this machine. Operating this machine without reading, studying, and understanding this manual could result in severe personal injury or death.

Failure to perform a daily inspection of the machine could result in machine damage and severe personal injury.

Inspector’s Initials

Machine Serial NumberDate of Inspection

PRESTART CHECKS: ON THE GROUND

Check fuel level; add fuel if necessary.

Check engine oil level. Add engine oil if necessary.

Check radiator coolant level. Add proper coolant mixture if necessary. Clean radiator of debris.

Check air cleaner. Clean or replace air cleaner/lter if necessary.

Check for protective clothing (wear it) and safety equipment (know where it is).

Check entire machine by performing a thorough walk-around inspection.

Check for loose or missing parts. Tighten loose parts. Replace any missing parts.

Check hydraulic hoses and lines for wear and/or damage. Replace any defective hoses and/or lines.

Check that machine has been properly lubricated as spelled out in the Scheduled/Periodic Maintenance Services section of this manual.

Check shields and guards. They must be in place and undamaged.

Check that safety decals are on machine and that they are readable.

Check that shut-o valves are open.

Check for dirt and grime on all hydraulic components. Clean away dirt and grime to help prevent overheating.

Check for ice, snow, oil, and grease on steps and walkways. Clear away ice, snow, oil, and grease to prevent slips and falls.

Check for any loose skid-resistant mats. Replace mats if they are loose.

Check hydraulic oil reservoir level. Add hydraulic oil to reservoir if necessary.

Check for combustible or ammable materials. Remove them from machine if you nd them.

Check mounting hardware for tightness.

Check that machine will not be near electrical wires. See Operation section, for more information.

Check saw teeth for sharpness and mounting torque. Tighten any loose hardware. Repair or replace any saw teeth if they are damaged.

Check shear blades for sharpness, alignment, or damage. Tighten loose hardware. Repair or replace blades if damaged.

Check belly covers for combustible or ammable materials. Remove such materials if you nd any.

Check that locking cap screws on cab tilt latch pins are secure.

Check front and rear frames for damage, cracks, debris, and other problems. Immediately report any structural problems (cracks) to an authorized dealer for diagnosis and repair or replacement.

Check tires for wear and/or damage. Also check tire pressure.

Check electrical system for worn or frayed wires and loose connections. Repair or replace if necessary.

Check that all lights are in working order.

2570/2670 T3 0109

You can copy the pages in this section. Check o each inspection item before operating machine. File the copy as a record of inspection as required by OSHA or local governing body..

5-1

Page 86

PRESTART INSPECTION

NOTICE

WARNING

PRESTART CHECKS: IN THE CAB

HAND HOLD AND STEPS

severe personal injury or death.

Never use controls as hand holds. Never use steering wheel as a hand hold. Moving the steering wheel from its center position will COMPLETELY turn machine right or left.

DO NOT mount machine if hand rails or steps are broken or missing. Get them repaired rst.

DO NOT jump on or o machine unless it has touched a live electrical wire and it must be exited.

Ensure rm foot position when getting on and o machine. Be careful of slippery conditions on platform, steps, and hand holds when getting on and o machine.

Slips and falls can cause

Remove oil, grease, mud, ice, etc. before mounting or dismounting machine.

Inspector’s Initials

Check that there is no mud or debris on cab oor.

Check for free movement of controls.

Check that safety decals are present and can be clearly read.

Check that all cab polycarbonate windows are clean and clear. Replace any damaged polycarbonate material.

Check that seat belt works properly. Replace worn or damaged seat belt.

Check that re extinguisher is adequately charged.

Check instrument panel for broken gauges and/or broken indicator lights. Have gauges and/or indicator lights repaired if necessary.

Check fuel gauge to be sure machine has enough fuel. Refuel machine if necessary.

Check window emergency exits. All emergency exit knobs should be present and turn freely.

Check ROPS (Rolling Object Protective Structure) and/or FOPS (Falling Object Protective Structure) for damage. See an authorized dealer if damaged.

Check that all items in cab that are not part of the machine, such as lunch boxes or tools, are secured.

Check that parking brake is set.

Place engine/start—attachment run switch to ENGINE START position.

Check that the pressurized water system is fully charged at 65 psi (438 kPa).

Check that the MDDM does not have an error code.

Machine Serial NumberDate of Inspection

2570/2670 T3

You can copy the pages in this section. Check o each inspection item before operating machine. File the copy as a record of inspection as required by OSHA or local governing body.

52

0109

Page 87

PRESTART INSPECTION

CAUTION

NOTICE

FIRE PREVENTION

Fires can cause personal

injury or machine damage.

Keep machine clean. Remove debris, especially from heat sources. Fire prevention beats re ghting. Hourly or daily inspections can reduce the possibility of res.

Forest debris can collect on the machine and cause a re. When forest debris mixes with ammable uids in a hot, conned space, the risk of a re starting greatly increases. KEEP THE MACHINE CLEAN.

Check machine daily for re hazards. Remove debris from areas of the machine that create heat and that are potential re start points. Depending on your machine model, check for ammable debris in the following locations:

• Engine block • Turbocharger

• Exhaust manifold • Battery

• Electrical connections • Control valves

Fire needs fuel. Remove combustible material (fuel for re) from heat sources. Keep the machine clean. Remove the following materials from areas of the machine that create heat:

• Pine needles • Twigs • Debris

• Shop rags • Oil spills • Coolant Mixture

• Leaves • Sticks

• Grease • Bark

• Sawdust • Diesel fuel

Keep the machine clean. Risk of re increases if combustible materials and amma-

ble materials build up on machine. This machine was not designed to house or store combustible materials.

Regularly remove ammable materials (such as diesel fuel, engine oil, hydraulic oil, and grease) from all areas of the machine. Clean up after working. Keep the fuel and hydraulic systems in good repair.

Check hydraulic hoses, fuel lines, and ttings for leaks. Tighten loose ttings. If hoses or lines are bent, kinked, or show signs of wear, install new parts. Check electrical connections to be sure they are clean and secure.

Frayed or worn insulation on battery cables or other wires may lead to electrical res. Check cables and wires and replace if insulation is frayed, worn, or damaged.

Keep water tank pressurized. Check hose for damage; replace if necessary. Make sure hose and valves are clear of rust or sediment and water can ow freely.

the engine to ensure there is no forest debris/trash re start up. Keep a re extinguisher ready during this 30 minute cool down.

2570/2670 T3 0109

At the end of each shift ALWAYS stay with the machine for 30 minutes after shutting down

5-3

Page 88

PRESTART INSPECTION

WHERE ARE FIRES MOST LIKELY TO START?

Fires can start almost anywhere on a logging vehicle. Here are some locations susceptible to re.

Hydraulic Hoses

and Controls

Parking

Brake

Battery Box

Exhaust Manifold

Engine Block

Turbocharger

G.042.05

Transmission

2570/2670 T3

54

0109

Page 89

OPERATION

WARNING

OPERATION

GENERAL GUIDELINES

Only a trained, qualied, and authorized operator shall be allowed to operate this machine. Only use this machine after you have carefully read this manual and have learned how to safely operate and maintain this machine. Unsafe operation can cause severe personal injury or death.

OPERATOR PREPARATION

Operator must be fully trained, qualied, and authorized to operate this machine.

Before running this machine, operator must know the location and purpose of

• controls

• indicator lights

• instruments

100.05

You must be at least eighteen (18) years old to operate this machine (Code of Federal Regulations: Labor).

Never operate this machine while under the inuence of drugs or alcohol. Use of prescription or over-the-counter drugs or medications requires advice from a medical practitioner on whether or not you can safely operate this machine.

Do not operate this machine if you are subject to dizziness, seizures, or motion disturbance.

No riders are allowed on this machine. Machine riders can fall from machine or be injured by movement of machinery, causing severe personal injury or death. Do not allow riders on a machine that is operating or moving.

Follow all safety operating instructions and practices. (See General Safety section.)

Keep machine away from power lines.

If this manual is lost, contact an authorized dealer for a new manual. Keep manual in the cab.

Report any noticeable machine problems to people who can repair the problems before machine is used.

Be sure cab windows are clean before operating machine. Cab windows must be clear of ice and frost. Replace windows that are cracked, yellow, and/or hazy.

• local operating safety rules and procedures

• safety and instruction decals (see Safety Decals

section)

Before using this machine on hills or slopes, see information regarding slope operation in this manual.

Before dismounting from tractor cab, completely stop saw disc rotation by slowly lowering saw disc onto a tree stump. Saw disc continues to rotate even after attachment on/o switch in cab is turned to ENGINE OFF position.

Remember, you are key to the safe operation of this machine.

2570/2670 T3 0109

6-1

Page 90

OPERATION

WARNING

GETTING ON MACHINE

HANDHOLDS AND STEPS

serious personal injury.

Use provided handholds and steps while maintaining at least three (3) points of support (one foot and two hands or two feet and one hand) when getting on and o machine. Face machine when getting on and o it.

Never use controls as handholds. Never use steering wheel as a handhold. Moving steering wheel from its center position will COMPLETELY turn the machine right or left.

DO NOT mount machine if handrails or steps are broken or missing. Get them repaired rst.

Slips and falls can cause

G.006.02

DO NOT jump on or o machine unless machine has touched a live electrical wire and you must leave it.

Ensure rm foot position when getting on and o machine. Be careful of slippery conditions on platforms, steps, and handholds when getting on and o machine.

To prevent slips and falls, replace skid-resistant material if it is damaged or missing.

Remove all grease, mud, ice, etc., before mounting or dismounting.

SEAT BELT

A rollover or sudden stop

can cause severe personal injury or death.

Always wear your seat belt, fastened snugly, when operating machine to reduce the risk of personal injury resulting from a rollover or sudden stop.

2570/2670 T3

G.017.02

This machine can change direction rapidly. It can start and stop quickly.

62

0109

Page 91

OPERATION

NOTICE

STARTING THE ENGINE

5/670.044.02

5/670.004.02

Before starting engine, refer to Pre-Start Inspection section. Be sure shipping/storage plate is removed from exhaust outlet before starting engine.

1. Be sure shut-o manifold valve (A) in rear frame

is open (see Controls and Instruments section, for proper valve operation).

2. Close cab door and fasten seat belt snugly.

3. Remove foot from propel pedals before attempt-

ing to start engine.

4. Set parking brake (B). Engine will not start if park-

ing brake is released.

If engine starts when parking brake is released,

the interlock system is not working as intended. Shut engine down and contact an authorized dealer immediately for system repair.

5. Turn battery disconnect switch (C) ON. The battery

disconnect switch is located behind operator’s seat.

6. Move attachment on/o switch (D) to ENGINE

START position. Engine will not start if switch is in ATTACHMENT RUN position.

If engine starts when the attachment on/o

switch is in ATTACHMENT RUN position, the interlock system is not working as intended. Shut engine down and contact an authorized dealer immediately for system repair.

2570/2670 T3 0109

5/670.036.02

5/670.005.02

6-3

Page 92

OPERATION

NOTICE

WARNING

STARTING THE ENGINE

5/670.005.02

7. Turn key clockwise to ING position. Verify that the

WAIT START indicator is not lighted. If WAIT START indicator is lit, see COLD WEATHER START procedure in this section.

Never try to start engine by pushing or towing machine. Attempting to start engine by towing or pushing machine will result in damage to your hydrostatic transmission.

8. Turn key clockwise to START position (A). Release

key when engine starts. If engine fails to start within thirty (30) seconds, turn key to OFF position and wait at least two (2) minutes to allow starting motor to cool.

If engine fails to start after four (4) attempts,

troubleshoot and correct the problem.

DO NOT turn key to START while engine is run-

ning. Doing so can cause damage to starter.

9. Run engine at half throttle (B) and no load for

approximately ve (5) minutes to allow engine to warm up.

10. After allowing engine and hydraulic compo-

nents adequate warm up time, run engine at full throttle.

11. Before driving machine, release parking brake (C).

If machine can be propelled with parking brake engaged, the interlock system is not working as intended. Shut engine down and contact an authorized dealer immediately for system repair.

2570/2670 T3

64

0109

Page 93

OPERATION

WARNING

COLD WEATHER STARTING

Cummins engine is

490.276.02

equipped with a grid air heater. DO NOT use starting uid under any circumstances. Using starting uid on an engine equipped with a grid air heater may cause a re and/or explosion that will result in serious damage to equipment and may cause serious personal injury or death.

cold weather starting procedure

If the engine temperature is less than 45°F (7°C), the grid air heater system should be activated as outlined below.

1. Close cab door and fasten seat belt snugly.

2. Engage parking brake.

3. Turn key clockwise to ING position. The WAIT

START indicator (A) will light. Wait for the WAIT START indicator to go out.

4. Turn key clockwise to START position (B). Release

key when engine starts. If engine fails to start within thirty (30) seconds, turn key to OFF position and wait at least two (2) minutes to allow starting motor to cool.

If engine fails to start after four (4) attempts,

troubleshoot and correct the problem.

DO NOT turn key to START while engine is run-

ning. Doing so can cause damage to starter.

2570/2670 T3 0109

6-5

Page 94

OPERATION

WARNING

JUMP STARTING BATTERY

If the engine will not crank, batteries may need a jump start.

sive gases.

Keep sparks, ames, and cigarettes away from batteries. Ventilate properly when charging or using batteries in enclosed space. Always shield eyes with goggles and wear a face shield when working near batteries. Do not lean over batteries during this operation. Always connect positive (+) to positive (+) and negative (-) to negative (-). For further instructions, see Jump Starting Battery in

G.019.02

G.013.02

Operation section. If battery acid contacts eyes, ush them with water for 15 minutes and seek immediate medical attention.

Battery posts, terminals, and related accessories contain lead and lead components, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

ing.

Batteries produce explo-

2570/2670 T3

Machine

Battery

Booster

Battery

JUMP STARTING PROCEDURE

1. Turn battery disconnect switch OFF. Remove key

from ignition switch.

2. Clamp one end of rst booster cable to positive

terminal of discharged battery (A) (terminal connected to starter or solenoid).

3. Clamp other end of rst booster cable to positive

terminal of booster battery (B).

G.060.02

4. Clamp one end of second booster cable to nega-

tive terminal of booster battery (C).

5. Clamp other end of second booster cable to en-

gine block or frame of machine (D) (to keep sparks away from either battery).

6. Insert key in ignition switch. Turn battery discon-

nect switch ON.

7. After starting engine, remove booster cables in re-

verse order from how you put them on. To prevent sparks, keep booster cable clamps from touching.

66

0109

Page 95

NOTICE

OPERATION

WARM UP PERIOD

Before operating, warm up hydraulic system using the following procedures:

1. Run engine at 1/2 throttle for 3-5 (three to ve)

minutes.

2. Hold bunching arm rocker switch (A) either left or

right for ten (10) minutes. Then the opposite way for ten (10) seconds. Repeat.

3. Hold bunching arm rocker switch (A) then in the

opposite direction for ten (10) minutes.

4. Cycle all hydraulic functions for at least ten (10)

5/670.001.02

minutes. Do not cycle hydraulic cylinders to the end of their stroke for the rst ten (10) minutes.

falls below 15°F (-9°C) for extended time periods, an external heat source for engine and hydraulic system may be required for start up.

When ambient temperature

Below 25°F (-4°C), proper engine warm up is essential to minimize cavitation. Cold, thick oil cannot ow fast enough to the pump to meet its output demand.

2570/2670 T3 0109

6-7

Page 96

OPERATION

WARNING

SLOPE OPERATION

can cause machine to tip over and may result in severe injury or death. Loss of traction on a steep slope can cause operator to lose control of machine resulting in a roll over, which may cause severe injury or death.

DO NOT operate with tires sideways to a slope. Travel straight up and down, that is, with tires pointed up and down the slope.

ALWAYS wear seat belt snugly fastened.

Operation across a slope

G.018.02

following conditions for safe operation can lead to severe injury or death.

Failure to observe the

3’

10’

1. Always wear seat belt snugly fastened.

2. Before beginning felling operation, operators must become familiar with a sloped logging site by walking the site and carefully noting the slope, ground conditions, ditches, drop-os, and other hazards.

3. It is impossible to anticipate various conditions an operator may face while harvesting felled trees on slopes. Therefore, operators should use extreme caution and conservative operating procedures to avoid risks caused by operating in unstable conditions.

4. Successful and safe slope harvesting operations depend on

• operator skill, judgement, and experience,

• knowing that sudden or jerky machine movement may cause a loss of stability on even

small inclines,

• knowing that smooth, controlled movement is best,

G.061.02

5. On ALL slopes, work only up and down the slope with tires pointed up and down the slope. DO NOT attempt

6. The machine should not be turned on slopes.

7. Operation of this machine on slopes greater than 30% (16.7°) is not recommended because of the strong

8. Local slope conditions may dictate a lower safe slope limit than 30% (16.7°).

2570/2670 T3

• avoiding soil conditions that could limit traction, such as wet or muddy soil, compacted dirt, or rocky

conditions,

• avoiding terrain conditions that could lead to instability of machine, loss of control, or roll over, such as

slopes, ditches, stumps, and other uneven ground conditions; and,

• using tires with good, unworn tread.

side slope operations.

potential for loss of stability resulting in personal injury or death. A 30% slope can be visualized by a three (3) foot rise in a ten (10) foot distance.

68

0109

Page 97

OPERATION

NOTICE

OPERATING THE HYDROSTATIC TRANSMISSION

Variable speed of the hydrostatic transmission is controlled by the forward/reverse propel pedals. The operator has ability to control the machine for maximum eciency. Due to its ease of operation, the hydrostatic transmission is superior to a xed-speed transmission in adverse operating conditions such as mud, hills, dense tree stands, and rough terrain.

As propel pedal is depressed,

speed increases and torque

decreases.

PREPARE FOR OPERATION

G.027.02

As propel pedal is released,

speed decreases and torque

increases.

G.201.03

Carry attachment as low as possible without running into obstacles.

For extended driving (45 minutes or more) on hardsurface roads, follow the procedures below:

DO NOT make continuous turns with dierential locks engaged on a hard surface. Doing so may damage axles.

1. Inate tires to 30 psi (200 kPa) ONLY for extended

hard-surface road driving.

2570/2670 T3 0109

2. Check tire temperature every hour of operation. If

tires are too hot to leave your hand on, stop and wait for tire temperature to drop.

3. Check hydraulic oil temperature frequently. Pos-

sible pump or hydraulic system damage can occur if operating for an extended period of time above 200°F (93°C).

Be sure to decrease tire pressure when you reach job site. See Scheduled/Periodic Maintenance section, for proper ination.

6-9

Page 98

OPERATION

NOTICE

WARNING

NOTICE

DRIVING THE TRACTOR

there are no people near machine or attachment.

1. Fasten seat belt snugly.

2. With engine and hydraulics warmed up properly,

depress throttle switch (A) to high idle position.

3. Set transmission shifter (B) to desired (HIGH or

LOW) position.

4. Completely release parking brake. Machine will

not move if parking brake is not completely released.

Before traveling, make sure

If machine can be propelled with parking brake set, interlock system is not working as intended. Shut engine down and contact an authorized dealer immediately for system repair.

5. Using right joystick control, lift attachment o

the ground. Keep attachment as low as possible without running into obstructions.

6. Use propel pedals (C) to travel in desired direction.

To avoid engine damage, refer to your engine operator’s manual for engine slope limitations.

5/670.054.02

2570/2670 T3

5/670.003.02

610

0109

Page 99

CAUTION

OPERATION

STOPPING THE TRACTOR

For dynamic braking, remove foot from propel pedals (A).

Trying to stop machine travel in one direction by depressing the pedal for the opposite direction could cause machine to come to a stop, and to move abruptly in the opposite direction. Dynamic braking is best controlled by simply removing your foot from the propel pedals.

5/670.003.02

SERVICE STOPPING

1. Return propel pedals to neutral.

2. Depress service brake (B).

5/670.003.02

2570/2670 T3 0109

6-11

Page 100

OPERATION

NOTICE

STOPPING THE ENGINE / PARKING THE MACHINE

1. Stop machine on level ground.

2. Depress throttle switch (A) to LOW IDLE position

and run engine for three to ve (3-5) minutes with no load to allow engine to cool gradually and uniformly.

G.027.02

Before dismounting machine, completely stop saw disc rotation by slowly cutting into a stump. Saw disc will continue to rotate after saw switch is turned OFF.

3. Lower attachment to the ground.

4. Set parking brake.

5. Shut o engine by turning key to OFF

position (B).

6. Relieve hydraulic pressure by moving control

levers.

7. Remove key from ignition switch.

5/670.005.02

2570/2670 T3

612

0109
