Page 1
No. Description of Spare Part
1 Cabinet
2
Shelves of freezer chamber
3
Screw cover for top cover
4
Top cover
5
Upper door gasket
6
Upper door
8
Lower door right aid-closer
9
Lower door
10
Lower door left aid-closer
11
Lower door gasket
12
Lower door lower balcony (green gray)
13
Crisper drawer (green gray)
14
Cover of crisper drawer
15
Compressor support base
16
Supply cord plug
17
Connecting wire of compressor
18
Earthing wire of compressor
19
Compressor(UKT60YAX)
20
Process tube
21
Connecting tube (short)
22
Drier filter (for R600a)
24
Drain pan
25
Base of wire box
26
Wire box
27
Upper door hinge assembly
28
Long adjust leg
29
Middle hinge
30
Middle hinge cushion
32
Short adjust leg
33
Lower door hinge assembly
34
Shelf of refrigerator chamber
35
Lamp cover
36
Lamp Bulb (E14,110V)
37
Thermostat knob
38
Lower door upper balcony(green gray)
39
Right limit block of door
40
Left limit block of door
41
Thermostat cover
42
Thermostat
43
Lamp holder (E14)
44
Door switch
45
Upper door External Handle
46
Lower door External Handle

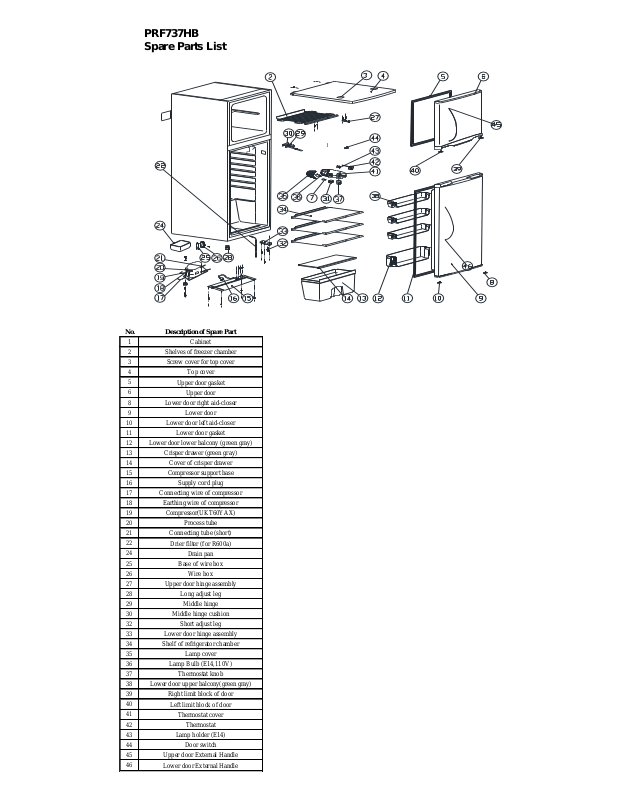

PRF737HB
Spare Parts List
