No. Description of Spare Part Quantity

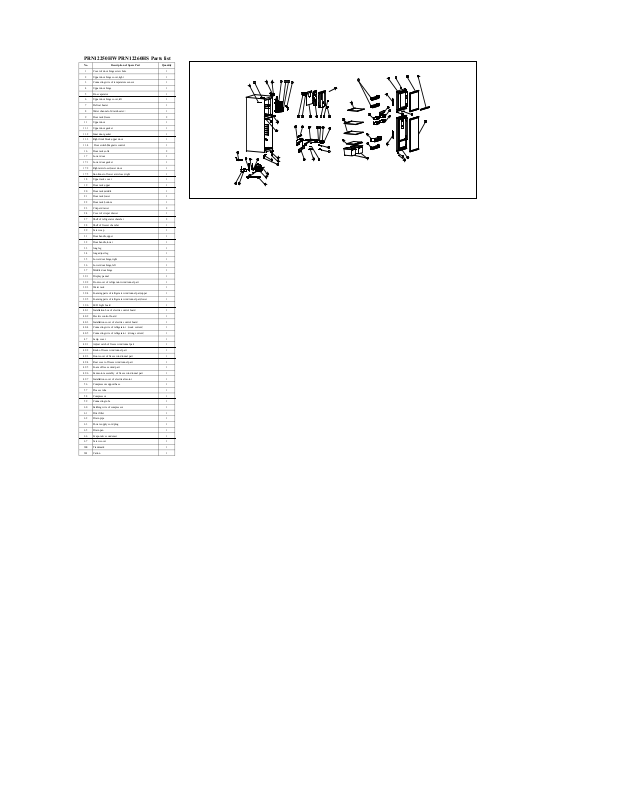

PRN12250HW PRN12260HS Parts list
1 Cover of door hinge screw hole 1
2 Upper door hinge cover,right 1
3 Connecting wire of temperature sensor 1
4 Upper door hinge 1
5 Fin evaperator 1
6 Upper door hinge cover,left 1
7 Defrost heater 1
8 Water channel of drain heater 1
9 Door rack,freeze 2
11 Upper door 1
11.1 Upper door gasket 1
11.2 Inner door gasket 1
11.3 Right limit block,upper door 1
11.4 Door switch,Magnetic control 1
16 Door rack,colla 2
17 Lower door 1
17.1 Lower door gasket 1
17.2 Right aid-closer,lower door 1
17.5 Iron linner of lower aid-closer,right 1
18 Upper rack cover 1
19 Door rack,upper 1
20 Door rack,middle 1
21 Door rack,lower 1
22 Door rack,bottom 1
23 Crisper drawer 2
24 Cover of crisper drawer 1
27 Shelf of refrigerator chamber 2
28 Shelf of freezer chamber 1
29 Screw cap 1
31 Door handle,upper 1
32 Door handle,lower 1
33 long leg 1
34 long adjust leg 1
35 Lower door hinge,right 1
36 Lower door hinge,left 1
37 Middle door hinge 1
39.1 Display pannel 1
39.2 Front cover of refrigerator wind tunnel part 1
39.3 Water rack 1
39.4 Foaming parts of refrigerate wind tunnel part,upper 1
39.5 Foaming parts of refrigerate wind tunnel part,lower 1
39.6 LED Light bo a r d 1
40.1 Installation box of electric control board 1
40.2 Electric control board
40.3 Installation cover of electric control board 1
40.4 Connecting wire of refrigerator（weak current） 1
40.5 Connecting wire of refrigerator（strong current） 1
47 Lamp cover 1
49.1 Adjust catch of freeze wind tunnel part 1
49.2 Knob of freeze wind tunnel part 1
49.3 Front cover of freeze wind tunnel part 1
49.4 Rear cover of freeze wind tunnel part 1
49.5 Foam of freeze wind part 1
49.6 Fan motor assembly of freeze wind tunnel part 1
49.7 Installation cover of electrical motor 1
1
56 Compressor support base 1
57 Process tube 1
58 Compressor 1
59 Connecting tube 1
60 Earthing wire of compressor 1
61 Drier filter 1
62 Drain pipe 1
63 Power supply cord plug 1
65 Drain pan 1
66 Evaporative condenser 1
67 Screw cover 1
300 Trademark 1
301 Carton 1
