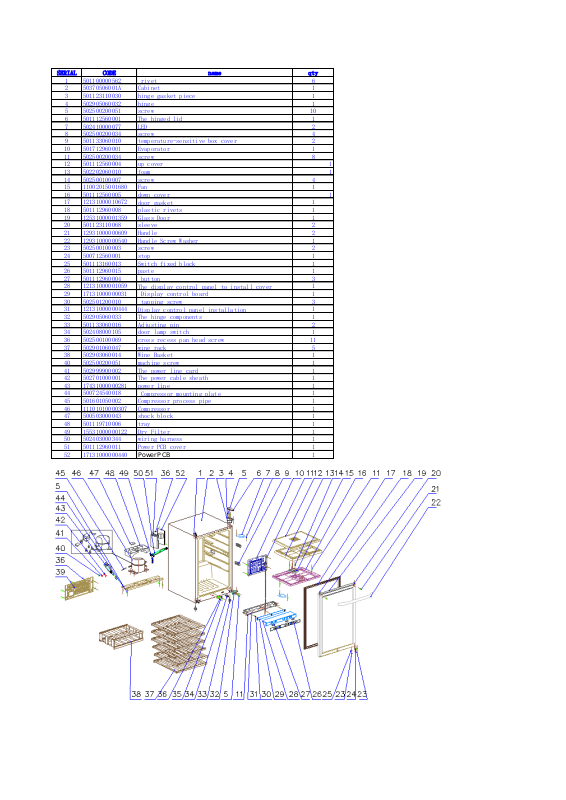

Page 1
SERIAL CODE
name
qty
1 501100000562
rivet
6
2 50370506001A
Cabinet
1
3 501123110030
hinge gasket piece
1
4 502905060032
hinge
1
5 502500200051
screw
10
6 501112560001
The hinged lid
1
7 502410000077
LED
2
8 502500200034
screw
4
9 501133060010
temperature-sensitive box cover
2
10 501712960001
Evaporator
1
11 502500200034
screw
8
12 501112560004
up cover 1
13 502202060010
foam 1
14 502500100007
screw
4
15 11002015001680
Fan
1
16 501112560005
down cover 1
17 12131000010672
door gasket
1
18 501112960008
plastic rivets
1
19 12531000001359
Glass Door
1
20 501123110068
sleeve
2
21 12931000000609
Handle
2
22 12931000000540
Handle Screw Washer
1
23 502500100003
screw
2
24 500712560001
stop
1
25 501113160013
Switch fixed block
1
26 501112960015
paste
1
27 501112960004
button
3
28 12131000001059
The display control panel to install cover
1
29 17131000000031
Display control board
1
30 502501200010
tapping screw
3
31 12131000000444
Display control panel installation
1
32 502905060033
The hinge components
1
33 501133060016
Adjusting pin
2
34 502408000105
door lamp switch
1
36 502500100069
cross recess pan head screw
11
37 502901060047
wine rack
5
38 502903060014
Wine Basket
1
40 502500200051
machine screw
1
41 502999900002
The power line card
1
42 502701000001
The power cable sheath
1
43 17431000000281
power line
1
44 500724540018
Compressor mounting plate
1
45 501601050002
Compressor process pipe
1
46 11101010000307
Compressor
1
47 500503000043
shock block 1
48 501119710006
tray
1
49 15531000000122
Dry Filter 1
50 502403000344
wiring harness 1
51 501112960011
Power PCB cover
1
52 17131000000440
Power PCB
1
