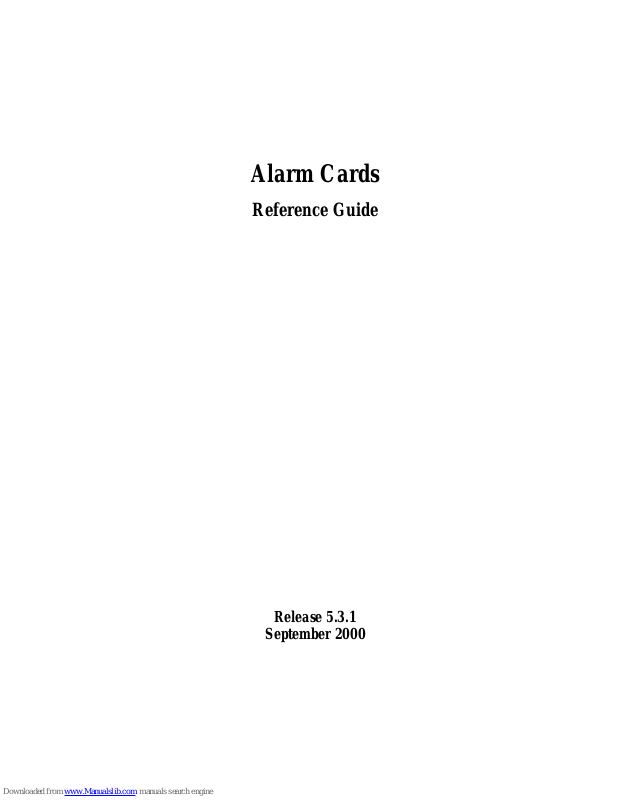

Premisys IMACS, ALR 4+4, 840160, ALR 4+3PF, 840260 Reference Manual

Alarm Cards

Reference Guide

Release 5.3.1

September 2000

Running Head

Trademarks:

5ESS
DMS-100 and DMS-200 are trademarks of Northern Telecom.
Nortel is a trademark of Northern Telecom.
HyperTerminal is a registered trademark of Microsoft
Premisys is a registered trademark of Premisys Communications, Inc.
SLC is a registered trademark of Lucent Technologies
Windows 3.1 and 95 are registered trademarks of Microsoft

All other trademarks and registered trademarks are the property of their respective holders.

FCC Registration number:

1H5SNG-73866-DD-E (integral CSU)
B468NR-68618-DM-E (internal modem)

Canadian Certification number : 1932 5217 A
Canadian DOC Load number: 5

Ringer Equivalence Number: 0.2A (internal modem)

Model No.

is a registered trademark of Lucent Technologies

Approvals:

UL listed to UL# 1459 Second Edition, Third Edition
CSA listed to C22.2 No. 950-M89

COPYRIGHT

©

1992-2000 Premisys Communications, Inc. All rights reserved.

This publication is protected by federal copyright law. No part of this publication may be
copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into
any human or computer language in any form or by any means, electronic, mechanical,
magnetic, manual or otherwise, or disclosed to third parties without the express written
permission from the manufacturer.

The manufacturer makes no representation or warranties with respect to the contents hereof
and specifically dis claims any implied warran ties of merchantabili ty or fitness for a parti cular
purpose. Further, the manufacturer reserves the right to revise this publication and to make
changes from time to time in the content s hereof wit hout obligatio n from the manuf acturer to
notify any person of such revision or changes.

Product Description

The Alarm Cards allow the system to report alarms to external alarm annunciators and other
systems. Each card also receives alarms report ed by external devices. Each car d has switches
for outbound alarms, and sensors that detect incoming alarms from the external equipment.

Alarm Cards

• ALR ALR 4+4 (840160), ALR 4+3PF (840260), ALR 28+14 (840360)

Using this Alarm Card Reference Guide

This Alarm Card Refere nce Guide assi sts technic ians with swi tch setting s, connector p inouts,
configuration, and troubleshooting information for the Alarm Cards.

Chapter 1. Alarm Card

Running Head

Model No.

Figures

Figures

1-1 ALR 4+4 Card ......................................................................................................................1-2

1-2 ALR 4+3PF Card..................................................................................................................1-3

1-3 ALR 28+14 Card Settings.....................................................................................................1-4

1-4 Active and Passive Alarm Sensor Modes.............................................................................1-6

1-5 Jumper Pair Assignments......................................................................................................1-7

1-6 Jumper Installation for Active Mode....................................................................................1-7

1-7 Jumper Installation for Passive Mode................................................................................... 1-8

1-8 Alarm Filter Screen...............................................................................................................1-9

1-9 ALR 4+4 and ALR 4+3PF Card Main Screen....................................................................1-10

1-10 ALR 28+14 Alarm Sensor Screen......................................................................................1-12

1-11 ALR 28+14 Alarm Switch Screen......................................................................................1-14

1-12 ALR 28+14 Voice Screen...................................................................................................1-17

Alarm Cards v

Running Head

Figures

Model No.

vi Alarm Cards

Tables

Tables

1-1 ALR 4+4 and ALR 4+3PF Card Main Screen Actions....................................................1-10

1-2 ALR 4+4 and ALR 4+3PF Card Option Settings and Defaults .......................................1-11

1-3 ALR 28+14 Alarm Sensor Screen Actions.......................................................................1-13

1-4 ALR 28+14 Alarm Sensor Option Settings and Defaults.................................................1-13

1-5 ALR 28+14 Alarm Switch Screen Actions......................................................................1-15

1-6 ALR 28+14 Alarm Switch Option Settings and Defaults ................................................1-15

1-7 ALR 28+14 Voice Screen Actions...................................................................................1-17

1-8 ALR 28+14 Voice Option Settings and Defaults............................................................. 1 -18

Alarm Cards vii

Running Head

Tables

Model No.

viii Alarm Cards

Contents

Chapter 1 Alarm Cards

1.1 Introduction ....................................................................................................1-1

1.2 Alarm Card Descriptions ................................................................................1-1

1.2.1 ALR 4+4 Card Description (840160).........................................................1-1

1.2.1.1 Card Jumpers/Switch Settings................................................................1-2

1.2.2 ALR 4+3PF Card Description (840260) ....................................................1-3

1.2.2.1 Card Jumpers/Switch Settings................................................................1-3

1.2.3 ALR 28+14 Card Description (840360).....................................................1-4

1.2.3.1 Card Jumpers/Switch Settings................................................................1-5

1.2.3.2 Installing the Alarm Card.......................................................................1-8

1.3 Alarm Card User Screens and Settings ..........................................................1-9

1.3.1 Alarm Filter Screen Sensor Setting............................................................1-9

1.3.2 ALR 4+4 and ALR 4+3PF Card Main Screens........................................1-10

1.3.3 ALR 28+14 Card Screens and Settings....................................................1-12

1.3.4 Alarm Sensor Screen................................................................................1-12

1.3.5 Alarm Switch Screen................................................................................1-14

1.3.6 Voice Screen.............................................................................................1-17

1.4 Alarm Card Error Messages .........................................................................1-21

1.5 Alarm Card Troubleshooting .......................................................................1-21

Contents

Alarm Cards ix

Running Head

Contents

Model No.

x Alarm Cards

Alarm Cards Introduction

Chapter 1
Alarm Cards

1.1 Introduction

This chapter provides installation, configuration, and troubleshooting information for the
Alarm cards. These cards are labeled as the ALR 4+4, ALR 4+3PF, and ALR 28+14 Cards on
their faceplate ejectors.

The Alarm cards allow the system to report alarms to external alarm annunciators and other
systems. Each card also receives alarms report ed by external devices. Each car d has switches
for outbound alarms, and sensors that detect incoming alarms from the external equipment.

Only one Alarm card can reside in the Integrated Access System at a time. These cards are
discussed below.

Each card has two alarm notificat ion modes. The "Switch/Act On" (outbound) function allows
you to report inte rnal system alarms to external dev ices, such as buzze rs, bells, and li ghts. The
"Sensor/T rig On" (inbound) f unction allows you to r eceive externa l alarms through sensors on
the card.

1.2 Alarm Card Descriptions

1.2.1 ALR 4+4 Card Description (840160)

The ALR 4+4 Card has four outbound alarm switches and four inbound alarm sensors. The
outbound switches report internal alarms to external devices by triggering form-C relay
contact closures (120 VA C, 0.5A). The in bound sens ors report exte rn al alar ms to the sys tem.
All external alarms reported by sensors are listed in the alarm history file.

An Integrated Access S yst em wit h a n ALR 4 +4 Ca rd can respond to four external alarms for
control of environmental and security conditions, and also provide four internal alarms to
outside alarm indicators. For example, a critical alarm can illuminate a red light at the office.

Each inbound alarm sensor has the capability of responding to one external condition. The
alarms appear on the screen in the al arm sect ion, showi ng th e alarm as a SENSOR alarm and
includes the slot number and sensor number of the condition (e.g., SENSOR U7-4).

The inbound alarm sensors can use either 12V or 48V. Both JP1 and JP2 jumpers should be
set for the proper voltage. The inbound sensors are isolated from ground.

Alarm Cards 1-11

Running Head

Alarm Card Descriptions Alarm Cards

Model No.

Each outbound "floating" relay has normally open contacts and normally closed contacts. It
responds to major , crit ical, minor, and informational alarms, and acti vates an ex ternal de vice.
Two relays are provided for each Alarm Card port. The relays are dual-pole, doub le-throw.

1.2.1.1 Card Jumpers/Switch Settings

The US/Euro jumper pair on t he ALR 4+4 car d must be con figured to t he same set ting as that
of the chassis. The factory default setting for cards and chassis is US position.

ALR
4+4

US/Euro
Jumpers

P
1

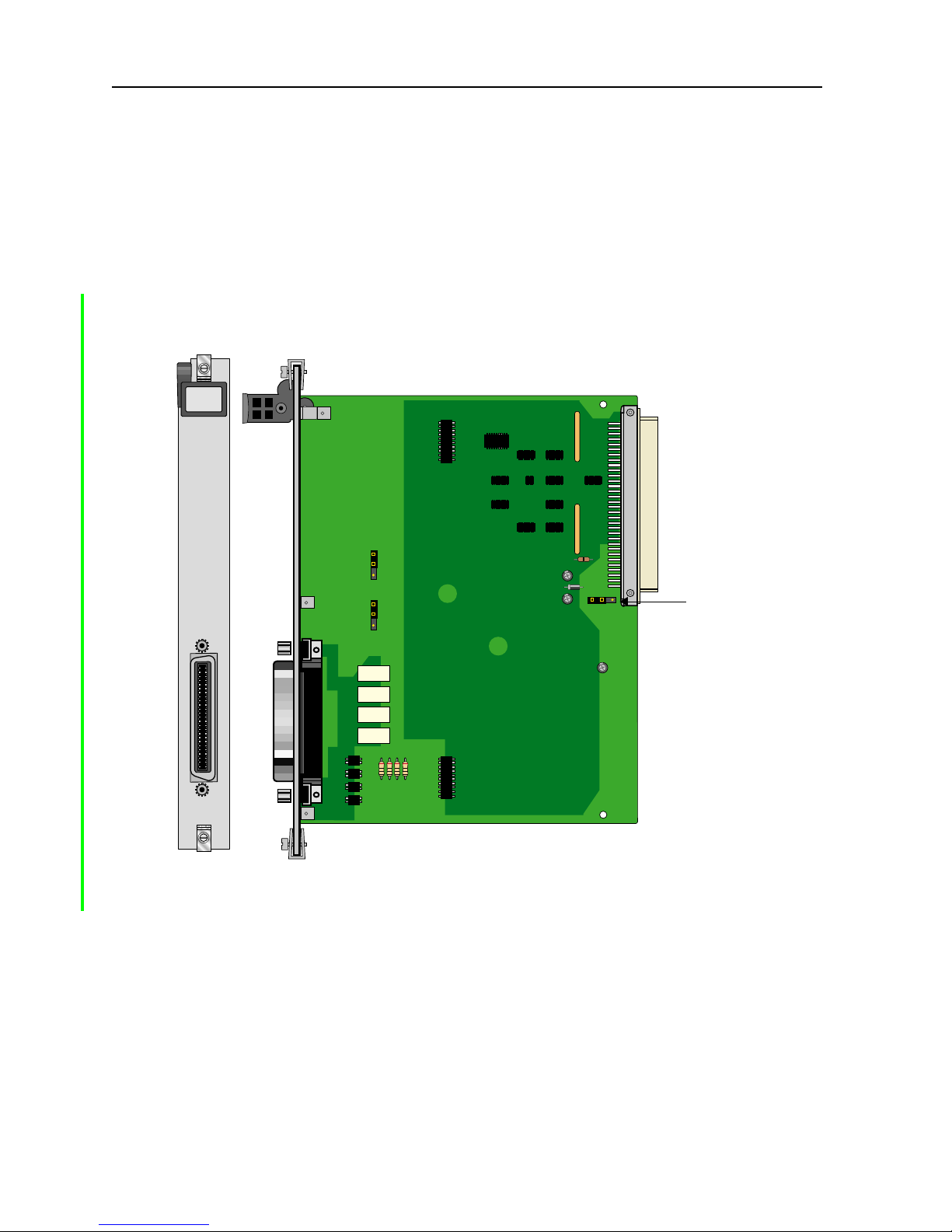

Figure 1-1. ALR 4+4 Card

1-12 Alarm Cards

Alarm Cards Alarm Card Descriptions

1.2.2 ALR 4+3PF Card Description (840260)

The ALR 4+3PF Card has four outbound switches and three inbound sensors. This card is
similar to the ALR 4+4 Card, except that its fourth alarm port can on ly be used as an outbound
alarm to show the system power unit has failed. The ALR 4+3PF Card is especia lly helpful in
locations where a loss of power to any system units is a critical problem. See Figure 1-2.

A -48 VDC power source is optional with this card. It may be provided by either an
AC-to-DC Converter or an external source.

1.2.2.1 Card Jumpers/Switch Settings

There are US/EURO jumper settings with the ALR 4+3PF card.

ALR

4+3PF

US/Euro
Jumpers

P
1

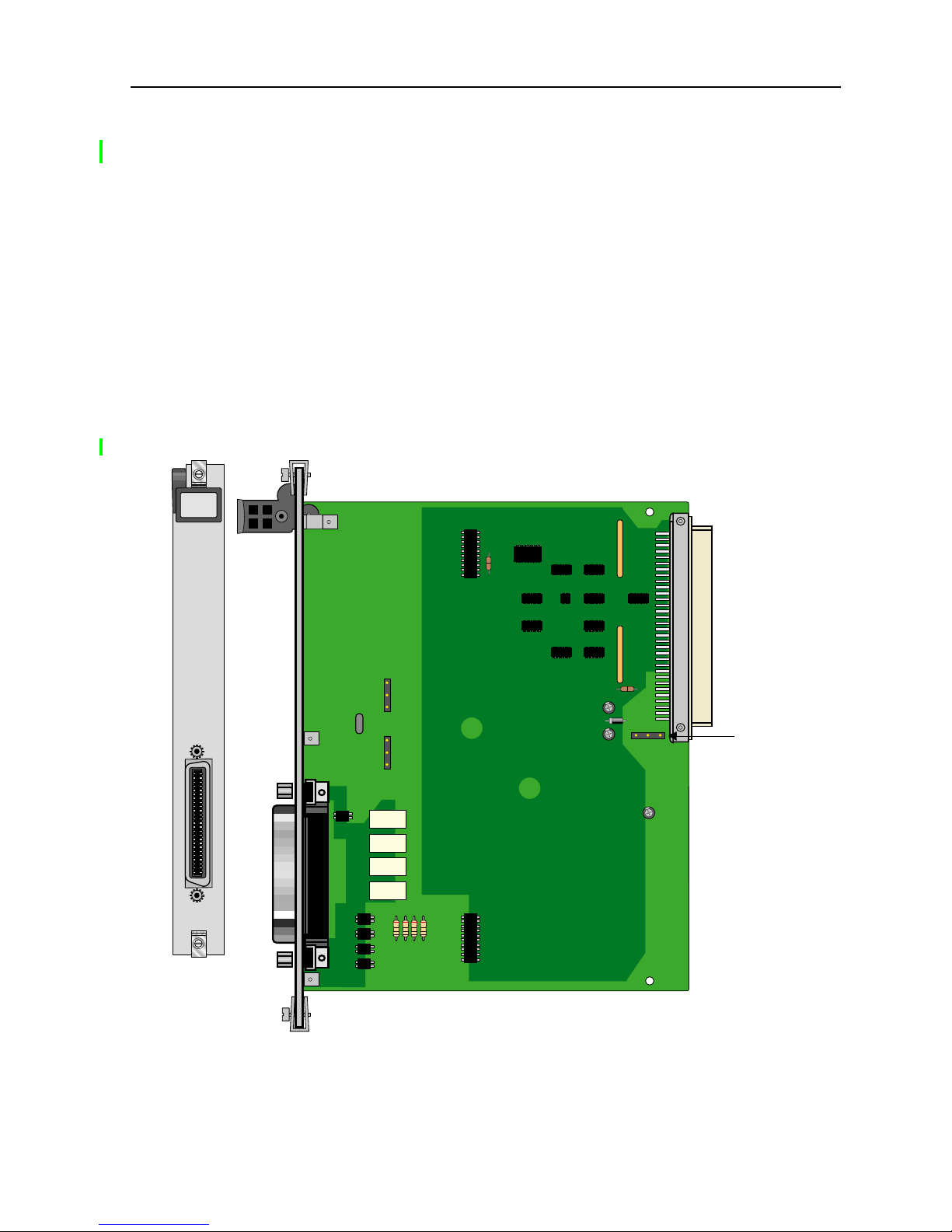

Figure 1-2. ALR 4+3PF Card

Alarm Cards 1-13

Running Head

Alarm Card Descriptions Alarm Cards

Model No.

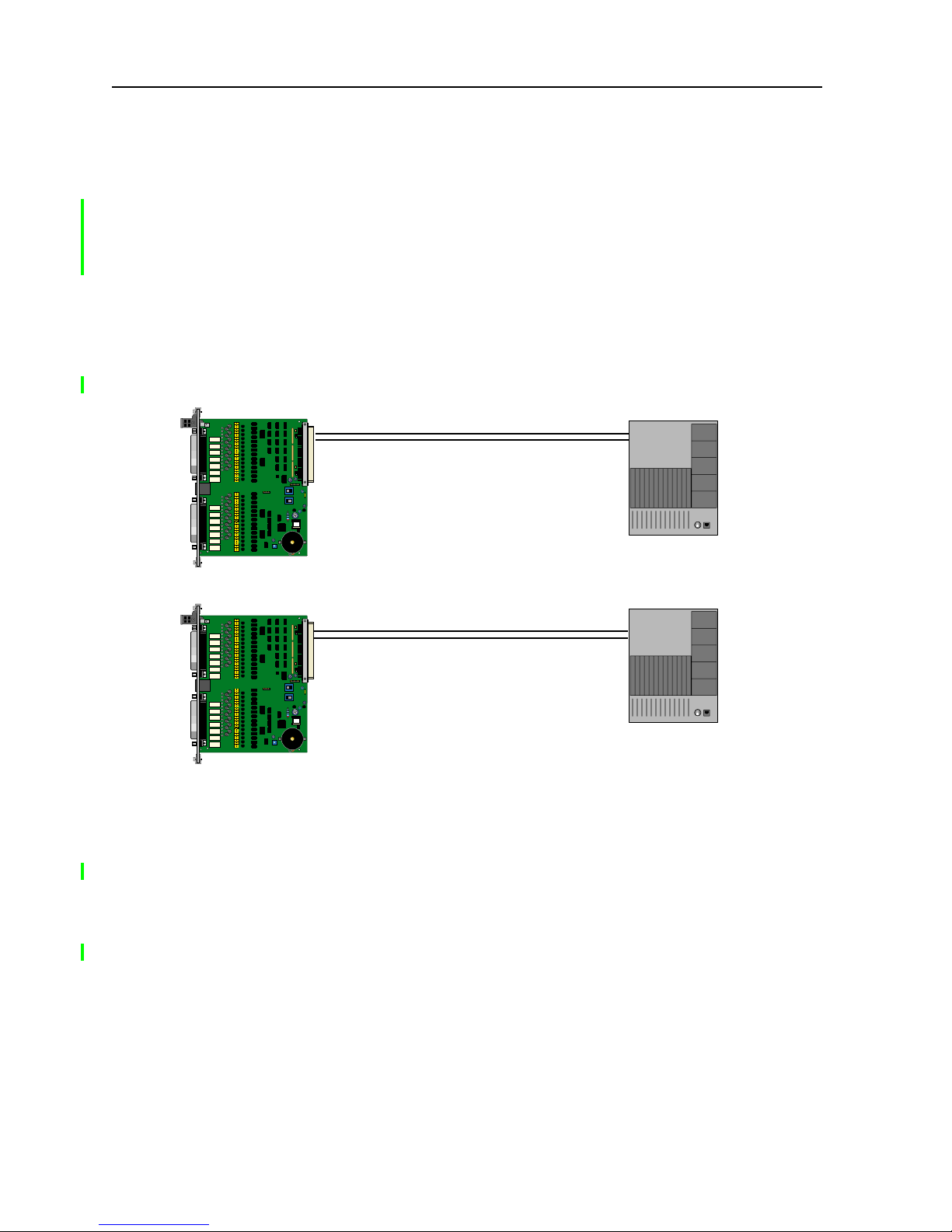

1.2.3 ALR 28+14 Card Description (840360)

The ALR 28+14 Card has 28 sensors for incoming external alarms. Each sensor controls its
own alarm. The card also uses 14 switches to control external devices, and provides a single
FXS voice port.

Alarm Sensor Jumpers for Connector J4

ALR

28+14

P
2

US/Euro

P
3

Jumper

Voltage
Control
Switches

P
1

Onboard
Buzzer

Alarm Sensor Jumpers for

Buzzer Volume Control

Connector J3

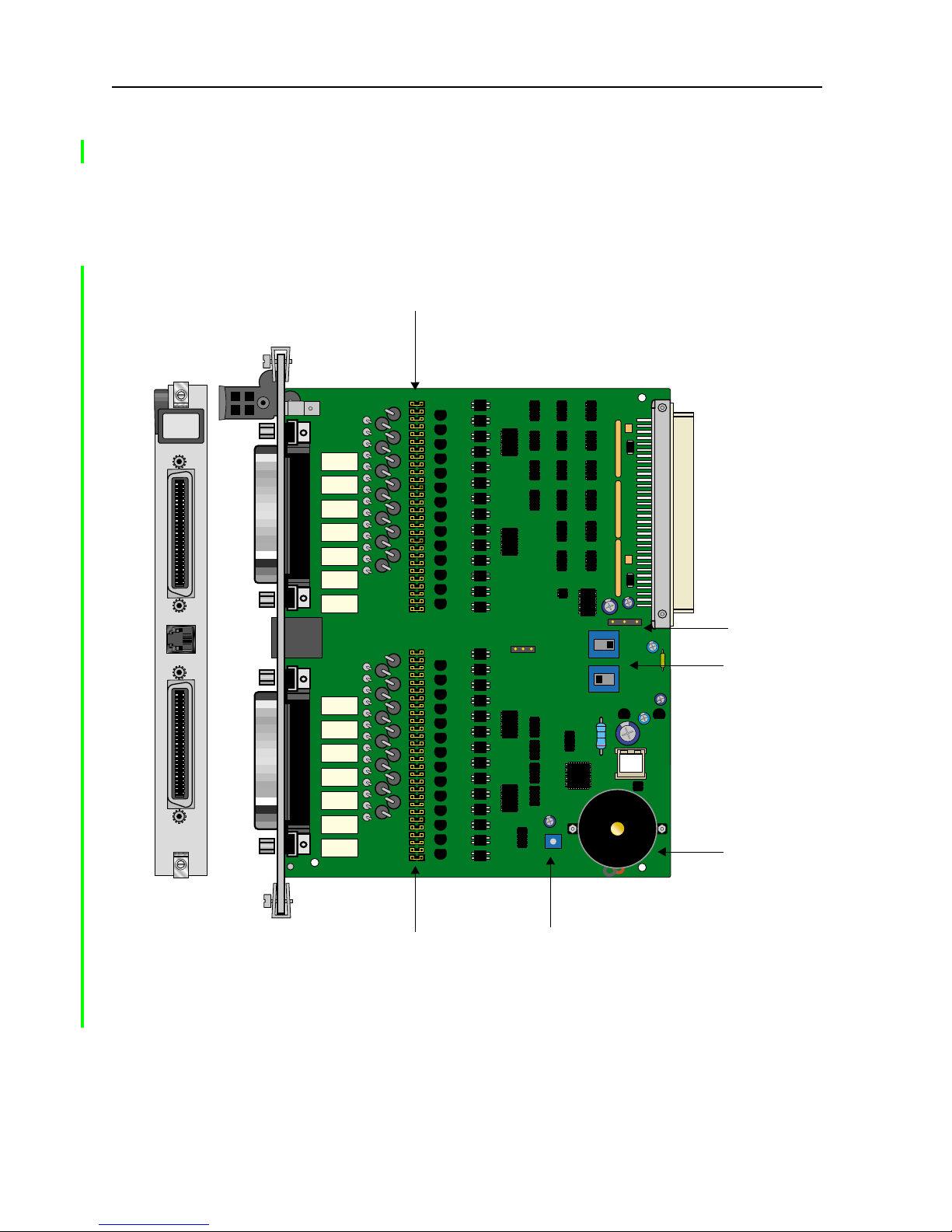

Figure 1-3. ALR 28+14 Card Settings

1-14 Alarm Cards

Alarm Cards Alarm Card Descriptions

1.2.3.1 Card Jumpers/Switch Settings

The ALR 28+14 Card has numerous jumper and other settings, as shown in Figure 1-3. The
sensors allow you to connect up to 28 external devices to the card. These sensors may be
powered either externally or from the alarm card. They are divided into two groups, with 14
sensors per group. Each sen sor group is routed through one of two Amphenol jacks, and you
can control the volt age to eac h group by oper ating a vol tage cont rol switc h on the alar m card.
Detailed instructions for sensor control are provided later in this chapter.

The switches allow the ca rd to control up to 14 external devices. As with the sensors, the
switches are divided between the two Amphenol connectors into two groups of seven switches
each. Twelve of the switches are Form C (o pen or c losed bas ed on us er inp ut), on e is Fo rm A
(always open), and one is Form B (always cl osed ). One of the swit che s can also be se t to trip
if a system power failure o ccurs. Instructions for switch control are provided later in this
chapter.

The alarm information can also be transmitted to a central site via SNM P or other user- defined
parameters.

Audible Alarm Buzzer Volume Setting

The ALR 28+14 Card has an on-board buzzer for audible alarms. You can set the buzzer to
activate when a particular sensor detects an incoming alarm. The buzzer volume is set by a
control dial marked VOL, which you can adjust with a small screwdriver.

U.S./European Voltage Jumpers

You can configure the ALR 28+14 Ca rd fo r e ither U.S. or Europea n opera tion b y moving the
jumpers located on JP64. One jumper is pro vided for ea ch alarm sens or on the car d. Inserting
a jumper on the left-si de two pins s elects U.S. v oltages. I nsertin g the ju mper on the r ight-si de
two pins selects European voltages. All jumpers should be set to the same position, and this
setting should match t he configuration of th e system chassis for th e card to work properly . The
factory default jumper setting is US.

Voltage Control Switches

Use switches S1 and S 2 to contr ol the vo ltage su pplied to each g roup of ac tive sen sors. When
either switch is set to SYS, the board supplies +12 and -12 VDC power to the sensor group
associated with that Amphenol con nector. When a switch is set to BAT , the ALR 28+14 Card
supplies external telco power to the sensors in that group.

You can set the switches individually (i.e., one can be set to SYS and the other to BAT).
However, this will affect all 14 sensors in the respective group.

Alarm Cards 1-15

Running Head

Alarm Card Descriptions Alarm Cards

Model No.

Switch S1 controls the sensor s on the J3 (lower) connec tor , and switch S2 controls the sensors
on the J4 (upper) connector.

The factory default setting for the voltage control switches is SYS.

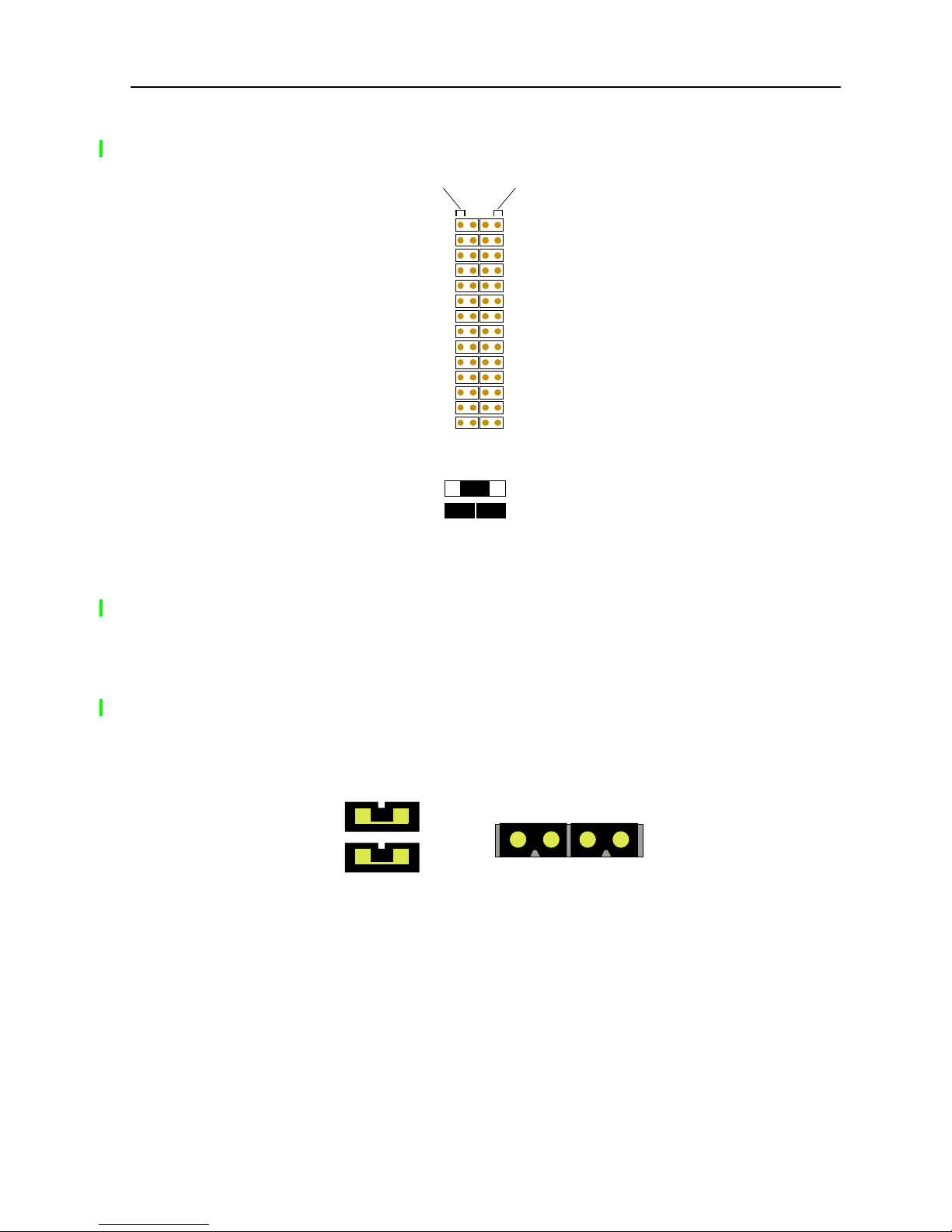

Alarm Sensor Jumpers

Each sensor is associated with a pair of jumpers that control whether the sensor is powered
from the card (active mod e) or an exter nal device (pa ssive mode). The passive mode p rovides
2500V of isolation. Figure 1-4 shows these options.

Current Source

Active Mode

External Device

Alarm Card

Current
Source

Passive Mode

External Device

Alarm Card

Figure 1-4. Active and Passive Alarm Sensor Modes

The jumpers are separated into two grou ps of 14 jumper pairs . The upper group is associa ted
with the sensors on the upper amphenol connec tor (J4), and the lo wer group is associ ated with
the sensors on the lower amphenol connector (J3). The jumper pair sensor assignments are
silk-screened on the card. The jumpers for sensor 1 are indicated as SI1, and the jumpers for
sensor 28 are indicated as SI28. One of these sensor groups is detailed in Figure 1-5.

1-16 Alarm Cards

Alarm Cards Alarm Card Descriptions

A

Positive (+)

Voltage

Negative (-)

JP3

JP4

PASV

Voltage

151617 18 19 22 23 25 26 27 2820SI 21 24

CTV

Figure 1-5. Jumper Pair Assignments

The outside pin of each jumper pair carries a voltage, while the inside pins are passive. The
outside (left) p ins for t he jumper pai rs in columns JP1 and J P3 carry pos itive (+) v oltages, and
the outside (ri ght) pins for th e jumper pairs in columns JP2 and J P4 carry negati ve (-) voltage s.

The default setting f or all jumper pai rs is the active mod e, as shown in Fig ure 1-6. The sen sors
are powered by the ALR 28+14 Card. This setting provides surge protection for the sensors.

Earlier V ersion Later V ersion

Figure 1-6. Jumper Installation for Active Mode

To set the jumper pair to the passive mode, remove both jumpers and then place a single
jumper across the pair , as sh own in Figure 1-7. This provides full isola tion (to 2500 V) for the
sensor.

Alarm Cards 1-17

Running Head

Alarm Card Descriptions Alarm Cards

Earlier V ersion Later V ersion

Model No.

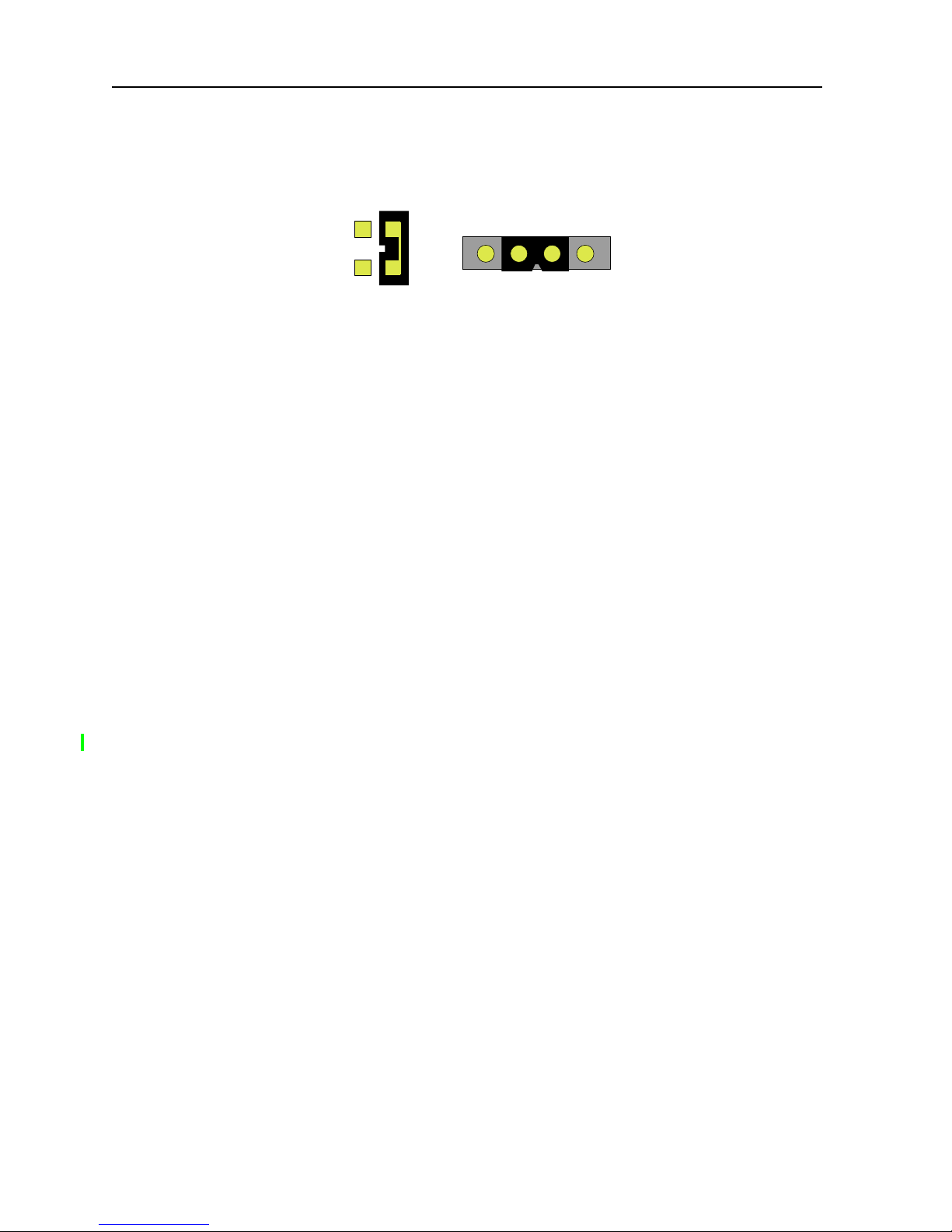

Figure 1-7. Jumper Installation for Passive Mode

The jumper pairs t hat correspond to each sensor are numbere d accordingly. For e xampl e, the
jumper pairs for se nsor 1 2 are in row SI 12 of t he lo wer ju mper group (columns JP1 a nd JP 2).
Similarly, the jumper pairs that correspond to sensor 25 are in row SI25 of the upper jumper
group (columns JP3 and JP4).

Power Failure Notification

If a system power failur e occurs, switch 1 can act as a fail- safe switch to ac tivate a device tha t
notifies an operator. For this to occur , you must inst all a j umper on jumpe r pair JP63 near t he
center of the card. The contact for switch 1 will close if the system loses power, establishing
a circuit that can be used to power an external warning device. The current source must be
provided by the external device.

1.2.3.2 Installing the Alarm Card

The Alarm card can be installed in any user card slot. These slots are U1 to U8 on the
two-sided chassis and front-loading chassis with power supplies on top, and P1 to P4 or W1
to W4 on the front-loading chassis with power supplies on the side.

1-18 Alarm Cards

Alarm Cards Alarm Card User Screens and Settings

1.3 Alarm Card User Screens and Settings

1.3.1 Alarm Filter Screen Sensor Setting

First, make sure the master setting for all alarm senso rs is set properly as the SENSOR vari able
in the Alarm Filter Screen. To set this variable, first select Alarms from the System Main
Screen, then choose Filters. This will display a list of alarm filters, as shown in Figure 1-8.

In this menu, use the arrow keys to highlight the first column of the SENSOR line. Pressing
<Enter> displays the optio ns ignore, log, and report. The option chosen here will act as the
highest-level option for all alarm card sensors. If this variable is set to ignore, any alarm

conditions on the alarm card will be ignored, even if you set them up individually to log or
report.

Likewise, if you set this variable to log, all sensors on the Alarm card that are set to anything
other than ignore will be logged but not reported. For this reason, it is crucial that the
SENSOR variable be set to report (see Figure 1-8).

Alarm Cards 1-19

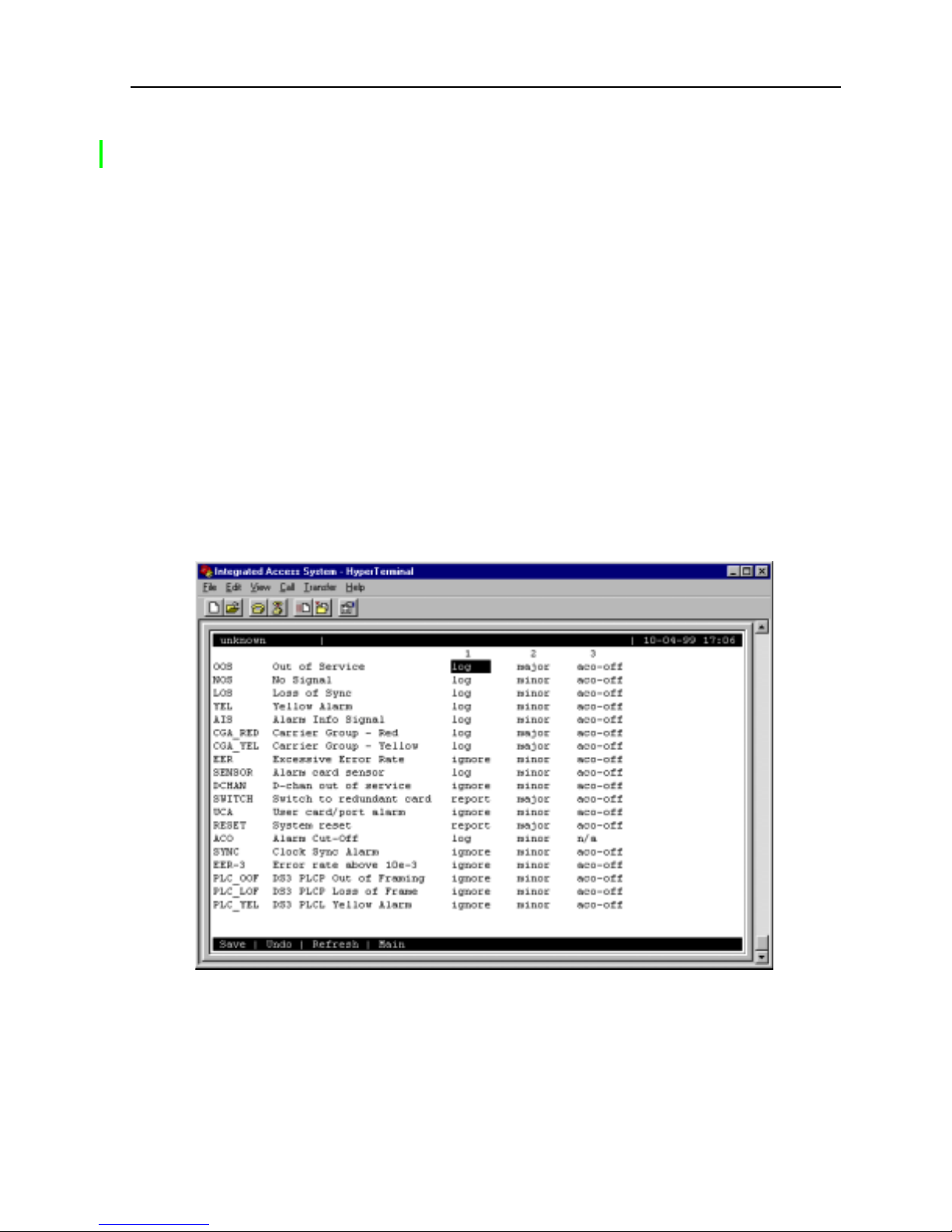

Figure 1-8. Alarm Filter Screen

Running Head

Alarm Card User Screens and Settings Alarm Cards

Model No.

1.3.2 ALR 4+4 and ALR 4+3PF Card Main Screens

Figure 1-9 shows the ALR 4+4 and ALR 4+3PF Card Main Screen. To go to this screen,
highlight the Alarm card in the System Main Screen and press <Enter>.

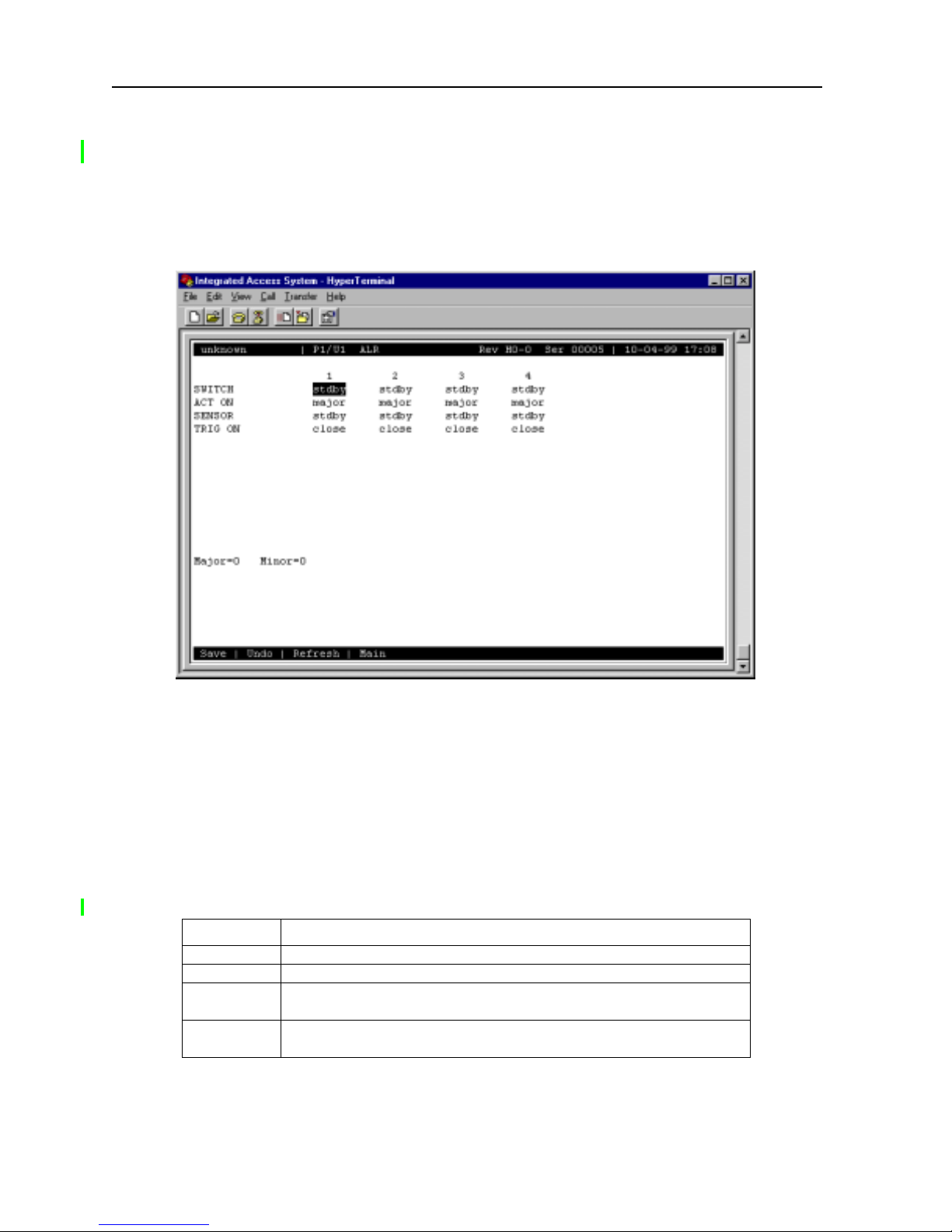

Figure 1-9. ALR 4+4 and ALR 4+3PF Card Main Screen

The bottom highligh ted line of the s creen shows several actions that yo u can perform from t his
screen. To perform an action, simply press the uppercase letter on your keyboard that
corresponds to the d esire d acti on. Table 1-1 lists these a ctions , and Table 1-2 summarizes the
card configurat ion op tion settings and default values. Each parameter is also described i n t he
following paragraphs.

Table 1-1. ALR 4+4 and ALR 4+3PF Card Main Screen Actions

Action Function

Save Saves changes to settings.
Undo Returns all settings to the last saved state.
Refresh Updates certain time-related information fields that are not automatically

updated on screen (i.e., alarm data).

Main Returns to the System Main Screen. If changes are made to settings and

not saved, you will be prompted to save or lose changes.

1-20 Alarm Cards

Alarm Cards Alarm Card User Screens and Settings

Table 1-2. ALR 4+4 and ALR 4+3PF Card Option Settings and Defaults

Parameter User Options Default

SWITCH stdby actv stdby
ACT ON minor major any minor
SENSOR stdby actv stdby
TRIG ON close open close

SWITCH

The Switch setting indicates that the outbound alarm switch is actv (on) or stdby (off).

ACT ON

The Act On parameter defines the type of system alarm that will cause the switch to trigger.
Program each alarm s witch to trigger on minor (information and mino r) alarms, major (major
and critical) alarms, or any alarm message.

SENSOR

The Sensor setting indicates the inbound alarm sensor is actv (on) or stdby (off).

TRIG ON

The Trigge r On pa rame ter def i nes if the sensor should report an external alarm up on sensing
the opening (open) or the closure (close) of the C-form contact to which it is connected.

MAJOR =

The Major = accumulation register shows the current number of reported alarms designated
as Major or Critical.

MINOR =

The Minor = accumulation register shows the current number of reported alarms designated
as Minor or Informational.

Alarm Cards 1-21

Running Head

Alarm Card User Screens and Settings Alarm Cards

Model No.

1.3.3 ALR 28+14 Card Screens and Settings

1.3.4 Alarm Sensor Screen

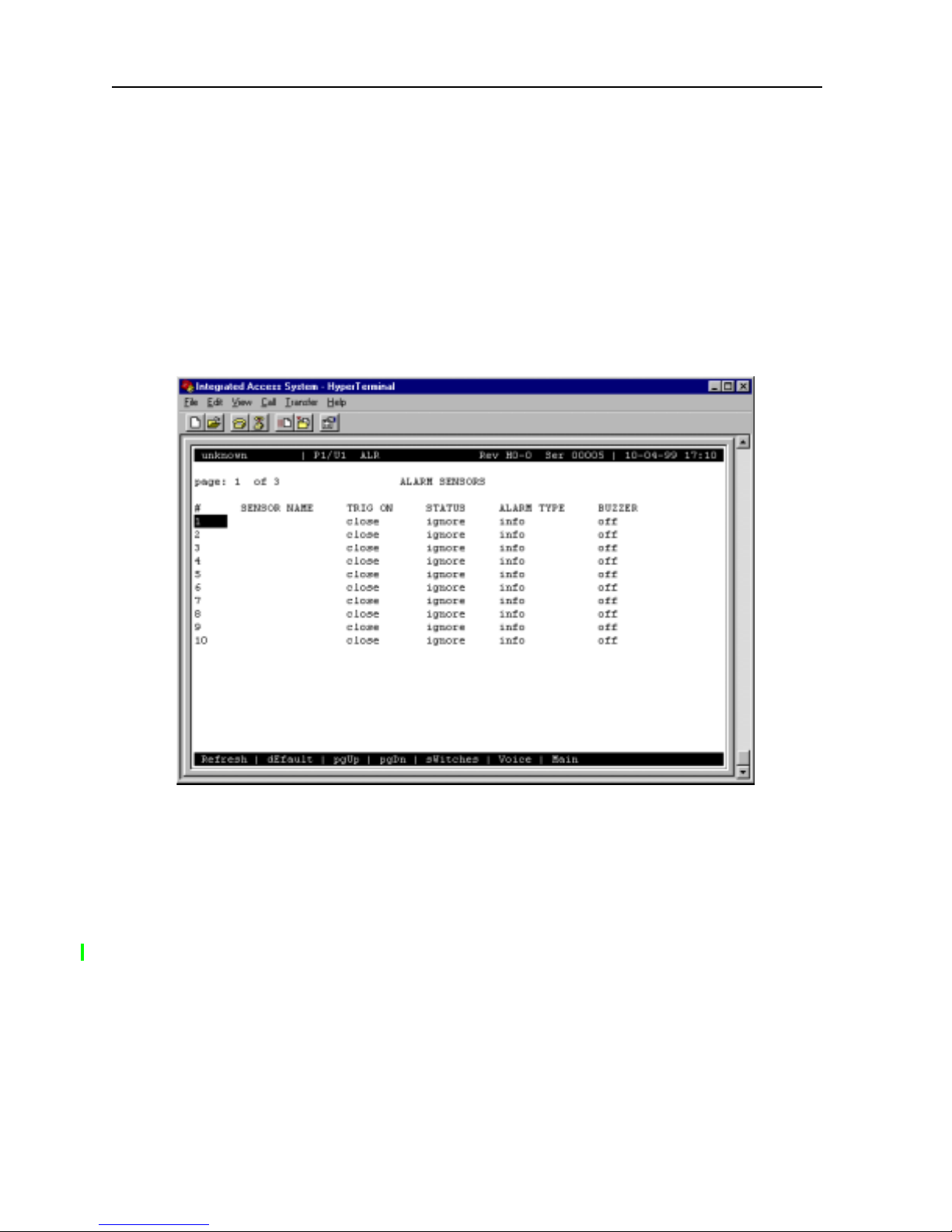

Figure 1-10 shows the first (p age 1) of thr ee Alarm Sen sors Scr een for the ALR 28+14 Car d.
These are the main screens for that card. The first two screens each list 10 sensors, and the
third screen similarly lists 8 sensors. You must give each sensor a name that corresponds to
the incoming alarm, then set each variable for every sensor as described in this section.

Figure 1-10. ALR 28+14 Alarm Sensor Screen

The bottom highligh ted line of the s creen shows several actions that yo u can perform from t his
screen. To perform an action, simply press the uppercase letter on your keyboard that
corresponds to the desired action. For example, to go to the next screen page, type u (pgUp
command). Table 1-3 lists these actions, and Table 1-4 lists the configuration option settings
and default values. These parameters are described in the following paragraphs.

1-22 Alarm Cards

Alarm Cards Alarm Card User Screens and Settings

Table 1-3. ALR 28+14 Alarm Sensor Screen Actions

Action Function

Refresh Redraws the screen.
dEfault Returns all settings to the default state.
pgUp Returns to the previous screen page.
pgDn Goes to the next screen page.
sWitches Displays the Alarm Switch Screen.
Voice Displays the Voice Screen.
Main Returns to the System Main Screen. If chang es are made to settings and not

saved, you will be prompted to save or lose changes.

Table 1-4. ALR 28+14 Alarm Sensor Option Settings and Defaults

Parameter User Options Default

# [Alarm Sensor number 1-28] fixed
SENSOR NAME [user-input sensor name] blank
TRIG ON close open close
STATUS ignore log report ignore
ALARM TYPE info minor major crit minor
BUZZER off on off

SENSOR NAME

A user input field of up to six (6) characters to identify the specific alarm. Note that the sensor
name is a local identifier, and is not transmitted with alarm conditions.

TRIG ON

The Trigge r On pa rame ter def i nes if the sensor should report an external alarm up on sensing
the opening (open) or the closure (close) of the contact to which it is connected. The default
value is close.

STATUS

This value indicates what acti on should be taken in the event of an alarm for each individual
sensor. This variable may be set to log th e a lar m i n t he alarm register, or to report the alarm.
Reported alarms are also logged by the system. The default value is ignore.

ALARM TYPE

This user-definable parameter indicates the severity of the incoming alarm. The options are
info, minor, major, and crit. The default value is minor.

Alarm Cards 1-23

Running Head

Alarm Card User Screens and Settings Alarm Cards

Model No.

BUZZER

This variable indicates whether the on-board buzzer should be activated when the sensor
indicates an alarm. The default value is off.

1.3.5 Alarm Switch Screen

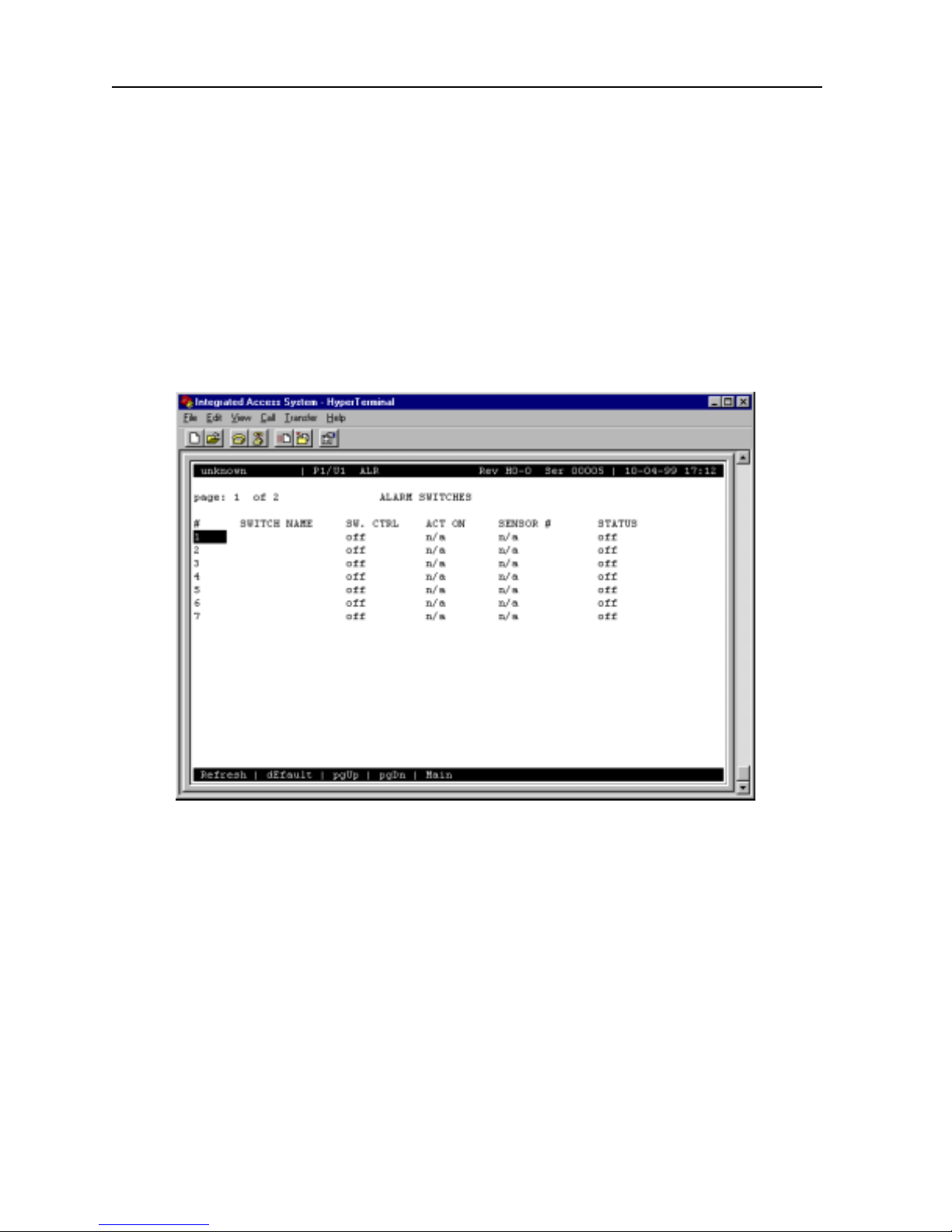

Figure 1-11 shows the first of two Alarm Switch Screens. Each screen (page) lists seven
switches. To go to this screen, press “w” (sWitches command) in the Alarm Sensor Screen.

Figure 1-11. ALR 28+14 Alarm Switch Screen

The bottom highligh ted line of the s creen shows several actions that yo u can perform from t his
screen. To perform an action, simply press the uppercase letter on your keyboard that
corresponds to t he desired action . For example, to go to the next screen page, press “u” (pgUp
command). Table 1-5 lists these a ctions , and Table lists the confi gurat ion op tion s etti ngs an d
defaults for the alarm switches. These parameters are described in the following paragraphs.

1-24 Alarm Cards

Alarm Cards Alarm Card User Screens and Settings

Table 1-5. ALR 28+14 Alarm Switch Screen Actions

Action Function

Refresh Updates certain time-related information fields that are not automatically

updated.
dEfault Returns all settings to the default states.
pgUp Returns to the previous page.
pgDn Goes to the next page.
Main Returns to the Alarm Sensor Screen.

Table 1-6. ALR 28+14 Alarm Switch Option Settings and Defaults

Parameter User Options Notes Default

# Alarm Switch number 1 to 14 fixed
SWITCH Name User-defined switch name blank
SW. CTRL off on act_on act_on
ACT ON info minor major crit sensor major
SENSOR # n/a 1 to 28 1 n/a
STATUS off on displayed

Notes:

1. Sensor numbers are as si gnab le only if the ACT ON parameter is set to sensor number

1 to 28. The default setting is 1.

SWITCH NAME

A user-defined field up to six characters identifies the specific switch. Note that the switch
name is a local identifier; it is not transmitted with alarm conditions.

SW. CTRL

This variable indi cates the initial state of the switch. The possibilities are off (which
unconditionally turns the switch off), on (which unconditionally turns the switch on) or
act_on (which relies on the state of the switch). The default value is off.

As mentioned previously, 12 of the switches are Form C (which may be e ither open or closed),
one is Form A (always open), and one is Form B (always closed).

In the event of system power failure, switch 1 can be used as a fail-safe switch to activate a
device that notifies the user. In order for this to occur, a jumper must be set on jumper pair
JP63. located towards the center of the card. The contac t f or switch 1 will close if the syst em
loses power, establishing a circuit that can be use d to power an external warning device. The
current source must be provided by the external device.

Alarm Cards 1-25

Running Head

Alarm Card User Screens and Settings Alarm Cards

Model No.

ACT ON

This parameter defines the condition that will cause the switch to trigger. You can program
each alarm switch to trigge r on info, minor, major, or crit alarms. Alternatively, the switch
trigger can also be assigned to a parti cular sensor. When sensor is selected, SENSOR # allows
you to indicate the nu mber of the sensor t hat will trigger th e alarm. The defau lt value is major.

SENSOR #

When the ACT ON field is set to sensor, you can enter a value from 1 to 28, indicating the
number of the sensor that will trigger the switch. The default value is n/a.

STATUS

This is a display-only field; you cannot edit it.

1-26 Alarm Cards

Alarm Cards Alarm Card User Screens and Settings

1.3.6 Voice Screen

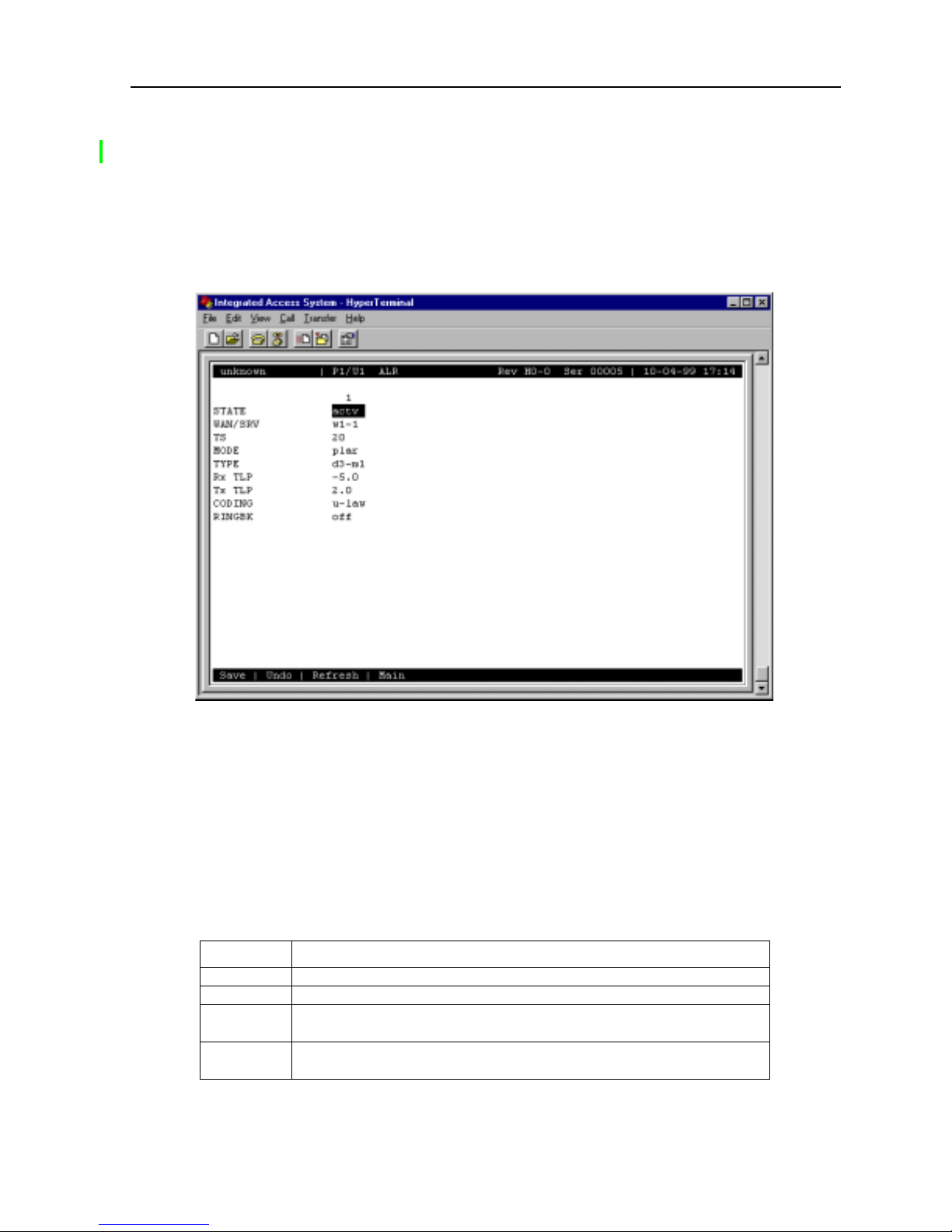

An RJ-11 FXS voice port is located on the ALR 28+14 Card between the two Amphenol
connectors. The initia l Voice Screen for thi s port is shown in Figure 1-12. To go to this screen,
press “v” (Voice command) in the Alarm Sensor Screen.

Figure 1-12. ALR 28+14 Voice Screen

The bottom highlighted l ine of the screen sh ows several actions t hat you can perfo rm from the
Voice Screen. To perform an action, simply press the uppercase letter on your keyboard that
corresponds to the d esire d acti on. Table 1-7 lists these a ctions , and Table 1-8 summarizes the
configuration option settings and default values. These parameters are described in the
following paragraphs.

Table 1-7. ALR 28+14 Voice Screen Actions

Action Function

Save Saves changes to settings.
Undo Returns all settings to the last saved state.
Refresh Updates certain time-related information fields that are not automatically

updated on the screen (e.g., alarm data).
Main Returns to the Alarm Sensor Screen. If changes are made to settings and no t

saved, you will be prompted to save or lose changes.

Alarm Cards 1-27

Running Head

Alarm Card User Screens and Settings Alarm Cards

Model No.

Table 1-8. ALR 28+14 Voice Option Settings and Defaults

Parameter User Options Default

STATE stdby actv stdby
WAN/SRV none w1-1 through w4-2 none
TS 1 to 24 1 to 31 n/a
MODE fxs plar fxs
TYPE loop d3-m1 d4-m1 d3-m2 d4-m2 d3-m3

d4-m3
RX tlp -10.0 to +2.0 -5.0
TX tlp -10.0 to +5.0 2.0
coding u-law a-inv a-law u-law
ringbk off on off

loop

ST ATE

The State setting determines whether the port is active or inactive. An inactive port does not
occupy a time slot on a WAN link. Set the State setting to stdby (standby) for ports you are
not using or have not yet configur ed. Set it to actv (active) for ports that are ready for use. The
default value is stdby.

WAN/SRV

The WAN setting identifies the WAN link assigned to this port. The default value is none.

TS

The TS setting identifi es the ti me slot on the WAN link to which this por t is assi gned. Values
range from 1 to 24 for T1 links and 1 to 31 for E1 links. Time slot 16 is not available on E1
links that are programmed for cas or ccs signaling. For a display of the available time slots,
refer to your cross-connect map for the WAN link. The default value is n/a. See Chapter 4,
System Configuration and Operation for more information regarding cross-connect maps.

MODE

The Mode setting shoul d be determined by t he type of equipment to which you are con necting
the port. All options use two-wi re balanced connection s. The fxs (Foreign Exchange - Stati on)
option allows you to connect a telephone to the system.

The plar (private line automatic ringdown) option provides point-to-point unswitched
connections between two telephone sets. This configuration is usually not attached to an
exchange or switch; rather, it provides a “hot li ne” between two locations.

1-28 Alarm Cards

Alarm Cards Alarm Card User Screens and Settings

TYPE

The T ype setting matches the signaling behavior of the FXS equ ipment and the remote switch.
The loop (Loop-start) option, which is used with POTS stations and simple PBX trunks, is
only available when the MODE settin g is fxs. If the MODE setting is plar, the TYPE opti ons
are d3-m1, d4-m1, d3-m2, d4-m2, d3-m3, and d4-m3.

CAUTION!

Before activating thi s port, verify the behavior expected by both the stat ion and remote central
office equipment, and make sure the system is properly configured.

Rx TL

The Receive Transmission Level Point setting controls the amount of gain or attenuation
added to signals after the y are decod ed to analog signals. To increa se t he si gna l level, set the
RX TLP setting to a positive number (i.e., the l arger the number, the more gain is adde d) . To
decrease the signal leve l, set the RX TLP setting to a negative number (i .e., the more negative
the number, the more the signal level is decreased). For example, an incoming signal at -5
dBm can be increased to -3 dBm by setting RX TLP to +2 dB. Accept able val ues range fr om

-10.0 dB to +2.0 dB. The default value is -5.0.

Tx TLP

The Transmit Transmission Level Point setting controls the amount of gain or attenuation
added to signals after they are received from the local anal og port and before t hey are encoded
to digital PCM signals. To increase the signal level, set the TX TLP setting to a negative
number (i.e., the more negative the number, the more gain is added). To decrease the signal
level, set the TX TLP settin g to a positive number (i. e., the more positive the number, the more
the signal level i s decr eased) . For ex ample , an in coming s ign al at -5 dBm can be inc rease d to

-2 dBm by setting TX TLP to -3 dB. Acceptable va lues ra nge fro m -10.0 dB to +5.0 dB . The
default value is +2.0.

CODING

The Coding setting sets the PCM companding method used for a port. In general, in the
T1/North American enviro nment use µ-law coding. In the E1/International envi ronment , us e
a-inv (inverted A-law) or a-law coding; a-inv provides greater 1s density than a-law. The
coding default is dete rmined by the type of c ard in the WAN port you selec t. The default val ue
is u-law (Note: On th e syst em screens, "u" is u sed in place of " µ" becau se of ASCII c haracter
limitation s, but should be read as "mu-law.").

Alarm Cards 1-29

Running Head

Alarm Card User Screens and Settings Alarm Cards

Model No.

RINGBK

The ringback setting specifies whether a ringback tone is generated by the system and sent
towards the network. This option should be turned on when the network does not provide an
audible ringing tone to the calling party. The default value is off.

1-30 Alarm Cards

Alarm Cards Alarm Card Error Messages

1.4 Alarm Card Error Messages

Refer to Appendix B in the System Reference Guide for fu rther informa tion on Error
Messages regarding this card.

1.5 Alarm Card Troubleshooting

Alarm card problems could indicate a number of possible causes. Typically, a problem is
indicated by the loss of an incoming alarm signal on a sensor port or the lack of a contact
closure/open in response to an internal alarm. Steps designed to isolate the source of the
problem and return the card to normal operation are detailed below. When troubleshooting
Alarm card problems, you should follow this general sequence:

1. Verify that the US/EUR jumper i s corr ectly posit ioned on the Alar m card t o match t he
US/EUR jumper on the chassi s. Also ve rify th at the volt age le vel s ele cted is th e sam e on
JP1 and JP2.

2. Verify that the Alarm card sensor filter (SENSOR) is set to either log or report in the
Alarm Filters Menu. This men u is acces sed by s elect ing " Alarms" from the Main Screen
(not the Alarm Card Screen), and t hen selecting "Filters." Column 1 lists the filter setting
(ignore, log, or r eport). Y ou can change the fil ter setting by highl ighting the item you wis h
to change and pressing the <Enter> key. Use the arrow keys to highlight a new filter
setting and press the <Enter> key again. If you are satisfie d with your selections,
remember to "Save" before exi ting the screen. If you make any change s and then attempt
to exit the screen without saving, you will be prompted "Ok to lose changes (y/n)?" You
must select "y" or "n". If you select "y", any changes will be lost and all selections will
revert to the last saved st ate.

3. On the Alarm card menu, verify that the switch/ sensor in question is set to active ( actv).
If set correctly and the pr oblem is with a switch (contact), go to step 4. If the problem is
with a sensor, go to step 6.

4. Verify that the amphenol cable is connected correctly to the Alarm card. At a
cross-connection point between the Alarm card and the external “scan point”, open the
circuit under test. Connect a Volt -Ohmmeter se t to read res ista nce acros s the Alarm card
contact in question. If no alarm of the type (Major, Minor or Any) that the contact is
programmed to act upon is pre sent, and it i s a normally open (NO) contact, the met er will
read infinite resis tan ce. I f you are tes ti ng a nor mall y cl ose d (NC) cont act , th e meter will
read 0 ohms resistance.

5. Generate an alarm of the type (Major, Minor or Any) that the contact is programmed
to act upon. The Volt-Ohmm eter should detect a resistance change from 0 to infinite or
infinite to 0, depending on the type of contact (NO or NC). If no change is detected, the
switch port may be defective.

Alarm Cards 1-31

Running Head

Alarm Card Troubleshooting Alarm Cards

6. Verify the amphenol cable is connected correctly to the Alarm card. At a
cross-connection point between the Alarm card and the external equipment, open the
circuit under test. Connect a short across the Alarm card sensor input in question. A
SENSOR alarm should be reported. If no alarm is reported, the sensor port may be
defective.

7. If the Alarm card is determined to be faulty, replace it and return the faulty unit for
repair to the location specified by your distributor.

Note: Refer to the Alarm Card Filters tabl e located in the System Configuration and

Operation Chapter of the System Reference Manual.

Model No.

1-32 Alarm Cards
