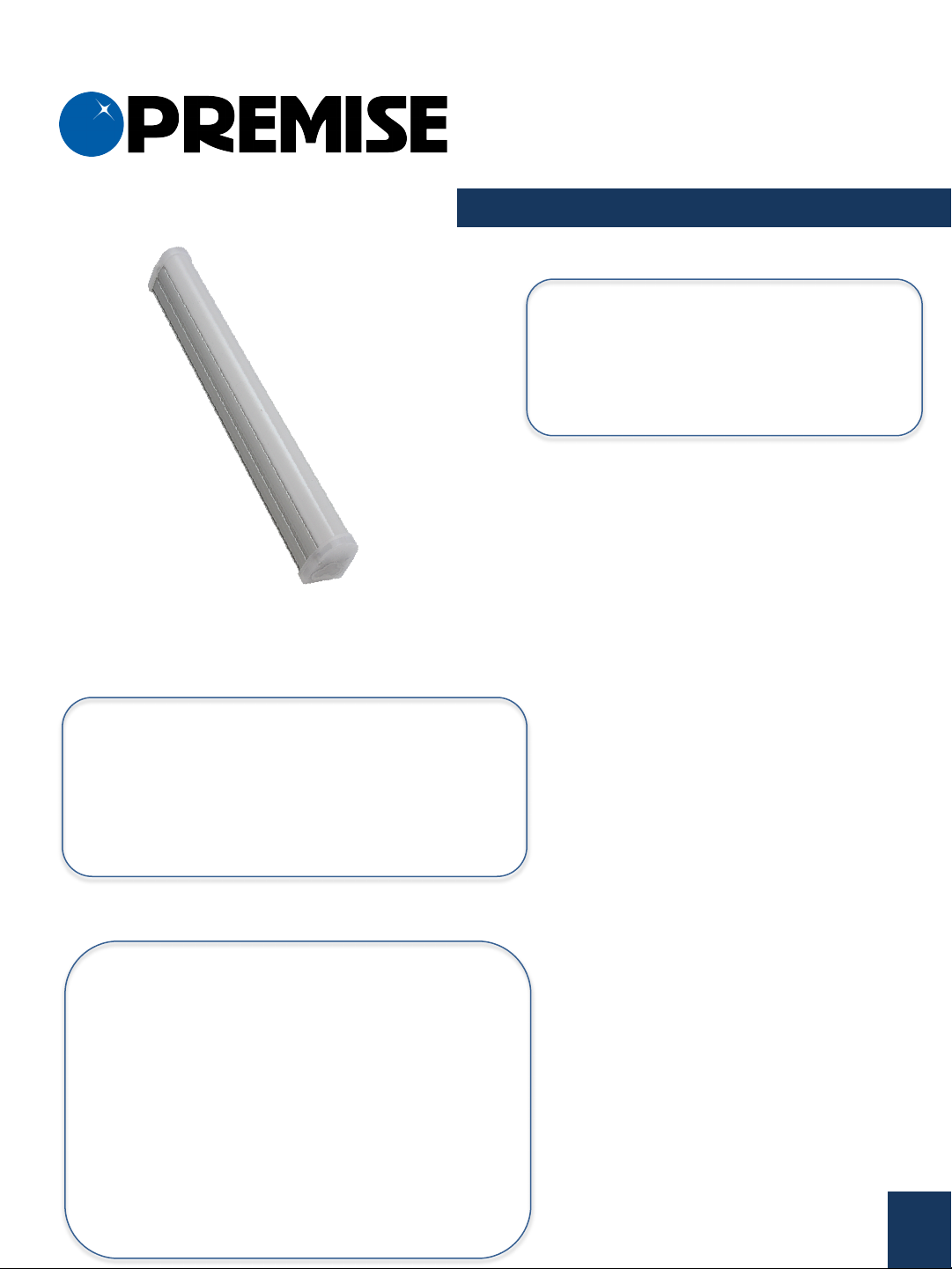

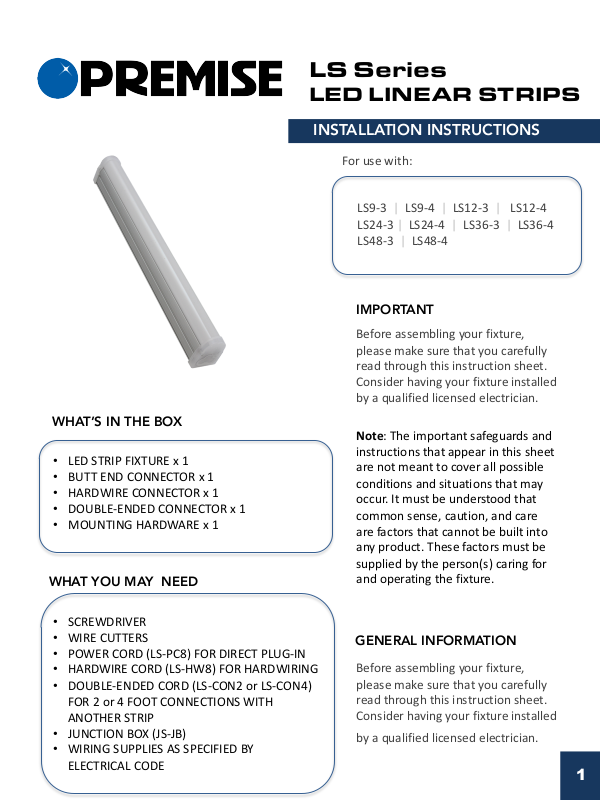

LS Series
LED LINEAR STRIPS
INSTALLATION INSTRUCTIONS
For use with:
LS9-3 | LS9-4 | LS12-3 | LS12-4
LS24-3 | LS24-4 | LS36-3 | LS36-4
LS48-3 | LS48-4
IMPORTANT
Before assembling your fixture,
please make sure that you carefully
read through this instruction sheet.
Consider having your fixture installed
by a qualified licensed electrician.
WHAT’S IN THE BOX
• LED STRIP FIXTURE x 1
• BUTT END CONNECTOR x 1
• HARDWIRE CONNECTOR x 1
• DOUBLE-ENDED CONNECTOR x 1
• MOUNTING HARDWARE x 1
WHAT YOU MAY NEED
• SCREWDRIVER
• WIRE CUTTERS
• POWER CORD (LS-PC8) FOR DIRECT PLUG-IN
• HARDWIRE CORD (LS-HW8) FOR HARDWIRING
• DOUBLE-ENDED CORD (LS-CON2 or LS-CON4)
FOR 2 or 4 FOOT CONNECTIONS WITH
ANOTHER STRIP
• JUNCTION BOX (JS-JB)
• WIRING SUPPLIES AS SPECIFIED BY
ELECTRICAL CODE
Note: The important safeguards and
instructions that appear in this sheet
are not meant to cover all possible
conditions and situations that may
occur. It must be understood that
common sense, caution, and care
are factors that cannot be built into
any product. These factors must be
supplied by the person(s) caring for
and operating the fixture.
GENERAL INFORMATION
Before assembling your fixture,
please make sure that you carefully
read through this instruction sheet.
Consider having your fixture installed
by a qualified licensed electrician.
1
Page 2
WARNING
• Disconnect power before installing
• Must be installed by a qualified electrician
• This tube is non-dimmable
• Do not use in outdoor environments or where it may be exposed to rain
STEP-BY-STEP INSTRUCTIONS

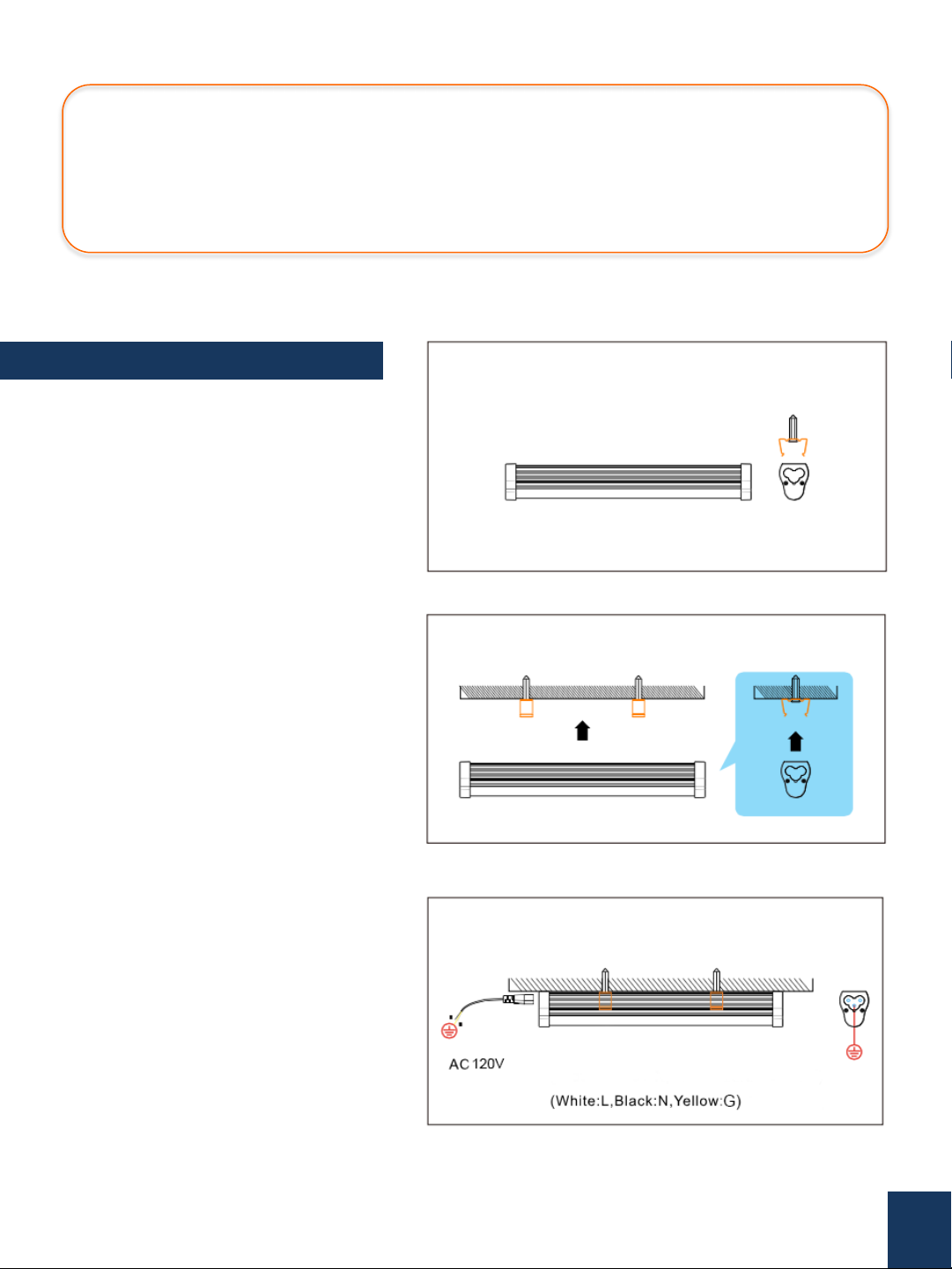

1. Place the clip kit and screws
correctly on the linear strip
fixture.
2. Using the provided mounting
hardware, affix the linear strip
fixture to the ceiling, wall, or
bottom of cabinet.
Note: Ensure the first strip
fixture is mounted next to
your junction box.
3. Plug the Hardwire Cord into
the linear strip fixture, then
connect the hardwire end of
the linear strip fixture to your
junction box.
2
Page 3

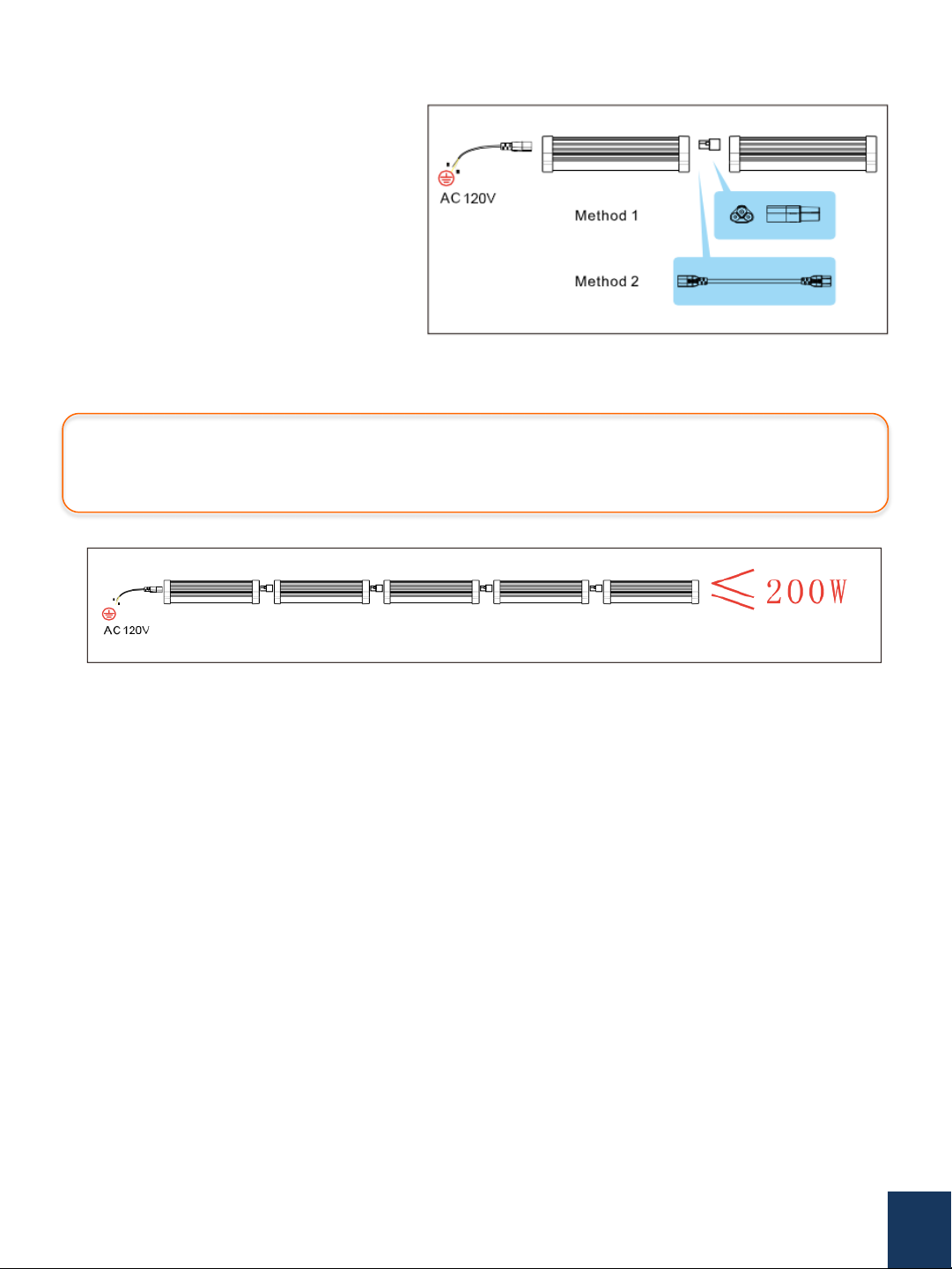

4. You ca n n ow co nne ct
additional linear strip fixtures
by using either the in-line
connector or double-ended
connector provided.
NOTE ON CONNECTING MULTIPLE LINEAR STRIPS TOGETHER
The total number of linear strips that can be connected together per run must not exceed 200W.
PREMISE LED Inc.
82-86 Carrier Drive
Toronto, ON Canada
M9W 5R1
PREMISELED.COM
3
