Premio Computer Apollo, Shadowhawk User Manual

System Manual

ii PREMIO System Manual

Copyright

PREMIO is a registered trademark of Premio Computer, Inc. All

other brands and product names are trademarks or registered
trademarks of their respective companies.

© 1997 by Premio Computer, Inc. All rights reserved.
Printed in Taiwan.
Version 2.0, September, 1997.

Disclaimers

PREMIO makes no representation or warranties, either expressed

or implied, with respect to the contents of this publication and
specifically disclaims the implied warranties of merchantability
or fitness for a particular purpose.
technical or editorial errors or omissions in this publication, or
for incidental or consequential damages resulting from the
furnishing, performance, or use of this publication. We reserve
the right to revise this publication and to make changes from
time to time in its contents without notification.

PREMIO shall not be liable for

iii

Contents

GETTING STARTED ..................................................................1

Setting Up........................................................................2

Switches and Indicators.................................................3

UPGRADING ..............................................................................5

Opening the System Unit...............................................6

Installing an Expansion Card ........................................7

Installing Memory ...........................................................8

Installing a SIMM.................................................................8

Removing a SIMM................................................................9

Installing a DIMM ................................................................9

Removing a DIMM.............................................................10

Installing a Hard Drive ..................................................11

GETTING HELP........................................................................12

Troubleshooting ...........................................................12

Monitor Does Not Work.....................................................12

Keyboard Does Not Work...................................................13

Mouse Does Not Work........................................................13

System Unit Problems.........................................................14

Hard Disk Problems............................................................14

iv PREMIO System Manual

Warranty Service.......................................................... 15

Technical Support........................................................ 15

PREMIO on the Internet............................................... 15

APPENDIX................................................................................16

Limited 3-Year Warranty.............................................. 16

FCC Standards............................................................. 18

Important Safety Instructions..................................... 19

Getting Started

Your PREMIO® system consists of three components:

 a mid-tower or desktop system unit
 a keyboard
 a mouse

Add your choice of monitor, and your system is ready to use.

System Unit

Mid-tower system

Mouse Keyboard

Desktop system

Keyboard

System Unit

Mouse

2 PREMIO System Manual

Setting Up

To set up your PREMIO system, simply connect your monitor,
the mouse, the keyboard, and any additional components you
want to use to the system unit.

Follow these easy steps:

Power Connector

Mouse Connector
Keyboard Connector

USB Connector
Serial-1 Connector
Serial-2 Connector

Parallel Connector

Video Connector

Sound Card Connectors

6 Plug your monitor’s power cord into a power outlet.
7 Attach the female end of the system power cord to the

PREMIO system is now ready to use. To start the system,

Your
turn on your monitor’s power switch and then press the system
power switch as shown on the next page.

1 Attach your monitor’s video cable

to the video connector.

2 Attach the mouse cable to the

mouse connector.

3 Attach the keyboard cable to the

keyboard connector.

4 Attach the cables for any

additional components, such as a
printer, scanner, or modem, to the
parallel, serial, or universal serial
bus (USB) connector, as directed
in the component’s manual.

5 If your system is equipped for

multimedia, attach your speakers
and microphone to the sound card
connectors.

system unit’s power connector, and then plug the other
end of the cord into a power outlet.

Switches and Indicators 3

Switches and Indicators

The system unit’s front panel provides access to the CD-ROM
and floppy drives, and to the system’s switches and indicator
lights.

The illustration below shows a mid-towe r system. If you have a
desktop system, turn to the illustration on the next page.

 The CD-ROM drive reads

information on CDs.

Mid-tower system

CD ROM Drive

Floppy Drive

Power Switch

Hard Drive Indicator
Power Indicator

Reset Button

 The floppy drive reads and

writes information on
diskettes.

 The power switch turns the

system on and off.

 The hard drive indicator

lights when the hard drive is in
use.

 The power indicator lights

when the system is on.

 The reset button restarts the

system.

4 PREMIO System Manual

Desktop system

Reset Button
Hard Drive Indicator

Power Indicator

Power Switch

CD ROM Drive

Floppy Drive

 The reset button restarts the system.
 The hard drive indicator lights when the hard drive is in

use.

 The power indicator lights when the system is on.
 The power switch turns the system on and off.
 The CD-ROM drive reads information on CDs.
 The floppy drive reads and writes information on

diskettes.

Upgrading

You can upgrade your PREMIO system with:

 Expansion cards
 More memo ry
 An additional hard drive

To install an upgrade, you must open the system unit. Before
proceeding, read the important cautionary note below. Then
follow the steps on the next page.

Caution! Static discharge can cause permanent damage to
internal electronic components of your computer. Always use
the following precautions when working inside the system unit:

 Wear a grounding wrist strap (available at most

electronics stores) when handling electronic components.

 Do not remove a component from its antistatic packaging

until you are ready to install it.

 Keep one hand in contact with the metal system case.

6 PREMIO System Manual

Opening the System Unit

Note Opening the system unit could affect your warranty.

Check with the dealer where you purchased your system before
opening the system unit.

To open the system unit, follow these steps

Mid-tower system

Desktop system

1 Turn off the system and

unplug the power cord.

2 Remove the screws securing

the side panel (mid-tower)
or case (desktop) at the rear
of the system unit.

3 Slide the side panel or case

up and to the rear, and
remove it.

Installing an Expansion Card 7

Installing an Expansion Card

To install an expansion card, open the system unit as described

on the
previous
page.
Then
follow
these
steps:

1 Remove the screw securing

the slot bracket cover for the
expansion slot you want to

use. Save the screw to secure the expansion card.

2 Insert the expansion card

firmly into the slot, making
sure it is seated completely.

3 Secure the card with the

saved screw.

8 PREMIO System Manual

Installing Memory

Note For details on memory configuration, including the

placement and type of memory to use in your system, refer to
the motherboard user’s manual that came with your system.

Follow these general guidelines when adding memory:

 Use only the same type of memory throughout. For

example, do not mix EDO and fast page memory.

 SIMMs must be installed in pairs, and both SIMMs in the

pair must be the same size and speed. For example, do
not install one 16-MB and one 8-MB SIMM.

Installing a SIMM

To install a SIMM, follow these steps:

1 Insert the SIMM into the socket at a

45° angle. (SIMMs can be installed
only one way.)

2 Gently press the SIMM up into a

vertical position until it snaps into
place. The SIMM’s clips will hold it
firmly at a 90° angle when it is
properly installed.

Installing Memory 9

Removing a SIMM

To remove a SIMM, follow these steps:

1 Press the holding clips on both sides of the SIMM

outward to release it.

2 Tilt the SIMM to a 45° angle.
3 Pull the SIMM up and out of the socket.

Installing a DIMM

To install a DIMM, follow these steps:

1 Insert the DIMM vertically into the

socket. (DIMMs can fit into the slot
only one way.)

2 Push down on the DIMM to seat it,

and then raise the plastic clips at
either side to lock it in place.

10 PREMIO System Manual

Removing a DIMM

To remove a DIMM, follow these steps:

1 Push down and out on the plastic

clips at either end to release
them.

2 Pull the DIMM up and out of the

socket.

Installing a Hard Drive 11

Installing a Hard Drive

To install a hard drive in your system, follow these steps:

Mid-tower system

Desktop system

1 Disconnect the hard drive cable and power connector.
2 Remove the two screws securing the drive bay.
3 Slide the bay toward the rear of the system unit to

remove it.

4 Insert the new drive into an open position in the bay and

secure it with four screws.

5 Slide the bay back into the system unit and secure it with

two screws.

6 Connect the cables.

Getting Help

Troubleshooting

Your PREMIO system is designed to provide years of trouble­free performance. If you have a problem with your system, first
check the information in this section for a quick solution.

Monitor Does Not Work

If your monitor appears not to be working properly:

 Check that the monitor’s power cable is securely attached

to the monitor and to an outlet that is receiving power.

 Check that the monitor’s video cable is securely attached

to the monitor and to the system unit’s video card
connector.

 Check that the monitor’s power switch is on.
 Adjust the monitor’s brightness and contrast controls.
 If possible, substitute another monitor that is in good

working order. If the substitute works, your monitor may
need repair or replacement.

Troubleshooting 13

Keyboard Does Not Work

If the NumLock indicator in the upper right corner of the
keyboard does not light when the system powers up, or the
keyboard does not work:

 Check that the keyboard cable is securely attached to the

system unit’s keyboard connector.

 If possible, substitute another keyboard that is in good

working order. If the substitute works, your keyboard
may need replacement.

Mouse Does Not Work

If your mouse pointer does not move or move s erratically when
you move the mouse:

 Check that the mouse cable is securely attached to the

mouse connector on the system unit.

 Disassemble the mouse and clean the roller ball.

14 PREMIO System Manual

System Unit Problems

The fan inside the system unit should make a low, steady sound
when operating properly. If the fan is totally silent:

 Check that the system power cord is securely attached to

the back of the system unit and to a power outlet. Verify
that the outlet has power.

 If possible, substitute another power cord that is in good

working order. If the substitute works, replace your
power cord.

If the fan makes excessive noise:

 Turn off the system, open the system unit case, and

inspect the fan for any obstructions.

 Turn on the system and listen closely to the fan. If the

noise comes from inside the fan housing, your power
supply may need replacement.

Hard Disk Problems

Your hard d i sk should make a slight whirring sound when
operating properly. If the disk is totally silent:

 Turn off the system, open the system unit case, and check

that the power cable between the power supply and the
hard disk is securely attached at both ends. If it is, your
hard disk may be defective.

If the hard disk makes excessive noise:

 Turn off the system, open the system unit case, and

remove the hard disk power cable connector from the
hard disk. Then turn the system back on. If the noise
disappears, your hard disk may be defective.

 If you have more than one hard disk, repeat the same

procedure for each disk.

Warranty Service 15

Warranty Service

If you have a problem with your PREMIO system that requires
service during the warranty period, contact the dealer where
you purchased your system. Yo ur d ealer will try to resolve the
problem for you. If your dealer cannot resolve the problem, you
can contact

Note To obtain warranty service, you must provide proof of
purchase, including the purchase date.

PREMIO directly at the address below.

Technical Support

You can contact PREMIO technical support at the following
address:

Premio Computer, Inc.
918 Radecki Court
City of Industry, CA 91748

Telephone: [phone]
Fax: [phone]
Email: [email protected]

PREMIO on the Internet

PREMIO maintains a web page on the Internet with the latest

information on
common problems, a Windows 95 troubleshooting guide, and
more. Visit our web page at:

http://www.premiopc.com

PREMIO products, updated drivers, answers to

Appendix

Limited 3-Year Warranty

Premio Computer, Inc. warrants its line of PREMIO® computer systems
(hereinafter “Product”) to be free from defects in material and
workmanship for a period of three (3) years from the date of original
purchase from Premio Computer, Inc. or a Premio Computer, Inc.
authorized reseller. This warranty does not cover monitor and LCD
panels, nor third-party hardware and software wh ich has a separate
manufacturer’s warranty. Warranty for such third-party hardware and
software, if any, is subject to the third-party’s warranty policy.

PREMIO branded monitors are warranted as follows:
Three (3) year parts and labor except for CRT
One (1) year parts and labor for CRT

PREMIO branded LCD panels are warranted as follows:
One (1) year parts and labor

SERVICE UNDER WARRANTY

If this Product fails to be in good working order during this 3­year warranty period (or specific period of time as noted
above), Premio Computer, Inc. will, at its option, repair or
replace the Product. Repair parts and/or replacement Products
may be either new or reconditioned at Premio Computer Inc.’s
discretion. The limited warranty does not include service to
repair damage from improper installation, abuse or
modifications to the Product not approved in writing by Premio
Computer, Inc. Any service repair outside the scope of this
limited warranty shall be at Premio Computer, Inc.’s or its
Authorized Service Provider’s rates and terms in effect.

This warranty is valid only within the United States and applies only
to Products which are new and in cartons which are unopened on the
date of purchase.

Limited 3-Year Warranty 17

EXCLUSIONS FROM PREMIO, INC. LIMITED
WARRANTY PROGRAM

ALL OTHER EXPRESSED AND IMPLIED WARRANTIES FOR
THIS PRODUCT, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE HEREBY DISCLAIMED. IF THIS PRODUCT IS
NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE,
PREMIO COMPUTER, INC.'S SOLE AND EXCLUSIVE REMEDY
SHALL BE REPAIR OR REPLACEMENT AS STATED ABOVE.
IN NO EV ENT WILL PREMIO COMPUTER, INC. BE LIABLE TO
THE CUSTOMER OR ANY THIRD PARTY FOR ANY
DAMEAGES IN EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT. THIS LIMITATION APPLIES TO DAMAGES OF ANY
KIND INCLUDING ANY DIRECT OR INDIRECT DAMAGES,
LOST PROFITS, LOST SAVINGS OR OTHER SPECIAL,
INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES
WETHER ARISING OUT OF THE USE OF OR INABILITY TO
USE SUCH PRODUCT, EVEN IF PREMIO COMP UTER, INC. OR
AN AUTHORIZED PREMIO COMPUTER, INC.
REPRESENTATIVE OR DEALER HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES OR OF ANY CLAIM BY
ANY OTHER PARTY. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR SOME PRODUCTS, SO THE
ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. PREMIO COMPUTER, INC. AUTHORIZED RESELLERS
AND SERVICE PROVIDERS/PARTNERS MAY BE CHANGED,
ADDED OR DELETED, WITHOUT NOTICE OR LIABILITY.
PREMIO COMPUTER, INC. DISCLAIMS ANY AUTHORIZED
RESELLERS AND SERVICE PROVID ER/PARTNER TO THE
PROGRAM. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH
MAY VARY FROM STATE TO STATE.

FCC Standards

The FCC (Federal Communications Commission) restricts the
amount of radiation and radio frequency emissions from
computing equipment .

This equipment generates and uses radio frequency energy and
if not installed and used properly in strict accordance with the
operation instructions, reference manuals, and the service
manual, may cause interference to radio or television reception.

This equipment can be tested and found to comply with the
limits for a Class B digital device pursuant to part 15 of the
FCC rules. There limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, then the user is encouraged to
try to correct the interference by one or more of the following
procedures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and

 Connect the equipment into an outlet on a circuit

 Consult the dealer or an experienced radio/TV technician

receiver.

different from that to which the receiver is connected.

for help.

Important Safety Instructions 19

Important Safety Instructions

These instructions are provided by Underwriters Laboratories, Inc.

1. Read all of these instructions and save them for later reference.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not
use liquid or aerosol cleaners. Use a damp cloth for cl eaning.

4. Do not use this product near water.

5. Do n ot place this product on an unstable cart, stand or table. The
product may fall, causing serious damage to the product.

6. Slots and openings on the cabinet and the back or bottom are
provided for ventilation. To ensure reliable operation of the
product and to protect it from overheating, do not block or cover
these openings. The openings should never be blocked by placing
the product on a bed, sofa, rug or other similar surface. This
product should never be placed near or over a radiator or heat
register. This product should not be placed in a built-in
installation unless proper ventilation is provided.

7. This product should be operated from the type of power source
indicated on the marking label. If you are not sure of the type of
power available, consult your dealer or local power company.

8. This product is equipped with a 3-wire grounding-typ e plug, a
plug having a third (grounding) pin. This plug will only fit into a
grounding-type power outlet. This is a safety feature. If you are
unable to insert t he plug into the o utlet, contact your electrician to
replace your obsolete o utlet. Do not defeat the safety purpose of
the grounding-type plug.

9. Do not allow anything to rest on the power cord. Do not locate
this product where the cord will be walked on.

10. If an extension cord is used with this product, make sure that the
total of the ampere ratings on the products plugged into the
extension cord do not exceed the extensi on cord ampere rating.
Also, make sure that the total of all products plugged into the wall
outlet does no t exceed 15 amperes.

11. Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short out
parts that could result in a risk of fire or electric shock. Never
spill liquid of any kind on the product.

12. Except as explained elsewhere in this manual, don't attempt to
service this product yourself. Opening and removing those covers
that are marked “Do Not Remove” may expose you to dangerous
voltage points or other risks. Refer all servicing on those
compartments to service personnel.

13. Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:

A. When the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally when the operating

instructions are followed. Adjust only those controls that are
covered by the operating instructions since improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the product to normal operation.

E. If the product has been dropped or the cabinet has been

damaged.

F. If the product exhibits a distinct change in

performance, indicating a need for service.

i

Version 1.1

G52-MA00453

MS-6545 (v1.X) ATX Mainboard

MSI

MICRO-STAR INTERNATIONAL

850 Pro5

ii

Manual Rev: 1.0
Release Date: Sept. 2001

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip­ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor­dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon­sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU

RESEAU.

Micro-Star International MS-6545

Tested to comply

with FCC Standard

For Home or Office Use

iii

Edition

Sept. 2001

Copyright Notice

The material in this document is the intellectual property of MICRO­STAR INTERNATIONAL. We take every care in the preparation

of this document, but no guarantee is given as to the correctness of its
contents. Our products are under continual improvement and we re­serve the right to make changes without notice.

Trademarks

All trademarks used in this manual are the property of their respective
owners.

Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 and OS/2 are registered trademarks of IBM Corporation.
Windows 95 and Windows NT are registered trademarks of Microsoft.
Netware is a registered trademark of Novell.
Award is a registered trademark of Award Software Inc.

Revision History

Revision Revision History Date

V1.0 First release Sept. 2001

iv

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electri­cal shock.

11. If any of the following situations arises, get the equipment checked by a
service personnel:

z The power cord or plug is damaged
z Liquid has penetrated into the equipment
z The equipment has been exposed to moisture
z The equipment has not work well or you can not get it work according

to User’s Manual.

z The equipment has dropped and damaged
z If the equipment has obvious sign of breakage

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C (1400F), IT
MAY DAMAGE THE EQUIPMENT.

Safety Instructions

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the
manufacturer.

v

CONTENTS

Chapter 1. Introduction ............................................................... 1-1

Mainboard Specification ............................................................ 1-2

Mainboard Layout ..................................................................... 1-4

Quick Components Guide ......................................................... 1-5

Key Features ............................................................................ 1-6

MSI Special Features ................................................................ 1-7

T.O.P Tech™ ...................................................................... 1-7

PC Alert™ III ....................................................................... 1-8

D-LED™ & D-Bracket™ (Optional) ....................................1-10

Fuzzy Logic™ III ............................................................... 1-12

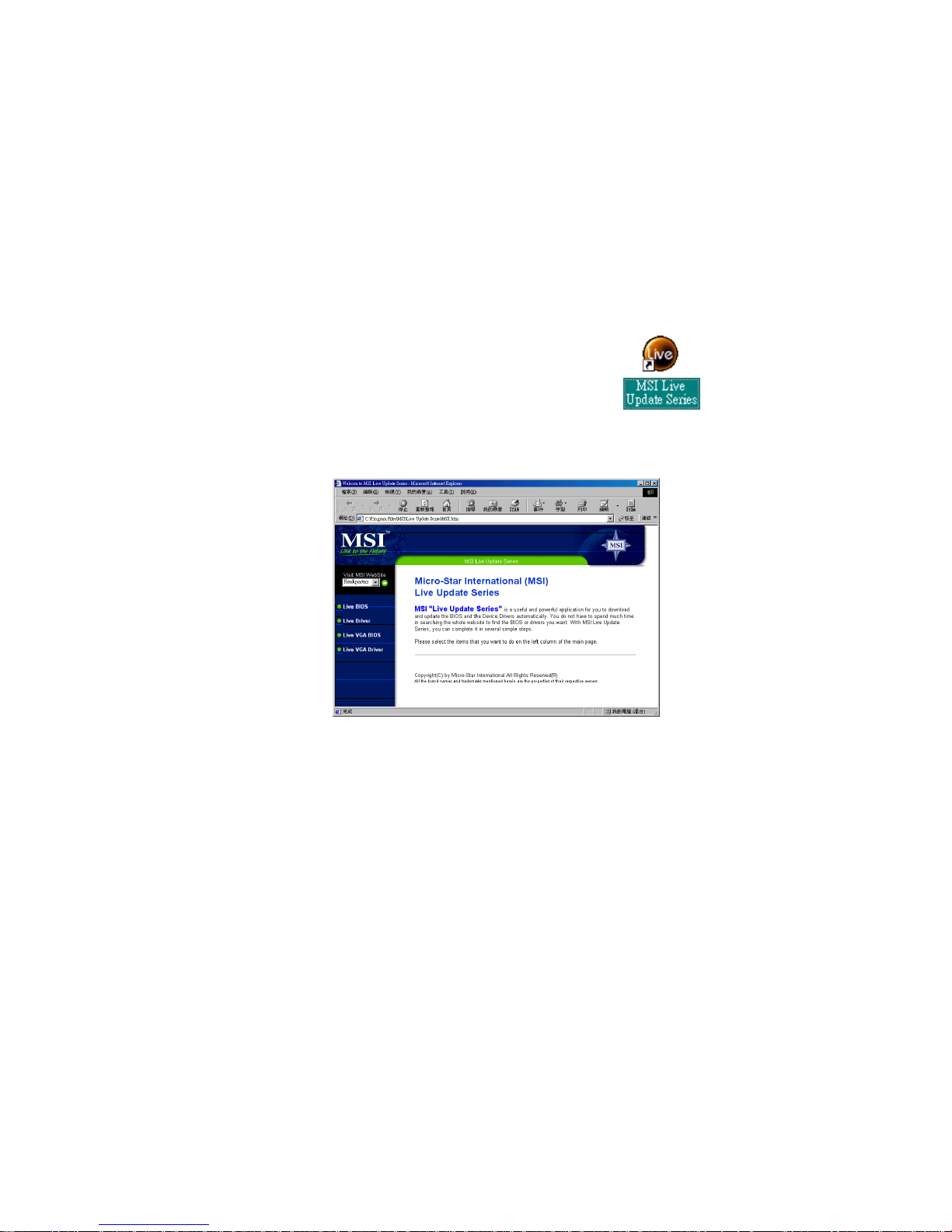

Live BIOS™/Live Driver™ .................................................. 1-13

Chapter 2. Hardware Setup ........................................................2-1

Central Processing Unit: CPU ................................................... 2-2

CPU Installation Procedures ............................................... 2-2

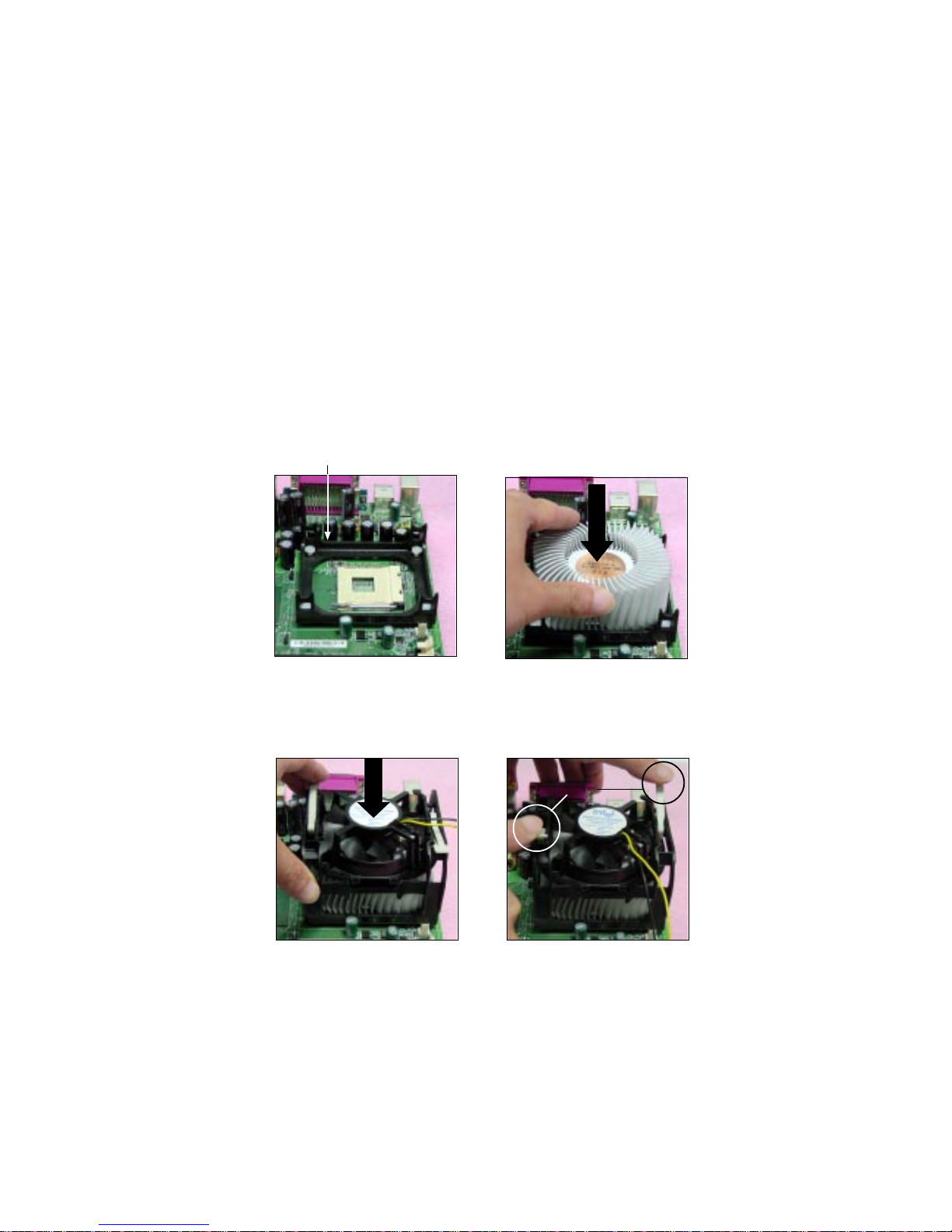

Installing the CPU Fan ........................................................ 2-3

CPU Core Speed Derivation Procedure ................................ 2-4

Memory Installation ...................................................................2-5

Memory Population Rules ................................................... 2-5

Installing RIMM Modules ..................................................... 2-6

Power Supply ............................................................................2-7

ATX 20-Pin Power Connector: JWR1 ................................... 2-7

ATX 12V Power Connector: JWR3 .......................................2-8

ATX 5V/3V Power Connector: JWR2 ...................................2-8

Back Panel ............................................................................... 2-9

Mouse Connector: JKBMS1 ................................................ 2-9

Keyboard Connector: JKBMS1 .......................................... 2-10

USB Connectors ............................................................... 2-10

Serial Port Connector: COM A & COM B .......................... 2-11

Joystick/Midi Connectors .................................................. 2-11

vi

Audio Port Connectors ...................................................... 2-11

Parallel Port Connector: LPT1 ........................................... 2-12

Connectors ............................................................................. 2-13

Floppy Disk Drive Connector: FDD1 .................................. 2-13

Remote Power On/Off Switch Connector: JRMS1 ............. 2-13

Hard Disk Connectors: IDE1 & IDE2 ................................. 2-14

Front Panel Connector: JFP1 or J23 (Optional Intel spec) . 2-15

CD-In/Aux-In/Modem-In Connector: JCD1/JAUX1/JPHN1 ... 2-16

Fan Power Connectors: CPUFAN/SYSFAN/PSFAN .......... 2-17

Wake On Ring Connector: JMDM1 ................................... 2-18

Power Saving Switch Connector: JGS1 ............................. 2-18

IrDA Infrared Module Connector: J18 ................................. 2-19

Chassis Intrusion Switch Connector: J12 .......................... 2-19

Front Panel Audio Connector: J22 (Optional Intel spec) ..... 2-20

Front USB Connectors: JUSB1 & JUSB2 ..........................2-21

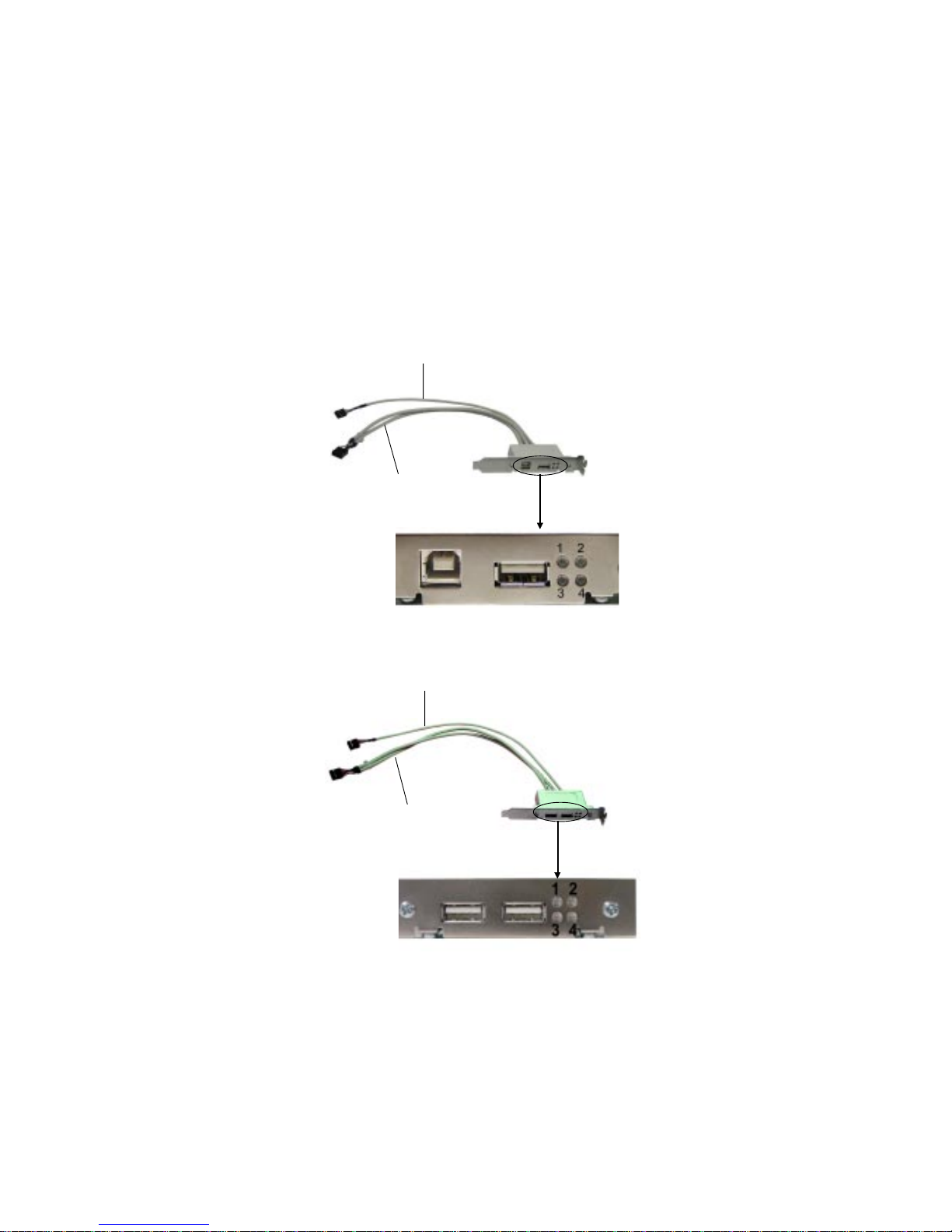

D-Bracket™ Connector: J24 .............................................. 2-25

Jumpers .................................................................................. 2-27

Clear CMOS Jumper: JBAT1 ............................................. 2-27

RDRAM Over Voltage Jumper: J20 .................................... 2-28

Clear BIOS Password Jumper: J17 ................................... 2-29

BIOS Flash Jumper: J16 ................................................... 2-29

Slots ....................................................................................... 2-30

AGP (Accelerated Graphics Port) Slot .............................. 2-30

PCI Slots .......................................................................... 2-30

CNR (Communication Network Riser) Slot ........................ 2-30

PCI Interrupt Request Routing ........................................... 2-31

Chapter 3. AWARD® BIOS Setup ..................................................3-1

Entering Setup .......................................................................... 3-2

Control Keys ............................................................................. 3-2

vii

Getting Help ..............................................................................3-3

The Main Menu ......................................................................... 3-4

Standard CMOS Features ......................................................... 3-6

Advanced BIOS Features .......................................................... 3-8

Advanced Chipset Features .................................................... 3-12

Integrated Peripherals ............................................................. 3-14

Power Management Setup ...................................................... 3-19

PNP/PCI Configurations .......................................................... 3-23

PC Health Status .................................................................... 3-25

Frequency/Voltage Control ...................................................... 3-26

High System Performance ...................................................... 3-28

Load Optimized Defaults ......................................................... 3-29

Set Supervisor/User Password ................................................ 3-30

Save & Exit Setup ................................................................... 3-32

Exit Without Saving ................................................................. 3-33

Appendix A: MSI Smart Key ....................................................... A-1

Installing MSI Smart Key ......................................................... A-2

Using MSI Smart Key .............................................................. A-3

Appendix B: Using 4-/6-channel Audio Function ...................... B-1

Installing C-Media Drivers ......................................................... B-2

Hardware Configuration ............................................................ B-2

Software Configuration .............................................................. B-3

Appendix C. USB PC to PC Networking Function ..................... C-1

Installing GeneLink™ LAN Driver .............................................. C-3

Using USB PC to PC Networking Function .............................. C-5

Glossary ........................................................................................ G-1

Introduction

1-1

Chapter 1.

Introduction

1

The 850 Pro5 (MS-6545 v1.X) ATX mainboard is a high-performance
computer mainboard based on Intel® 82850 chipset. It is optimized to support
Intel® Pentium® 4 processors for high-end business/personal desktop markets.

The Intel® 850 chipset supports 64-byte cache line size and a 32-bit host
addressing, allowing the processor to access the chipset’s memory address
space. It also provides 4x AGP data transfers and AGP Fast Write capability.

The Intel® 850 chipset features a dual channel Direct RDRAM memory
operating in lock-step using RSL technology. It is a highly-flexible chipset
which is designed to extend the basic graphics/multimedia PC platform up to
the mainstream performance desktop platform.

The Intel® 82801BA (ICH2) chipset is a highly integrated multifunctional
I/O Controller Hub that provides the interface to the PCI Bus and integrates
many of the functions needed in today’s PC platforms. It communicates with
the host controller over a dedicated hub interface and provides added flexibil­ity in designing cost-effective system solutions.

This chapter includes the following topics:

Mainboard Specification 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

Key Features 1-6

MSI Special Features 1-7

Chapter 1

1-2

CPU

z Supports Intel® Pentium® 4 processor in the 478 pin package.
z Supports 1.5GHz, 1.6GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz and up.

Chipset

z Intel® 82850 MCH (615 OLGA)

- Supports Direct RDRAM up to 2GB maximum memory.

- Supports 400 MHz system bus.

- 1.5V AGP interface with 4x data transfer and 4x fast write capability.

z Intel® 82801BA ICH (360 EBGA)

- Upstream hub interface for access to the Intel MCH.

- 2-channel Ultra ATA/100 Bus Master IDE controller.

- USB controller 1.1 (expanded capabilities for 4 ports).

- I/O APIC.

- SMBus controller.

- FWH interface.

- LPC interface.

- AC’97 2.1 interface.

- PCI 2.2 interface.

- Integrated system management controller.

Main Memory

z Supports four 184-pin gold-lead RIMM sockets.
z Supports a maximum memory size of 2GB.

Slots

z One AGP (Accelerated Graphics Port) 4x slot.
z Four PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).
z One CNR (Communication Network Riser) slot.

On-Board IDE

z An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with

PIO, Bus Master and Ultra DMA100 operation modes.

z Can connect up to four IDE devices.

On-Board Peripherals

z On-Board Peripherals include:

Mainboard Specification

Introduction

1-3

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes.

- 2 serial ports (COM A + COM B).

- 1 parallel port supports SPP/EPP/ECP mode.

- 1 IrDA connector for SIR.

- 1 audio/game port.

USB Interface

z The mainboard comes with two optional USB interfaces:

- 6 USB 1.1 ports (Rear * 2/ Front * 4, two with Intel spec & two with MSI
spec).

- 4 USB 1.1 ports (Rear * 2/ Front * 2, one regular USB 1.1 port and the other
with USB PC to PC networking function).

Audio

z C-Media CMI8738 / PCI-6ch supports 2/4/6 ch speaker

- 6CH DAC for AC3® 5.1CH purpose.

- HRTF-based 3D positional audio, supporting DirectSoundTM 3D and A3D

TM

interface.

- Supports 4.1/5.1 speakers, C3DX positional audio in 4/6 CH speaker mode.

- Legacy audio SBPROTM compatible.

- DLS-based wavetable music synthesizer.

BIOS

z The mainboard BIOS provides “Plug & Play” BIOS which detects the pe-

ripheral devices and expansion cards of the board automatically.

z IDE drive auto configure, Advanced Power Management (APM) 1.2, ACPI

1.0, DMI 2.0, ECC/Parity support, LS120 support, auto enabled onboard

SCSI termintor.

Dimension

z ATX Form Factor: 30.4cm(L) x 24.3cm(W) x 4 layers PCB.

Mounting

z 9 mounting holes.

Chapter 1

1-4

CNR

BATT

+

Intel

82801BA

J22

(Optional)

J23

(Optional)

JUSB2

(Optional)

JBAT1

J12

J24

JRMS1

A

T

X

P

o

w

e

r

S

u

p

p

l

y

JFP1

CPUFAN

P

S

F

A

N

1

SYSFAN

J16

J17

JGS1

JMDM1

BIOS

PCI Slot 4

PCI Slot 3

PCI Slot 2

PCI Slot 1

I

D

E

2

J20

USB
ports

Top : Pa rall el Por t

Bottom:
COM A
COM B

Top : mo use
Bottom: keyboard

J

C

D

1

J

A

U

X

1

J

P

H

N

1

JWR3

Winbond

W83627HF-AW

C

M

I

8

7

3

8

Top :
Game port

Bottom:
Line-Out
Line-In
Mic

F

D

D

1

D-LED

(optional)

R

I

M

M

2

R

I

M

M

3

R

I

M

M

4

RIMM1

J18

AGP Slot

JWR2

JUSB1

(Optional)

Mainboard Layout

850 Pro5 (MS-6545 v1.X) ATX Mainboard

Introduction

1-5

Quick Components Guide

Component Function Reference

JWR1/2/3 ATX power connectors See p. 2-7

JKBMS1 Mouse/keyboard c onnector See p. 2-9

USB Connectors Connecting to USB devices See p. 2-10

COM A & COM B Serial port connector See p. 2-11

LPT1 Parallel port connector See p. 2-12

FDD1 Floppy disk drive connector See p. 2-13

JRMS1 Remote power on/off switch See p. 2-13

IDE1~ IDE2 Hard disk connectors See p. 2-14

JFP1/J23 Front panel connector See p. 2-15

JCD1/JAUX1/JPHN1 CD/AUX/Modem-in connectors See p. 2-16

CPU/PS/SYS FAN Fan power connectors See p. 2-17

JMDM1 Wake on ring connector See p. 2-18

JGS1 Power saving switch connector See p. 2-18

J18 IrDA infrared module connector See p. 2-19

J12 Chassis intrusion switch connector See p. 2-19

J22 Front panel audio connector See p. 2-20

JUSB1/JUSB2 Connecting to USB devices See p. 2-21

J24 D-Bracket connector See p. 2-25

JBAT1 Clear CMOS jumper See p. 2-27

J20 RDRAM over voltage jumper See p. 2-28

J17 Clear BIOS password jumper See p. 2-29

J16 BIOS flash jumper See p. 2-29

AGP Slot Connecting to AGP cards See p. 2-30

PCI Slots Connecting to expansion cards See p. 2-30

CNR Slot Connecting to expansion cards See p. 2-30

Chapter 1

1-6

z ATX Form Factor
z CPU: Intel

®

Pentium® 4 processor in the 478 pin package

z Smart Key - the best solution to prevent unauthorized access to your PC

(Optional)

z USB PC to PC networking function (Optional)
z Fuzzy Logic 3
z Live BIOS / Live Driver
z CMI8738/PCI-6ch supports 2/4/6 ch. speaker
z PC Alert™ III system hardware monitor
z D-LED/ D-Bracket (Optional)
z Modem (Internal/External) Ring Wake Up Function
z Suspend to RAM/Disk
z PC2001 Compliant

Key Features

Introduction

1-7

MSI Special Features

T.O.P Tech™

The T.O.P TechTM is an extended sensing device that can 100% accu­rately detect the CPU’s temperature. You can find out the temperature on BIOS
setup menu. The PC AlertTM also provides the information.

CPU temperaure on Setup menu

CPU Warning Temperature [Disabled]
Current System Temp.
Current CPU Temperature
Current Top Tech. III Temp.
SYSTEM fan
POWER fan
CPU fan
Vcore
VTT

3.3V
+5V
+12V

-12V

-5V
VBAT(V)
5VSB(V)
Chassis Intrusion Detect [Disabled]
Shutdown Temperature [Disabled]

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

CMOS Setup Utility - Copyright(C) 1984-2001 Award Software

PC Health Status

Chapter 1

1-8

PC Alert™ III

The PC AlertTM III is a utility you can find in the CD-ROM disk. The
utility is just like your PC doctor that can detect the following PC hardware
status during real time operation:

* monitor CPU & system temperatures
* monitor fan speed(s)
* monitor system voltage
* monitor chassis intrusion

If one of the items above is abnormal, the program main screen will be
immediately shown on the screen, with the abnormal item highlighted in red.
This will continue to be shown,until user disables the warning.

Note: Items shown on PC Alert III vary depending on your system’s

status.

Introduction

1-9

Features:

z Network Management

- Monitoring & remote control

z Basic System Utilities

- Scandisk & Defragment to maintain your HDD

z 3D Graphics Design

- Enables a more friendly user interface

z Sofware Utilities

- SoftCooler Optimized Cooling

Chapter 1

1-10

D-LED™ & D-Bracket™ (Optional)

The D-LED™ uses graphic signal display to help
users understand their system. Four LEDs embedded in
the mainboard provide up to 16 combinations of signals to
debug the system. The 4 LEDs can debug all problems that
fail the system, such as VGA, RAM or other failures. This
special feature is very useful for the overclocking users.
These users can use the feature to detect if there are any
problems or failures.

The D-Bracket™ which integrates four Diagnostic LEDs is optional.
Definitions of the D-Bracket™ LED signals are the same as D-LED™ as shown
below.

1

2

3

4

Diagnostic LED

Red

Green

D-LED D-Bracket Description

System Power ON

- The D-LED will hang here if the processor is damaged or

not installed properly.

Early Chipset Initialization

Memory Detection Test

- Testing onboard memory size. The D-LED will hang if

the memory module is damaged or not installed properly.

Decompressing BIOS image to RAM for fast booting.

Initializing Keyboard Controller.

Testing VGA BIOS

- This will start writing VGA sign-on message to the screen.

1 2 3 4

1 2

3 4

Introduction

1-11

D-LED D-Bracket Description

Processor Initialization

- This will show information regarding the processor (like

brand name, system bus, etc…)

Testing RTC (Real Time Clock)

Initializing Video Interface

- This will start detecting CPU clock, checking type of video

onboard. Then, detect and initialize the video adapter.

BIOS Sign On

- This will start showing information about logo, processor

brand name, etc….

Testing Base and Extended Memory

- Testing base memory from 240K to 640K and extended

memory above 1MB u sing various patterns.

Assign Resources to all ISA.

Initializing Hard Drive Controller

- This will initialize IDE drive and controller.

Initializing Floppy Drive Controller

- This will initializing Floppy Drive and controller.

Boot Attempt

- This will set low stack and boot via INT 19h.

Operating System Booting

Chapter 1

1-12

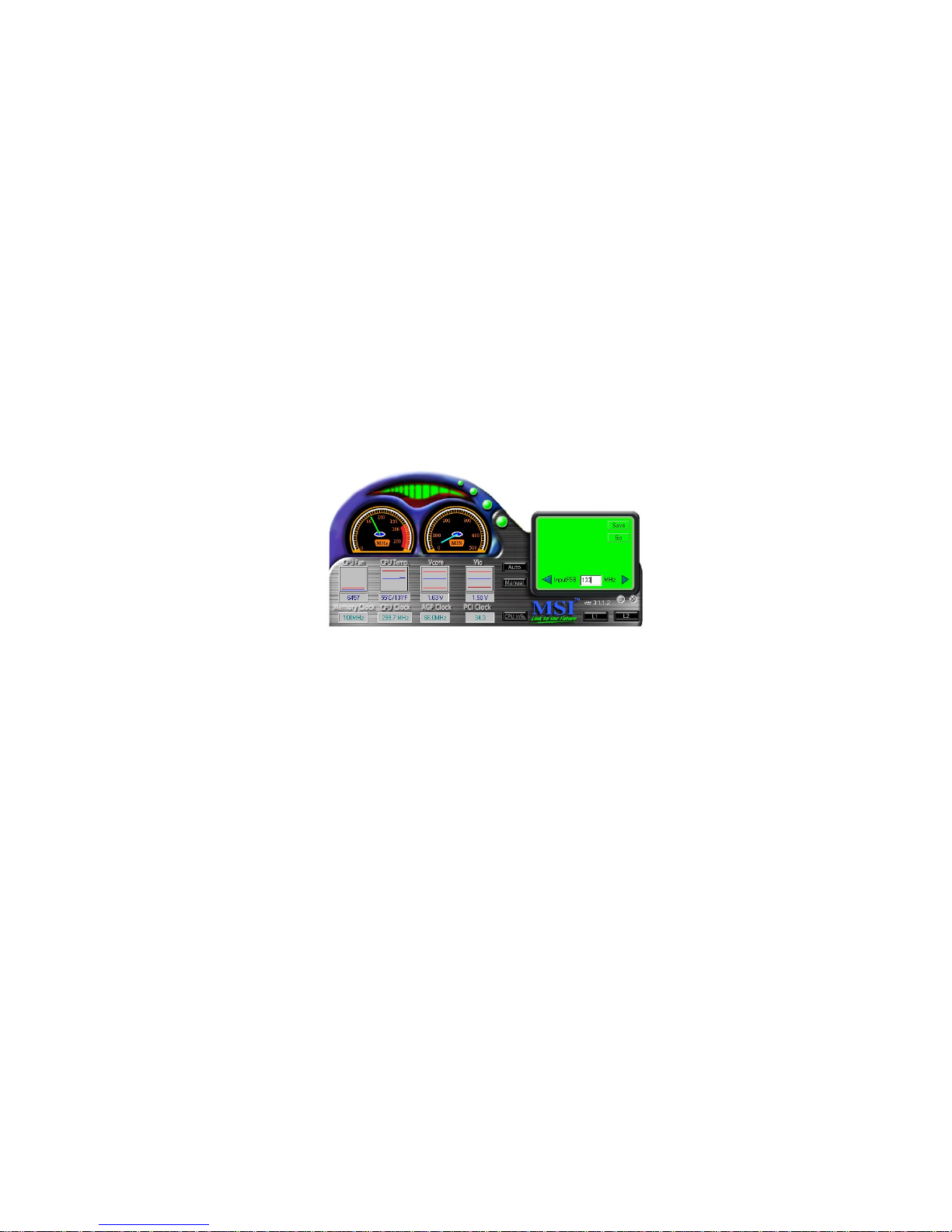

Fuzzy Logic™ III

The Fuzzy Logic™ III utility allows users to overclock the CPU FSB
(Front Side Bus) frequency in the Windows environment. Select the CPU fre­quency you prefer and click Go to apply the frequency or click Save allowing
the system to run at the specified frequency each time when the system is
powered on.

Features:

z Display Current System Status

- CPU Fan

- CPU Temp.

- Vcore

- Vio

- Memory Clock

- CPU Clock

- AGP Clock

- PCI Clock

z Adjust CPU FSB Frequency

Introduction

1-13

Live BIOS™/Live Driver™

The Live BIOSTM is a tool used to detect and update your
BIOS online so that you don’t need to search for the correct
BIOS version through the whole web site. To use the function,
you need to install the “MSI Live Update Series” application.
After installation, the “MSI Live Update Series” icon (as the
right view) will appear on the screen.

Double click the “MSI Live Update Series” icon, and the following screen
will appear.

Four buttons are placed on the left column of the screen. Click the desired
button to start the update process.

zz

zz

z Live BIOS – Updates the BIOS online. If your motherboard does not support

the function, the “sorry” message is displayed.

zz

zz

z Live Driver – Updates the drivers online. If your motherboard does not sup-

port the function, the “sorry” message is displayed.

zz

zz

z Live VGA BIOS – Updates the VGA BIOS online. If your VGA device does

not support the function, the “sorry” message appears.

zz

zz

z Live VGA Driver – Updates the VGA driver online. If your VGA device does

not support the function, the “sorry” message is displayed.

For more information on the update instructions, insert the companion CD and
refer to the “Live Update Series Guide” under the “Manual” tab.

Hardware Setup

2-1

Chapter 2.

Hardware Setup

This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the components
and follow the installation procedures. For some components, if you install in
the wrong orientation, the components will not work properly.

Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.

This chapter contains the following topics:

2

Central Processing Unit: CPU 2-2
Memory Installation 2-5
Power Supply 2-7
Back Panel 2- 9
Connectors 2-13
Jumpers 2-27
Slots 2-30

Chapter 2

2-2

Open Lever

Dot / Cut edge

Sliding

Plate

Close
Lever

Central Processing Unit: CPU

The mainboard supports Intel® Pentium® 4 processor in the 478 pin
package. The mainboard uses a CPU socket called PGA478 for easy CPU
installation. When you are installing the CPU, make sure the CPU has a heat
sink and a cooling fan attached on the top to prevent overheating. If you do not
find the heat sink and cooling fan, contact your dealer to purchase and install
them before turning on the computer.

1. Pull the lever sideways away

from the socket. Then, raise
the lever up to a 90-degree
angle.

2. Look for the dot/cut edge. The

dot/cut edge should point to­wards the lever pivot. The
CPU will only fit in the correct
orientation.

3. Hold the CPU down firmly,

and then close the lever to
complete the installation.

CPU Installation Procedures

Overheating will seriously damage the CPU and system,
always make sure the cooling fan can work properly to
protect the CPU from overheating.

WARNING!

Hardware Setup

2-3

Installing the CPU Fan

As processor technology pushes to faster speeds and higher
performance, thermal managment becomes increasingly important. To dissi­pate heat, you need to attach the CPU cooling fan and heatsink on top of the
CPU. Follow the instructions below to install the Heatsink/Fan:

2. Position the heatsink onto the reten-

tion mechanism.

1. Locate the CPU and its retention

mechanism on the motherboard.

3. Mount the fan on top of the heatsink.

Press down the fan until its four clips
get wedged in the holes of the reten­tion mechanism.

4. Press the two levers down to fasten

the fan. Each lever can be pressed
down in only ONE direction.

retention mechanism

levers

Chapter 2

2-4

CPU Core Speed Derivation Procedure

If CPU Clock = 100MHz

Core/Bus ratio = 1 4

then CPU core speed = Host Clock x Core/Bus ratio

= 100MHz x 14
= 1.4GHz

5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector

on the board.

Overclocking

This motherboard is designed to support overclocking.
However, please make sure your components are able to
tolerate such abnormal setting, while doing overclocking.
Any attempt to operate beyond product specifications is not
recommended. We do not guarantee the damages or risks

caused by inadequate operation or beyond product
specifications.

WARNING!

fan power cable

Hardware Setup

2-5

The mainboard provides 4 gold-lead sockets for 184-pin RIMM modules.
To operate properly, at least two RIMM modules must be installed. The
mainboard supports the memory size up to 2 GB.

Memory Installation

About RIMM Module

RIMM module is a module integrated with RDRAM chips. It is similar to
a DIMM package but uses different pin settings. Rambus trademarked the term
RIMM as an entire word for a module using Rambus technology.

Memory Population Rules

z Support RIMM only.
z To operate properly, make sure that the RIMM banks are using the same

type and equal size density memory.

z Support FSB 100MHz: PC600/PC800 RIMM.

Note: PC700 will run at PC600 specification.

z Support up to 32 Direct Rambus Device.
z Support ECC Single bit Correction and Multiple bit error detection

(Setting in BIOS).

z Install two RIMM modules either on “RIMM 1and RIMM 2” or on

“RIMM3 and RIMM4” slots.

R

I

M

M

2

R

I

M

M

3

R

I

M

M

4

RIMM Slots

(RIMM 1~4)

RIMM1

Chapter 2

2-6

Y ou can install two or four RIMM modules in the following combination:

Installing RIMM Modules

DIMM Socket Memory Module Total Memory

Socket 1
(Bank 0 & Bank 1)

32MB, 64MB, 128MB,
256MB, 512MB

32MB ~ 512MB

Socket 2
(Bank 2 & Bank 3)

32MB, 64MB, 128MB,
256MB, 512MB

32MB ~ 512MB

Socket 3
(Bank 4 & Bank 5)

32MB, 64MB, 128MB,
256MB, 512MB

32MB ~ 512MB

Socket 4
(Bank 6 & Bank 7)

32MB, 64MB, 128MB,
256MB, 512MB

32MB ~ 512MB

Total System Memory 64MB ~ 2GB

Note: If only two RIMM slots are

populated, you must install C-RIMM
(Continuity RIMM) modules on the other
unused RIMM slots. A C-RIMM module is a dummy module for continuing
the signal connection.

C-RIMM Module

1. The RIMM slot has 2 Notch

Keys, so the RIMM memory
module can only fit in one
orientation.

2. Insert the RIMM memory module

vertically into the RIMM slot.
Then push it in.

3. The plastic clips at sides of the

RIMM slot will automatically
close.

4. If you won’t insert any RIMM

modules on the other two RIMM
slots, you must install C-RIMM
modules on the empty slots.

RIMM Module

NOTCH

Hardware Setup

2-7

Power Supply

ATX 20-Pin Power Connector: JWR1

This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plugs of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down
the power supply firmly into the connector. The power connector supports
instant power on function which means that system will boot up immediately
when the power supply connector is inserted on the board.

The mainboard supports ATX power supply for the power system. Be­fore inserting the power supply connector, always make sure that all compo­nents are installed properly to ensure that no damage will be caused.

PIN SIGNAL

11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V

PIN SIGNAL

1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V

JWR1 Pin Definition

JWR1

10

12011

Chapter 2

2-8

A TX 12V Power Connector: JWR3

Attaching the ATX power supply to the connector help offer sufficient
voltage to Pentium 4 CPU. This power connector also supports instant power
on function.

A TX 5V/3V Power Connector: JWR2

The mainboard provides an extra 5V/3V power connector for you to
connect to the ATX power supply.

PIN SIGNAL

1 GND
2 GND
312V
412V

1

234

JWR3

PIN SIGNAL

1 GND
2 GND
3 GND

PIN SIGNAL

4 3.3V
5 3.3V
65V

JWR2

1

6

Hardware Setup

2-9

Mouse

Keyboard

USB

Parallel

COM A COM B L-out

L-in

MIC

Midi/Joystick

The Back Panel provides the following connectors:

Back Panel

Mouse Connector: JKBMS1

The mainboard provides a standard PS/2® mouse mini DIN connector for
attaching a PS/2® mouse. You can plug a PS/2® mouse directly into this
connector. The connector location and pin assignments are as follows:

PIN SIGNAL DESCRIPTION

1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection

Pin Definition

PS/2 Mouse (6-pin Female)

2

1

3

4

5

6

Chapter 2

2-10

Keyboard Connector: JKBMS1

The mainboard provides a standard PS/2® keyboard mini DIN connector
for attaching a PS/2® keyboard. You can plug a PS/2® keyboard directly into
this connector.

PS/2 Keyboard (6-pin Female)

PIN SIGNAL DESCRIPTION

1 Keyboard DATA Keyboard DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Keyboard Clock Keyboard clock
6 NC No connection

Pin Definition

21

34

5

6

USB Connectors

The mainboard provides a UHCI (Universal Host Controller Interface)
Universal Serial Bus root for attaching USB devices such as keyboard, mouse
or other USB-compatible devices. You can plug the USB device directly into
ths connector.

USB Ports

1 2 3 4

5 6 7 8

PIN SIGNAL DESCRIPTION

1 VCC +5V
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground

USB Port Description

Hardware Setup

2-11

Serial Port Connector: COM A & COM B

The mainboard offers two 9-pin male DIN connectors for serial port COM
A and COM B. The ports are 16550A high speed communication ports that
send/receive 16 bytes FIFOs. You can attach a serial mouse or other serial
devices directly to them.

1 2 3 4 5

6 7 8 9

PIN SIGNAL DESCRIPTION

1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready)
5 GND Ground
6 DSR Data Set Ready
7 RTS Request T o Send
8 CTS Clear To Send
9 RI Ring Indicate

9-Pin Male DIN Connectors

Pin Definition

Joystick/Midi Connectors

You can connect a joystick or game pad to this connector.

Audio Port Connectors

Line Out is a connector for Speakers or Headphones. Line In is used for
external CD player, Tape player, or other audio devices. Mic is a connector for
microphones.

1/8” Stereo Audio Connectors

Line Out

Line In MIC

Note: Details on the application of 6-channel audio can be acquired

by installing the CMI8738 Audio Driver on the CD-ROM (enclosed in

the product package).

Chapter 2

2-12

Parallel Port Connector: LPT1

The mainboard provides a 25-pin female centronic connector for LPT. A
parallel port is a standard printer port that supports Enhanced Parallel Port
(EPP) and Extended Capabilities Parallel Port (ECP) mode.

13

1

1425

PIN SIGNAL DESCRIPTION

1 STROBE Strobe
2 DATA0 Data0
3 DATA1 Data1
4 DATA2 Data2
5 DATA3 Data3
6 DATA4 Data4
7 DATA5 Data5
8 DATA6 Data6
9 DATA7 Data7
10 ACK# Acknowledge
11 BUSY Busy
12 PE Paper End
13 SELECT Select
14 AUTO FEED# Automatic Feed
15 ERR# Error
16 INIT# Initialize Printer
17 SLIN# Select In
18 GND Ground
19 GND Ground
20 GND Ground
21 GND Ground
22 GND Ground
23 GND Ground
24 GND Ground
25 GND Ground

Pin Definition

Hardware Setup

2-13

The mainboard provides connectors to connect to FDD, IDE HDD, case,
modem, LAN, USB Ports, IR module and CPU/System F AN.

Floppy Disk Drive Connector: FDD1

The mainboard provides a standard floppy disk drive connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.

Connectors

Remote Power On/Off Switch Connector: JRMS1

Connect to a 2-pin push button switch. When OFF, pressing the button
can turn the system on. When ON, pressing the button once will make the
system enter the sleep/suspend state. If the button is pressed for more than
four seconds, the system will be turned off. To change the setup, go to the
BIOS Power Management Setup.

FDD1

JRMS1

Chapter 2

2-14

Hard Disk Connectors: IDE1 & IDE2

The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100
controller that provides PIO mode 0~4, Bus Master, and Ultra DMA/33/66/100
function. Y ou can connect up to four hard disk drives, CD-ROM, 120MB Floppy
(reserved for future BIOS) and other devices. These connectors support the
provided IDE hard disk cable.

IDE1 (Primary IDE Connector)
The first hard drive should always be connected to IDE1. IDE1 can

connect a Master and a Slave drive. You must configure second hard
drive to Slave mode by setting the jumper accordingly.

IDE2 (Secondary IDE Connector)
IDE2 can also connect a Master and a Slave drive.

TIP:

If you install two hard disks on cable, you must configure the
second drive to Slave mode by setting its jumper. Refer to the
hard disk documentation supplied by hard disk vendors for jumper
setting instructions.

I

D

E

2

I

D

E

1

Hardware Setup

2-15

Front Panel Connector: JFP1 or J23 (Optional Intel spec)

This connector is for electrical connection to the front panel switches
and LEDs.

PIN SIGNAL DESCRIPTION

1 HD_LED_P Hard disk LED pull-up
2 FP PWR/SLP MSG LED pull-up
3 HD_LED_N Hard disk active LED
4 FP PWR/SLP MSG LED pull-up
5 RST_SW_1 Reset Switch 1
6 PWR_SW_P Power Switch high reference pull-up
7 RST_SW_2 Reset Switch 2
8 PWR_SW_N Power Switch low reference pull-down to GND
9 RSVD_DNU Reserved. Do not use.

J23 Pin Definition

JFP1

Power
Switch

Power
LED

+

Reset
Switch

HDD LED

+

Speaker

Buzzer

(short pin)

14
15

Keylock

1

10

J23

(Optional Intel spec)

1

2

Note: The RST_SW_1 and RST_SW_2 signals should be connected to

the Reset Switch independently from other signals (HDD, PWR, GND,...)

on the J23 Front Panel Connector.

Chapter 2

2-16

CD-In/Aux-In/Modem-In Connector: JCD1/JAUX1/JPHN1

JCD1 connector is for CD-ROM audio connector.

JAUX1 connector is for DVD add-on card with Line-in connector.

JPHN1 connector is for modem with internal audio connector.

Note:

Mono_Out is connected to the Modem speaker-out connector.

Phone_In is connected to the Modem Microphone-In connector.

JCD1

GND

L

R

JAUX1

GND

L

R

JPHN1

Phone_In

GND

Mono_Out

Hardware Setup

2-17

Note:

1. Always consult the vendor for proper CPU cooling fan.

2. CPU Fan supports the fan control. You can install the PC Alert
utility that will automatically control the CPU Fan speed accord­ing to the actual CPU temeperature.

Fan Power Connectors: CPUFAN/SYSFAN/PSFAN

The CPUF AN (processor fan), SYSFAN (system fan) and PSFAN1 (power
supply fan) support system cooling fan with +12V. It supports three-pin head
connector. When connecting the wire to the connectors, always take note that
the red wire is the positive and should be connected to the +12V, the black wire
is Ground and should be connected to GND. If the mainboard has a System
Hardware Monitor chipset on-board, you must use a specially designed fan
with speed sensor to take advantage of the CPU fan control.

SENSOR

+12V

GND

CPUFAN

SENSOR

+12V

GND

PSFAN1

SENSOR

+12V

GND

SYSFAN

Chapter 2

2-18

Wake On Ring Connector: JMDM1

This connector allows you to connect to a modem card with Wake On
Ring function. The connector will power up the system when a signal is re­ceived through the modem card.

Note: Modem wake-up signal is active “low”.

JMDM1

NC

MDM_WAKEUP

NC

5VSB

1

GND

Power Saving Switch Connector: JGS1

Attach a power saving switch to this connector. Pressing the switch
once will have the system enter the sleep/suspend state. Press any key to wake
up the system.

JGS1

Hardware Setup

2-19

IrDA Infrared Module Connector: J18

This connector allows you to connect to an IrDA Infrared module. You
must configure the setting through the BIOS setup to use the IR function.

Chassis Intrusion Switch Connector: J12

The connector is connected to a 2-pin chassis switch. If the chassis is
opened, the switch will be short. The system will record this status and show
a warning message on the screen. To clear the warning, you must enter the
BIOS utility and clear the record.

1 VCC
2NC
3 IRRX
4 GND
5 IRTX

Pin Signal

J18

5

1

J12

Chapter 2

2-20

Front Panel Audio Connector: J22 (Optional Intel spec)

This connector allows you to connect to the front panel audio.

PIN SIGNAL DESCRIPTION

1 AUD_MIC Front panel microphone input signal
2 AUD_GND Ground used by analog audio circuits
3 AUD_MIC_BIAS Microphone power
4 AUD_VCC Filtered +5V used by analog audio circuits
5 AUD_FPOUT_R Right channel audio signal to front panel
6 AUD_RET_R Right channel audio signal return from front panel
7 HP_ON Reserved for future use to control headphone amplifier
8 KEY No pin
9 AUD_FPOUT_L Left channel audio signal to front panel
10 AUD_RET_L Left channel audio signal return from front panel

Pin Definition

1

2

9

10

J22

(Optional Intel spec)

Hardware Setup

2-21

Pin Description Pin Description

1 VCC 2 GND
3 USB0- 4 GND
5 USB0+ 6 USB1+
7 GND 8 USB1­9 GND 10 VCC

JUSB1 Pin Definition

Pin Description Pin Description

1 VCC 2 VCC
3 USB0- 4 USB1­5 USB0+ 6 USB1+
7 GND 8 GND
9 NC 10 OC0

JUSB2 Pin Definition

Front USB Connectors: JUSB1 & JUSB2

Depending on users’ request, the mainboard can provide ONE or TWO
USB (Universal Serial Bus) pin headers that allow you to connect optional USB
ports for front panel.

Option 1

JUSB1: MSI spec
JUSB2: Intel spec/compliant with Intel® I/O Connectivity Design Guide

10

2

9

1

JUSB1

(MSI spec)

10

2

9

1

JUSB2

(Intel spec)

Chapter 2

2-22

Option 2

JUSB1: USB PC to PC networking function

Pin Description Pin Description

1 VCC 2 NC
3 USB0- 4 GND
5 USB0+ 6 USB1+
7 GND 8 USB1­9 GND 10 NC

JUSB1 Pin Definition

10

2

9

1

JUSB1

(USB 1.1)

(USB PC to PC

Networking)

Hardware Setup

2-23

Note: USB PC to PC Networking feature allows users to transfer and
receive data from other computers or share system resources with

others without using any network adapter. See below for instructions.

T o Attach the USB PC to PC cable

1. Check whether the package includes the following items. If any is

missing, contact your dealer.

2. Connect the USB Bracket’s cable to the JUSB1 pin header on the

mainboard. Locate the pin position marked with the ARROW on the
connector of USB Bracket and Pin# 2 of JUSB1. Then align the marked
pin position with Pin# 2 to attach the USB Bracket.

3. Identify the B Type Connector on the bracket used for PC to PC Net-

working function.

JUSB1

10

2

1

USB PC to PC Bracket

USB PC to PC Cable

B Type Connector

for PC to PC
Networking

A Type Connector

for attaching
USB 1.1 Peripherals

9

Pin Position marked
with ARROW

Chapter 2

2-24

4. Connect your PC to another PC via USB PC to PC cable. The transfer

rate will run at USB 1.1 speed (12Mbps/s).

For more information on USB PC to PC Networking function, refer
to Appendix A: USB PC to PC Networking Function.

Connect to the B
Type Connector
on your PC

Connect to the
USB 1.1 port of
another PC

B Type Connector

Hardware Setup

2-25

D-Bracket™ Connector: J24

The mainboard comes with a J24 connector for you to connect to D­Bracket™. D-Bracket™ is a USB Bracket integrating four LEDs whose func­tions are similar to D-LED™ and allows users to identify system problem through
16 various combinations of LED signals. For definitions of 16 signal
combinations, please refer to Chapter 1. D-LED™ & D-Bracket™.

J24

There are two types of D-Bracket™: one supports USB PC to PC Net­working function, and the other doesn’t (see photos on the next page). You
can purchase the one you need from your dealer.

Chapter 2

2-26

zz

zz

z D-Bracket™ with one USB PC to PC port and one regular USB port

Connected to J24

Connected to JUSB1 pin header which is
implemented with USB PC To PC Networking
function

zz

zz

z D-Bracket™ with two regular USB ports

Connected to J24

Connected to JUSB1 or JUSB2 pin header
which DOES NOT support USB PC To PC
networking function

Hardware Setup

2-27

Clear CMOS Jumper: JBAT1

There is a CMOS RAM on board that has a power supply from external
battery to keep the data of system configuration. With the CMOS RAM, the
system can automatically boot OS every time it is turned on. That battery has
long life time for at least 5 years. If you want to clear the system configuration,
use the JBAT1 (Clear CMOS Jumper ) to clear data. Follow the instructions
below to clear the data:

Jumpers

The motherboard provides one jumper for you to set the computer’s
function. This section will explain how to change your motherboard’s function
through the use of the jumper.

Clear CMOS

3

1

Keep CMOS

3

1

You can clear CMOS by shorting 2-3 pin while the
system is off. Then return to 1-2 pin position. Avoid
clearing the CMOS while the system is on; it will
damage the mainboard.

WARNING!

JBAT1

1

Chapter 2

2-28

RDRAM Over Voltage Jumper: J20

The jumper is used to set the RDRAM voltage for overclocking purpose.

Over Voltage

(2.68V)

1

3

1

3

Over Voltage

(2.58V)

1

3

Normal

(2.5V)

Over Voltage

This motherboard is designed to support over voltage.
However, please make sure your components are able to
tolerate such abnormal setting, while doing over voltage.

Any attempt to operate beyond product specifications is not
recommended. We do not guarantee the damages or risks caused by

inadequate operation or beyond product specifications.

Avoid setting J20 while the sytem is on. It will damage the RDRAM.

WARNING!

J20

1

Hardware Setup

2-29

Clear BIOS Password Jumper: J17

The jumper is used to clear the BIOS password. To clear the password,
open the jumper and restart your computer.

BIOS Flash Jumper: J16

This jumper is used to lock or unlock the boot block area on BIOS.
When unlocked, the BIOS boot block area can be updated. When locked, the
BIOS boot block area cannot be updated.

Clear

Normal

J17

BIOS Flash
Unlocked

BIOS Flash
Locked

J16

Chapter 2

2-30

Slots

AGP (Accelerated Graphics Port) Slot

The AGP slot allows you to insert the AGP graphics card only. AGP is an
interface specification designed for the throughput demands of 3D graphics.
It introduces a 66MHz, 32-bit channel for the graphics controller to directly
access main memory. The slot only supports 1.5V 4x AGP card.

PCI Slots

Four PCI slots allow you to insert the expansion cards to meet your
needs. When adding or removing expansion cards, make sure that you unplug
the power supply first. Meanwhile, read the documentation for the expansion
card to make any necessary hardware or software settings for the expansion
card, such as jumpers, switches or BIOS configuration.

CNR (Communication Network Riser) Slot

The CNR slot allows you to insert the CNR expansion cards. CNR is a
specially designed network, audio, or modem riser card for ATX family
motherboards. Its main processing is done through software and controlled by
the motherboard’s chipset.

The motherboard provides four 32-bit Master PCI Bus Slots, one AGP
and one CNR slot.

PCI Slots

AGP Slot

CNR Slot

Hardware Setup

2-31

PCI Interrupt Request Routing

The IRQ, abbreviation of interrupt request line and pronounced I-R-Q,
are hardware lines over which devices can send interrupt signals to the
microprocessor. The PCI IRQ pins are typically connected to the PCI bus as
follows:

Order 1 Order 2 Order 3 Order 4
PCI Slot 1 INT C# INT F# INT G# INT A#
PCI Slot 2 INT F# INT G# INT A# INT C#
PCI Slot 3 INT G# INT A# INT C# INT F#
PCI Slot 4 INT A# INT C# INT F# INT G#

AWARD® BIOS Setup

3-1

Chapter 3. AWARD® BIOS Setup

The mainboard uses AWARD® BIOS ROM that provides a Setup utility
for users to modify the basic system configuration. The information is stored
in a battery-backed CMOS RAM so it retains the Setup information when the
power is turned off.

This chapter provides you with the overview of the BIOS Setup program.
It contains the following topics:

3

AWARD® BIOS Setup

Entering Setup 3-2

Control Keys 3-2

Getting Help 3-3

The Main Menu 3-4

Standard CMOS Features 3-6

Advanced BIOS Features 3-8

Advanced Chipset Features 3-12

Integrated Peripherals 3-14

Power Management Setup 3-19

PNP/PCI Configurations 3-23

PC Health Status 3-25

Frequency/Voltage Control 3-26

High System Performance 3-28

Load Optimized Defaults 3-29

Set Supervisor/User Password 3-30

Save & Exit Setup 3-32

Exit Without Saving 3-33

Chapter 3

3-2

Entering Setup

Control Keys

<↑>

Move to the previous item

<↓>

Move to the next item

<←>

Move to the item in the left hand

<→>

Move to the item in the right hand

<Enter> Select the item

<Esc> Jumps to the Exit menu or returns to the main menu from a submenu

<+/PU> Increase the numeric value or make changes

<-/PD> Decrease the numeric value or make changes

<F1> General help, only for Status Page Setup Menu and Option Page

Setup Menu

<F5> Restore the previous CMOS value from CMOS, only for Option Page

Setup Menu

<F6> Load the default CMOS value from Fail-Safe default table, only for

Option Page Setup Menu

<F7> Load Optimized defaults

<F10> Save all the CMOS changes and exit

Power on the computer and the system will start POST (Power On Self Test)
process. When the message below appears on the screen, press <DEL> key to
enter Setup.

Press DEL to enter SETUP

If the message disappears before you respond and you still wish to enter
Setup, restart the system by turning it OFF and On or pressing the RESET
button. You may also restart the system by simultaneously pressing <Ctrl>,
<Alt>, and <Delete> keys.

AWARD® BIOS Setup

3-3

Getting Help

Sub-Menu

If you find a right pointer symbol (as shown in
the right view) appears to the left of certain fields
that means a sub-menu containing additional
options can be launched from this field. You can

use control keys ( ↑↓ ) to highlight the field and

press <Enter> to call up the sub-menu. Then you
can use the control keys to enter values and
move from field to field within a sub-menu. If
you want to return to the main menu, just press
<Esc >.

General Help <F1>

The BIOS setup program provides a General Help screen. You can call up this
screen from any menu by simply pressing <F1>. The Help screen lists the
appropriate keys to use and the possible selections for the highlighted item.
Press <Esc> to exit the Help screen.

After entering the Setup menu, the first menu you will see is the Main Menu.

Main Menu

The main menu lists the setup functions you can make changes to. You can use

the control keys ( ↑↓ ) to select the item. The on-line description of the high-

lighted setup function is displayed at the bottom of the screen.

8IDE Primary Master
8IDE Primary Slave
8IDE Secondary Master
8IDE Secondary Slave

Chapter 3

3-4

The Main Menu

Standard CMOS Features

Use this Menu for basic system configurations.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize your
system’s performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

PnP/PCI Configurations

This entry appears if your system supports PnP/PCI.

Once you enter Award® BIOS CMOS Setup Utility, the Main Menu (Figure 1)
will appear on the screen. The Main Menu allows you to select from twelve
setup functions and two exit choices. Use arrow keys to select among the items
and press <Enter> to accept or enter the sub-menu.

AWARD® BIOS Setup

3-5

PC Health Status

This entry shows your PC health status.

Frequency/Voltage Control

Use this menu to specify your settings for frequency/voltage control.

High System Performance

Use this menu to load the BIOS values for the best system performance, but
the system stability may be affected.

Load Optimized Defaults

Use this menu to load factory default settings into the BIOS for optimal and
stable system operations.

Supervisor/User Password

Use this menu to set User and Supervisor Passwords.

Save & Exit Setup

Save CMOS value changes to CMOS and exit setup.

Exit Without Saving

Abandon all CMOS value changes and exit setup.

Chapter 3

3-6

Date

The date format is <day><month> <date> <year>.

day Day of the week, from Sun to Sat, determined by BIOS. Read-only.
month The month from Jan. through Dec.
date The date from 1 to 31 can be keyed by numeric function keys.
year The year, depends on the year of the BIOS

Time

The time format is <hour> <minute> <second>.

IDE Primary/Secondary Master/Slave

Press PgUp/<+> or PgDn/<-> to select Manual, None, Auto type. Note that the
specifications of your drive must match with the drive table. The hard disk will
not work properly if you enter improper information for this category. If your
hard disk drive type is not matched or listed, you can use Manual to define
your own drive type manually.

If you select Manual, related information is asked to be entered to the follow-

Standard CMOS Features

The items in Standard CMOS Features Menu are divided into 10 categories.
Each category includes no, one or more than one setup items. Use the arrow
keys to highlight the item and then use the <PgUp> or <PgDn> keys to select
the value you want in each item.

AWARD® BIOS Setup

3-7

ing items. Enter the information directly from the keyboard. This information
should be provided in the documentation from your hard disk vendor or the
system manufacturer.

If the controller of HDD interface is SCSI, the selection shall be “None”.

If the controller of HDD interface is CD-ROM, the selection shall be “None”.

Access Mode The settings are CHS, LBA, Large, Auto.
Capacity The formatted size of the storage device.
Cylinder Number of cylinders.
Head Number of heads.
Precomp Write precompensation.
Landing Zone Cylinder location of the landing zone.
Sector Number of sectors.

Drive A/B

This item allows you to set the type of floppy drives installed. Available
options are None, 360K, 5.25 in., 1.2M, 5.25 in., 720K, 3.5 in., 1.44M, 3.5 in.,

2.88M, 3.5 in.

Video

The setting controls the type of video adapter used for the primary monitor of
the system. Available options are EGA/VGA , CGA 40, CGA 80 and Mono.

Halt On

The setting determines whether the system will stop if an error is detected at
boot. Available options are:

All Errors The system stops when any error is detected.
No Errors The system doesn’t stop for any detected error.
All, But Keyboard The system doesn’t stop for a keyboard error.
All, But Diskette The system doesn’t stop for a disk error.
All, But Disk/Key The system doesn’t stop for either a disk or a

keyboard error.

Chapter 3

3-8

Advanced BIOS Features

Virus Warning

The setting is to set the virus warning feature for IDE hard disk boot sector
protection. If the function is enabled and any attempt to write data into this
area is made, BIOS will display a warning message on the screen and beep.
Setting options: Disabled, Enabled.

BIOS Flash Write Control

This function protects the BIOS from accidental corruption by unauthorized
users or computer viruses. When disabled, the BIOS' data cannot be changed
when attempting to update the BIOS with a Flash utility. To successfully up­date the BIOS, you'll need to enable this BIOS Flash Write Control function.
Setting options: Disabled, Enabled.

CPU L1 & L2 Cache

Cache memory is additional memory that is much faster than conventional
DRAM (system memory). When the CPU requests data, the system transfers
the requested data from the main DRAM into cache memory, for even faster
access by the CPU. This setting enables/disables the internal cache (also known
as L1 or level 1 cache) and external cache (also known as L2 or level 2 cache).
Setting options: Disabled, Enabled.

Quick Power On Self Test

The option speeds up Power On Self Test (POST) after you power on the

AWARD® BIOS Setup

3-9

computer. When setting the item to Enabled, BIOS will shorten or skip some
check items during POST. Setting options: Enabled, Disabled.

First/Second/Third Boot Device

The items allow you to set the sequence of boot devices where BIOS attempts
to load the disk operating system. The settings are:

Floppy The system will boot from floppy drive.
LS120 The system will boot from LS-120 drive.
HDD-0 The system will boot from the first HDD.
SCSI The system will boot from the SCSI.
CDROM The system will boot from the CD-ROM.
HDD-1 The system will boot from the second HDD.
HDD-2 The system will boot from the third HDD.
HDD-3 The system will boot from the fourth HDD.
ZIP100 The system will boot from ATAPI ZIP drive.
LAN The system will boot from the Network drive.
Disabled Disable this sequence.

Boot Other Device

Setting the option to Enabled allows the system to try to boot from other
device if the system fails to boot from the First/Second/Third boot device.

Swap Floppy Drive

Setting to Enabled will swap floppy drives A: and B:.

Boot Up Floppy Seek

Setting to Enabled will make BIOS seek floppy drive A: before booting the
system. Settings: Disabled and Enabled.

Boot Up NumLock Status

This setting is to set the Num Lock status when the system is powered on.
Setting to On will turn on the Num Lock key when the system is powered on.
Setting to Off will allow users to use the arrow keys on the numeric keypad.
Setting options: On, Off.

Gate A20 Option

This item is to set the Gate A20 status. A20 refers to the first 64KB of extended
memory. When the default value Fast is selected, the Gate A20 is controlled by
Port92 or chipset specific method resulting in faster system performance. When

Chapter 3

3-10

Normal is selected, A20 is controlled by a keyboard controller or chipset
hardware.

Typematic Rate Setting

This setting is used to enable or disable the typematic rate setting including
Typematic Rate & Typematic Delay.

Typematic Rate (Chars/Sec)

After Typematic Rate Setting is enabled, this item allows you to set the rate
(characters/second) at which the keys are accelerated. Settings: 6, 8, 10, 12,
15, 20, 24 and 30.

Typematic Delay (Msec)

This item allows you to select the delay between when the key was first pressed
and when the acceleration begins. Settings: 250, 500, 750 and 1000.

Security Option

This specifies the type of BIOS password protection that is implemented. Set­tings are described below:

OS Select For DRAM > 64MB

This allows you to run the OS/2® operating system with DRAM greater than
64MB. Setting options: Non-OS2, OS2.

HDD S.M.A.R.T. Capability

This allows you to activate the S.M.A.R.T. (Self-Monitoring Analysis & Re­porting Technology) capability for the hard disks. S.M.A.R.T is a utility that
monitors your disk status to predict hard disk failure. This gives you an oppor­tunity to move data from a hard disk that is going to fail to a safe place before
the hard disk becomes offline. Settings: Enabled and Disabled.

Option Description

Setup The password prompt appears only when end users try to

run Setup.

System A password prompt appears every time when the com-

puter is powered on or when end users try to run Setup.

AWARD® BIOS Setup

3-11

Report No FDD For WIN 95

For compatibility with Windows 95 logo certification, select Yes to release IRQ6
when the system contains no floppy drive. When this setting is set to Yes,
users have to select Disabled for the Onboard FDC Controller in the Inte­grated Peripherals menu. Setting options: Yes, No.

Chapter 3

3-12

The Advanced Chipset Features Setup option is used to change the values of
the chipset registers. These registers control most of the system options in the
computer.

Choose the “ADVANCED CHIPSET FEATURES” from the Main Menu and
the following screen will appear.

Advanced Chipset Features

RDRAM Bus Frequency

This setting allows you to set the bus frequency for installed RDRAM. Setting
options: Auto, 400 MHz, 300 MHz.

DRAM Data Integrity Mode

Select ECC (Error-Checking & Correcting Code) or Non-ECC according to the
type of DRAM installed.

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh,
resulting in better system performance. However, if any program writes to this
memory area, a system error may result. Setting options: Enabled, Disabled.

Video BIOS Cacheable

Selecting Enabled allows caching of the video BIOS ROM at C0000h to C7FFFh,
resulting in better video performance. However, if any program writes to this

Note: Change these settings only if you are familiar with the chipset.

AWARD® BIOS Setup

3-13

memory area, a system error may result. Setting options: Enabled, Disabled.

Delayed Transaction

The chipset has an embedded 32-bit posted write buffer to support delayed
transactions cycles so that transactions to and from the ISA bus are buffered
and PCI bus can perform other transactions while the ISA transaction is
underway. Select Enabled to support compliance with PCI specification ver­sion 2.1. Setting options: Enabled, Disabled.

AGP Aperture Size (MB)

This setting controls just how much system RAM can be allocated to AGP for
video purposes. The aperture is a portion of the PCI memory address range
dedicated to graphics memory address space. Host cycles that hit the aperture
range are forwarded to the AGP without any translation. The option allows the
selection of an aperture size of 4MB, 8MB, 16MB, 32MB, 64MB, 128MB, and

256MB.

Chapter 3

3-14

Integrated Peripherals

On-Chip Primary/Secondary PCI IDE

The integrated peripheral controller contains an IDE interface with support for
two IDE channels. Choose Enabled to activate each channel separately.

IDE Primary/Secondary Master/Slave PIO

The four items allow you to set a PIO (Programmed Input/Output) mode for
each of the four IDE devices that the onboard IDE interface supports. Modes
0~4 provide increased performance. In Auto mode, BIOS automatically deter­mines the best mode for each IDE device.

IDE Primary/Secondary Master/Slave UDMA

Ultra DMA implementation is possible only if your IDE device supports it and
your operating environment contains a DMA driver. If both your hard drive
and software support Ultra DMA 33/66/100, select Auto to enable BIOS support.

AWARD® BIOS Setup

3-15

USB Controller

Select Enabled if your system contains a Universal Serial Bus (USB) controller
and you have USB peripherals. Setting options: Enabled, Disabled.

USB Keyboard Support

Set to Enabled if your need to use an USB keyboard in the operating system
that does not support or have any USB driver installed, such as DOS and SCO
Unix.

Init Display First

This item specifies which VGA card is your primary graphics adapter. Settings:
PCI Slot and AGP.

AC’97 Audio

Auto allows the mainboard to detect whether an audio device is used. If the
device is detected, the onboard AC’97 (Audio Codec’97) controller will be
enabled; if not, it is disabled. Disable the controller if you want to use other
controller cards to connect an audio device. Settings: Auto, Disabled.

AC’97 Modem

Auto allows the mainboard to detect whether a modem is used. If a modem is
used, the onboard MC’97 (Modem Codec’97) controller will be enabled; if not,
it is disabled. Disable the controller if you want to use other controller cards to
connect to a modem. Settings: Auto, Disabled.

Onboard Sound

Auto allows the mainboard to detect whether an audio device is used. If the
device is detected, the onboard audio controller will be enabled; if not, it is
disabled. Disable the controller if you want to use other controller cards to
connect an audio device. Settings: Auto, Disabled.

IDE HDD Block Mode

This allows your hard disk controller to use the fast block mode to transfer data
to and from the hard disk drive. Block mode is also called block transfer, multi­ple commands or multiple sector read/write. Enabled enables IDE controller to
use block mode; Disabled allows the controller to use standard mode.

POWER ON Function

This controls which part on the PS/2 mouse or keyboard can power on the

Chapter 3

3-16

system. Settings: Password, Hot KEY, Mouse Left, Mouse Right, BUTTON
ONLY and Keyboard 98.

KB Power ON Password

If POWER ON Function is set to Password, then you can set a password in the
field for the PS/2 keyboard to power on the system.

Hot Key Power ON

If POWER ON Function is set to Hot KEY, you can assign a hot key combina­tion in the field for the PS/2 keyboard to power on the system. Settings: Ctrl-
F1 through Ctrl-F12.

Onboard FDC Controller

The item is used to enable or disable the onboard Floppy controller. Select
Enabled when you have installed a floppy disk drive and want to use it.

Onboard Serial Port 1/2

The items specify the base I/O port address and IRQ for the onboard Serial Port
A/Serial Port B. Selecting Auto allows BIOS to automatically determine the
correct base I/O port address. Settings: Disabled, 3F8/IRQ4, 2F8/IRQ3, 3E8/
IRQ4, 2E8/IRQ3 and Auto.

UART Mode Select

The field allows you to specify the operation mode for serial port “COM B”.
Settings are:

Normal:RS-232C Serial Port
IrDA: IrDA-compliant Serial Infrared Port
ASKIR: Amplitude Shift Keyed Infrared Port

RxD, TxD Active

This setting controls the receiving and transmitting speed of the IR peripheral
in use. Setting options: Hi/Hi, Hi/Lo, Lo/Hi, Lo/Lo.

IR Transmission Delay

This setting determines whether the IR transmission rate will be delayed while
converting to receiving mode. Setting options: Disabled, Enabled.

UR2 Duplex Mode

This setting controls the operating mode of IR transmission/reception. Setting

AWARD® BIOS Setup

3-17

options: Full, Half. Under Full Duplex mode, synchronous, bi-directional trans-
mission/reception is allowed. Under Half Duplex mode, only asynchronous, bi­directional transmission/reception is allowed.

Use IR Pins

Please consult your IR peripheral documentation to select the correct setting
of the TxD and RxD signals. Setting options: RxD2/TxD2, IR-Rx2Tx2.

Onboard Parallel Port

This specifies the I/O port address and IRQ of the onboard parallel port. Settings:
378/IRQ7, 278/IRQ5, 3BC/IRQ7 and Disabled.

Parallel Port Mode

SPP : Standard Parallel Port
EPP : Enhanced Parallel Port
ECP : Extended Capability Port
ECP + EPP: Extended Capability Port + Enhanced Parallel Port

SPP/EPP/ECP/ECP+EPP

To operate the onboard parallel port as Standard Parallel Port only, choose
“SPP.” To operate the onboard parallel port in the EPP mode simultaneously,
choose “EPP.” By choosing “ECP”, the onboard parallel port will operate
in ECP mode only. Choosing “ECP + EPP” will allow the onboard parallel
port to support both the ECP and EPP modes simultaneously.

EPP Mode Select

The onboard parallel port is EPP Spec. compliant, so after the user chooses the
onboard parallel port with the EPP function, the following message will be
displayed on the screen: “EPP Mode Select.” At this time either EPP 1.7 spec or
EPP 1.9 spec can be chosen.

ECP Mode Use DMA

The ECP mode has to use the DMA channel, so choose the onboard parallel
port with the ECP feature. After selecting it, the following message will appear:
“ECP Mode Use DMA.” At this time, the user can choose between DMA
channel 3 or 1.

PWRON After PWR-Fail

This setting specifies whether your system will reboot after a power failure or

Chapter 3

3-18

interrupts occurs. Available settins are:

Off Leaves the computer in the power off state.
On Reboots the computer.
Former-Sts Restores the system to the status before power failure or

interrupt occurs.

Game Port Address/Midi Port Address

This setting disables or assigns an address for the onboard game/midi port.

Midi Port IRQ

This setting specifies an IRQ for the onboard midi port.

Power Status LED

This item sets how the system uses Power LED on the case to indicate the
suspend/sleep state. Settings are:

Single The Power LED blinks to indicate the suspend/sleep

state.

Dual The Power LED changes its color to indicate the sus-

pend/sleep state.

AWARD® BIOS Setup

3-19

Power Management Setup

The Power Management Setup allows you to configure you system to most
effectively save energy while operating in a manner consistent with your own
style of computer use.

ACPI Suspend Type

This item specifies the power saving modes for ACPI function. Options are:

S1/POS The S1 sleep mode is a low power state. In this state, no

system context (CPU or chipset) is lost and hardware
maintains all system context.

S3/STR The S3 sleep mode is a power-down state in which power

is supplied only to essential components such as main
memory and wake-capable devices and all system con­text is saved to main memory. The information stored in
memory will be used to restore the PC to the previous
state when an “wake up” event occurs.

Power Management

This item is used to select the degree (or type) of power saving and is related

Chapter 3

3-20

to these modes: Suspend Mode and HDD Power Down. There are three op­tions for power management:

Min Saving Minimum Power Management. Suspend Mode = 1 Hour,

and HDD Power Down = 15 Min.

Max Saving Maximum Power Management. Suspend Mode = 1 Min,

and HDD Power Down = 1 Min.

User Define Allows end users to configure each mode separately.

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC+Blank This selection will cause the system to turn off

the vertical and horizontal synchronization ports
and write blanks to the video buffer.

Blank Screen This option only writes blanks to the video buffer.

DPMS Initial display power management signaling.

Video Off In Suspend

This setting determines whether the monitor will be turned off during suspend
mode. Setting options: Yes, No.

Suspend Type

This setting allows you to select the type of Suspend mode. Setting options:
Stop Grant (saves the state of the entire system to disk and then powers off
the system), PwrOn Suspend (the CPU and core system remain powered on in
a very low-power mode).

Modem Use IRQ

Name the interrupt request (IRQ) line assigned to the modem (if any) on your
system. Activity of the selected IRQ always awakens the system. Settings are
3, 4, 5, 7, 9, 10, 11 and NA.

Suspend Mode

After the selected period of system inactivity, all devices except the CPU shut
off. Settings are Disabled, 1 Min, 2 Min, 4 Min, 8 Min, 12 Min, 20 Min, 30
Min, 40 Min and 1 Hour.

AWARD® BIOS Setup

3-21

HDD Power Down

If HDD activity is not detected for the length of time specified in this field, the
hard disk drive will be powered down while all other devices remain active.
Settings are Disabled and 1 through 15 Min.

Soft-Off by PWR-BTTN

This feature allows users to configure the power button function. Settings are:

Instant-Off The power button functions as a normal power-on/-

off button.

Delay 4 Sec. When you press the power button, the computer

enters the suspend/sleep mode, but if the button is
pressed for more than four seconds, the computer is
turned off.

Wake Up by PCI Card, Power On by Ring, Wake Up On LAN, USB KB/MS
Wake-Up From S3

These fields specify whether the system will be awakened from power saving
modes when activity or input signal of the specified hardware peripheral or
component is detected.

Note: To use the function of “Power On by Ring” and “Wake Up On

LAN”, you need to install a modem/LAN card supporting power on

function.

CPU THRM-Throttling

The item allows you to specify the CPU speed (at percentage) to which it will
slow down when the CPU reaches the predetermined overheat temperature.
Settings range from 12.5% to 87.5% at 12.5% increment.

Resume by Alarm

The field is used to enable or disable the feature of booting up the system on
a scheduled time/date.

Date (of Month) Alarm

The field specifies the date for Resume by Alarm. Settings: 0~31.

Time (hh:mm:ss) Alarm

The field specifies the time for Resume by Alarm. Format is <hour>

<minute><second>.

Chapter 3

3-22

Reload Global Timer Events: Primary IDE 0/1, Secondary IDE 0/1, FDD/
COM/LPT Port, PCI PIRQ [A-D]#

Global Timer Events are I/O events whose occurrence can prevent the system
from entering a power saving mode or can awaken the system from such a
mode. In effect, the system remains alert for anything which occurs to a device
that is configured as Enabled, even when the system is in a power down mode.

AWARD® BIOS Setup

3-23

PNP/PCI Configurations

This section describes configuring the PCI bus system. PCI, or Personal Com-
puter Interconnect, is a system which allows I/O devices to operate at speeds
nearing the speed the CPU itself uses when communicating with its own spe­cial components. This section covers some very technical items and it is
strongly recommended that only experienced users should make any changes
to the default settings.

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset Extended Sys­tem Configuration Data (ESCD) when you exit Setup if you have installed a
new add-on and the system reconfiguration has caused such a serious conflict
that the operating system can not boot. The settings are: Enabled and Disabled.

Resource Controlled By

The Award Plug and Play BIOS has the capacity to automatically configure all
of the boot and Plug and Play compatible devices. However, this capability
means absolutely nothing unless you are using a Plug and Play operating
system such as Windows 95/98. If you set this field to “manual” choose spe­cific resources by going into each of the sub menu that follows this field (a sub
menu is preceded by a “¾”). The settings are: Auto (ESCD), Manual.

IRQ Resources

The items are adjustable only when Resources Controlled By is set to Manual.

Chapter 3

3-24

Press <Enter> and you will enter the sub-menu of the items. IRQ Resources list
IRQ 3/4/5/7/9/10/11/12/14/15 for users to set each IRQ a type depending on the
type of device using the IRQ. Settings are:

PCI Device For Plug & Play compatible devices designed for PCI

bus architecture.

Reserved The IRQ will be reserved for further request.

PCI/VGA Palette Snoop

When set to Enabled, multiple VGA devices operating on different buses can
handle data from the CPU on each set of palette registers on every video
device. Bit 5 of the command register in the PCI device configuration space is
the VGA Palette Snoop bit (0 is disabled). For example, if there are two VGA
devices in the computer (one PCI and one ISA) and the:

The setting must be set to Enabled if any ISA bus adapter in the system
requires VGA palette snooping.

VGA Palette Snoop

Bit Setting Action

Disabled Data read or written by the CPU is only directed to the

PCI VGA device’s palette registers.

Enabled Data read or written by the CPU is directed to both the

PCI VGA device’s palette registers and the ISA VGA
device’s palette registers, permitting the palette registers
of both VGA devices to be identical.
