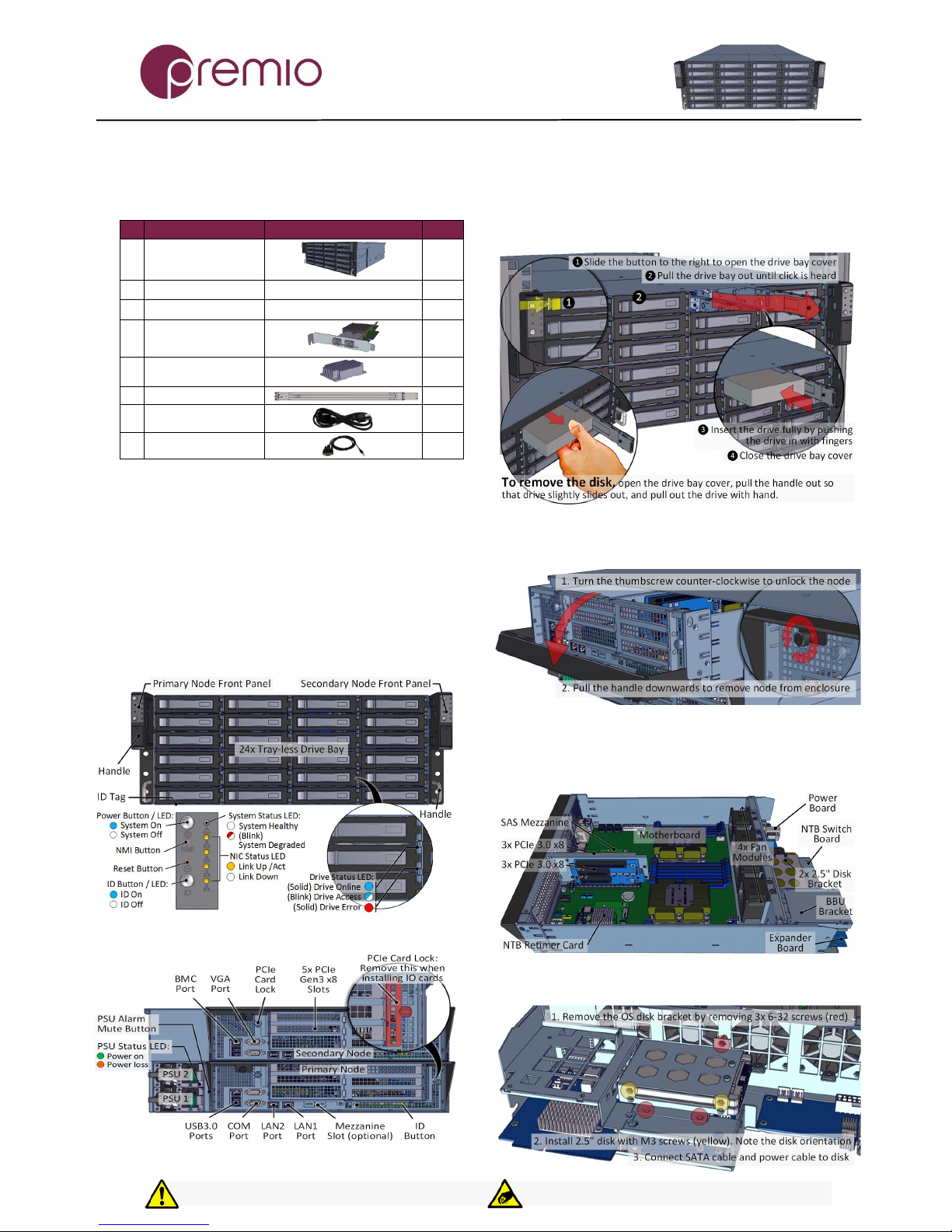

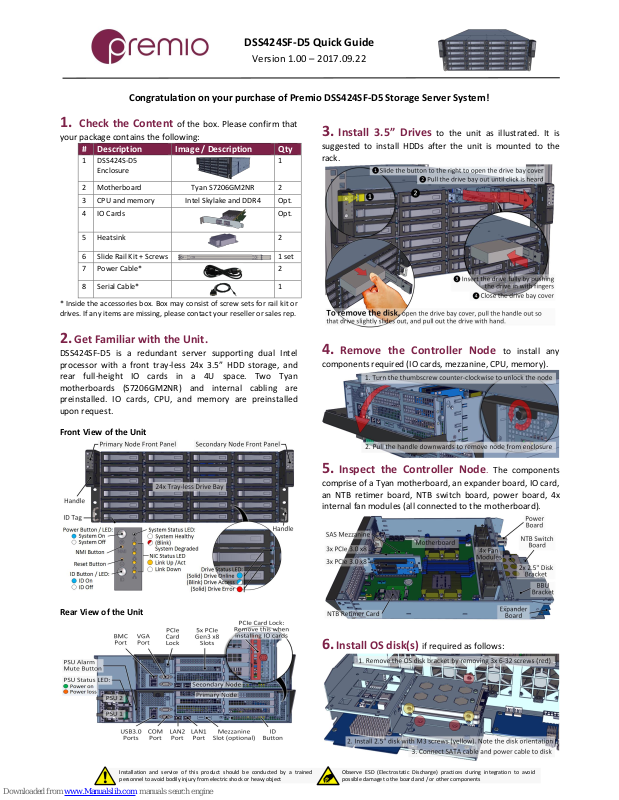

DSS424SF-D5 Quick Guide
Version 1.00 – 2017.09.22
1. Check the Content of the box. Please confirm that
your package contains the following:
#
Description
Image / Description
Qty
1
DSS424S-D5
Enclosure
1
2
Motherboard
Tyan S7206GM2NR
2 3 CPU and memory
Intel Skylake and DDR4
Opt.
4
IO Cards
Opt.
5
Heatsink
2
6
Slide Rail Kit + Screws
1 set
7
Power Cable*
2
8
Serial Cable*
1
* Inside the accessories box. Box may consist of screw sets for rail kit or
drives. If any items are missing, please contact your reseller or sales rep.
2. Get Familiar with the Unit.
DSS424SF-D5 is a redundant server supporting dual Intel
processor with a front tray-less 24x 3.5” HDD storage, and
rear full-height IO cards in a 4U space. Two Tyan
motherboards (S7206GM2NR) and internal cabling are
preinstalled. IO cards, CPU, and memory are preinstalled
upon request.
Front View of the Unit
Rear View of the Unit
3. Install 3.5” Drives to the unit as illustrated. It is
suggested to install HDDs after the unit is mounted to the
rack.
4. Remove the Controller Node to install any
components required (IO cards, mezzanine, CPU, memory).
5. Inspect the Controller Node. The components
comprise of a Tyan motherboard, an expander board, IO card,
an NTB retimer board, NTB switch board, power board, 4x
internal fan modules (all connected to the motherboard).
6. Install OS disk(s) if required as follows:
Congratulation on your purchase of Premio DSS424SF-D5 Storage Server System!

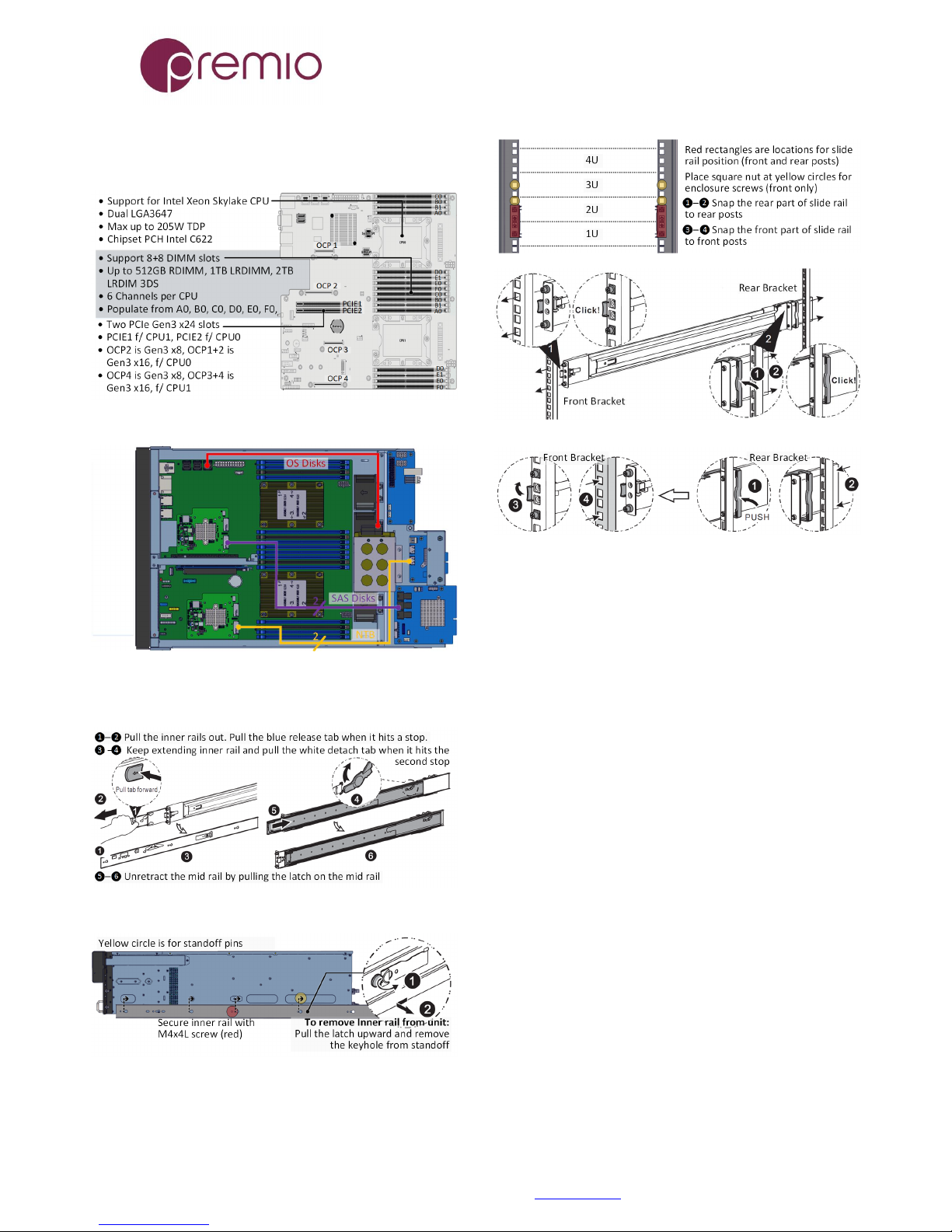

Page 2
DSS424SF-D5 Enclosure Quick Guide
For more information please visit our website at www.premioinc.com
Copyright © 2017, Premio Inc. All rights reserved.
7. Install Motherboard Components (CPU,
heatsink, memory) using the guidelines below. For further
details, refer to the motherboard TPS.
8. Inspect Internal Cabling as example below:
9. Remove the Inner Rail from the slide rail.
10. Install Inner Rails to the enclosure.
11. Install the Outer Rails to the Rack as follows:
To remove slide rails, use the latches to undo the assembly as follows:

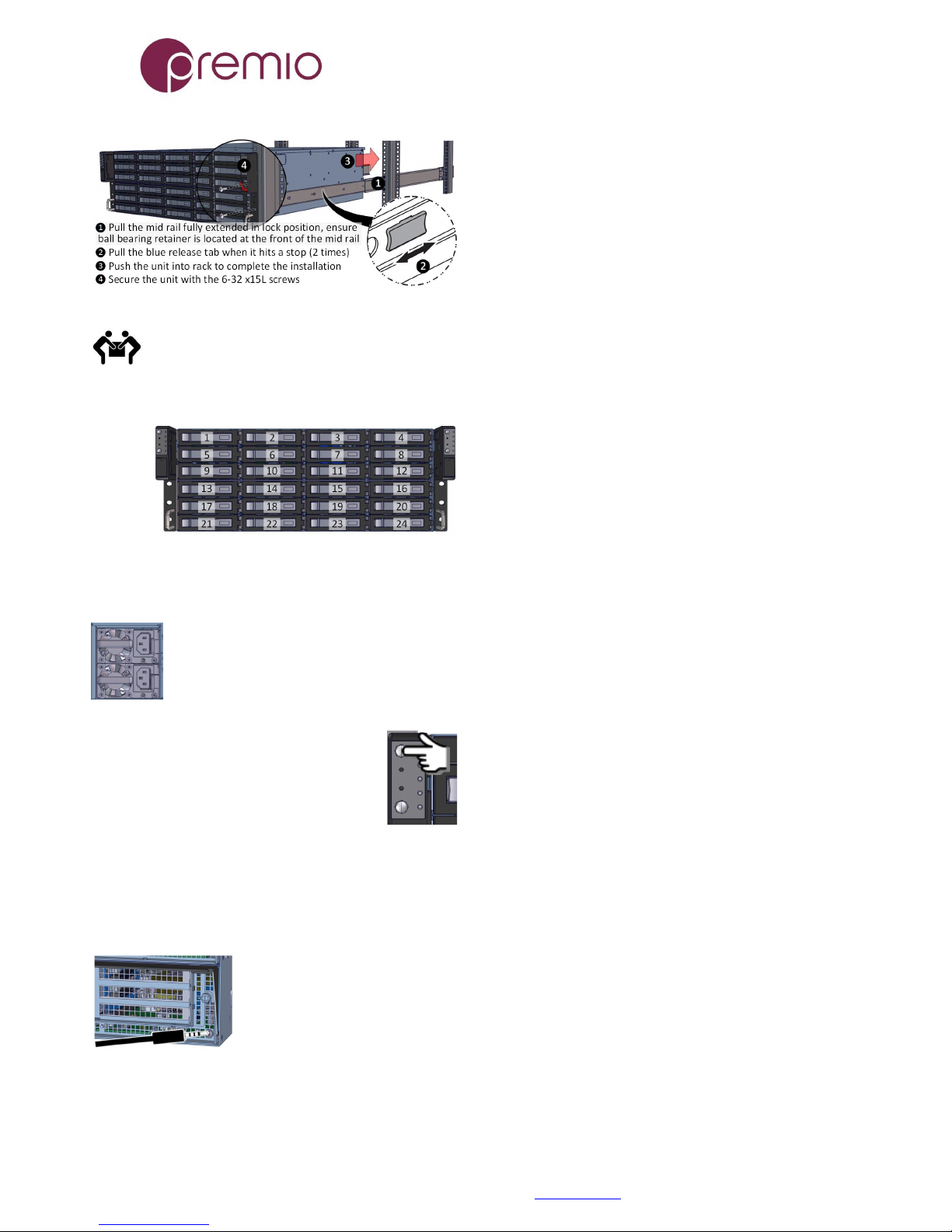

Page 3
DSS424SF-D5 Enclosure Quick Guide
For more information please visit our website at www.premioinc.com
Copyright © 2017, Premio Inc. All rights reserved.
12. Install the Unit to the Rack as follows:
For a complete instruction on how to install unit to the rack,
please follow the Slide Rail Installation Guide.
At least two people are recommended for
mounting process. Insert HDDs after unit is
mounted.
13. Drive Mapping of DSS424SF-D5 is as follows:
14. Plug in the Power Cords to the AC receptacles
on the back of the unit.
15. Press the Power Button on the
front of the unit and for the system to boot up.
Left panel for primary node, right panel for
16secondary node.
16. Access the Serial Console (when necessary) by
connecting RS-232 serial cable to the one of the console
ports. Use a terminal console with baud set 115200, 8, N, 1,
N. Refer to User’s Manual for further detail and how to set up
Ethernet Management Port.
