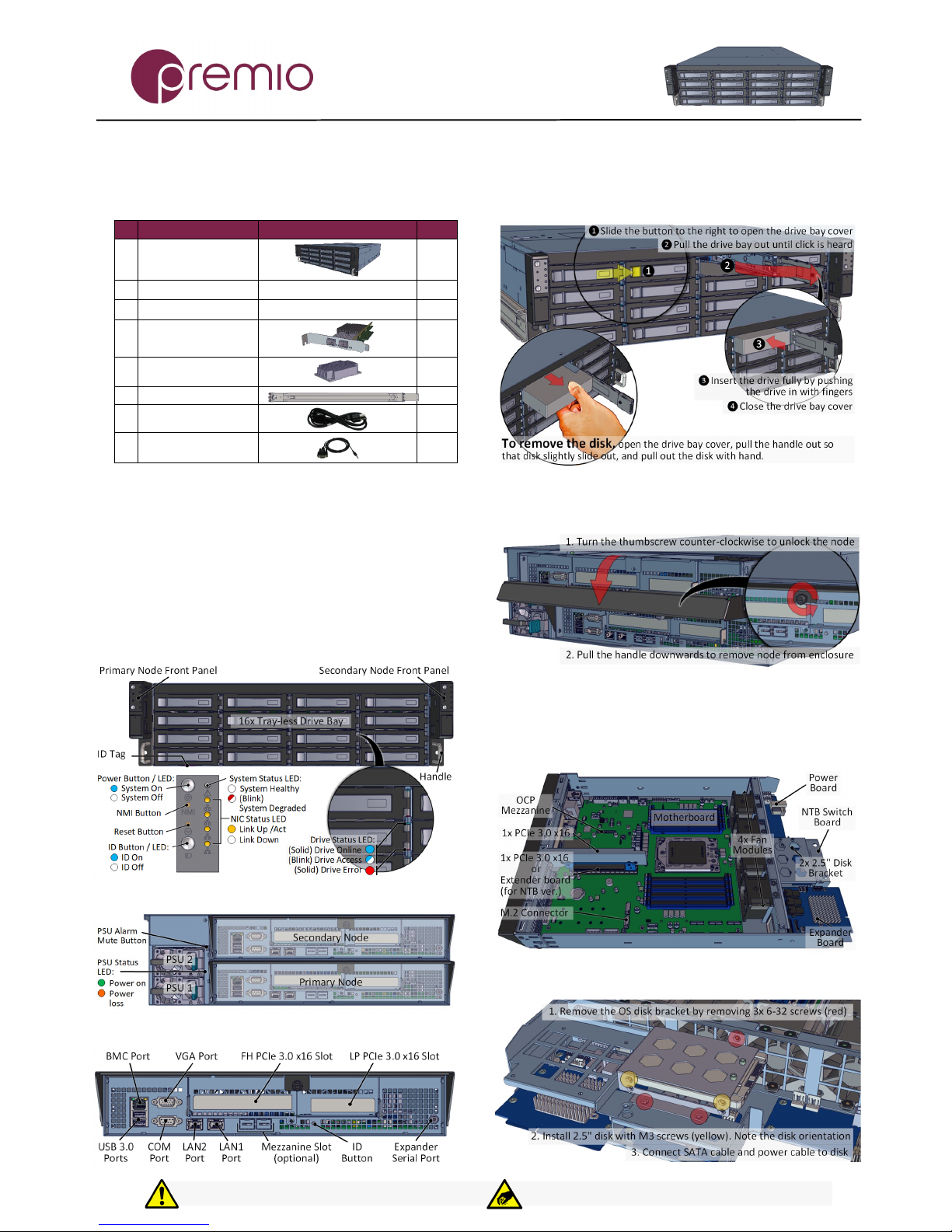

Page 1
Installation and service of this product should be conducted by a trained
personnel to avoid bodily injury from electric shock or heavy object
Observe ESD (Electr ostati c Disch arge) practices during integration to avoid
possi ble damage to t he board an d / or other components
DSS316S-UN Quick Guide
Version 1.20 – 2018.01.29
1. Check the Content of the box. Please confirm that
your package contains the following:
#
Description
Image / Description
Qty
1
DSS316S-UN
Enclosure
1
2
Motherboard
Tyan UP motherboard
2 3 CPU and memory
AMD EPYC and DDR4
Opt.
4
IO Cards
Opt.
5
Heatsink
2
6
Slide Rail Kit + Screws
1 set
7
Power Cable*
2
8
RS-232 to Audio
Serial Cable*
1
* Inside the accessories box. Box may consist of screw sets for rail kit or
drives. If any items are missing, please contact your reseller or sales rep.
2. Get Familiar with the Unit.
DSS316S-UN is a redundant server supporting single AMD EPYC
processor with a front tray-less 16x 3.5” HDD storage in a 3U
space. Two Tyan S8026 motherboards, and internal cabling are
preinstalled. Other motherboard model, IO cards, CPU, and
memory can be preinstalled upon request.
Front View of the Unit
Rear View of the Unit
Controller Node
3. Install 3.5” Drives to the unit as illustrated. It is
suggested to install HDDs after the unit is mounted to the rack.
4. Remove the Controller Node to install any
components required (IO cards, mezzanine, CPU, memory).
5. Inspect the Controller Node. The components
comprise of a Tyan motherboard, an expander board, an NTB
switch board, power board, 4x internal fan modules (all
connected to the motherboard).
6. Install OS disk(s) if required as follows:
Congratulation on your purchase of EchoStreams DSS316S-UN Storage Server System!

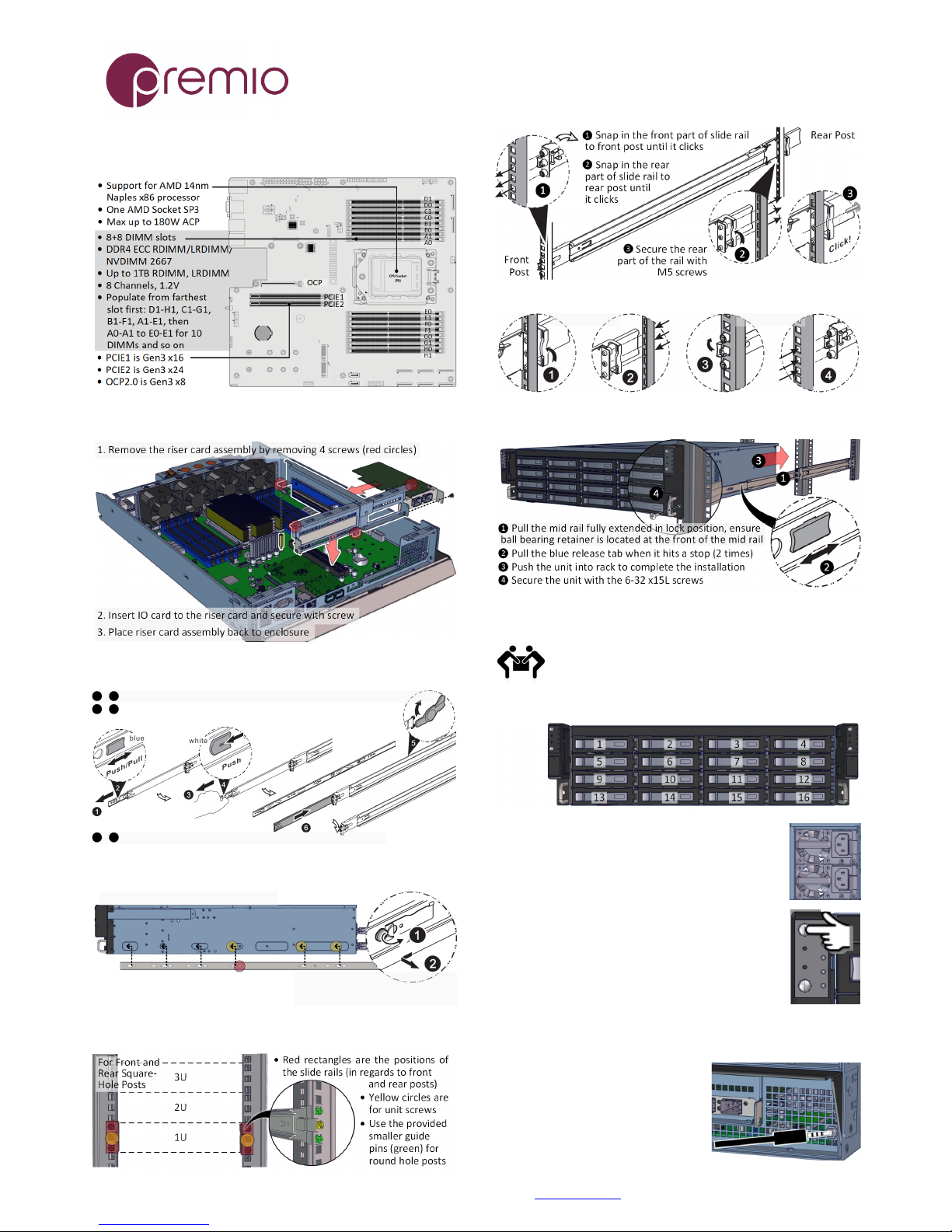

Page 2
DSS316S-UN Enclosure Quick Guide
For more information please visit our website at www.premioinc.com
Copyright © 2017, Premio Inc. All rights reserved.
7. Install Motherboard Components (CPU,
heatsink, memory) using the guidelines below. For further
details, refer to the motherboard’s manual.
8. Install IO cards to the motherboard tray as follow:
9. Remove the Inner Rail from the slide rail.
1 – 2 Pull the inner rails out. Pull the blue release tab when it hits a stop.
3 – 4 Keep extending inner rail and pull the white detach tab
when it hits the second stop
5 – 6 Unretract the mid rail by pulling the latch on the mid rail
1 2
3
4
5 6
10. Install Inner Rails to the enclosure.
Yellow circles are for standoff screws
Secure inner rail with
M4x4L screw (red)
To remove Inner rail from unit
:
Pull the latch upward and remove
the keyhole from standoff
11. Install the Outer Rails to the Rack as follows:
To remove slide rails, use the latches to undo the assembly as follows:
Rear Bracket
Front Bracket
12. Install the Unit to the Rack as follows:
For a complete instruction on how to install unit to the rack,
please follow the Slide Rail Installation Guide.
At least two people are recommended for mounting
process. Insert HDDs after unit is mounted.
13. Drive Mapping of DSS316S-UN is as follows:
14. Plug in the Power Cords to the AC
receptacles on the back of the unit.
15. Press the Power Button on the
front of the unit and for the system to boot up.
Left panel is for primary node, right panel is for
secondary node.
16. Access the Serial Console (when necessary) by
connecting RS-232 to Audio serial cable to the one of the
console ports. Use a terminal
console with baud settings 115200,
8, N, 1, N.
Refer to Enclosure Management
User’s Manual for further detail.
