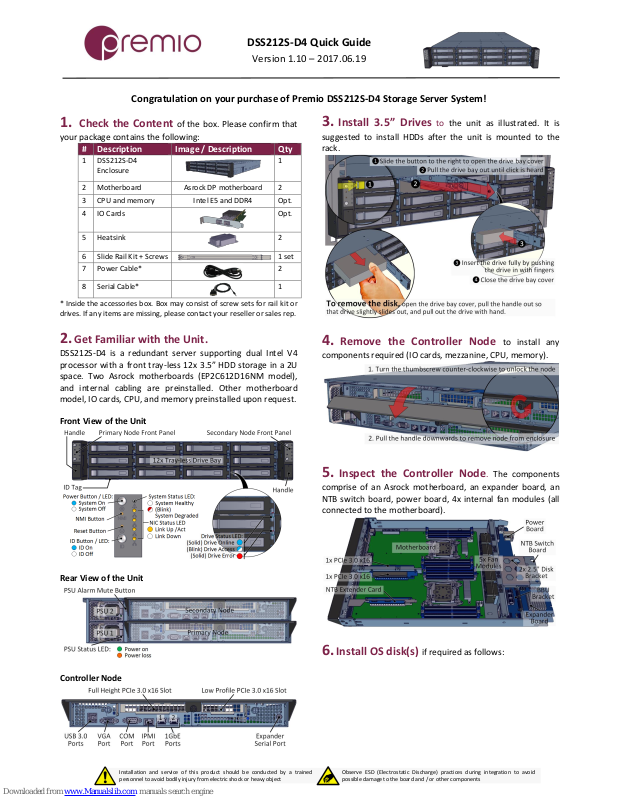

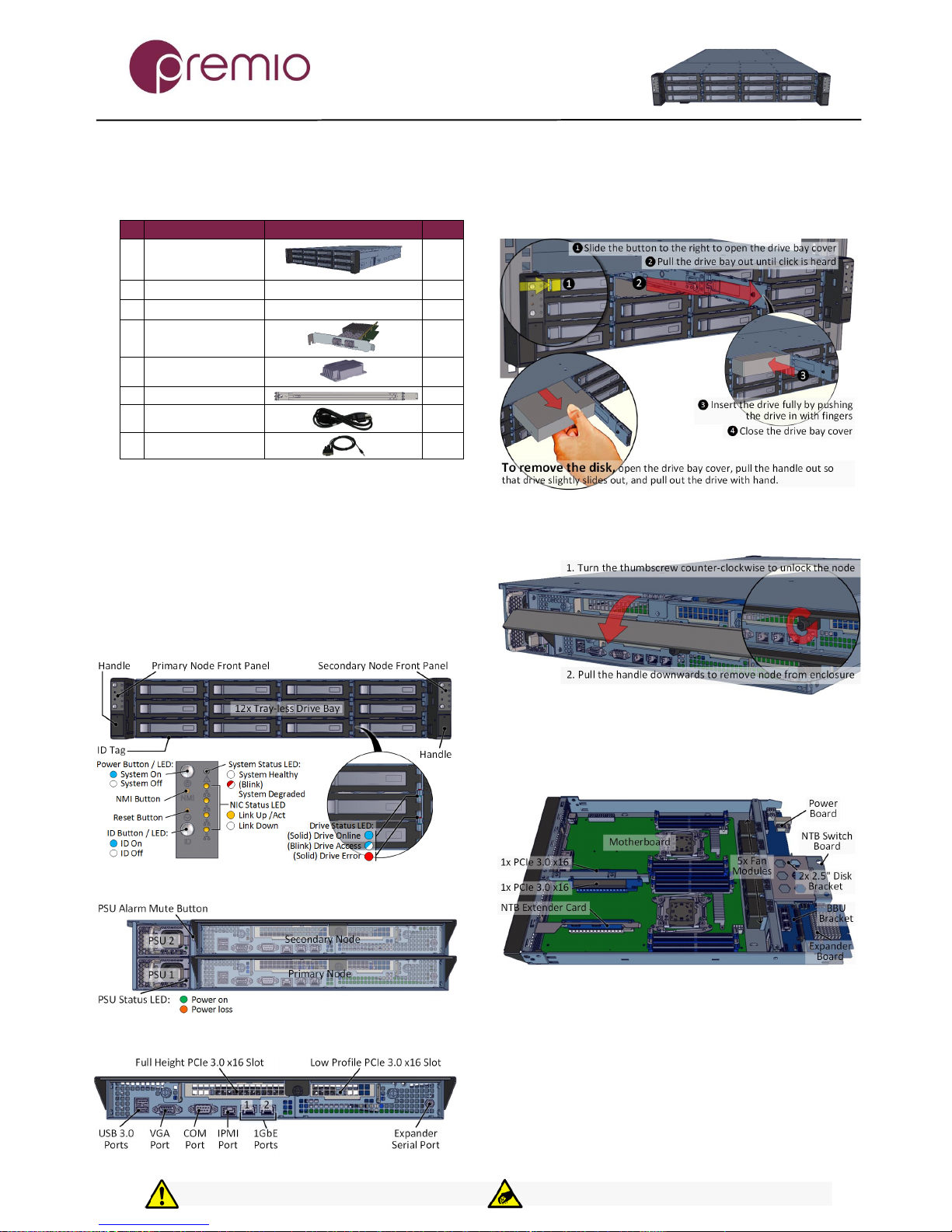

Page 1

Installation and service of this product should be conducted b y a trained

personnel to avoid bodily injury from electric shock or heavy object

Observe ESD (Electrostatic Discharge) practices during integration to avoid

possible damage to the board and / or other components

DSS212S-D4 Quick Guide

Version 1.10 – 2017.06.19

1. Check the Content of the box. Please confirm that

your package contains the following:

Description

Image / Description

Qty

DSS212S-D4 Enclosure

Motherboard

Asrock DP motherboard

2 3 CPU and memory

Intel E5 and DDR4

Opt.

IO Cards

Opt. 5

Heatsink

2 6

Slide Rail Kit + Screws

1 set

Power Cable*

Serial Cable*

* Inside the accessories box. Box may consist of screw sets for rail kit or drives. If any items are missing, please contact your reseller or sales rep.

2. Get Familiar with the Unit.

DSS212S-D4 is a redundant server supporting dual Intel V4 processor with a front tray-less 12x 3.5” HDD storage in a 2U space. Two Asrock motherboards (EP2C612D16NM model), and internal cabling are preinstalled. Other motherboard model, IO cards, CPU, and memory preinstalled upon request.

Front View of the Unit

Rear View of the Unit

Controller Node

3. Install 3.5” Drives to the unit as illustrated. It is

suggested to install HDDs after the unit is mounted to the rack.

4. Remove the Controller Node to install any

components required (IO cards, mezzanine, CPU, memory).

5. Inspect the Controller Node. The components

comprise of an Asrock motherboard, an expander board, an NTB switch board, power board, 4x internal fan modules (all connected to the motherboard).

6. Install OS disk(s) if required as follows:

Congratulation on your purchase of Premio DSS212S-D4 Storage Server System!

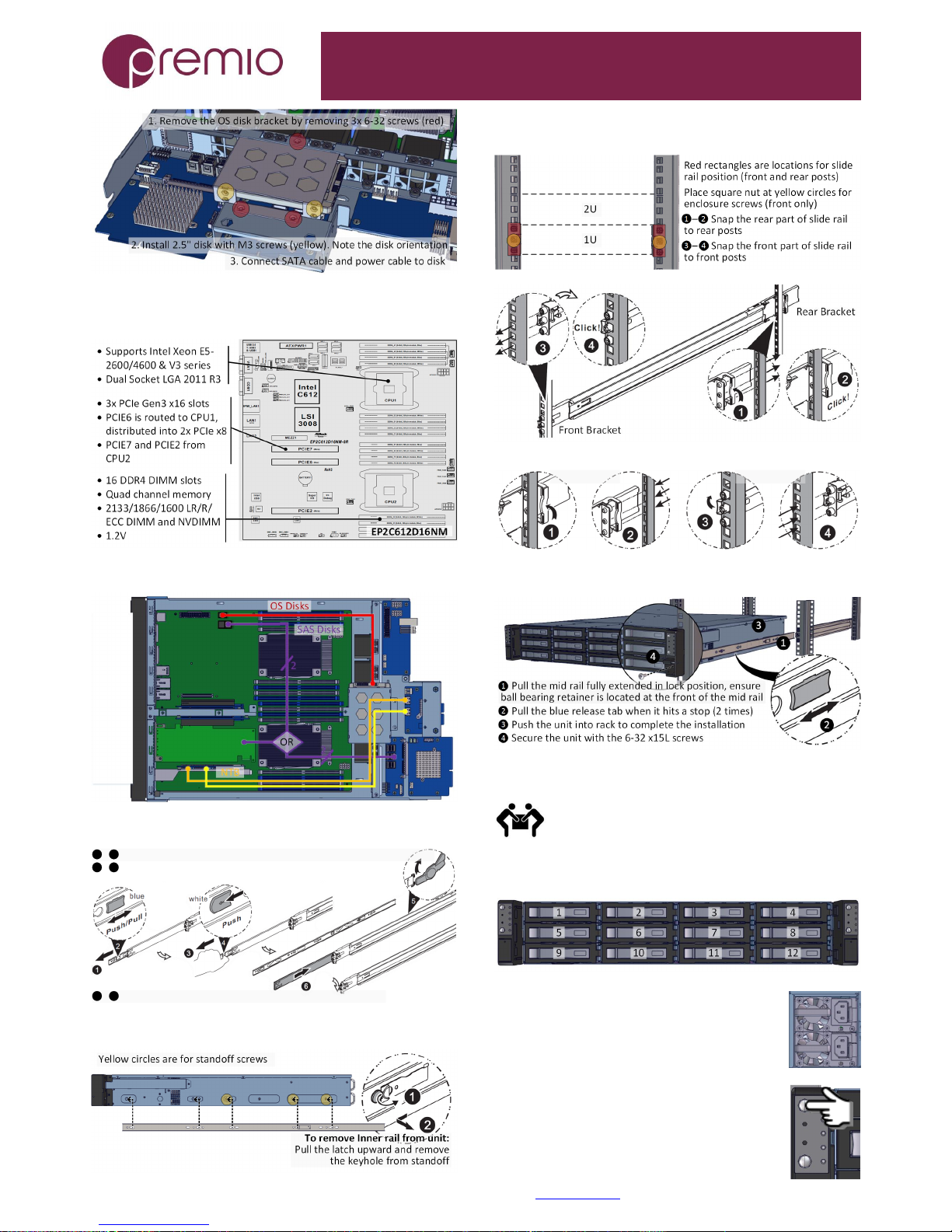

Page 2

DSS212S-D4 Enclosure Quick Guide

For more information please visit our website at wwwPremioInc.com

7. Install Motherboard Components (CPU,

heatsink, memory) using the guidelines below. For further details, refer to the motherboard TPS.

8. Inspect Internal Cabling as needed

9. Remove the Inner Rail from the slide rail.

1 –2 Pull the inner rails out. Pull the blue release tab when it hits a stop. 3 –4 Keep extending inner rail and pull the white detach tab

when it hits the second stop

5 –6 Unretract the mid rail by pulling the latch on the mid rail

1 2 3 4

5 6

10. Install Inner Rails to the enclosure.

11. Install the Outer Rails to the Rack as follows:

To remove slide rails, use the latches to undo the assembly as follows:

Rear Bracket Front Bracket

12. Install the Unit to the Rack as follows:

For a complete instruction on how to install unit to the rack, please follow the Slide Rail Installation Guide.

At least two people are recommended for mounting process. Insert HDDs after unit is mounted.

13. Drive Mapping of DSS212S-D4 is as follows:

14. Plug in the Power Cords to the AC

receptacles on the back of the unit.

15. Press the Power Button on the

front of the unit and for the system to boot up. Left panel for primary node, right panel for 16secondary node.

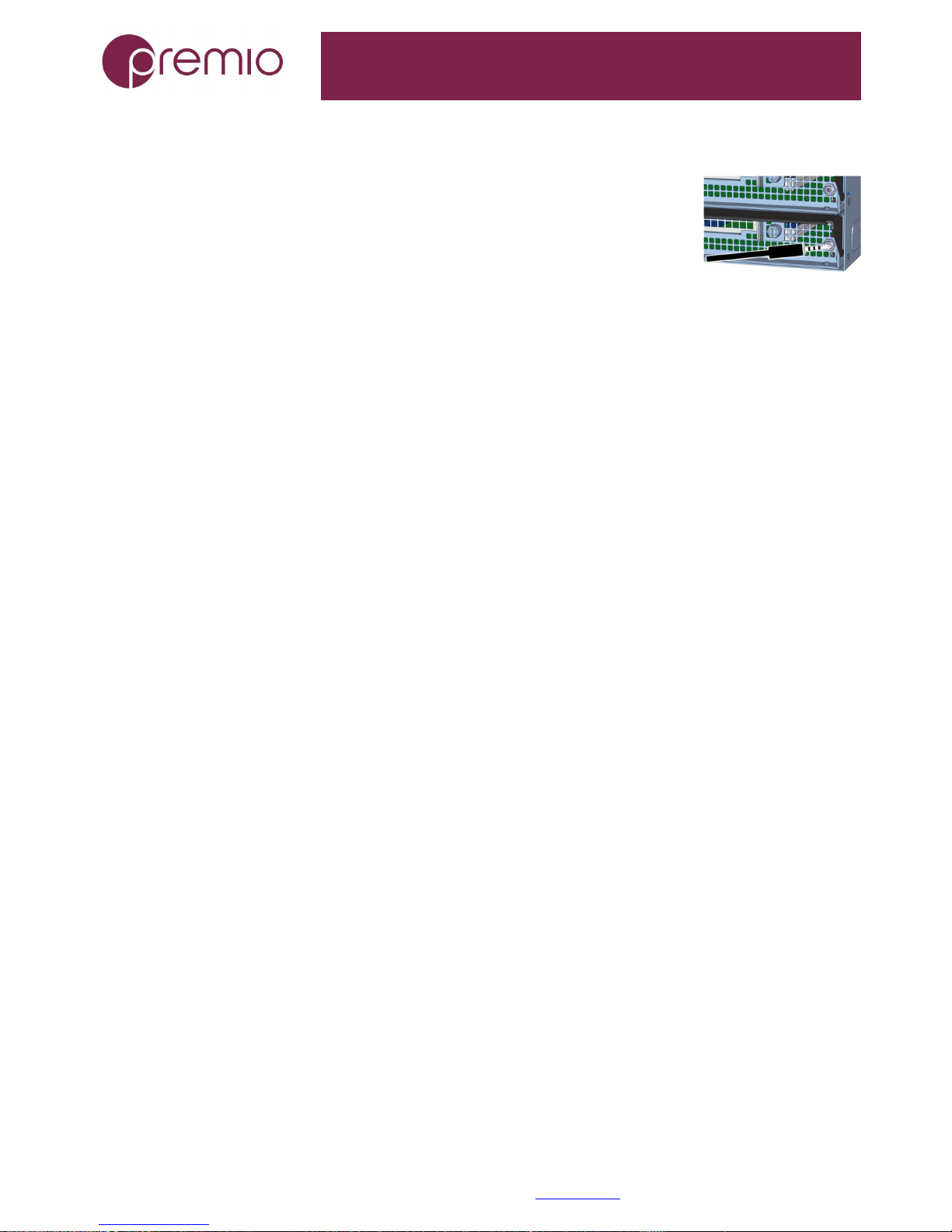

Page 3

DSS212S-D4 Enclosure Quick Guide

For more information please visit our website at wwwPremioInc.com

16. Access the Serial Console (when necessary) by

connecting RS-232 serial cable to the one of the console ports. Use a terminal console with baud set 115200, 8, N, 1, N. RefertoUser’sManualforfurtherdetailandhowtosetup Ethernet Management Port.
