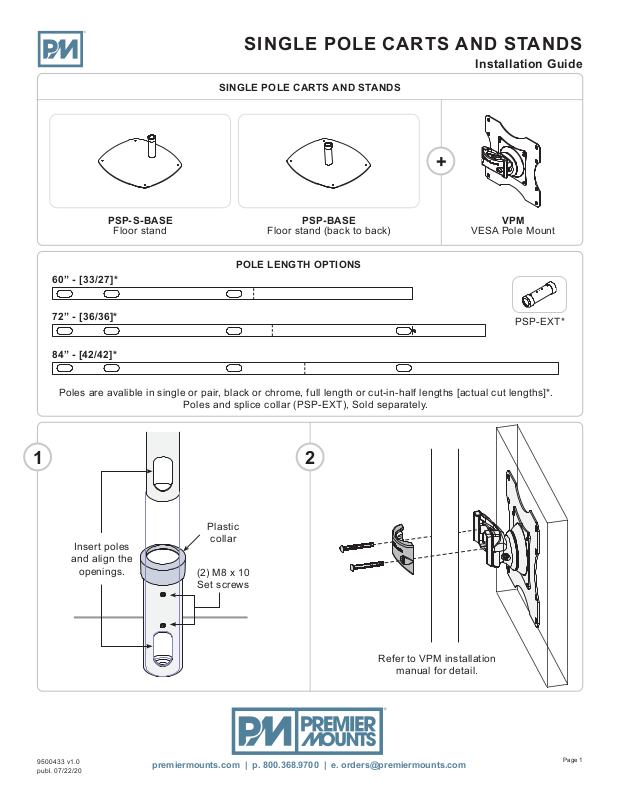

SINGLE POLE CARTS AND STANDS
+
1
2
Installation Guide
SINGLE POLE CARTS AND STANDS
PSP- S-BASE
Floor stand
POLE LENGTH OPTIONS
60” - [33/27]*
72” - [36/36]*
84” - [42/42]*
Poles are avalible in single or pair, black or chrome, full length or cut-in-half lengths [actual cut lengths]*.
Poles and splice collar (PSP-EXT), Sold separately.
Floor stand (back to back)
PSP- BASE
VESA Pole Mount
VPM
PSP-EXT*
Insert poles
and align the
9500 43 3 v1. 0
pub l. 07/ 22 /2 0
openings.
Plastic
collar
(2) M8 x 10
Set screws
Refer to VPM installation
manual for detail.
premiermounts.com | p. 800.368.9700 | e. [email protected]
Page 1
Page 2
SINGLE POLE CARTS AND STANDS
Installation Guide
OPTIONAL
Bolted
Par t Number Wheel Size Description
CAST-BW 3” dia.
CAST 4” dia.
Contact a sales representative for compatible mounting and bundling options.
Set of 4, Black, 2 non-locking and
2 locking casters.
ACCESSORIES
w/ additional
casters
Ø 3/8” thru hole at four locations.
3/8”-16 x 1” long threaded stem.
Commercially available hardware
shown for reference.
Page 2
Shelf Option Camera Shelf Option Back to Back option
