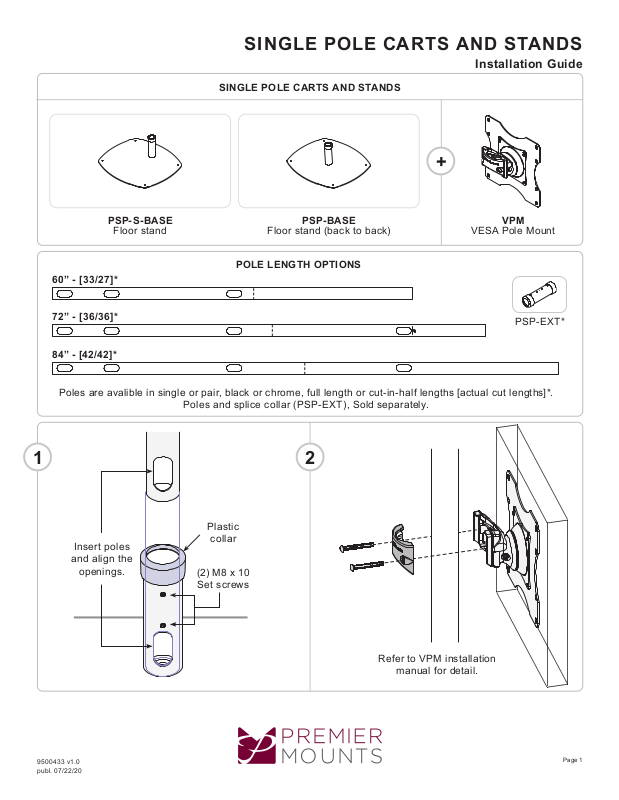

SINGLE POLE CARTS AND STANDS
+
1
2
Installation Guide
SINGLE POLE CARTS AND STANDS
PSP-S-BASE
Floor stand
POLE LENGTH OPTIONS
60” - [33/27]*
72” - [36/36]*
84” - [42/42]*
Poles are avalible in single or pair, black or chrome, full length or cut-in-half lengths [actual cut lengths]*.
Poles and splice collar (PSP-EXT), Sold separately.
Floor stand (back to back)
PSP-BASE
VESA Pole Mount
VPM
PSP-EXT*
Insert poles
and align the
9500 433 v1.0
publ. 07/22/20
openings.
Plastic
collar
(2) M8 x 10
Set screws
Refer to VPM installation
manual for detail.
Page 1
Page 2
SINGLE POLE CARTS AND STANDS
Installation Guide
OPTIONAL
Bolted
Part Number Wheel Size Description
CAST-BW 3” dia.
CAST 4” dia.
Contact a sales representative for compatible mounting and bundling options.
Set of 4, Black, 2 non-locking and
2 locking casters.
ACCESSORIES
w/ additional
casters
Ø 3/8” thru hole at four locations.
3/8”-16 x 1” long threaded stem.
Commercially available hardware
shown for reference.
Page 2
Shelf Option Camera Shelf Option Back to Back option
