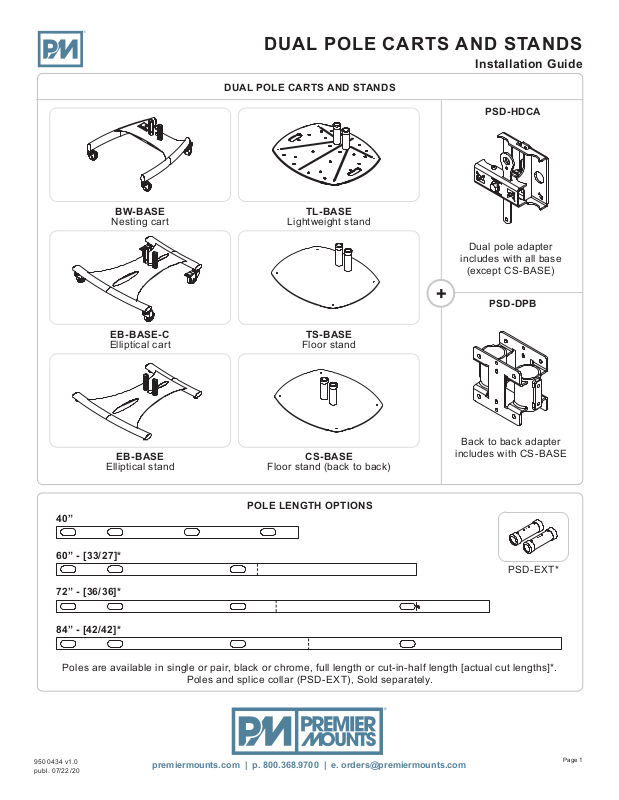

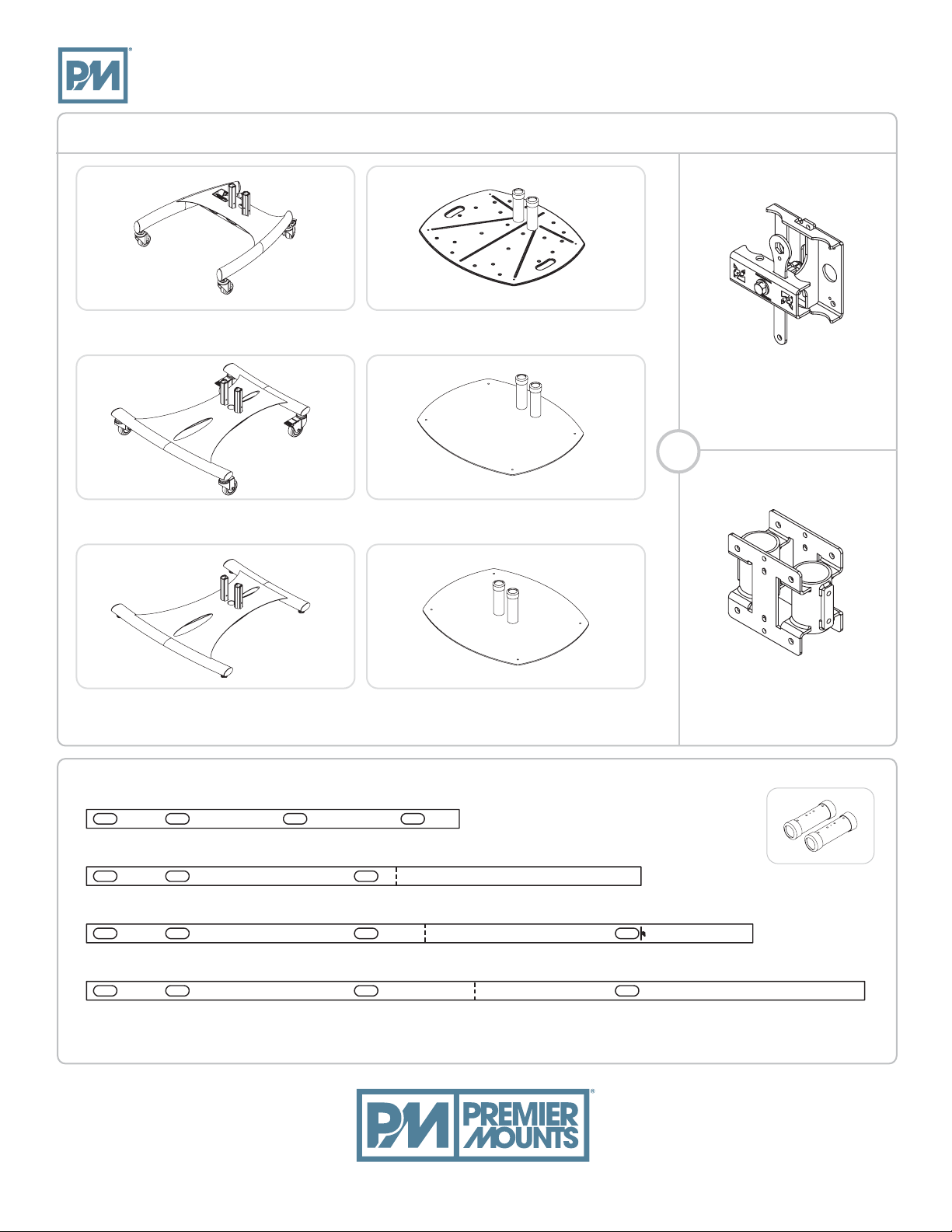

DUAL POLE CARTS AND STANDS
+
DUAL POLE CARTS AND STANDS
Installation Guide
PSD-HDCA
BW-BASE
Nesting cart Lightweight stand
EB-BASE-C
Elliptical cart
EB-BASE CS-BASE
Elliptical stand Floor stand (back to back)
TL-BASE
TS-BASE
Floor stand
Dual pole adapter
includes with all base
(except CS-BASE)
PSD-DPB
Back to back adapter
includes with CS-BASE
POLE LENGTH OPTIONS
40”
60” - [33/27]*
72” - [36/36]*
84” - [42/42]*
Poles are available in single or pair, black or chrome, full length or cut-in-half length [actual cut lengths]*.
Poles and splice collar (PSD-EXT), Sold separately.
95004 34 v 1.0
pub l. 07/2 2/20
premiermounts.com | p. 800.368.9700 | e. [email protected]
PSD -EXT*
Page 1
Page 2
DUAL POLE CARTS AND STANDS
1
2A
Installation Guide

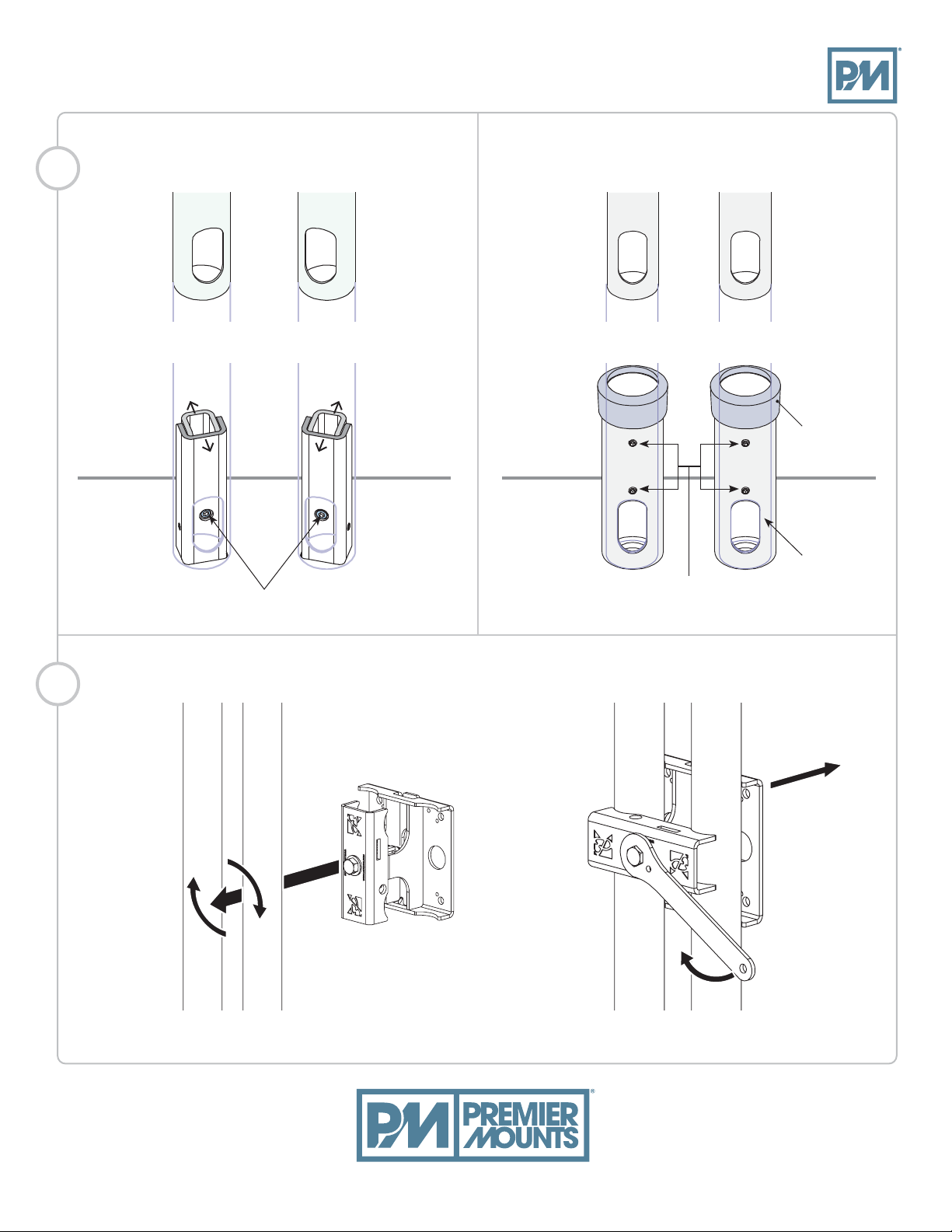

Type A Type B
BW and EB bases TL, TS, CS bases
Insert poles and align openings to
the set screws.
Tighten to engage the jaw.
INSTALLING THE PSD-HDCA
Insert poles and align the openings.
Plastic
collar
Opening
(4) M8 x 10
Set screws
FRONT
Page 2
Refer to PSD -HDCA installation manual for detail.
premiermounts.com | p. 800.368.9700 | e. [email protected]
Page 3
DUAL POLE CARTS AND STANDS
2B

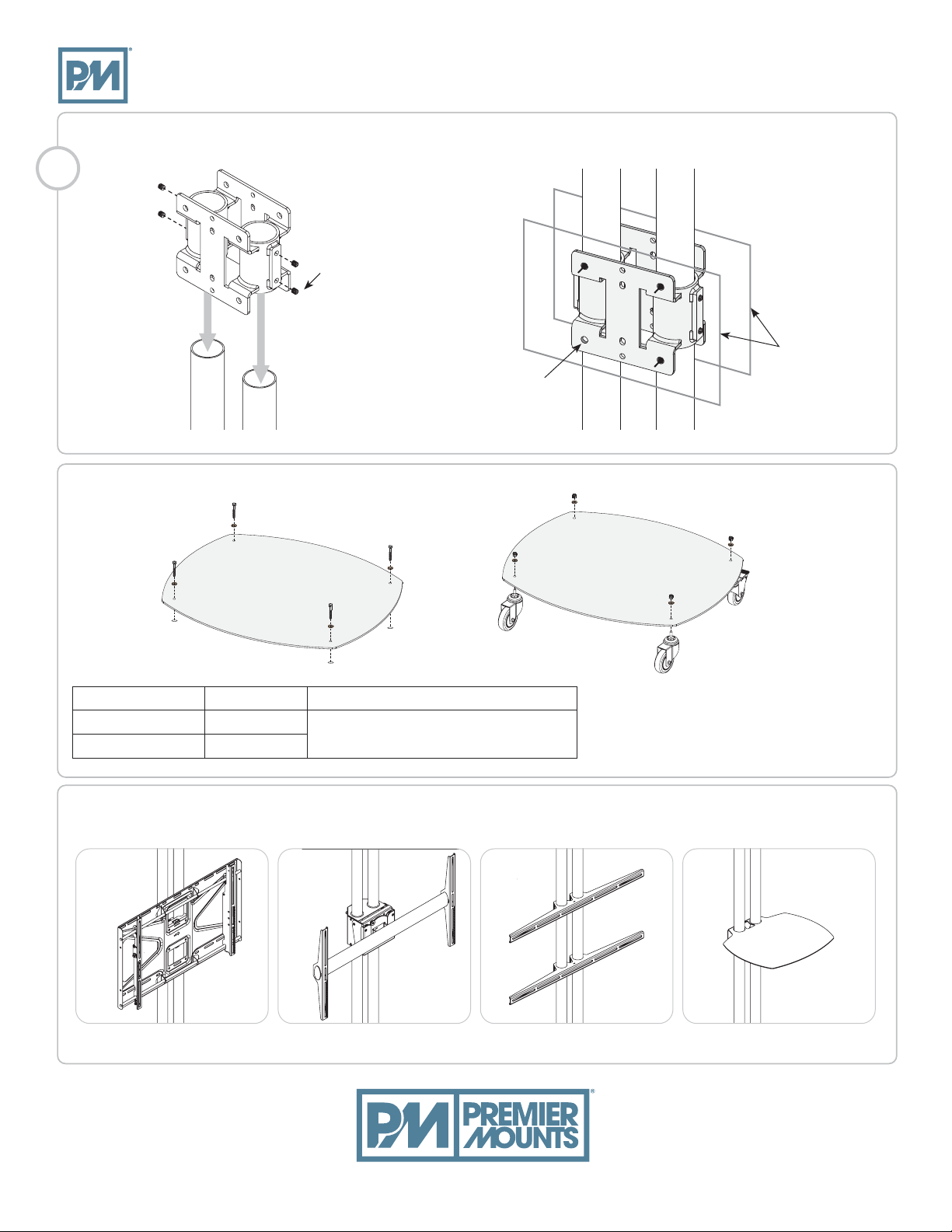

INSTALLING THE PSD-DPB
(4) M8 x 10
set screws
(8) M8 x 25
hex screws
w/ washers
OPTIONAL
Installation Guide
Compatible
mounts and
accessories
Bolted
Par t Number Wheel Size Description
CAST-BW 3” dia.
CAST 4” dia.
Contact a sales representative for compatible mounting and bundling options.
Set of 4, Black, 2 non-locking and
2 locking casters.
ACCESSORIES
w/ additional
casters
Ø 3/8” thru hole at four locations.
3/8”-16 x 1” long threaded stem.
Commercially available hardware
shown for reference.
CTM Series RTM Series UFA/USA Series Shelf Option
premiermounts.com | p. 800.368.9700 | e. [email protected]
