Premier Mounts 9533-004-001-07, PRC User Manual

INSTALLATION INSTRUCTIONS

PRC

LCD Ceiling Mount

NORTH AMERICA EUROPE

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada –

Phone: [phone]

Fax: [phone]

Other Locations – Phone: [phone]; Fax: [phone]

©Premier Mounts 2008

9533-004-001-07

Shilton, Coventry, England CV79JY

Swallow House,

Shilton Industrial Estate,

Phone: [phone]

Fax: [phone]

AUSTRALIA, NEWZEALAND,

OCEANIA (DISTRIBUTOR)

P.O. Box 295

Mordialloc Victoria 3195

Australia

Phone: [phone]

www.premiermounts.com.au

PRC

Table of Contents

Parts List ............................................................................................................................................................- 3 -

Installation Tools ...............................................................................................................................................- 3 -

AST-2446 Installation ........................................................................................................................................- 5 -

PRC Installation .................................................................................................................................................- 6 -

Display Installation ............................................................................................................................................- 6 -

UFP-220 Adapter Plate (Optional Installation) .................................................................................................- 7 -

Tension Adjustment ...........................................................................................................................................- 7 -

Technical Specifications ....................................................................................................................................- 7 -

Warranty ............................................................................................................................................................- 8 -

PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS
PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY
UNAUTHORIZED ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS,
DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF
OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.

THE CEILING STRUCTURE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE TIMES THE MONITORS WEIGHT.
IF NOT, THE WALL STRUCTURE MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE BY A QUALIFIED
SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. FAILURE
TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN DEATH.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE INSTALLATION OF THIS PRODUCT. USE
PROPER SAFETY GEAR AND TOOLS FOR THE INSTALLATION PROCEDURE TO PREVENT PERSONAL INJURY.

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND
COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL
INJURY AND PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE
LOCATION FOR FUTURE REFERENCE.

Indicates that the power plug is to be disconnected from the
power outlet.
Safety precautions must be taken at all times.

Warning and Caution statements.
Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to do so could result in damage to the flat panel

display and/or damage to the mounting surface.
Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct heat energy. Failure to do so may result in
damage to the flat panel display and could increase the risk of fire.
At least two qualified people should perform the installation procedure. Injury and/or damage can result from dropping or mishandling the
flat panel display.

Contact Premier Mounts with any questions –
[phone].

Page - 2 - Installation Manual

Parts List

This ceiling mount is shipped with all proper installation hardware and components. Make sure that none of these
parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please
stop the installation and contact Premier Mounts (800-368-9700).

Please review all WARNING and CAUTION statements (see Page 8) before beginning the installation of the PRC.

PRC

AST-2446 (Qty 1)

The AST-2446 is not included with the PRC-LA.
Customers may purchase the AST-2446 separately
or use a custom length of 1-1/2” NPT.

PRC-LA (Qty 1)

M4 x 10mm Phillips
Pan Head (Qty 4)

M6 x 8mm Set
Screw (Qty 1)

UFP-220 Adapter
Plate (Qty 1)

M4 x 10mm Flat
Head Phillips
Screws (Qty 6)

M4 x 5mm Phillips
Screws (Qty 4)

Installation Tools

Phillips Head Screw Driver Soft Material/ Blanket M3 Allen Wrench (Supplied)
Pencil Tape Measure Socket Wrench
14mm Socket (Supplied) ¾” Open-End Wrench Level (Supplied)

Installation Manual Page - 3 -

PRC

s

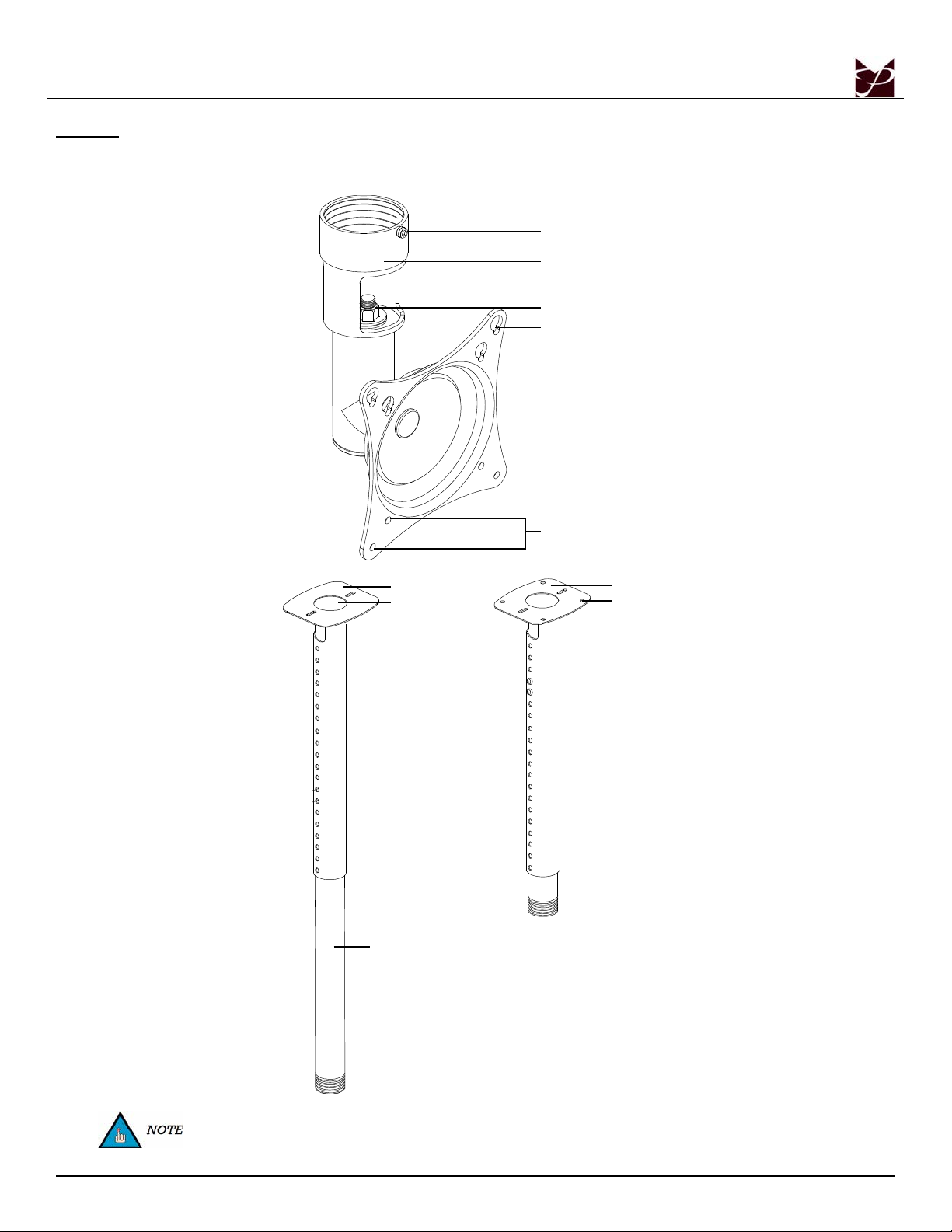

Features: The PRC-LA allows tilt and pivot adjustments ±15° from center, 360° side-to-side swivel, and cable access. The

AST-2446 allows height adjustment from 24 to 46 inches. Plus it also features two cable access openings.

PRC-LA

M6 x 6mm
Set Screw

Coupler

Swi ve l Lo ck
KeyholeMount

Opening

Keyhole Mount
Opening

VESA 75 x 100
Mounting Points

CeilingPlate

Cab le Access
Opening

Lower Tube

Ceiling Plate
Cab le Acces

Opening

The AST-2446 may be substituted for a custom pre-cut length of threaded 1-1/2” NPT pipe.

Page - 4 - Installation Manual

e

AST-2446 Installation

If the AST-2446 will not be used to
mount the PRC, then a suitable piece
of threaded pipe can be used. These
instructions will tell the user how to
mount an AST-2446 to the ceiling. If
a custom piece of threaded pipe is
used, it is the responsibility of the
user to determine how best to mount
the PRC and pipe.

Single Stud Installation – Wood screws
(Commercially Available)
Solid Surface Installation – Concrete wedge
anchors (Commercially Available)

1. Secure the ceiling plate to the ceiling
structure.

2. Use suitable hardware (commercially
available) depending on your installation
environment to secure the two (2, or 4,
depending on the structure) mounting
points found on the ceiling plate to the
ceiling structure.

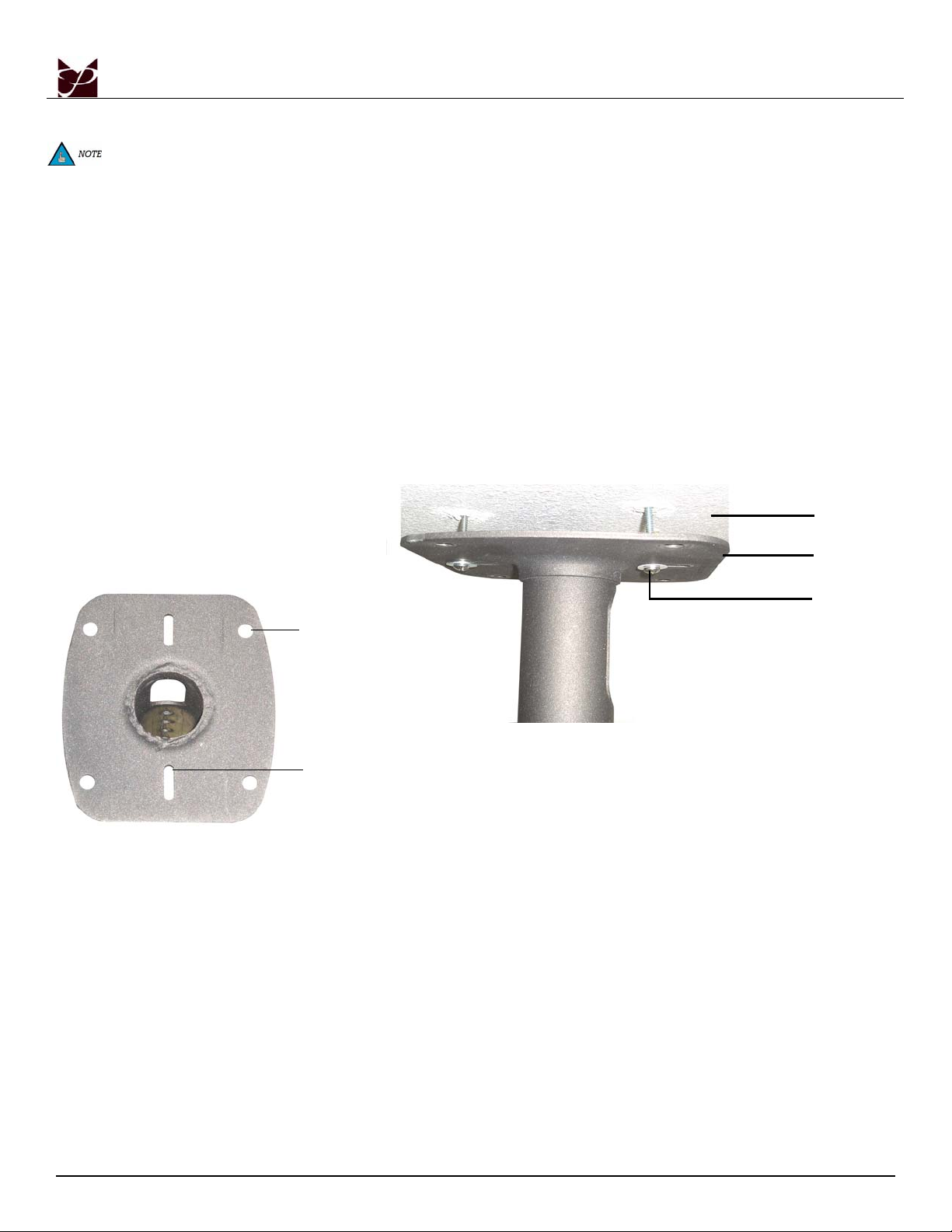

F our O uterPoints
ar e fo r Sol i d Sur f ace
Installation

PRC

Ceiling Surfa c

CeilingPlate

Mounting
Hardware

T wo InnerPoints
ar e f o r Sin g le St ud
Installation

3. To adjust the height of the AST-2446,
remove the adjustment screws (Page 4),
determine the desired height, and re-insert
the adjustment screws to lo ck the AST-2446
into the desired position.

Installation Manual Page 5

PRC

PRC Installation

1. Screw the PRC-LA coupling adapter to the
AST-2446 adapter or 1½" (NPT) Pipe.

2. Secure the coupling with the M6 set screw
(supplied).

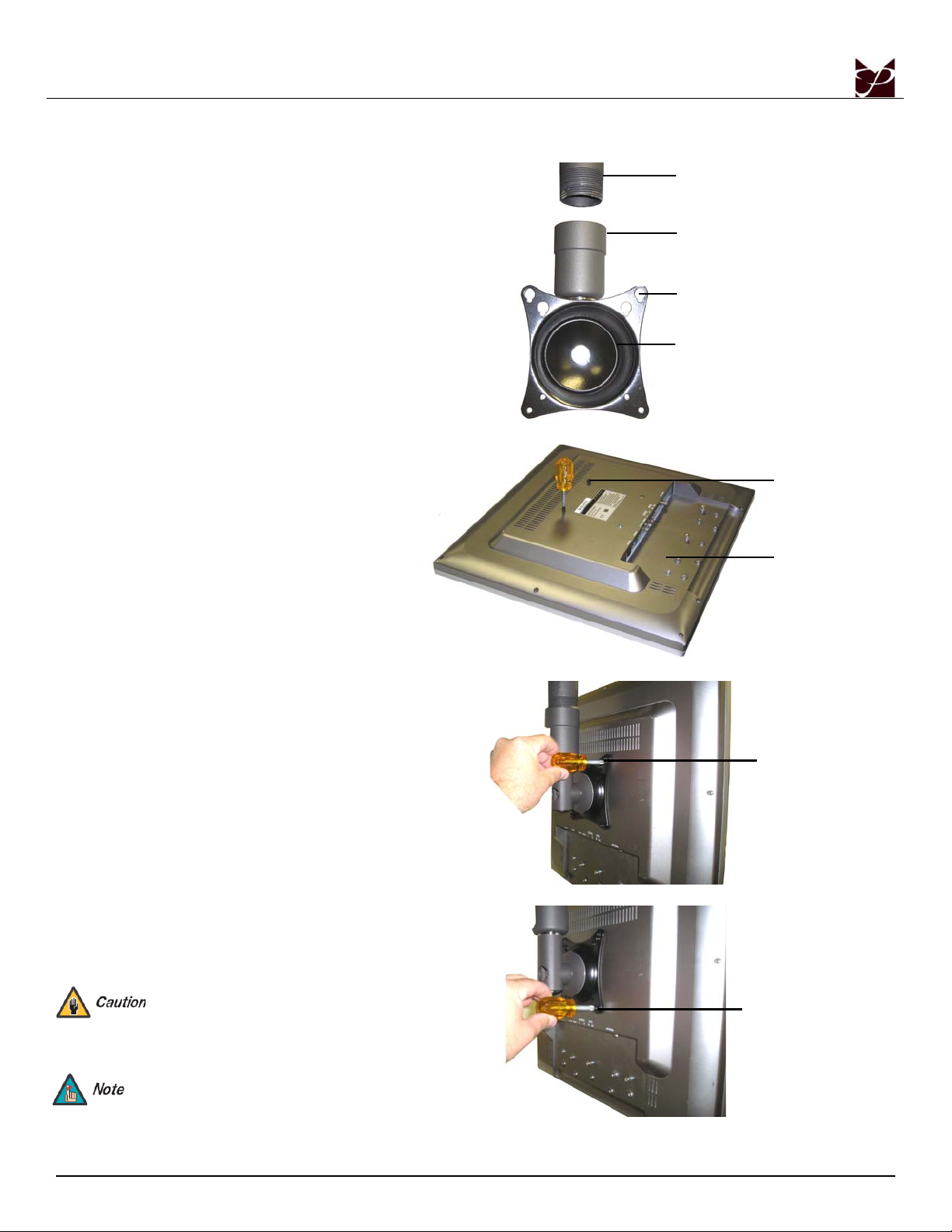

Display Installation

1. Place the display on a soft flat surface, face down.

2. Insert the two upper screws (thread on 3 turns). Do
not ins ert the lower screws at this time.

Adjustable Suspensi on
Adapter

Coupling

Keyhole Opening

MountingPlate

Mounting Ha rdware

3. Lift the display and carefully guide the display with
the two screws into the keyhole o penings.

4. Let the display rest in this position while you insert
the lower mounting screws.

5. Tighten both the upper and lower mounting
screws at this time.

Do not over tighten the screws to the
monito r. Failure to do so could result
in damaging the monitor or the
mounting points.

If your flat panel has a 200mm x 100mm
mounting pattern, the UFP-220 Adapter
Plate must be used.

Display

Keyhole
Opening

Lower
Mounting
Screw s

Page 6 Installation Manual

s

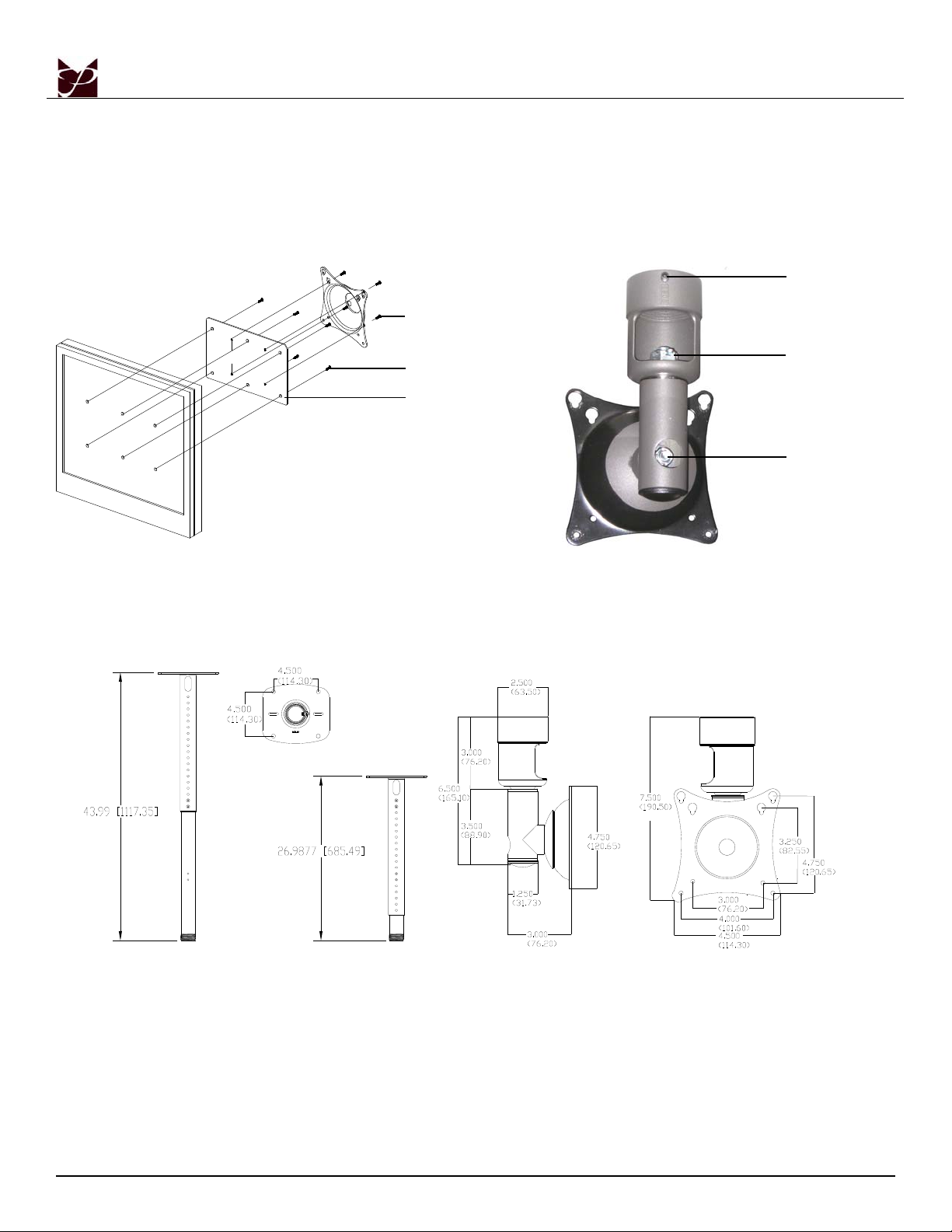

UFP-220 Adapter Plate (Optional Installation) Tension Adjustment

1. Attach the UFP-220 Adapter Plate to the back of the display
using the six (6) M4 x 10mm flat head screws.

2. Attach the PRC mounting plate to the back of the
UFP-220 using the four (4) M4 x 5 mm screws.

M4 x 10mm Flat
Head Screws

1. Swivel Adjustment – Use a ¾” wrench to tighten and

loosen the swivel adjustment.

2. Tilt Adjustment - Use a 14mm socket to tighten and

loosen the tilt adjustment.

3. After everything has been tightened and the orientation has
been determined, tighten the set screw using the supplied
M3 Allen wrench.

M6 x 6mm Set
Scr ew

PRC

VESA75

M4 x 5mmPhillip
Head Screws

UF P-220

Swi vel Ten si o n

TiltTension

Technical Specifications

All measurements are in inches (mm).

Installation Manual Page - 7 -

PRC

Warranty

PREMIER MOUNTS

LIMITED LIFETIME WARRANTY

What and Who is Covered by this Limited Warranty and for How Long

Premier Mounts warrants this product to be free from defects in material and workmanship for the lifetime of
the original installation of this product. The limited warranty is valid only for the original purchaser of the
product.

What Premier Mounts Will Do

At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is
defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will
be shipped to you at no charge, but you must pay any labor costs.

What is Not Covered; Limitations
PREMIER MOUNTS DISCLAIMS ANY LIABILITY FOR DAMAGE TO MOUNTS, ADAPTERS,
DISPLAYS, PROJECTORS, OTHER PROPERTY, OR PERSONAL INJURY RESULTING, IN
WHOLE OR IN PART, FROM IMPROPER INSTALLATION, MODIFICATION, USE OR MISUSE
OF ITS PRODUCTS.

PREMIER MOUNTS DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. PREMIER MOUNTS IS NOT RESPONSIBLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO, INABILITY TO USE ITS
PRODUCTS OR LABOR COSTS FOR REMOVING AND REPLACING DEFECTIVE PRODUCTS
OR PARTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.

What Customers Must Do for Limited Warranty Service

If you discover a problem that you think may be covered by the warranty you MUST REPORT it in writing to
the address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original
consumer purchaser must accompany all warranty claims. Warranty claims must also include a description of
the problem, the purchaser’s name, address, and telephone number. General inquiries can be addressed to
Premier Mounts Customer Service at 1-800-368-9700. Warranty claims will not be accepted over the phone or
by fax.

Premier Mounts
Attn: Warranty Claim
3130 E. Miraloma Avenue
Anaheim, CA 92806

How State Law Applies

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE
OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Installation Manual Page - 8 -
