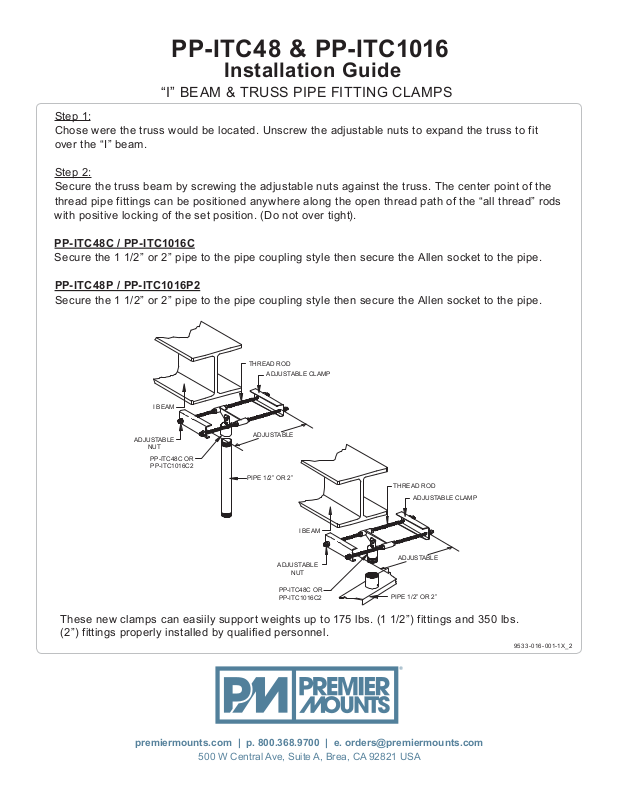

PP-ITC48 & PP-ITC1016
Installation Guide
“I” BEAM & TRUSS PIPE FITTING CLAMPS
Step 1:
Chose were the truss would be located. Unscrew the adjustable nuts to expand the truss to fit
over the “I” beam.
Step 2:
Secure the truss beam by screwing the adjustable nuts against the truss. The center point of the
thread pipe fittings can be positioned anywhere along the open thread path of the “all thread” rods
with positive locking of the set position. (Do not over tight).
PP-ITC48C / PP-ITC1016C
Secure the 1 1/2” or 2” pipe to
PP-ITC48P / PP-ITC1016P2
Secure the 1 1/2” or 2” pipe to the pipe coupling style then secure the Allen socket to the pipe.
the pipe coupling style then secure the Allen socket to the pipe.

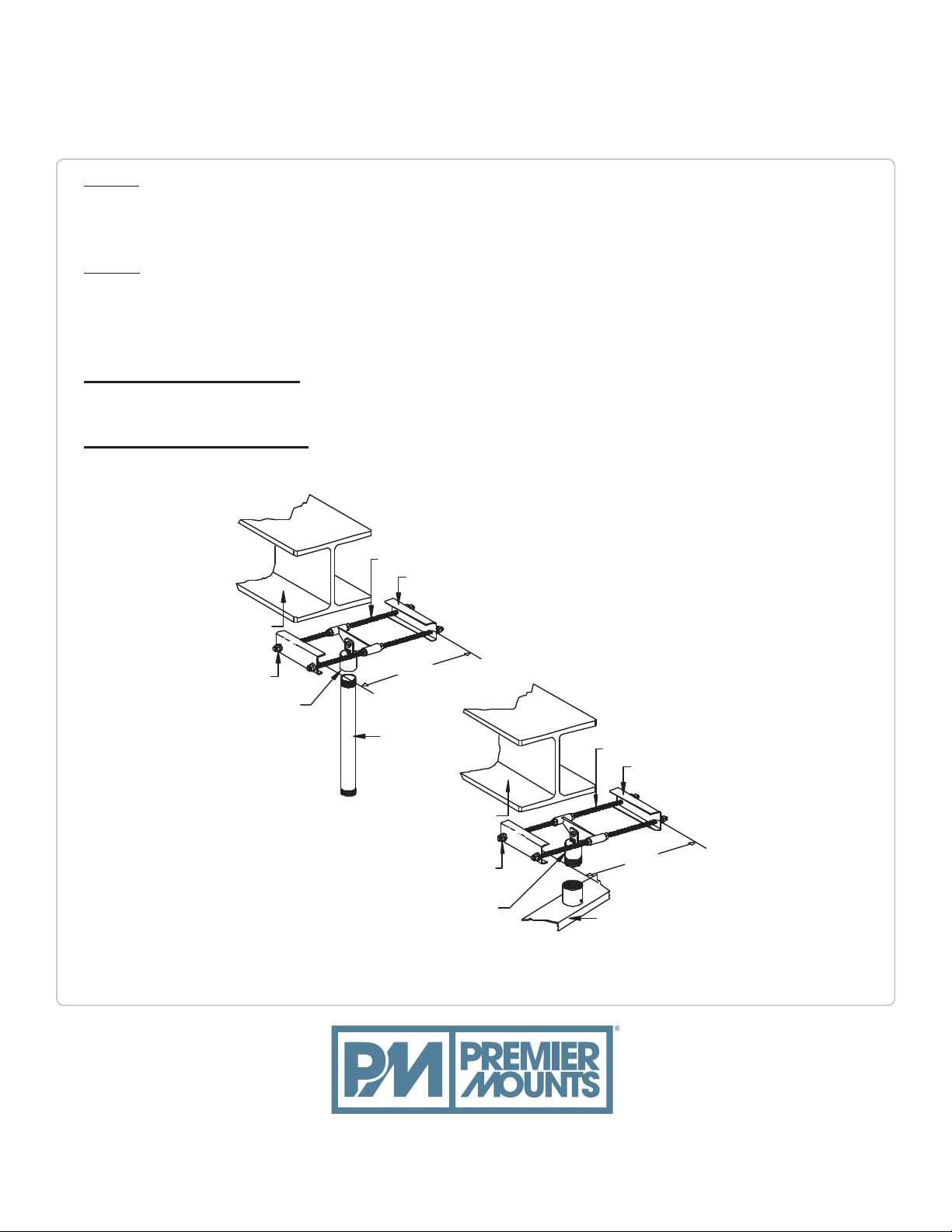

THREAD ROD
ADJUSTABLE CLAMP
I BEAM
ADJUSTABLE
NUT
PP-ITC48C OR
PP-ITC1016C2
ADJUSTABLE
PIPE 1/2” OR 2”
ADJUSTABLE
PP-ITC48C OR
PP-ITC1016C2
THREAD ROD
ADJUSTABLE CLAMP
I BEAM
ADJUSTABLE
NUT
PIPE 1/2” OR 2”
These new clamps can easiily support weights up to 175 lbs. (1 1/2”) fittings and 350 lbs.
(2”) fittings properly installed by qualified personnel.
9533- 016- 001-1X_2
