Page 1

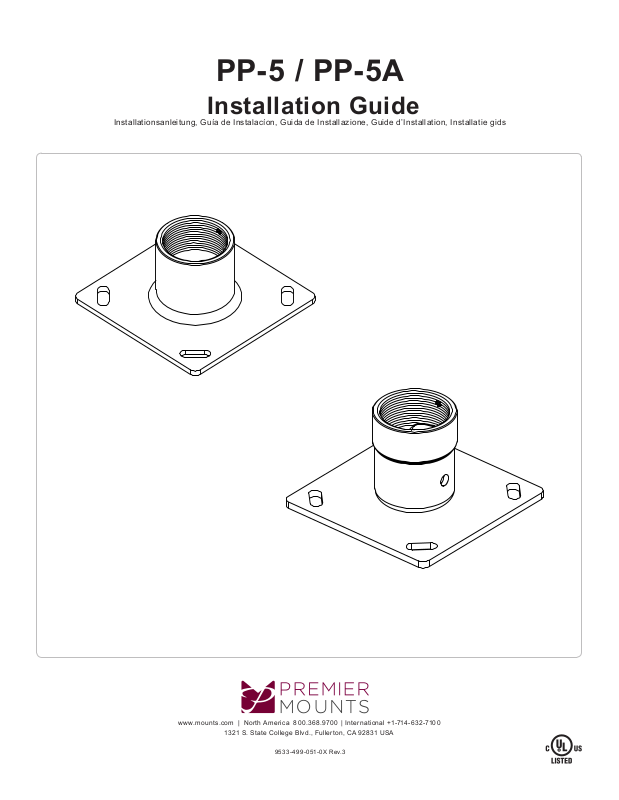

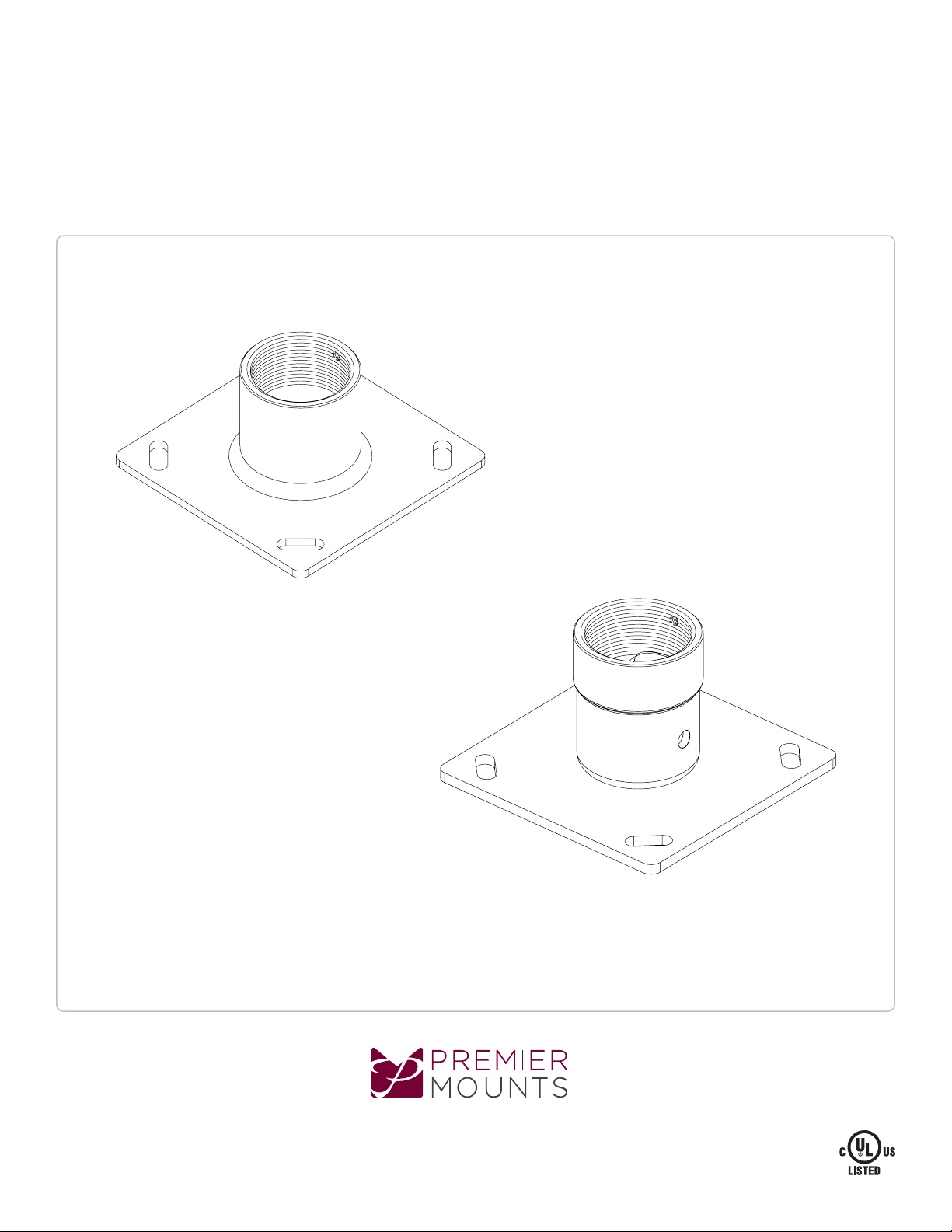

PP-5 / PP-5A
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
1321 S. State College Blvd., Fuller ton, CA 92831 USA
9533 -49 9-051-0X Rev.3
Page 2
Weight Limit
THE CEILING STRUCTURE MUST BE CAPABLE OF SUPPORTING
Maximum Weight Capacity:
500 lbs.
AT LEAST FOUR TIMES THE WEIGHT CAPACITY. IF NOT, THE
CEILING STRUCTURE MUST BE REINFORCED.
Warning Statements
PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS MUST BE READ AND
COMPLETELY UNDERSTOOD. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION
FOR FUTURE REFERENCE.
PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN MUST BE FOLLOWED, AS OUTLINED
IN THESE INSTALLATION INSTRUCTIONS. FAILURE TO DO SO COULD RESULT IN PROPERTY DAMAGE, SERIOUS
PERSONAL INJURY, OR EVEN DEATH.
SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE
PROPER SAFETY EQUIPMENT AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.
PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS
PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY
UNAUTHORIZED ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS,
DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR
IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.
At least two qualied people should perform the assembly procedure. Personal injury and/or property damage can result
from dropping or mishandling the projector.
If mounting to wall studs or ceiling studs, make sure that the mounting screws are anchored into the center of the wall studs
or ceiling studs. Use of an edge-to-edge stud nder is recommended.
Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there
are no electrical wires in wall. Cutting or drilling into an electrical line may cause serious personal injury.
Make sure there are no water or natural gas lines inside the wall where the mount is to be located. Cutting or drilling into a
water or gas line may cause severe property damage or personal injury.
This product is intended for indoor use only. Use of this product outdoors could lead to product failure and/or serious
personal injury.
Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of
impact.
AVERTISSEMENT
AVANT L’INSTALLATION DE CE PRODUIT, LES CONSIGNES D’INSTALLATION DOIVENT ÊTRE LUES ET PLEINEMENT
COMPRISES. CONSERVER CES CONSIGNES D’INSTALLATION DANS UN ENDROIT FACILEMENT ACCESSIBLE
POUR RÉFÉRENCE FUTURE.
LA PROCÉDURE D’INSTALLATION CORRECTE PAR UN TECHNICIEN QUALIFIÉ DOIT ÊTRE OBSERVÉE, COMME
DÉCRIT DANS CES CONSIGNES D’INSTALLATION. FAUTE DE QUOI DES DOMMAGES MATÉRIELS, BLESSURES
GRAVES, VOIRE MÊME LA MORT PEUT SUBVENIR.
DES MESURES DE SÉCURITÉ DOIVENT ÊTRE PRATIQUÉES À TOUT MOMENT DURANT L’ASSEMBLAGE DE CE
PRODUIT. UTILISER L’ÉQUIPEMENT ET OUTILS DE SÉCURITÉ APPROPRIÉ POUR LA PROCÉDURE D’ASSEMBLAGE
AFIN D’ÉVITER DES BLESSURES.
LES SUPPORTS PREMIER MOUNTS NE GARANTISSENT PAS CONTRE LES DOMMAGES CAUSÉS PAR L’USAGE DU
PRODUIT DE MONTAGE PREMIER MOUNTS À D’AUTRES FINS QUE CELLES POUR LESQUELLES IL A ÉTÉ CONÇU
OU DES DOMMAGES CAUSÉS PAR DES ACCESSOIRES OU DES MODIFICATIONS NON AUTORISÉS, ET NOUS
NE POUVONS PAS ÊTRE TENUS RESPONSABLES DES DOMMAGES, PLAINTES, RÉCLAMATIONS, POURSUITES,
ACTIONS OU CAUSES D’ACTION DE N’IMPORTE QUELLE MANIÈRE RÉSULTANT DE, DÉCOULANT DE OU
TOUCHANT DE N’IMPORTE QUELLE MANIÈRE UN TEL USAGE, ACCESSOIRE OU MODIFICATION
Au moins deux personnes qualiées devraient exécuter la procédure d’assemblage. Il pourrait subvenir des blessures et/ou
des dommages matériels dû à la chute ou à la manipulation incorrecte de l’écran plat.
Si le montage s’effectue sur des rivets de mur ou des rivets de plafond, assurez-vous que les vis de montage sont ancrées
au centre des rivets de mur ou des rivets de plafond. L’usage d’un détecteur de rivet bord-à-bord est recommandé.
Familiarisez-vous avec l’environnement de montage. Si un perçage et/ou une coupe est opéré sur la surface de montage,
assurez-vous toujours qu’il n’y a pas de ls électriques dans le mur. Couper/percer dans une installation électrique peut
causer des blessures graves.
S’assurer qu’il n’y a pas de canalisation d’eau ou de gaz naturel dans le mur où le montage doit être localisé. Une coupe ou
un perçage dans une canalisation d’eau ou de gaz naturel peut causer des dommages matériels ou des blessures graves.
Ce produit n’est destiné qu’à être utilisé à l’intérieur. L’utilisation de ce produit à l’extérieur pourrait entraîner des défauts
matériels et/ou des blessures graves.
Ne pas installer près de sources de forte chaleur. Ne pas installer sur une structure soumise aux vibrations, aux
mouvements ou aux chocs.
Page 3
Installation Tools
The following tools may be required depending upon your particular installation. They are not included..
Electronic Stud Finder
Socket Wrench
Ladder

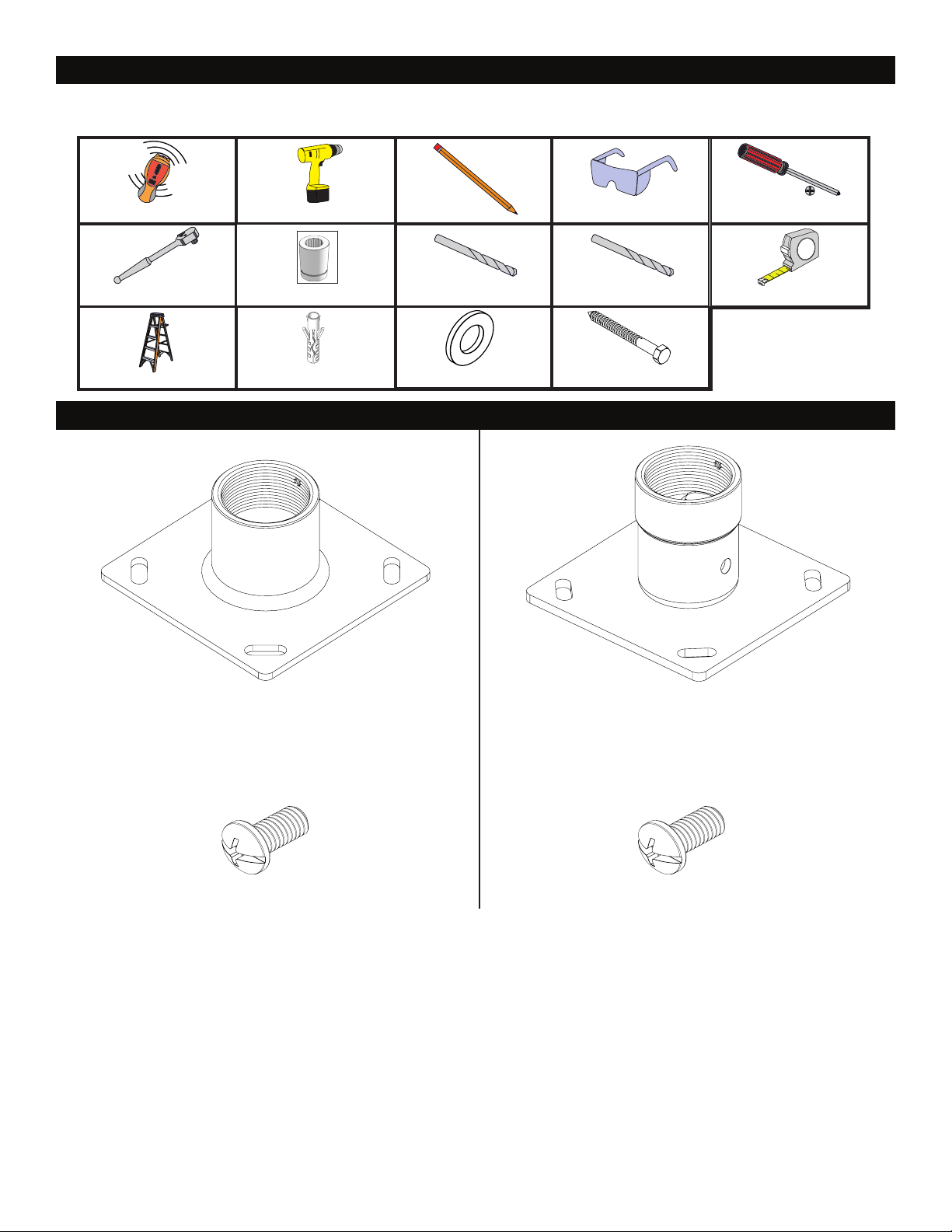

Parts List
Hand Held Drill
1/2” Socket
Finned Anchor 5/16” Washer
Pencil Protective Eyewear
1/4˝ Wood Drill Bit
3/8˝ Concrete Drill Bit
5/16” X 3” LAG BOLT
Phillips Tip Screwdriver
O
N
Tape Measure
CEILING ADAPTER
PP-5
M6 X 12 MM
PHILLIPS SCREW
CEILING ADAPTER
PP-5A
M6 X 12 MM
PHILLIPS SCREW
Page 4
PP-5 / PP-5A
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
WOOD STUD INSTALLATION
Minimum of 2 X 4 wood stud to be used
Minimum de 2 X 4 bois goujon pour être utilisé

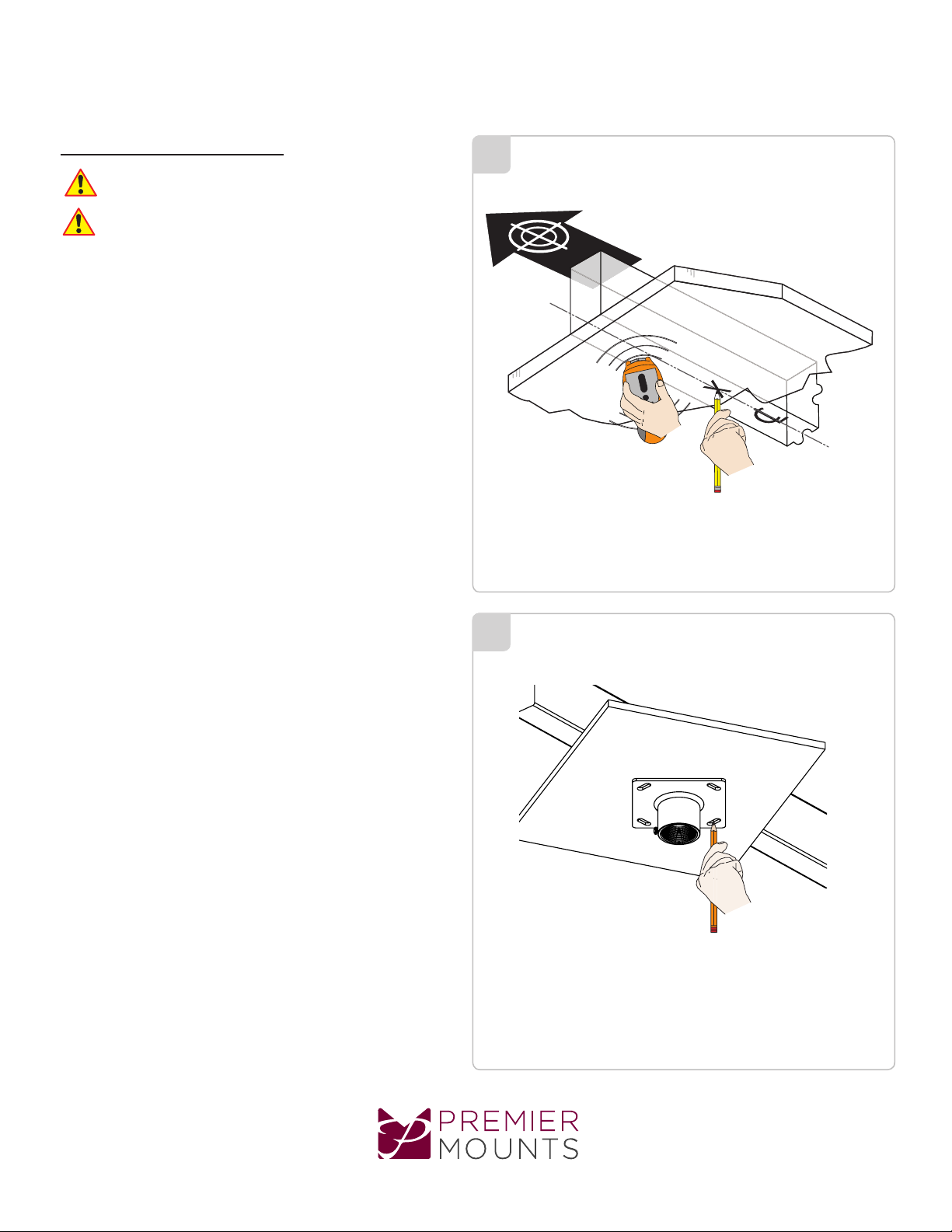

Use a stud nder to locate a ceiling stud closest
to your desired installation location.
Identify the center of the ceiling stud.
Use a pencil to mark the location of the ceiling
stud center.
1
Stud
Center
Use a pencil and mark 2 mounting hole locations
through the holes.
2
Updates: The most up-to-date installation
guides can be found at mounts.com
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105
Page 5
PP-5 / PP-5A
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
3

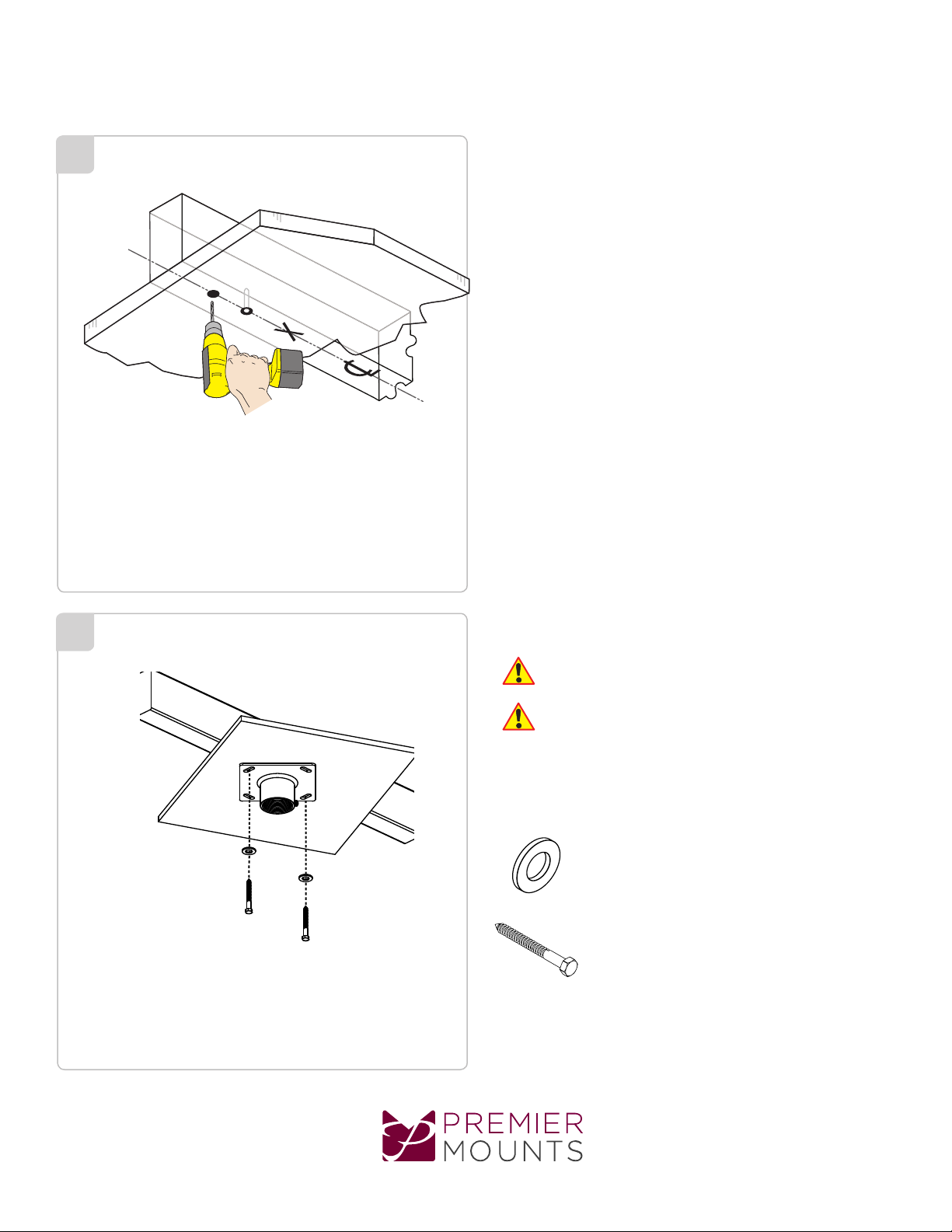

Drill 2 pilot holes in the center of the wood stud.
Using a power drill gun and a 1/4” drill bit.
Drill 3” deep.
4
Tighten each screw until the PP-5 / PP-5A are
secure against the ceiling.
Do not overtighten the mounting screws.
Éviter de trop serrer les vis de montage.
5/16” Washer
5/16” X 3” LAG BOLT
X 2
X 2
Shown hardware is not supplied.
Can be purchase at Premier
Mounts. You will need 2 of each
Part number:
(2) 0465-073-378-71 (5/16” x 3” Lag Bolt)
(2) 2030-549-700-59 (5/16” Washer)
Warranty: http://www.mounts.com/warranty
Garantie, Garantía, Garanzia, Garantie, Waarborg
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105
Page 6
PP-5 / PP-5A
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
Concrete Installation

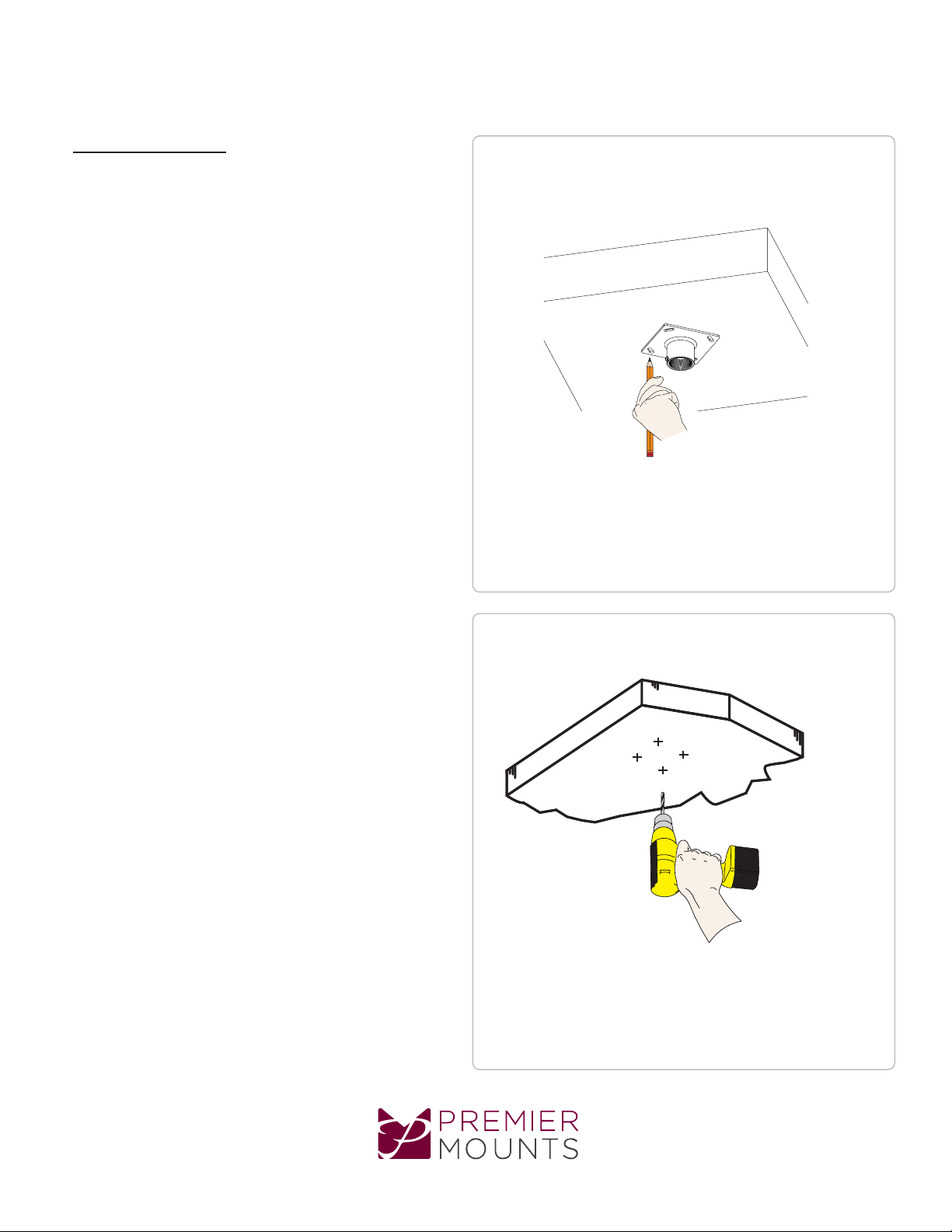

Use a pencil and mark 4 mounting hole locations
through the slots.
Drill 4 pilot holes of each mark using a power drill
and 3/8˝ drill bit. Drill 3 inches deep.
Updates: The most up-to-date installation
guides can be found at mounts.com
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105
Page 7
PP-5 / PP-5A
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

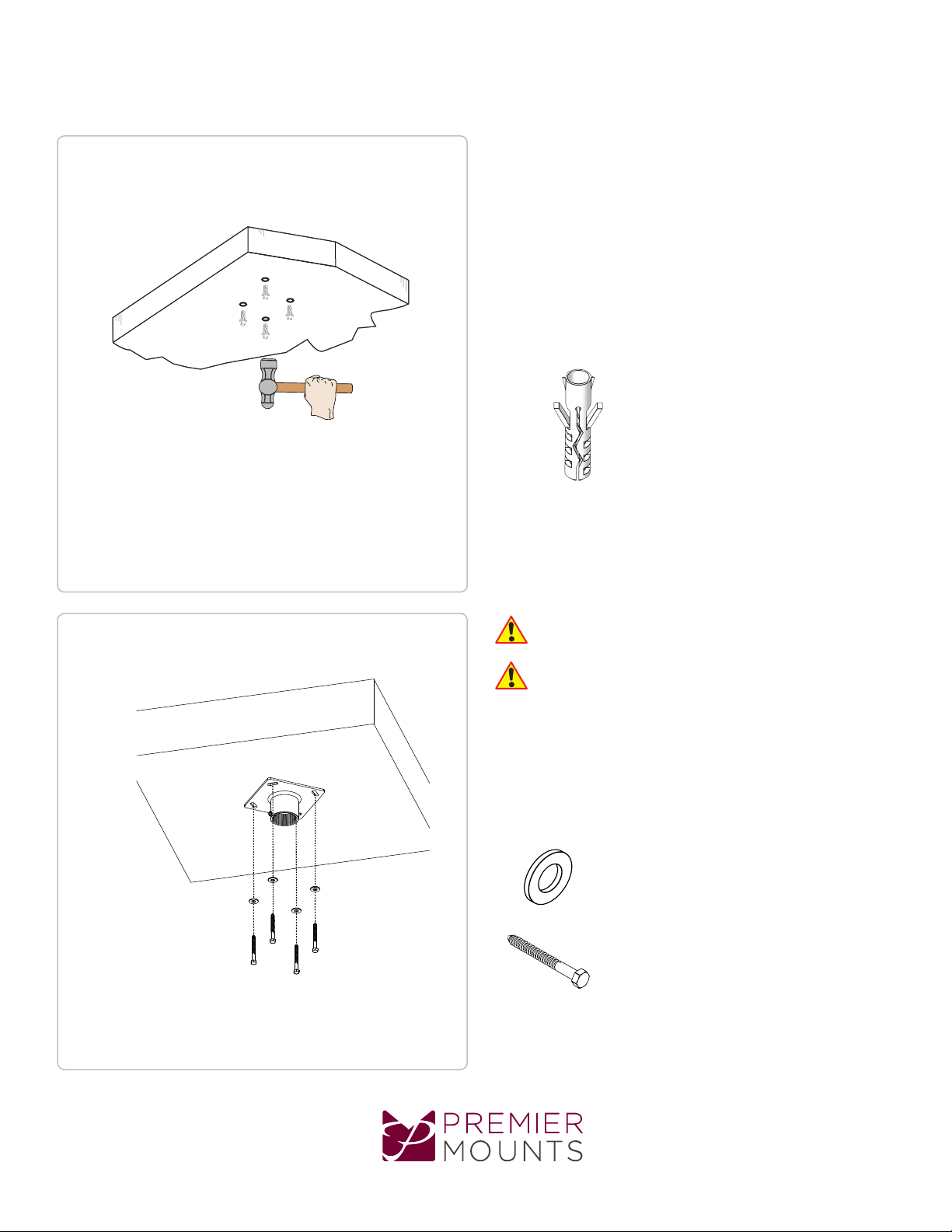

Insert a concrete wedge anchor into each hole.
If necessary, lightly tap each concrete wedge
anchor into place with a hammer.
Shown hardware is not supplied.
Can be purchase at Premier
Mounts. You will need 4
Part number:
(4) 0081-091-320-CL (Finned Anchor)
X 4
Finned Anchor
Do not overtighten the mounting screws.
Éviter de trop serrer les vis de montage.
Shown hardware is not supplied. Can be
purchase at Premier Mounts. You will need
4 of each
X 4
5/16” Washer
5/16” X 3” LAG BOLT
Part number:
(4) 0465-073-378-71 (5/16” x 3” Lag Bolt)
(4) 2030-549-700-59 (5/16” Washer)
X 4
Warranty: http://www.mounts.com/warranty
Garantie, Garantía, Garanzia, Garantie, Waarborg
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105
Page 8
PP-5 / PP-5A
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
PREMIER MOUNTS
LIMITED LIFETIME WARRANTY
What and Who is Covered by this Limited Lifetime Warranty
Premier Mounts warrants all mounting products to be free from defects in material and workmanship
for the lifetime of the original installation of the product.
What Premier Mounts Will Do
At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product
part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement
product or part will be shipped to you at no charge, but you must pay any related labor costs.
What is Not Covered: Limitations
Premier Mounts disclaims any liability for damage to mounts, adapters, displays, projectors, other
property, or personal injury resulting, in whole or in part, from improper installation, modication, use
or misuse of its products.
NOTWITHSTANDING ANYTHING TO THE CONTRARY IN THIS WARRANTY, THIS WARRANTY
IS LIMITED TO FIVE YEARS FROM THE DATE OF PURCHASE IN THE EVENT THAT THE WARRANTED PRODUCT IS COMMERCIALLY RENTED OUT.
Electrical products and components, such as ampliers, speakers, motors, switches remote controls
and related electrical items, are backed by a 3-year warranty.
Premier Mounts disclaims all other warranties, express or implied, including warranties of merchantability and tness for a particular purpose. Premier Mounts is not responsible for incidental or consequential damages, including but not limited to, inability to use its products or labor costs for removing and replacing defective products or parts. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you.
What Customers Must Do for Warranty Service
If you discover a problem that you think may be covered by the warranty, you must report it in writing to the address below within thirty (30) days. Proof of purchase (an original sales receipt) from the
original consumer purchaser must accompany all warranty claims. Warranty claims must also include
a description of the problem, the purchaser’s name, address, and telephone number. General inquiries can be addressed to Premier Mounts Customer Service at 1-800-368-9700. Warranty claims will
not be accepted over the phone or by fax.
Premier Mounts
Attn: Warranty Claim
1321 S. State College Blvd.
Fullerton, CA 92831 USA
How State Law Applies
This warranty gives you specic legal rights, and you may also have other rights which vary from
state to state.
Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information
contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with
the installation or use of this product. The information contained in this document is subject to change without notice or obligation of
any kind. Premier Mounts makes no representation of warranty, expressed or implied, regarding the information contained herein.
Premier Mounts assumes no responsibility for accuracy, completeness or sufciency of the information contained in this document.
Warranty: http://www.mounts.com/warranty
Garantie, Garantía, Garanzia, Garantie, Waarborg
