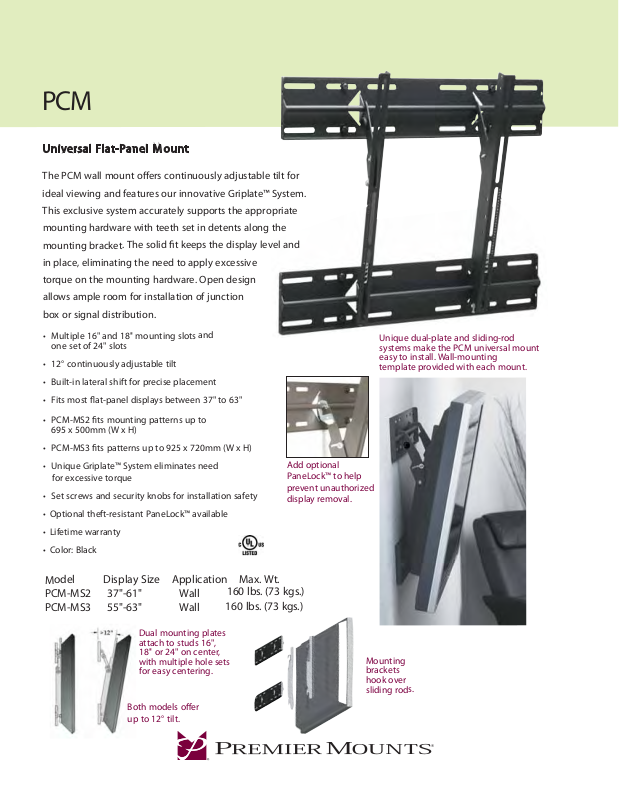

Page 1
Both models oer
up to 12° tilt.
Dual mounting plates
attach to studs 16",
18'' or 24" on center,
with multiple hole sets
for easy centering.
Unique dual-plate and sliding-rod
systems make the PCM universal mount
easy to install. Wall-mounting
template provided with each mount.
PCM
Add optional
PaneLock™ to help
prevent unauthorized
display removal.
Model Display Size Application Max. Wt.
PCM-MS2 37"-61" Wall
PCM-MS3 55"-63" Wall
Mounting
brackets
hook over
sliding rods.
U
n
i
v
e
r
s
a
l
F
l
a
t
-
P
a
n
e
l
M
o
u
n
t
The PCM wall mount oers continuously adjustable tilt for
ideal viewing and features our innovative Griplate™ System.
This exclusive system accurately supports the appropriate
mounting hardware with teeth set in detents along the
mounting bracket. The solid t keeps the display level and
in place, eliminating the need to apply excessive
torque on the mounting hardware. Open design
allows ample room for installation of junction
box or signal distribution.
• Multiple 16" and 18'' mounting slots and
one set of 24" slots
• 12° continuously adjustable tilt
• Built-in lateral shift for precise placement
• Fits most at-panel displays between 37" to 63"
• PCM-MS2 ts mounting patterns up to
695 x 500mm (W x H)
• PCM-MS3 ts patterns up to 925 x 720mm (W x H)
• Unique Griplate™ System eliminates need
for excessive torque
• Set screws and security knobs for installation safety
• Optional theft-resistant PaneLock™ available
• Lifetime warranty
• Color: Black
160 lbs. (73 kgs.)
160 lbs. (73 kgs.)
Page 2
PCM-MS3
PCM-MS2
800.368.9700
I
www.mounts.com

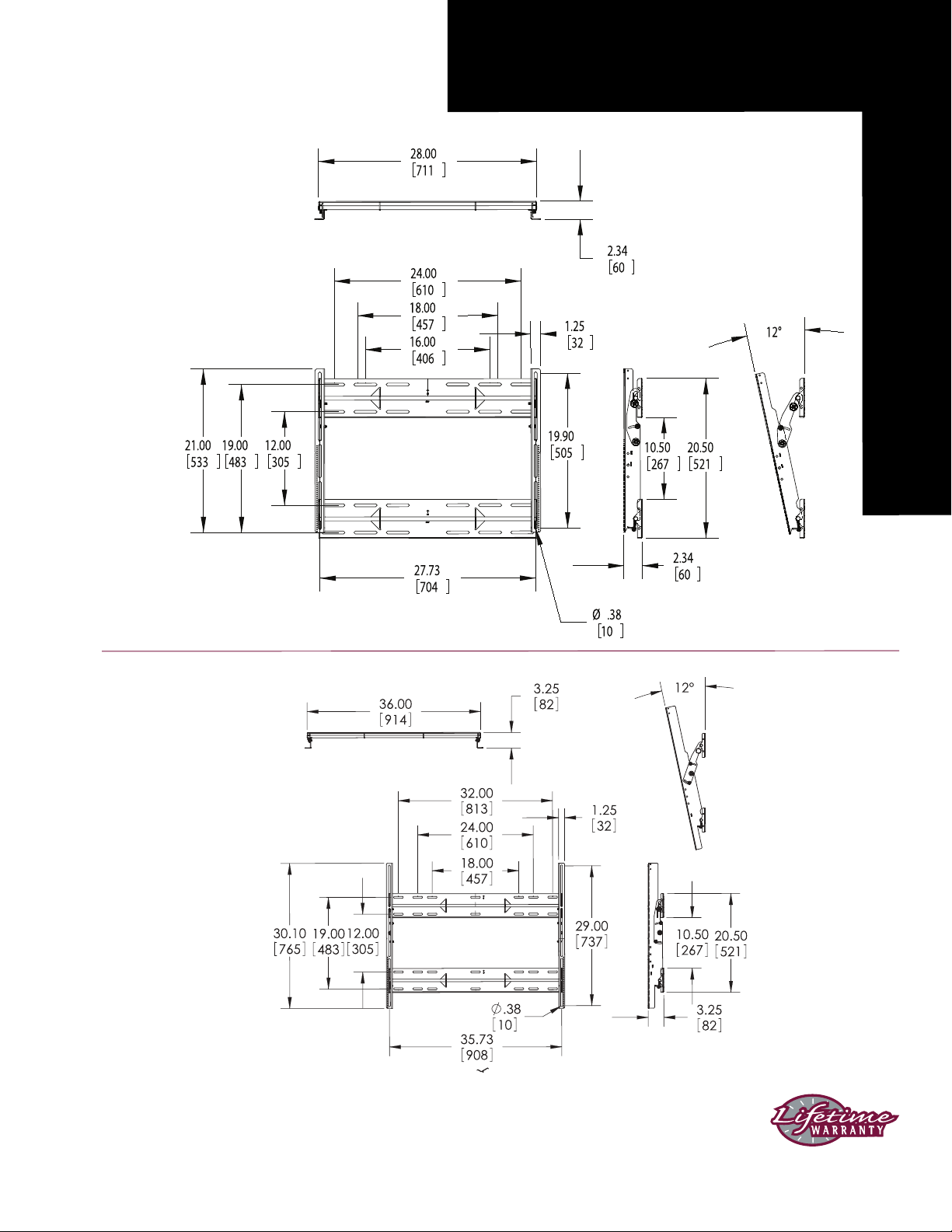

Dimensions are in inches and millimeters [mm].
Drawings are subject to change without notice.
