PCM-MS2

Table of Contents

Warning Statements ........................................................................................................................................- 2 -

Parts List ...........................................................................................................................................................- 3 -

Installation Tools (not supplied) .....................................................................................................................- 3 -

Universal Spacers Installation ........................................................................................................................- 5 -

Finding the Center of the Flat Panel Display ................................................................................................- 6 -

Positioning the Mounting Brackets ................................................................................................................- 6 -

Griplate™ Installation ....................................................................................................................................- 7 -

Wall Plate End Covers Installation ................................................................................................................- 8 -

Wall Stud Location ..........................................................................................................................................- 8 -

Securing the Flat Panel to the Wall Mount .................................................................................................- 10 -

Lateral Shift Adjustment ..............................................................................................................................- 11 -

Installing the Safety Knurl Knobs ................................................................................................................- 11 -

Technical Specifications ................................................................................................................................- 12 -

Warranty ........................................................................................................................................................- 13 -

Warning Statements

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND COMPLETELY
UNDERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY
DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.
PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR
PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS
OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF
ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE,
ATTACHMENTS OR MODIFICATIONS.
THE SURFACE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE TIMES THE WEIGHT OF THE DISPLAY. IF NOT, THE
MOUNTING STRUCTURE MUST BE REINFORCED. THE MAXIMUM WEIGHT THAT CAN BE USED WITH THIS PRODUCT IS
160LBS. PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION
INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN
DEATH.
SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER SAFETY
GEAR AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

At least two qualified people should perform the assembly procedure. Injury and/or damage can result from dropping or mishandling the display.

If mounting to studs, make sure that the mounting screws are anchored into the center of the studs. Use of an edge-to-edge stud finder is
recommended.

Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there are no electrical wires in
wall. Cutting/drilling into an electrical line may cause serious injury.

Make sure there are no water lines inside the wall where the mount is to be located. Cutting/drilling into a water line may cause severe water
damage to the mounting surface.

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.

Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact

It is recommended that protective eyewear be worn at all times during the installation.

Contact Premier Mounts with any questions
[phone]
[e-mail]

Installation Manual Page - 2 -

PCM-MS2

Parts List

This wall mount is shipped with all proper installation hardware and componen ts. Make sure that non e of these
parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged,
please stop the installation and contact Premier Mounts [phone].

Wall Plates
(Qty 2)

PCM Wall Plate
End Covers
(Qty 2)

Thread Depth
Indicator
(Qty 1)

Level
(Qty 1)

M6 x 12mm
Knurl Knobs
(Qty 2)

Installation Tools

(not supplied)

Mounting
Brackets
(Qty 2)

Griplates™
(Qty 6)

5/16" X 3"
Lag Bolts
(Qty 8)

5/16" Flat
Washers
(Qty 8)

M6 x 30mm
Phillips
Head Screws
(Qty 2)

Electronic Stud

Finder

Screw Driver Tape Measure 1/4” Drill Bit Portable Drill ½” Socket and

Wrench

Page - 3 - Installation Manual

)

Hardware Pack

PCM-MS2

M4x30( Qty6)

M5 x 30 ( Qty 6)

Universal Spacers (Qty 24)

M4x25( Qty6)

M4x16( Qty6)

M6x45( Qty6)

M6x30( Qty6)

M6 x 25 ( Qty 6)

M6x16( Qty6)

M5 x 25 ( Qty 6

M5 x 16 ( Qty 6)

M8 x 70 ( Qty 4)

M8 x 45 ( Qty 6)

M8 x 30 ( Qty 6)

M8x25( Qty6)

M8x16( Qty6)

Installation Manual Page - 4 -

PCM-MS2

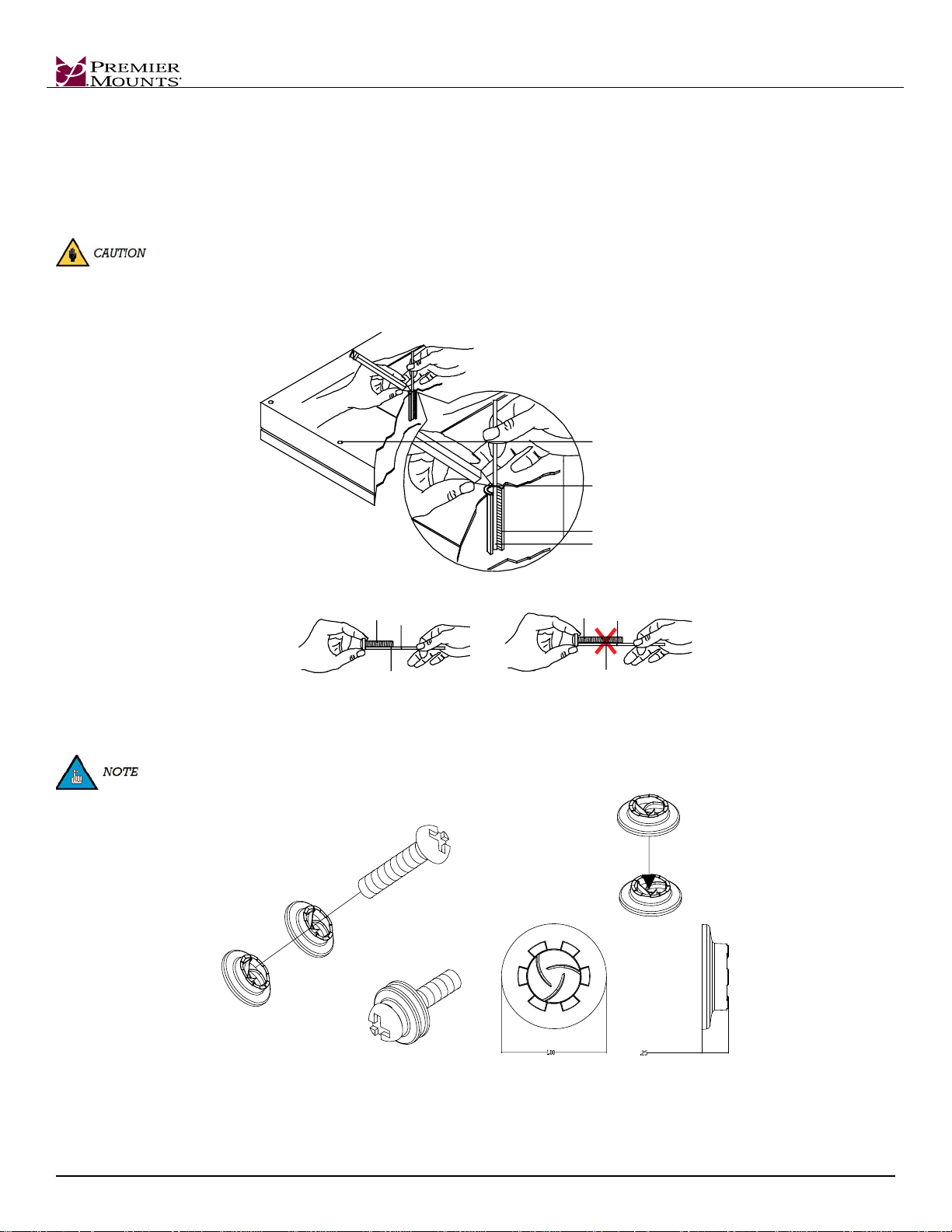

Thread Depth Indicator

Step 1. Insert th e thread depth indicator (supplied) through the thread inserts found on the back of the flat panel to make su re the

inserts measure the same full depth and mark it.

Step 2. Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied).
Step 3. If your selected screw is longer than the marking on the thread depth indicator, DO NOT USE this screw.
Step 4. The screw length must not bypass the marking. Select another screw size, until you find one that comes closest to your mark

without going past.

When using the universal spacers (please see Universal Spacers Installation) in the installation, make sure to account
for the appropriate spacing depth with the thread depth indicator. The universal spacers will affect the overall thread
depth of the mounting hardware that is to be used.

Inverted Flat
Panel Display

Marking the
Depth

Universal Spacers Installation

If your display has uneven mounting points, or recessed mounting points, please use the provided universal spacers.

Screw

Thread Depth
Indicator

Figure 2

Marking

Figure 1

Threaded Insert

Thread Depth
Indicator

Screw

Thread Depth
Indicator

Figure 3

Marking

The universal spacer may be stacked five (5) high, for a total stacking height of 1-1/4”. The universal spacers must be stacked in the
direction shown above.
The universal spacer can fit M4, M5, M6 and M8 screws sizes.

Page - 5 - Installation Manual

PCM-MS2

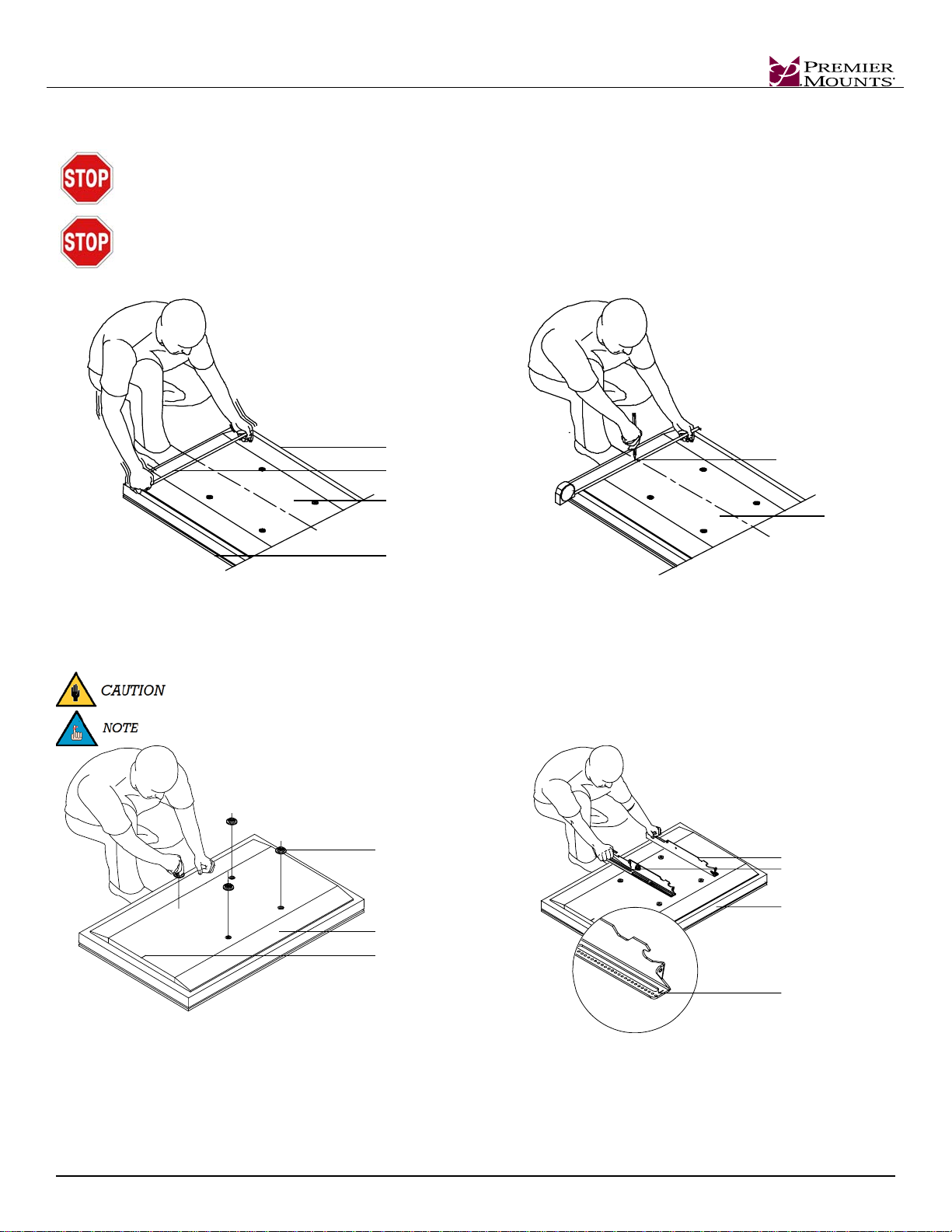

Finding the Center of the Flat Panel Display

Proper installation procedure by qualified personnel as outlined in the installation instru ctions must b e adhered to. Failure
to do so could result in personal injury and possible damage to the flat panel.

Invert the flat panel and place it on a soft, flat surface to prevent damage to the flat panel. Failure to do so will result in
damaging the flat panel. Do not lay the flat panel on the floor without any protection to the glass. This installation
requires 2 qualified installers. The flat panel is heavy and fragile. Failure to comply could result in serious injury and
possible damage to the flat panel.

Top of
Flat Panel
Tape
Measure

Inverted
Flat Panel

C

L

Bottom of
Flat Panel

Step 1. Once the flat panel is inverted, use a measuring tape to
find the center of your flat panel measuring from outside
to outside of the chassis.

Step 2. Use a pencil to lightly mark the center of your flat
panel.

Marking the Center
of the Flat Panel

Inverted
Flat Panel

C

L

Positioning the Mounting Brackets

If your display has uneven mounting points, or recesse d m ount i n g p oi nts , pl ease use the pr o vi de d universal
spacers (Page 5).

If the universal spacers apply to your flat panelinstallation, please see Page 5.

Universal Spacers

Left Mounting Bracket
Right M ounting Bracket

Botto m of

Inverted
Flat Panel

Center Mark

Flat Panel

Arrows Facing
Out

Step 1. Place the universal spacers over the mounting points on
the flat panel.

Step 2. Lay the left and right mounting brackets (stamped
arrows facing out) on the display, over the
mounting points.

Installation Manual Page - 6 -

s

PCM-MS2

C

L

Align the
Mounting Brackets

Inverted
Flat Panel

Step 3. Match the center of viewing guide with the center line
you marked in step 1.

The mounting brackets are designed with a
center viewing guide on the side to indicate
the center of the bracket.

Bottom of
Flat Panel

Mounting Bra cket

Center of
Viewing Guide

Cente r Line

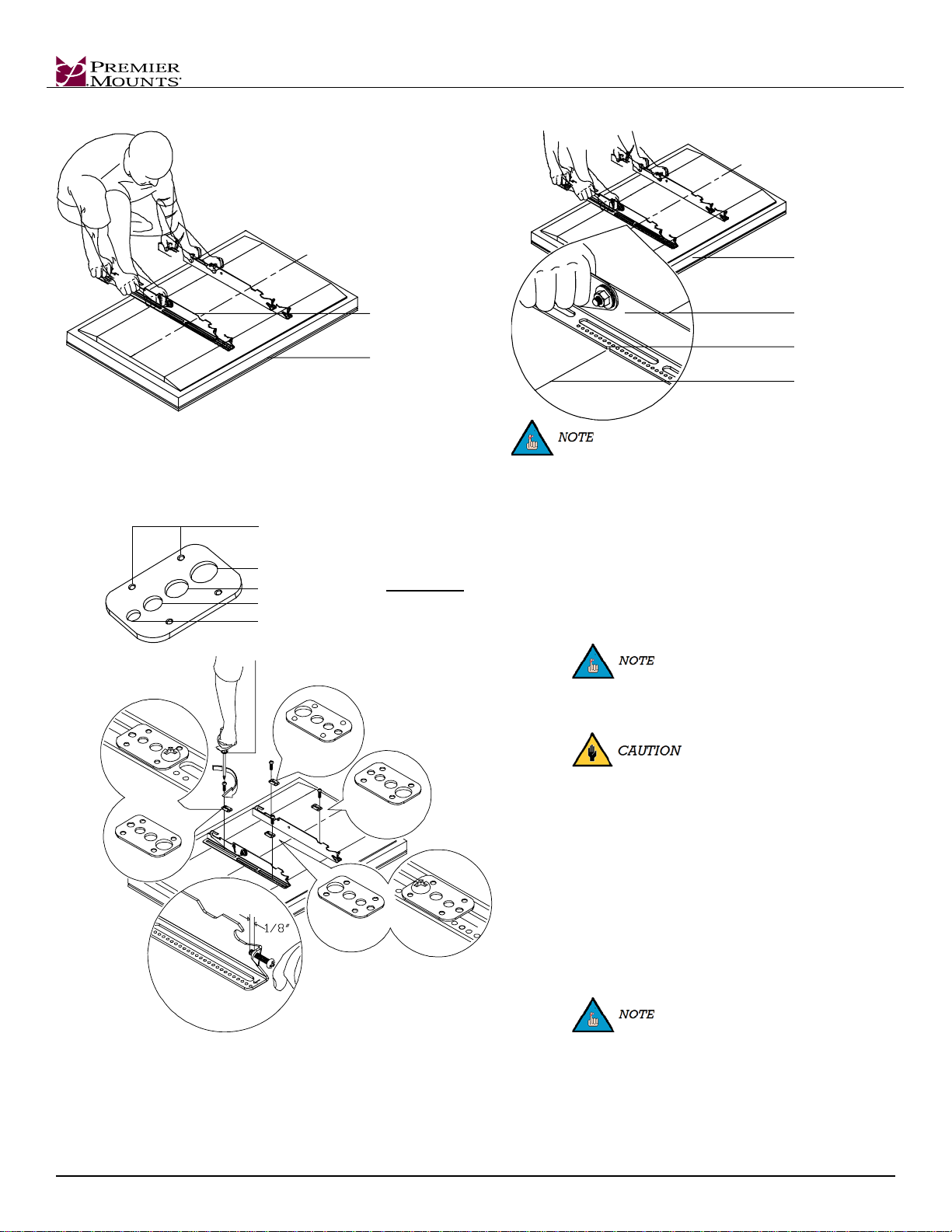

Griplate™ Installation

Dimple

M8
M6

M5
M4

Phillips Head Screwdriver

Griplates™ have M4, M5 M6 and M8 hole patterns to fit the hardware that your
flat panel requires.

EXAMPLE

: If your flat panel uses M8 x 20 Phillip screws, use the M8

mounting points.

The upper Griplate™ must be mounted with the
dimples facing up. The lower Griplate™ must be

DIMPLES
FACING UP

DIMPLES
FACING UP

DIMPLES
FACING DOWN

mounted with the flat side facing up.

Do not over tighten the mounting hardware.

DIMPLES
FACING DOWN

Step 1. Pre-install two (2) M6 x 30 (mm) Phillip pan screws to the bottom
of the left and right mounting brackets.
Step 2. Once the mounting brackets are aligned secure the Griplate™ to the
flat panel.

Both M6 x 30mm screws must be threaded into

place 1/8” of an inch. Do not thread screw past
1/8”.

Page 7 Installation Manual

PCM-MS2

Wall Plate End Covers Installation

P

A

N

S

Step 1. Place the upper and lower wall plates on a flat surface.
Step 2. Align the wall plate end cover with the wall

plate center rods (see illustration above).

Wall Stud Location

16"

CENTER OFVIEWINGHEIGHT DESIRED

Step 3. Attach the wall plate end cover to the upper and lower
wall plates and press down firmly. When the two
engage, an audible ‘snap’ will be heard.
Step 4. Repeat step 3 to attach the other wall plate cover to the
opposite side.

16"

Step 1. Using a (commercially available) wood stud finder,
locate the 16" or 24" stud centers behind the wall.
Step 2. Once found, make a pencil marking on the center of the
wood studs.

Step 3. Place the wall plate, with assembled end covers, to
the reference line and markthe four (4) lag bolt
mounting points through the upper wall plate slots
on the wall.
Step 4. Mark the four (4) lower wall plate mounting points
as well.

Installation Manual Page 8

PCM-MS2

16"

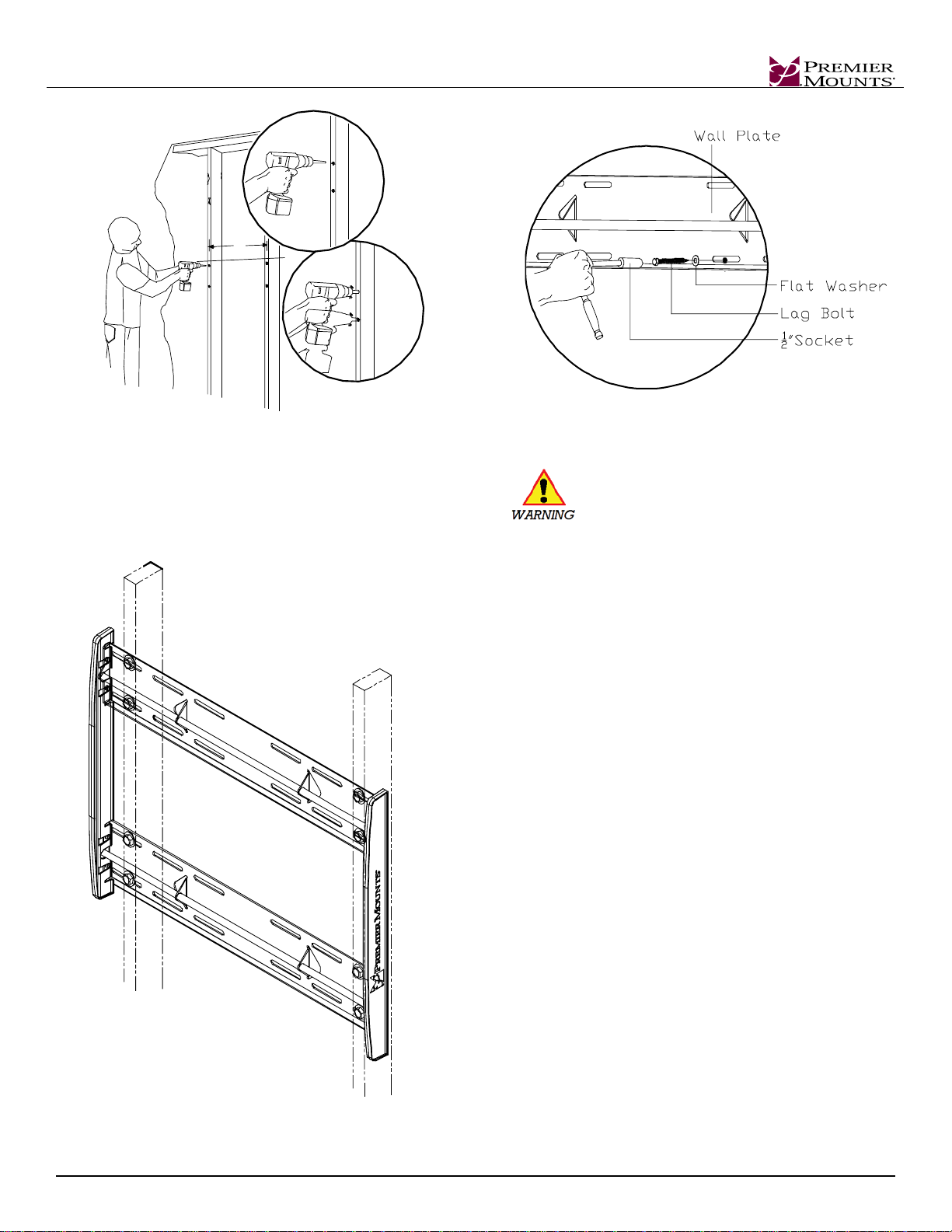

Step 5. Level the wall plate with the reference arrow pointing up
to the ceiling.

Step 6. Drill eight (8) ¼" pilot holes to the marked wall.

Step 7. Secure the upper and lower wall plates using the

eight (8) 5/16" lag bolts and flat washers.

Do NOT over-tighten lag bolts when attaching
the mount to the wall. Improper installation may
result in personal injury or damage to property.

Completed Installation Diagram

Page 9 Installation Manual

PCM-MS2

Securing the Flat Panel to the Wall Mount

AT LEAST (2) PEOPLE ARE STRONGLY RECOMMENDED TO LIFT AND SECURE THE FLAT PANEL TO THE
WALL PLATE. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE
FLAT PANEL.

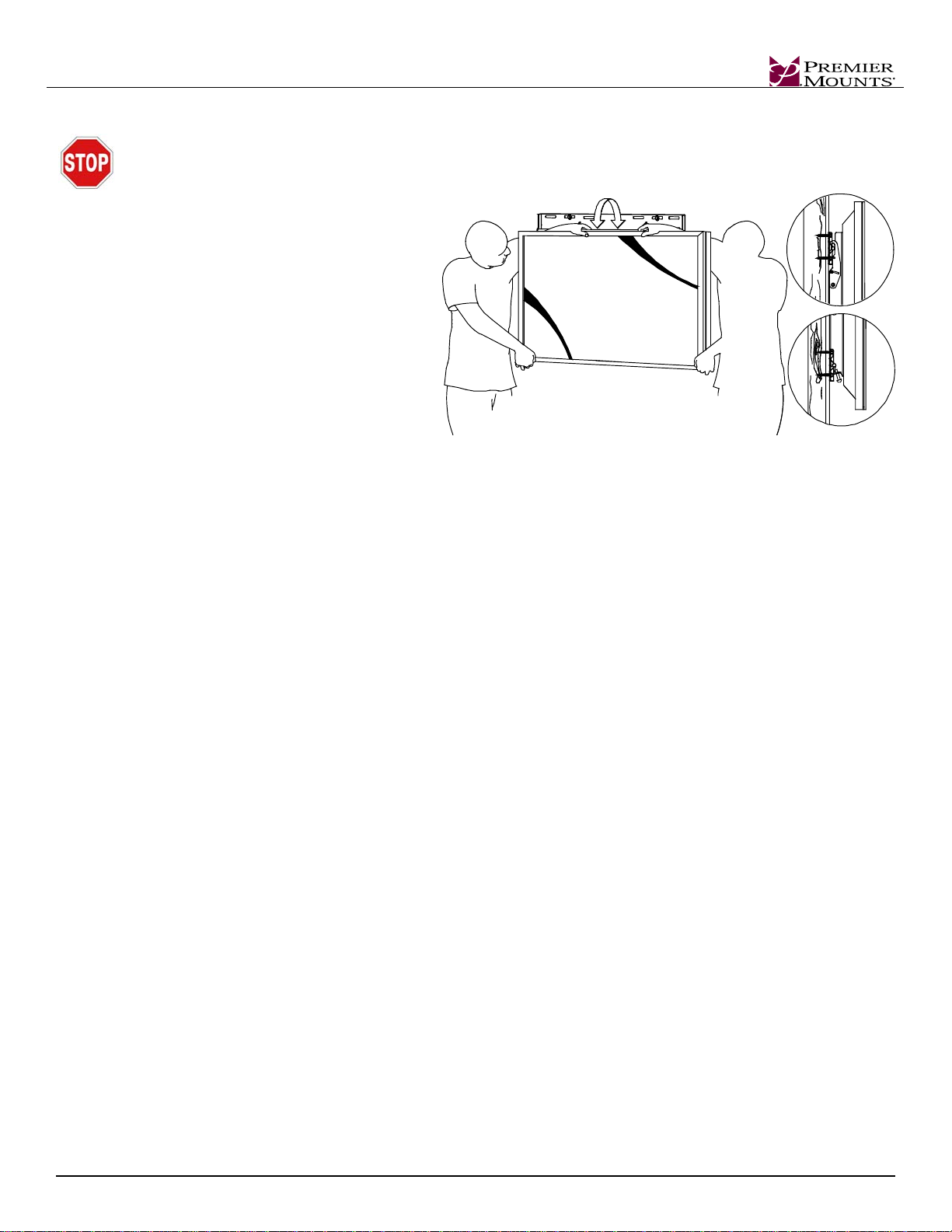

Step 1. Raise the flat panel with the secured mounting
brackets installed and engage the top and bottom
hooks from each bracket to the center rods of the
wall plates

Top

Bottom

Installation Manual Page 10

PCM-MS2

Lateral Shift Adjustment

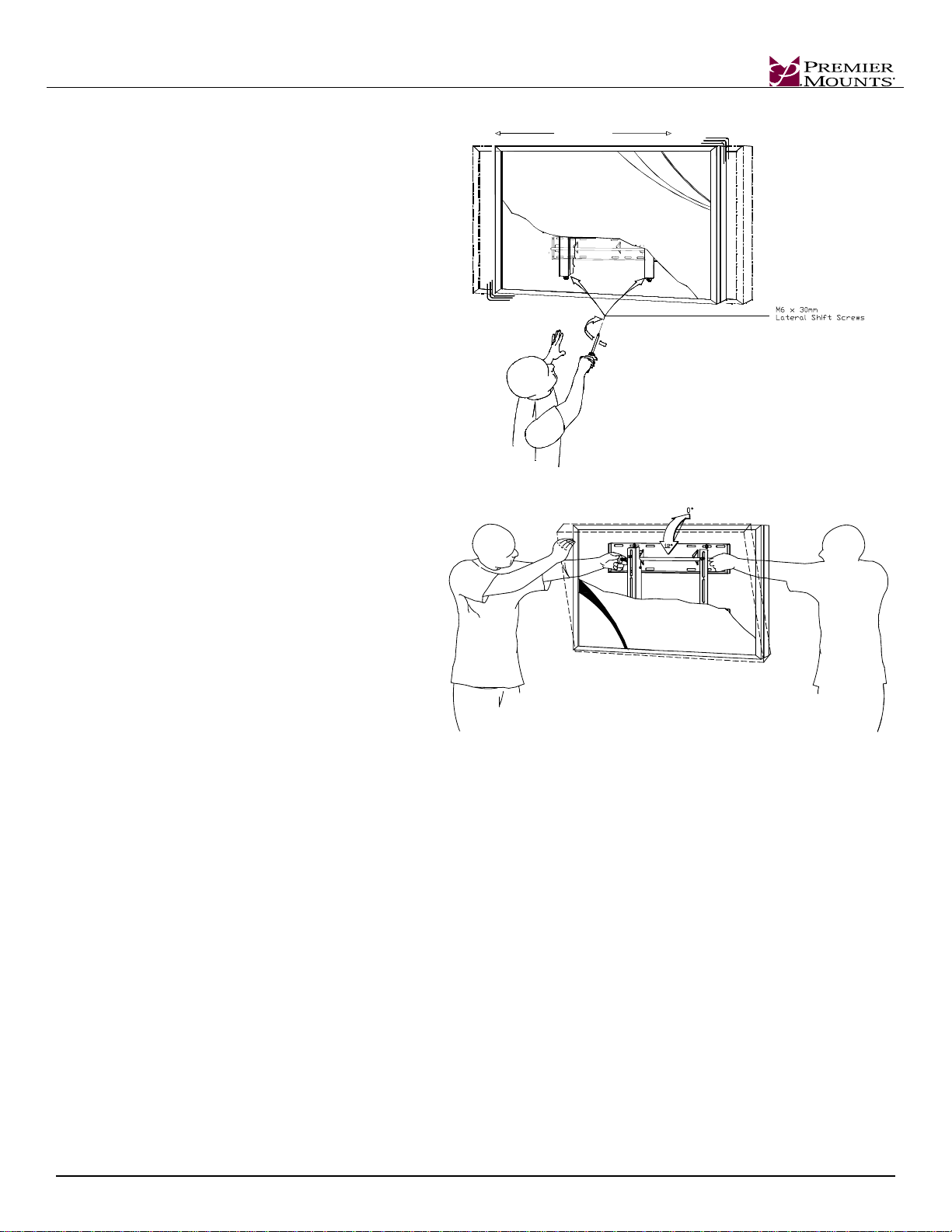

Step 1. Make any lateral shift adjustment and lock it by

tightening the two (2) M6 x 30mm (supplied) to
the bottom of the mounting brackets.

Installing the Safety Knurl Knobs

Step 1. Tilt the flat panel and secure the two (2)

M6 x 12 mm) safety knobs to each of the
mounting brackets.

LATERAL SHIFT

Page 11 Installation Manual

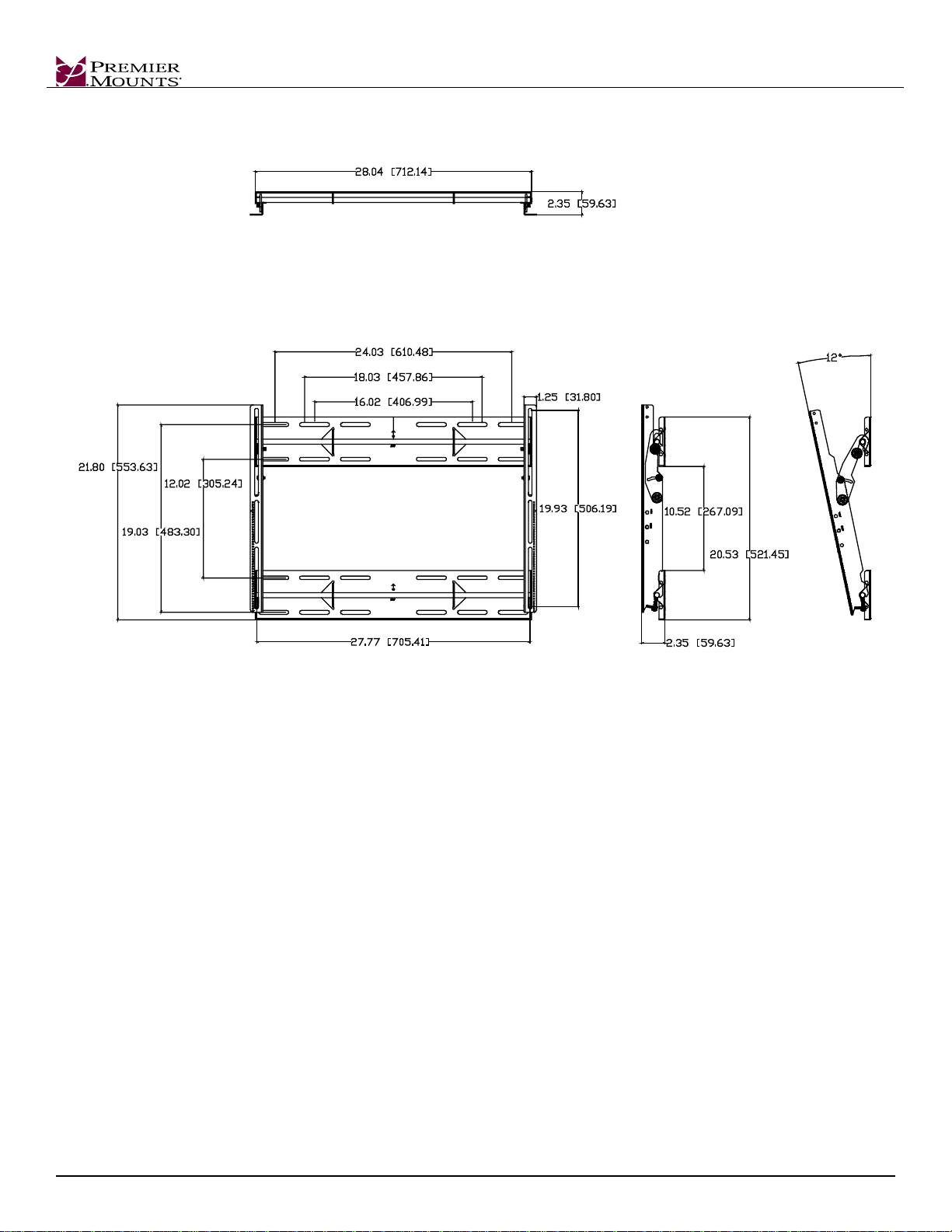

Technical Specifications

All measurements are in inches(mm).

PCM-MS2

Installation Manual Page 12

PCM-MS2

Warranty

PREMIER MOUNTS

LIMITED LIFETIME WARRANTY

What and Who is Covered by this Limited Warranty and for How Long

Premier Mounts warrants this product to be free from defects in material and workmanship for the lifetime of
the original owner of this product. The limited warranty is valid only for the original purchaser of the product.

What Premier Mounts Will Do

At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is
defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will
be shipped to you at no charge, but you must pay any labor costs.

What is Not Covered; Limitations
PREMIER MOUNTS DISCLAIMS ANY LIABILITY FOR DAMAGE TO MOUNTS, ADAPTERS,
DISPLAYS, PROJECTORS, OTHER PROPERTY, OR PERSONAL INJURY RESULTING, IN
WHOLE OR IN PART, FROM IMPROPER INSTALLATION, MODIFICATION, USE OR MISUSE
OF ITS PRODUCTS.

PREMIER MOUNTS DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. PREMIER MOUNTS IS NOT RESPONSIBLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO, INABILITY TO USE ITS
PRODUCTS OR LABOR COSTS FOR REMOVING AND REPLACING DEFECTIVE PRODUCTS
OR PARTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.

What Customers Must Do for Limited Warranty Service

If you discover a problem that you think may be covered by the warranty you MUST REPORT it in writing to
the address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original
consumer purchaser must accompany all warranty claims. Warranty claims must also include a description of
the problem, the purchaser’s name, address, and telephone number. General inquiries can be addressed to
Premier Mounts Customer Service at 1-800-368-9700. Warranty claims will not be accepted over the phone or
by fax.

Premier Mounts
Attn: Warranty Claim
3130 E. Miraloma Ave.
Anaheim, CA 92806

How State Law Applies

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Page 13 Installation Manual
