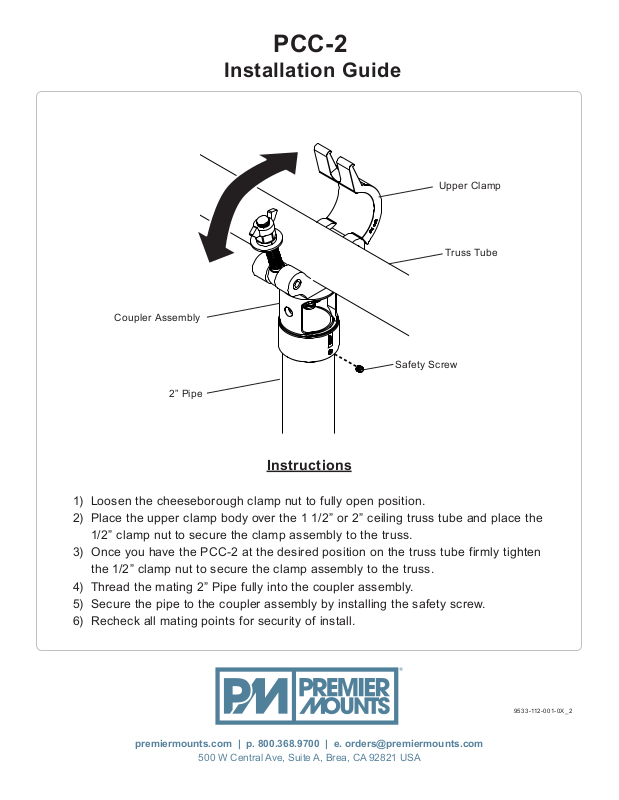

Coupler Assembly
PCC-2
Installation Guide

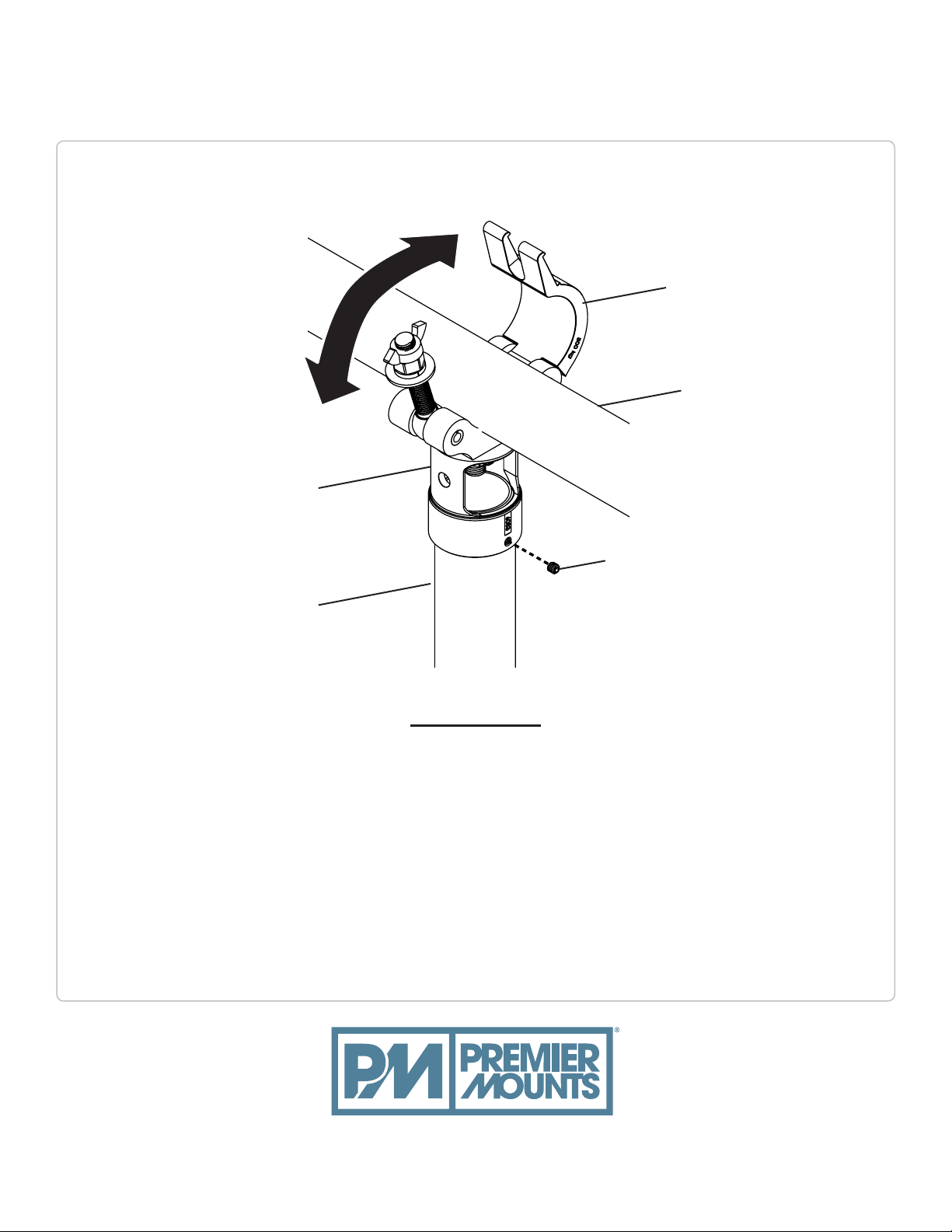

Upper Clamp
Truss Tube
Safety Screw
2” Pipe
Instructions
1) Loosen the cheeseborough clamp nut to fully open position.
2) Place the upper clamp body over the 1 1/2” or 2” ceiling truss tube and place the
1/2” clamp nut to secure the clamp assembly to the truss.
3) Once you have the PCC-2 at the desired position on the truss tube firmly tighten
the 1/2” clamp nut to secure the clamp assembly to the truss.
4) Thread the mating 2” Pipe fully into the coupler assembly.
) Secure the pipe to the coupler assembly by installing the safety screw.
5
6) Recheck all mating points for security of install.
