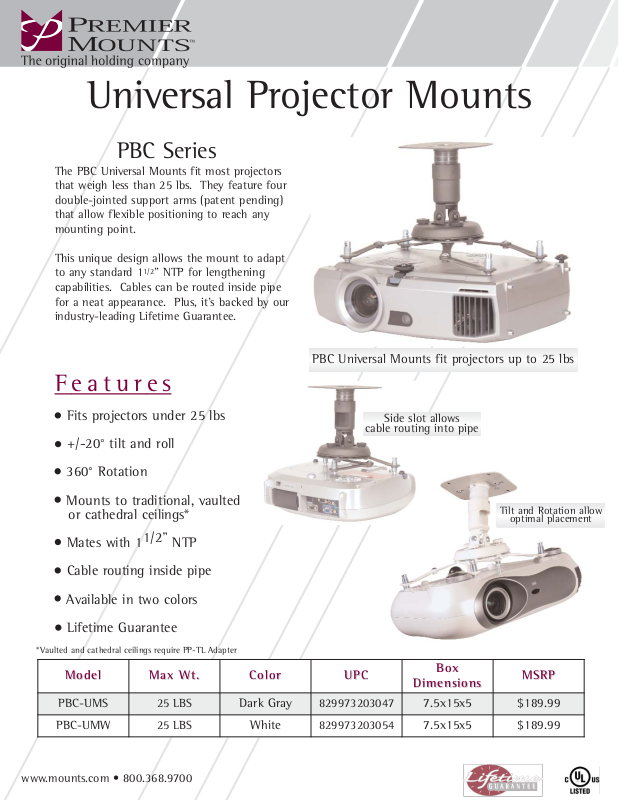

Premier Mounts PBC-UMS User Manual

Universal Projector Mounts

F eatures

Fits projectors under 25 lbs

+/-20° tilt and roll

360° Rotation

Mounts to traditional, vaulted

or cathedral ceilings*

Mates with 1

1/2”

NTP

Cable routing inside pipe

Available in two colors

Lifetime Guarantee

The PBC Universal Mounts fit most projectors
that weigh less than 25 lbs. They feature four
double-jointed support arms (patent pending)
that allow flexible positioning to reach any
mounting point.

This unique design allows the mount to adapt
to any standard 1

1/2

” NTP for lengthening
capabilities. Cables can be routed inside pipe
for a neat appearance. Plus, it’s backed by our
industry-leading Lifetime Guarantee.

PBC Series

www.mounts.com • 800.368.9700

*Vaulted and cathedral ceilings require PP-TL Adapter

Model

Model

Max Wt.

Max Wt.

Color

Color

UPC

UPC

BoBox

x

Dimen

Dimenss

ion

ionss

MSRP

MSRP

PBC-UMS

25 LBS

Dark Gray

829973203047

7.5x15x5

$189.99

PBC-UMW

25 LBS

White

829973203054

7.5x15x5

$189.99

PBC Universal Mounts fit projectors up to 25 lbs

Tilt and Rotation allow

optimal placement

Side slot allows

cable routing into pipe

Other Locations

001.714.632.7100

001.714.632.1044 (Fax)

North America

800.368.9700

800.832.4888 (Fax)

Europe

44.24.76.614700

44.24.76.614710 (Fax)

Asia

81.27.371.6998

81.27.371.6998 (Fax)

www.mounts.com • 800.368.9700

*Measurements are shown in inches and millimeters (mm)

PBC (top view)

PBC (side view)

SPECIFICATIONS
