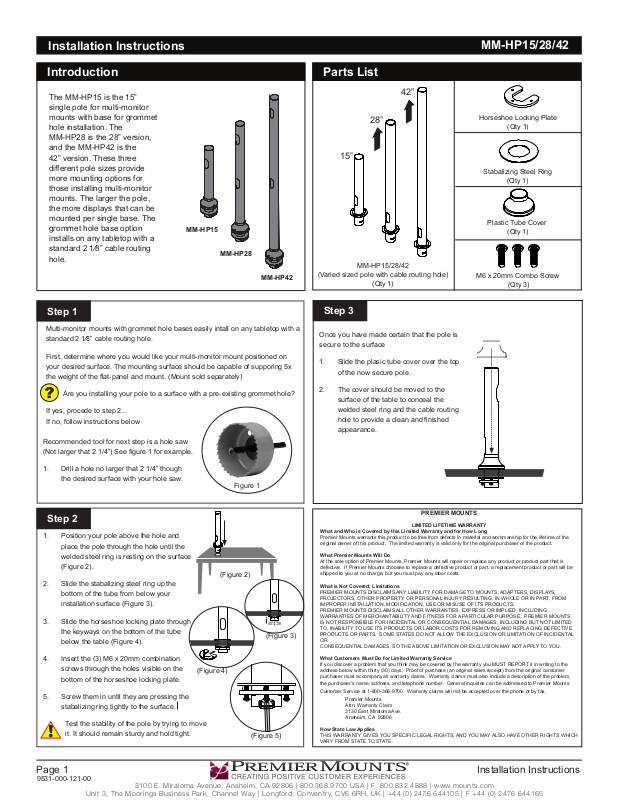

Installation Instructions

MM-HP15/28/42

Introduction

The MM-HP15 is the 15”
single pole for multi-monitor
mounts with base for grommet
hole installation. The
MM-HP28 is the 28” version,
and the MM-HP42 is the
42” version. These three
different pole sizes provide
more mounting options for
those installing multi-monitor
mounts. The larger the pole,
the more displays that can be
mounted per single base. The
grommet hole base option
installs on any tabletop with a

standard 2 1⁄8” cable routing

hole.

Step 1

Multi-monitor mounts with grommet hole bases easily intall on any tabletop with a

standard 2 1⁄8” cable routing hole.

First, determine where you would like your multi-monitor mount positioned on
your desired surface. The mounting surface should be capable of supporing 5x

the weight of the at-panel and mount. (Mount sold separately)

Are you installing your pole to a surface with a pre-existing grommet hole?

If yes, procede to step 2...
If no, follow instructions below

Recommended tool for next step is a hole saw

(Not larger that 2 1/4”) See gure 1 for example.

MM-HP15

MM-HP28

MM-HP42

Parts List

42”

28”

15”

(Varied sized pole with cable routing hole)

Step 3

Once you have made certain that the pole is
secure to the surface

1. Slide the plasic tube cover over the top

2. The cover should be moved to the

MM-HP15/28/42

(Qty 1)

of the now secure pole.

surface of the table to conceal the
welded steel ring and the cable routing

hole to provide a clean and nished

appearance.

Horseshoe Locking Plate

(Qty 1)

Stabalizing Steel Ring

(Qty 1)

Plastic Tube Cover

(Qty 1)

M6 x 20mm Combo Screw

(Qty 3)

1. Drill a hole no larger that 2 1/4” though
the desired surface with your hole saw.

Step 2

1. Position your pole above the hole and
place the pole through the hole until the
welded steel ring is resting on the surface
(Figure 2).

2. Slide the stabalizing steel ring up the
bottom of the tube from below your
installation surface (Figure 3).

3. Slide the horseshoe locking plate through
the keyways on the bottom of the tube
below the table (Figure 4).

4. Insert the (3) M6 x 20mm combination
screws through the holes visible on the
bottom of the horseshoe locking plate.

5. Screw them in until they are pressing the
stabalizing ring tightly to the surface.

Test the stability of the pole by trying to move
it. It should remain sturdy and hold tight.

(Figure 4)

Figure 1

(Figure 2)

(Figure 3)

(Figure 5)

What and Who is Covered by this Limited Warranty and for How Long

Premier Mounts warrants this product to be free from defects in material and workmanship for the lifetime of the
original owner of this product. The limited warranty is valid only for the original purchaser of the product.

What Premier Mounts Will Do

At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is
defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be
shipped to you at no charge, but you must pay any labor costs.

What is Not Covered; Limitations

PREMIER MOUNTS DISCLAIMS ANY LIABILITY FOR DAMAGE TO MOUNTS, ADAPTERS, DISPLAYS,
PROJECTORS, OTHER PROPERTY, OR PERSONAL INJURY RESULTING, IN WHOLE OR IN PART, FROM
IMPROPER INSTALLATION, MODIFICATION, USE OR MISUSE OF ITS PRODUCTS.
PREMIER MOUNTS DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. PREMIER MOUNTS
IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED
TO, INABILITY TO USE ITS PRODUCTS OR LABOR COSTS FOR REMOVING AND REPLACING DEFECTIVE
PRODUCTS OR PARTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL
OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

What Customers Must Do for Limited Warranty Service

If you discover a problem that you think may be covered by the warranty you MUST REPORT it in writing to the
address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original consumer
purchaser must accompany all warranty claims. Warranty claims must also include a description of the problem,
the purchaser’s name, address, and telephone number. General inquiries can be addressed to Premier Mounts

Customer Service at 1-800-368-9700. Warranty claims will not be accepted over the phone or by fax.

Premier Mounts
Attn: Warranty Claim
3130 East Miraloma Ave.
Anaheim, CA 92806

How State Law Applies

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH
VARY FROM STATE TO STATE.

PREMIER MOUNTS

LIMITED LIFETIME WARRANTY

Step 3

Page 1 Installation Instructions

9531-000-121-00
