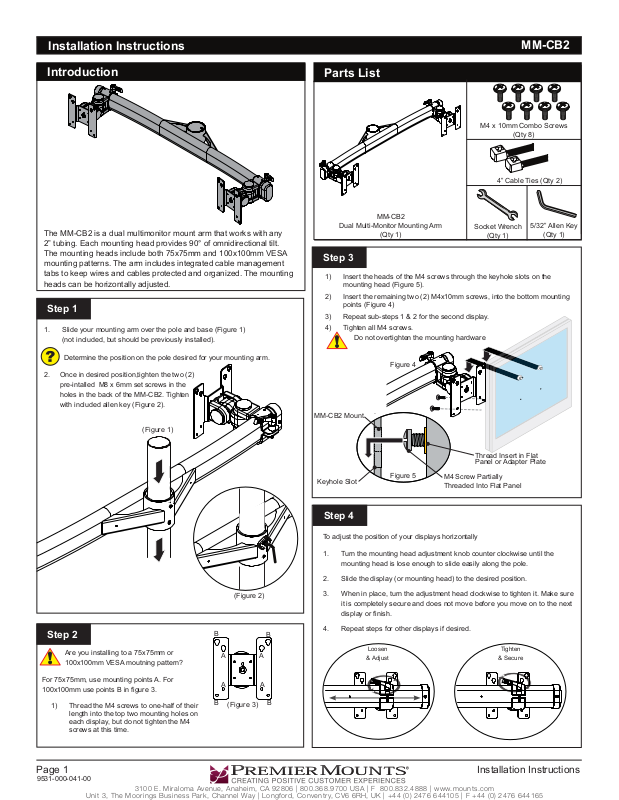

Premier Mounts MM-CB2 Users Manual

Installation Instructions

MM-CB2

Introduction

The MM-CB2 is a dual multimonitor mount arm that works with any
2” tubing. Each mounting head provides 90° of omnidirectional tilt.
The mounting heads include both 75x75mm and 100x100mm VESA
mounting patterns. The arm includes integrated cable management
tabs to keep wires and cables protected and organized. The mounting
heads can be horizontally adjusted.

Step 1

1. Slide your mounting arm over the pole and base (Figure 1)
(not included, but should be previously installed).

Determine the position on the pole desired for your mounting arm.

2. Once in desired position,tighten the two (2)

pre-intalled M8 x 6mm set screws in the
holes in the back of the MM-CB2. Tighten
with included allen key (Figure 2).

(Figure 1)

Parts List

M4 x 10mm Combo Screws

Dual Multi-Monitor Mounting Arm

Step 3

1) Insert the heads of the M4 screws through the keyhole slots on the
mounting head (Figure 5).

2) Insert the remaining two (2) M4x10mm screws, into the bottom mounting
points (Figure 4)

3) Repeat sub-steps 1 & 2 for the second display.

4) Tighten all M4 screws.

MM-CB2 Mount

MM-CB2

Socket Wrench

(Qty 1)

Do not overtighten the mounting hardware

Figure 4

(Qty 8)

4” Cable Ties (Qty 2)

5/32” Allen Key

(Qty 1)

(Qty 1)

Step 2

Are you installing to a 75x75mm or
100x100mm VESA moutning pattern?

For 75x75mm, use mounting points A. For

100x100mm use points B in gure 3.

1) Thread the M4 screws to one-half of their
length into the top two mounting holes on
each display, but do not tighten the M4
screws at this time.

(Figure 2)

B

A

A

B B

(Figure 3)

A

A

Thread Insert in Flat
Panel or Adapter Plate

Keyhole Slot

Step 4

To adjust the position of your displays horizontally

1. Turn the mounting head adjustment knob counter clockwise until the
mounting head is lose enough to slide easily along the pole.

2. Slide the display (or mounting head) to the desired position.

3. When in place, turn the adjustment head clockwise to tighten it. Make sure
it is completely secure and does not move before you move on to the next

display or nish.

B

4. Repeat steps for other displays if desired.

Figure 5

Loosen

& Adjust

M4 Screw Partially
Threaded Into Flat Panel

Tighten

& Secure

Page 1 Installation Instructions

9531-000-041-00

Unit 3, The Moorings Business Park, Channel Way | Longford, Conventry, CV6 6RH, UK | [phone] | F [phone]

3100 E. Miraloma Avenue, Anaheim, CA 92806 | 800.368.9700 USA | F 800.832.4888 | www.mounts.com

Installation Instructions

Step 4

To adjust the tension and/or tilt angle of the mounting head:

1) Adjust the mounting head by utilizing the 90° continuous tilt, until it is in the

desired position.

2) Remove the side and bottom cosmetic cap from the mounting
head (Figure 6)

3) Use the supplied socket wrench to tighten both nuts.

4) The side nut secures the tilt position (Point A), while the bottom nut secures
the pivot (Point B).

Do not overtighten the mounting hardware

A

B

(Figure 6)

Bottom View
