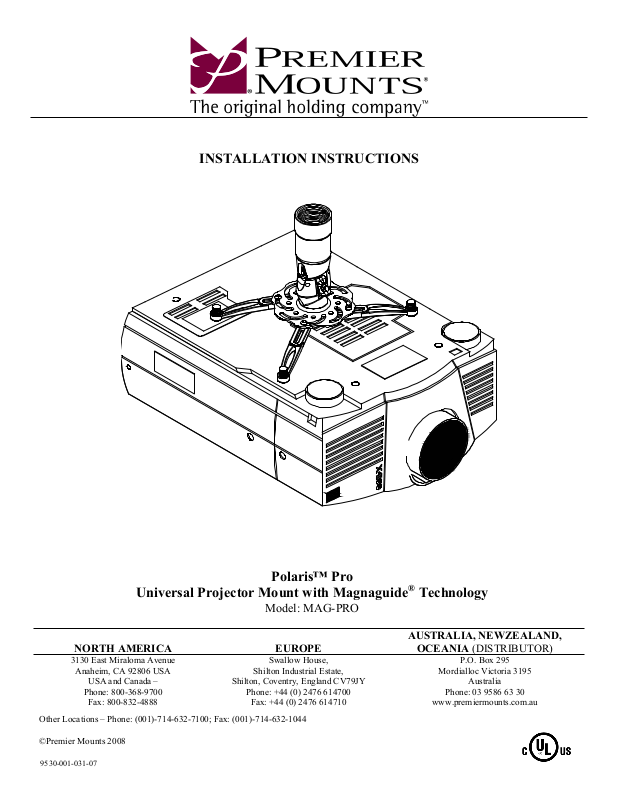

Premier Mounts MAG-PRO User Manual

INSTALLATION INSTRUCTIONS

Polaris™ Pro

Universal Projector Mount with Magnaguide

Model: MAG-PRO

NORTH AMERICA EUROPE

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada –

Phone: [phone]

Fax: [phone]

Other Locations – Phone: [phone]; Fax: [phone]

©Premier Mounts 2008

9530-001-031-07

Shilton, Coventry, England CV79JY

Swallow House,

Shilton Industrial Estate,

Phone: [phone]

Fax: [phone]

®

Technology

AUSTRALIA, NEWZEALAND,

OCEANIA (DISTRIBUTOR)

P.O. Box 295

Mordialloc Victoria 3195

Australia

Phone: [phone]

www.premiermounts.com.au

MAG-PRO

Table of Contents

Warning Statements............................................................................................................................................- 2 -

Parts List .............................................................................................................................................................- 3 -

Installation Tools ................................................................................................................................................- 3 -

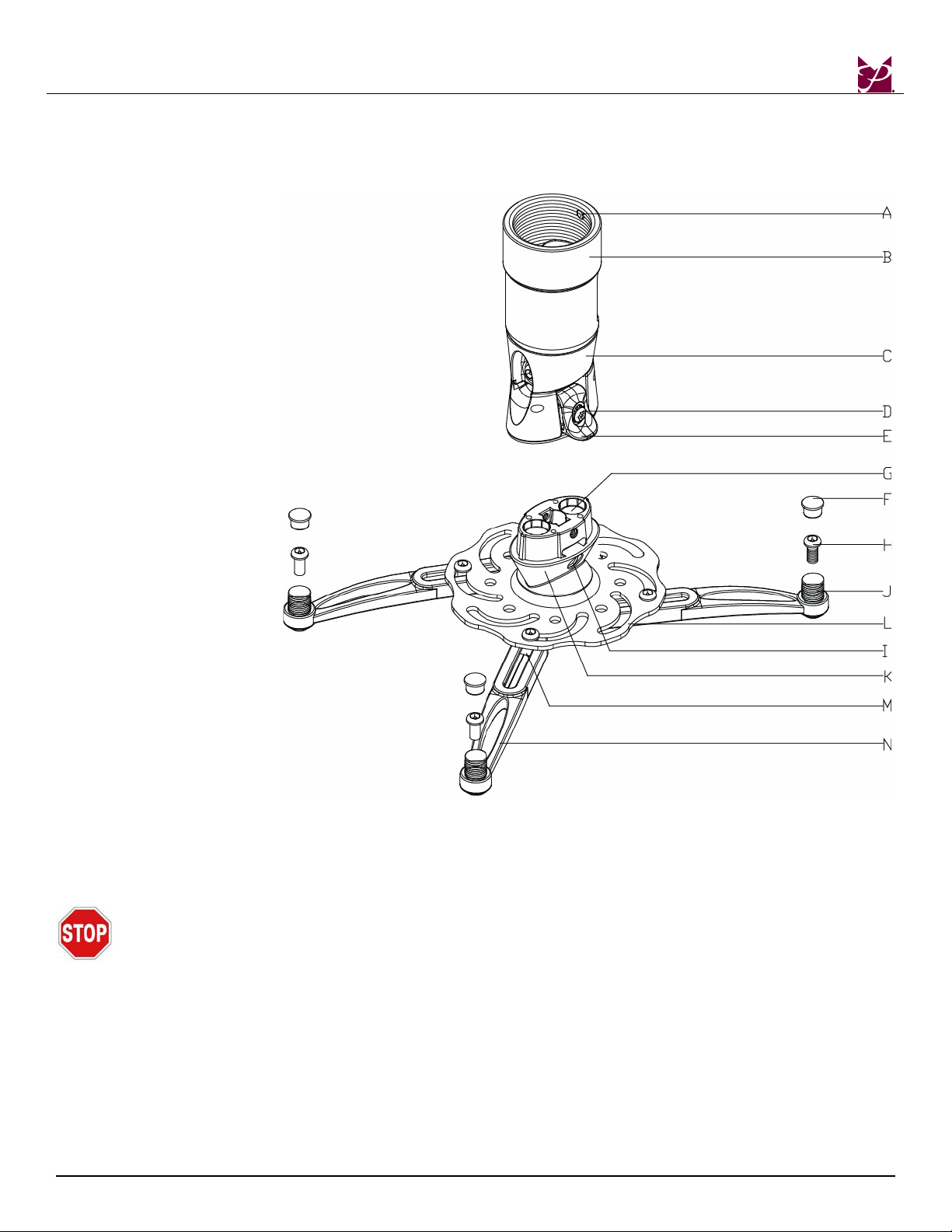

Features...............................................................................................................................................................- 4 -

Selecting The Proper Mounting Hardware .........................................................................................................- 4 -

Attaching The Mount..........................................................................................................................................- 5 -

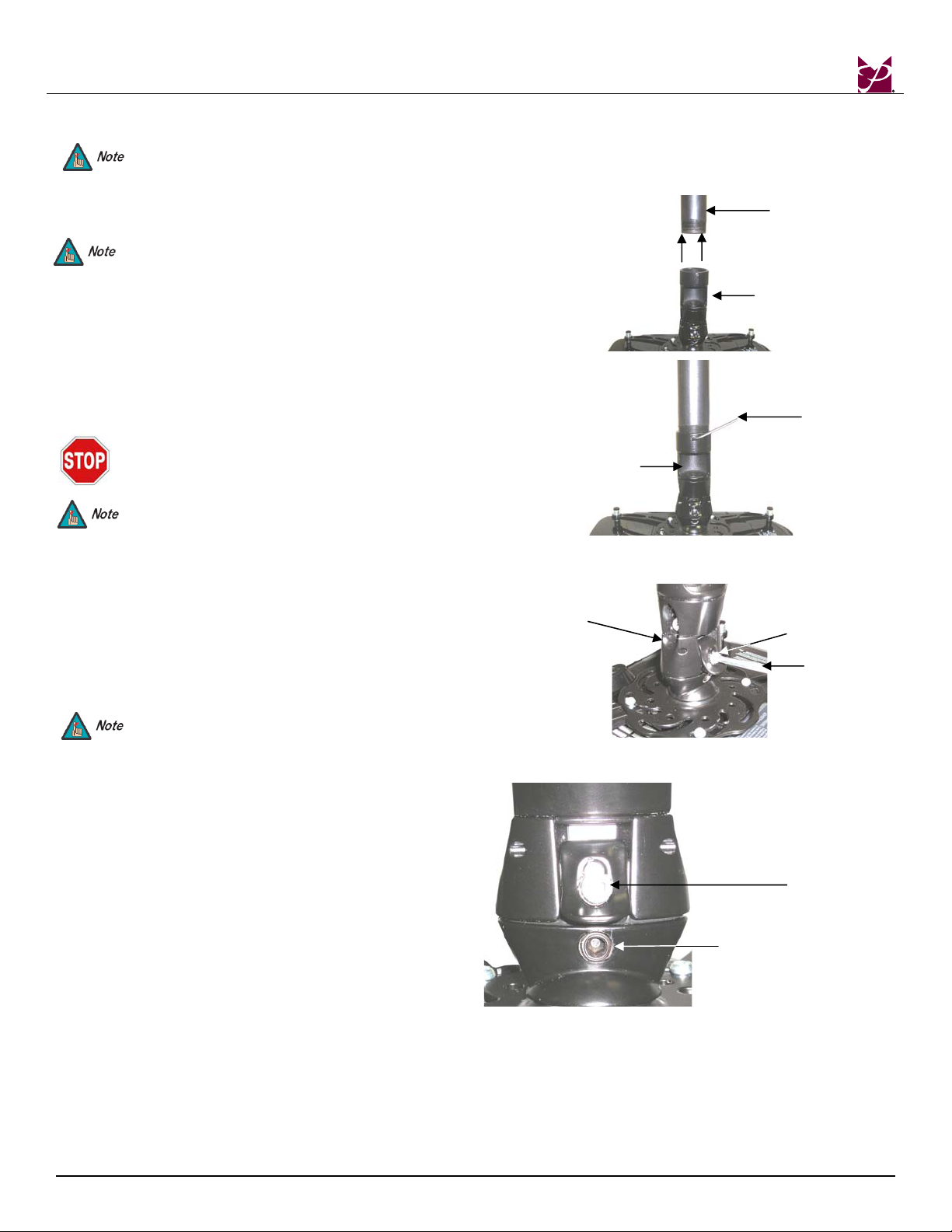

Single Mounting Point Installation .....................................................................................................................- 5 -

Ceiling Installation..............................................................................................................................................- 6 -

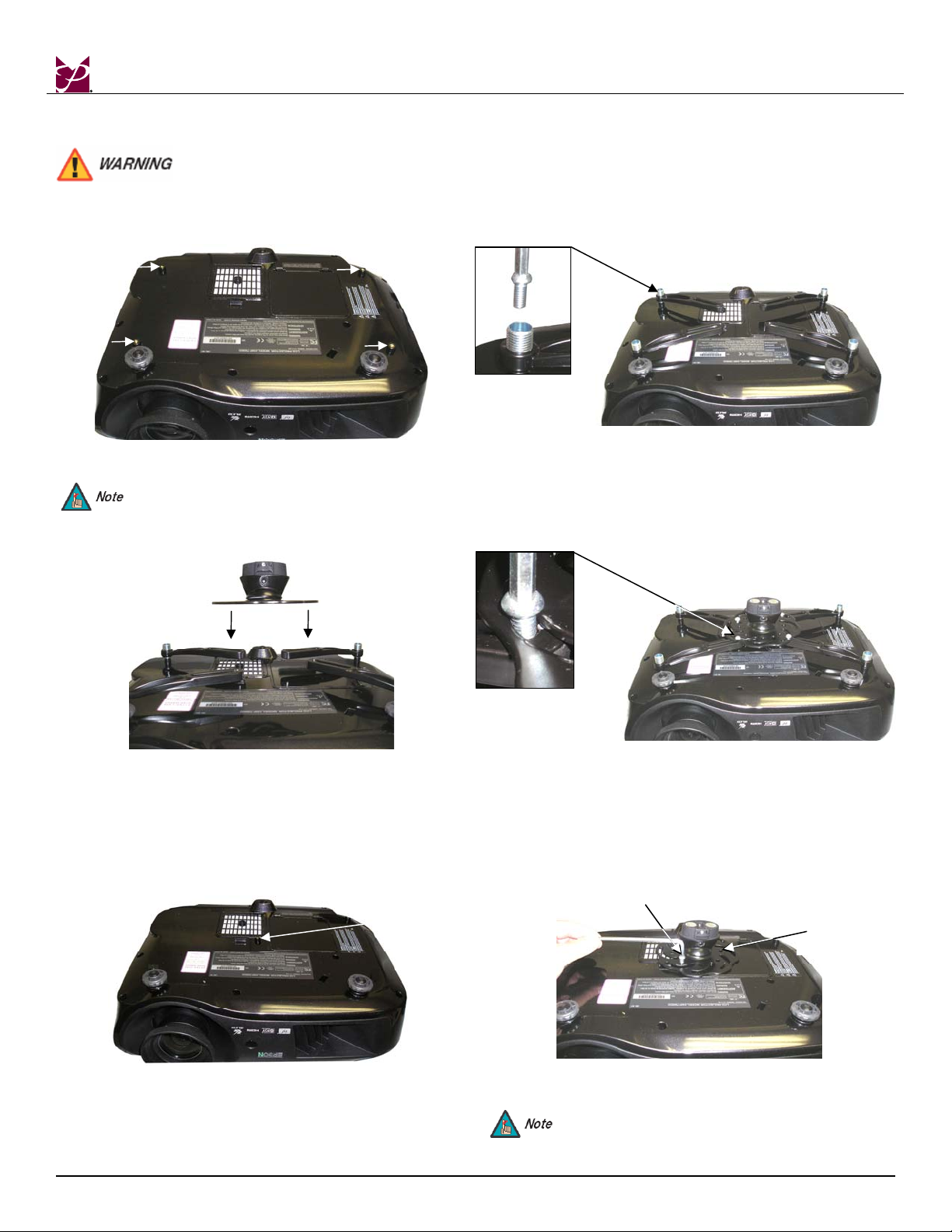

Attaching The Projector......................................................................................................................................- 6 -

Adjusting The Projector......................................................................................................................................- 6 -

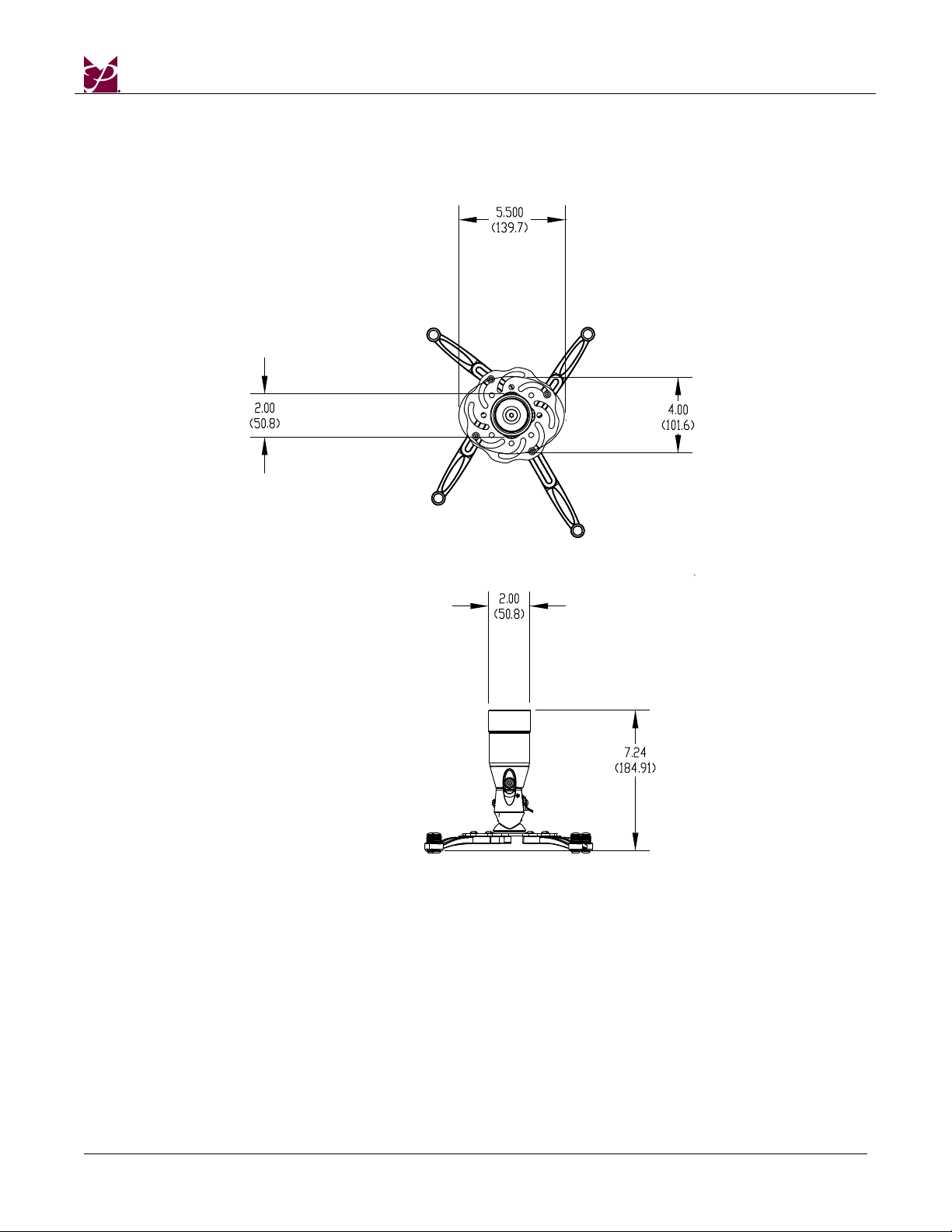

Technical Specifications .....................................................................................................................................- 7 -

Warranty .............................................................................................................................................................- 8 -

Warning Statements

THE MAXIMUM WEIGHT PROJECTOR THAT CAN BE USED WITH THIS MOUNT IS 25LBS. EXCEEDING THIS WEIGHT
LIMIT COULD CAUSE DAMAGE TO THE MOUNT, TO THE PROJECTOR AND TO YOURSELF.

THE CEILING STRUCTURE MUST BE CAPABLE OF SUPPORTING 150LBS. IF NOT, THE CEILING STRUCTURE MUST
BE REINFORCED. PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN
THE INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS
PERSONAL INJURY, OR EVEN DEATH.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE INSTALLATION OF THIS PRODUCT. USE
PROPER SAFETY GEAR AND TOOLS FOR THE INSTALLATION PROCEDURE TO PREVENT PERSONAL INJURY.

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND
COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL
INJURY AND PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE
LOCATION FOR FUTURE REFERENCE.

Indicates that the power plug is to be disconnected from the
power outlet.

Safety precautions must be taken at all times.

Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to do so could result in damage to the projector
and/or damage to the mounting surface.
Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct heat energy. Failure to do so may result in
damage to the projector and could increase the risk of fire.
A qualified person should perform the installation procedure. Injury and/or damage can result from dropping or mishandling the projector

Contact Premier Mounts with any questions –
Customer Service – [phone]
Technical Support – [e-mail]

.stnemetats noituaC dna gninraW

Page - 2 - Installation Manual

Parts List

MAG-PRO

This mount is shipped with all proper installation hardware and components. Make sure that none of these parts are
missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the
installation and contact Premier Mounts (800-368-9700).

Please review all WARNING and CAUTION statements (see Page 8) before beginning the installation of the
MAG-PRO.

MAG Mount
(Qty 1)

M3 Flat Washers
(Qty 4)

Star Washers
(Qty 2)

¼ – 20 x 5/16”
Security Screw
(Qty 1)

Mounting Legs
(Qty 4)

CLS (Qty 1)

M5 x 12mm Security
Screw (Qty 4)

M4 x 12mm Security
Screw (Qty 6)

Plastic Barrel Caps
(Qty 4)

M6 x 12mm
Security Screw
(Qty 8)

M3 x 16mm Security
Screw (Qty 4)

M2.5 x 8mm
Security Screw
(Qty 4)

Installation Tools

teknalB/lairetaM tfoS llirD elbatroP

erusaeM epaT licneP

)deilppuS( hcnerW nellA ytiruceS 5M reddaL

Masonry Bit (Commercially Available) M3 Security Allen Wrench (Supplied)

Installation Manual Page - 3 -
