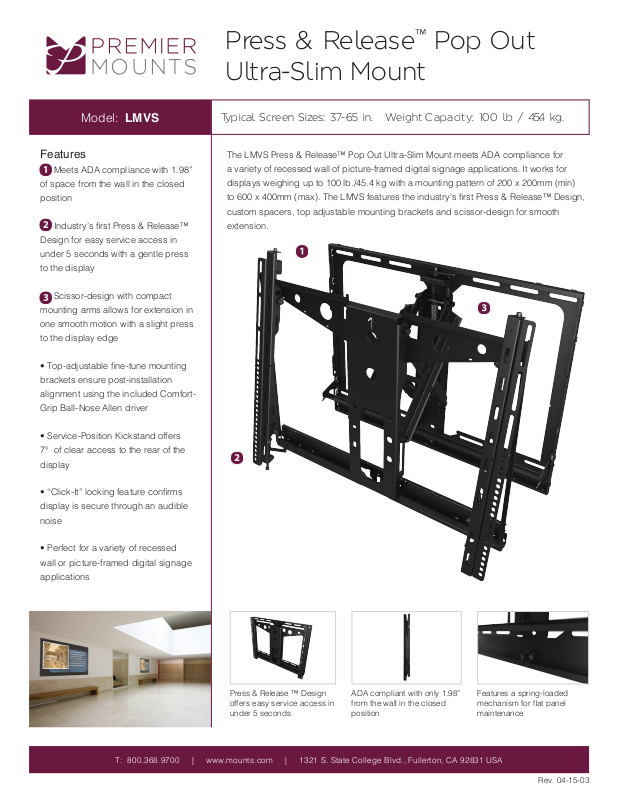

Press & Release™ Pop Out
Ultra-Slim Mount
Model: LMVS
Features
Meets ADA compliance with 1.98”
of space from the wall in the closed
position
Industry’s rst Press & Release™
Design for easy service access in
under 5 seconds with a gentle press
to the display
Scissor-design with compact
mounting arms allows for extension in
one smooth motion with a slight press
to the display edge
• Top-adjustable ne-tune mounting
brackets ensure post-installation
alignment using the included Comfort-
Grip Ball-Nose Allen driver
Typical Screen Sizes: 37-65 in. Weight Capacity: 100 lb / 45.4 kg.
The LMVS Press & Release™ Pop Out Ultra-Slim Mount meets ADA compliance for
a variety of recessed wall of picture-framed digital signage applications. It works for
displays weighing up to 100 lb./45.4 kg with a mounting pattern of 200 x 200mm (min)
to 600 x 400mm (max). The LMVS features the industry’s rst Press & Release™ Design,
custom spacers, top adjustable mounting brackets and scissor-design for smooth
extension.
• Service-Position Kickstand offers
7° of clear access to the rear of the
display
• “Click-It” locking feature conrms
display is secure through an audible
noise
• Perfect for a variety of recessed
wall or picture-framed digital signage
applications
Press & Release ™ Design
offers easy service access in
under 5 seconds
ADA compliant with only 1.98”
from the wall in the closed
position
Features a spring-loaded
mechanism for at panel
maintenance
T: 800.368.9700 | www.mounts.com | 1321 S. State College Blvd., Fullerton, CA 92831 USA
Rev. 04-15-03
Press & Release Pop Out Ultra-Slim Mount
LMVS
Specifications
Weight
44.38 lb.| 20.2 kg
Color
Black
Width x Height x Depth
27 x 21.6 x 1.98-10.03 in. | 686 x 549 x 50-255 mm
Packaging
Width x Height x Depth
31.31 x 23.5 x 4.25 in. | 795 x 597 x 108 mm
Accessories
In-wall A/V and Power GearBox
GB-INWAVPB
TM
Architectural Drawing
Weight Capacity / Mount
100 lb.| 45.4 kg
Total Weight Capacity
100 lb.| 45.4 kg
Mount (x1), Adapter Arms (x2), Universal Hardware Pack (x1)
Model-Sp ecific Vide o Wall Spacer
LMV-345
Mounting Pattern
200 x 200 mm (Min) - 600 x 400 mm (Max)
Warranty
Lifetime
Contents
Model-Sp ecific Vide o Wall Spacer
LMV-406
Specications subject to change without notice
T: 800.368.9700 | www.mounts.com | 1321 S. State College Blvd., Fullerton, CA 92831 USA
Visit mounts.com to see the complete line of AV solutions from Premier Mounts, including at-panel mounts, projector mounts, carts/stands, and a full assortment of accessories.
© 2014 Premier Mounts. All rights reserved.
Rev. 04-15-03
