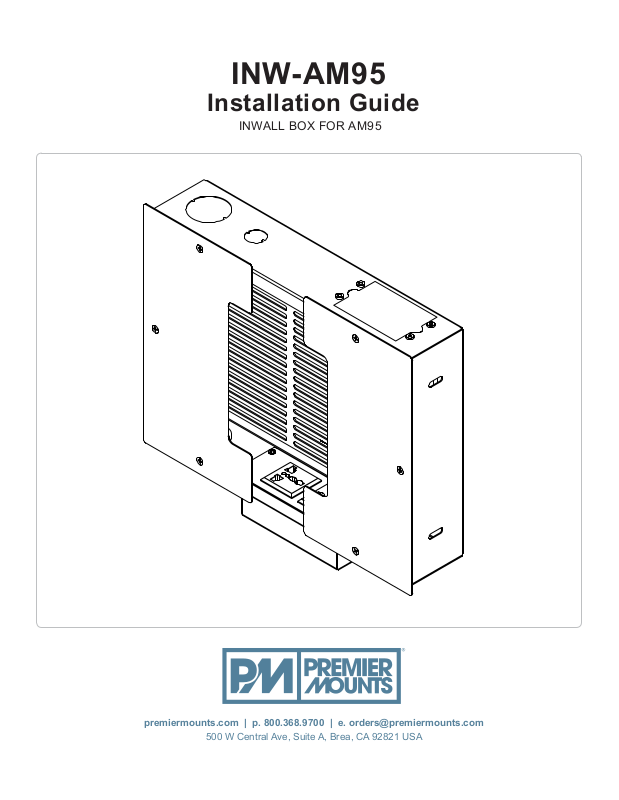

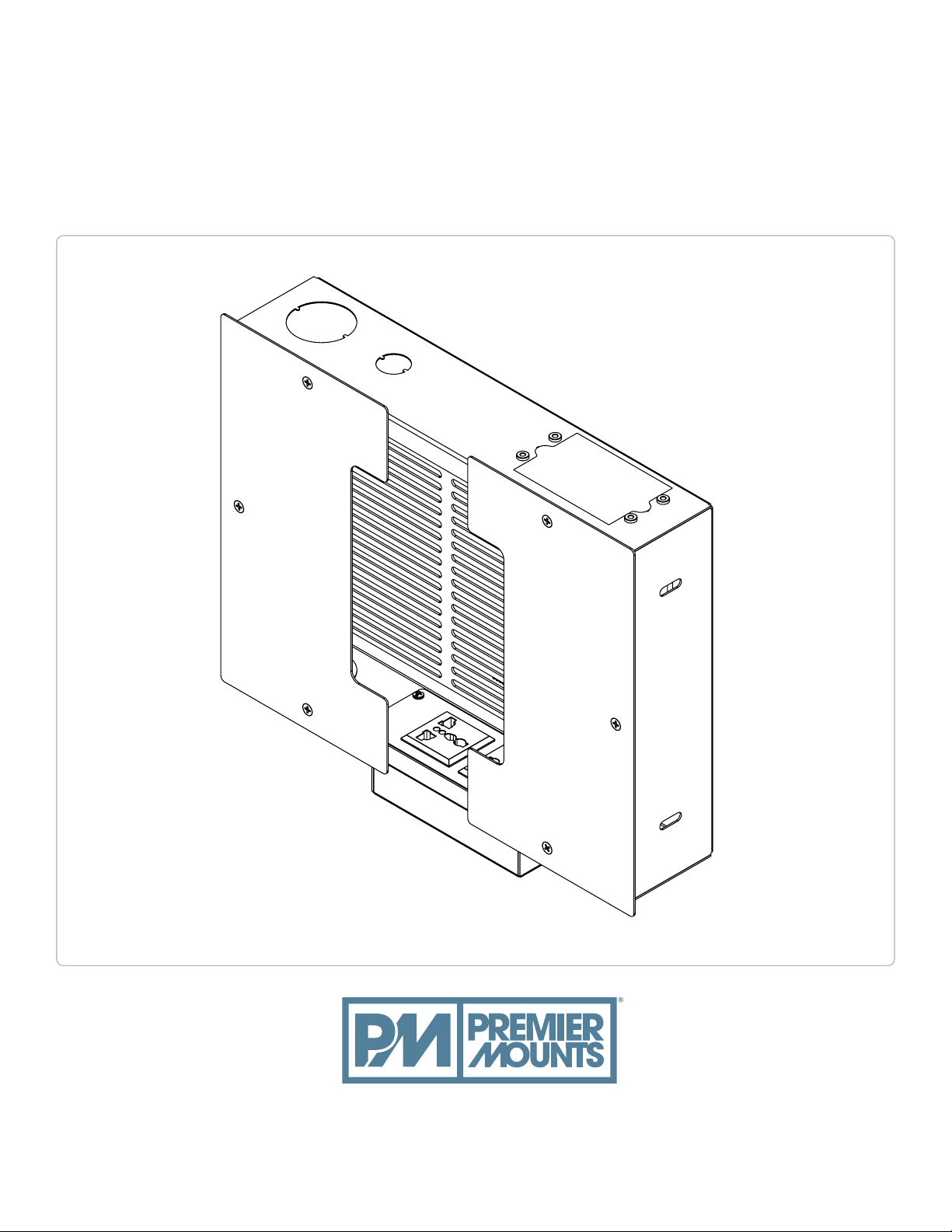

Page 1
INW-AM95
Installation Guide
INWALL BOX FOR AM95
premiermounts.com | p. 800.368.9700 | e. [email protected]
500 W Central Ave, Suite A, Brea, CA 92821 USA
Page 2
INW-AM95
Installation Guide

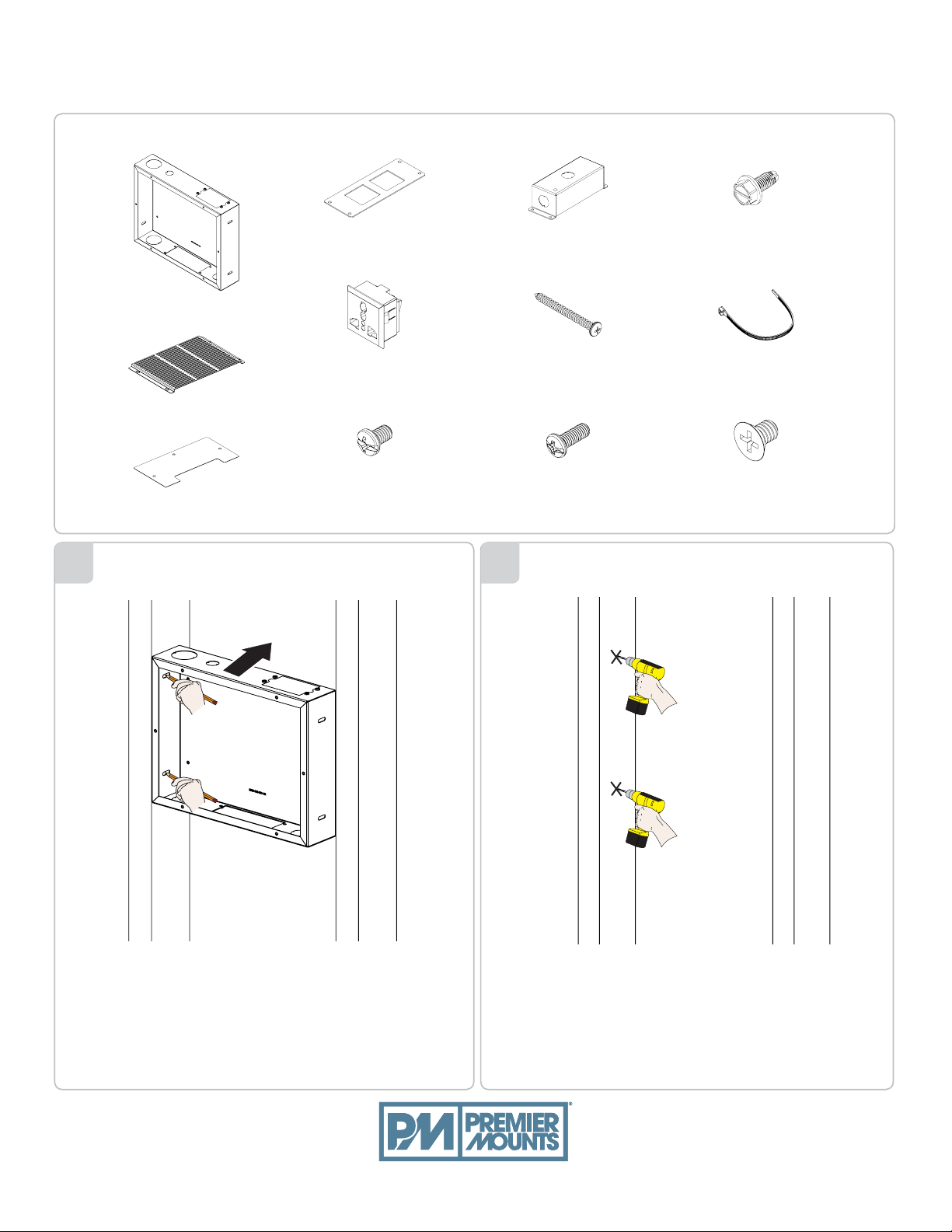

Included Components:
x1 x1
x1
In-wall Mount
x1
Rack Mount
x2
Front Cover
Snap in Plug
Plate
x2
Universal
Power Socket
x4
M4 x 6mm
Comb. Screw
1 2
Snap In Socket
#10 x 2 Wood
Screw
M4 x 8mm
Comb. Screw
x2
x4
x1
8/32- 3/8”
Ground Screw
x4
Zip Tie
x6
8/32” x 1/4” Flat
Head Screw
Find your desired location and mark the
mounting locations.
Page 2
premiermounts.com | p. 800.368.9700 | e. [email protected]
Drill a pilot hole using a 5/32” drill bit.
Page 3
INW-AM95
Installation Guide

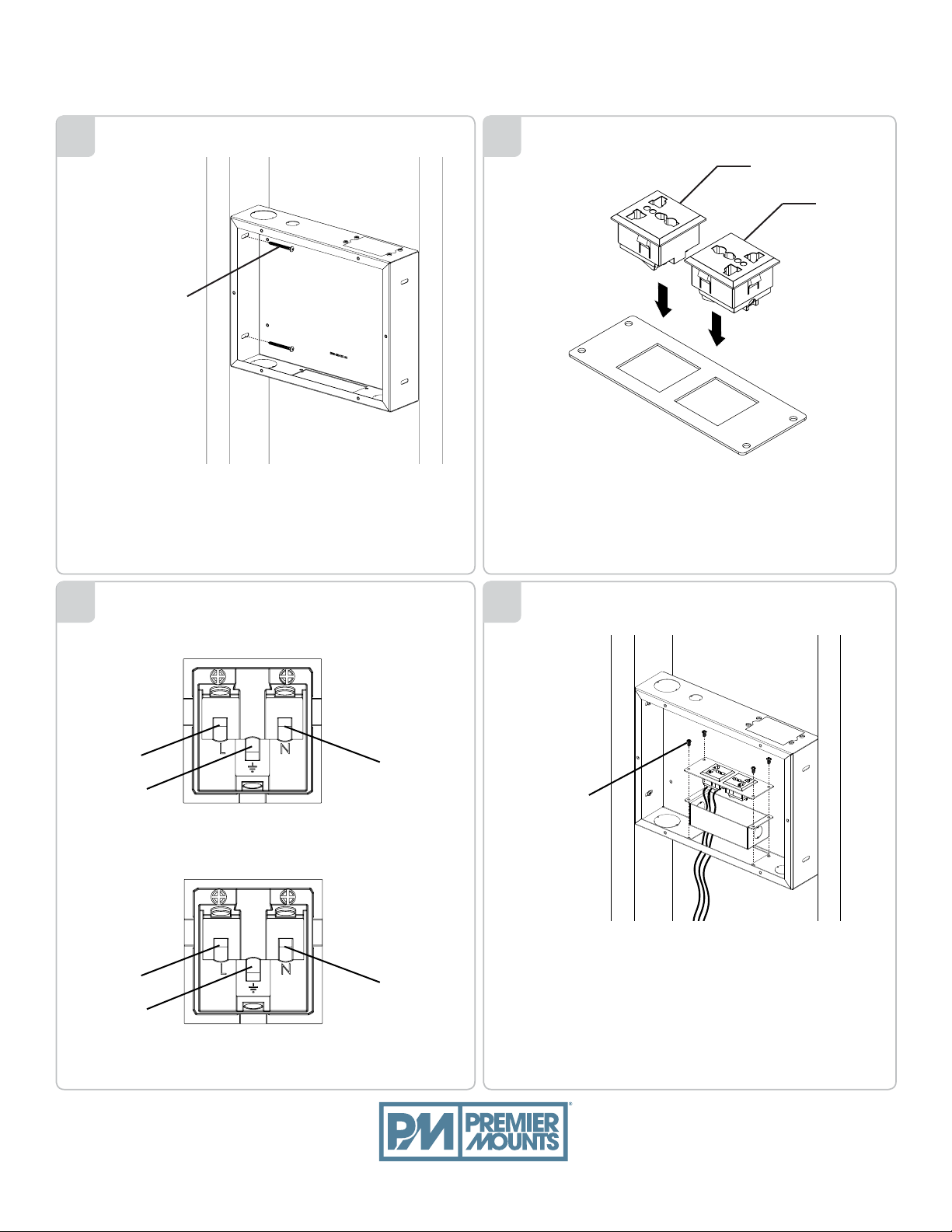

3
(2) #10 x 2”
Wood screw
Drill the wood screws to the stud.
4A
A
B
A. Media Player / Set top Box
B. Display
4B
Load Wire
Load Wire
Ground
Ground
110V
220V
Neutral Wire
Neutral Wire
5
M4 x 8mm
Screw
1. Put the wires up through the electrical box.
2. Use a # 2 Phillips screw driver to install four
(4) M4 x8 mm screws.
premiermounts.com | p. 800.368.9700 | e. [email protected]
Page 3
Page 4
INW-AM95
Installation Guide

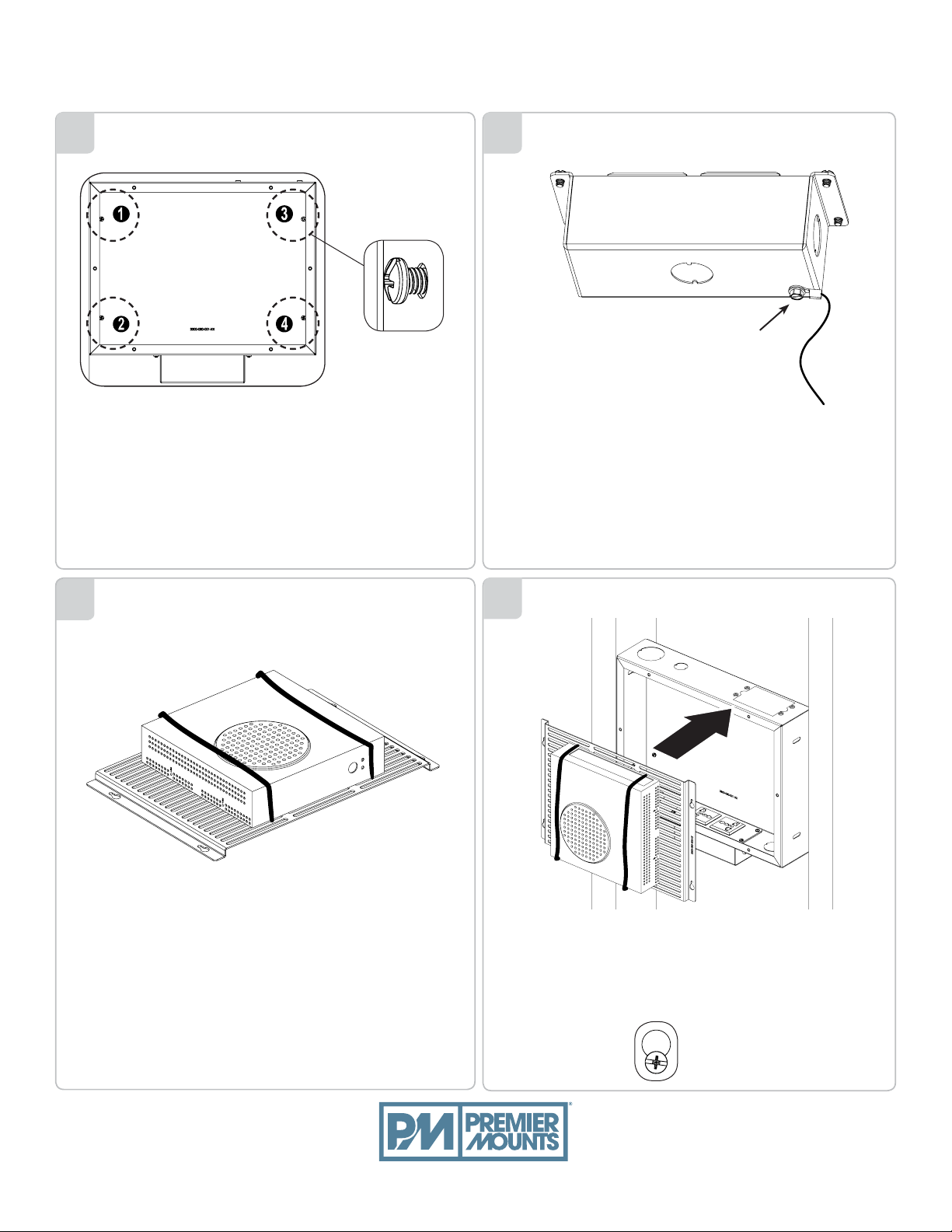

6
Lightly install four (4) M4 x 6mm screws inside the
in-wall box.
7
8-32 Grounding
Screw
Connect the ground to the outlet box with the
provided ground screw.
8
Secure the media player to the rack mount using
the supplied zip ties.
9
1. Insert the key slot holes onto the screws
inside the in-wall box.
2. Tighten the four (4) M4 x 6 mm screws.
Page 4
Key slot
premiermounts.com | p. 800.368.9700 | e. [email protected]
Page 5
3
10
INW-AM95
Installation Guide

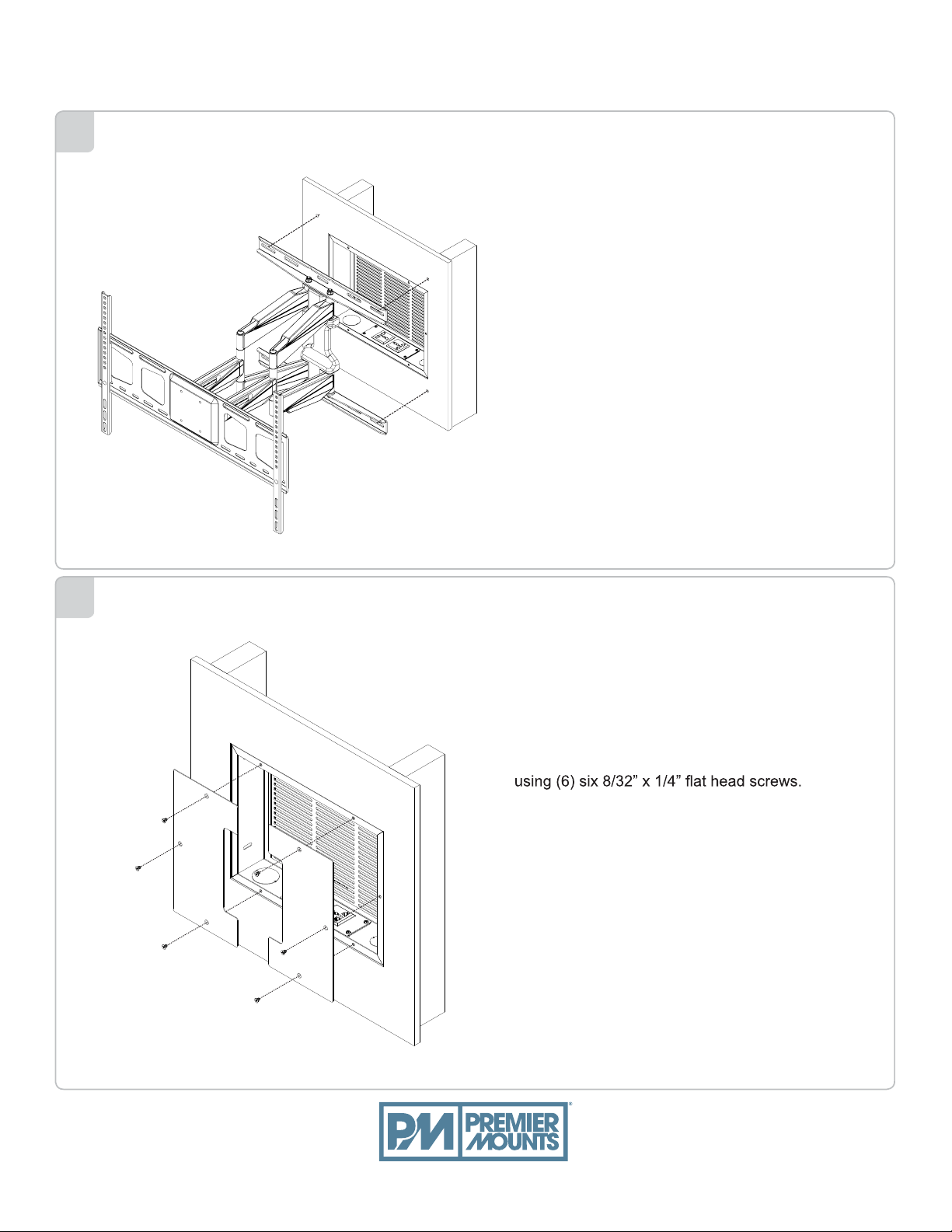

1. Center the AM95 to the in-wall box.
2. Refer to the AM95 installation manual to
mount the AM95.
3
11
Install the (2) two front covers to the in-wall box
AM95 not shown for clarity.
premiermounts.com | p. 800.368.9700 | e. [email protected]
Page 5
Page 6
INW-AM95
13.75in
Installation Guide

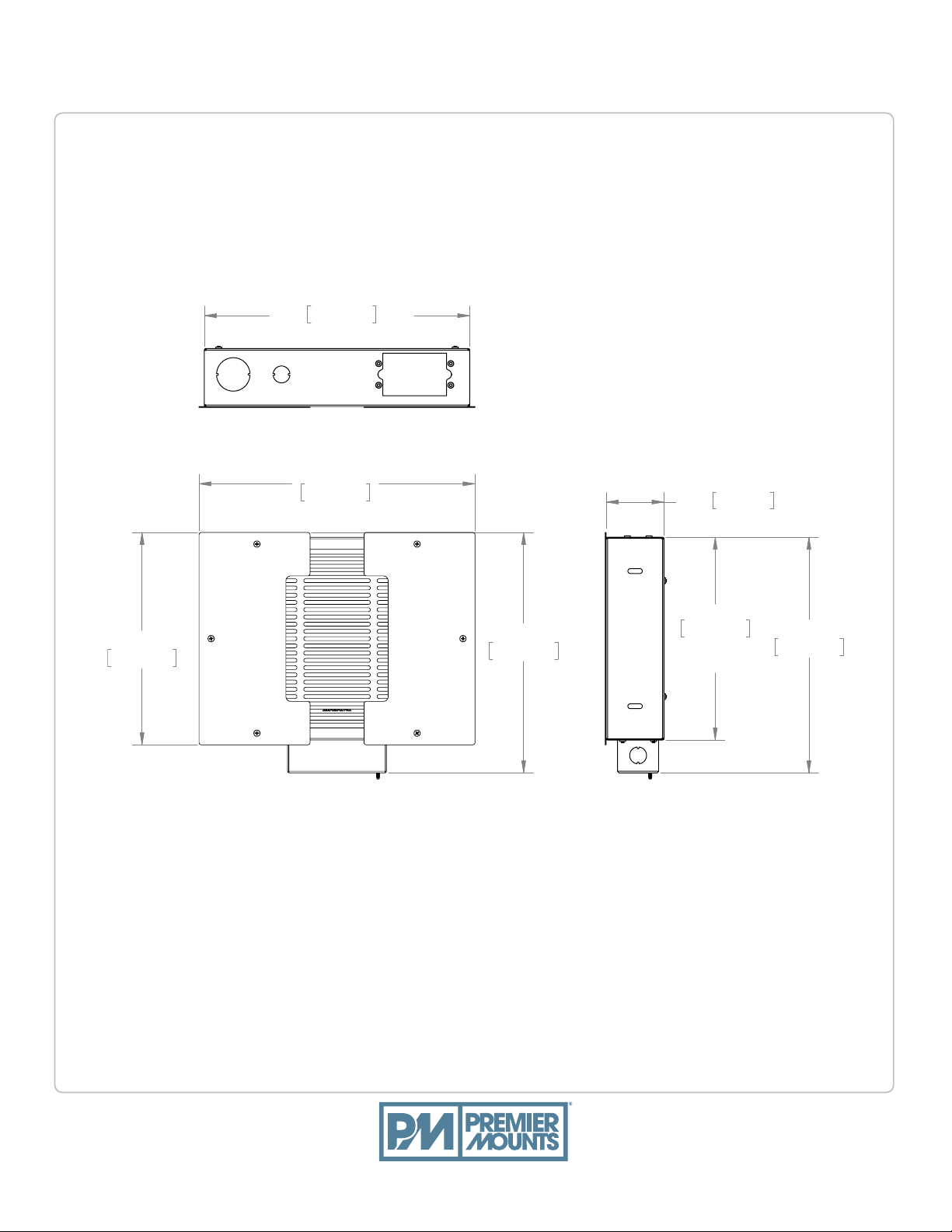

PRODUCT DIMENSION
349.3mm
INWALL BOX LENGTH
11.00in
279.4mm
14.30in
363.1mm
12.45in
316.3mm
INWALL BOX
3.00in
76.2mm
INWALL BOX DEPTH
10.50in
266.7mm
WIDTH
12.20in
309.9mm
Page 6
premiermounts.com | p. 800.368.9700 | e. [email protected]
Page 7
PREMIER MOUNTS
LIMITED LIFETIME WARRANTY
What and Who is Covered by this Limited Lifetime Warranty
Premier Mounts warrants all mounting products to be free from defects in material and workmanship for the
lifetime of the original installation of the product.
What Premier Mounts Will Do
At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is
defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will
be shipped to you at no charge, but you must pay any related labor costs.
What is Not Covered: Limitations
Premier Mounts disclaims any liability for damage to mounts, adapters, displays, projectors, other property,
products.
NOTWITHSTANDING ANYTHING TO THE CONTRARY IN THIS WARRANTY, THIS WARRANTY IS
LIMITED TO FIVE YEARS FROM THE DATE OF PURCHASE IN THE EVENT THAT THE WARRANTED PRODUCT IS COMMERCIALLY RENTED OUT.
electrical items, are backed by a 3-year warranty.
Premier Mounts disclaims all other warranties, express or implied, including warranties of merchantability and
including but not limited to, inability to use its products or labor costs for removing and replacing defective
products or parts. Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
What Customers Must Do for Warranty Service
If you discover a problem that you think may be covered by the warranty, you must report it in writing to the
address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original consumer
purchaser must accompany all warranty claims. Warranty claims must also include a description of the problem,
the purchaser’s name, address, and telephone number. General inquiries can be addressed to Premier Mounts
Customer Service at 1-800-368-9700. Warranty claims will not be accepted over the phone or by fax.
PREMIER MOUNTS
ATTN: Warrenty Claims
500 W Central Ave, Suite A
Brea, CA 92821
How State Law Applies
Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this
document is subject to change without notice or obligation of any kind. Premier Mounts makes no representation of warranty, expressed or implied, regarding the
information contained herein. Premier Mounts assumes no responsibility for accuracy
PREMIER MOUNTS
©
500 W Central Ave, Suite A
Brea, CA 92821
USA & CANADA
Phone: 800-368-9700
Fax: 800-832-4888
