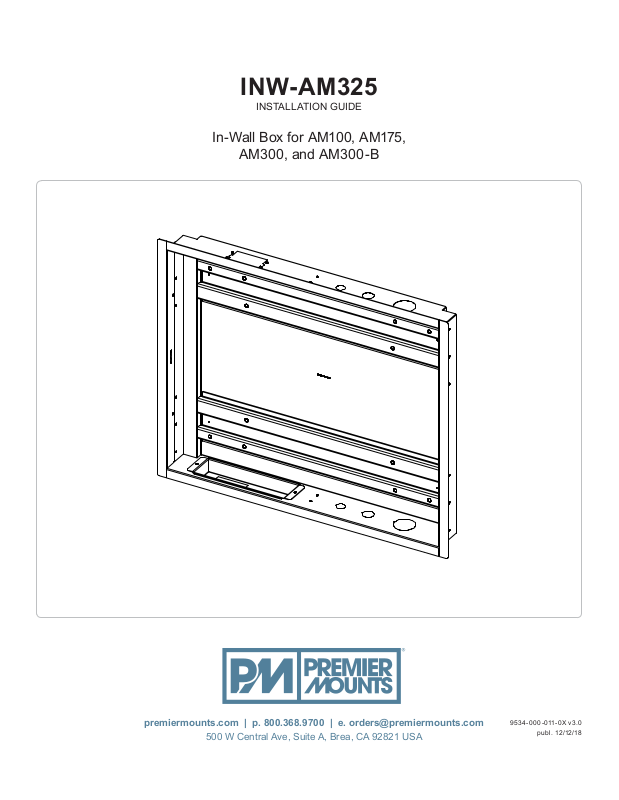

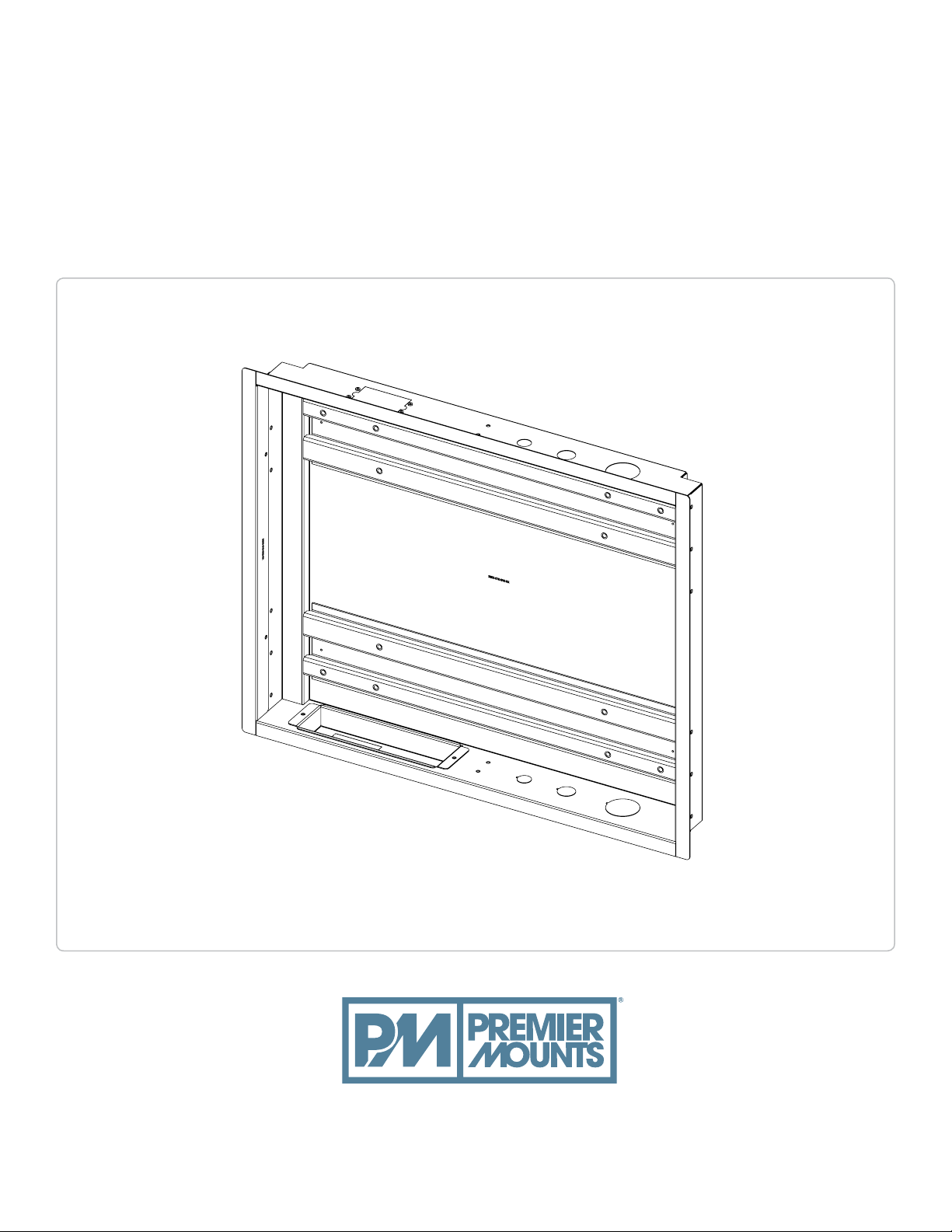

Premier Mounts INW-AM325 Users Guide

INW-AM325

INSTALLATION GUIDE

In-Wall Box for AM100, AM175,

AM300, and AM300-B

premiermounts.com | p. 800.368.9700 | e. [e-mail]

500 W Central Ave, Suite A, Brea, CA 92821 USA

9534 -000- 011- 0X v 3.0

pub l. 12 /12 /18

INW-AM325

Installation Guide

Warning Statements

ELECTRICAL SHOCK HAZARD! Cutting or drilling into electrical wires and cables can cause DEATH or
SERIOUS PERSONAL INJURY! Always make certain the area behind the mounting surfaces is free of
electrical wires and cables before cutting, drilling, or installing the in-wall box.

EXPLOSION AND FIRE HAZARD! Cutting or drilling into gas plumbing can cause DEATH or SERIOUS
PERSONAL INJURY! Always make certain the area behind the mounting surface is free of gas, water,
waste, or any other plumbing before cutting, drilling, or installing the in-wall box.

STRUCTURAL FAILURE HAZARD! Ensure removal of center stud will not cause unacceptable loss of

adequate precautions can cause DEATH or SERIOUS PERSONAL INJURY!

THE WALL STRUCTRUAL MUST BE CAPABLE OF SUPPORTING AT LEAST A MINIMUM WEIGHT OF
300 LBS. IF NOT, THE WALL MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE BY A
QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE
ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN DEATH.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE INSTALLATION OF THIS PROD­UCT. USE PROPER SAFETY GEAR AND TOOLS FOR THE INSTALLATION PROCEDURE TO PREVENT
PERSONAL INJURY.

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE
READ AND COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO
PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS
IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.

Safety precautions must be taken at all times.

Warning and Cautions statements.

A secure structure must support the weight, or load, of the display. When mounting to a wall that contains wooden

Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to do so could result
in damage to the display and /or damage to the mounting surface.

ping or mishandling the display.

surface other than wooden studs, use suitable hardware (which is commercially available).

-

-

Contact Premier Mounts with any questions.

Page 2

premiermounts.com | p. 800.368.9700 | e. [e-mail]

This mounting box is shipped with all installation hardware and components. Make sure that none of these
parts are missing and/or damage before beginning installation. If there are parts missing and/or damaged,
please stop and correct Premier Mounts - [phone]

It is strongly recommended that licensed electrician supply wire and power to the INW-AM325. Pre-wiring
must be complete prior to installing the inwall box.

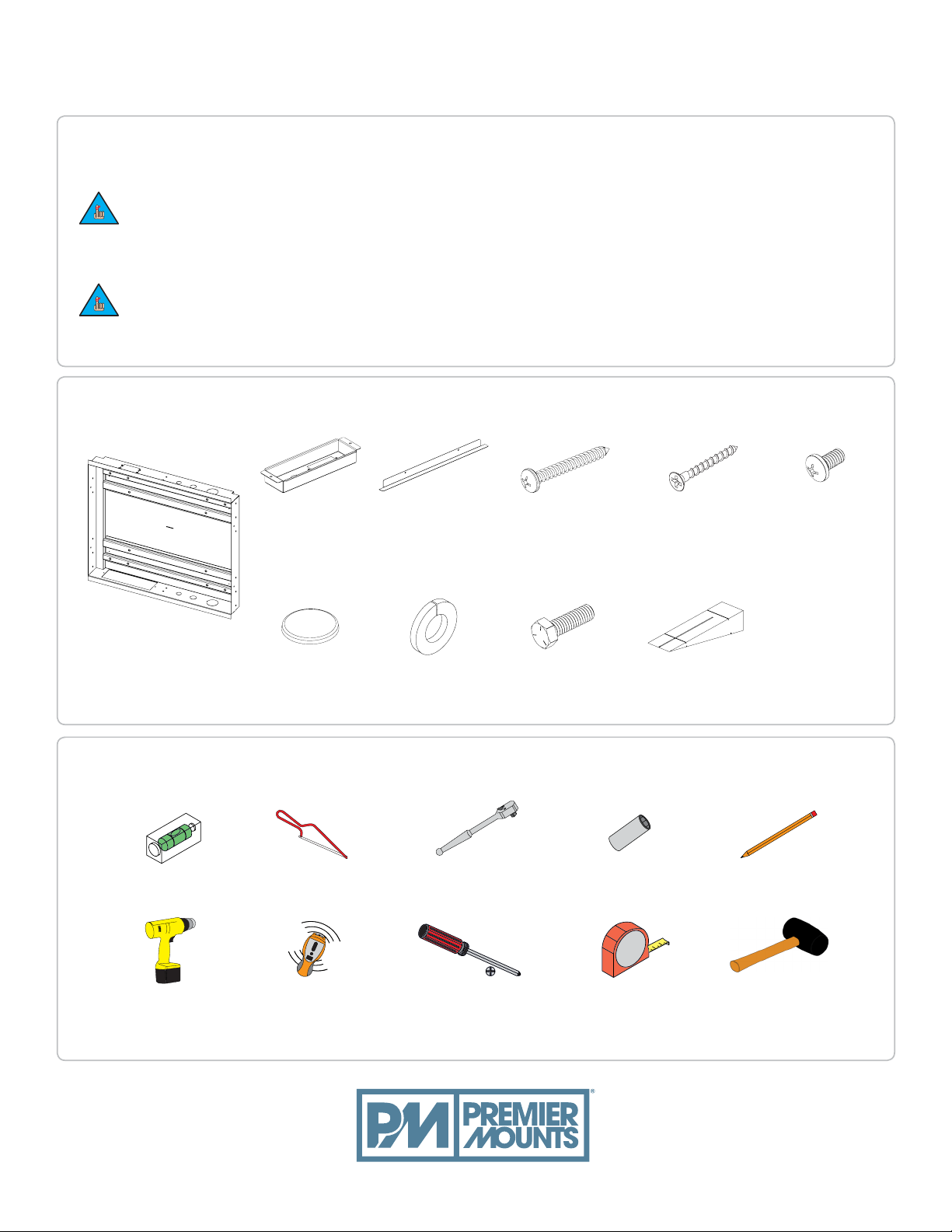

Included Components

INW-AM325

Installation Guide

In Wall Box

(Qty 1)

Required for installation

Level Drywall Saw Socket Wrench 14mm Socket Pencil

Electrical Box

(Qty 1)

Clear Bumper

(Qty 4)

Side Cover

(Qty 2)

Split Lock Washer

(Qty 8)

#14 x 1 1/4” Pan Head

Wood Screw (Qty 16)

5/16 x 3/4” Hex

Screw (Qty 8)

#8 x 1 1/4” Flat Head

Wood Screw (Qty 4)

Wood Shim

(Qty 14)

6/32 x 1/2” screw

(Qty 6)

Drill Stud Finder Phillips Screwdriver Tape Measure Rubber Mallet

premiermounts.com | p. 800.368.9700 | e. [e-mail]

Page 3

INW-AM325

Installation Guide

Mounting Location

Always make certain the area behind the mounting surface is free of electrical wires, cables, and pipes before cutting, drilling, or
installing the mounting screws.

It is strongly recommended that licensed electrician supply wire and power to the in-wall mounting box. Prior to installation,
please complete all wiring and allow for the appropriate amount of slack.

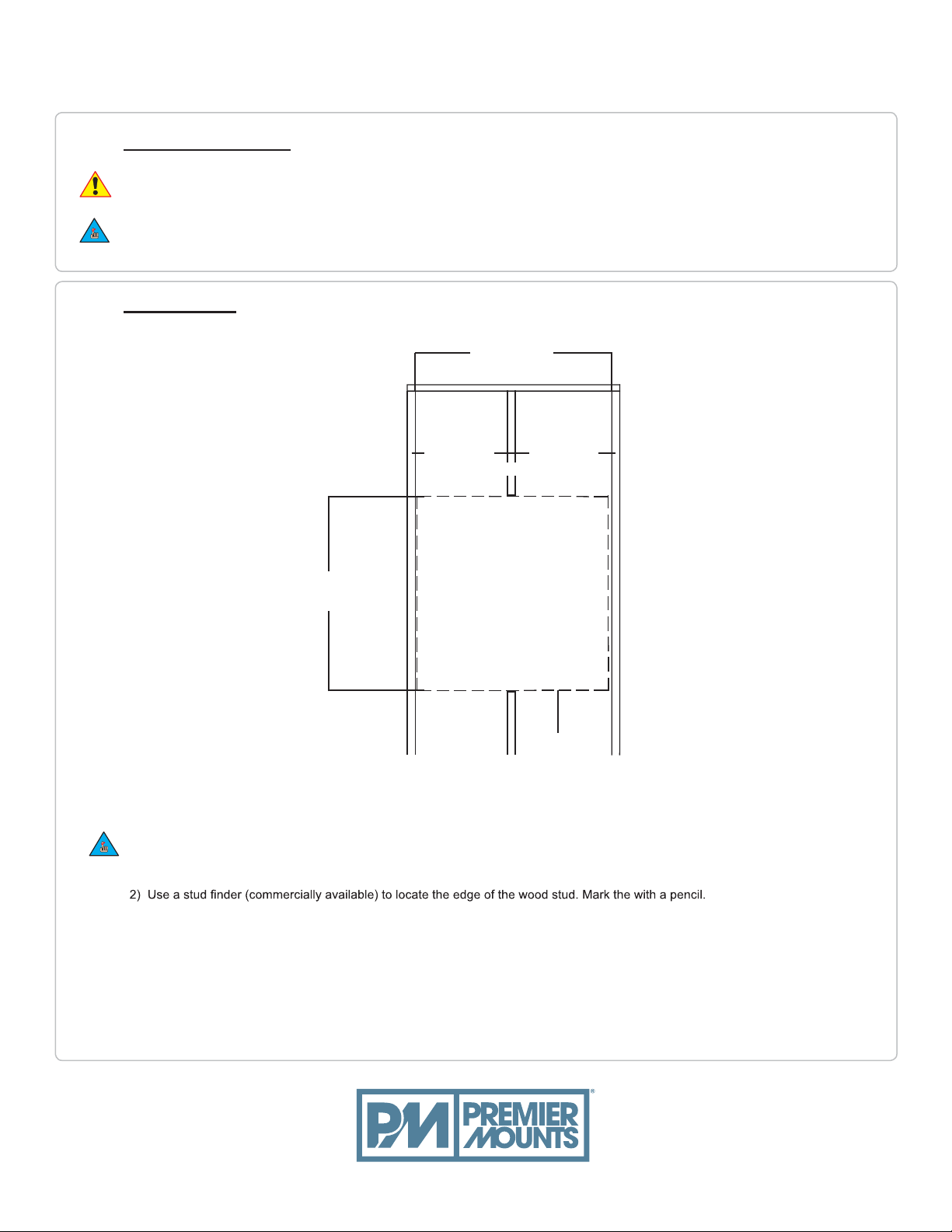

Wall Cut-Out

30” to 30 1/2”

(762mm to 774mm)

Wood Studs

16” center to center (standard)

24 1/4” to 24 3/4”

(615.9mm to 628.65mm)

Take the necessary precautions before proceeding when come into contact with electrical wires, plumbing, and insulation.

1) Determine where the location of the mount/display.

Wood Studs

Wall Cut Line

Page 4

3) Draw the cut line using the dimensions shown above. Use the housing of the inwall box as a template for ease of installation.

4) Cut the drywall and carefully remove the excess drywall and center stud. The cut must be square and parallel along the
vertical wall stud.

premiermounts.com | p. 800.368.9700 | e. [e-mail]

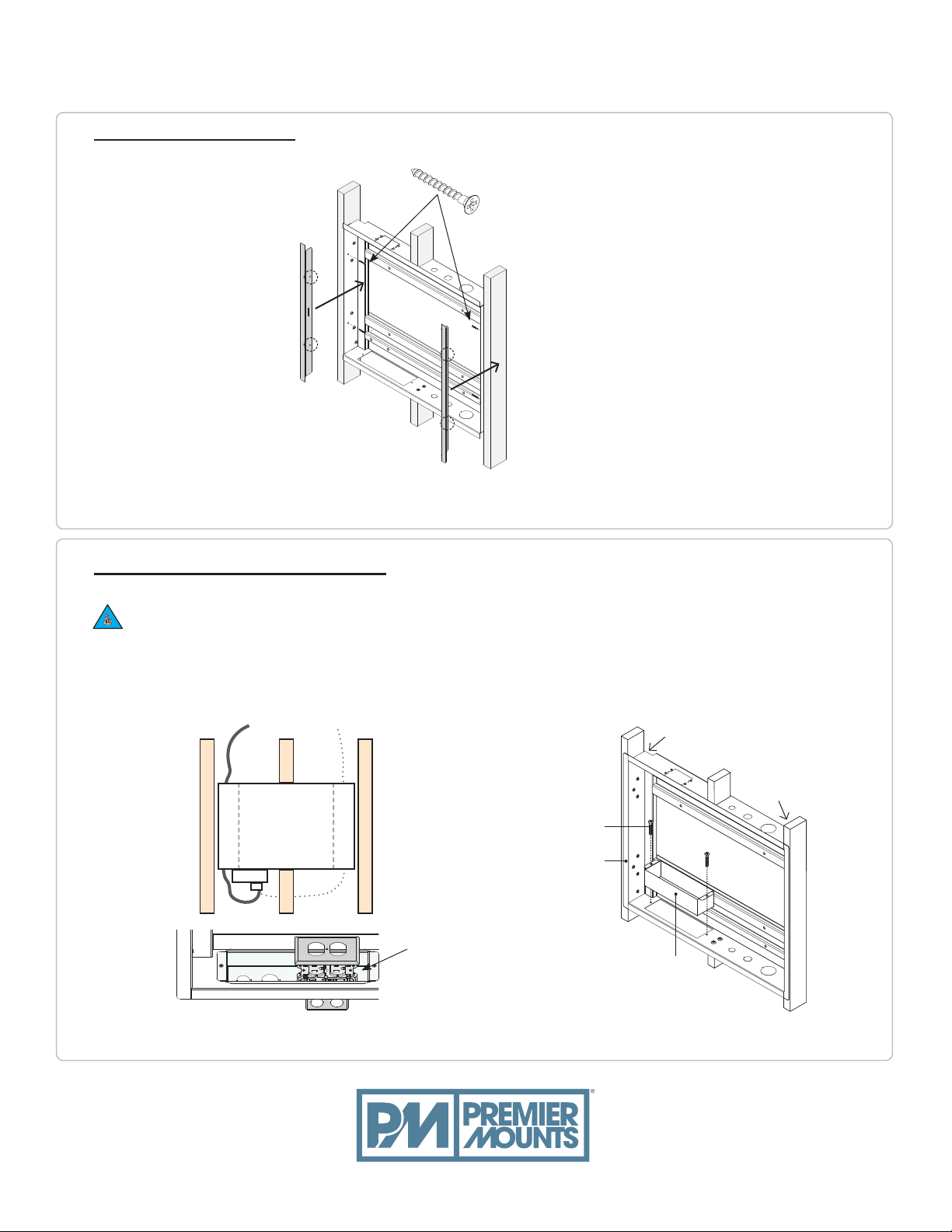

Installing the Inwall Box

INW-AM325

Installation Guide

1/4” Wood Shims

Wood Studs

Stud

(2)(6)

(6)

(2)

(For side covers)

#8 x 1 1/4” Flat Head

Wood Screws

Qty: 2

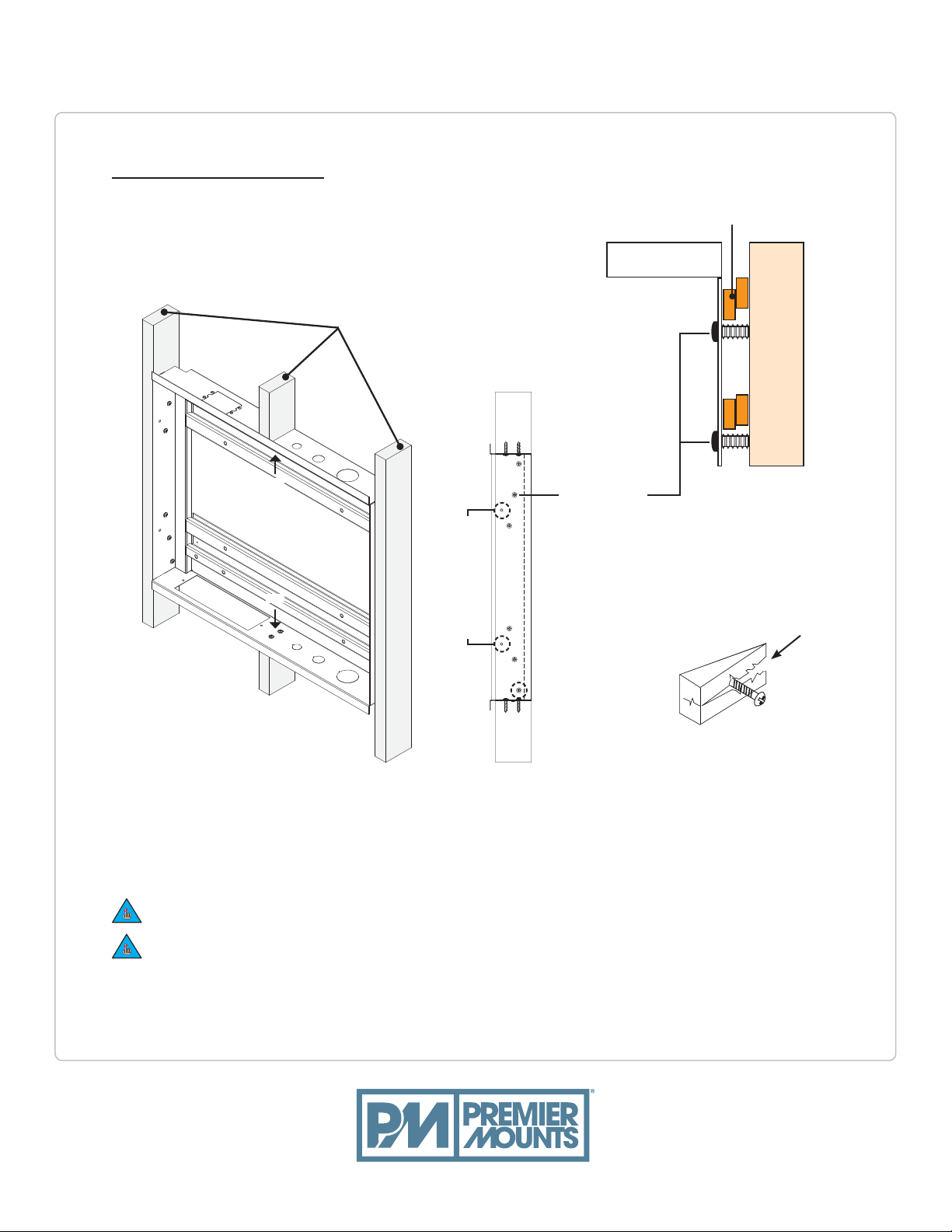

1) Place the inwall box into the opening.

2) Use 1/4” wood shims roughly near each mounting location on either side between the inwall box and wood studs.

3) Install the (16) #14 x 1 1/4” pan head wood screws into the mounting points and tighten down all wood screws. Do not over
tighten screws.

All existing wires must be moved and anchored to either side of the mounting area.

#14 x 1 1/4”

Pan Head

Do not screw into the
shims. May cause the

wood to split in half

Install as many wood shims to help the unit centered and leveled when tightened down.

premiermounts.com | p. 800.368.9700 | e. [e-mail]

Page 5

INW-AM325

Installation Guide

Side Cover Installation

1) Slide the side covers and aligned the mounting holes of the side covers and inwall box.

2) Fasten using four (4) #8 x 1 1/4” Flat Head wood screws and tighten.

#8 x 1 1/4” Flat

Wood Screw (Qty 4)

In-Wall Electrical Box Installation

Pre-wiring must be complete prior to installing the inwall box. Wiring can be routed along the raceway as shown. The electrical
box knockout is sized to accommodate standard RACO junction box.

1) Install the electrical box to the inwall box using two (2) 6/32 x 1/2” screws.

2) The remaining 6/32 x 1/2” screws will be used to attaching the electrical outlet to the juction box.

Raceway (optional

locations)

6/32 x 1/2” screws

Inwall Box

Commercially available:

Outlet Cover
Electrical Outlet
Junction Box (RACO)

For routing

raceway

Inwall

Electrical Box

Page 6

premiermounts.com | p. 800.368.9700 | e. [e-mail]

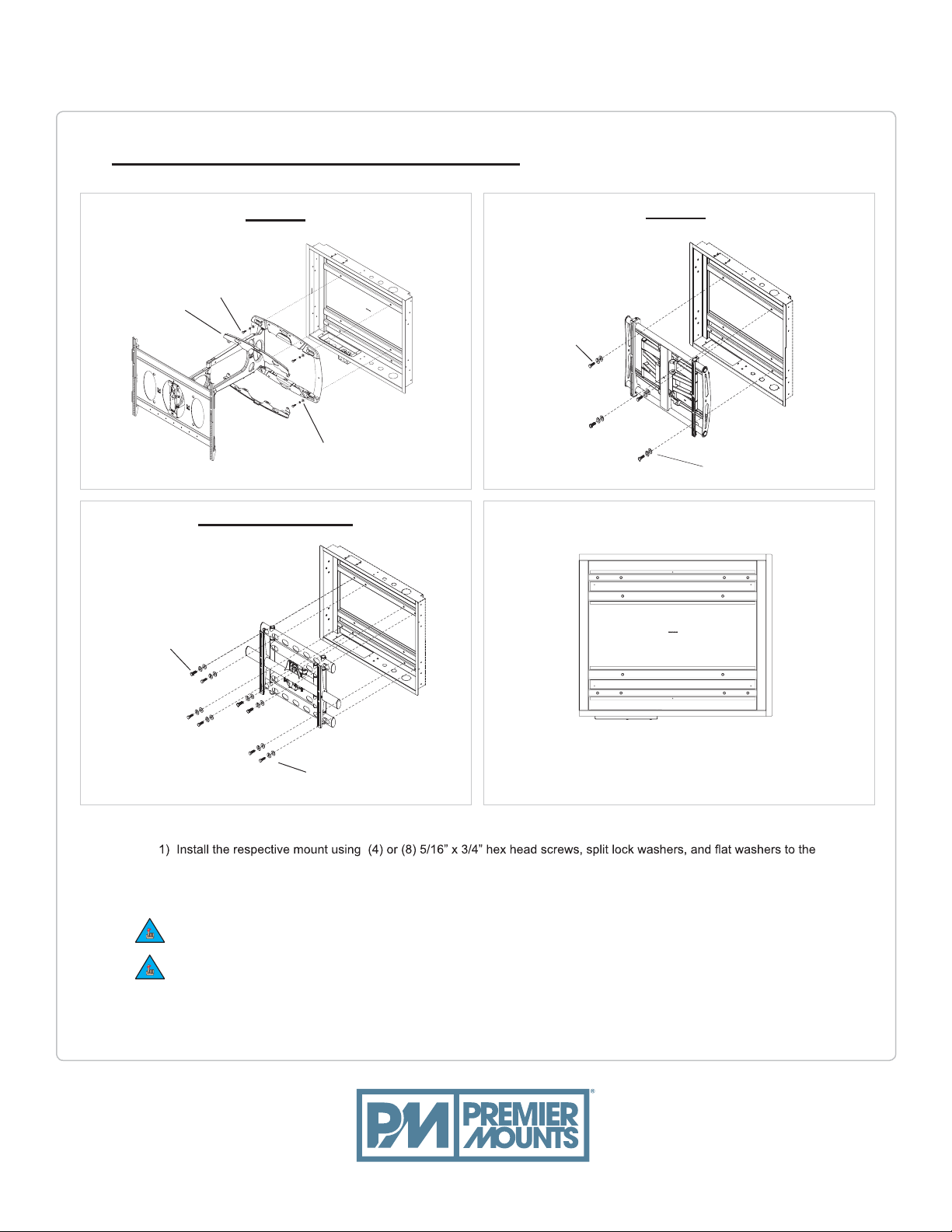

AM100 / AM175 / AM300 / AM300-B Installation

INW-AM325

Installation Guide

Removable

Cover

(8) 5/16” x 3/4”

Hex Bolt

AM100

(4) 5/16” x 3/4”

Hex Bolt

AM300 / AM300-B

(4) 5/16” Split Lock
and (4) Flat Washer

(4) 5/16” x 3/4”

Hex Bolt

B

B

A

A

AM175

(4) 5/16” Split Lock
and (4) Flat Washer

B

B

A

A

B

B

B

B

A - AM100/AM175

(8) 5/16” Split Lock
and (8) Flat Washer

inwall box.
Note: 5/16” Flat washers are from the mount’s hardware kit.

2) Tighten using a socket wrench.

AM100 / AM175 / AM300 / AM300-B installation manuals must be read in conjuction with the following steps.

Place four (4) 1/6” clear bumpers on the mount where the mount comes into contact with either the wall surface or
the inwall box.

B - AM300/AM300-B

premiermounts.com | p. 800.368.9700 | e. [e-mail]

Page 7

INW-AM325

Installation Guide

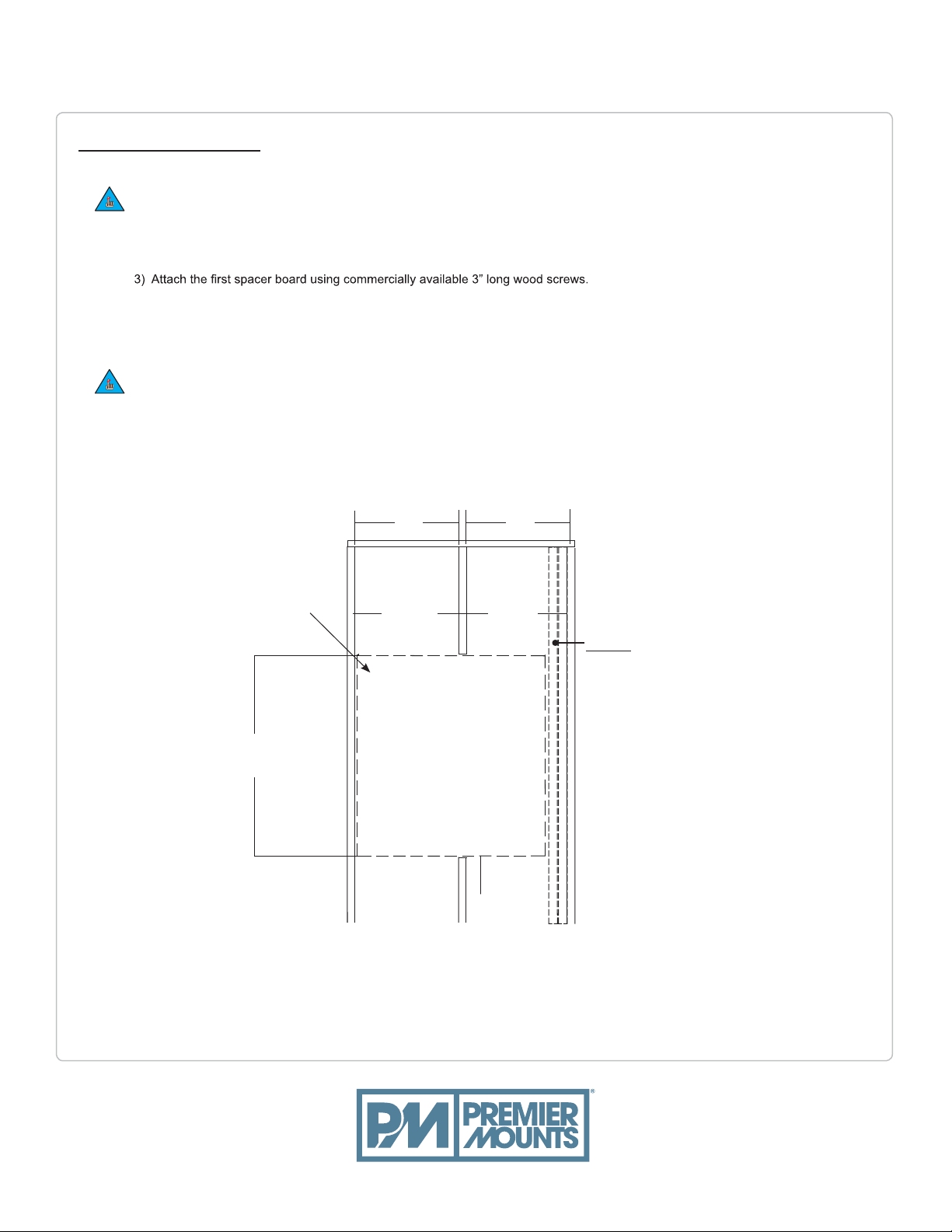

Special Applications

The following instructions cover special applications. If the stud spacing is more than 16” (i.e. 18”, or stud location), the wall
must be re-enforced.

1) Measure from the wood stud to the edge of the inwall box.

2) Add spacer boards to compensate the distance of an standard 16” studed wall.

4) Re-measure the distance from the spacer board to the edge of the in-wall box. If the distance is greater than 2.5”, attach
another spacer board.

5) Refer steps from previous page to install the shims and mounting instructions.

If installing with the AM300, the pivot (where the side the arm is attached) MUST NOT be the same side as where the spacer
boards were installed. The AM300 must be mounted as tightly as possible against the wooden wall stud.

18” 18”

Pivot Arm side of the

mount (AM300)

24 1/4” to 24 3/4”

(615.9mm to 628.65mm)

Wood
Studs

Wood
Studs

Wall Cutout

Line

NOTE:

Install 2” x 4” spacer boards as
neccessary. Full length spacer
board is highly reccommended if
used for this application.

Page 8
