INW-AM100
Wall-Mounted Storage Box for the AM100 Swingout Mount
Installation Guide
premiermounts.com | p. 800.368.9700 | e. [email protected]
500 W Central Ave, Suite A, Brea, CA 92821 USA
Page 2
INW-AM100
Installation Guide

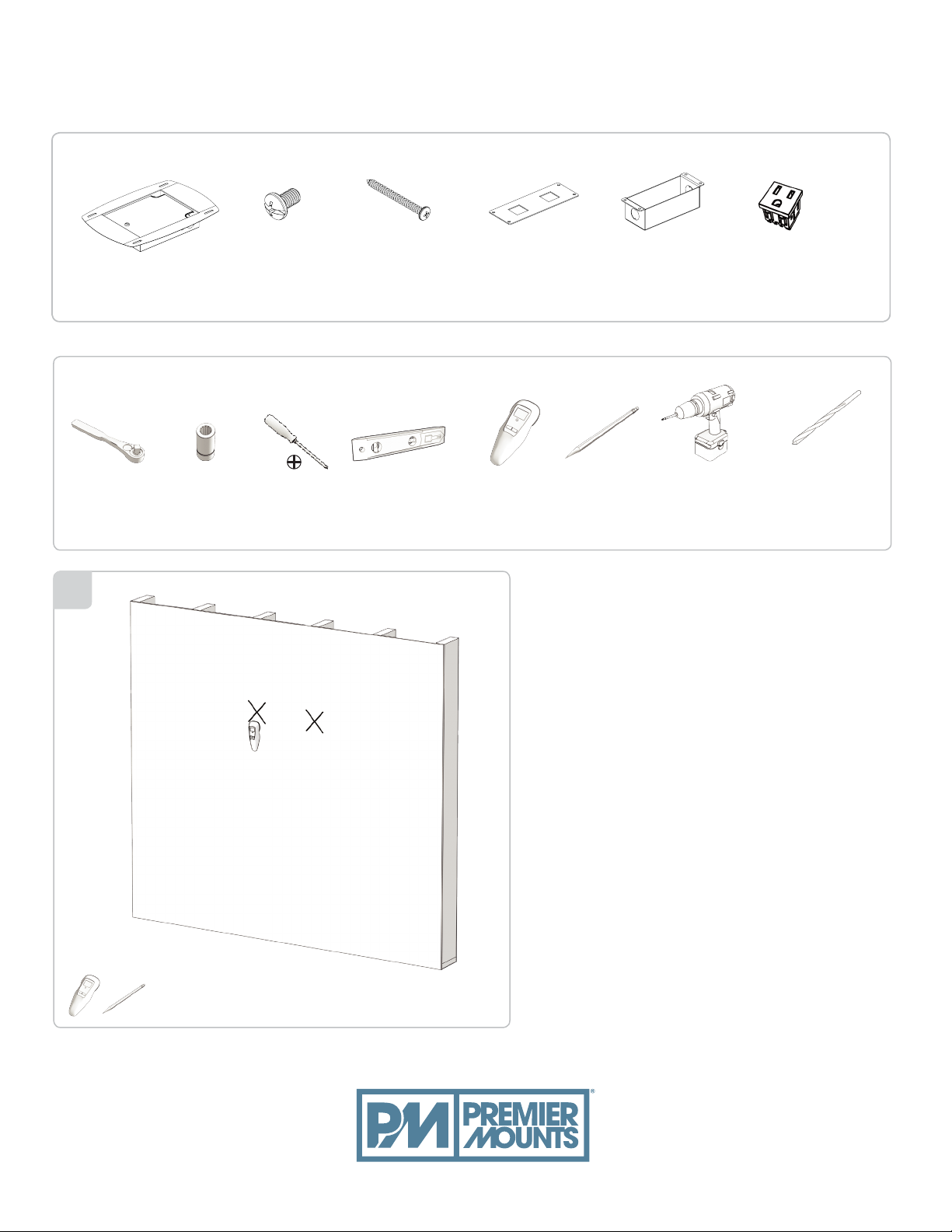

Included Components
M4 x 5mm Screw
In Wall Box
(Qty. 1)
(Qty. 4)
Required for installation
Socket Wrench 1/2” / 14mm Phillips Screw
Driver
1
#10 x 2” Wood Screw
(Qty. 4)
Leveler Wood Stud
Snap In Plate
(Qty. 1)
Finder
Before c utting out the in-wall box hole in th e dr ywall confirm
the tracing and stud hole marking are both level and safely
bet ween the two (2) 16” on- center studs.
Note: When using the INW-AM100 in-wall box as part of the
installation with the AM100 swing out mount, we recommend
using the mounting template supplied with the INW-AM100
to locate and m ark the m ounting h oles.
Snap In Bracket
(Qty. 1)
Pencil Drill Gun 1/4” / 6.5mm
NEMA Plug
(Qty. 1)
Page 2
premiermounts.com | p. 800.368.9700 | e. [email protected]
Page 3
INW-AM100
Installation Guide
2

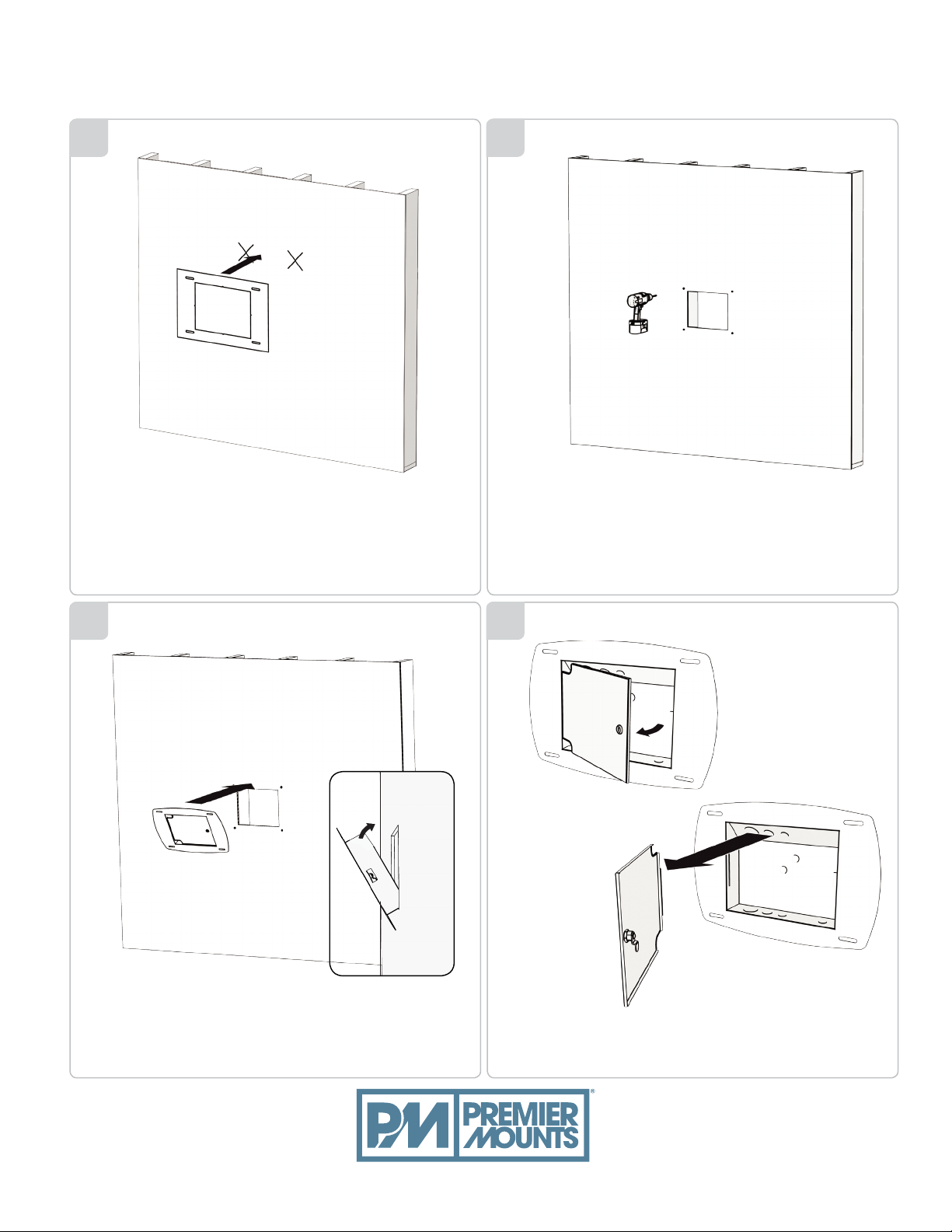

Use the 1/4” dr ill bit to create the initial hole along the trace
line to insert the drywall saw.
3
Caution: M ake sure there are no exposed A/C wires or
signal c ables within th e wall that might be cut while making
the dry wall c utout.
4
Onc e the four (4) mounting holes and square cutouts have
been mad e in the drywall test, insert the in-wall box into the
hole to conf irm proper fit and level.
5

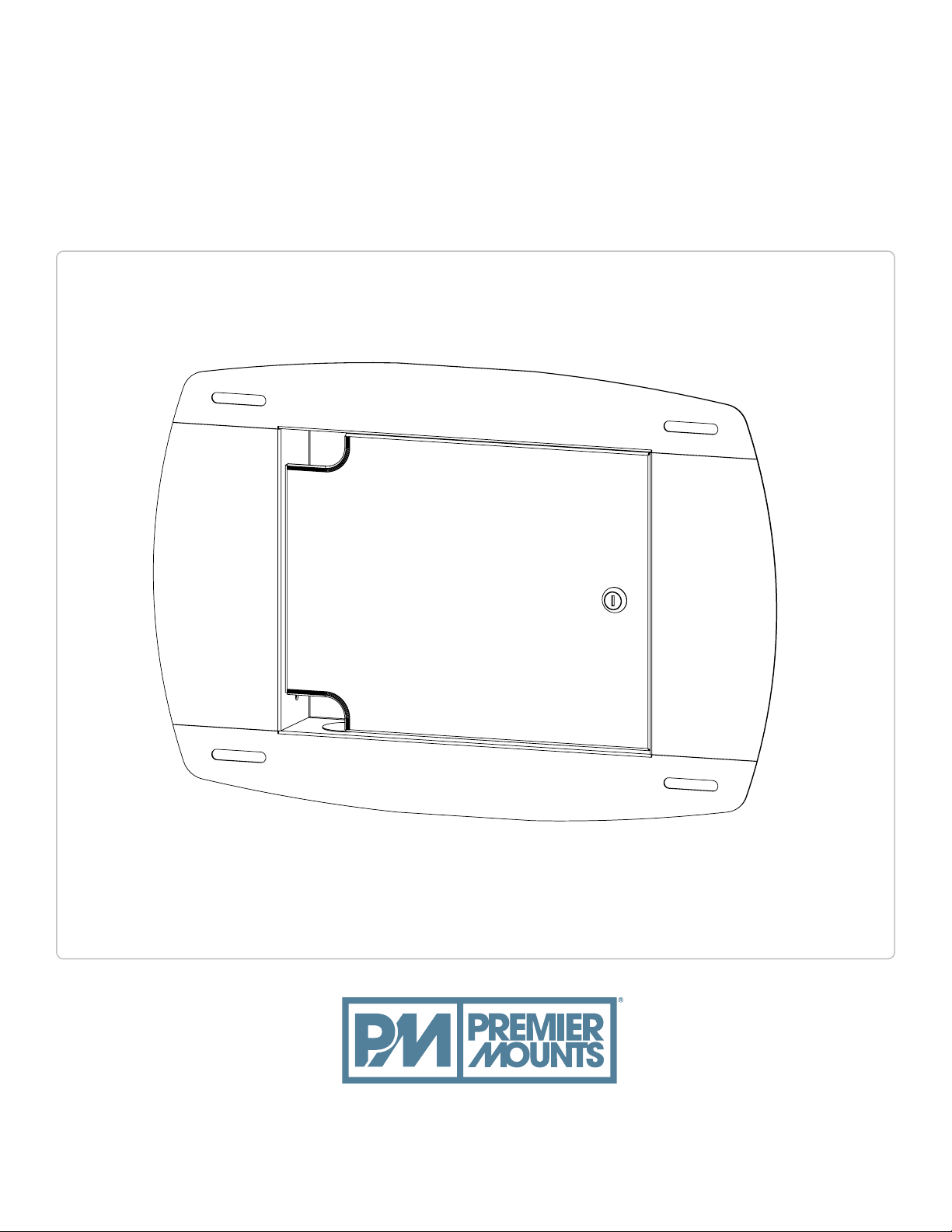

Remove the key lock front cover and set aside fo r later use.
premiermounts.com | p. 800.368.9700 | e. [email protected]
Page 3
Page 4
INW-AM100
Installation Guide
6
7

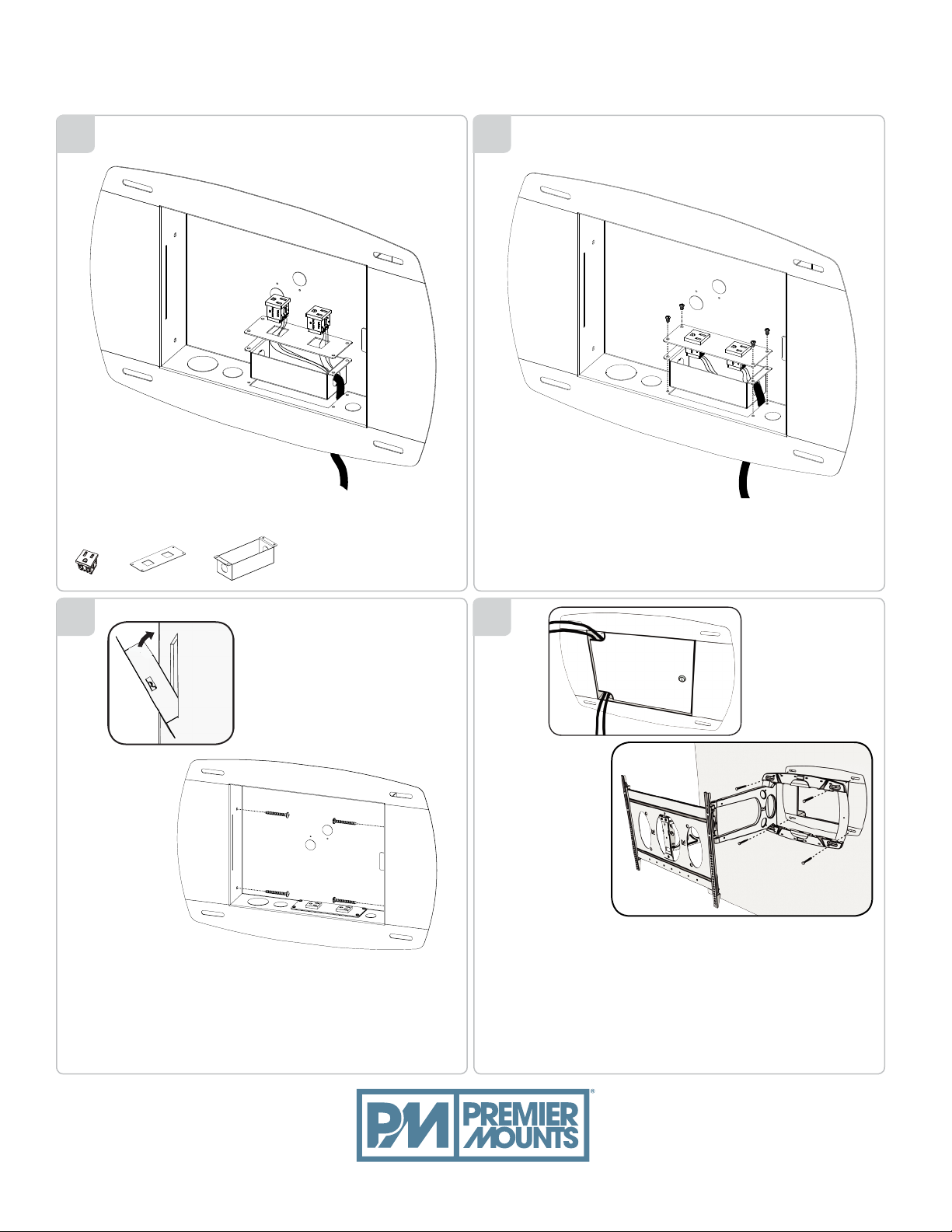

Attach the Snap in Plate and Snap in Bracket to t he In-wall
using four (4) M4 x5 mm sc rews.
8
Fully inser t the in-wall box assembly into the wall opening
insuring the four (4) mounting hole slots are in line with the
pre -drilled stud center pilot mounting holes.
9
Refer to your installation instruction supplied with your
AM100 ar ticulating mount to complete the mounting process
over the in place INW-AM100 in wall b ox.
Onc e the complete in-wall b ox and swing out mount are
firmly installed together on the wall sur face, power an d
signal c ables can be separated and run along the upper and
lower swing out arm cable paths.
